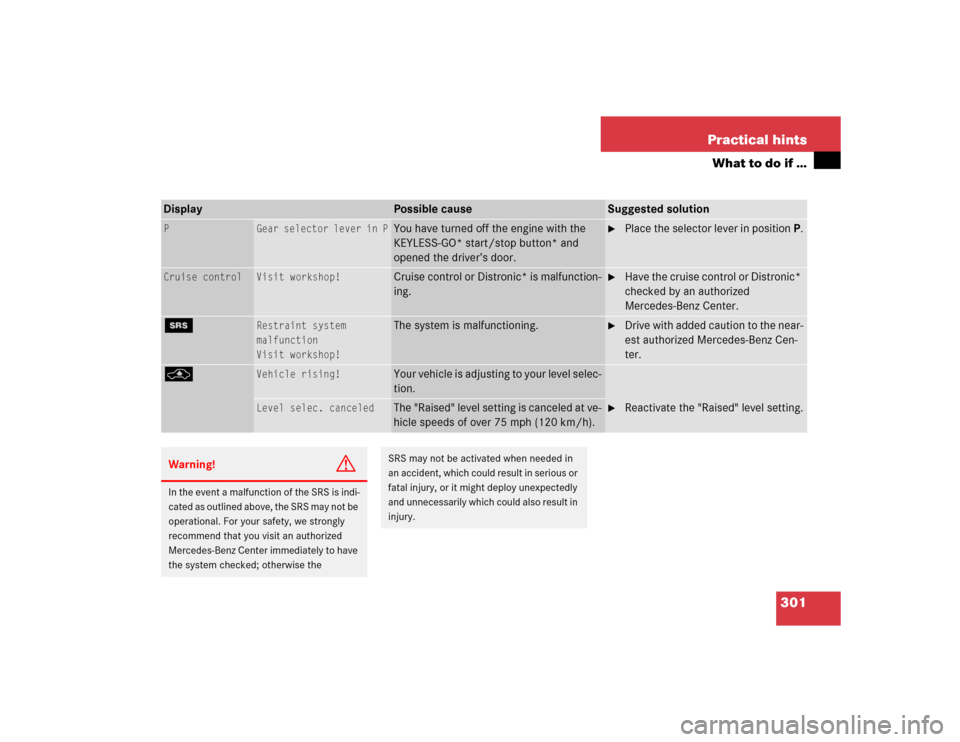

301 Practical hints
What to do if …
P
Gear selector lever in P
You have turned off the engine with the
KEYLESS-GO* start/stop button* and
opened the driver’s door.

Place the selector lever in position P.
Cruise control
Visit workshop!
Cruise control or Distronic* is malfunction-
ing.

Have the cruise control or Distronic*
checked by an authorized
Mercedes-Benz Center.
1
Restraint system
malfunction
Visit workshop!
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz Cen-
ter.
@
Vehicle rising!
Your vehicle is adjusting to your level selec-
tion.
Level selec. canceled
The "Raised" level setting is canceled at ve-
hicle speeds of over 75 mph (120 km/h).

Reactivate the "Raised" level setting.
Display
Possible cause
Suggested solution
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the
SRS may not be activated when needed in
an accident, which could result in serious or
fatal injury, or it might deploy unexpectedly
and unnecessarily which could also result in
injury.

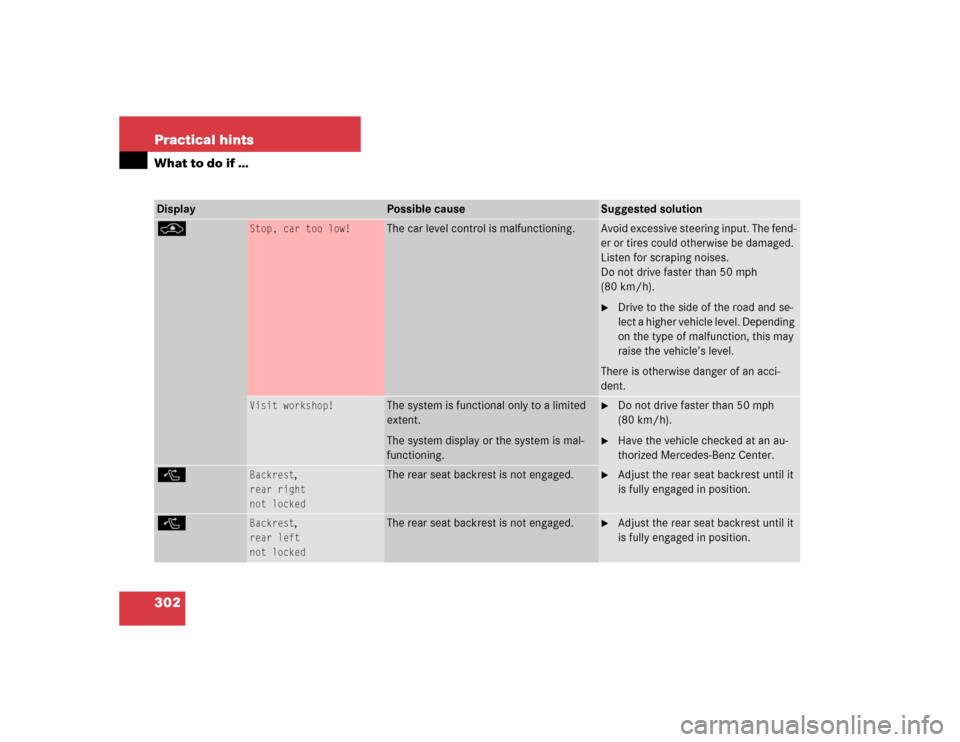

302 Practical hintsWhat to do if …Display
Possible cause
Suggested solution
@
Stop, car too low!
The car level control is malfunctioning.
Avoid excessive steering input. The fend-
er or tires could otherwise be damaged.
Listen for scraping noises.
Do not drive faster than 50 mph
(80 km/h).
Drive to the side of the road and se-
lect a higher vehicle level. Depending
on the type of malfunction, this may
raise the vehicle’s level.
There is otherwise danger of an acci-
dent.
Visit workshop!
The system is functional only to a limited
extent.
The system display or the system is mal-
functioning.

Do not drive faster than 50 mph
(80 km/h).

Have the vehicle checked at an au-
thorized Mercedes-Benz Center.
(
Backrest
,
rear right
not locked
The rear seat backrest is not engaged.

Adjust the rear seat backrest until it
is fully engaged in position.
(
Backrest
,
rear left
not locked
The rear seat backrest is not engaged.

Adjust the rear seat backrest until it
is fully engaged in position.

303 Practical hints
What to do if …
G
Display defective
The instrument cluster display is malfunc-
tioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz
Center as soon as possible.
G

Display defective
Visit workshop!
The displays for several systems have mal-
functioned. Some systems themselves may
also have malfunctioned.

Have the electronic systems
checked by an authorized
Mercedes-Benz Center.
L
Visit workshop!
One or more main functions of the Tele Aid
system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Cen-
ter.
#
Malfunction
Electrical consumers
switched off
The consumer battery has insufficient volt-
age and can no longer supply the conve-
nience functions such as seat ventilation*.
The electrical consumers will come back
online as soon as on-board voltage is
sufficient.
#
Battery/Alternator
Stop vehicle!
The battery is malfunctioning.
The SBC brake system requires electrical
energy and therefore has only limited oper-
ation. Considerably greater brake pedal
force is required and the stopping distance
is increased.

Stop the vehicle as soon as it is safe
to do so. Adjust driving to be consis-
tent with reduced braking respon-
siveness.

Notify an authorized Mercedes-Benz
Center.
#
Undervoltage
Charge battery
The battery has insufficient voltage.

Start the engine (
page 43).
Display
Possible cause
Suggested solution

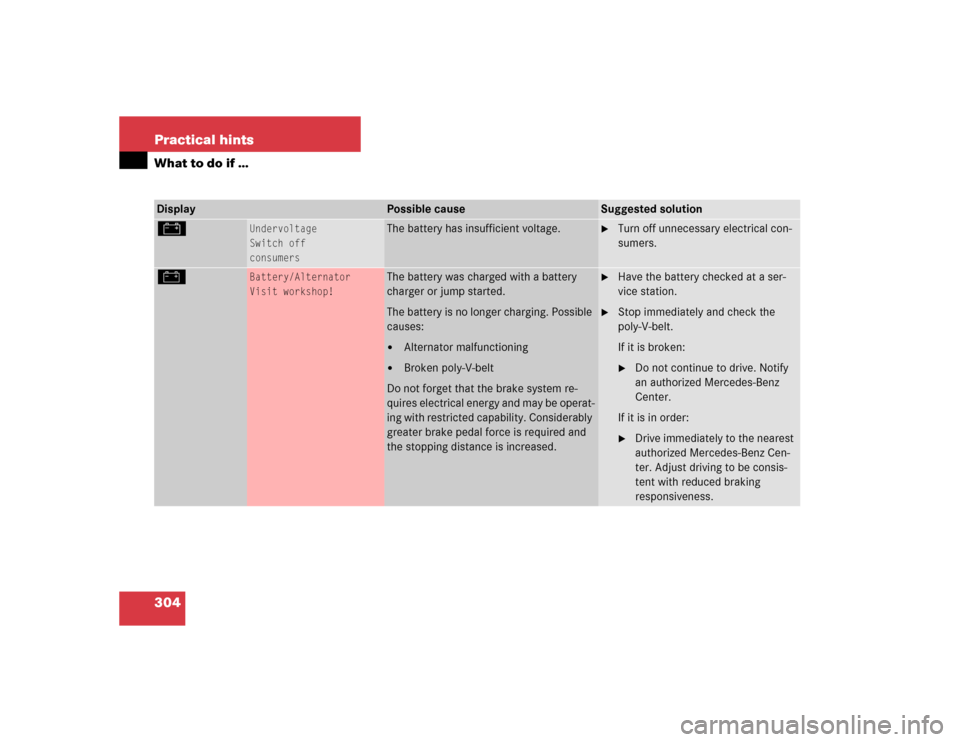

304 Practical hintsWhat to do if …#
Undervoltage
Switch off
consumers
The battery has insufficient voltage.

Turn off unnecessary electrical con-
sumers.
–
Battery/Alternator
Visit workshop!
The battery was charged with a battery
charger or jump started.
The battery is no longer charging. Possible
causes:

Alternator malfunctioning


Broken poly-V-belt
Do not forget that the brake system re-
quires electrical energy and may be operat-
ing with restricted capability. Considerably
greater brake pedal force is required and
the stopping distance is increased.

Have the battery checked at a ser-
vice station.

Stop immediately and check the
poly-V-belt.
If it is broken:
Do not continue to drive. Notify
an authorized Mercedes-Benz
Center.
If it is in order:

Drive immediately to the nearest
authorized Mercedes-Benz Cen-
ter. Adjust driving to be consis-
tent with reduced braking
responsiveness.
Display
Possible cause
Suggested solution

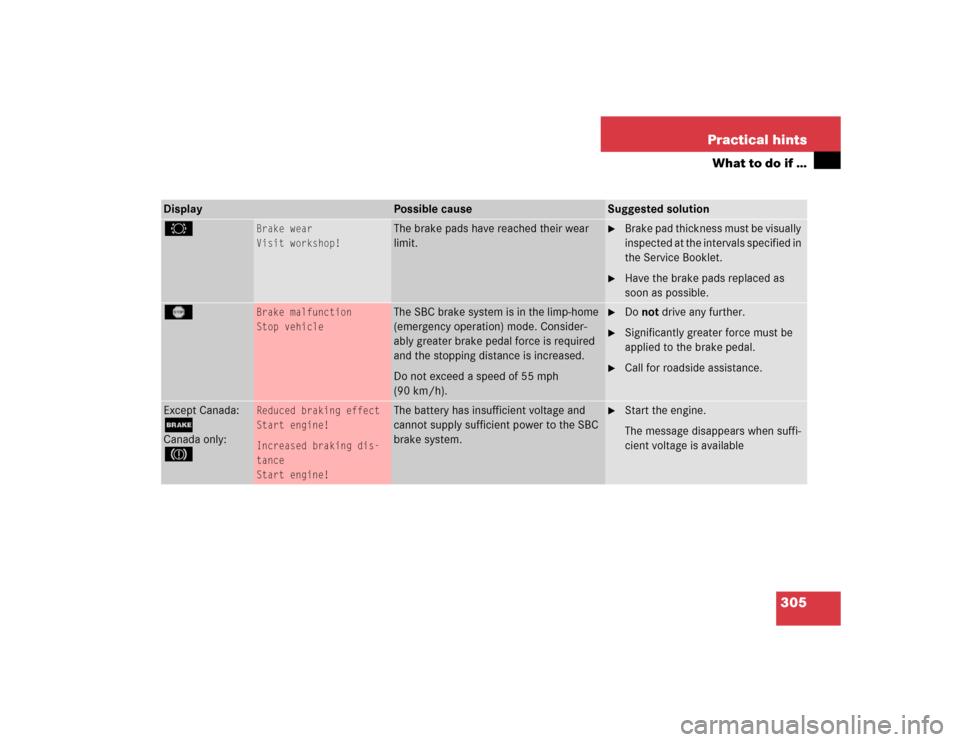

305 Practical hints
What to do if …
2
Brake wear
Visit workshop!
The brake pads have reached their wear
limit.

Brake pad thickness must be visually
inspected at the intervals specified in
the Service Booklet.

Have the brake pads replaced as
soon as possible.
T
Brake malfunction
Stop vehicle
The SBC brake system is in the limp-home
(emergency operation) mode. Consider-
ably greater brake pedal force is required
and the stopping distance is increased.
Do not exceed a speed of 55 mph
(90 km/h).

Do not drive any further.

Significantly greater force must be
applied to the brake pedal.

Call for roadside assistance.
Except Canada:;Canada only:3
Reduced braking effect
Start engine!
Increased braking dis-
tance
Start engine!
The battery has insufficient voltage and
cannot supply sufficient power to the SBC
brake system.

Start the engine.
The message disappears when suffi-
cient voltage is available
Display
Possible cause
Suggested solution

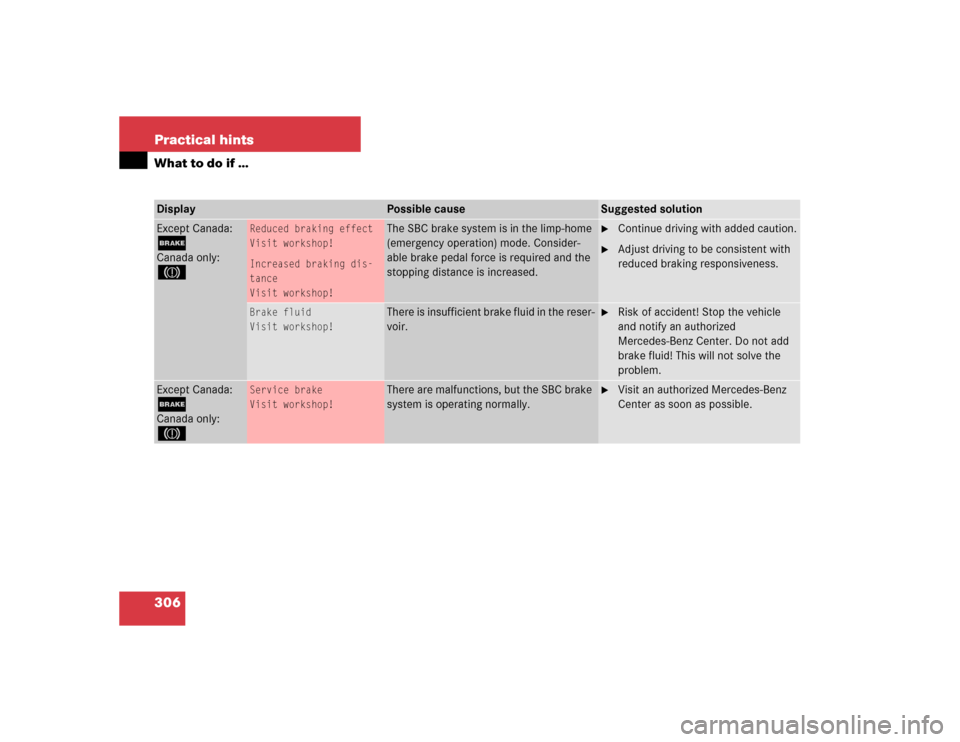

306 Practical hintsWhat to do if …Except Canada:;Canada only:3
Reduced braking effect
Visit workshop!
Increased braking dis-
tance
Visit workshop!
The SBC brake system is in the limp-home
(emergency operation) mode. Consider-
able brake pedal force is required and the
stopping distance is increased.

Continue driving with added caution.

Adjust driving to be consistent with
reduced braking responsiveness.
Brake fluid
Visit workshop!
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Stop the vehicle
and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Except Canada:;Canada only:3
Service brake
Visit workshop!
There are malfunctions, but the SBC brake
system is operating normally.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Display
Possible cause
Suggested solution

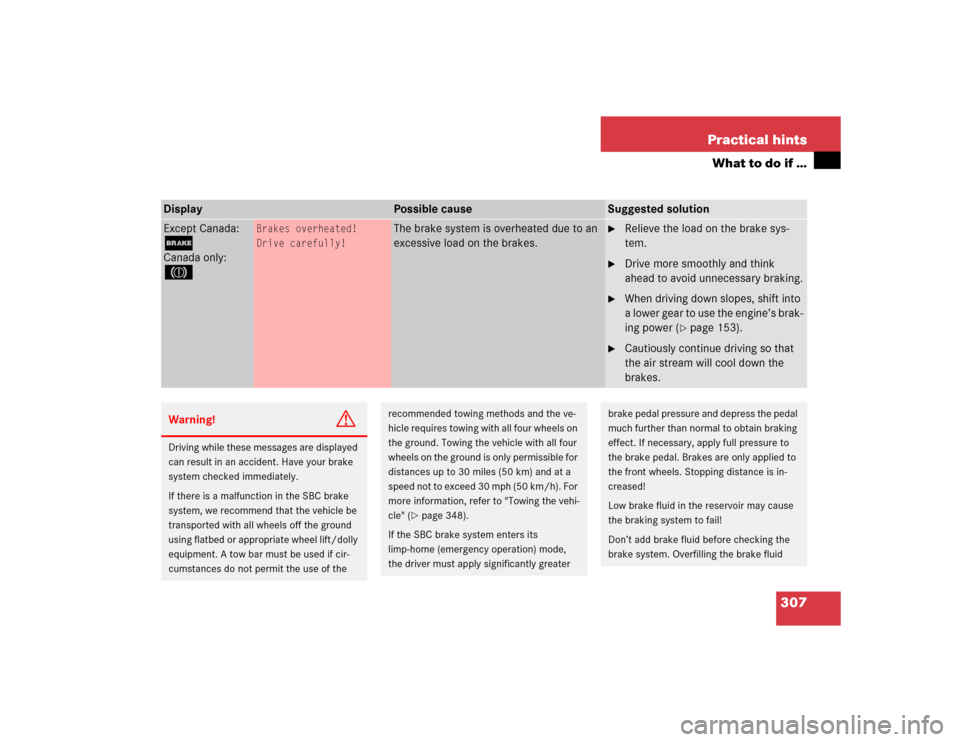

307 Practical hints
What to do if …
Except Canada:;Canada only:3
Brakes overheated!
Drive carefully!
The brake system is overheated due to an
excessive load on the brakes.

Relieve the load on the brake sys-
tem.

Drive more smoothly and think
ahead to avoid unnecessary braking.

When driving down slopes, shift into
a lower gear to use the engine’s brak-
ing power (
page 153).

Cautiously continue driving so that
the air stream will cool down the
brakes.
Display
Possible cause
Suggested solution
Warning!
G
Driving while these messages are displayed
can result in an accident. Have your brake
system checked immediately.
If there is a malfunction in the SBC brake
system, we recommend that the vehicle be
transported with all wheels off the ground
using flatbed or appropriate wheel lift/dolly
equipment. A tow bar must be used if cir-
cumstances do not permit the use of the
recommended towing methods and the ve-
hicle requires towing with all four wheels on
the ground. Towing the vehicle with all four
wheels on the ground is only permissible for
distances up to 30 miles (50 km) and at a
speed not to exceed 30 mph (50 km/h). For
more information, refer to "Towing the vehi-
cle" (
page 348).
If the SBC brake system enters its
limp-home (emergency operation) mode,
the driver must apply significantly greater
brake pedal pressure and depress the pedal
much further than normal to obtain braking
effect. If necessary, apply full pressure to
the brake pedal. Brakes are only applied to
the front wheels. Stopping distance is in-
creased!
Low brake fluid in the reservoir may cause
the braking system to fail!
Don’t add brake fluid before checking the
brake system. Overfilling the brake fluid

308 Practical hintsWhat to do if …reservoir can result in spilling brake fluid on
hot engine parts and the brake fluid catch-
ing fire. You can be seriously burned.iIf you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.!Brake pad thickness must be visually
inspected at the intervals specified in
the Service Booklet.

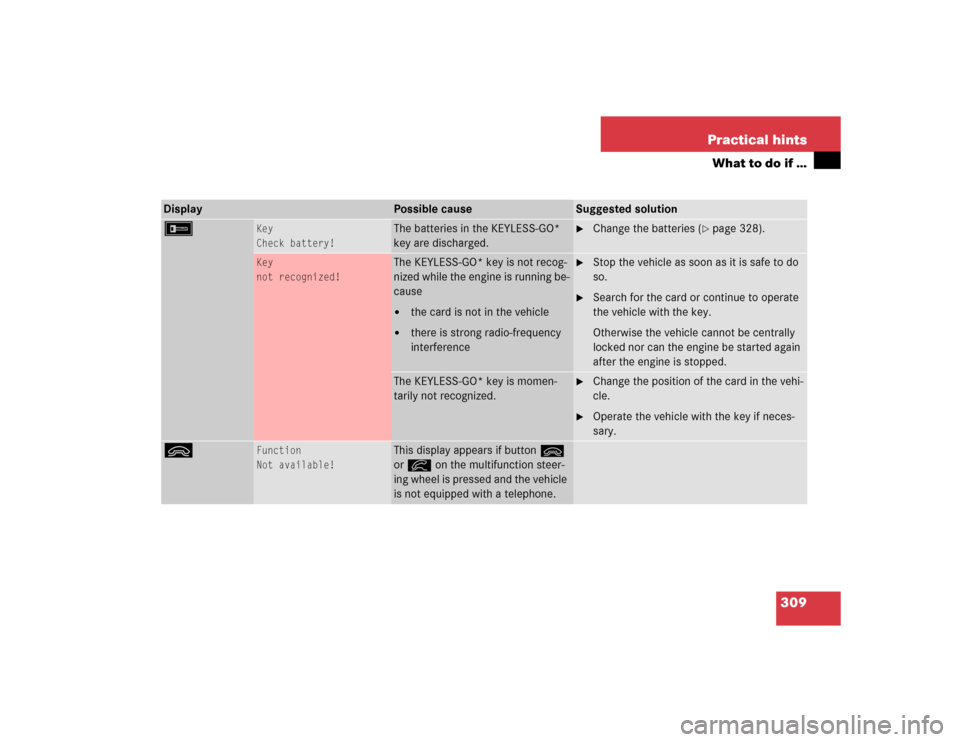

309 Practical hints
What to do if …
Display
Possible cause
Suggested solution
F
Key
Check battery!
The batteries in the KEYLESS-GO*
key are discharged.

Change the batteries (
page 328).
Key
not recognized!
The KEYLESS-GO* key is not recog-
nized while the engine is running be-
cause

the card is not in the vehicle


there is strong radio-frequency
interference

Stop the vehicle as soon as it is safe to do
so.

Search for the card or continue to operate
the vehicle with the key.
Otherwise the vehicle cannot be centrally
locked nor can the engine be started again
after the engine is stopped.
The KEYLESS-GO* key is momen-
tarily not recognized.

Change the position of the card in the vehi-
cle.

Operate the vehicle with the key if neces-
sary.
ì
Function
Not available!
This display appears if button ì
or í on the multifunction steer-
ing wheel is pressed and the vehicle
is not equipped with a telephone.

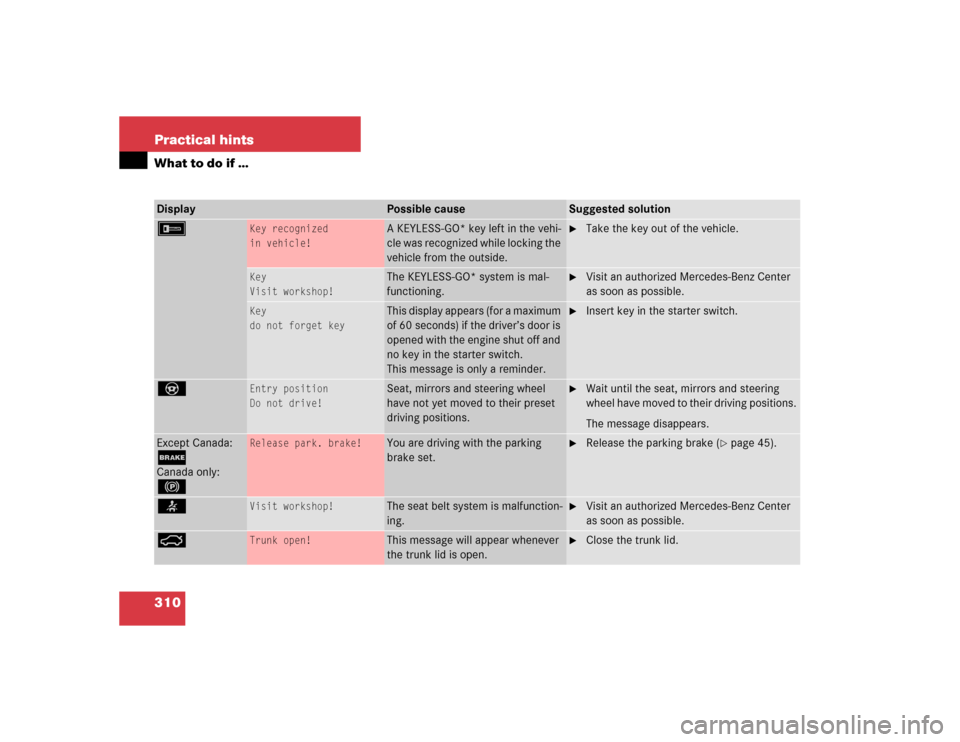

310 Practical hintsWhat to do if …F
Key recognized
in vehicle!
A KEYLESS-GO* key left in the vehi-
cle was recognized while locking the
vehicle from the outside.

Take the key out of the vehicle.
Key
Visit workshop!
The KEYLESS-GO* system is mal-
functioning.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Key
do not forget key
This display appears (for a maximum
of 60 seconds) if the driver’s door is
opened with the engine shut off and
no key in the starter switch.
This message is only a reminder.

Insert key in the starter switch.
_
Entry position
Do not drive!
Seat, mirrors and steering wheel
have not yet moved to their preset
driving positions.

Wait until the seat, mirrors and steering
wheel have moved to their driving positions.
The message disappears.
Except Canada:;Canada only:!
Release park. brake!
You are driving with the parking
brake set.

Release the parking brake (
page 45).
<
Visit workshop!
The seat belt system is malfunction-
ing.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Ê
Trunk open!
This message will appear whenever
the trunk lid is open.

Close the trunk lid.
Display
Possible cause
Suggested solution
