361 Technical data
Rims and tires
Rims and tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as:

Poor handling characteristics


Increased noise


Increased fuel consumption
Same-sized tires
!Moreover, tires and rims not approved
by Mercedes-Benz may under load ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle can be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er cap of the vehicle. The tire pressure
should only be adjusted on cold tires.
Follow the tire manufacturer’s mainte-
nance recommendation included with
the vehicle.
E320
E500
Rims (light alloy)
8J x 16 ET 39
8½J x 17 ET 38
Wheel offset
1.53 in (39 mm)
1.5 in (38 mm)
Summer tires (radial-ply tires)
225/55 R 16 95 H
245/45 R 17 95 H
1
Winter tires (radial-ply tires)
225/55 R 16 95 H M+S
245/45 R 17 95 H M+S
1
1Must not be used with snow chains.

362 Technical dataRims and tiresMinispare wheel
Sport package
E320 / E500
Rim
4J x 17 ET 34
Wheel offset
1.34 (34 mm)
Tire
T 155/70 R 17
1
1Must not be used with snow chains.
E320*/ E500*
Same-sized
tiresRims
(light alloy)
8J x 17 ET 38
Wheel offset
1.5 in (38 mm)
Summer tires
(radial-ply tires)
245/45 R 17 95 H
1
Winter tires
(radial-ply tires)
245/45 R 17 95 M+S
1
1Must not be used with snow chains.

363 Technical data
Electrical system
Electrical system
Model
E320
E500
Generator (alternator)
14 V/120 A
14 V/120 A
Starter motor
14 V/1.4 KW
14 V/1.7 KW
Battery (auxiliary)
12 V/12 Ah
12 V/12 Ah
Battery (main)
12 V/95 Ah
12 V/95 Ah
Spark plugs
Bosch F8 DPP 332U
NGK PFR 5R-11
Bosch F8 DPP 332U
NGK PFR 5R-11
Electrode gap
0.039 in (1.00 mm)
0.039 in (1.00 mm)
Tightening torque
18.5 - 22 ft.lb (25 - 30 Nm)
18.5 - 22 ft.lb (25 - 30 Nm)

364 Technical dataMain dimensions
Main dimensionsModel
E320
E500
Overall vehicle length
189.7 in (4818 mm)
189.7 in (4818 mm)
Overall vehicle width
78.3 in (1990 mm)
78.3 in (1990 mm)
Overall vehicle height
57.2 in (1452 mm)
Overall vehicle height (AIRMATIC DC*)
(optional on E320; standard on E500)
56.2 in (1428 mm)
56.3 in (1430 mm)
Wheelbase
112.4 in (2854 mm)
112.4 in (2854 mm)
Track, front
62.1 in (1577 mm)
62.1 in (1577 mm)
Track, rear
61.8 in (1570 mm)
61.8 in (1570 mm)

365 Technical data
Weights
Weights
Roof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)

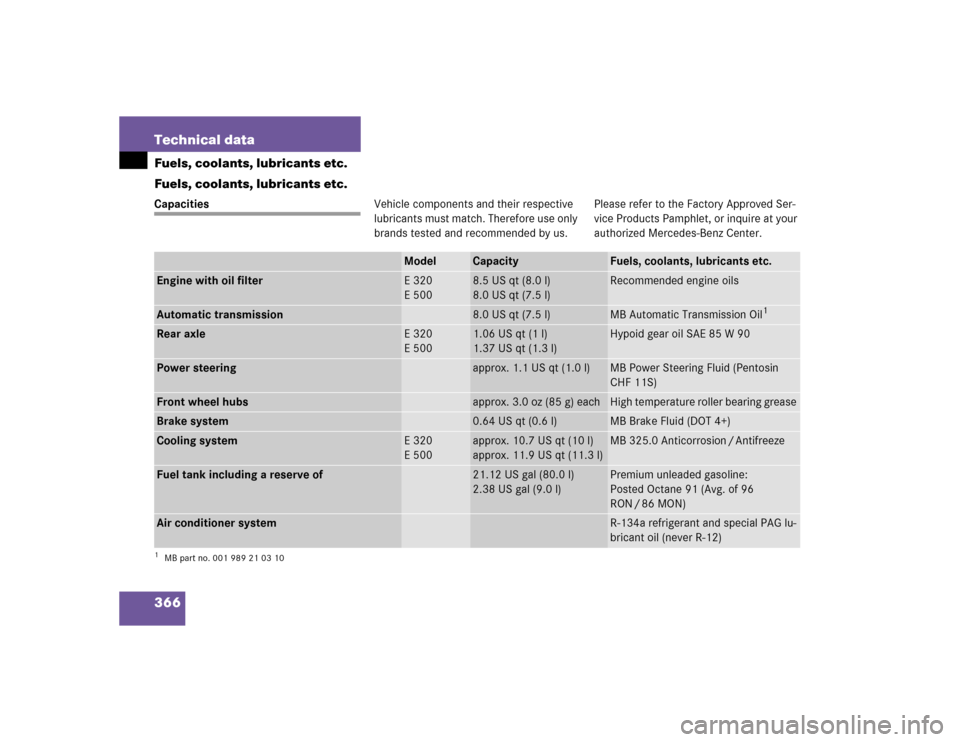

366 Technical dataFuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and recommended by us.Please refer to the Factory Approved Ser-
vice Products Pamphlet, or inquire at your
authorized Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
E320
E500
8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
Recommended engine oils
Automatic transmission
8.0 US qt (7.5 l)
MB Automatic Transmission Oil
1
1MB part no. 001 989 21 03 10Rear axle
E320
E500
1.06 US qt (1 l)
1.37 US qt (1.3 l)
Hypoid gear oil SAE 85 W 90
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
0.64 US qt (0.6 l)
MB Brake Fluid (DOT 4+)
Cooling system
E320
E500
approx. 10.7 US qt (10 l)
approx. 11.9 US qt (11.3 l)
MB 325.0 Anticorrosion / Antifreeze
Fuel tank including a reserve of
21.12 US gal (80.0 l)
2.38 US gal (9.0 l)
Premium unleaded gasoline:
Posted Octane 91 (Avg. of 96
RON / 86 MON)
Air conditioner system
R-134a refrigerant and special PAG lu-
bricant oil (never R-12)

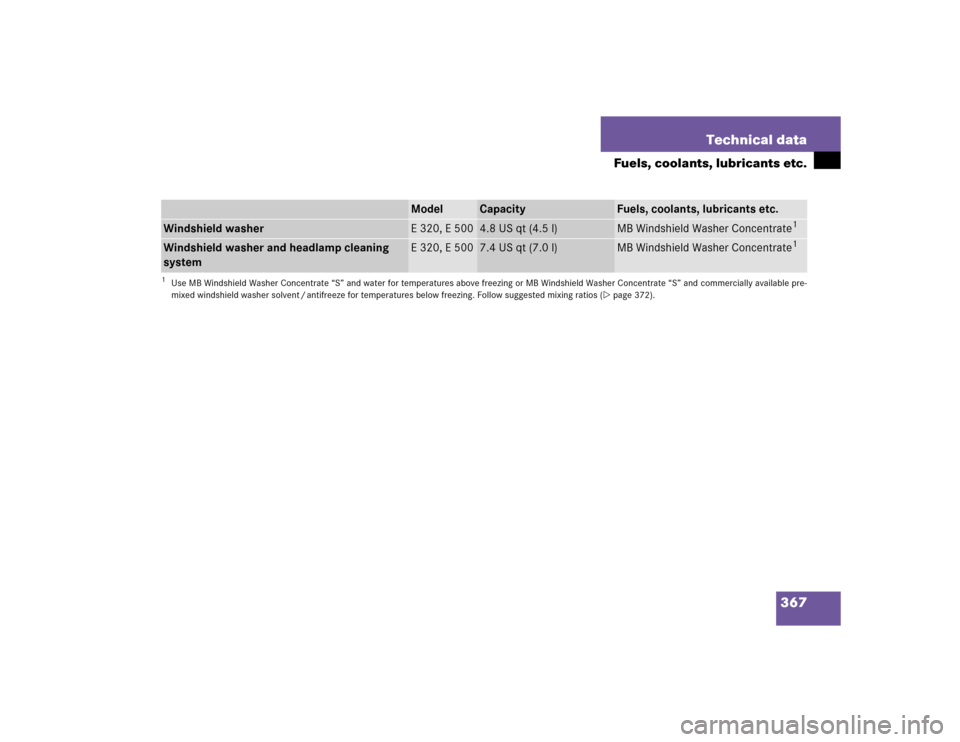

367 Technical data
Fuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Windshield washer
E320, E500
4.8 US qt (4.5 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent / antifreeze for temperatures below freezing. Follow suggested mixing ratios (page 372).Windshield washer and headlamp cleaning
system
E320, E500
7.4 US qt (7.0 l)
MB Windshield Washer Concentrate
1

368 Technical dataFuels, coolants, lubricants etc.Engine oils
Engine oils are specifically tested for their
suitability in our engines. Therefore, use
only engine oils recommended by
Mercedes-Benz. Information on recom-
mended brands is available in the Factory
Approved Service Products Pamphlet, or at
your authorized Mercedes-Benz Center.
Please follow FSS recommendations for
scheduled oil changes. Failure to do so
could result in engine damage not covered
by the Mercedes-Benz Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may be harmful to the engine opera-
tion.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioner refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil is used in the air conditioner
system.
Never use R-12 (CFC) or mineral-based lu-
bricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency.
Therefore, the brake fluid must be re-
placed every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.

369 Technical data
Fuels, coolants, lubricants etc.
Premium unleaded gasoline
Fuel requirements
Use only premium unleaded gasoline
meeting ASTM standard D 439:

The octane number (posted at the
p um p) m us t be 91 mi n. It i s an a vera ge
of both the Research (R) Octane Num-
ber and the Motor (M) Octane Number:
(R+M) / 2). This is also known as the
ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE is not to exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
Gasoline additives
A major concern among engine manufac-
turers is carbon build-up caused by gaso-
line. Mercedes-Benz recommends only the
use of quality gasoline containing additives
that prevent the build-up of carbon depos-
its.
After an extended period of using fuels
without such additives, carbon deposits
can build up especially on the intake valves
and in the combustion area, leading to en-
gine performance problems such as:

Warm-up hesitation


Unstable idle


Knocking/pinging


Misfire


Power loss
Do not blend any specific fuel additives
with fuel. This only results in unnecessary
costs and may be harmful to the engine op-
eration.
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
gasoline is not available and low octane
fuel is used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible


Avoid full throttle driving and abrupt
acceleration


Do not exceed an engine speed of
3000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage


Do not exceed 2/3 of maximum ac-
celerator pedal position if the vehi-
cle is fully loaded or operating in
mountainous terrain

370 Technical dataFuels, coolants, lubricants etc.Damage or malfunctions resulting from
poor fuel quality or from blending specific
fuel additives are not covered by the
Mercedes-Benz Limited Warranty.Coolants
The engine coolant is a mixture of water
and anticorrosion / antifreeze, which pro-
vides:

Corrosion protection


Freeze protection


Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -22°F (-30°C) and corro-
sion protection.If the antifreeze mixture is effective to
-22°F (-30°C), the boiling point of the cool-
ant in the pressurized cooling system is
reached at approximately 266°F (130°C).
The coolant solution must be used
year-round to provide the necessary corro-
sion protection and increase boil-over pro-
tection. You should have it replaced every
15 years or 150 000 miles (250 000 km),
whichever comes first.
Coolant system design and coolant used
stipulate the replacement interval. The
above replacement interval is only applica-
ble if MB 325.0 anticorrosion/antifreeze
solution or other Mercedes-Benz approved
products of equal specification (see Facto-
ry Approved Service Products pamphlet)
are used to renew the coolant concentra-
tion or bring it back up to the proper level. To provide important corrosion protection,
the solution must be at least 45% anticor-
rosion/antifreeze [equivalent to freeze
protection to approx. - 22°F (-30°C)]. If
you use a solution that is more than 55%
anticorrosion/antifreeze [freeze protec-
tion to approx. - 49°F (-45°C)], the engine
temperature will increase due to the lower
heat transfer capability of the solution.
Therefore, do not use more than this
amount of anticorrosion/antifreeze.
