MERCEDES-BENZ E550 4MATIC 2007 W211 Owner's Manual

340 OperationTires and wheelsCertification label
Even after careful determination of the
combined weight of all occupants, cargo
and the trailer tongue load (if applicable)
(page 340) as to not exceed the permis-
sible load limit, you must make sure that
your vehicle never exceeds the Gross Vehi-
cle Weight Rating (GVWR) and the Gross
Axle Weight Rating (GAWR) for either the
front or rear axle. You can obtain the
GVWR and GAWR from the certification la-
bel. The certification label can be found on
the driver’s door B-pillar, see “Technical
data” (
page 476).Gross Vehicle Weight Rating (GVWR): The
total weight of the vehicle, all occupants,
all cargo, and the trailer tongue load
(
page 340) must never exceed the
GVWR.
Gross Axle Weight Rating (GAWR): The to-
tal allowable weight that can be carried by
a single axle (front or rear).
To assure that your vehicle does not ex-
ceed the maximum permissible weight
limits (GVWR and GAWR for front and rear
axle), have the loaded vehicle (including
driver, passengers and all cargo and, if ap-
plicable, trailer fully loaded) weighed on a
suitable commercial scale.Trailer tongue load
The tongue load of any trailer is an impor-
tant weight to measure because it affects
the load you can carry in your vehicle. If a
trailer is towed, the tongue load must be
added to the weight of all occupants riding
and any cargo you are carrying in the
vehicle. The tongue load typically is
10 percent of the trailer weight and every-
thing loaded in it.
Your Mercedes-Benz has been designed
primarily to carry passengers and their
cargo. Mercedes-Benz does not recom-
mend trailer towing with your vehicle.

341 Operation
Tires and wheels
Recommended tire inflation pressure
Your vehicle is equipped with either the
Tire and Loading Information placard locat-
ed on the driver’s door B-pillar
(page 336).The tire inflation pressure should be
checked regularly and should only be ad-
justed on cold tires. The tires can be con-
sidered cold if the vehicle has been parked
for at least 3 hours or driven less than
1 mile (1.6 km).
Follow recommended cold tire inflation
pressures listed on Tire and Loading
Information placard on the driver’s door
B-pillar.
Keeping the tires properly inflated
provides the best handling, tread life and
riding comfort.
In addition to the Tire and Loading
Information placard on the driver’s door
B-pillar, also consult the fuel filler flap for
any additional information pertaining to
special driving situations. For more infor-
mation, see “Important notes on tire infla-
tion pressure” (

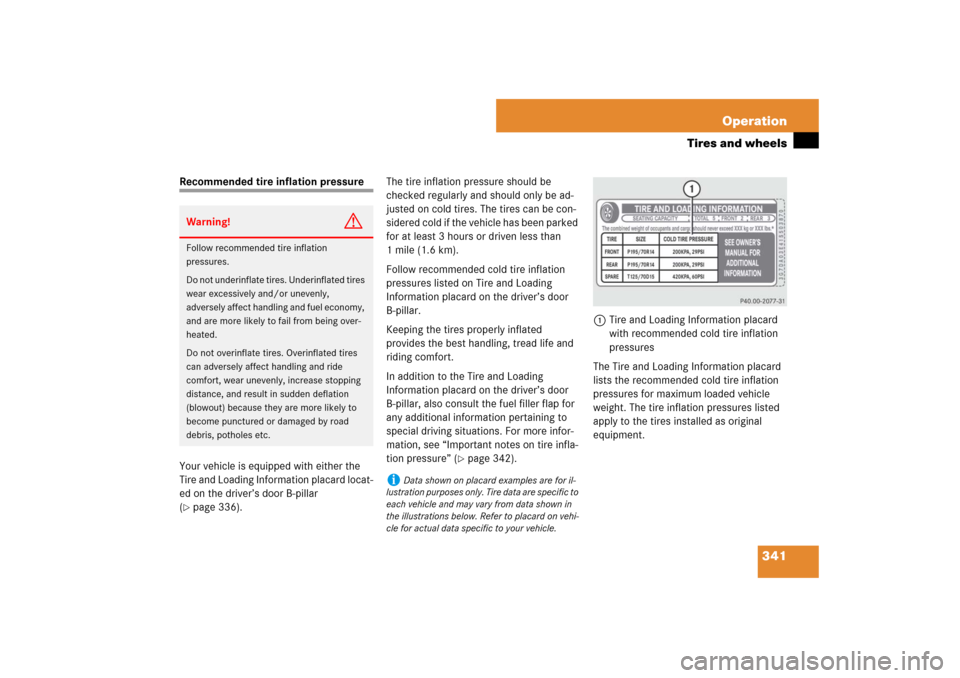

page 342).1Tire and Loading Information placard
with recommended cold tire inflation
pressures
The Tire and Loading Information placard
lists the recommended cold tire inflation
pressures for maximum loaded vehicle
weight. The tire inflation pressures listed
apply to the tires installed as original
equipment.
Warning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
i
Data shown on placard examples are for il-
lustration purposes only. Tire data are specific to
each vehicle and may vary from data shown in
the illustrations below. Refer to placard on vehi-
cle for actual data specific to your vehicle.

342 OperationTires and wheelsImportant notes on tire inflation
pressure
Tire temperature and tire inflation pressure
are also increased while driving, depending
on the driving speed and the tire load.
If you will be driving your vehicle at high
speeds of 100 mph (160km/h) or higher,
where it is legal and conditions allow,
consult the placard on the inside of the fuel
filler flap on how to adjust the cold tire in-
flation pressure. If you do not adjust the
tire inflation pressure, excessive heat can
build up and result in sudden tire failure.Be sure to readjust the tire inflation
pressure for normal driving speeds. You
should wait until the tires are cold before
adjusting the tire inflation pressure.
Some vehicles may have supplemental tire
inflation pressure information for vehicle
loads less than the maximum loaded vehi-
cle condition. If such information is provid-
ed, it can be found on the placard located
on the inside of the fuel filler flap
(
page 321).
Tire inflation pressure changes by approxi-
mately 1.5 psi (0.1 bar) per 18°F (10°C) of
air temperature change. Keep this in mind
when checking tire inflation pressure
where the temperature is different from
the outside temperature.
Checking tire inflation pressure
Regularly check your tire inflation pressure
at least once a month.
Check and adjust the tire inflation
pressure when the tires are cold. The tires
can be considered cold if the vehicle has
been parked for at least 3 hours or driven
less than 1 mile (1.6 km).
If you check the tire inflation pressure
when the tires are warm (the vehicle has
been driven for several miles or sitting less
than 3 hours), the reading will be
approximately 4 psi (0.3 bar) higher than
the cold reading. This is normal. Do not let
air out to match the specified cold tire in-
flation pressure. Otherwise, the tire will be
underinflated.
Warning!
G
If the tire inflation pressure repeatedly
drops:

Check the tires for punctures from
foreign objects.


Check to see whether air is leaking from
the valves or from around the rim.
i
Driving comfort may be reduced when the
tire inflation pressure is adjusted to the value for
speeds above 100 mph (160 km/h) as specified
on the placard located on the inside of the fuel
filler flap.

343 Operation
Tires and wheels
Checking tire inflation pressure
manually
Follow the steps below to achieve correct
tire inflation pressure:
Remove the cap from the valve on one
tire.

Firmly press a tire gauge onto the
valve.

Read tire inflation pressure on tire
gauge and check against the recom-
mended tire inflation pressure on the
placard on the driver’s door B-pillar
(page 336). If necessary, add air to
achieve the recommended tire inflation
pressure.

Install the valve cap.

Repeat this procedure for each tire.Run Flat Indicator (Canada only)
While the vehicle is being driven, the Run
Flat Indicator monitors the set tire inflation
pressures by evaluating each wheel’s rota-
tional speed. This allows the system to de-
tect a significant loss of pressure in a tire.
If a wheel’s rotational speed changes due
to falling tire inflation pressure, you will
see a corresponding warning message in
the multifunction display.
The Run Flat Indicator may function in a
restricted manner or with a delay


if snow chains are mounted to the
vehicle


in winter road conditions prevail in
presence of ice and snow


if you are driving on a loose surface
(e.g. sand or gravel)


if you are driving in a very sporty man-
ner (involving rapid acceleration or high
speeds in curves)
Warning!
G
Follow recommend tire inflation pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit or vehicle capacity
weight as indicated on the placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout.
i
If you have overfilled the tire, release tire in-
flation pressure by pushing the metal stem of the
valve with e.g. a tip of a pen. Then recheck the
tire inflation pressure with the tire gauge.

344 OperationTires and wheels
Reactivating the Run Flat Indicator
The tire inflation pressure monitor must be
reactivated in the following situations:

If you have changed the tire inflation
pressure


If you have replaced the wheels or tires


If you have installed new wheels or
tires

Using the tire placard on the driver’s
door B-pillar or, if available, the inside
of the fuel filler flap, make sure the tire
inflation pressure of all four tires is cor-
rect.

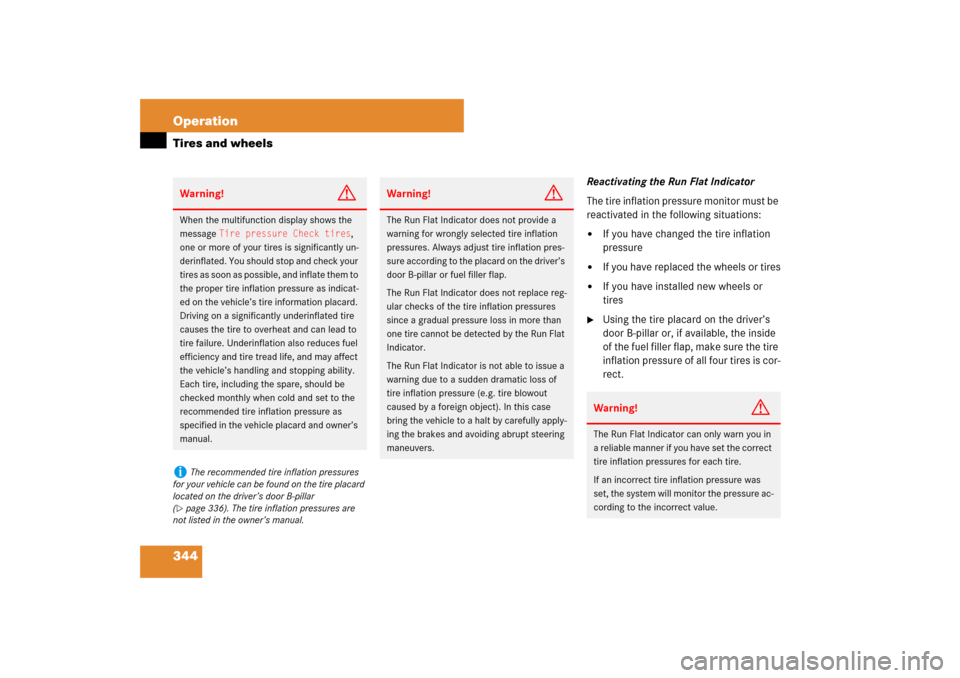

Warning!
G
When the multifunction display shows the
message
Tire pressure Check tires
,
one or more of your tires is significantly un-
derinflated. You should stop and check your
tires as soon as possible, and inflate them to
the proper tire inflation pressure as indicat-
ed on the vehicle’s tire information placard.
Driving on a significantly underinflated tire
causes the tire to overheat and can lead to
tire failure. Underinflation also reduces fuel
efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
Each tire, including the spare, should be
checked monthly when cold and set to the
recommended tire inflation pressure as
specified in the vehicle placard and owner’s
manual.
i
The recommended tire inflation pressures
for your vehicle can be found on the tire placard
located on the driver’s door B-pillar
(
page 336). The tire inflation pressures are
not listed in the owner’s manual.
Warning!
G
The Run Flat Indicator does not provide a
warning for wrongly selected tire inflation
pressures. Always adjust tire inflation pres-
sure according to the placard on the driver’s
door B-pillar or fuel filler flap.
The Run Flat Indicator does not replace reg-
ular checks of the tire inflation pressures
since a gradual pressure loss in more than
one tire cannot be detected by the Run Flat
Indicator.
The Run Flat Indicator is not able to issue a
warning due to a sudden dramatic loss of
tire inflation pressure (e.g. tire blowout
caused by a foreign object). In this case
bring the vehicle to a halt by carefully apply-
ing the brakes and avoiding abrupt steering
maneuvers.
Warning!
G
The Run Flat Indicator can only warn you in
a reliable manner if you have set the correct
tire inflation pressures for each tire.
If an incorrect tire inflation pressure was
set, the system will monitor the pressure ac-
cording to the incorrect value.

345 Operation
Tires and wheels

Switch on the ignition (
page 37).
Make sure the standard display menu
appears in the multifunction display
(
page 151).

Press buttonk orj repeatedly
until the following message appears in
the multifunction display:Run Flat Indicator
active
Menu: R-Button

Press the reset button (
page 27).
The following message will appear in
the multifunction display:
Restart
Run Flat Indicator?
Cancel
Yes
If you wish to confirm activation:
Press buttonæ.
The following message will appear in
the multifunction display:Run Flat Indicator
restarted
After a certain “learning phase”, the Run
Flat Indicator checks the set pressure val-
ues for all four tires.
If you wish to cancel activation:
Press buttonç.
or

Wait until the messageRestart
Run Flat Indicator?
Cancel
Yesdisappears.Checking tire inflation pressure elec-
tronically with the Advanced Tire Pres-
sure Monitoring System (Advanced
TPMS)*, (Canada only)
The TPMS only functions on wheels that
are equipped with the proper electronic
sensors. It monitors the tire inflation pres-
sure, as selected by the driver, in all four
tires. A warning is issued to alert you to a
decrease in pressure in one or more of the
tires.
Tire pressure inquiries are made using the
multifunction display. The present inflation
pressures are displayed only after a few
minutes’ travel time.

346 OperationTires and wheels

Switch on the ignition (
page 37).

Press thej or kbutton until
the current inflation pressures for each
tire appear in the multifunction display.
i
USA only:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Possible differences between the readings
of a tire pressure gauge of an air hose, e.g. gas
station equipment, and the vehicle’s control
system can occur. Usually the readings issued by
the control system are more precise.
i
When the message
Tire pressure is
only displayed after driving for a few
minutes
appears in the multifunction display,
the individual inflation pressure values are
matched with the tires. The individual values are
displayed after a few minutes driving.
Warning!
G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might lose control over the vehicle.i
With a spare wheel mounted, the system
may still indicate the tire inflation pressure of the
removed road wheel for some minutes. If this
happens, keep in mind that the indicated value
where the spare wheel is mounted does not re-
flect the actual spare tire inflation pressure.

347 Operation
Tires and wheels

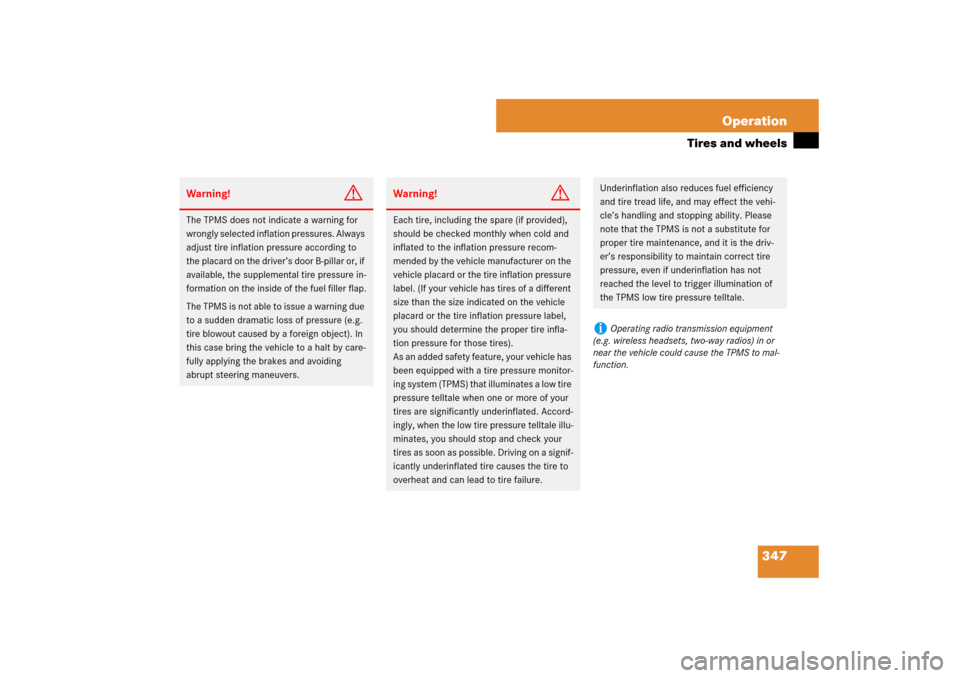

Warning!
G
The TPMS does not indicate a warning for
wrongly selected inflation pressures. Always
adjust tire inflation pressure according to
the placard on the driver’s door B-pillar or, if
available, the supplemental tire pressure in-
formation on the inside of the fuel filler flap.
The TPMS is not able to issue a warning due
to a sudden dramatic loss of pressure (e.g.
tire blowout caused by a foreign object). In
this case bring the vehicle to a halt by care-
fully applying the brakes and avoiding
abrupt steering maneuvers.
Warning!
G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or the tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or the tire inflation pressure label,
you should determine the proper tire infla-
tion pressure for those tires).
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires are significantly underinflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible. Driving on a signif-
icantly underinflated tire causes the tire to
overheat and can lead to tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may effect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if underinflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.i
Operating radio transmission equipment
(e.g. wireless headsets, two-way radios) in or
near the vehicle could cause the TPMS to mal-
function.

348 OperationTires and wheelsReactivating Advanced TPMS*
The TPMS must be reactivated when you
have adjusted the tire inflation pressure to
a new level (e.g. because of different load
or driving conditions). The TPMS is then
recalibrated to the current tire inflation
pressures.
Using the tire placard on the driver’s
door B-pillar (
page 336) or, if avail-
able, the supplemental tire pressure
information on the inside of the fuel
filler flap (
page 321), make sure the
tire inflation pressure of all four tires is
correct.

Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu
appears in the multifunction display
(page 151).

Press thej or kbutton repeat-
edly until you see the current inflation
pressures for each tire appear in the
display or the following message ap-
pears in the displayTire pressure
displayed after
driving for
a few minutes

Press the reset button (
page 27).
The following message will appear in
the multifunction display:
Restart tire
pressure monitor?

Press the æbutton.
The following message will appear in
the multifunction display:Tire pressure monitor restartedAfter a few minutes driving, the current
tire inflation pressure values are ac-
cepted as reference values and then
monitored.
If you wish to cancel activation:

Press the çbutton.
Warning!
G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might lose control over the vehicle.
i
Reactivate the TPMS after adjusting the tire
inflation pressure to the inflation pressure rec-
ommended for the vehicle operating condition.
Tire pressure should only be adjusted on cold
tires. Observe the recommended tire inflation
pressure on the placard on the driver’s door
B-pillar (
page 336). Some vehicles may have
supplemental tire pressure information for driv-
ing at high speeds (
page 342) or for vehicle
loads less than the maximum loaded vehicle con-
dition (
page 342). If such information is pro-
vided, it can be found on the inside of the fuel
filler flap (page 321).

349 Operation
Tires and wheels
Potential problems associated with
underinflated and overinflated tires
Underinflated tires
Underinflated tires can:

cause excessive and uneven tire wear


adversely affect fuel economy


lead to tire failure from being
overheated


adversely affect handling
characteristicsOverinflated tires
Overinflated tires can:


adversely affect handling
characteristics


cause uneven tire wear


be more prone to damage from road
hazards


adversely affect ride comfort


increase stopping distance
Warning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Warning!
G
Follow recommended tire inflation
pressures.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
