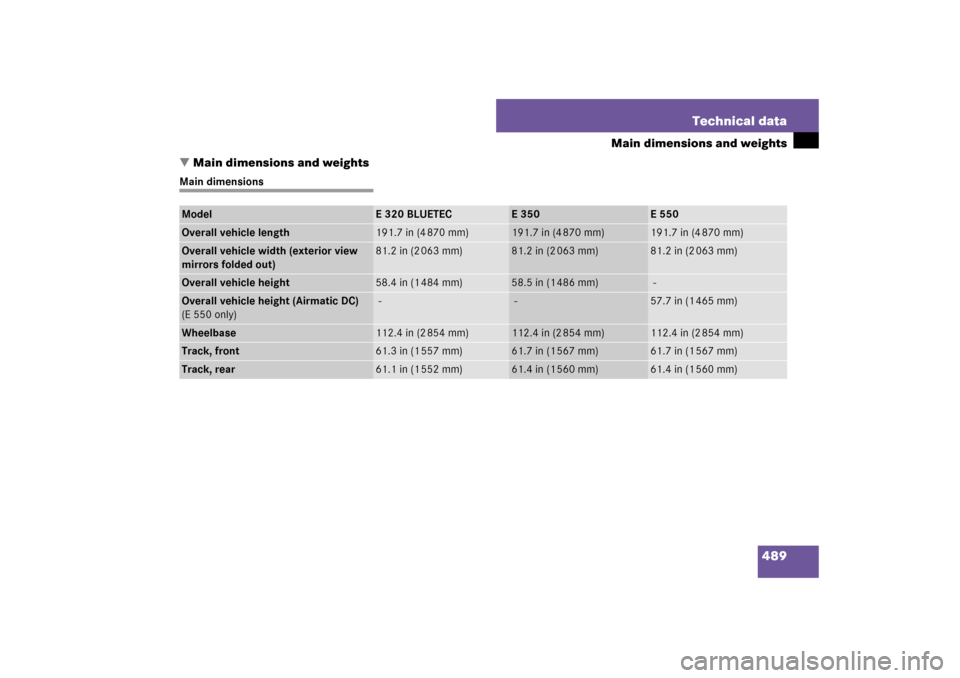

489 Technical data
Main dimensions and weights
Main dimensions and weights
Main dimensionsModel
E 320 BLUETEC
E 350
E 550
Overall vehicle length
191.7 in (4 870 mm)
191.7 in (4 870 mm)
191.7 in (4 870 mm)
Overall vehicle width (exterior view
mirrors folded out)
81.2 in (2 063 mm)
81.2 in (2 063 mm)
81.2 in (2 063 mm)
Overall vehicle height
58.4 in (1 484 mm)
58.5 in (1 486 mm)
-
Overall vehicle height (Airmatic DC)
(E 550 only)
-
-
57.7 in (1 465 mm)
Wheelbase
112.4 in (2 854 mm)
112.4 in (2 854 mm)
112.4 in (2 854 mm)
Track, front
61.3 in (1 557 mm)
61.7 in (1 567 mm)
61.7 in (1 567 mm)
Track, rear
61.1 in (1 552 mm)
61.4 in (1 560 mm)
61.4 in (1 560 mm)

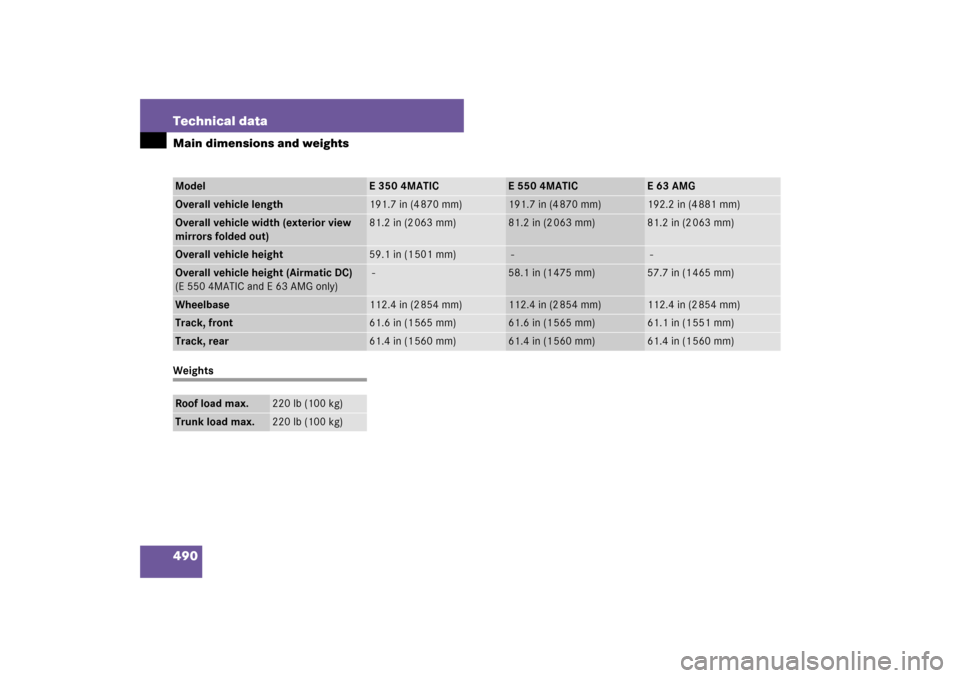

490 Technical dataMain dimensions and weightsWeightsModel
E 350 4MATIC
E 550 4MATIC
E63AMG
Overall vehicle length
191.7 in (4 870 mm)
191.7 in (4 870 mm)
192.2 in (4 881 mm)
Overall vehicle width (exterior view
mirrors folded out)
81.2 in (2 063 mm)
81.2 in (2 063 mm)
81.2 in (2 063 mm)
Overall vehicle height
59.1 in (1 501 mm)
-
-
Overall vehicle height (Airmatic DC)
(E 550 4MATIC and E 63 AMG only)
-
58.1 in (1 475 mm)
57.7 in (1 465 mm)
Wheelbase
112.4 in (2 854 mm)
112.4 in (2 854 mm)
112.4 in (2 854 mm)
Track, front
61.6 in (1 565 mm)
61.6 in (1 565 mm)
61.1 in (1 551 mm)
Track, rear
61.4 in (1 560 mm)
61.4 in (1 560 mm)
61.4 in (1 560 mm)
Roof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)
