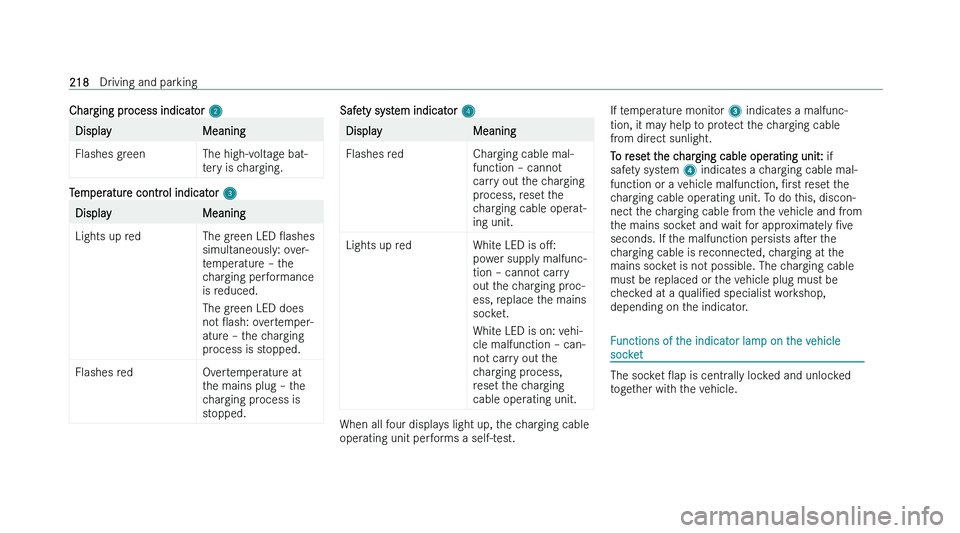

Charging process indicator
2Display
Meaning
Flashes green The high-voltage bat- tery is charging. Temperature control indicator
3Display
Meaning
Lights up red The green LED Oashes simult
aneously: over-
temperature !

Example: Combo 2 vehicle socket

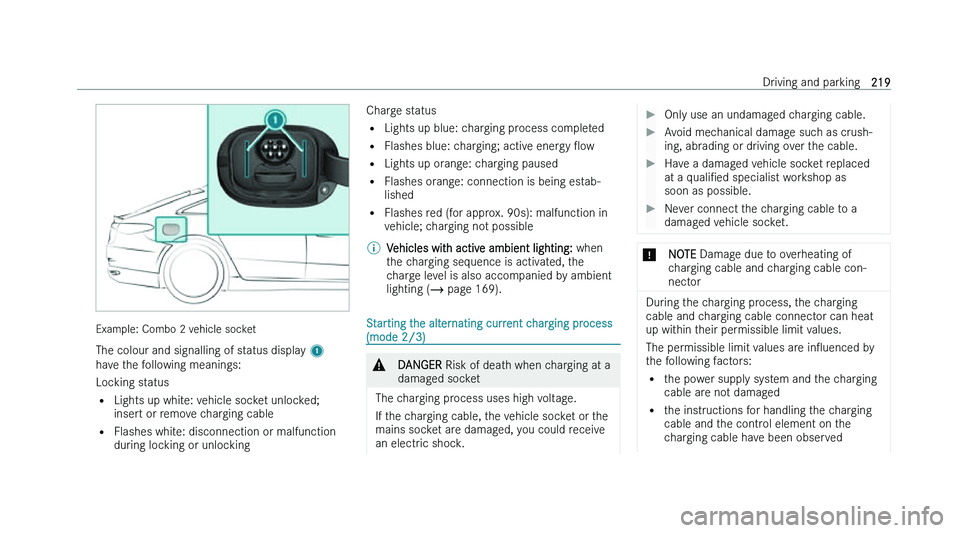

The colour and signalling of s tatus display 1
have the following meanings:
Locking status
= Lights up white: vehicle socket unlocked;
insert or remove charging cable
= Flashes white: disconnection or malfunction
during locking or unlocking Charge status
= Lights up blue: c

harging process completed
= Flashes blue: charging; active energy Oow
= Lights up orange: charging paused
= Flashes orange: connection is being estab-
lished
= Flashes red (for approx. 90s): malfunction in
vehicle; charging not possible
% Vehicles with active ambient lighting: when
t
he charging sequence is activated, the
charge level is also accompanied by ambient
lighting ( page 169). Starting the alternating current charging process
(mode 2/3)
&
DANGER Risk of deat
h when charging at a
damaged socket
The charging process uses high voltage.
If t
he charging cable, the vehicle socket or the
mains socket are damaged, you could receive
an electric shock.
Only use an undamaged charging cable.
Avoid mechanical damage such as crush-
ing, abr
ading or driving over the cable.
Have a damaged vehicle socket replaced
at a q

ualiNed specialist workshop as
soon as possible.
Never connect the charging cable to a
damag
ed vehicle socket. *
NOTE Damag
e due to overheating of
charging cable and charging cable con-
nector During the charging process, the charging
cable and c
harging cable connector can heat
up within their permissible limit values.
The permissible limit values are inOuenced by
the following factors:
= the power supply system and the charging
cable are not damaged
= the instructions for handling the charging
cable and the control element on the
charging cable have been observed Driving and parking
219


If the charging cable or charging cable
connect
or becomes too hot, have the
power supply system checked. *
NOTE Damag
ed or dirty vehicle socket
when the socket Oap is open
Always keep the socket cover and the
soc

ket Oap closed when there is no
charging cable connected. This protects
the vehicle socket from dirt and damage.
Make sure that the socket cover is
closed pr

operly before closing the socket
Oap. This can otherwise result in damage
which may prevent the socket Oap from
being opened again. *
NOTE Damag
e to the vehicle socket or the
charging cable connector due to incorrect
handling Do not use excessive force (maximum 300 N)
t
o insert the charging cable connector into the
vehicle socket to the stop. You may otherwise damage the vehicle socket, the charging cable
connect

or or their contacts.
If you feel there is increased resistance,
pull t

he charging cable connector out of

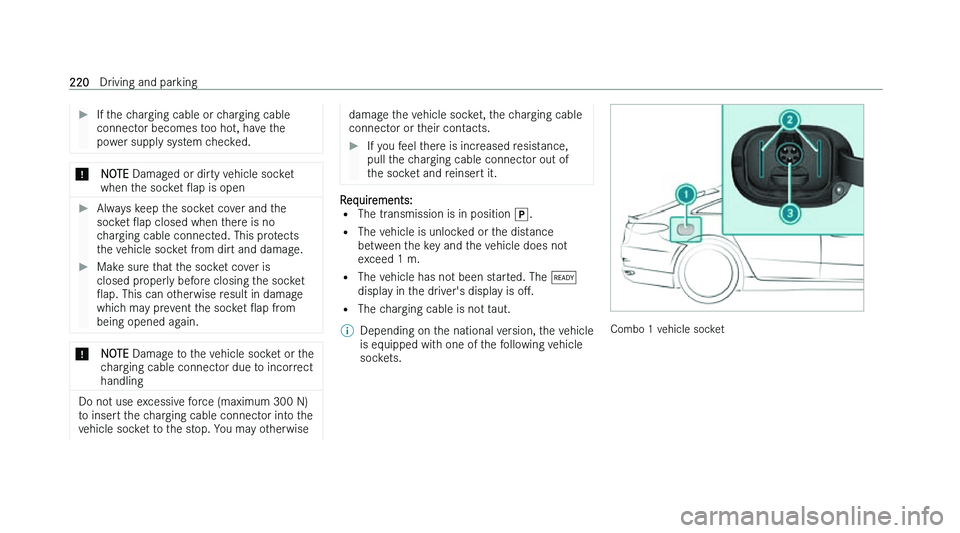

the socket and reinsert it. Requirements:
= The tr

ansmission is in position j.
= The vehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m.
= The vehicle has not been started. The õ
display in the driver's display is oM.
= The charging cable is not taut.
% Depending on the national version, the vehicle
is eq

uipped with one of the following vehicle
sockets. Combo 1 vehicle socket220
Driving and parking

Combo 2 vehicle socket

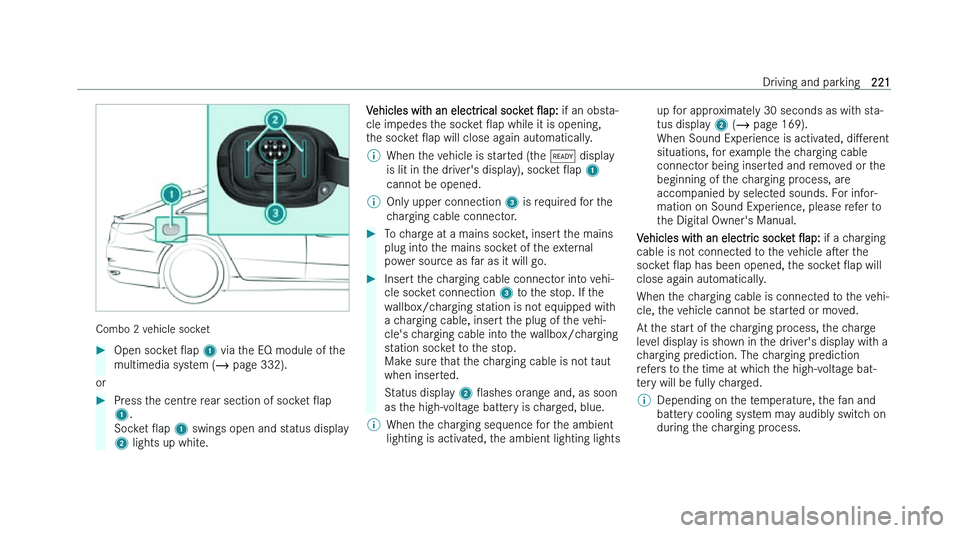

Open socket Oap 1 via t he EQ module of the
multimedia system (  page 332).
or
Press the centre rear section of socket Oap
1.
Soc

ket Oap 1 swings open and status display
2 lights up white. Vehicles with an electrical socket
Oap: if an obs
ta-
cle impedes the socket Oap while it is opening,
the socket Oap will close again automatically.
% When the vehicle is started (the õ displa
y
is lit in the driver's display), socket Oap 1
cannot be opened.
% Only upper connection 3 is r
equired for the
charging cable connector.
To charge at a mains socket, insert the mains
plug int
o the mains socket of the external
power source as far as it will go.
Insert the charging cable connector into vehi-
cle soc
ket connection 3 to the stop. If the
wallbox/charging station is not equipped with
a charging cable, insert the plug of the vehi-
cle's charging cable into the wallbox/charging
station socket to the stop.
Make sure that the charging cable is not taut
when inserted.
Status display 2 Oashes orange and, as soon
as the high-voltage battery is charged, blue.
% When the charging sequence for the ambient
lighting is activ
ated, the ambient lighting lights up for approximately 30 seconds as with sta-
tus displa
y 2 ( page 169).
When Sound Experience is activated, diMerent
situations, for example the charging cable
connector being inserted and removed or the
beginning of the charging process, are
accompanied by selected sounds. For infor-
mation on Sound Experience, please refer to
the Digital Owner's Manual.
Vehicles with an electric socket Oap: if a c
harging
cable is not connected to the vehicle aser the
socket Oap has been opened, the socket Oap will
close again automatically.
When the charging cable is connected to the vehi-
cle, the vehicle cannot be started or moved.
At the start of the charging process, the charge
level display is shown in the driver's display with a
charging prediction. The charging prediction
refers to the time at which the high-voltage bat-
tery will be fully charged.
% Depending on the temperature, the fan and
batt

ery cooling system may audibly switch on
during the charging process. Driving and parking
221

%
If the vehicle is idle for lengthy periods and
connect ed to the mains supply, the high-volt-
age battery will be recharged automatically as
needed or when electrical consumers are
activated (e.g. the pre-entry climate control). Ending the alternating current charging process
(mode 2/3)
Requirements:
= The dis

tance between the key and the vehicle

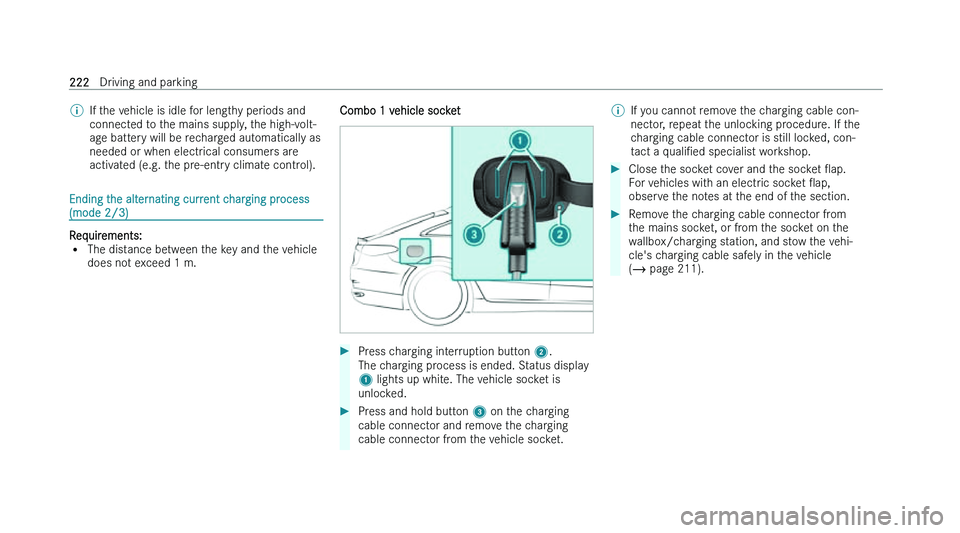

does not exceed 1 m. Combo 1 vehicle socket
Press charging interruption button 2.
The c
harging process is ended. Status display
1 lights up white. The vehicle socket is
unlocked.
Press and hold button 3 on t
he charging
cable connector and remove the charging
cable connector from the vehicle socket. %
If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
F
or vehicles with an electric socket Oap,
observe the notes at the end of the section.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 211). 222
Driving and parking

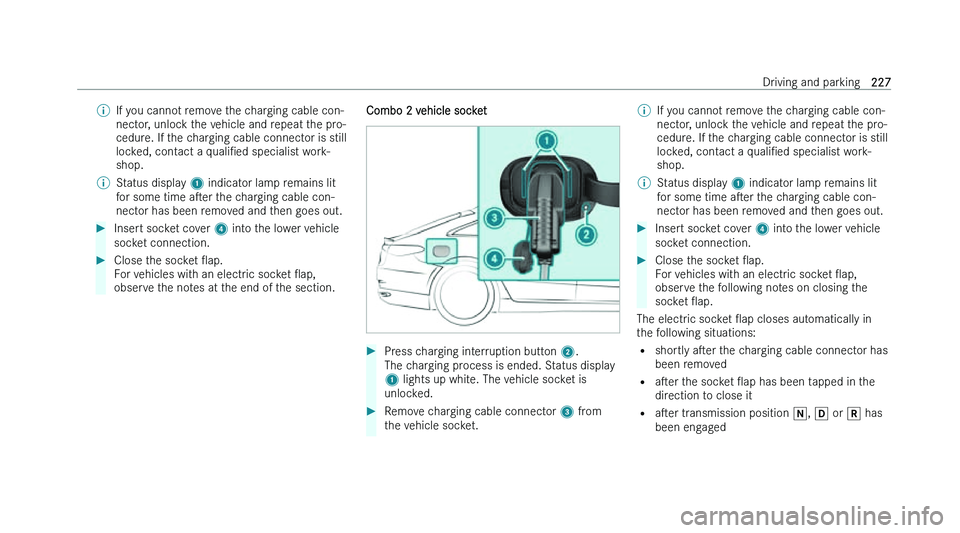

Combo 2 vehicle socket

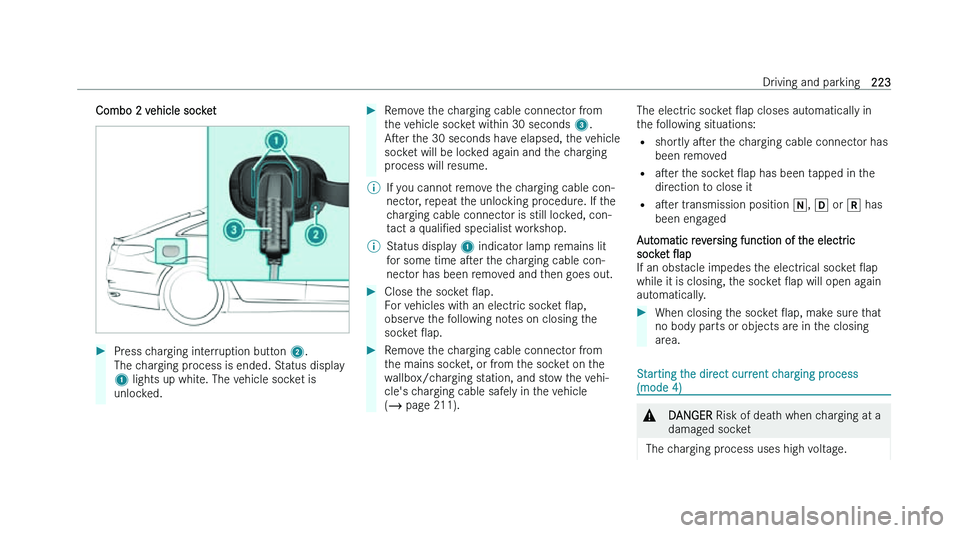

Press charging interruption button 2.
The c harging process is ended. Status display
1 lights up white. The vehicle socket is
unlocked.
Remove the charging cable connector from
t
he vehicle socket within 30 seconds 3.
Aser the 30 seconds have elapsed, the vehicle
socket will be locked again and the charging
process will resume.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
% Status display 1 indicat
or lamp remains lit
for some time aser the charging cable con-
nector has been removed and then goes out.
Close the socket Oap.
F
or vehicles with an electric socket Oap,
observe the following notes on closing the
socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 211). The electric socket
Oap closes aut
omatically in
the following situations:
= shortly aser the charging cable connector has
been removed
= aser the socket Oap has been tapped in the
direction to close it
= aser transmission position i, h or k has
been engaged
Automatic reversing function of the electric
socket Oap
If an obstacle impedes the electrical socket Oap
while it is closing, the socket Oap will open again
automatically.
When closing the socket Oap, mak
e sure that
no body parts or objects are in the closing
area. Starting the direct current charging process
(mode 4)
&
DANGER Risk of deat
h when charging at a
damaged socket
The charging process uses high voltage. Driving and parking
223

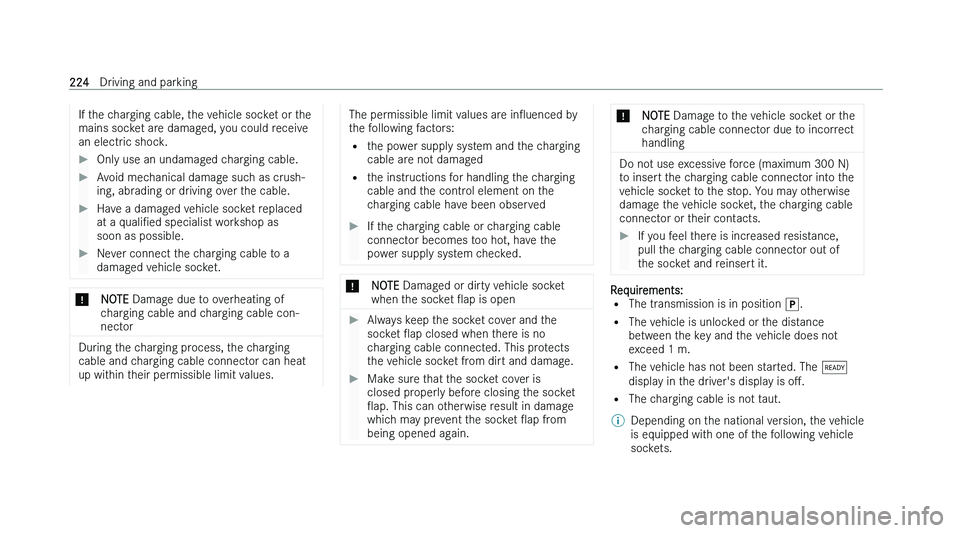

If the charging cable, the vehicle socket or the
mains soc ket are damaged, you could receive
an electric shock.
Only use an undamaged charging cable.
Avoid mechanical damage such as crush-
ing, abr
ading or driving over the cable.
Have a damaged vehicle socket replaced
at a q

ualiNed specialist workshop as
soon as possible.
Never connect the charging cable to a
damag
ed vehicle socket. *
NOTE Damag
e due to overheating of
charging cable and charging cable con-
nector During the charging process, the charging
cable and c
harging cable connector can heat
up within their permissible limit values. The permissible limit values are
inOuenced b
y
the following factors:
= the power supply system and the charging
cable are not damaged
= the instructions for handling the charging
cable and the control element on the
charging cable have been observed
If the charging cable or charging cable
connect

or becomes too hot, have the
power supply system checked. *
NOTE Damag
ed or dirty vehicle socket
when the socket Oap is open
Always keep the socket cover and the
soc

ket Oap closed when there is no
charging cable connected. This protects
the vehicle socket from dirt and damage.
Make sure that the socket cover is
closed pr

operly before closing the socket
Oap. This can otherwise result in damage
which may prevent the socket Oap from
being opened again. *
NOTE Damag
e to the vehicle socket or the
charging cable connector due to incorrect
handling Do not use excessive force (maximum 300 N)
t
o insert the charging cable connector into the
vehicle socket to the stop. You may otherwise
damage the vehicle socket, the charging cable
connector or their contacts.
If you feel there is increased resistance,
pull t

he charging cable connector out of
the socket and reinsert it. Requirements:
= The tr

ansmission is in position j.
= The vehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m.
= The vehicle has not been started. The õ
display in the driver's display is oM.
= The charging cable is not taut.
% Depending on the national version, the vehicle
is eq

uipped with one of the following vehicle
sockets. 224
Driving and parking

Combo 1 vehicle socket Combo 2 vehicle socket

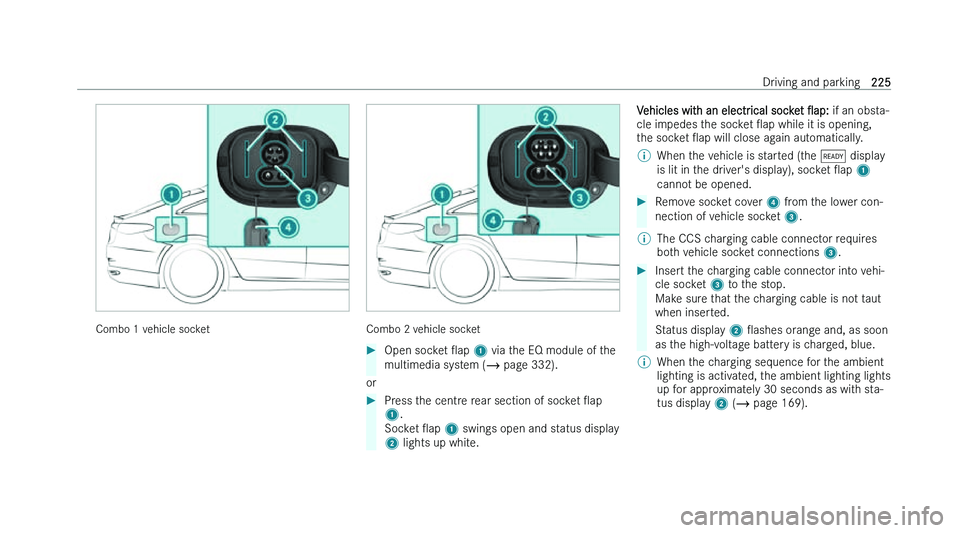

Open socket Oap 1 via t he EQ module of the
multimedia system (  page 332).
or
Press the centre rear section of socket Oap
1.
Soc

ket Oap 1 swings open and status display
2 lights up white. Vehicles with an electrical socket
Oap: if an obs
ta-
cle impedes the socket Oap while it is opening,
the socket Oap will close again automatically.
% When the vehicle is started (the õ displa
y
is lit in the driver's display), socket Oap 1
cannot be opened.
Remove socket cover 4 fr
om the lower con-
nection of vehicle socket 3.
% The CCS charging cable connector requires
bo
th vehicle socket connections 3.
Insert the charging cable connector into vehi-
cle soc
ket 3 to the stop.
Make sure that the charging cable is not taut
when inserted.
Status display 2 Oashes orange and, as soon
as the high-voltage battery is charged, blue.
% When the charging sequence for the ambient
lighting is activ
ated, the ambient lighting lights
up for approximately 30 seconds as with sta-
tus display 2 ( page 169). Driving and parking
225

When Sound Experience is activated,
diMer ent
situations, for example the charging cable
connector being inserted and removed or the
beginning of the charging process, are
accompanied by selected sounds. For infor-
mation on Sound Experience, please refer to
the Digital Owner's Manual.
Vehicles with an electric socket Oap: if a c
harging
cable is not connected to the vehicle aser the
socket Oap has been opened, the socket Oap will
close again automatically.
When the charging cable is connected to the vehi-
cle, the vehicle cannot be started or moved.
At the start of the charging process, the charge
level display is shown in the driver's display with a
charging prediction. The charging prediction
refers to the time at which the high-voltage bat-
tery will be fully charged.
% Depending on the temperature, the fan and
batt

ery cooling system may audibly switch on
during the charging process.
% If the vehicle is idle for lengthy periods and
connect
ed to the mains supply, the high-volt-
age battery will be recharged automatically as needed or when electrical consumers are
activ

ated (e.g. the pre-entry climate control). Ending the direct current charging process (mode
4)
Requirements:
= The dis

tance between the key and the vehicle
does not exceed 1 m. Combo 1 vehicle socket
Press charging interruption button 2.
The c
harging process is ended. Status display
1 lights up white. The vehicle socket is
unlocked.
Press and hold button 3 on t
he charging
cable connector and remove the charging
cable connector from the vehicle socket. 226
Driving and parking

%
If you cannot remove the charging cable con-
nect or, unlock the vehicle and repeat the pro-
cedure. If the charging cable connector is still
locked, contact a qualiNed specialist work-
shop.
% Status display 1 indicat
or lamp remains lit
for some time aser the charging cable con-
nector has been removed and then goes out.
Insert socket cover 4 int
o the lower vehicle
socket connection.
Close the socket Oap.
F
or vehicles with an electric socket Oap,
observe the notes at the end of the section. Combo 2 vehicle socket
Press charging interruption button 2.
The c
harging process is ended. Status display
1 lights up white. The vehicle socket is
unlocked.
Remove charging cable connector 3 fr
om
the vehicle socket. %
If you cannot remove the charging cable con-
nect
or, unlock the vehicle and repeat the pro-
cedure. If the charging cable connector is still
locked, contact a qualiNed specialist work-
shop.
% Status display 1 indicat
or lamp remains lit
for some time aser the charging cable con-
nector has been removed and then goes out.
Insert socket cover 4 int
o the lower vehicle
socket connection.
Close the socket Oap.
F
or vehicles with an electric socket Oap,
observe the following notes on closing the
socket Oap.
The electric socket Oap closes aut
omatically in
the following situations:
= shortly aser the charging cable connector has
been removed
= aser the socket Oap has been tapped in the
direction to close it
= aser transmission position i, h or k has
been engaged Driving and parking
227
