MERCEDES-BENZ EQS SUV 2023 Owners Manual

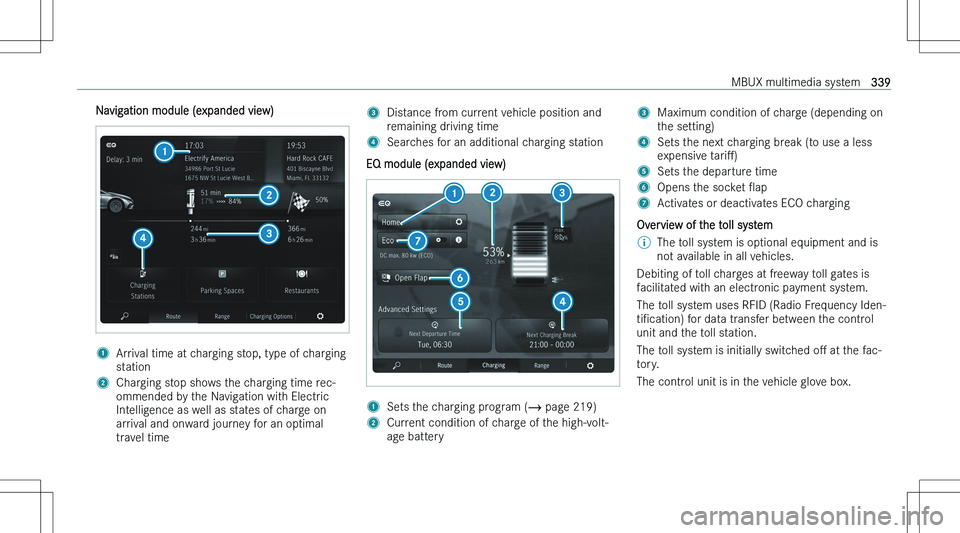

Navigation module (expanded view)1Arrival time at charging stop, type of charging
station2Charging stop shows the charging time rec-
ommended by the Navigation with Electric
Intelligence as well as states of charge on arrival and onward journey for an optimal
travel time3Distance from current vehicle position and remaining driving time4Searches for an additional charging station
EQ module (expanded view)
1Sets the charging program (  page 219)2Current condition of charge of the high-volt-
age battery3Maximum condition of charge (depending onthe setting)4Sets the next charging break (to use a less
expensive tariM)5Sets the departure time6Opens the socket Oap7Activates or deactivates ECO charging
Overview of the toll system
\bThe toll system is optional equipment and is
not available in all vehicles.
Debiting of toll charges at freeway toll gates is
facilitated with an electronic payment system.
The toll system uses RFID (Radio Frequency Iden-
tiNcation) for data transfer between the control
unit and the toll station.
The toll system is initially switched oM at the fac-
tory.
The control unit is in the vehicle glove box.
MBUX multimedia system339

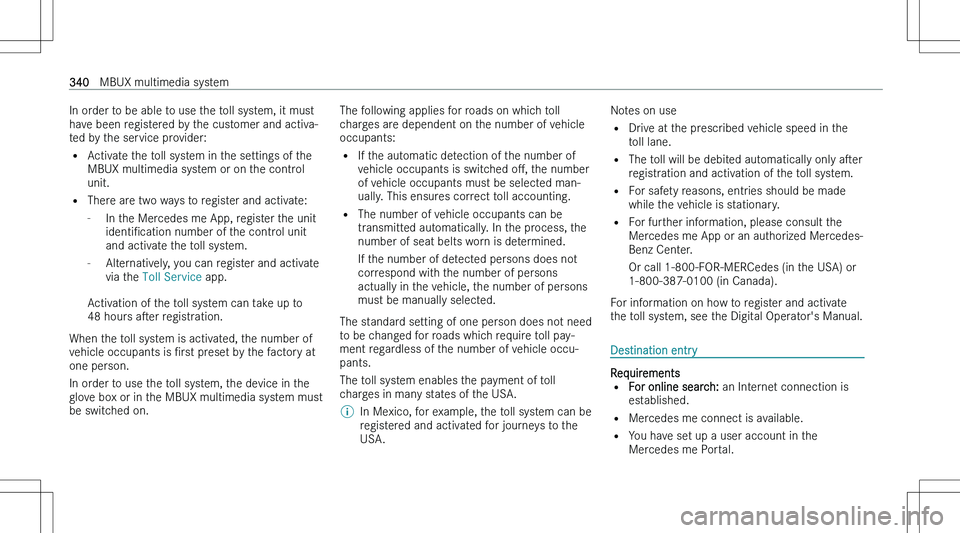

In order to be able to use the toll system, it musthave been registered by the customer and activa-
ted by the service provider:
= Activate the toll system in the settings of the
MBUX multimedia system or on the controlunit.
= There are two ways to register and activate:
- In the Mercedes me App, register the unit
identiNcation number of the control unit
and activate the toll system.
- Alternatively, you can register and activate
via the Toll Service app.
Activation of the toll system can take up to
48 hours aser registration.
When the toll system is activated, the number of vehicle occupants is Nrst preset by the factory at
one person.
In order to use the toll system, the device in the
glove box or in the MBUX multimedia system must be switched on.The following applies for roads on which toll
charges are dependent on the number of vehicle
occupants:
= If the automatic detection of the number of
vehicle occupants is switched oM, the number
of vehicle occupants must be selected man- ually. This ensures correct toll accounting.
= The number of vehicle occupants can be
transmitted automatically. In the process, the number of seat belts worn is determined.
If the number of detected persons does not
correspond with the number of persons
actually in the vehicle, the number of persons
must be manually selected.
The standard setting of one person does not need
to be changed for roads which require toll pay- ment regardless of the number of vehicle occu-
pants.
The toll system enables the payment of toll
charges in many states of the USA.\bIn Mexico, for example, the toll system can be
registered and activated for journeys to the USA.Notes on use
= Drive at the prescribed vehicle speed in the
toll lane.
= The toll will be debited automatically only aser
registration and activation of the toll system.
= For safety reasons, entries should be made
while the vehicle is stationary.
= For further information, please consult the
Mercedes me App or an authorized Mercedes-
Benz Center.
Or call 1-800-FOR-MERCedes (in the USA) or 1-800-387-0100 (in Canada).
For information on how to register and activate
the toll system, see the Digital Operator\bs Manual.
Destination entry
Requirements = For online search: an Internet connection is
established.
= Mercedes me connect is available.
= You have set up a user account in the
Mercedes me Portal.
340MBUX multimedia system

=The vehicle is connected with the user
account and you have accepted the terms of
use.
Further information can be found at: https:// www.mercedes.me
= The service is available.
= The service has been activated at an author-
ized Mercedes-Benz Center.Multimedia system:
4 © 5

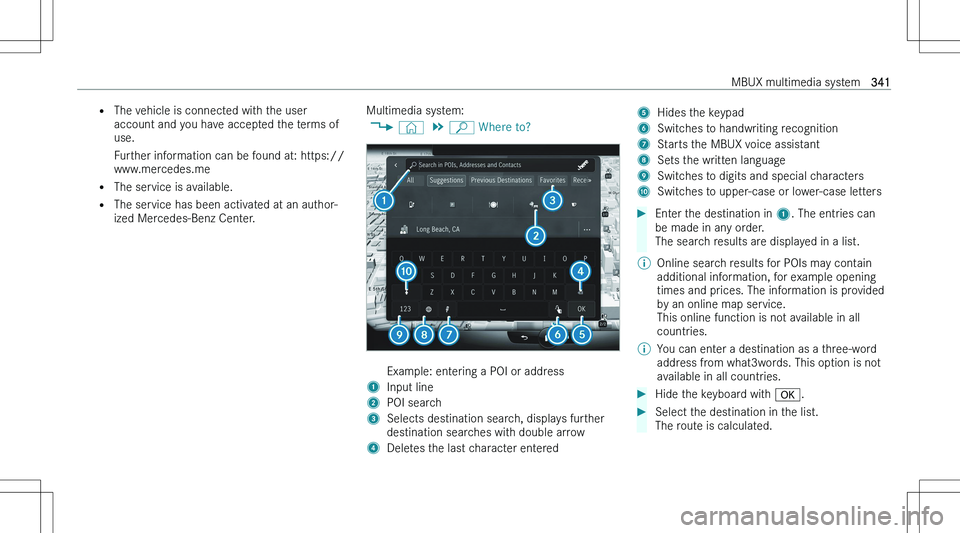

ª Where to"Example: entering a POI or address1Input line2POI search3Selects destination search, displays further
destination searches with double arrow4Deletes the last character entered5Hides the keypad6Switches to handwriting recognition7Starts the MBUX voice assistant8Sets the written language9Switches to digits and special charactersASwitches to upper-case or lower-case lettersEnter the destination in 1. The entries can
be made in any order. The search results are displayed in a list.\bOnline search results for POIs may contain
additional information, for example opening
times and prices. The information is provided
by an online map service.
This online function is not available in all
countries.\bYou can enter a destination as a three-word
address from what3words. This option is not
available in all countries.Hide the keyboard with v.Select the destination in the list.
The route is calculated.MBUX multimedia system341

\bObserve the notes on the MBUX multimedia
system (  page 304).

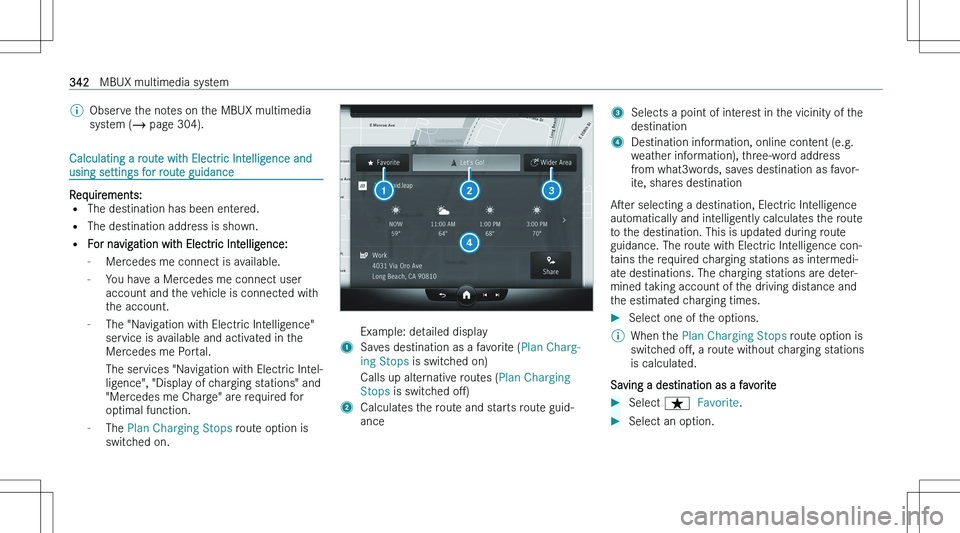

Calculating a route with Electric Intelligence and
using settings for route guidance
Requirements: = The destination has been entered.
= The destination address is shown.
= For navigation with Electric Intelligence:
- Mercedes me connect is available.
- You have a Mercedes me connect user
account and the vehicle is connected with the account.
- The "Navigation with Electric Intelligence"
service is available and activated in the Mercedes me Portal.
The services "Navigation with Electric Intel- ligence", "Display of charging stations" and
"Mercedes me Charge" are required for
optimal function.
- The Plan Charging Stops route option is
switched on.
Example: detailed display1Saves destination as a favorite ( Plan Charg-
ing Stops is switched on)Calls up alternative routes ( Plan Charging
Stops is switched oM)2Calculates the route and starts route guid-
ance3Selects a point of interest in the vicinity of the destination4Destination information, online content (e.g.
weather information), three-word address
from what3words, saves destination as favor- ite, shares destination
Aser selecting a destination, Electric Intelligence
automatically and intelligently calculates the route
to the destination. This is updated during route
guidance. The route with Electric Intelligence con-
tains the required charging stations as intermedi-
ate destinations. The charging stations are deter-
mined taking account of the driving distance and
the estimated charging times.
Select one of the options.\bWhen the Plan Charging Stops route option is
switched oM, a route without charging stations
is calculated.
Saving a destination as a favorite
Select ß Favorite .Select an option.342MBUX multimedia system

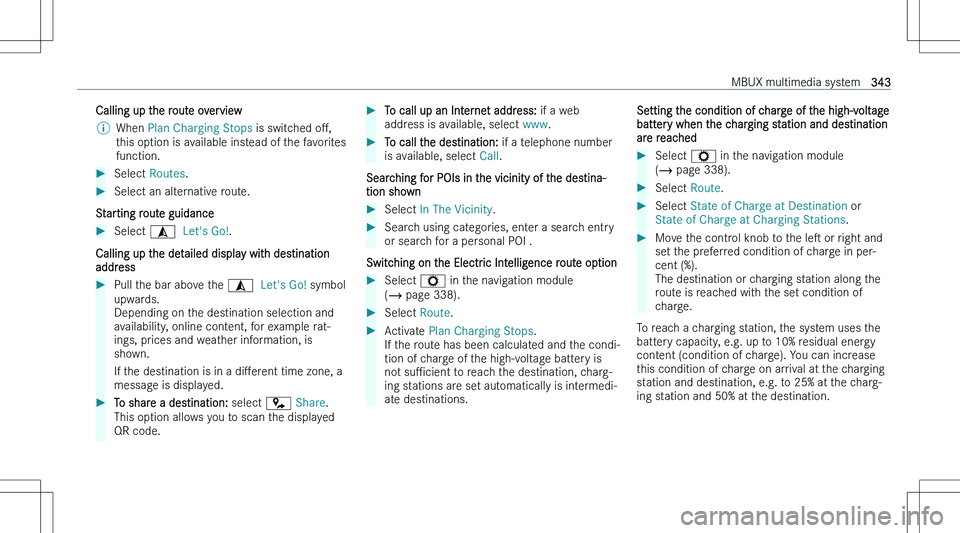

Calling up the route overview\bWhen Plan Charging Stops is switched oM,
this option is available instead of the favorites function.Select Routes .Select an alternative route.
Starting route guidance
Select  Let's Go! .
Calling up the detailed display with destination
address
Pull the bar above the  Let's Go! symbol
upwards.
Depending on the destination selection and
availability, online content, for example rat-
ings, prices and weather information, is
shown.
If the destination is in a diMerent time zone, a
message is displayed.To share a destination: select

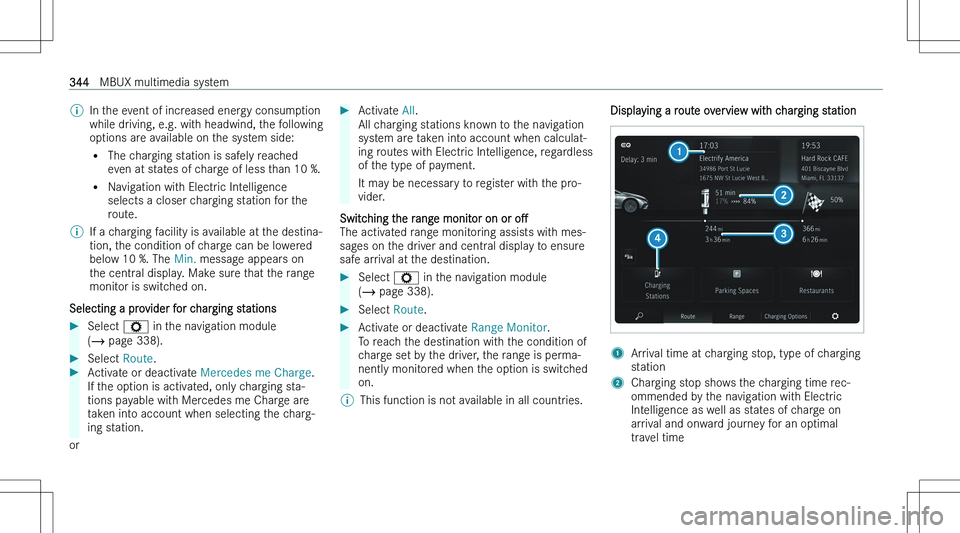

\bIn the event of increased energy consumption
while driving, e.g. with headwind, the following
options are available on the system side:
= The charging station is safely reached
even at states of charge of less than 10 %.
= Navigation with Electric Intelligence
selects a closer charging station for the
route.\bIf a charging facility is available at the destina-
tion, the condition of charge can be lowered
below 10 %. The Min. message appears on
the central display. Make sure that the range
monitor is switched on.
Selecting a provider for charging stations
Select = in the navigation module
(  page 338).Select Route.Activate or deactivate Mercedes me Charge.
If the option is activated, only charging sta-
tions payable with Mercedes me Charge are
taken into account when selecting the charg- ing station.
or
Activate All.
All charging stations known to the navigation
system are taken into account when calculat-
ing routes with Electric Intelligence, regardless
of the type of payment.
It may be necessary to register with the pro-
vider.
Switching the range monitor on or oM
The activated range monitoring assists with mes-
sages on the driver and central display to ensure
safe arrival at the destination.
Select = in the navigation module
(  page 338).Select Route.Activate or deactivate Range Monitor.
To reach the destination with the condition of
charge set by the driver, the range is perma-
nently monitored when the option is switched
on.\bThis function is not available in all countries.Displaying a route overview with charging station1Arrival time at charging stop, type of charging
station2Charging stop shows the charging time rec-
ommended by the navigation with Electric
Intelligence as well as states of charge on arrival and onward journey for an optimal
travel time344MBUX multimedia system

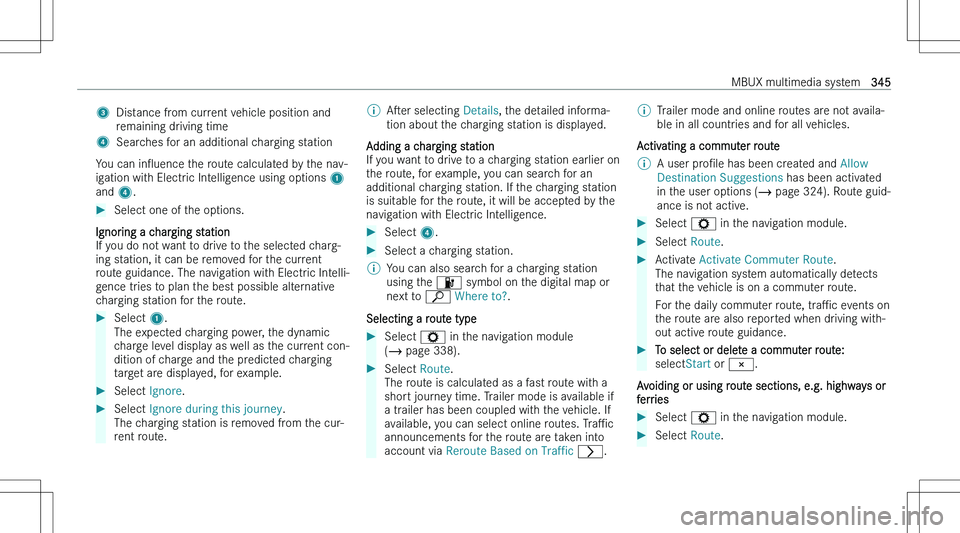

3Distance from current vehicle position andremaining driving time4Searches for an additional charging station
You can inOuence the route calculated by the nav-
igation with Electric Intelligence using options 1
and 4.
Select one of the options.
Ignoring a charging station
If you do not want to drive to the selected charg-
ing station, it can be removed for the current
route guidance. The navigation with Electric Intelli- gence tries to plan the best possible alternativecharging station for the route.
Select 1.
The expected charging power, the dynamic
charge level display as well as the current con-
dition of charge and the predicted charging
target are displayed, for example.Select Ignore.Select Ignore during this journey .
The charging station is removed from the cur-
rent route.\bAser selecting Details, the detailed informa-
tion about the charging station is displayed.
Adding a charging station If you want to drive to a charging station earlier on
the route, for example, you can search for an
additional charging station. If the charging station
is suitable for the route, it will be accepted by the
navigation with Electric Intelligence.
Select 4.Select a charging station.\bYou can also search for a charging station
using the \ symbol on the digital map or
next to ª Where to" .
Selecting a route type
Select = in the navigation module
(  page 338).Select Route.
The route is calculated as a fast route with a short journey time. Trailer mode is available if
a trailer has been coupled with the vehicle. If available, you can select online routes. TraPc
announcements for the route are taken into
account via Reroute Based on Traffic H .\bTrailer mode and online routes are not availa-
ble in all countries and for all vehicles.
Activating a commuter route
\bA user proNle has been created and Allow
Destination Suggestions has been activated
in the user options (  page 324). Route guid-
ance is not active.Select = in the navigation module.Select Route.Activate Activate Commuter Route .
The navigation system automatically detects
that the vehicle is on a commuter route.
For the daily commuter route, traPc events on
the route are also reported when driving with-
out active route guidance.To select or delete a commuter route:
select Start or

Select Avoid Options .Activate or deactivate the avoid option.

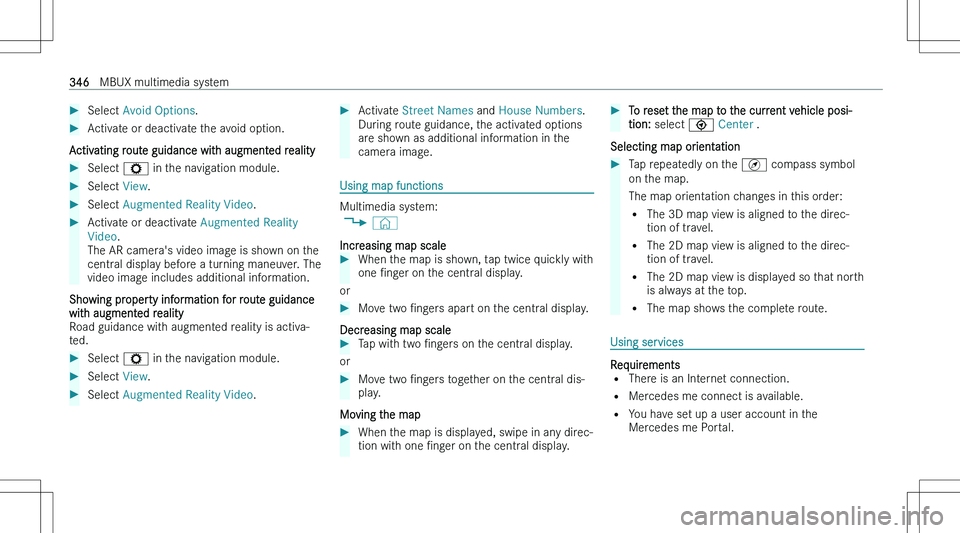

Activating route guidance with augmented reality
Select = in the navigation module.Select View.Select Augmented Reality Video .Activate or deactivate Augmented Reality
Video .
The AR camera\bs video image is shown on the
central display before a turning maneuver. The video image includes additional information.
Showing property information for route guidancewith augmented reality
Road guidance with augmented reality is activa-
ted.
Select = in the navigation module.Select View.Select Augmented Reality Video .Activate Street Names and House Numbers .
During route guidance, the activated options
are shown as additional information in the
camera image.
Using map functions
Multimedia system:
4 ©
Increasing map scale
When the map is shown, tap twice quickly with
one Nnger on the central display.
or
Move two Nngers apart on the central display.
Decreasing map scale
Tap with two Nngers on the central display.
or
Move two Nngers together on the central dis-
play.
Moving the map
When the map is displayed, swipe in any direc-
tion with one Nnger on the central display.To reset the map to the current vehicle posi-
tion: select = Center .
Selecting map orientation
Tap repeatedly on the

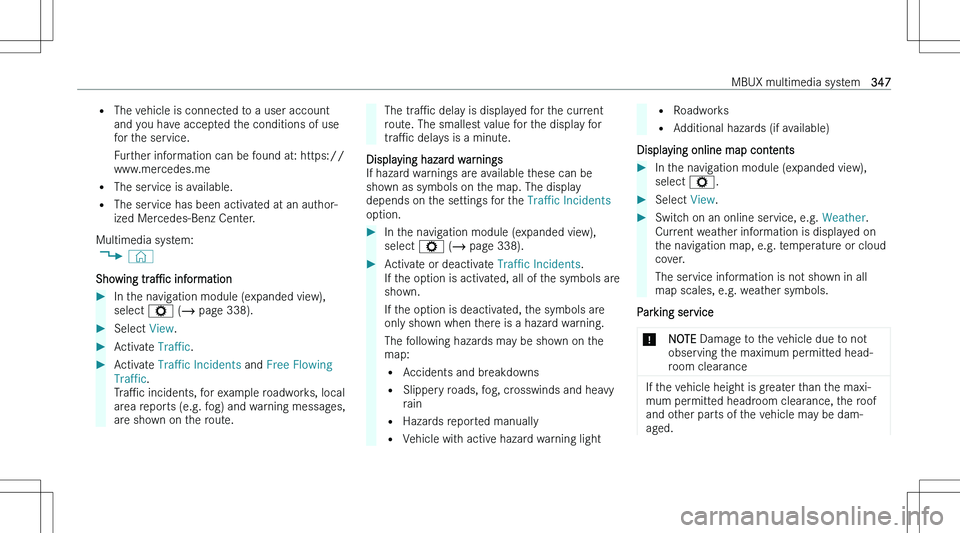

=The vehicle is connected to a user account
and you have accepted the conditions of use
for the service.
Further information can be found at: https://
www.mercedes.me
= The service is available.
= The service has been activated at an author-
ized Mercedes-Benz Center.
Multimedia system: 4 ©
Showing traPc informationIn the navigation module (expanded view),
select = ( page 338).Select View.Activate Traffic.Activate Traffic Incidents and Free Flowing
Traffic .
TraPc incidents, for example roadworks, local
area reports (e.g. fog) and warning messages,
are shown on the route.The traPc delay is displayed for the current
route. The smallest value for the display for
traPc delays is a minute.
Displaying hazard warnings
If hazard warnings are available these can be
shown as symbols on the map. The display
depends on the settings for the Traffic Incidents
option.
In the navigation module (expanded view), select = ( page 338).Activate or deactivate Traffic Incidents.
If the option is activated, all of the symbols are shown.
If the option is deactivated, the symbols are
only shown when there is a hazard warning.
The following hazards may be shown on the
map:
= Accidents and breakdowns
= Slippery roads, fog, crosswinds and heavy
rain
= Hazards reported manually
= Vehicle with active hazard warning light=
Roadworks
= Additional hazards (if available)
Displaying online map contents
In the navigation module (expanded view),
select =.Select View.Switch on an online service, e.g. Weather.
Current weather information is displayed on
the navigation map, e.g. temperature or cloud
cover.
The service information is not shown in all
map scales, e.g. weather symbols.
Parking service
*NOTE Damage to the vehicle due to not
observing the maximum permitted head-
room clearance
If the vehicle height is greater than the maxi- mum permitted headroom clearance, the roof
and other parts of the vehicle may be dam-
aged.
MBUX multimedia system347

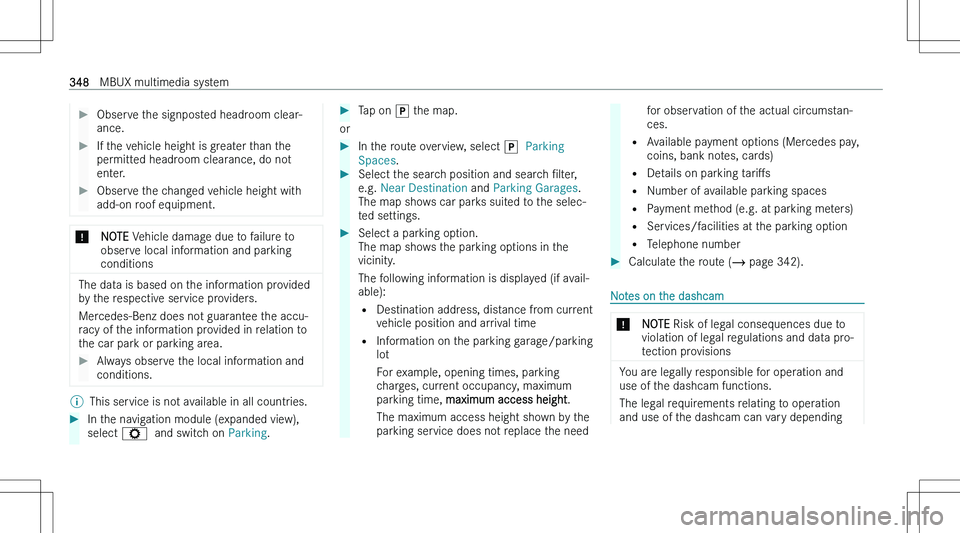

Observe the signposted headroom clear-ance.If the vehicle height is greater than the permitted headroom clearance, do not
enter.Observe the changed vehicle height with add-on roof equipment.*NOTE Vehicle damage due to failure to
observe local information and parking
conditions
The data is based on the information provided
by the respective service providers.
Mercedes-Benz does not guarantee the accu-
racy of the information provided in relation to
the car park or parking area.
Always observe the local information and
conditions.\bThis service is not available in all countries.In the navigation module (expanded view), select = and switch on Parking.Tap on ] the map.
or
In the route overview, select ] Parking
Spaces .Select the search position and search Nlter,
e.g. Near Destination and Parking Garages .
The map shows car parks suited to the selec-
ted settings.Select a parking option. The map shows the parking options in the
vicinity.
The following information is displayed (if avail- able):
= Destination address, distance from current
vehicle position and arrival time
= Information on the parking garage/parking
lot
For example, opening times, parking
charges, current occupancy, maximum
parking time, maximum access height .
The maximum access height shown by the parking service does not replace the needfor observation of the actual circumstan-
ces.
= Available payment options (Mercedes pay,
coins, bank notes, cards)
= Details on parking tariMs
= Number of available parking spaces
= Payment method (e.g. at parking meters)
= Services/facilities at the parking option
= Telephone numberCalculate the route (  page 342).
Notes on the dashcam
*NOTE Risk of legal consequences due to
violation of legal regulations and data pro-
tection provisions
You are legally responsible for operation and
use of the dashcam functions.
The legal requirements relating to operation
and use of the dashcam can vary depending
348MBUX multimedia system
