MERCEDES-BENZ G-Class 2006 W463 Comand Manual

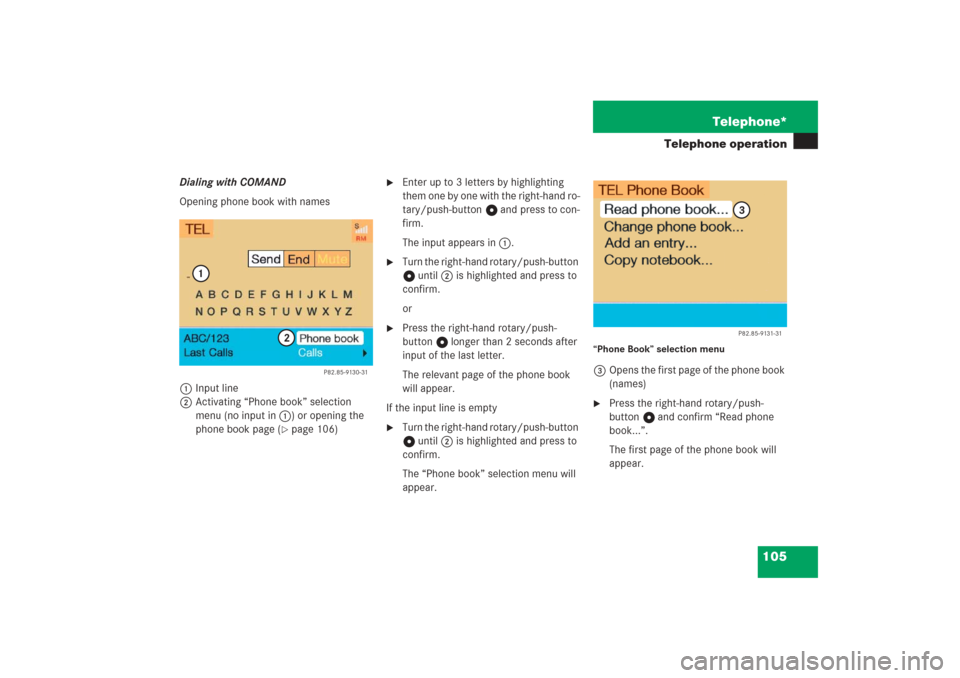

105 Telephone*
Telephone operation
Dialing with COMAND
Opening phone book with names
1Input line
2Activating “Phone book” selection
menu (no input in 1) or opening the
phone book page (
page 106)

Enter up to 3 letters by highlighting
them one by one with the right-hand ro-
tary/push-button v and press to con-
firm.
The input appears in 1.

Turn the right-hand rotary/push-button
v until 2 is highlighted and press to
confirm.
or

Press the right-hand rotary/push-
button v longer than 2 seconds after
input of the last letter.
The relevant page of the phone book
will appear.
If the input line is empty

Turn the right-hand rotary/push-button
v until 2 is highlighted and press to
confirm.
The “Phone book” selection menu will
appear.
“Phone Book” selection menu 3Opens the first page of the phone book
(names)
Press the right-hand rotary/push-
button v and confirm “Read phone
book...”.
The first page of the phone book will
appear.
P82.85-9130-31
1
2
P82.85-9131-313

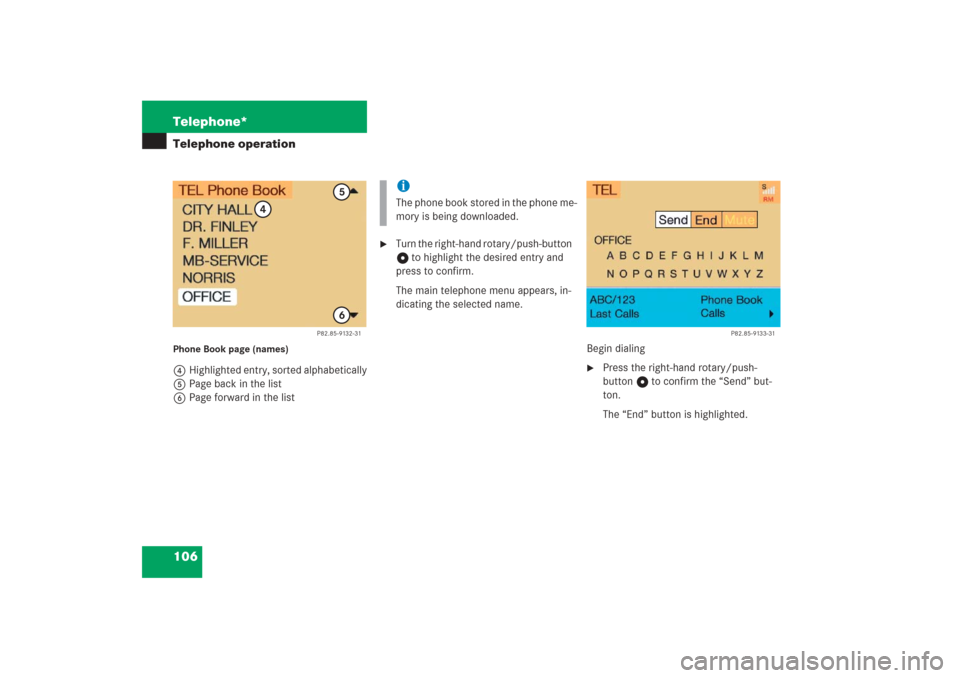

106 Telephone*Telephone operationPhone Book page (names)4Highlighted entry, sorted alphabetically
5Page back in the list
6Page forward in the list

Turn the right-hand rotary/push-button
v to highlight the desired entry and
press to confirm.
The main telephone menu appears, in-
dicating the selected name.
Begin dialing

Press the right-hand rotary/push-
button v to confirm the “Send” but-
ton.
The “End” button is highlighted.
P82.85-9132-31
4
56
iThe phone book stored in the phone me-
mory is being downloaded.
P82.85-9133-31

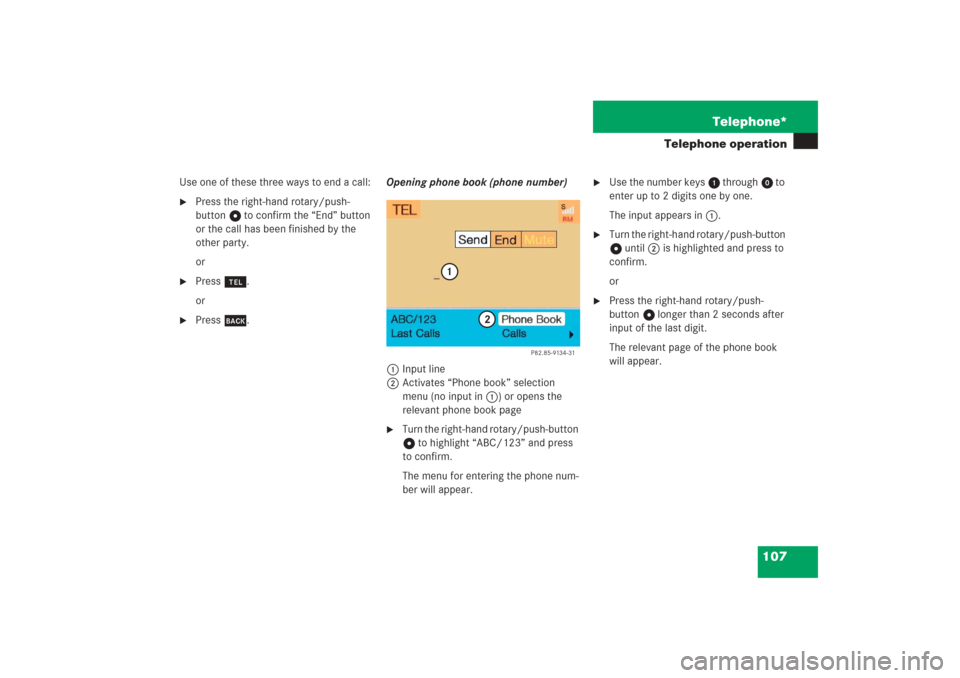

107 Telephone*
Telephone operation
Use one of these three ways to end a call:
Press the right-hand rotary/push-
button v to confirm the “End” button
or the call has been finished by the
other party.
or

Press a.
or

Press *.Opening phone book (phone number)
1Input line
2Activates “Phone book” selection
menu (no input in 1) or opens the
relevant phone book page

Turn the right-hand rotary/push-button
v to highlight “ABC/123” and press
to confirm.
The menu for entering the phone num-
ber will appear.

Use the number keys 1 through 0 to
enter up to 2 digits one by one.
The input appears in 1.

Turn the right-hand rotary/push-button
v until 2 is highlighted and press to
confirm.
or

Press the right-hand rotary/push-
button v longer than 2 seconds after
input of the last digit.
The relevant page of the phone book
will appear.
P82.85-9134-31
1
2

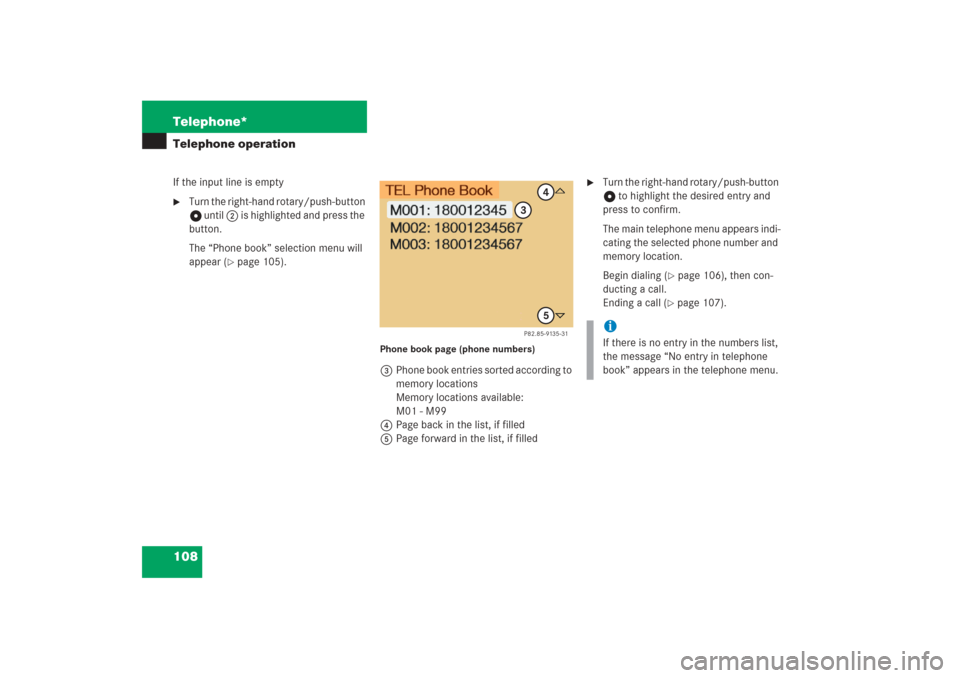

108 Telephone*Telephone operationIf the input line is empty
Turn the right-hand rotary/push-button
v until 2 is highlighted and press the
button.
The “Phone book” selection menu will
appear (
page 105).
Phone book page (phone numbers)3Phone book entries sorted according to
memory locations
Memory locations available:
M01 - M99
4Page back in the list, if filled
5Page forward in the list, if filled

Turn the right-hand rotary/push-button
v to highlight the desired entry and
press to confirm.
The main telephone menu appears indi-
cating the selected phone number and
memory location.
Begin dialing (
page 106), then con-
ducting a call.
Ending a call (page 107).
P82.85-9135-313
45
iIf there is no entry in the numbers list,
the message “No entry in telephone
book” appears in the telephone menu.

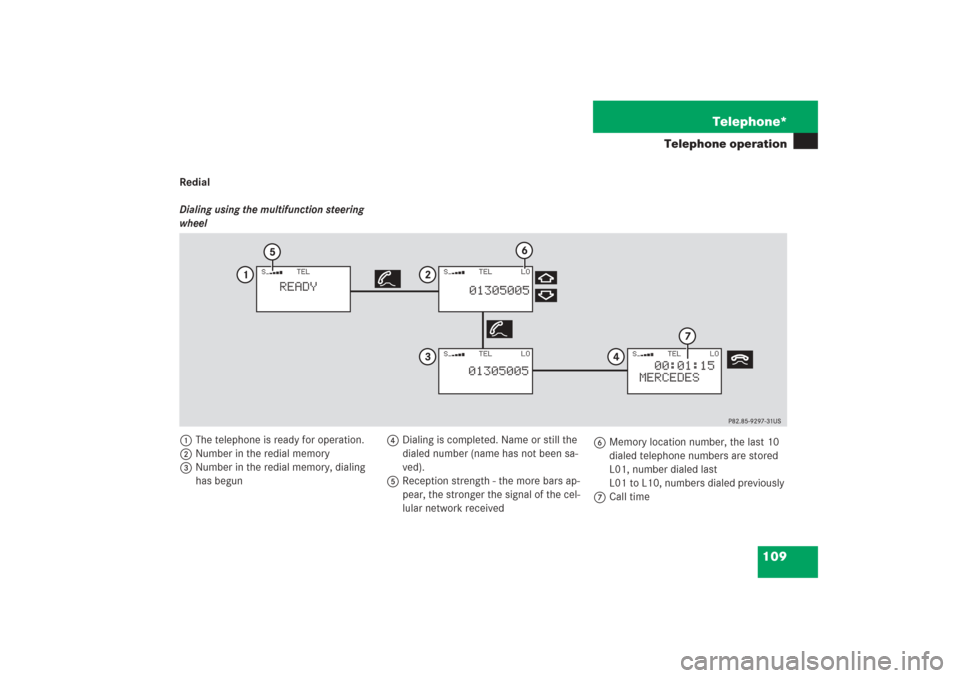

109 Telephone*
Telephone operation
RedialDialing using the multifunction steering
wheel1The telephone is ready for operation.
2Number in the redial memory
3Number in the redial memory, dialing
has begun4Dialing is completed. Name or still the
dialed number (name has not been sa-
ved).
5Reception strength - the more bars ap-
pear, the stronger the signal of the cel-
lular network received6Memory location number, the last 10
dialed telephone numbers are stored
L01, number dialed last
L01 to L10, numbers dialed previously
7Call time

110 Telephone*Telephone operationThe telephone is switched on
Press E or H repeatedly until the
corresponding telephone menu 1 ap-
pears in the display.
The telephone is ready for operation.

Press K.
The redial memory appears with the
last number dialed.

Press F or G.
This allows you to page forward or
backward through the redial memory.
The number selected will appear in the
display with the corresponding memo-
ry location.

Press K, when the desired number
or name appears in the display 2.
Dialing will begin 3. When the dialing
has been completed, the name 4 is
displayed if the name has been stored
in the phone book, otherwise you will
continue to see the phone number.
The display is maintained for the dura-
tion of the call.

Press L to end the call.
The telephone display 1 appears.
iIf you do not wish to place a call, press
L. The telephone display 1 ap-
pears.
iPress E or H to display the next
or previous system.

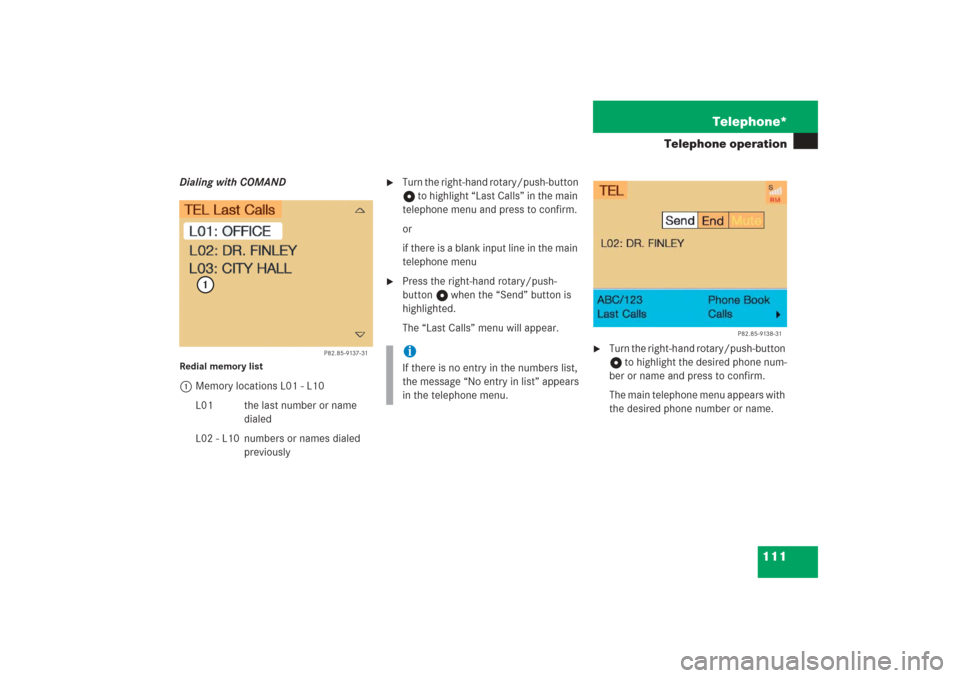

111 Telephone*
Telephone operation
Dialing with COMANDRedial memory list1Memory locations L01 - L10
L01 the last number or name
dialed
L02 - L10 numbers or names dialed
previously

Turn the right-hand rotary/push-button
v to highlight “Last Calls” in the main
telephone menu and press to confirm.
or
if there is a blank input line in the main
telephone menu

Press the right-hand rotary/push-
button v when the “Send” button is
highlighted.
The “Last Calls” menu will appear.

Turn the right-hand rotary/push-button
v to highlight the desired phone num-
ber or name and press to confirm.
The main telephone menu appears with
the desired phone number or name.
P82.85-9137-31
1
iIf there is no entry in the numbers list,
the message “No entry in list” appears
in the telephone menu.
P82.85-9138-31

112 Telephone*Telephone operationBegin dialing
Press the right-hand rotary/push-
button v to confirm the “Send” but-
ton.
The message “Dialing” will appear. The
“End” button is highlighted.
Use one of these three ways to end a call:

Press the right-hand rotary/push-
button v to confirm the “End” button
or the call has been finished by the
other party.
or

Press a.
or

Press *.Dialing from calls list
Incoming calls memory
Turn the right-hand rotary/push-button
v to highlight “Calls” in the main tele-
phone menu and press to confirm.
The incoming calls memory will appear.

Turn the right-hand rotary/push-button
v to select the desired phone number
or name and press to confirm.
The main telephone menu appears indi-
cating the number or name selected.
Begin dialing, ending a call, see above.
P82.85-9139-31

113 Telephone*
Telephone operation
Speed-dialing (only with COMAND)
For all memory locations
You can enter up to 2 digits
The main telephone menu is displayed
Use the number keys, e.g. 1 and 4 to
enter the memory location number. Begin dialing
Use one of these ways

Press the last number key for more
than 2 seconds.
or

Press the right-hand rotary/push-
button v to confirm the “Send” but-
ton.
The phone number or name will appear
in the menu. The telephone will dial the
phone number that has been stored in
this memory location.
When the call is initiated, the call time
will appear.
P82.85-9140-31
Warning
G
If you enter “1” and confirm this memory lo-
cation using one of the described ways in
“Begin dialing”, the emergency number
9-1-1 (default input) will be dialed.
The 9-1-1 emergency call system is a public
service. Using it without due cause is a cri-
minal offense.
P82.85-9141-31

114 Telephone*Telephone operation
Ending a call (
page 112).Quick-dialing for the first 10 memory
locations
The main telephone menu is displayed

Press 2 to 0 longer than 2 seconds.
The phone number or name will appear
in the menu. The telephone will dial the
phone number that has been stored in
this memory location.
When the call is initiated, the call time
will appear.

Ending a call (
page 112).
iIf the memory location called is free, the
message “Memory location not alloca-
ted” will appear.
P82.85-9142-31
Warning
G
If you press “1” the emergency number
9-1-1 (default input) will be dialed.
The 9-1-1 emergency call system is a public
service. Using it without due cause is a cri-
minal offense.
