clock MERCEDES-BENZ G-Class 2009 W463 Owner's Manual

XInsert the mechanical key in the lock
cylinder.
XTurn the mechanical key clockwise to
position 2 and remove the mechanical
key in that position to lock the tailgate.
The tailgate remains locked even when the
vehicle is centrally unlocked.
You can only cancel the separate tailgate
locking mode by means of the mechanical
key.
XUnlocking: Remove the mechanical key
from the SmartKey (Y page 221).
XInsert the mechanical key in the lock
cylinder.
XTurn the mechanical key counterclockwise
to neutral position 1 and remove the
mechanical key in that position to unlock
the tailgate.
You can now open the tailgate.
Starter switch positions
SmartKey
GObserve Safety notes, see page 44.
Starter switch
gFor removing SmartKey (gear selector
lever must be in park position P)
1Power supply for some electrical
consumers, e.g. radio
2Ignition (power supply for all electrical
consumers) and driving position
3Starting positionWhen you switch on the ignition, all lamps
(except low-beam headlamp indicator lamp,
high-beam headlamp indicator lamp, and turn
signal indicator lamps unless activated) in the
instrument cluster come on. If a lamp in the
instrument cluster fails to come on when the
ignition is switched on, have it checked and
replaced if necessary. If a lamp in the
instrument cluster remains on after starting
the engine or comes on while driving, refer to
“Lamps in instrument cluster” (Y page 213).
If the SmartKey is left in starter switch
position 0 for an extended period of time, it
can no longer be turned in the starter switch.
In this case, the steering is locked. To unlock,
remove SmartKey from the starter switch and
reinsert.
The steering is locked when the SmartKey is
removed from the starter switch.
! If the SmartKey cannot be turned in the
starter switch, the vehicle battery may not
be sufficiently charged.
RCheck the vehicle battery and charge it
if necessary.
RGet a jump start.
Always remove the SmartKey from the
starter switch when the engine is not in
operation. This will help to prevent
accelerated vehicle battery discharge or a
completely discharged vehicle battery.
Seats
Safety notes
GWarning!
In order to avoid possible loss of vehicle
control, all seat, head restraint, steering
wheel, and rear view mirror adjustments, as
well as fastening of seat belts, must be done
before the vehicle is put into motion.
62SeatsControls in detail
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 62

APress button briefly&
*
to move within a menu
Within Audio/DVD menu to
select previous or next track,
scene or stored station
Within Telephone menu to
switch to the phone book and
select a name or number
Press and hold button&
*
Within Audio/DVD menu to
select previous or next track
with quick search or to select
previous or next station in
station list or wave band
Within Telephone menu to
start the quick search in the
phone book
iCanada and AMG vehicles:
The steering wheel in this vehicle may vary
from steering wheel shown. However,
multifunction steering wheel symbols and
feature description apply to Canada and
AMG vehicles as well.
Depending on the selected menu, pressing
the buttons on the multifunction steering
wheel will alter what appears in the
multifunction display.
The information available in the multifunction
display is arranged in menus and
accompanying functions and submenus.
The individual functions are then found within
the relevant menu (radio or CD operations
under Audio/DVD menu, for example).
These functions serve to call up relevant
information or to customize the settings for
your vehicle.
It is helpful to think of the menus, and the
functions within each menu, as being
arranged in a circular pattern.
XPress button V or U repeatedly to
pass through each menu one after the
other.
XPress button * or & repeatedly to
pass through each function display, one
after the other, in the current menu.
In the Settings menu, instead of functions,
you will find a number of submenus for calling
up and changing settings. For instructions on
using these submenus, see “Settings menu”
(Y page 103).
The number of menus available in the system
depends on which optional equipment is
installed in your vehicle.
Multifunction display
:Trip odometer;Main odometer =Transfer case indicator?Transmission position/gear range
indicator
ADigital clockBOutside temperature/digital
speedometer
For more information on menus displayed in
the multifunction display, see “Menus and
submenus” (Y page 99).
98Control systemControls in detail
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 98

XIncreasing/decreasing: Turn
temperature control ; and/or =
(Y page 119) slightly clockwise or
counterclockwise.
iIf you turn the temperature control fully
clockwise or counterclockwise for one side
of the vehicle, you are increasing or
decreasing the temperature for the other
side of the vehicle as well.
Adjusting air vents
GWarning!
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature). This
may cause burns or frostbite to unprotected
skin in the immediate area of the air vents.
Always keep sufficient distance between
unprotected parts of the body and the air
vents. If necessary, use the air distribution
adjustment to direct the air to air vents in the
vehicle interior that are not in the immediate
area of unprotected skin.
For best possible performance of the climate
control:
XKeep the air intake grille in front of the
windshield free of snow, leaves, sticks, and
any other debris.
XAlways keep all air vents and grilles in the
passenger compartment free from
obstruction.
iFor draft-free ventilation, move the
adjustable center and side air vents to the
middle position.
Center air vents:Left center air vent, adjustable;Right center air vent, adjustable=Thumbwheel for air volume control for
adjustable right center air vent
?Thumbwheel for air volume control for
adjustable left center air vent
XOpening/closing: Turn thumbwheels =
and ? in the required direction.
Side air vents
Example illustration passenger side
:Right side defroster air vent, fixed;Right side air vent, adjustable=Thumbwheel for air volume control for
adjustable right side air vent
XOpening/closing: Turn thumbwheel = in
the required direction.
122Climate control systemControls in detail
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 122

Rear center console air vents:Thumbwheel for air volume control for
rear center air vents
;Right rear center air vent, adjustable=Left rear center air vent, adjustableXOpening/closing: Turn thumbwheel :
upward or downward.
Adjusting air distribution
The symbols on the control represent the
following functions:
SymbolFunctionMDirects air to the windshield and
through the side defroster air
vents
QDirects air into the entire
vehicle interior
ODirects air to the footwells and
through the side air vents
PDirects air through the center
and side air vents
The air distribution can be adjusted manually.
XTurn air distribution control ?
(Y page 119) to the desired symbol.
The air distribution is adjusted according to
the chosen setting.
You can also turn the control to a position
between two symbols.
Adjusting air volume
XDecrease/increase: Turn air volume
control : (Y page 119) clockwise or
counterclockwise.
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the windshield and the
side windows.
iKeep this setting selected only until the
windshield or the side windows are clear
again.
XActivating: Press button ¥4 or z5.
The indicator lamp in the button comes on.
The climate control switches to the following
functions automatically:
Rcooling on to dehumidify
Rmost efficient blower speed and heating
power, depending on outside temperature
Rair flows onto the windshield and the front
side windows
Rthe air recirculation mode is switched off
iIf you have activated on the defrost
function with button ¥ or z, you
cannot make any other settings.
XDeactivating: Press button ¥ or z
again.
The indicator lamp in the button goes out.
The previous settings are once again in
effect.
4USA only5Canada only
Climate control system123Controls in detail463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 123Z

switch on the ignition. Otherwise the
incorrect or non-approved fuel will get into
the fuel lines. The fuel system must be
drained completely. Contact an authorized
Mercedes-Benz Center to have the fuel
system drained completely.
! To prevent damage to the catalytic
converters, only use premium unleaded
gasoline in this vehicle.
Any noticeable irregularities in engine
operation should be repaired promptly.
Otherwise, excessive unburned fuel may
reach the catalytic converter, causing it to
overheat and potentially start a fire.
i Only use premium unleaded gasoline with
a minimum Posted Octane Rating of 91
(average of 96 RON/86 MON).
Information on gasoline quality can
normally be found on the fuel pump. Please
contact gas station personnel in case
labels on the pump cannot be found.
For more information on gasoline, see
“Premium unleaded gasoline”
(Y page 254), see “Fuel requirements”
(Y page 255), or contact an authorized
Mercedes-Benz Center, or visit
www.mbusa.com (USA only).
The fuel filler flap is located on the right-hand
side of the vehicle towards the rear.
Locking/unlocking the vehicle with the
SmartKey automatically locks/unlocks the
fuel filler flap.
iIn case the central locking system does
not release the fuel filler flap, see “Fuel filler
flap” (Y page 223).
XTurn off the engine.
iLeaving the engine running and the fuel
filler cap open can cause the yellow fuel
tank reserve warning lamp to flash and the
malfunction indicator lamp = (USA
only) or ; (Canada only) to illuminate.
For more information, see also “Practical
hints” (Y page 218).
XRemove the SmartKey from the starter
switch.
XOpening: Press fuel filler flap : at the
point indicated by the arrow.
XTurn fuel filler cap ; counterclockwise.XTake off fuel filler cap ;.
! The fuel filler cap is tethered to the fuel
filler neck. Do not drop the cap. It could
damage the vehicle paint finish.
XPlace fuel filler cap ; in direction of arrow
into the holder.
XFully insert filler nozzle unit and refuel.XOnly fill your tank until the filler nozzle unit
cuts out – do not top off or overfill.
! When refueling the vehicle, make certain
that no gasoline comes into contact with
the rear side marker to prevent damaging
the lens.
XClosing: Turn fuel filler cap ; clockwise
until it audibly engages.
iMake sure to close the fuel filler flap
before locking your vehicle as the flap
At the gas station147Operation463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 147Z

XUsing a rag, turn cap : slowly
approximately 1/2 turn counterclockwise
to release any excess pressure.
XContinue turning cap : counterclockwise
and remove it.
The coolant level is correct if the level
Rfor cold coolant: reaches the top of the
mark (plastic bridge) in coolant
expansion tank ;
Rfor warm coolant: is approximately 0.6 in
(1.5 cm) higher
XAdd coolant as required.XAttach and tighten cap :.
For more information on coolant, see the
“Technical data” section (Y page 253) and
(Y page 255).
Washer system and headlamp
cleaning system
GWarning!
Washer solvent/antifreeze is highly
flammable. Do not spill washer solvent/
antifreeze on hot engine parts, because it may
ignite and burn. You could be seriously
burned.
! Always use washer solvent/antifreeze
where temperatures may fall below
freezing point. Failure to do so could result
in damage to the washer system/fluid
reservoir.
! Only use washer fluid which is suitable for
plastic lenses. Improper washer fluid can
damage the plastic lenses of the
headlamps.
! Do not use distilled or deionized water in
the washer fluid reservoir. Otherwise, the
washer fluid level sensor could be
damaged.
Fluid for the washer system, rear window
washer system, and the headlamp cleaning
system is supplied from the washer fluid
reservoir.
During all seasons, add MB Windshield
Washer Concentrate “MB SummerFit” to
water. Premix the washer fluid in a suitable
container.
XOpening washer fluid reservoir: Pull tab
of cap : upwards.
XRefill the washer fluid reservoir with MB
Windshield Washer Concentrate “MB
SummerFit” and water (or commercially
available premixed washer solvent/
antifreeze, depending on ambient
temperatures) (Y page 257).
XClosing washer fluid reservoir: Press
cap : onto filler hole until it engages.
For more information, see “Washer system
and headlamp cleaning system”
(Y page 253).
Transmission fluid level
The transmission fluid level does not need to
be checked. If you notice transmission fluid
loss or gearshifting malfunctions, have an
authorized Mercedes-Benz Center check the
transmission.
Engine compartment153Operation463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 153Z

Jack GWarning!
Only use the jack supplied with your vehicle
to lift the vehicle briefly for wheel changes. If
you use the jack for any other purpose, you or
others could be injured, as the jack is
designed only for the purpose of changing a
wheel.
When using the jack, observe the safety notes
in the “Mounting the spare wheel” section and
the notes on the jack.
XTake the pump handle (three pieces) and
jack from the vehicle tool kit
(Y page 194).
Pump handle
XAssemble the pump handle.
Jack
XSet indent : of the pump handle onto
release bolt ; of the jack.
XUsing the pump handle, turn release
bolt ; clockwise until its stop.
Release bolt ; is closed.
XRemove the pump handle from release
bolt ;.
XSet the pump handle into the pump lever
as indicated by the arrow.
Before placing the pump handle and the jack
back into the vehicle tool kit:
XPress the jack piston in again and close the
release bolt by using the pump handle.
XDisassemble the pump handle.
Spare wheel
GObserve Safety notes, see page 232.
The spare wheel is located under a cover on
the outside of the vehicle’s tailgate.
XRemoving: Take the screwdriver from the
vehicle tool kit (Y page 194).
XOpen lock : using the screwdriver.
iYou can also use a coin to open the lock.
XFold tab ; downwards.Where will I find ...?195Practical hints463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 195Z

Unlocking/locking manually
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey, unlock the driver’s door and the
tailgate using the mechanical key.
iUnlocking and opening the driver’s door
or the tailgate with the mechanical key will
trigger the anti-theft alarm system.
To cancel the alarm, insert the SmartKey in
the starter switch.
Removing the mechanical key
XMove locking tab : in direction of arrow.XSlide mechanical key ; out of the housing.
Unlocking the driver’s door
XInsert mechanical key ; into the lock
cylinder.
XTurn mechanical key ; counterclockwise
to position 1 until the locking knob moves
up.
The driver’s door is unlocked.
XRemove mechanical key ;.XPress lock cylinder and pull on door handle
to open the driver’s door.
Unlocking the tailgate
GWarning!
The tailgate swings open to one side. Always
make sure there is sufficient clearance for the
tailgate.
Make sure the tailgate is closed when the
engine is running and while driving. Among
other dangers, deadly carbon monoxide (CO)
gases may enter vehicle interior resulting in
unconsciousness and death.
XInsert mechanical key = into the lock
cylinder.
XTurn mechanical key = counterclockwise
to position 2.
XRemove mechanical key =.XPress lock cylinder and pull on door
handle : to open the tailgate.
Unlocking/locking manually221Practical hints463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 221Z

Locking the vehicle
If you cannot lock the vehicle with the
SmartKey, lock it as follows:
XClose the front passenger door, the rear
doors, and the tailgate.
XOpen the driver’s door.XPress the central locking switch
(Y page 60).
The locking knobs of the front passenger
door, the rear doors, and the tailgate move
down.
XIf the vehicle battery is disconnected or
drained: Press down the locking knobs on
the front passenger door, the rear doors,
and the tailgate.
XExit the vehicle.XClose the driver’s door.XRemove mechanical key ; from the
SmartKey (Y page 221).
XInsert mechanical key ; into the lock
cylinder.
XTurn mechanical key ; clockwise to
position 1.
The vehicle is locked.
XTurn mechanical key ; back and remove
it from the lock cylinder.
XCheck if the tailgate is locked.XIf necessary, lock the tailgate with the
mechanical key (Y page 61).
iThis procedure does not arm the anti-
theft alarm system, nor does it lock the fuel
filler flap.
Manually unlocking the gear selector
lever
If the vehicle’s electrical system is
malfunctioning, the gear selector lever could
remain locked in park position P. In this case
the gear selector lever can be unlocked
manually, e.g. to tow the vehicle.
XEngage the parking brake.XInsert suitable tool : (e.g. a ball point pen)
into the covered opening.
XSimultaneously push tool : downward
and move the gear selector lever out of
park position P.
XRemove tool :.
The gear selector lever is unlocked.
The cover returns to its closed position after
moving the gear selector lever to the
positions D+ and D-.
iThe gear selector lever is locked again as
soon as you move it back to park position
P.
222Unlocking/locking manuallyPractical hints
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 222

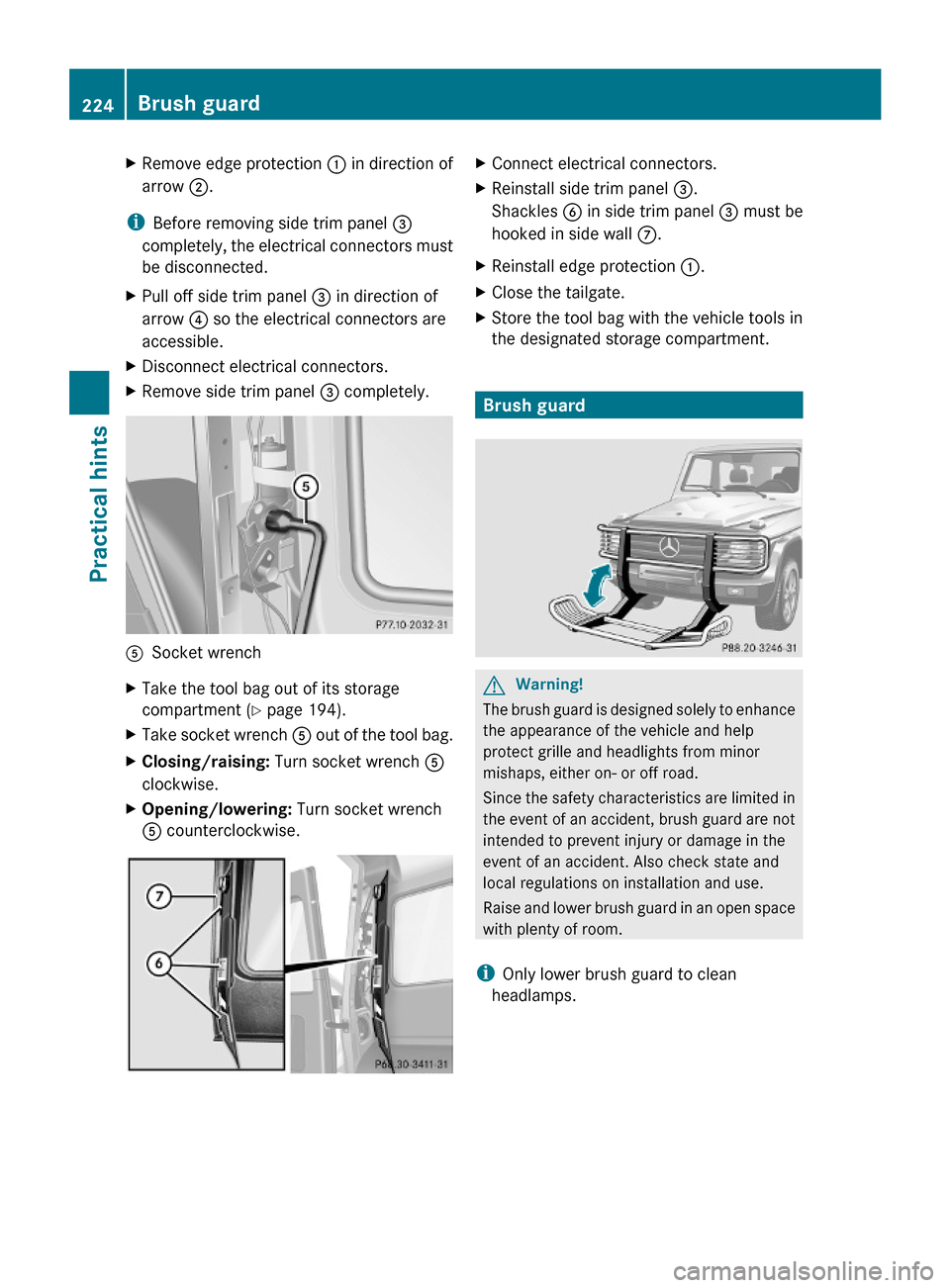

XRemove edge protection : in direction of
arrow ;.
iBefore removing side trim panel =
completely, the electrical connectors must
be disconnected.
XPull off side trim panel = in direction of
arrow ? so the electrical connectors are
accessible.
XDisconnect electrical connectors.XRemove side trim panel = completely.ASocket wrenchXTake the tool bag out of its storage
compartment (Y page 194).
XTake socket wrench A out of the tool bag.XClosing/raising: Turn socket wrench A
clockwise.
XOpening/lowering: Turn socket wrench
A counterclockwise.
XConnect electrical connectors.XReinstall side trim panel =.
Shackles B in side trim panel = must be
hooked in side wall C.
XReinstall edge protection :.XClose the tailgate.XStore the tool bag with the vehicle tools in
the designated storage compartment.
Brush guard
GWarning!
The brush guard is designed solely to enhance
the appearance of the vehicle and help
protect grille and headlights from minor
mishaps, either on- or off road.
Since the safety characteristics are limited in
the event of an accident, brush guard are not
intended to prevent injury or damage in the
event of an accident. Also check state and
local regulations on installation and use.
Raise and lower brush guard in an open space
with plenty of room.
iOnly lower brush guard to clean
headlamps.
224Brush guardPractical hints
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 224
