Page 241 of 288

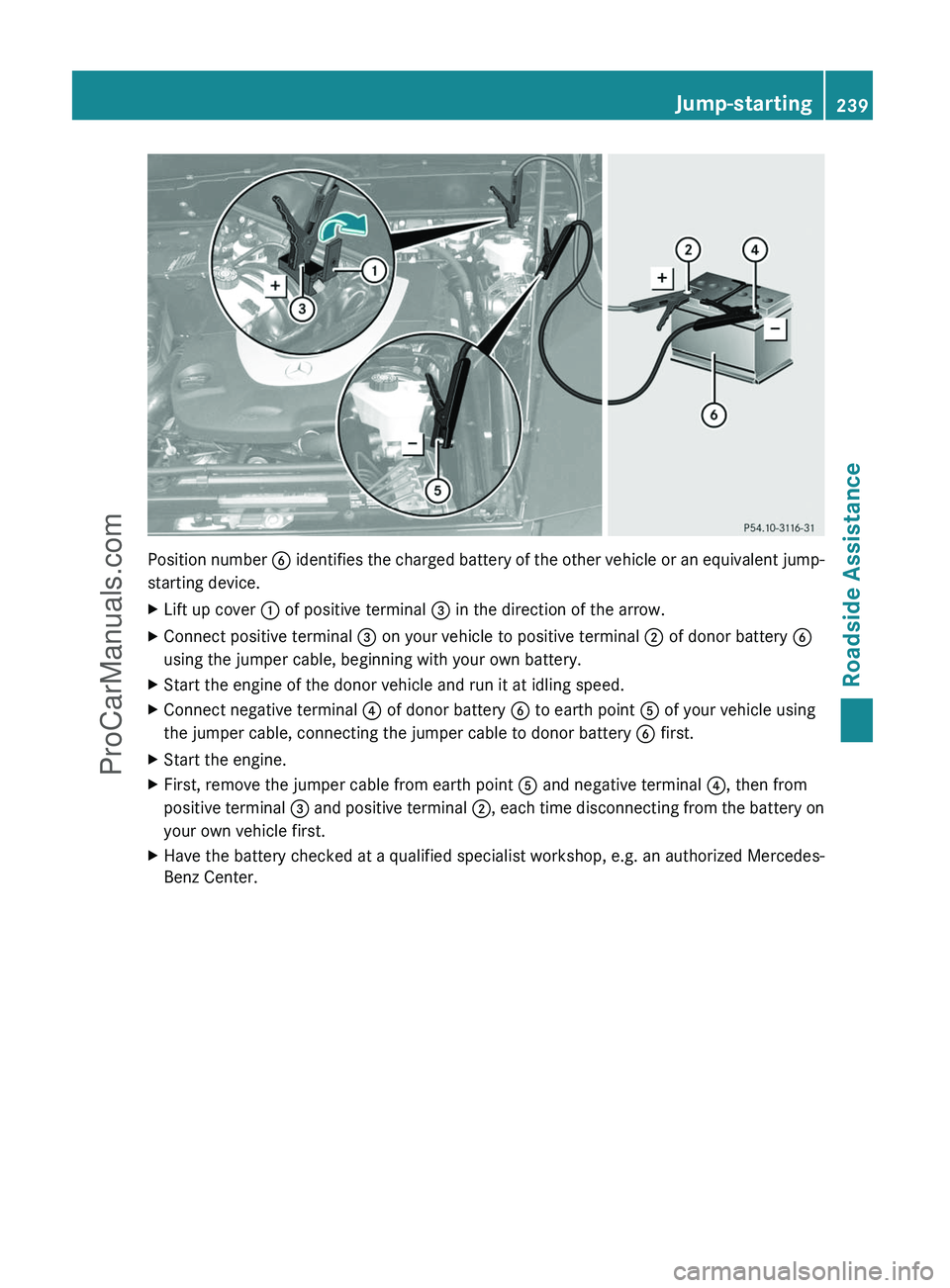

MERCEDES-BENZ G-CLASS 2011  Owners Manual Position number B identifies the charged battery of the other vehicle or an equivalent jump-
starting device.
XLift up cover  : of positive terminal  = in the direction of the arrow.XConnect positive

Page 242 of 288

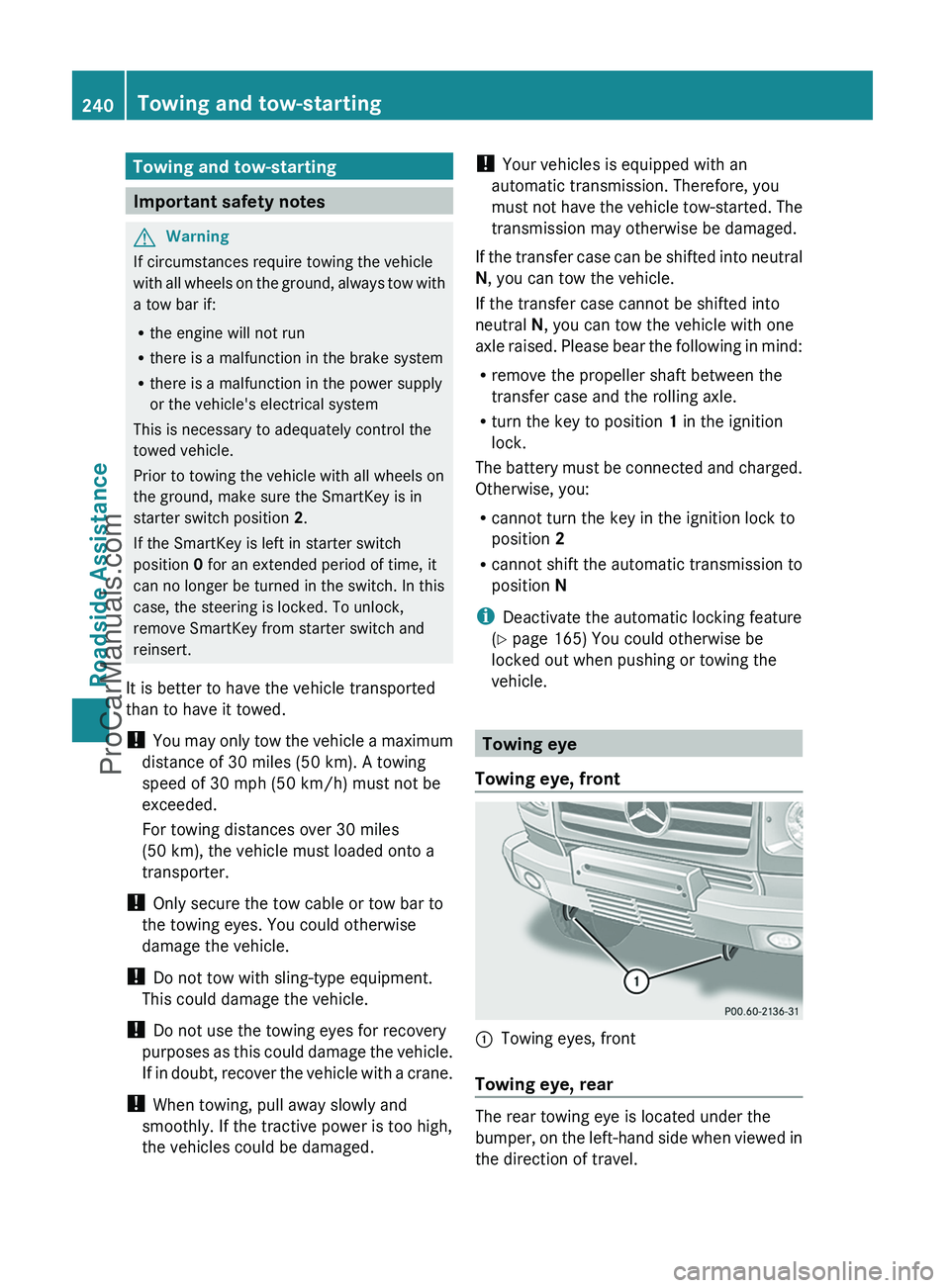

MERCEDES-BENZ G-CLASS 2011  Owners Manual Towing and tow-starting
Important safety notes
GWarning
If circumstances require towing the vehicle
with all wheels on the ground, always tow with
a tow bar if:
R the engine will not run
R there is a

Page 243 of 288

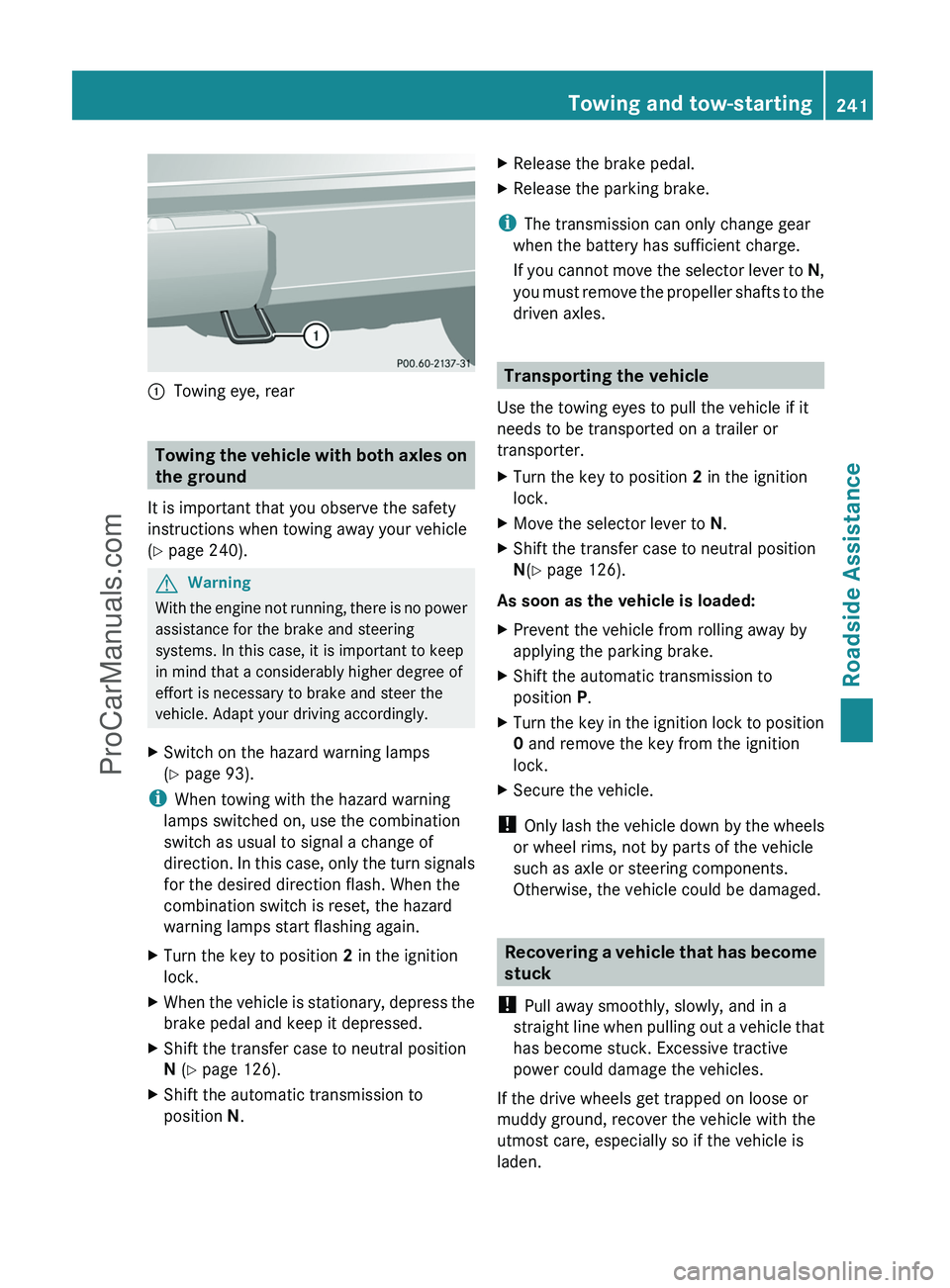

MERCEDES-BENZ G-CLASS 2011  Owners Manual :Towing eye, rear
Towing the vehicle with both axles on
the ground
It is important that you observe the safety
instructions when towing away your vehicle
( Y  page 240).
GWarning
With the engine not r

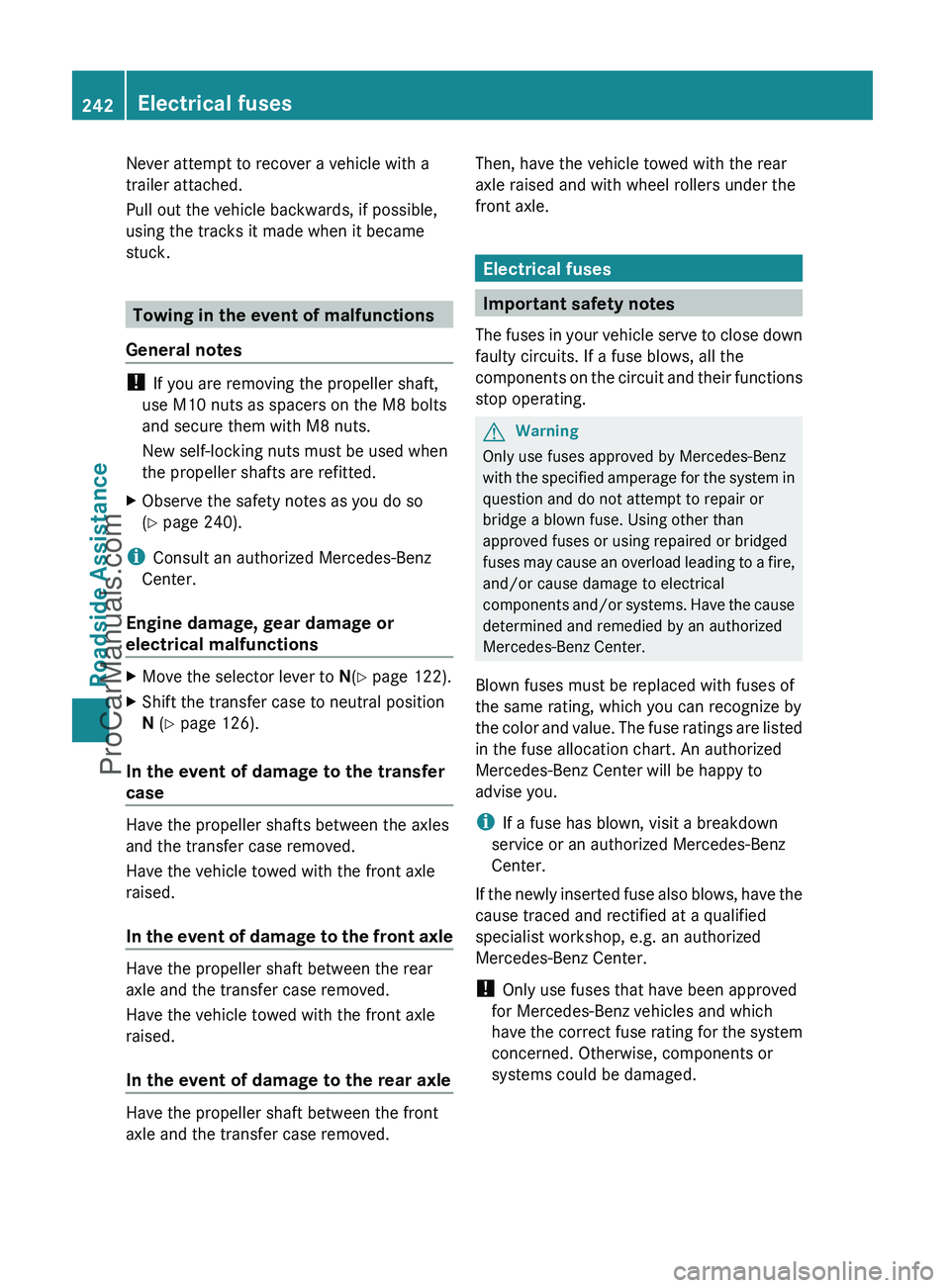

Page 244 of 288

MERCEDES-BENZ G-CLASS 2011  Owners Manual Never attempt to recover a vehicle with a
trailer attached.
Pull out the vehicle backwards, if possible,
using the tracks it made when it became
stuck.
Towing in the event of malfunctions
General note

Page 245 of 288

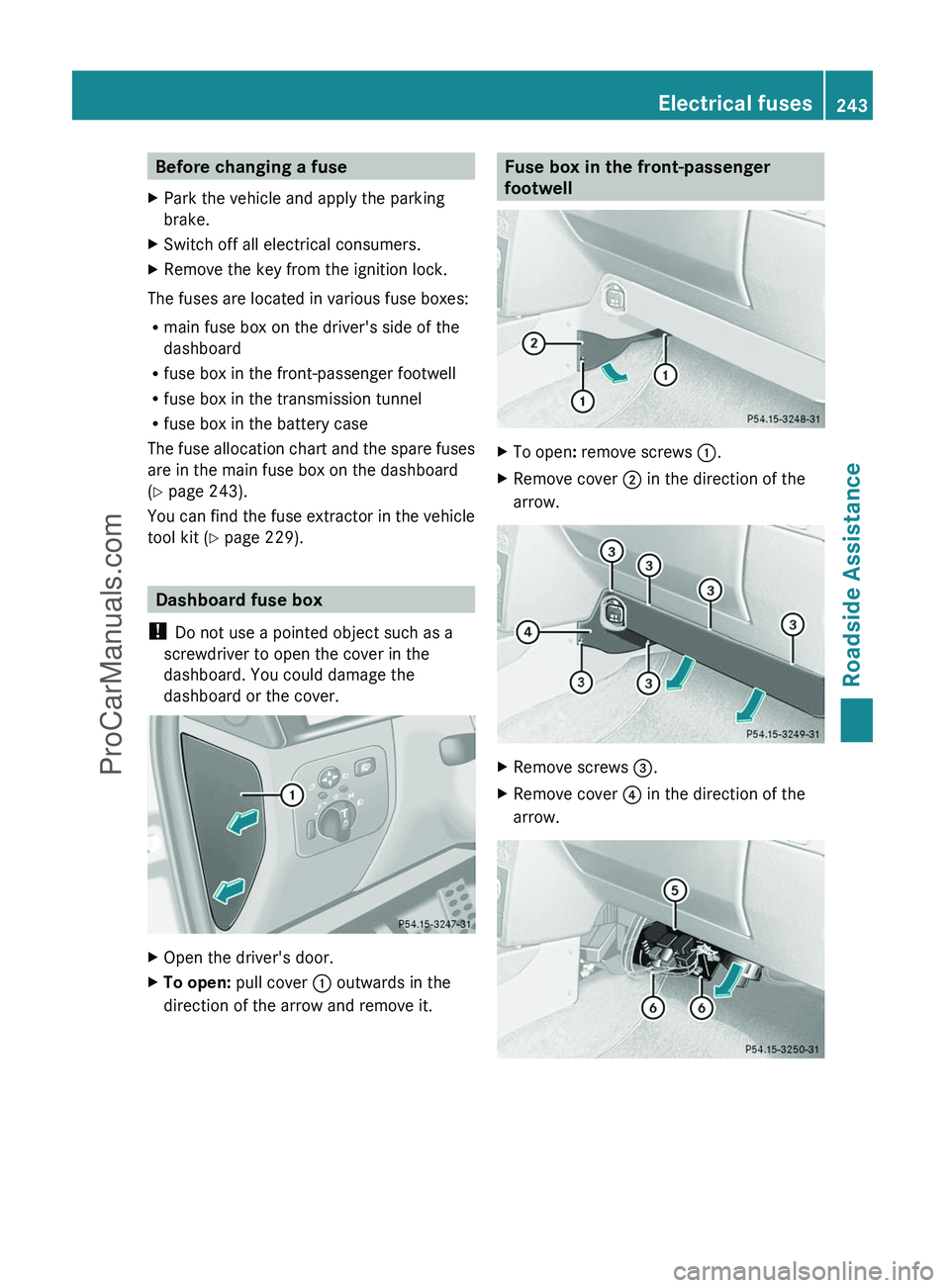

MERCEDES-BENZ G-CLASS 2011  Owners Manual Before changing a fuseXPark the vehicle and apply the parking
brake.XSwitch off all electrical consumers.XRemove the key from the ignition lock.
The fuses are located in various fuse boxes:
R main fus

Page 246 of 288

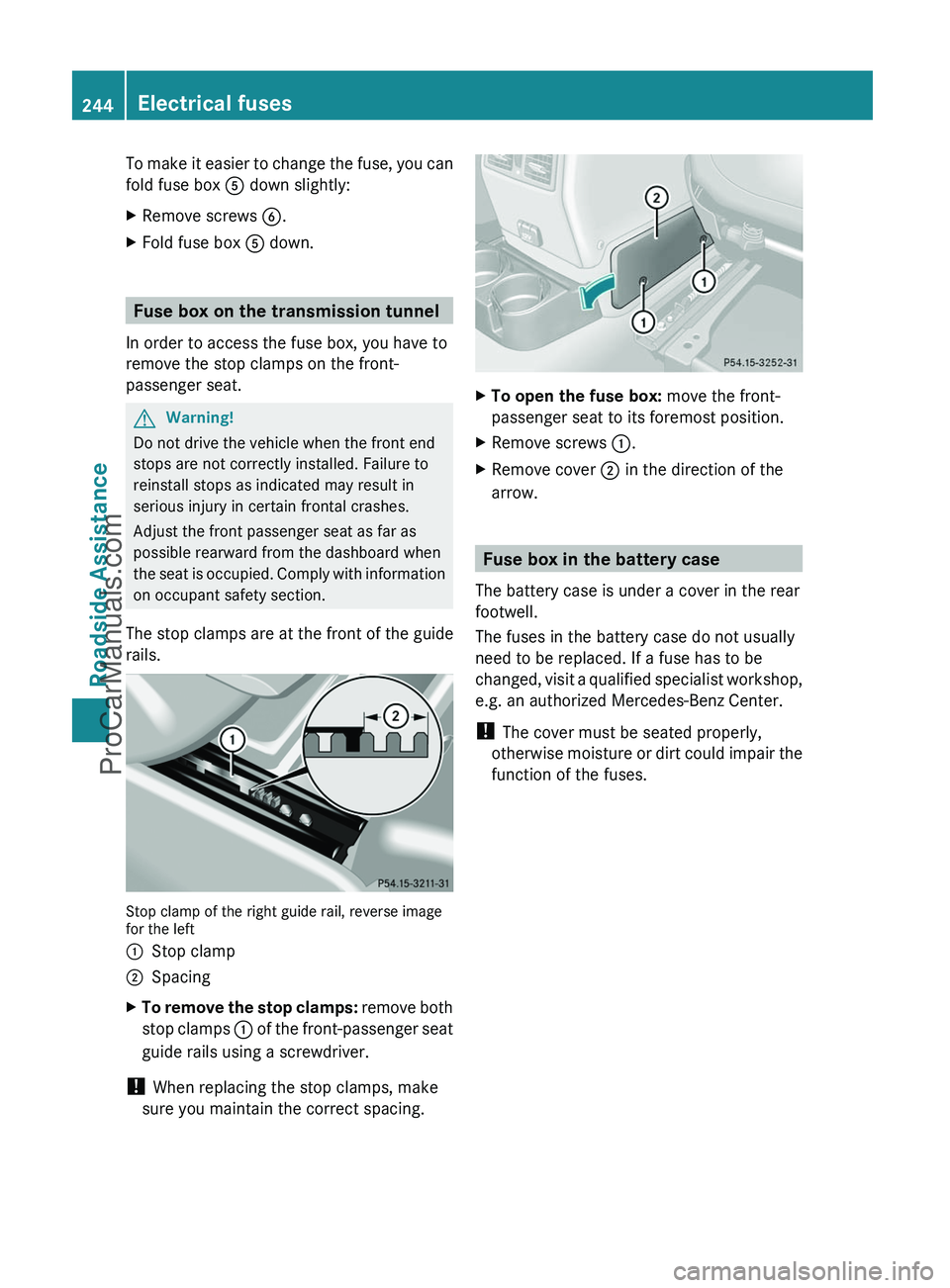

MERCEDES-BENZ G-CLASS 2011  Owners Manual To make it easier to change the fuse, you can
fold fuse box  A down slightly:XRemove screws  B.XFold fuse box  A down.
Fuse box on the transmission tunnel
In order to access the fuse box, you have to

Page 247 of 288

MERCEDES-BENZ G-CLASS 2011  Owners Manual Vehicle equipment ............................246
Important safety notes  ....................246
Operation  ........................................... 246
Winter operation  .........................

Page 248 of 288

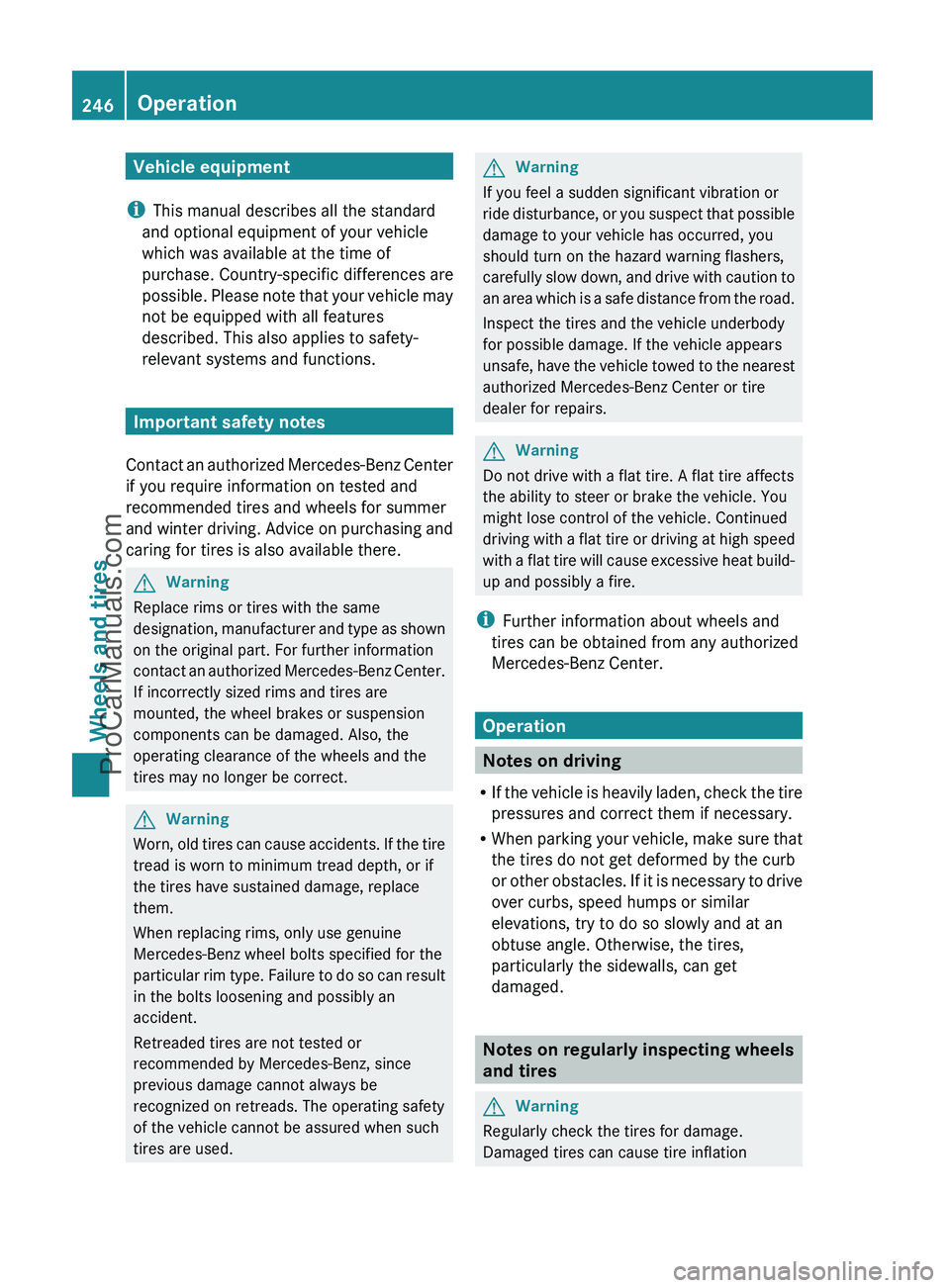

MERCEDES-BENZ G-CLASS 2011  Owners Manual Vehicle equipment
i This manual describes all the standard
and optional equipment of your vehicle
which was available at the time of
purchase. Country-specific differences are
possible. Please note th

Page 249 of 288

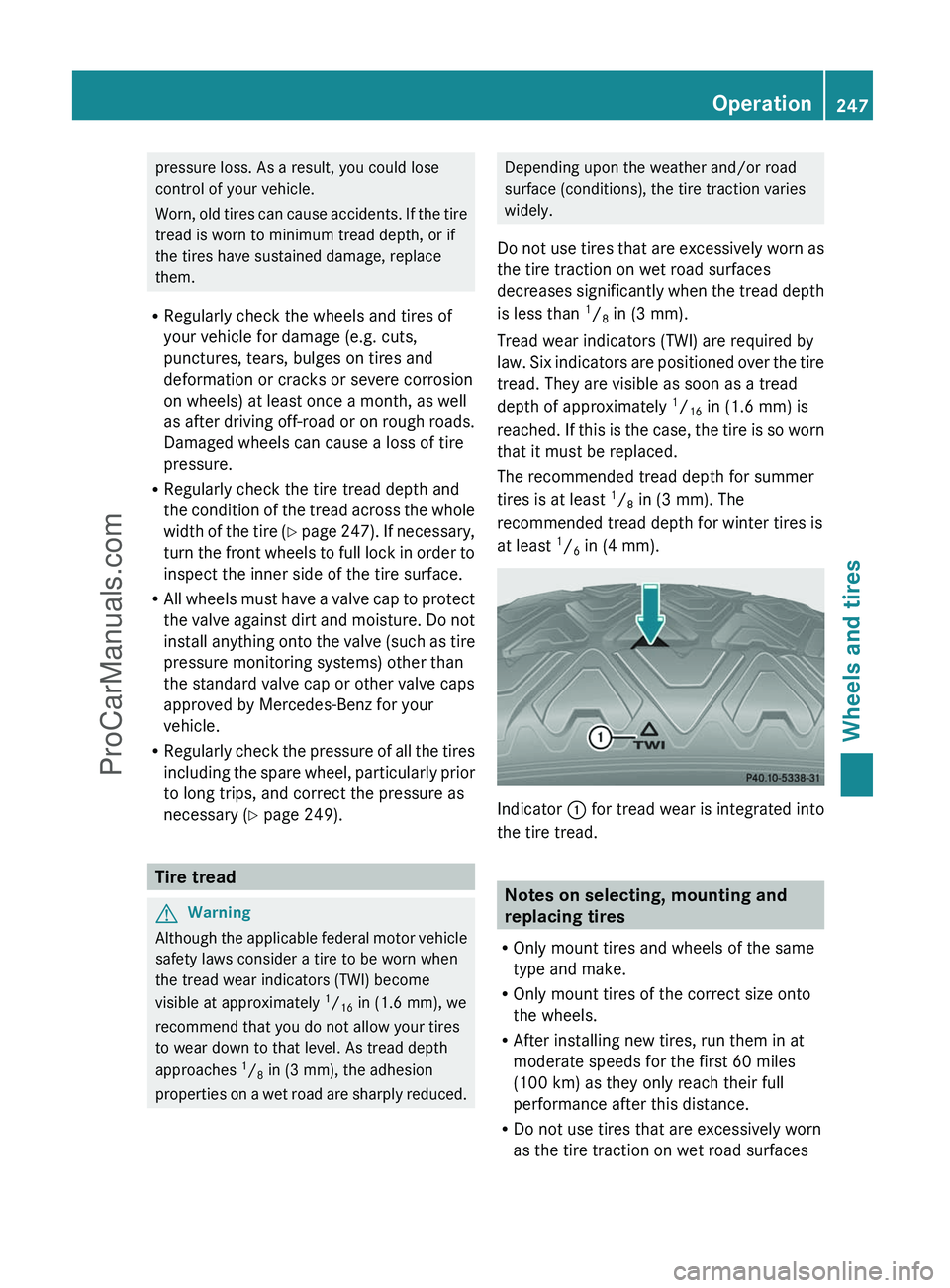

MERCEDES-BENZ G-CLASS 2011  Owners Manual pressure loss. As a result, you could lose
control of your vehicle.
Worn, old tires can cause accidents. If the tire
tread is worn to minimum tread depth, or if
the tires have sustained damage, replac

Page 250 of 288

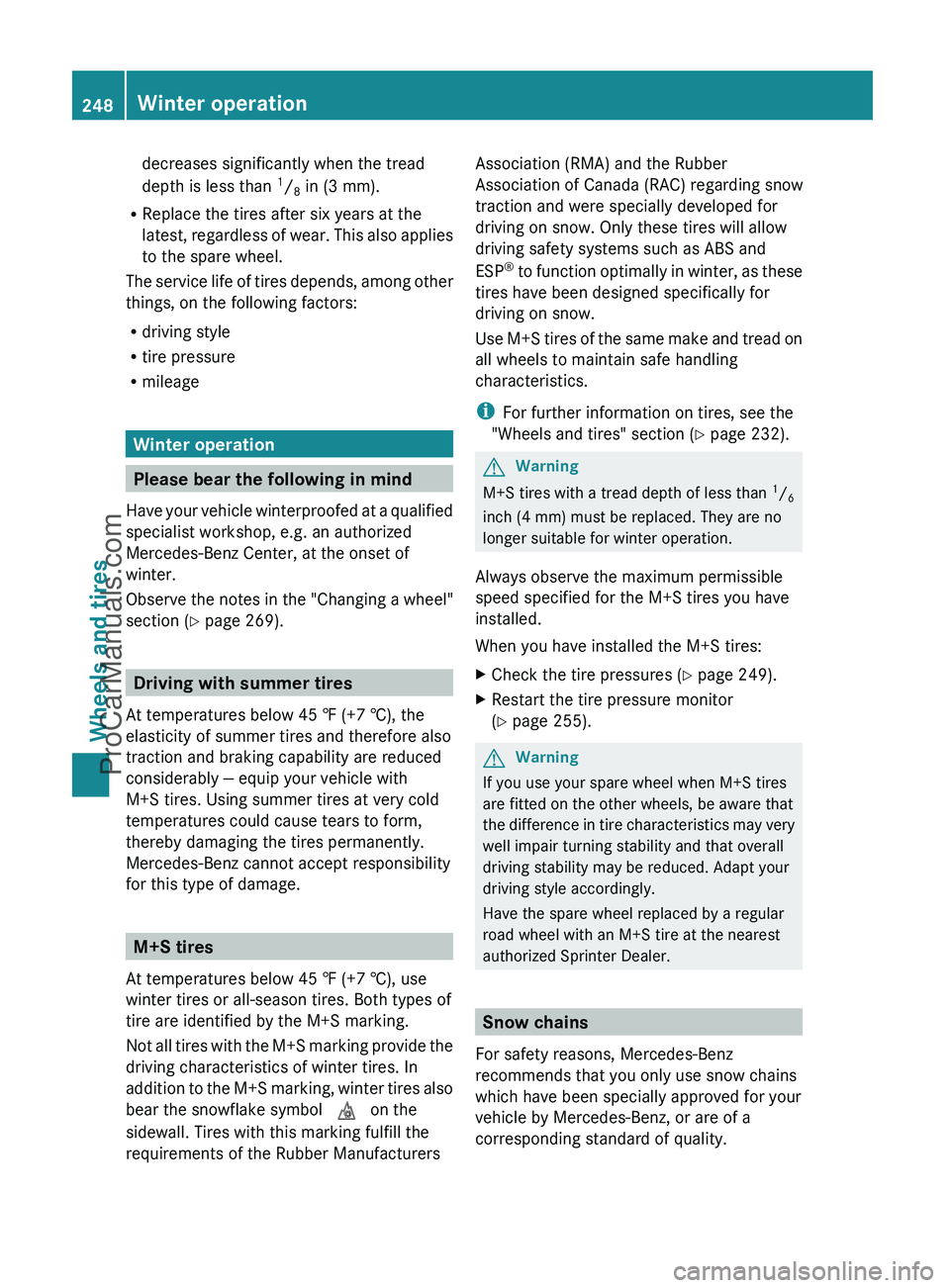

MERCEDES-BENZ G-CLASS 2011  Owners Manual decreases significantly when the tread
depth is less than  1
/ 8 in (3 mm).
R Replace the tires after six years at the
latest, regardless of wear. This also applies
to the spare wheel.
The service lif
