Page 8 of 350

Notes/how to use .........................2
53
Opening and closing ..................... .253
Overview ........................................ 253
Cargo compartment enlargement
Important safety notes .................. 250
Cargo tie down rings ......................... 253
CD player/CD changer (on-board
computer) .......................................... 203
Center console
Overview .......................................... 34
Upper section .................................. 34
Central locking
Automatic locking (on-board com-
puter) ............................................. 208
Locking/unlocking (SmartKey) ....... .68
Changing bulbs
Reversing lamps ............................ 113
Side marker lamps ........................ .112
Turn signals (front) ......................... 111
Changing gears .................................. 142
Checklist
After driving off-roa d...................... 159
Before driving off-road ................... 159
Child seat
BabySmart™ air bag deactivation
system ............................................. 56
Forward-facing restraint system ...... 58
LATCH-type (ISOFIX) child seat
anchors ............................................ 55
On the front-passenger sea t............ 58
Problem (malfunction) ..................... 59
Rearward-facing restraint system .... 58
Top Tether ....................................... 55
Child-proof locks
Important safety notes .................... 59
Rear doors ....................................... 60
Children
Restraint systems ............................ 54
Special seat belt retractor ............... 53
Chrome parts (cleaning instruc-
tions) .................................................. 285
Cigarette lighter ................................ 256
Climate control
Controlling automaticall y............... 124
Cooling with air dehumidification .. 122
Defrosting the window s................. 126
Defrosting the windshield .............. 125 Dual-zone automatic climate con-
trol ................................................. 119
Important safety notes .................. 118
Indicator lamp ................................ 124
Maximum cooling .......................... 125
Notes on using dual-zone auto-
matic climate control ..................... 120
Overview of systems ...................... 118
Problem with the rear window
defroster ........................................ 127
Problems with "cooling with air
dehumidification" ........................... 124
Refrigerant ..................................... 341
Refrigerant filling capacity ............. 342
Setting the air distribution ............. 124
Setting the air vents ...................... 128
Setting the airflow ......................... 124
Setting the temperature ................ 124
Switching air-recirculation mode
on/of f............................................ 127
Switching on/of f........................... 121
Switching residual heat on/off ...... 127
Switching the rear window
defroster on/of f............................ 126
Switching the ZONE function on/
off .................................................. 125
Windshield defroster ...................... 126
Climate control system
Deactivating/activating ................. 136
Cockpit
Overview .......................................... 30
see Instrument cluster
COMAND
see separate operating instructions
Combination switch .......................... 103
Consumption statistics (on-board
computer) .......................................... 200
Convenience opening feature
see Side windows
Coolant (engine)
Checking the level ......................... 278
Display message ............................ 221
Filling capacity ............................... 343
Notes ............................................. 342
Temperature (on-board com-
puter) ............................................. 209
Temperature gaug e........................ 197
Warning lamp ................................. 243 6
Index

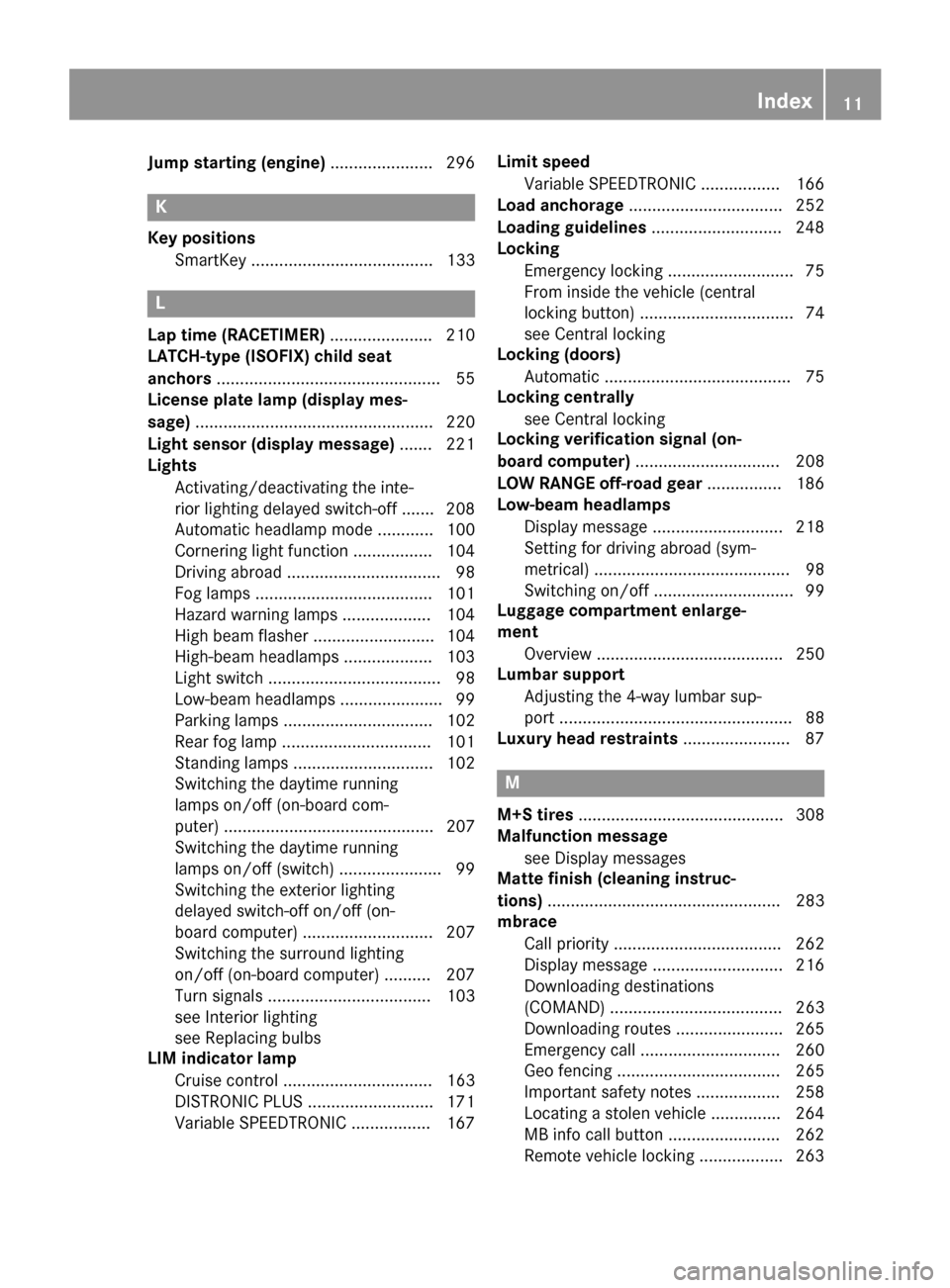

Page 13 of 350

Jump starting (engine)
......................296 K
Key positions SmartKey ....................................... 133 L
Lap time (RACETIMER) ......................210
LATCH-type (ISOFIX) child seat
anchors ................................................ 55
License plate lamp (display mes-
sage) ................................................... 220
Light sensor (display message) ....... 221
Lights
Activating/deactivating the inte-
rior lighting delayed switch-off ....... 208
Automatic headlamp mode ............ 100
Cornering light function ................. 104
Driving abroad ................................. 98
Fog lamps ...................................... 101
Hazard warning lamps ................... 104
High beam flasher .......................... 104
High-beam headlamps ................... 103
Light switch ..................................... 98
Low-beam headlamps ..................... .99
Parking lamps ................................ 102
Rear fog lamp ................................ 101
Standing lamps .............................. 102
Switching the daytime running
lamps on/off (on-board com-
puter) ............................................. 207
Switching the daytime running
lamps on/off (switch) ......................99
Switching the exterior lighting
delayed switch-off on/off (on-
board computer) ............................ 207
Switching the surround lighting
on/off (on-board computer) .......... 207
Turn signals ................................... 103
see Interior lighting
see Replacing bulbs
LIM indicator lamp
Cruise control ................................ 163
DISTRONIC PLUS ........................... 171
Variable SPEEDTRONIC ................. 167 Limit speed
Variable SPEEDTRONIC ................. 166
Load anchorage ................................. 252
Loading guidelines ............................ 248
Locking
Emergency locking ........................... 75
From inside the vehicle (central
locking button) ................................. 74
see Central locking
Locking (doors)
Automatic ........................................ 75
Locking centrally
see Central locking
Locking verification signal (on-
board computer) ............................... 208
LOW RANGE off-road gear ................ 186
Low-beam headlamps
Display message ............................ 218
Setting for driving abroad (sym-
metrical) .......................................... 98
Switching on/of f.............................. 99
Luggage compartment enlarge-
ment
Overview ........................................ 250
Lumbar support
Adjusting the 4-way lumbar sup-
port .................................................. 88
Luxury head restraints ....................... 87 M
M+S tires ............................................ 308
Malfunction message
see Display messages
Matte finish (cleaning instruc-
tions) .................................................. 283
mbrace
Call priority .................................... 262
Display message ............................ 216
Downloading destinations
(COMAND) ..................................... 263
Downloading routes ....................... 265
Emergency call .............................. 260
Geo fencing ................................... 265
Important safety notes .................. 258
Locating a stolen vehicle ............... 264
MB info call button ........................ 262
Remote vehicle locking .................. 263 Index
11

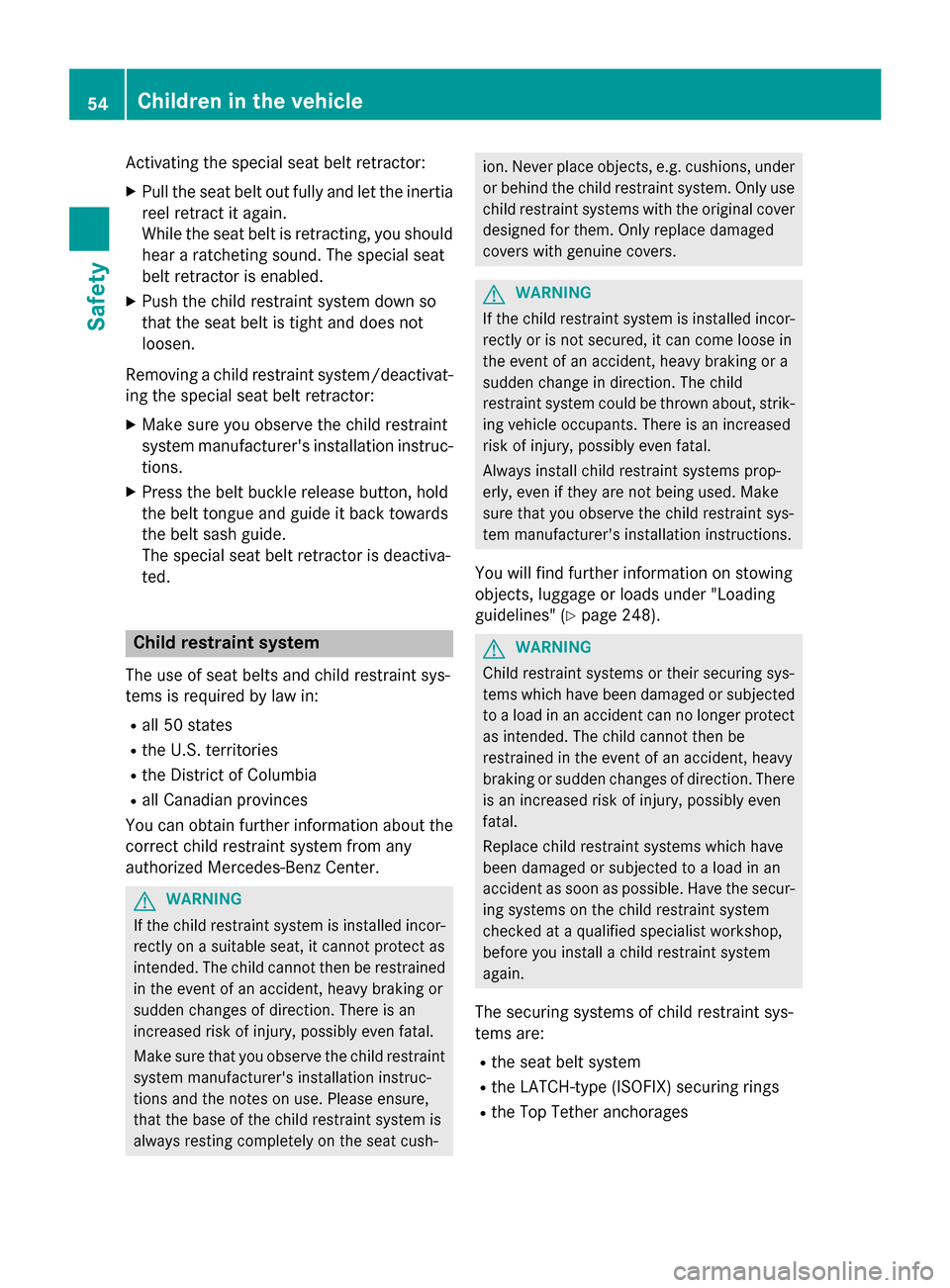

Page 56 of 350

Activating the special seat belt retractor:
X Pull the seat belt out fully and let the inertia
reel retract it again.
While the seat belt is retracting, you should hear a ratcheting sound. The special seat
belt retractor is enabled.
X Push the child restraint system down so
that the seat belt is tight and does not
loosen.
Removing a child restraint system/deactivat-
ing the special seat belt retractor:
X Make sure you observe the child restraint
system manufacturer's installation instruc-
tions.
X Press the belt buckle release button, hold
the belt tongue and guide it back towards
the belt sash guide.
The special seat belt retractor is deactiva-
ted. Child restraint system
The use of seat belts and child restraint sys-
tems is required by law in:
R all 50 states
R the U.S. territories
R the District of Columbia
R all Canadian provinces
You can obtain further information about the correct child restraint system from any
authorized Mercedes-Benz Center. G
WARNING
If the child restraint system is installed incor- rectly on a suitable seat, it cannot protect as
intended. The child cannot then be restrained in the event of an accident, heavy braking or
sudden changes of direction. There is an
increased risk of injury, possibly even fatal.
Make sure that you observe the child restraint
system manufacturer's installation instruc-
tions and the notes on use. Please ensure,
that the base of the child restraint system is
always resting completely on the seat cush- ion. Never place objects, e.g. cushions, under
or behind the child restraint system. Only usechild restraint systems with the original cover
designed for them. Only replace damaged
covers with genuine covers. G
WARNING
If the child restraint system is installed incor- rectly or is not secured, it can come loose in
the event of an accident, heavy braking or a
sudden change in direction. The child
restraint system could be thrown about, strik- ing vehicle occupants. There is an increased
risk of injury, possibly even fatal.
Always install child restraint systems prop-
erly, even if they are not being used. Make
sure that you observe the child restraint sys-
tem manufacturer's installation instructions.
You will find further information on stowing
objects, luggage or loads under "Loading
guidelines" (Y page 248). G
WARNING
Child restraint systems or their securing sys-
tems which have been damaged or subjected to a load in an accident can no longer protect
as intended. The child cannot then be
restrained in the event of an accident, heavy
braking or sudden changes of direction. There is an increased risk of injury, possibly even
fatal.
Replace child restraint systems which have
been damaged or subjected to a load in an
accident as soon as possible. Have the secur-
ing systems on the child restraint system
checked at a qualified specialist workshop,
before you install a child restraint system
again.
The securing systems of child restraint sys-
tems are:
R the seat belt system
R the LATCH-type (ISOFIX) securing rings
R the Top Tether anchorages 54
Children in the vehicleSafety

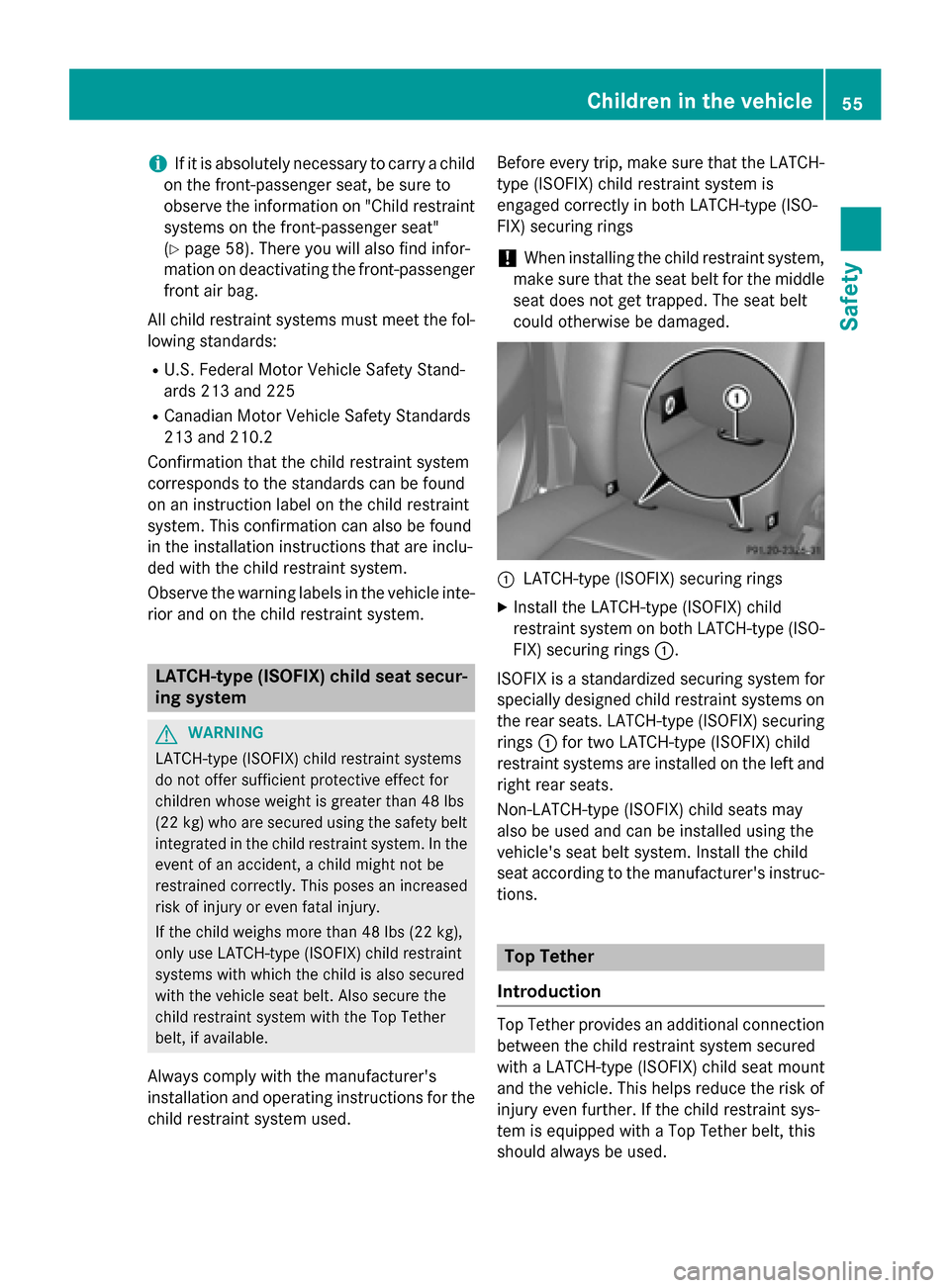

Page 57 of 350

i
If it is absolutely necessary to carry a child
on the front-passenger seat, be sure to
observe the information on "Child restraint
systems on the front-passenger seat"
(Y page 58). There you will also find infor-
mation on deactivating the front-passenger
front air bag.
All child restraint systems must meet the fol- lowing standards:
R U.S. Federal Motor Vehicle Safety Stand-
ards 213 and 225
R Canadian Motor Vehicle Safety Standards
213 and 210.2
Confirmation that the child restraint system
corresponds to the standards can be found
on an instruction label on the child restraint
system. This confirmation can also be found
in the installation instructions that are inclu-
ded with the child restraint system.
Observe the warning labels in the vehicle inte-
rior and on the child restraint system. LATCH-type (ISOFIX) child seat secur-
ing system G
WARNING
LATCH-type (ISOFIX) child restraint systems
do not offer sufficient protective effect for
children whose weight is greater than 48 lbs
(22 kg) who are secured using the safety belt integrated in the child restraint system. In the
event of an accident, a child might not be
restrained correctly. This poses an increased
risk of injury or even fatal injury.
If the child weighs more than 48 lbs (22 kg),
only use LATCH-type (ISOFIX) child restraint
systems with which the child is also secured
with the vehicle seat belt. Also secure the
child restraint system with the Top Tether
belt, if available.
Always comply with the manufacturer's
installation and operating instructions for the child restraint system used. Before every trip, make sure that the LATCH-
type (ISOFIX) child restraint system is
engaged correctly in both LATCH-type (ISO-
FIX) securing rings
! When installing the child restraint system,
make sure that the seat belt for the middle seat does not get trapped. The seat belt
could otherwise be damaged. :
LATCH-type (ISOFIX) securing rings
X Install the LATCH-type (ISOFIX) child
restraint system on both LATCH-type (ISO-
FIX) securing rings :.
ISOFIX is a standardized securing system for
specially designed child restraint systems on
the rear seats. LATCH-type (ISOFIX) securing rings :for two LATCH-type (ISOFIX) child
restraint systems are installed on the left and
right rear seats.
Non-LATCH-type (ISOFIX) child seats may
also be used and can be installed using the
vehicle's seat belt system. Install the child
seat according to the manufacturer's instruc-
tions. Top Tether
Introduction Top Tether provides an additional connection
between the child restraint system secured
with a LATCH-type (ISOFIX) child seat mount
and the vehicle. This helps reduce the risk of
injury even further. If the child restraint sys-
tem is equipped with a Top Tether belt, this
should always be used. Children in the vehicle
55Safety Z
Page 58 of 350

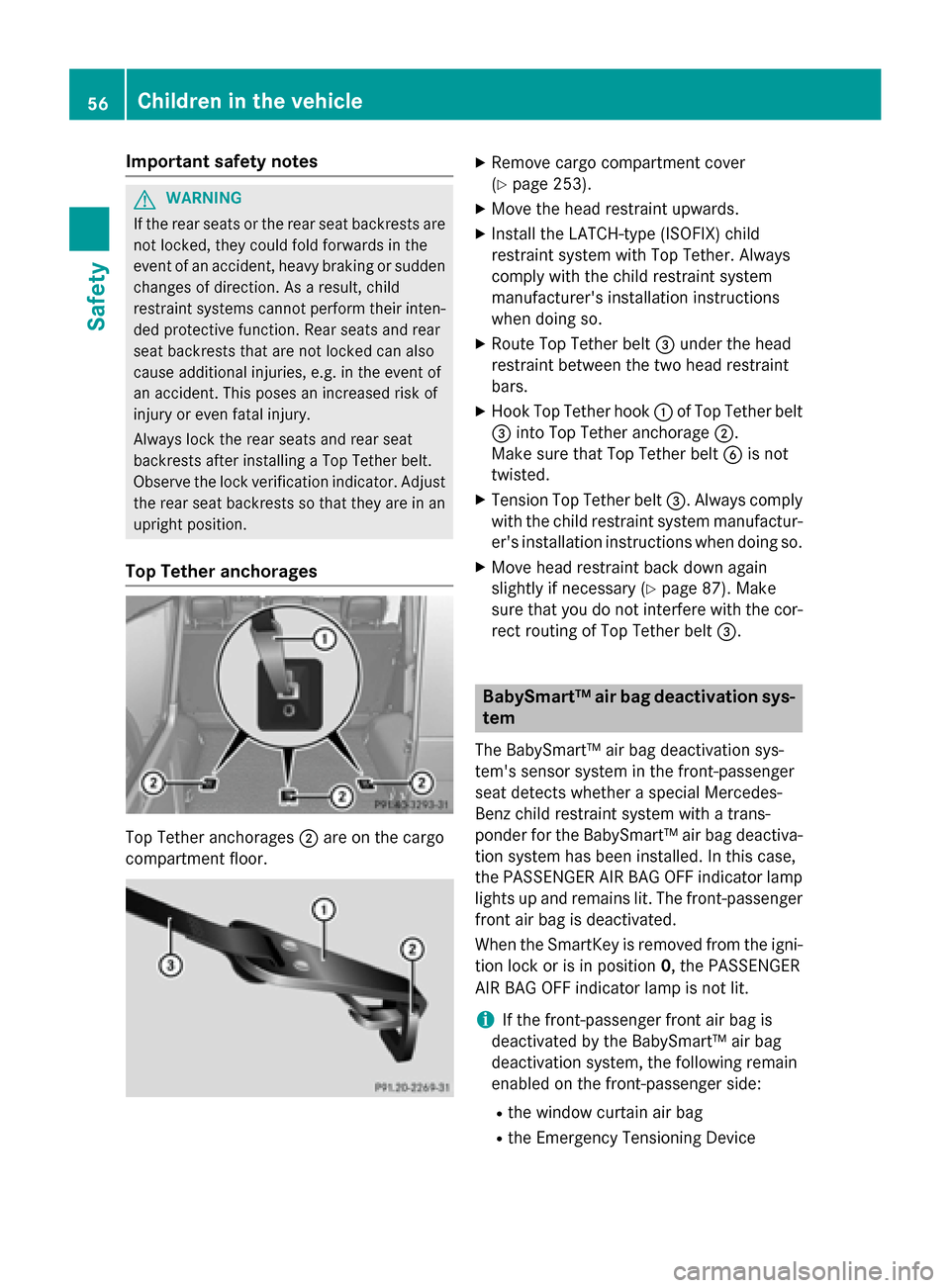

Important safety notes
G
WARNING
If the rear seats or the rear seat backrests are not locked, they could fold forwards in the
event of an accident, heavy braking or sudden changes of direction. As a result, child
restraint systems cannot perform their inten-
ded protective function. Rear seats and rear
seat backrests that are not locked can also
cause additional injuries, e.g. in the event of
an accident. This poses an increased risk of
injury or even fatal injury.
Always lock the rear seats and rear seat
backrests after installing a Top Tether belt.
Observe the lock verification indicator. Adjust the rear seat backrests so that they are in an
upright position.
Top Tether anchorages Top Tether anchorages
;are on the cargo
compartment floor. X
Remove cargo compartment cover
(Y page 253).
X Move the head restraint upwards.
X Install the LATCH-type (ISOFIX) child
restraint system with Top Tether. Always
comply with the child restraint system
manufacturer's installation instructions
when doing so.
X Route Top Tether belt =under the head
restraint between the two head restraint
bars.
X Hook Top Tether hook :of Top Tether belt
= into Top Tether anchorage ;.
Make sure that Top Tether belt Bis not
twisted.
X Tension Top Tether belt =. Always comply
with the child restraint system manufactur-
er's installation instructions when doing so.
X Move head restraint back down again
slightly if necessary (Y page 87). Make
sure that you do not interfere with the cor-
rect routing of Top Tether belt =. BabySmart™ air bag deactivation sys-
tem
The BabySmart™ air bag deactivation sys-
tem's sensor system in the front-passenger
seat detects whether a special Mercedes-
Benz child restraint system with a trans-
ponder for the BabySmart™ air bag deactiva-
tion system has been installed. In this case,
the PASSENGER AIR BAG OFF indicator lamp lights up and remains lit. The front-passengerfront air bag is deactivated.
When the SmartKey is removed from the igni-
tion lock or is in position 0, the PASSENGER
AIR BAG OFF indicator lamp is not lit.
i If the front-passenger front air bag is
deactivated by the BabySmart™ air bag
deactivation system, the following remain
enabled on the front-passenger side:
R the window curtain air bag
R the Emergency Tensioning Device 56
Children in the vehicleSafety
