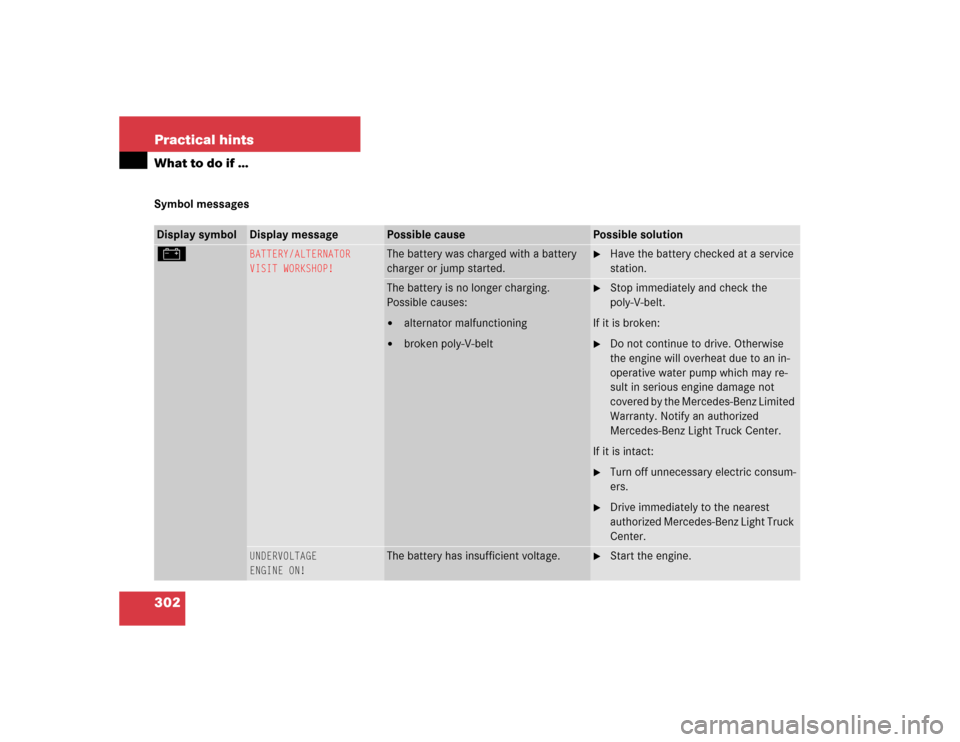

302 Practical hintsWhat to do if …Symbol messagesDisplay symbol
Display message
Possible cause
Possible solution
#
BATTERY/ALTERNATOR
VISIT WORKSHOP!
The battery was charged with a battery
charger or jump started.

Have the battery checked at a service
station.
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in serious engine damage not
covered by the Mercedes-Benz Limited
Warranty. Notify an authorized
Mercedes-Benz Light Truck Center.
If it is intact:

Turn off unnecessary electric consum-
ers.

Drive immediately to the nearest
authorized Mercedes-Benz Light Truck
Center.
UNDERVOLTAGE
ENGINE ON!
The battery has insufficient voltage.

Start the engine.

352 Practical hintsBatteryHave the battery removed at a
Mercedes-Benz Light Truck Center.
If you charge the battery yourself, make
sure to comply with the operating instruc-
tions for your battery charger.
Disconnecting the battery
Read and observe safety instructions
and precautions (
page 351).

Turn off all electrical consumers.

Disconnect the battery negative lead.

Remove the cover from the positive ter-
minal.

Disconnect the battery positive lead.

Remove the breather hose from the
battery.
!Have the battery checked regularly by
an authorized Mercedes-Benz Light
Truck Center.
Refer to Maintenance Booklet for main-
tenance intervals or contact an autho-
rized Mercedes-Benz Light Truck
Center for further information.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Warning!
G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch


the gear selector lever will remain
locked in position
P

367 Technical data

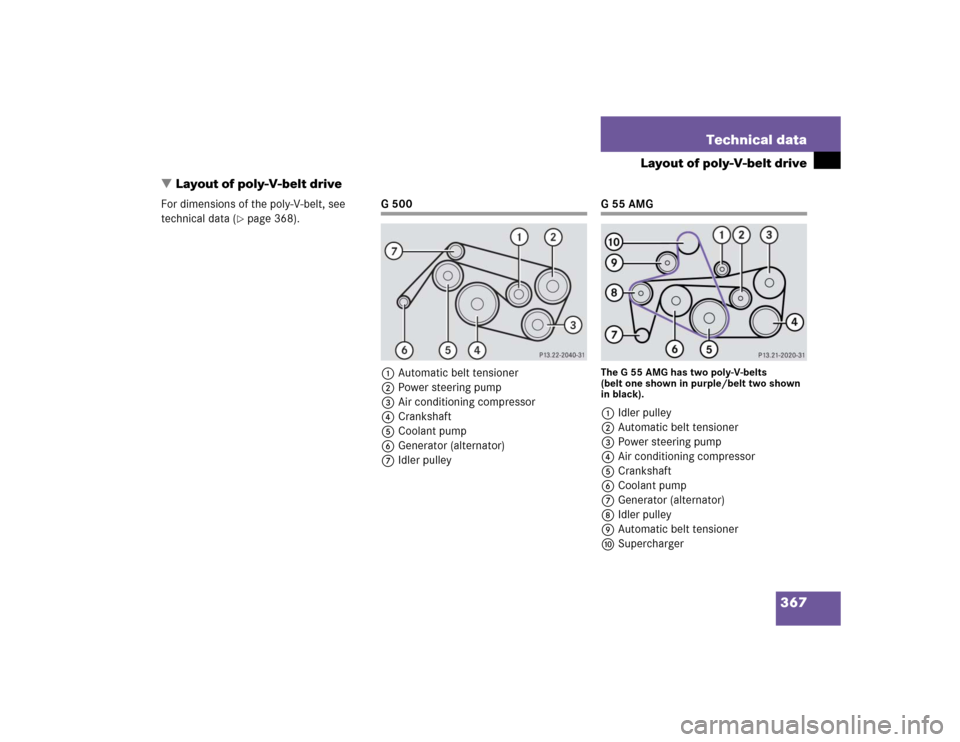

Layout of poly-V-belt drive
Layout of poly-V-belt drive
For dimensions of the poly-V-belt, see
technical data (
page 368).
G 500
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
G55AMGThe G 55 AMG has two poly-V-belts
(belt one shown in purple/belt two shown
in black).1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSupercharger

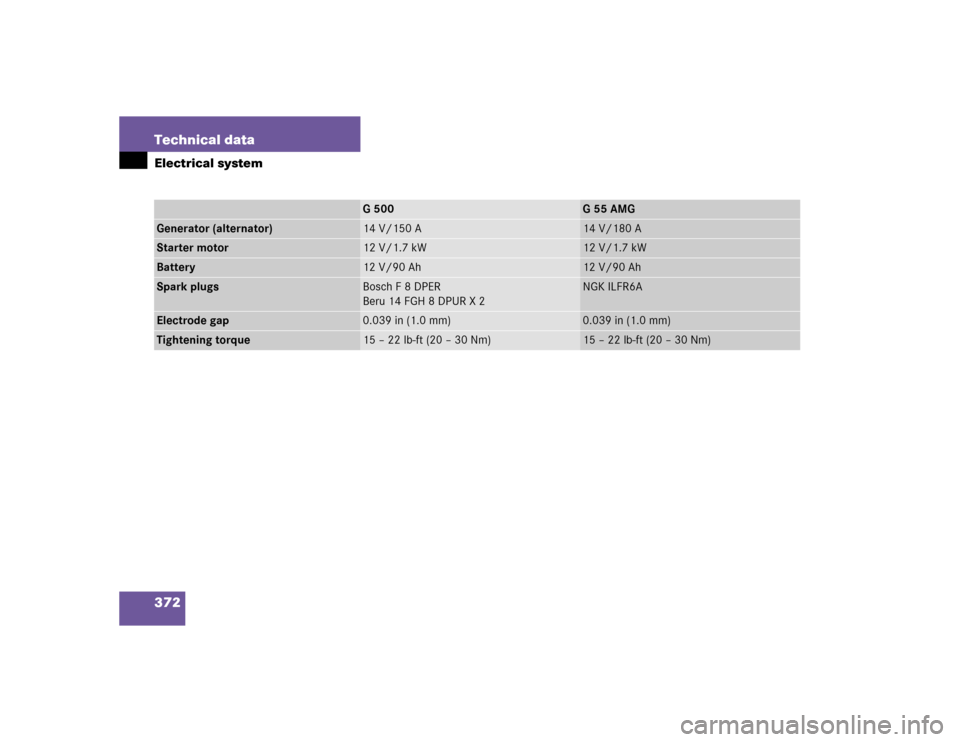

372 Technical dataElectrical system
G 500
G55AMG
Generator (alternator)
14 V/150 A
14 V/180 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/90 Ah
12 V/90 Ah
Spark plugs
Bosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK ILFR6A
Electrode gap
0.039 in (1.0 mm)
0.039 in (1.0 mm)
Tightening torque
15 – 22 lb-ft (20 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)

384 Technical termsMemory function*
Used to store three individual seat,
steering wheel and mirror positions for
each SmartKey.
MON
(M
otor O
ctane N
umber)
The Motor Octane Number for gasoline
as determined by a standardized meth-
od. It is an indication of a gasoline's
ability to resist undesired detonation
(knocking). The average of both the
MON (Motor Octane Number) and
->RON (Research Octane Number) is
posted at the pump, also known as
ANTI-KNOCK INDEX.
Multifunction display
A display field in the instrument cluster
used to present information provided
by the control system.
Normal occupant weight
(
page 272)Overspeed range
Engine speeds within the red marking
of the tachometer dial. Avoid this en-
gine speed range, as it may result in se-
rious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.
Poly-V-belt drive
Drives engine-components (alternator,
AC compressor, etc.) from the engine.
Power train
Collective term designating all compo-
nents used to generate and transmit
motive power to the drive axles, includ-
ing


Engine


Clutch/torque converter


Transmission


Transfer case


Drive shaft


Differential


Axle shafts/axlesProduction options weight
(
page 272)
PSI
(Pounds per square i
nch)
(
page 272)
Recommended tire inflation pressure
(page 272)
Rear Parking Assist*
System which uses visual and acoustic
signals to assist the driver during park-
ing maneuvers.
REST
(Residual engine heat utilization)
Feature that uses the engine heat
stored in the coolant to heat the vehi-
cle interior for a short time after the en-
gine has been turned off.
Restraint system
Seat belts, belt tensioner, airbags and
child seat restraint systems. As inde-
pendent systems, their protective func-
tions complement one another.
