Installation behind rear seat bench

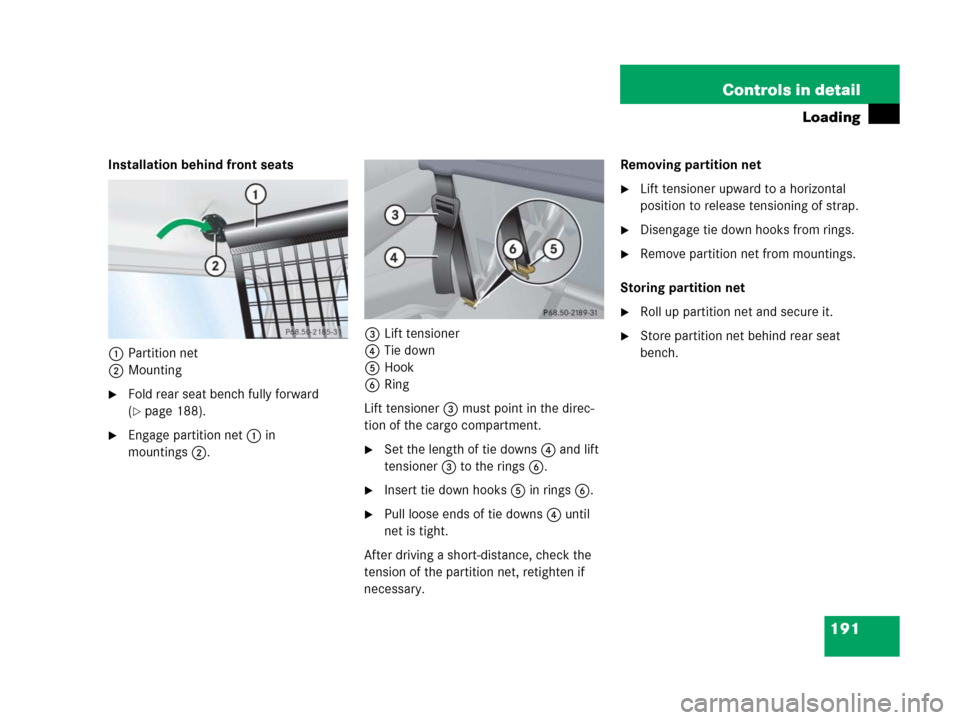

1Partition net
2Mounting
Fold the rear seat bench forward
(
page 188).
Hook partition net1 in mountings2
on both sides.3Lift tensioner
4Tie down
Lift tensioner3 on tie downs4 must
point in the direction of the arrow.5Hook
6Ring
Set the length of the tie downs4 and
lift tensioner3 to the rings6.
Insert tie down hooks5 in rings6.
Pull on loose ends of tie downs until net
is slightly tensioned.
Fold up seat bench until it locks in
place.
The partition net will be tightened by
the rear seat bench cushion.
After driving a short period, check the ten-
sion of the partition net, retighten if neces-
sary.
i
This cannot be done by folding the rear
seat backrest forward.

191 Controls in detail
Loading
Installation behind front seats
1Partition net
2Mounting
Fold rear seat bench fully forward
(
page 188).
Engage partition net1 in
mountings2.3Lift tensioner
4Tie down
5Hook
6Ring
Lift tensioner3 must point in the direc-
tion of the cargo compartment.
Set the length of tie downs4 and lift
tensioner3 to the rings6.
Insert tie down hooks5 in rings6.
Pull loose ends of tie downs4 until
net is tight.
After driving a short-distance, check the
tension of the partition net, retighten if
necessary.Removing partition net
Lift tensioner upward to a horizontal
position to release tensioning of strap.
Disengage tie down hooks from rings.
Remove partition net from mountings.
Storing partition net
Roll up partition net and secure it.
Store partition net behind rear seat
bench.

192 Controls in detail
Loading

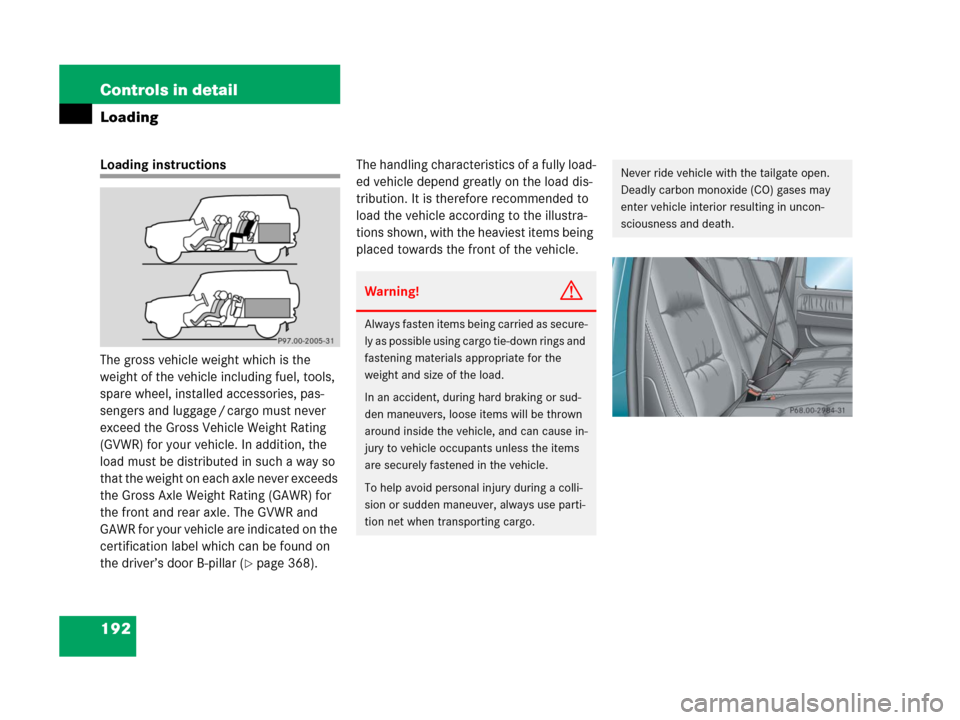

Loading instructions
The gross vehicle weight which is the
weight of the vehicle including fuel, tools,
spare wheel, installed accessories, pas-
sengers and luggage / cargo must never
exceed the Gross Vehicle Weight Rating
(GVWR) for your vehicle. In addition, the
load must be distributed in such a way so
that the weight on each axle never exceeds
the Gross Axle Weight Rating (GAWR) for
the front and rear axle. The GVWR and
GAWR for your vehicle are indicated on the
certification label which can be found on
the driver’s door B-pillar (
page 368). The handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Warning!G
Always fasten items being carried as secure-
ly as possible using cargo tie-down rings and
fastening materials appropriate for the
weight and size of the load.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, always use parti-
tion net when transporting cargo.
Never ride vehicle with the tailgate open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.

193 Controls in detail
Loading

Always place items being carried
against front or rear seat backrests,
and fasten them as securely as possi-
ble.

The heaviest portion of the cargo
should always be kept as low as possi-
ble against front or rear seat backrest
since it influences the handling charac-
teristics of the vehicle.

For additional safety when transporting
cargo while the rear seats are unoccu-
pied, fasten the outer seat belts cross-
wise into the opposite side buckles.

Always pad off sharp edges.

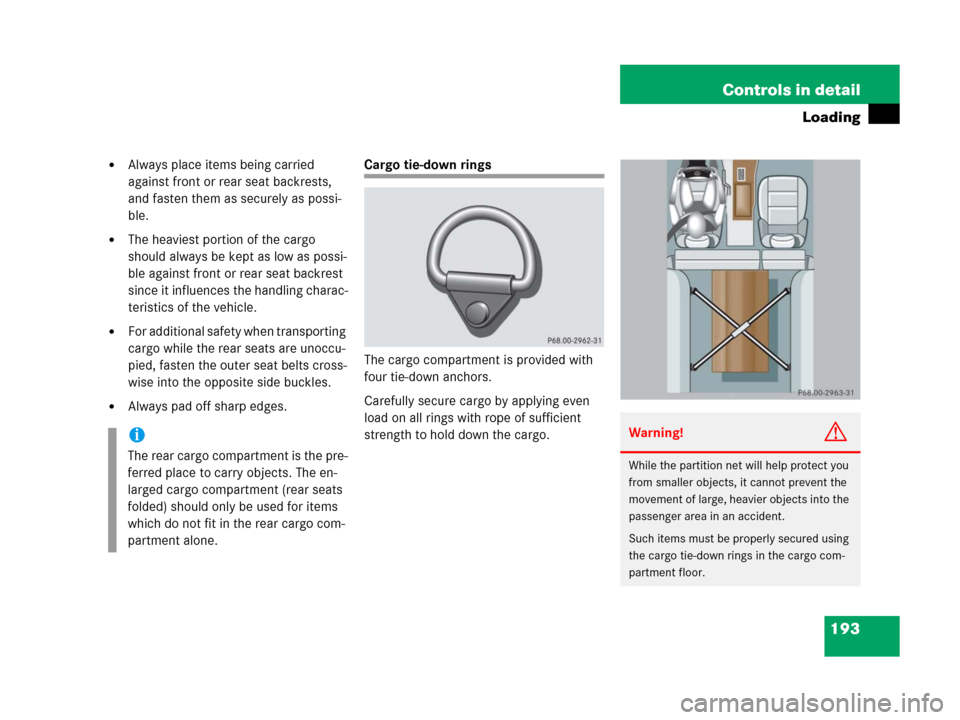

Cargo tie-down rings
The cargo compartment is provided with
four tie-down anchors.
Carefully secure cargo by applying even
load on all rings with rope of sufficient
strength to hold down the cargo.
i
The rear cargo compartment is the pre-
ferred place to carry objects. The en-
larged cargo compartment (rear seats
folded) should only be used for items
which do not fit in the rear cargo com-
partment alone.
Warning!G
While the partition net will help protect you
from smaller objects, it cannot prevent the
movement of large, heavier objects into the
passenger area in an accident.
Such items must be properly secured using
the cargo tie-down rings in the cargo com-
partment floor.

194 Controls in detail
Useful features
Storage compartments

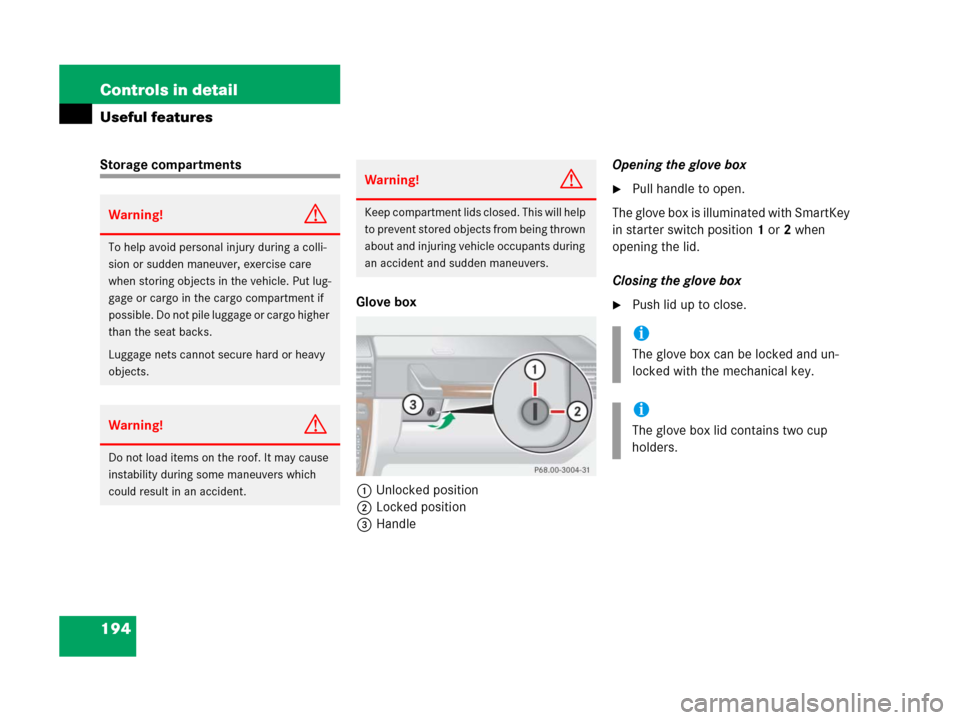

Glove box
1Unlocked position
2Locked position
3HandleOpening the glove box
Pull handle to open.
The glove box is illuminated with SmartKey
in starter switch position1 or2 when
opening the lid.
Closing the glove box
Push lid up to close.
Warning!G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when storing objects in the vehicle. Put lug-
gage or cargo in the cargo compartment if
possible. Do not pile luggage or cargo higher
than the seat backs.
Luggage nets cannot secure hard or heavy
objects.
Warning!G
Do not load items on the roof. It may cause
instability during some maneuvers which
could result in an accident.
Warning!G
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident and sudden maneuvers.
i
The glove box can be locked and un-
locked with the mechanical key.
i
The glove box lid contains two cup
holders.

195 Controls in detail
Useful features
Storage compartments below the arm-
rest

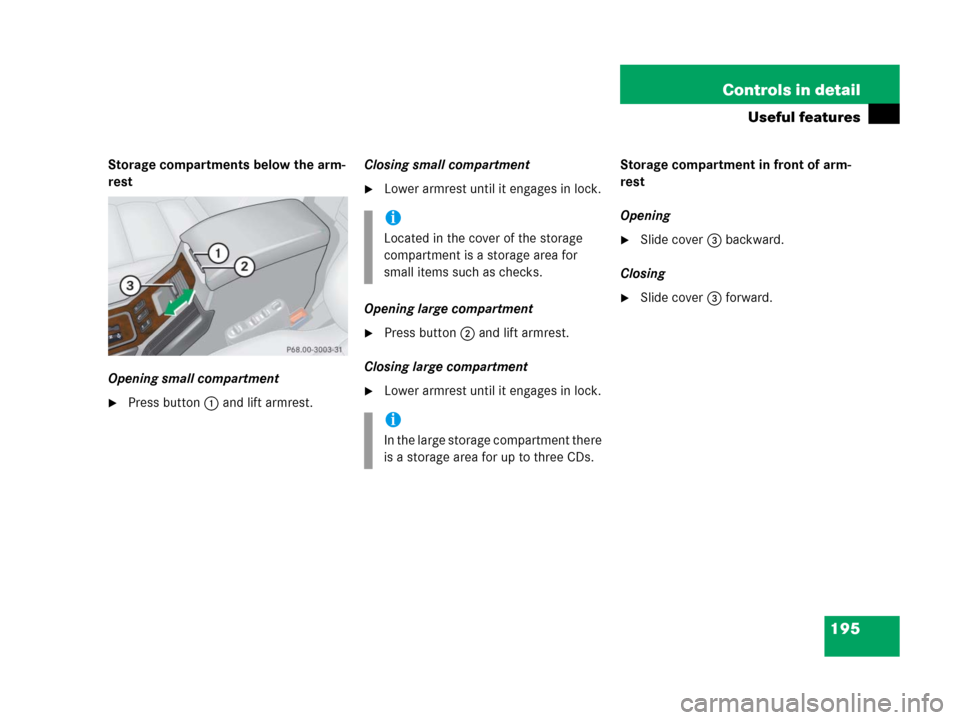

Opening small compartment
Press button1 and lift armrest.Closing small compartment
Lower armrest until it engages in lock.
Opening large compartment
Press button2 and lift armrest.
Closing large compartment
Lower armrest until it engages in lock.Storage compartment in front of arm-
rest
Opening
Slide cover3 backward.
Closing
Slide cover3 forward.
i
Located in the cover of the storage
compartment is a storage area for
small items such as checks.
i
In the large storage compartment there
is a storage area for up to three CDs.

196 Controls in detail
Useful features

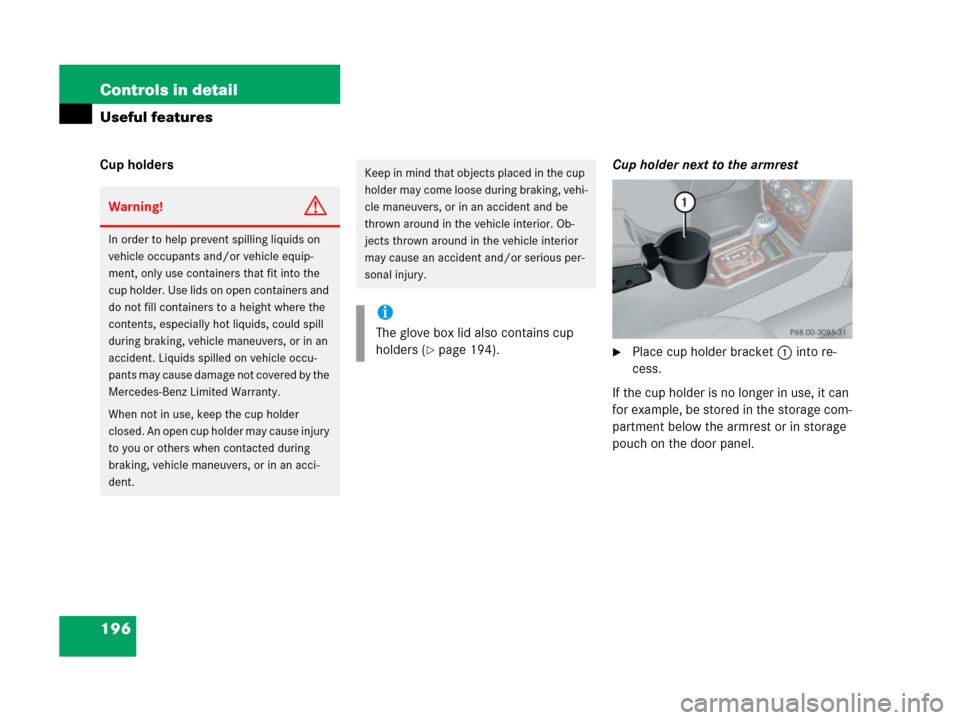

Cup holdersCup holder next to the armrest
Place cup holder bracket1 into re-
cess.
If the cup holder is no longer in use, it can
for example, be stored in the storage com-
partment below the armrest or in storage
pouch on the door panel.
Warning!G
In order to help prevent spilling liquids on
vehicle occupants and/or vehicle equip-
ment, only use containers that fit into the
cup holder. Use lids on open containers and
do not fill containers to a height where the
contents, especially hot liquids, could spill
during braking, vehicle maneuvers, or in an
accident. Liquids spilled on vehicle occu-
pants may cause damage not covered by the
Mercedes-Benz Limited Warranty.
When not in use, keep the cup holder
closed. An open cup holder may cause injury
to you or others when contacted during
braking, vehicle maneuvers, or in an acci-
dent.
Keep in mind that objects placed in the cup
holder may come loose during braking, vehi-
cle maneuvers, or in an accident and be
thrown around in the vehicle interior. Ob-
jects thrown around in the vehicle interior
may cause an accident and/or serious per-
sonal injury.
i
The glove box lid also contains cup
holders (
page 194).

197 Controls in detail
Useful features

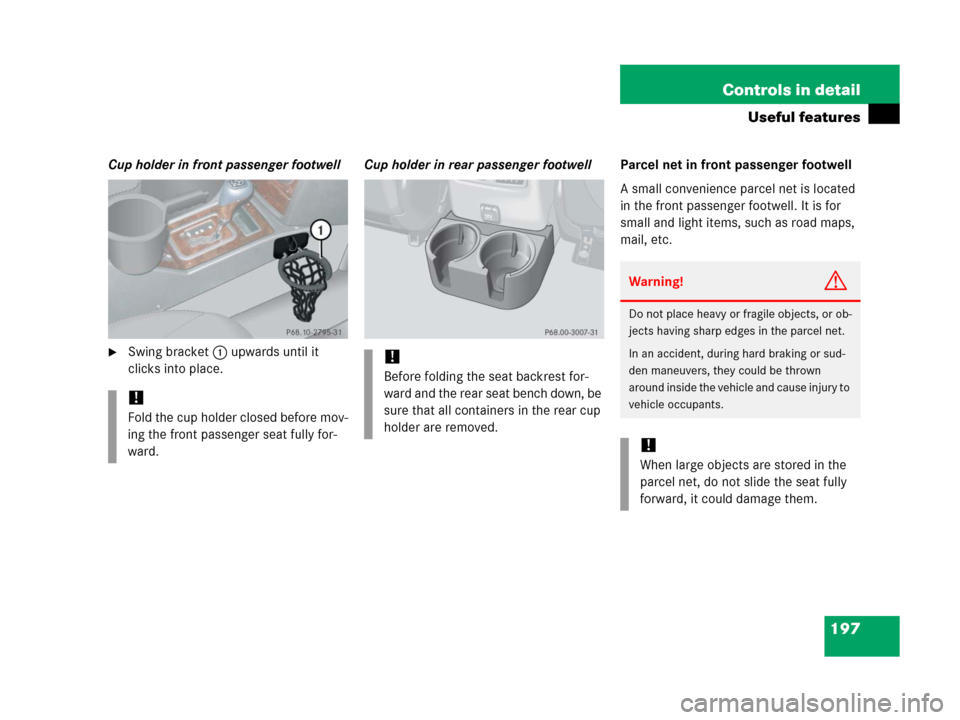

Cup holder in front passenger footwell
Swing bracket1 upwards until it
clicks into place.Cup holder in rear passenger footwellParcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is for
small and light items, such as road maps,
mail, etc.
!
Fold the cup holder closed before mov-
ing the front passenger seat fully for-
ward.
!
Before folding the seat backrest for-
ward and the rear seat bench down, be
sure that all containers in the rear cup
holder are removed.
Warning!G
Do not place heavy or fragile objects, or ob-
jects having sharp edges in the parcel net.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle and cause injury to
vehicle occupants.
!
When large objects are stored in the
parcel net, do not slide the seat fully
forward, it could damage them.

198 Controls in detail
Useful features
Storage bags
Storage bags are located on the rear side
of the front seats.Ashtrays

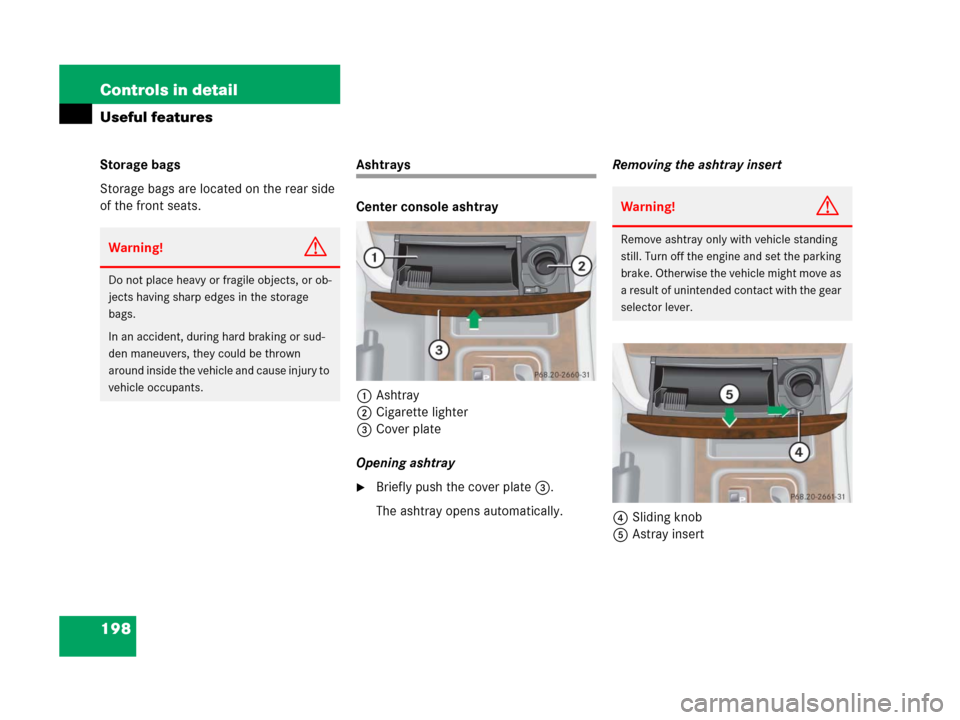

Center console ashtray
1Ashtray
2Cigarette lighter
3Cover plate
Opening ashtray
Briefly push the cover plate3.
The ashtray opens automatically.Removing the ashtray insert
4Sliding knob
5Astray insert
Warning!G
Do not place heavy or fragile objects, or ob-
jects having sharp edges in the storage
bags.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle and cause injury to
vehicle occupants.
Warning!G
Remove ashtray only with vehicle standing
still. Turn off the engine and set the parking
brake. Otherwise the vehicle might move as
a result of unintended contact with the gear
selector lever.

199 Controls in detail
Useful features
Press sliding knob4 to the right.
The insert will protrude a short
distance.
Remove insert5 in direction of arrow.
Reinstalling the ashtray insert
Press the insert into the frame until it

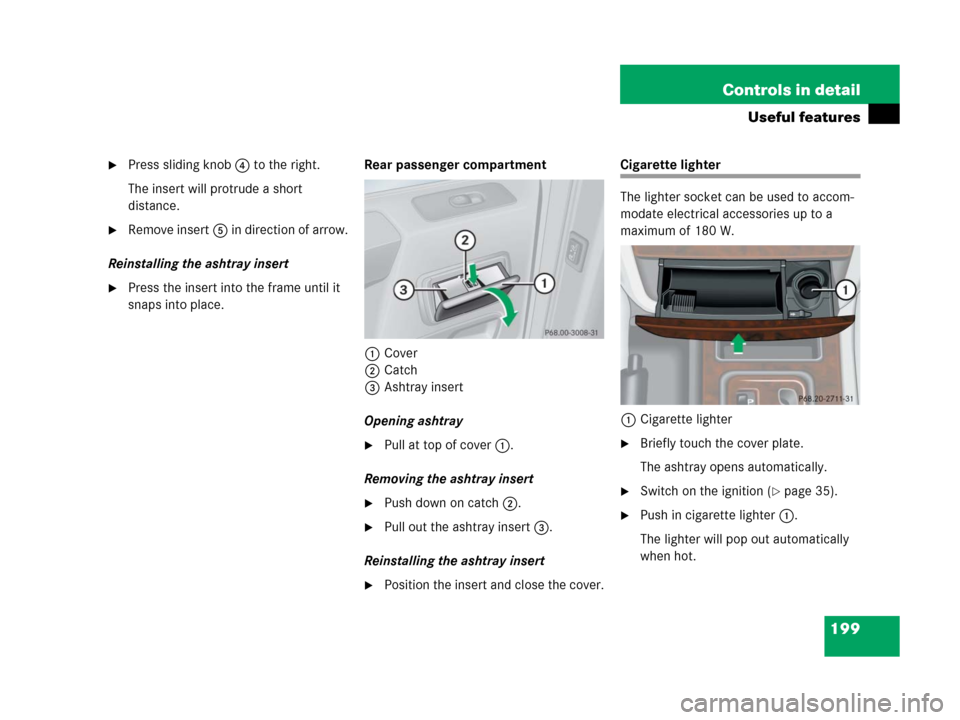

snaps into place.Rear passenger compartment
1Cover
2Catch
3Ashtray insert
Opening ashtray
Pull at top of cover1.
Removing the ashtray insert
Push down on catch2.
Pull out the ashtray insert3.
Reinstalling the ashtray insert
Position the insert and close the cover.
Cigarette lighter
The lighter socket can be used to accom-
modate electrical accessories up to a
maximum of 180 W.
1Cigarette lighter
Briefly touch the cover plate.
The ashtray opens automatically.
Switch on the ignition (page 35).
Push in cigarette lighter1.
The lighter will pop out automatically
when hot.
