50 Getting started
Driving
Parking brake

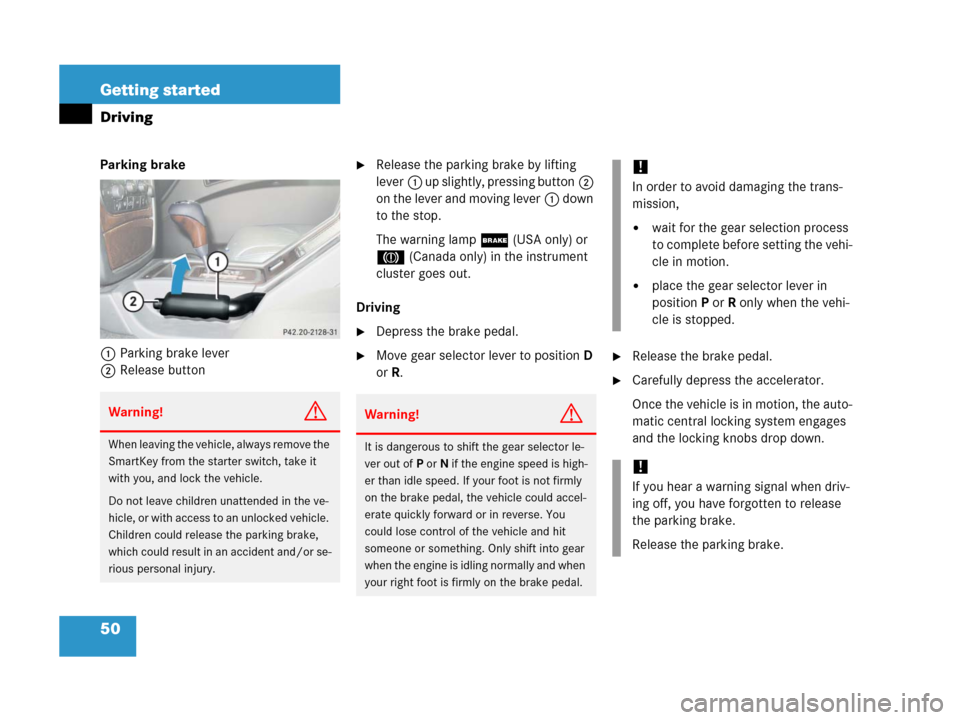

1Parking brake lever
2Release buttonRelease the parking brake by lifting
lever1 up slightly, pressing button2
on the lever and moving lever1 down
to the stop.
The warning lamp; (USA only) or
3 (Canada only) in the instrument
cluster goes out.
Driving
Depress the brake pedal.
Move gear selector lever to positionD
orR.Release the brake pedal.
Carefully depress the accelerator.
Once the vehicle is in motion, the auto-
matic central locking system engages
and the locking knobs drop down.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could release the parking brake,
which could result in an accident and/or se-
rious personal injury.
Warning!G
It is dangerous to shift the gear selector le-
ver out ofP or N if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
!
In order to avoid damaging the trans-
mission,
wait for the gear selection process
to complete before setting the vehi-
cle in motion.
place the gear selector lever in
positionPorR only when the vehi-
cle is stopped.
!
If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.
Release the parking brake.
Page 52 of 417
51 Getting started
Driving
After a cold start, the automatic transmis-
sion shifts at a higher revolution. This al-
lows the catalytic converter to reach its
operating temperature earlier.
For more information, see “Driving instruc-
tions” (
page 220).
For information on off-road driving, see
“Off-road driving” (
page 227).
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.

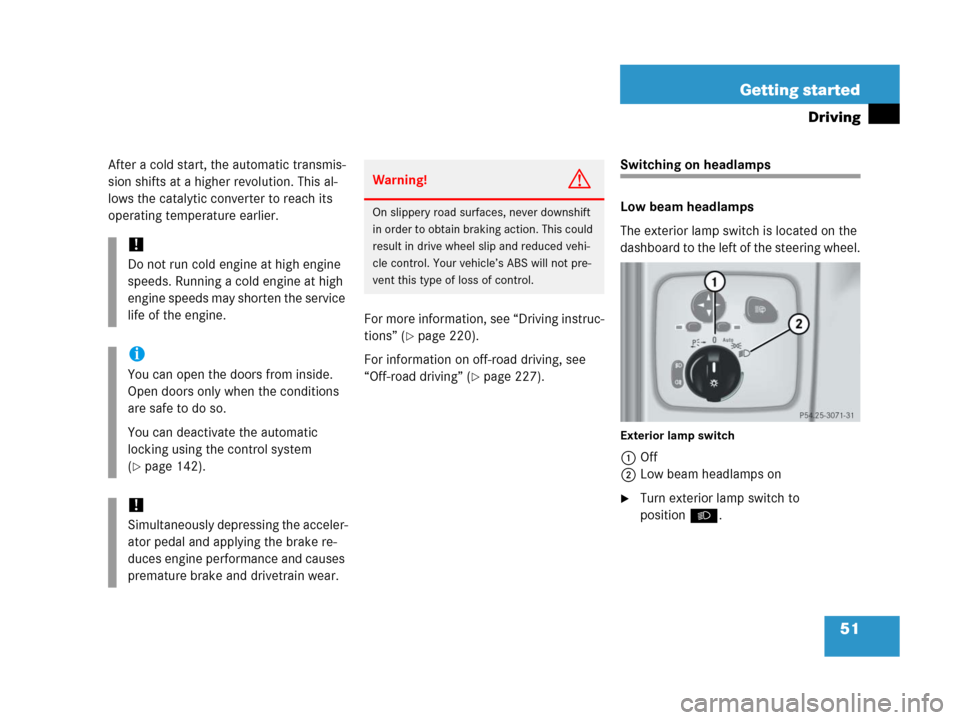

Exterior lamp switch
1Off
2Low beam headlamps on
Turn exterior lamp switch to
positionB.
!
Do not run cold engine at high engine
speeds. Running a cold engine at high
engine speeds may shorten the service
life of the engine.
i
You can open the doors from inside.
Open doors only when the conditions
are safe to do so.
You can deactivate the automatic
locking using the control system
(
page 142).
!
Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.
Warning!G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
Page 53 of 417
52 Getting started
Driving
High beam
The combination switch is located on the
left of the steering column.
Combination switch

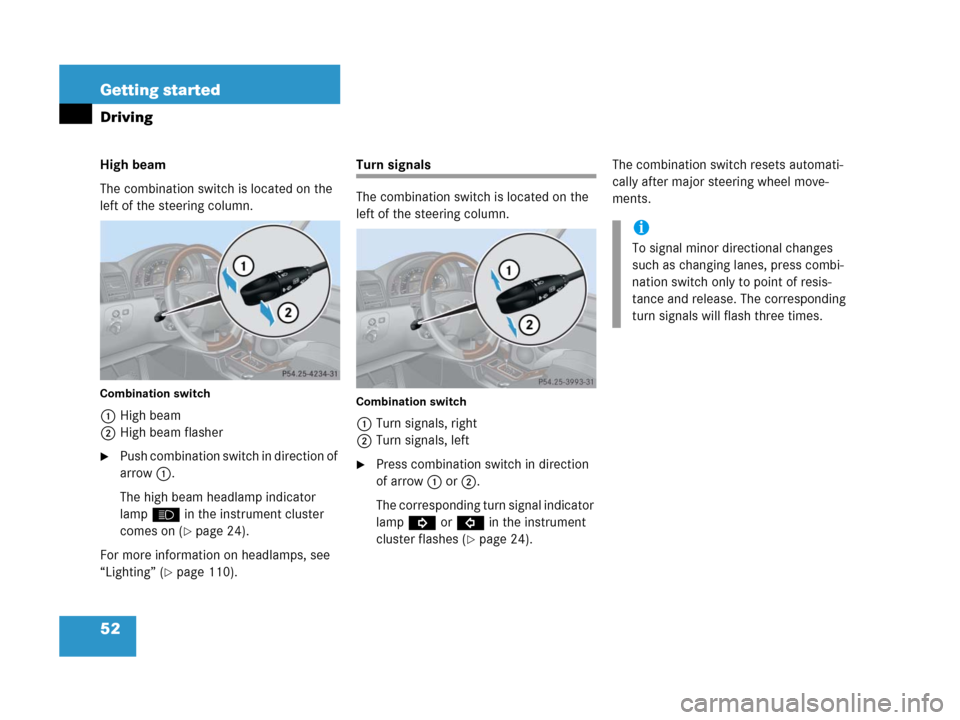

1High beam
2High beam flasher
Push combination switch in direction of
arrow1.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 24).
For more information on headlamps, see
“Lighting” (
page 110).
Turn signals
The combination switch is located on the
left of the steering column.
Combination switch
1Turn signals, right
2Turn signals, left
Press combination switch in direction
of arrow1 or2.
The corresponding turn signal indicator
lampK orL in the instrument
cluster flashes (
page 24).The combination switch resets automati-
cally after major steering wheel move-
ments.
i
To signal minor directional changes
such as changing lanes, press combi-
nation switch only to point of resis-
tance and release. The corresponding
turn signals will flash three times.
Page 54 of 417
53 Getting started
Driving
Windshield wipers
The combination switch is located on the
left of the steering column.
Combination switch

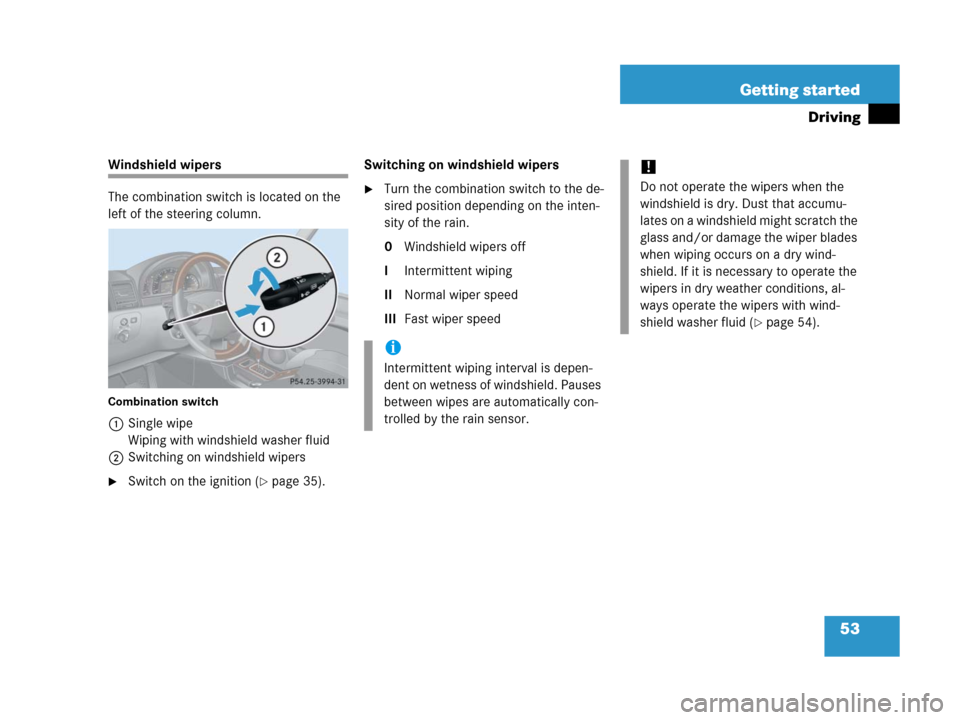

1Single wipe
Wiping with windshield washer fluid
2Switching on windshield wipers
Switch on the ignition (page 35).Switching on windshield wipers
Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
i
Intermittent wiping interval is depen-
dent on wetness of windshield. Pauses
between wipes are automatically con-
trolled by the rain sensor.
!
Do not operate the wipers when the
windshield is dry. Dust that accumu-
lates on a windshield might scratch the
glass and/or damage the wiper blades
when wiping occurs on a dry wind-
shield. If it is necessary to operate the
wipers in dry weather conditions, al-
ways operate the wipers with wind-
shield washer fluid (
page 54).
Page 55 of 417
54 Getting started
Driving
Intermittent wiping
Set the combination switch to
positionI.
Single wipe
Press combination switch briefly in
direction of arrow1.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid
Push combination switch in direction of
arrow1 past the resistance point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield/rear window
washer system and headlamp cleaning
system” (
page 249).
Rear window wiper/washer

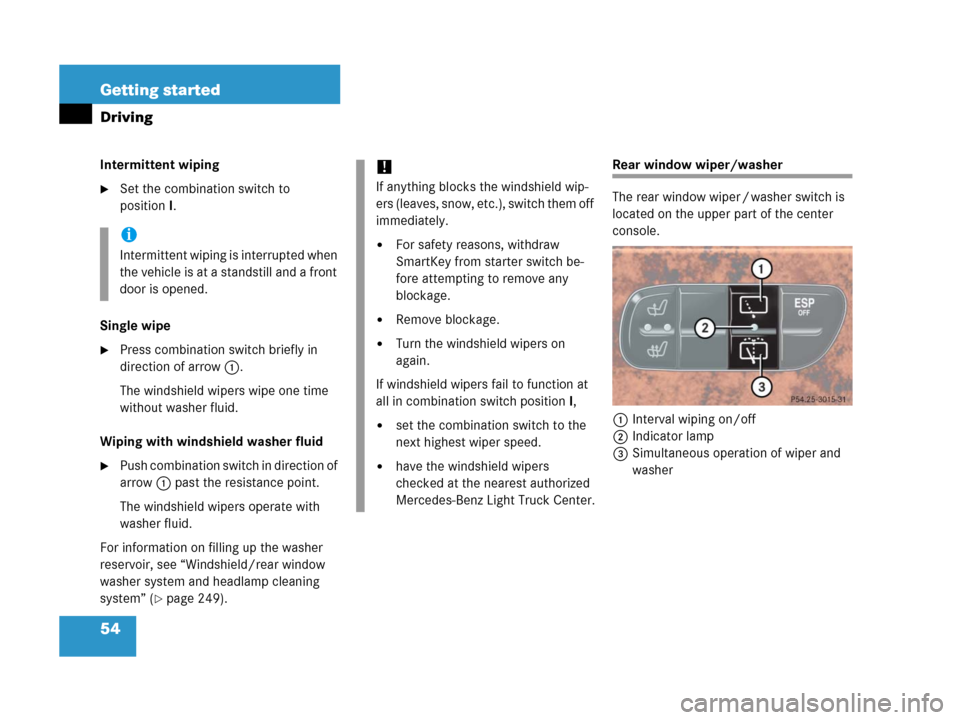

The rear window wiper / washer switch is
located on the upper part of the center
console.
1Interval wiping on/off
2Indicator lamp
3Simultaneous operation of wiper and
washer
i
Intermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.
!
If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.
For safety reasons, withdraw
SmartKey from starter switch be-
fore attempting to remove any
blockage.
Remove blockage.
Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in combination switch positionI,
set the combination switch to the
next highest wiper speed.
have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Light Truck Center.
Page 56 of 417
55 Getting started
Driving
Switch on the ignition (page 35).
Interval wiping
Switching on
Press upper half1 of the switch.
Indicator lamp2 comes on.
Switching off
Press upper half1 of the switch
again.
Indicator lamp2 goes out.Wiping with windshield washer fluid
Press and hold lower half3 of the
switch.
The wiper operates with washer fluid.
The rear window will be wiped for ap-
proximately another five seconds after
the switch is released.
For information on filling up the washer
reservoir, see “Windshield/rear window
washer system and headlamp cleaning
system” (
page 249).
Problems while driving
The engine runs erratically and misfires
An ignition cable may be damaged.
The engine electronics may not be op-
erating properly.
Unburned gasoline may have entered
the catalytic converter and damaged it.
Give very little gas.
Have the problem repaired by an au-
thorized Mercedes-Benz Light Truck
Center as soon as possible.
i
The rear window wiper will also auto-
matically engage if
the windshield wipers are engaged.
the gear selector lever is placed
inR “Reverse”.
Page 57 of 417
56 Getting started
Driving
The coolant temperature is above
248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.
Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.
Check the coolant level and add cool-
ant if necessary (
page 248).In case of accident
If the vehicle is leaking gasoline:
Do not start the engine under any
circumstances.
Notify local fire and/or police
authorities.
If the extent of the damage cannot be
determined:
Notify an authorized Mercedes-Benz
Light Truck Center.
If no damage can be determined on the
major assemblies
fuel system
engine mount:
Start the engine in the usual manner.
i
Excessive coolant temperatures trigger
a warning message in the multifunction
display (
page 308).
Page 58 of 417
57 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.Parking brake

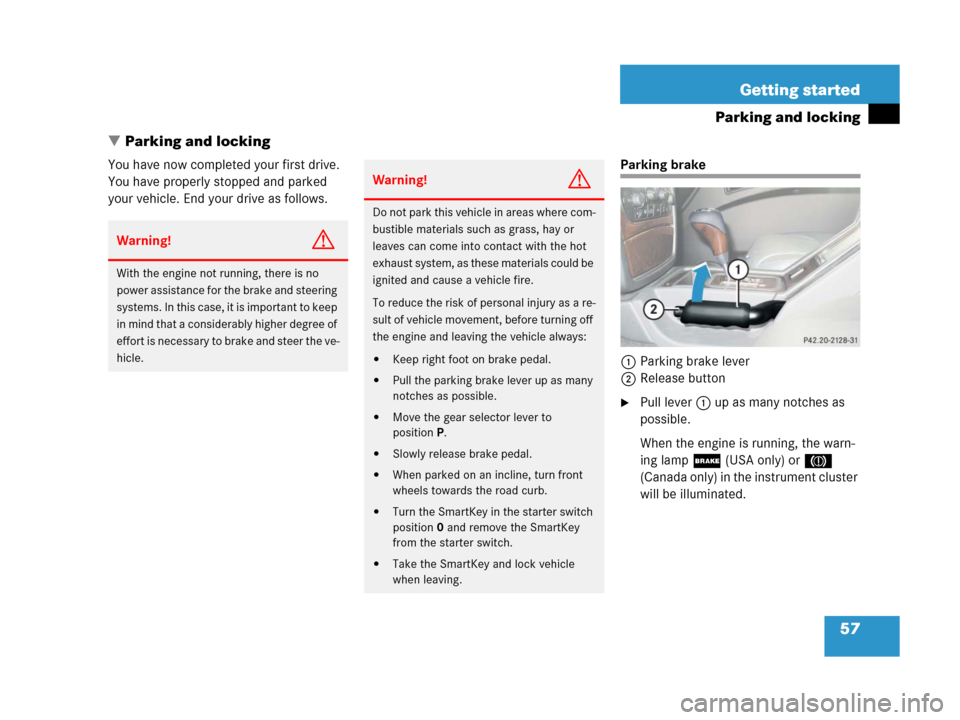

1Parking brake lever
2Release button
Pull lever1 up as many notches as
possible.
When the engine is running, the warn-
ing lamp; (USA only) or3
(Canada only) in the instrument cluster
will be illuminated.
Warning!G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.
Warning!G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:
Keep right foot on brake pedal.
Pull the parking brake lever up as many
notches as possible.
Move the gear selector lever to
positionP.
Slowly release brake pedal.
When parked on an incline, turn front
wheels towards the road curb.
Turn the SmartKey in the starter switch
position0 and remove the SmartKey
from the starter switch.
Take the SmartKey and lock vehicle
when leaving.
Page 59 of 417

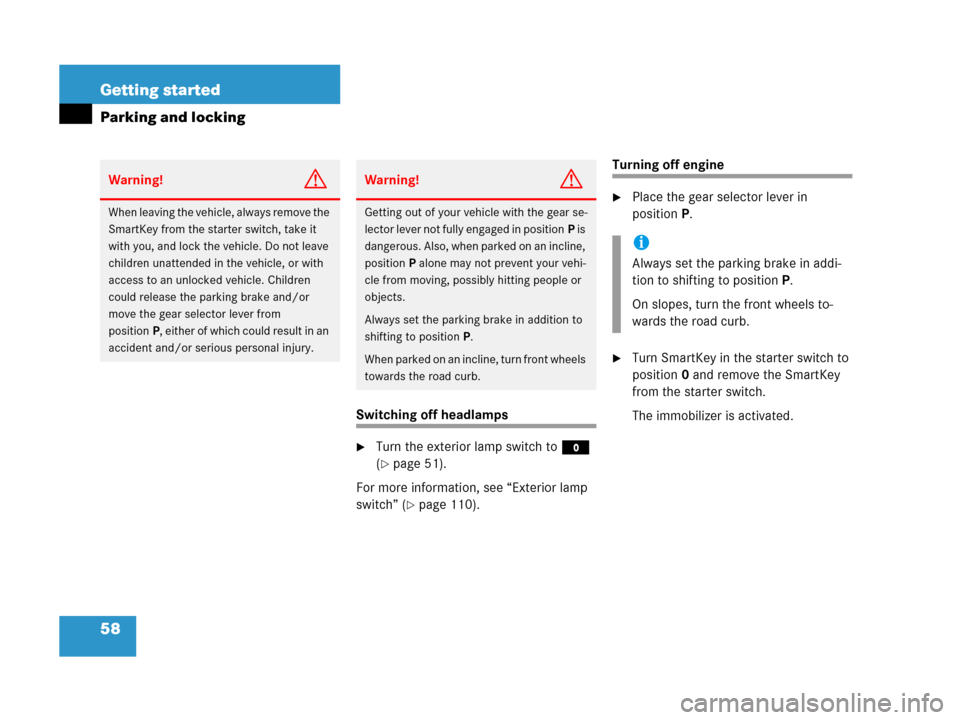

58 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch to M
(
page 51).
For more information, see “Exterior lamp
switch” (
page 110).
Turning off engine
Place the gear selector lever in
positionP.
Turn SmartKey in the starter switch to
position0 and remove the SmartKey
from the starter switch.
The immobilizer is activated.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from
positionP, either of which could result in an
accident and/or serious personal injury.
Warning!G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP.
When parked on an incline, turn front wheels
towards the road curb.
i
Always set the parking brake in addi-
tion to shifting to positionP.
On slopes, turn the front wheels to-
wards the road curb.
Page 60 of 417
59 Getting started
Parking and locking
Press the seat belt release button3
(
page 45).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
After exiting the vehicle, press the lock
button‹ on the SmartKey
(
page 34).
With the hood, tailgate and all doors
closed, all turn signal lamps flash three
times. The locking knobs on the doors
move down.
The anti-theft alarm system is armed.For more information, see “Locking and
unlocking” (
page 92).
i
The SmartKey can only be pulled out
when:
it has been turned to position0 in
the starter switch
the gear selector lever for the auto-
matic transmission is in positionP
i
With the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.

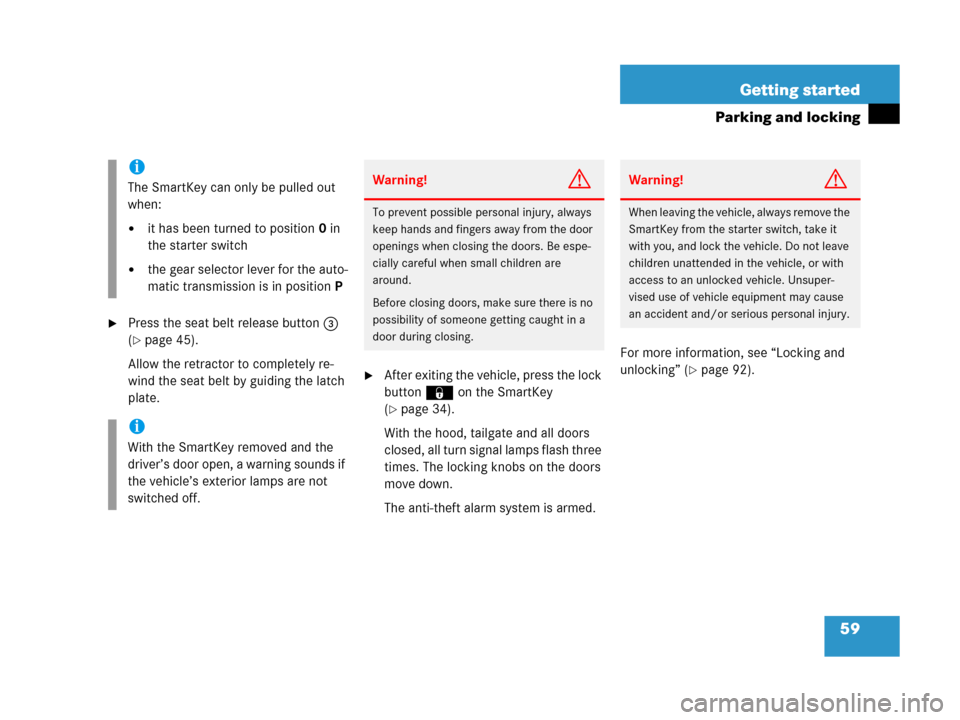

Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
