MERCEDES-BENZ G500 2008 W463 Owner's Manual

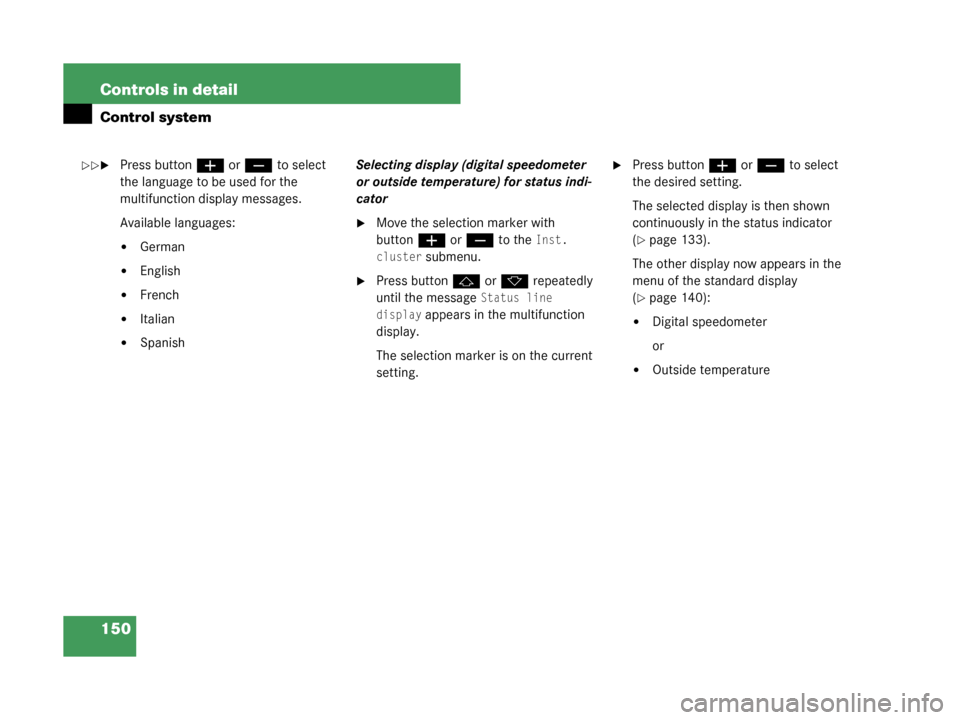

150 Controls in detail
Control system
Press buttonæ orç to select
the language to be used for the
multifunction display messages.
Available languages:

German

English

French

Italian

Spanish Selecting display (d
igital speedometer
or outside temperatur e) for status indi-
cator
Move the selection marker with
button æ orç to the
Inst.
cluster
submenu.
Press button j ork repeatedly
until the message
Status line
display
appears in the multifunction
display.
The selection marker is on the current
setting.
Press button æ orç to select
the desired setting.
The selected display is then shown
continuously in the status indicator
(
page 133).
The other display now appears in the
menu of the standard display
(
page 140):

Digital speedometer
or

Outside temperature

W463.boo Seite 150 Montag, 19 . November 2007 8:41 08

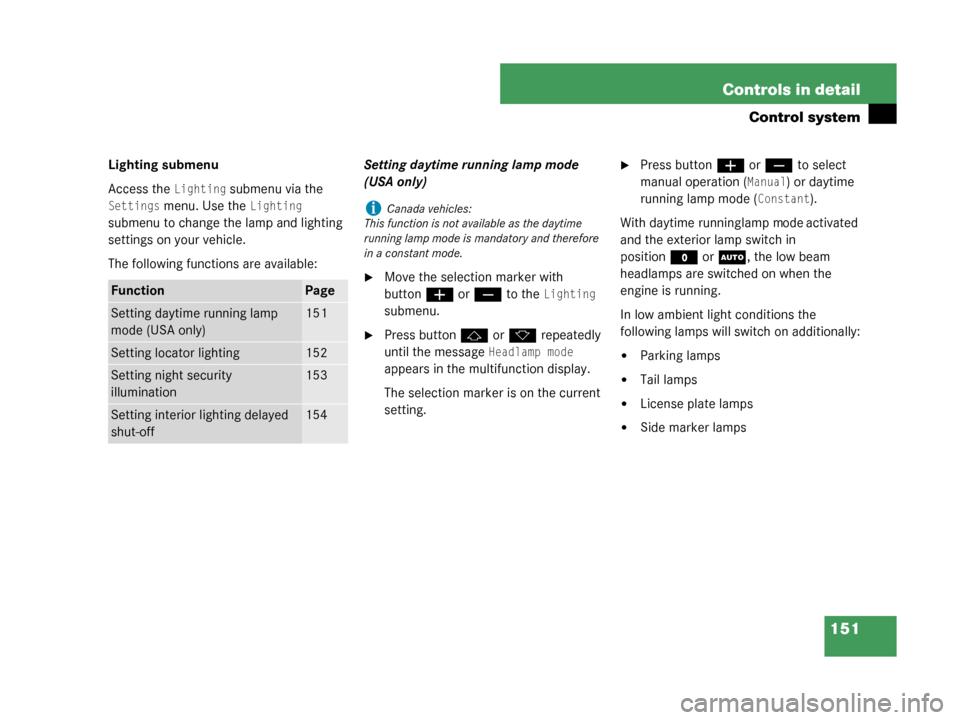

151
Controls in detail
Control system
Lighting submenu
Access the
Lighting submenu via the
Settings menu. Use the Lighting
submenu to change the lamp and lighting
settings on your vehicle.
The following functions are available:
Setting daytime running lamp mode
(USA only)
Move the selection marker with
button
æ orç to the
Lighting
submenu.
Press button j ork repeatedly
until the message
Headlamp mode
appears in the multifunction display.
The selection marker is on the current
setting.
Press button æ orç to select
manual operation (
Manual) or daytime
running lamp mode (
Constant).
With daytime running lamp mode activated
and the exterior lamp switch in
position M orU , the low beam
headlamps are switched on when the
engine is running.
In low ambient light conditions the
following lamps will switch on additionally:

Parking lamps

Tail lamps

License plate lamps

Side marker lamps
FunctionPage
Setting daytime running lamp
mode (USA only)151
Setting locator lighting152
Setting night security
illumination153
Setting interior lighting delayed
shut-off154
iCanada vehicles:
This function is not available as the daytime
running lamp mode is mandatory and therefore
in a constant mode.
W463.boo Seite 151 Montag, 19 . November 2007 8:41 08

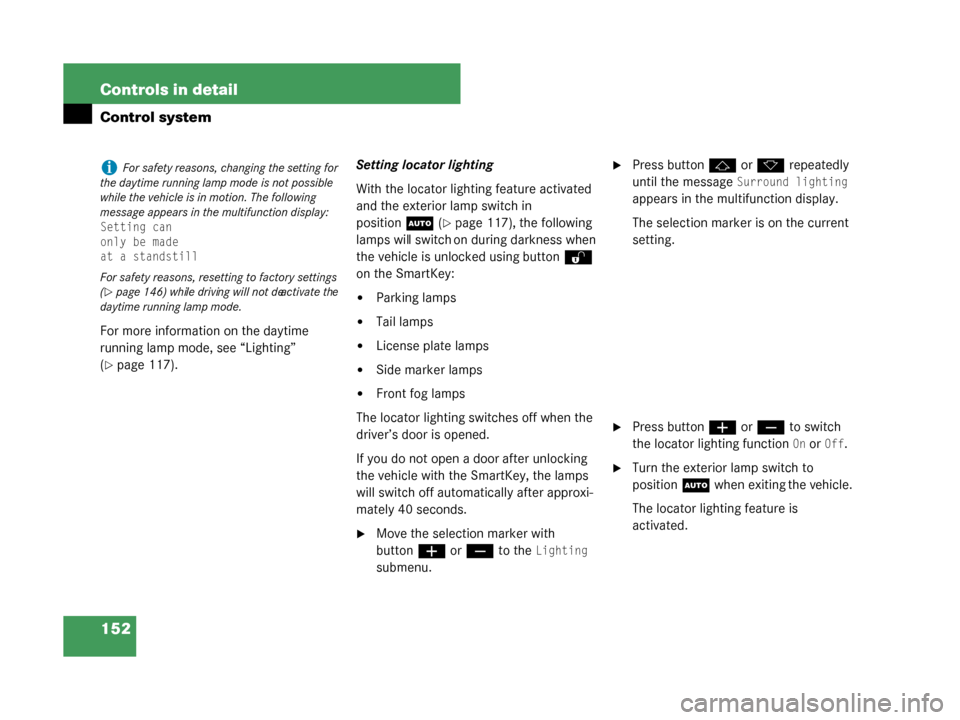

152 Controls in detail
Control system
For more information on the daytime
running lamp mode, see “Lighting”
(
page 117).Setting locator lighting
With the locator lighting feature activated
and the exterior
lamp switch in
position U (
page 117), the following
lamps will switch on during darkness when
the vehicle is unlocked using button Œ
on the SmartKey:

Parking lamps

Tail lamps

License plate lamps

Side marker lamps

Front fog lamps
The locator lighting switches off when the
driver’s door is opened.
If you do not open a door after unlocking
the vehicle with the SmartKey, the lamps
will switch off automa tically after approxi-
mately 40 seconds.
Move the selection marker with
button æ orç to the
Lighting
submenu.
Press button j ork repeatedly
until the message
Surround lighting
appears in the multifunction display.
The selection marker is on the current
setting.
Press button æ orç to switch
the locator lighting function
On or Off.
Turn the exterior lamp switch to
position U when exiting the vehicle.
The locator lighting feature is
activated.
iFor safety reasons, changing the setting for
the daytime running lamp mode is not possible
while the vehicle is in motion. The following
message appears in the multifunction display:
Setting can
only be made
at a standstill
For safety reasons, resetting to factory settings
(
page 146) while driving will not deactivate the
daytime running lamp mode.
W463.boo Seite 152 Montag, 19 . November 2007 8:41 08

153
Controls in detail
Control system
Setting night security illumination
(Headlamps delayed shut-off)
Use this function to set whether you would
like the exterior lamps to remain on for
15 seconds during darkness after exiting
the vehicle and closing all doors.
With the headlamps delayed shut-off
feature activated and the exterior lamp
switch in position
U before the engine
is turned off, the following lamps will
switch on when the engine is turned off:

Parking lamps

Tail lamps

License plate lamps

Side marker lamps

Front fog lamps
If after turning off the engine you do not
open a door or do not close an opened
door, the lamps will automatically switch
off after approxim ately 60 seconds.
Move the selection marker with
buttonæ orç to the
Lighting
submenu.
Press button j ork repeatedly
until the message
Headl. delayed
shut-off
appears in the multifunction
display.
The selection marker is on the current
setting.
Press button æ orç to switch
the headlamps delayed shut-off feature
On or Off.
Turn the exterior lamp switch to
position U before turning off the
engine.
The headlamps delayed shut-off
feature is activated.
You can temporarily deactivate the
headlamps delayed shut-off feature:
Before exiting the vehicle, turn the
SmartKey in the starter switch to
position 0.
Then turn it to position 2 and back to
position 0.
The headlamps delayed shut-off
feature is deactivated. It will reactivate
as soon as you reinsert the SmartKey in
the starter switch.
W463.boo Seite 153 Montag, 19 . November 2007 8:41 08

154 Controls in detail
Control system
Setting interior lighting delayed shut-off
Use this function to set whether you would
like the interior lighting to remain on for
10 seconds during darkness after you have
removed the SmartKey from the starter
switch.
Move the selection marker with
button æ orç to the
Lighting
submenu.
Press button j ork repeatedly
until the message
Interior light.
delay.sw.off
appears in the
multifunction display. The selection marker is on the current
setting.Press button
æ orç to switch
the interior lighting delayed shut-off
feature
On or Off. Vehicle submenu
Access the
Vehicle submenu via the
Settings menu. Use the Vehicle submenu
to make general vehicle settings.
The following functions are available:
FunctionPage
Selecting audio search function155
Setting automatic locking155
W463.boo Seite 154 Montag, 19 . November 2007 8:41 08

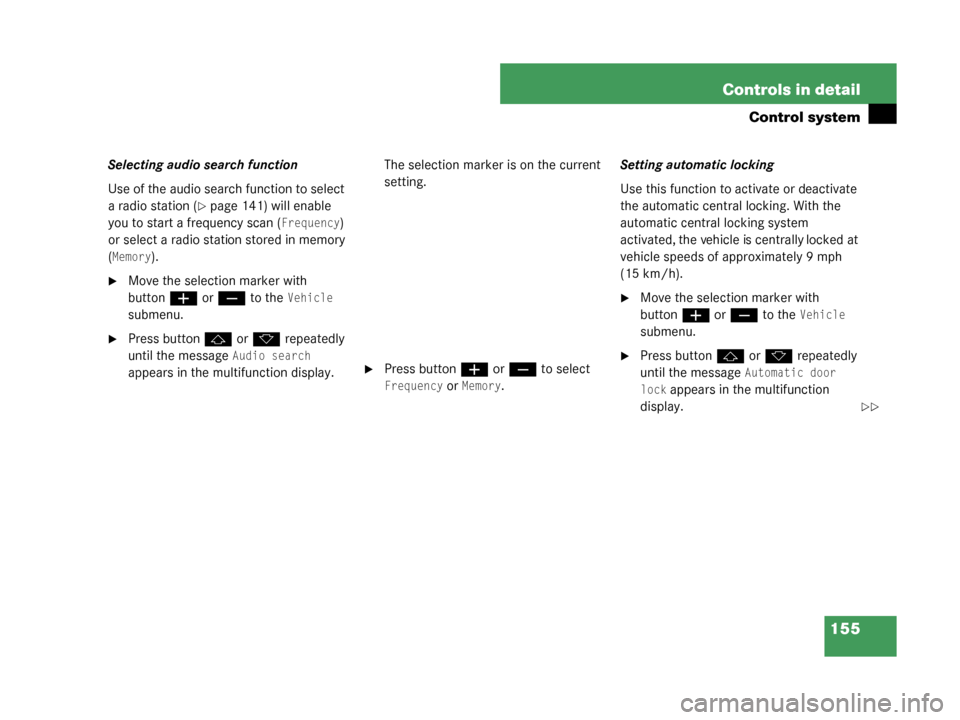

155
Controls in detail
Control system
Selecting audio search function
Use of the audio search function to select
a radio station (
page 141) will enable
you to start a frequency scan (
Frequency)
or select a radio station stored in memory
(
Memory).
Move the selection marker with
button æ orç to the
Vehicle
submenu.
Press button j ork repeatedly
until the message
Audio search
appears in the multifunction display. The selection marker is on the current
setting.Press button
æ orç to select
Frequency
or Memory. Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the
automatic central locking system
activated, the vehicle is centrally locked at
vehicle speeds of approximately 9 mph
(15 km/h).
Move the selection marker with
button
æ orç to the
Vehicle
submenu.
Press button j ork repeatedly
until the message
Automatic door
lock
appears in the multifunction
display.

W463.boo Seite 155 Montag, 19 . November 2007 8:41 08

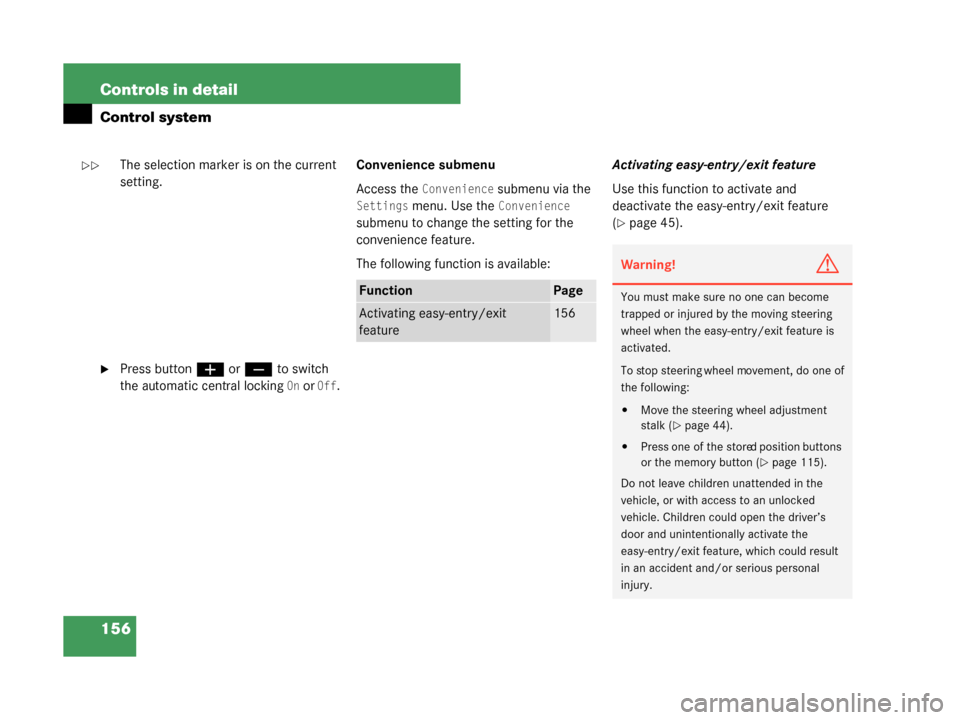

156 Controls in detail
Control system
The selection marker is on the current
setting.
Press buttonæ orç to switch
the automatic central locking
On or Off. Convenience submenu
Access the
Convenience submenu via the
Settings menu. Use the Convenience
submenu to change the setting for the
convenience feature.
The following function is available: Activating easy-entry/exit feature
Use this function to activate and
deactivate the easy-entry/exit feature
(
page 45).
FunctionPage
Activating easy-entry/exit
feature156
Warning!G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following:

Move the steering wheel adjustment
stalk (
page 44).

Press one of the stored position buttons
or the memory button (
page 115).
Do not leave children unattended in the
vehicle, or with access to an unlocked
vehicle. Children coul d open the driver’s
door and unintentionally activate the
easy-entry/exit feature, which could result
in an accident and/or serious personal
injury.

W463.boo Seite 156 Montag, 19 . November 2007 8:41 08

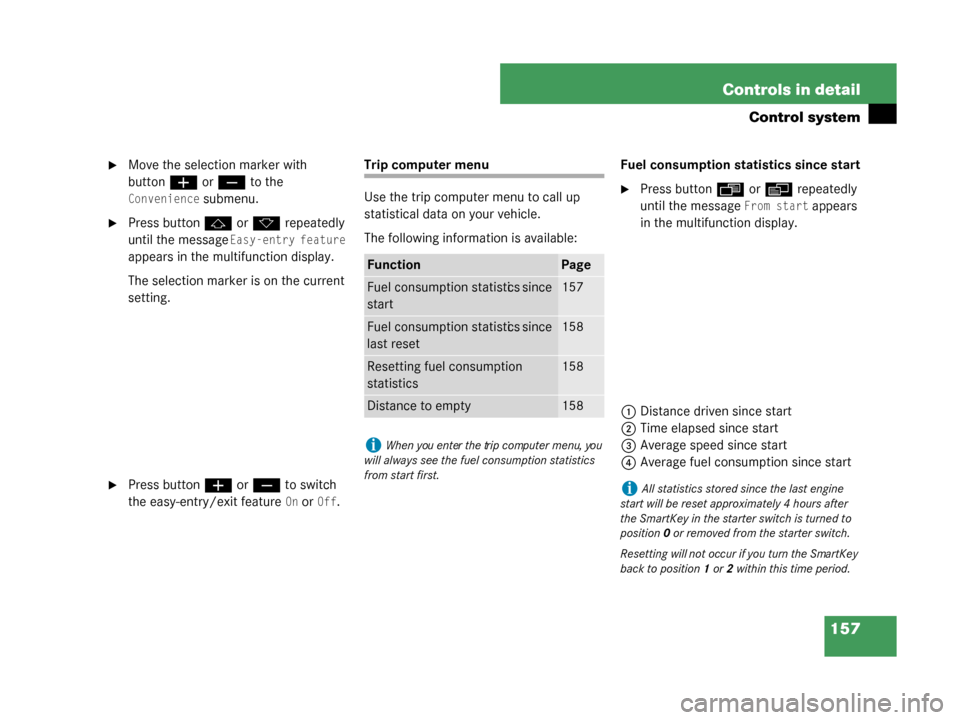

157
Controls in detail
Control system
Move the selection marker with
button
æ orç to the
Convenience submenu.
Press button j ork repeatedly
until the message
Easy-entry feature
appears in the multifunction display.
The selection marker is on the current
setting.
Press button æ orç to switch
the easy-entry/exit feature
On or Off.
Trip computer menu
Use the trip computer menu to call up
statistical data on your vehicle.
The following information is available: Fuel consumption statistics since start
Press button
ÿ orè repeatedly
until the message
From start appears
in the multifunction display.
1 Distance driven since start
2 Time elapsed since start
3 Average speed since start
4 Average fuel consumption since start
FunctionPage
Fuel consumption statistics since
start157
Fuel consumption statistics since
last reset158
Resetting fuel consumption
statistics158
Distance to empty158
iWhen you enter the trip computer menu, you
will always see the fuel consumption statistics
from start first.
iAll statistics stored since the last engine
start will be reset approximately 4 hours after
the SmartKey in the starter switch is turned to
position 0 or removed from the starter switch.
Resetting will not occur if you turn the SmartKey
back to position 1 or2 within this time period.
W463.boo Seite 157 Montag, 19 . November 2007 8:41 08

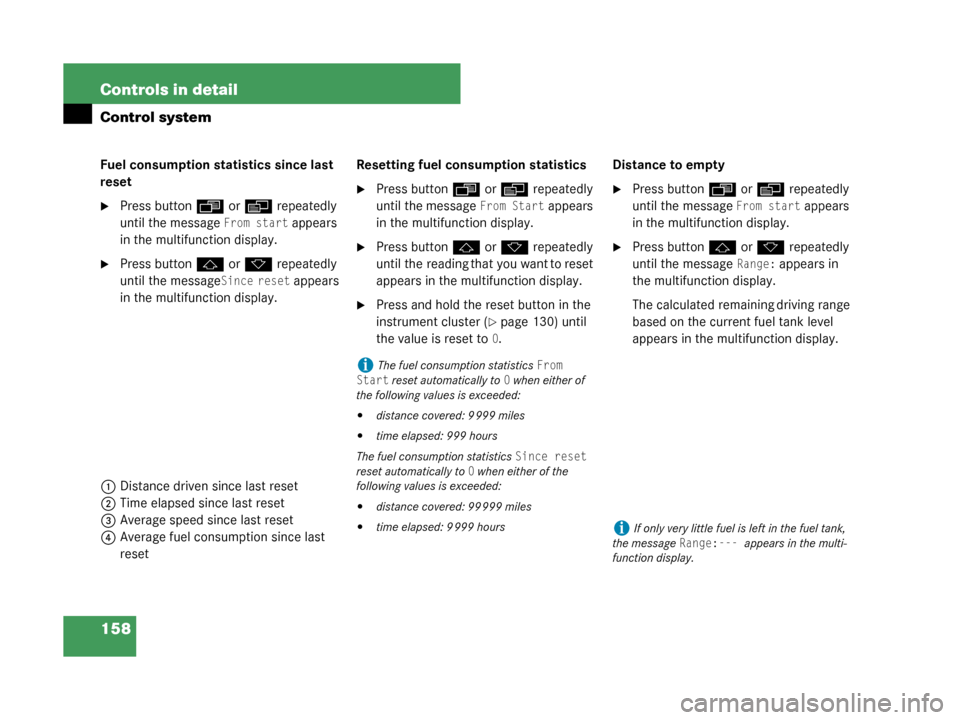

158 Controls in detail
Control system
Fuel consumption statistics since last
reset
Press button ÿ orè repeatedly
until the message
From start appears
in the multifunction display.
Press button j ork repeatedly
until the message
Since reset appears
in the multifunction display.
1 Distance driven since last reset
2 Time elapsed since last reset
3 Average speed since last reset
4 Average fuel consumption since last
reset Resetting fuel consumption statistics
Press button
ÿ orè repeatedly
until the message
From Start appears
in the multifunction display.
Press button j ork repeatedly
until the reading that you want to reset
appears in the multifunction display.
Press and hold the reset button in the
instrument cluster (
page 130) until
the value is reset to
0. Distance to empty
Press button
ÿ orè repeatedly
until the message
From start appears
in the multifunction display.
Press button j ork repeatedly
until the message
Range: appears in
the multifunction display.
The calculated remaining driving range
based on the current fuel tank level
appears in the multifunction display.
iThe fuel consumption statistics From
Start
reset automatically to0 when either of
the following values is exceeded:

distance covered: 9 999 miles

time elapsed: 999 hours
The fuel consumption statistics
Since reset
reset automatically to
0 when either of the
following values is exceeded:

distance covered: 99 999 miles

time elapsed: 9 999 hoursiIf only very little fuel is left in the fuel tank,
the message
Range:--- appears in the multi-
function display.
W463.boo Seite 158 Montag, 19 . November 2007 8:41 08

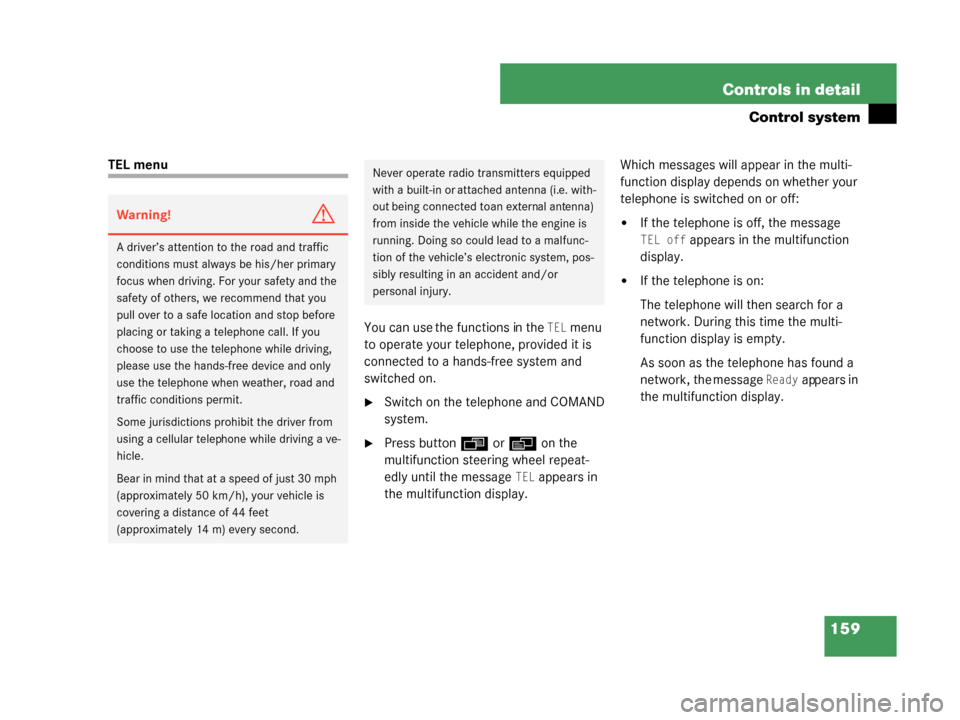

159
Controls in detail
Control system
TEL menu
You can use the functions in the
TEL menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.
Switch on the telephone and COMAND
system.
Press button ÿ orè on the
multifunction steering wheel repeat-
edly until the message
TEL appears in
the multifunction display. Which messages will appear in the multi-
function display depends on whether your
telephone is switched on or off:

If the telephone is off, the message
TEL off appears in the multifunction
display.

If the telephone is on:
The telephone will then search for a
network. During this time the multi-
function display is empty.
As soon as the telephone has found a
network, the message
Ready appears in
the multifunction display.
Warning!G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving. For your safety and the
safety of others, we recommend that you
pull over to a safe location and stop before
placing or taking a te lephone call. If you
choose to use the telephone while driving,
please use the hands-free device and only
use the telephone when weather, road and
traffic conditions permit.
Some jurisdictions prohibit the driver from
using a cellular telephon e while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so coul d lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.
W463.boo Seite 159 Montag, 19 . November 2007 8:41 08
