MERCEDES-BENZ G55AMG 2003 W463 Owner's Manual

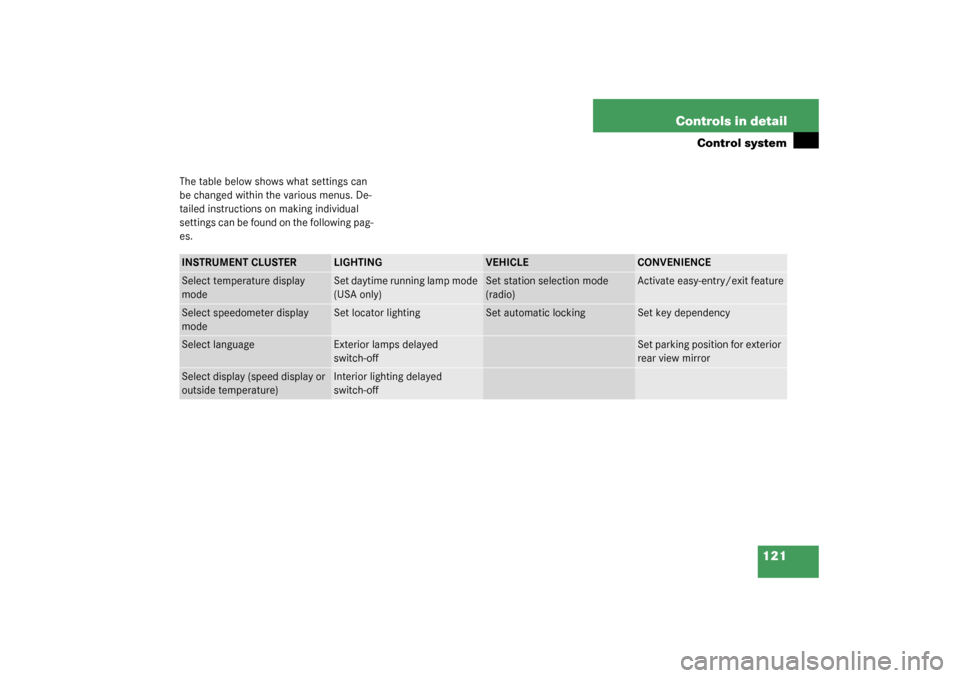

121 Controls in detail
Control system
The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Select temperature display
mode
Set daytime running lamp mode
(USA only)
Set station selection mode
(radio)
Activate easy-entry/exit feature
Select speedometer display
mode
Set locator lighting
Set automatic locking
Set key dependency
Select language
Exterior lamps delayed
switch-off
Set parking position for exterior
rear view mirror
Select display (speed display or
outside temperature)
Interior lighting delayed
switch-off

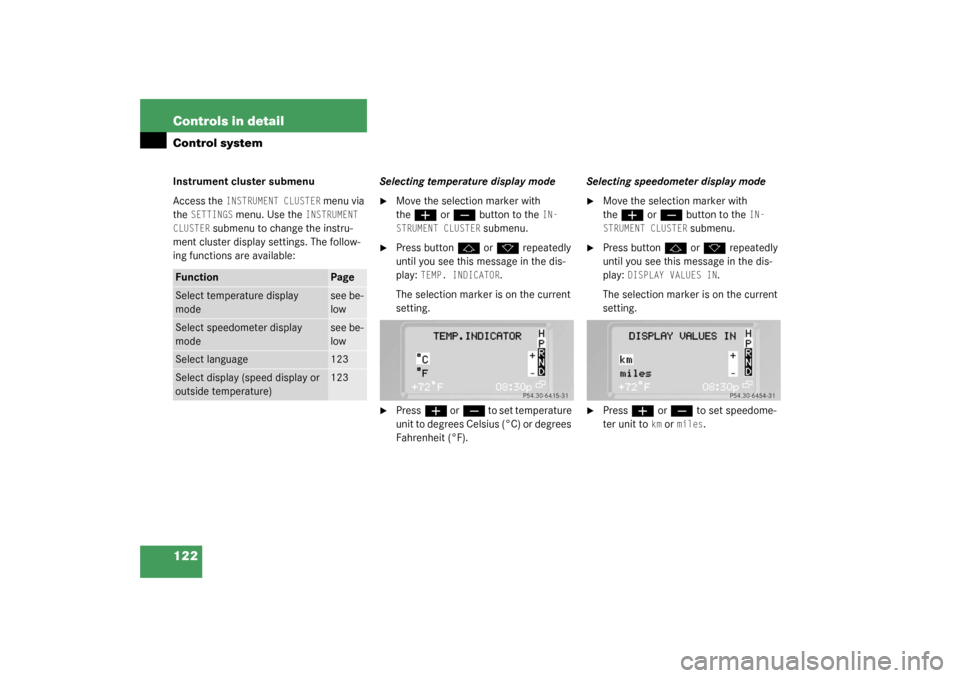

122 Controls in detailControl systemInstrument cluster submenu
Access the
INSTRUMENT CLUSTER
menu via
the
SETTINGS
menu. Use the
INSTRUMENT
CLUSTER
submenu to change the instru-
ment cluster display settings. The follow-
ing functions are available:Selecting temperature display mode

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
TEMP. INDICATOR
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set temperature
unit to degrees Celsius (°C) or degrees
Fahrenheit (°F).Selecting speedometer display mode

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
DISPLAY VALUES IN
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set speedome-
ter unit to
km or
miles
.
Function
Page
Select temperature display
mode
see be-
low
Select speedometer display
mode
see be-
low
Select language
123
Select display (speed display or
outside temperature)
123

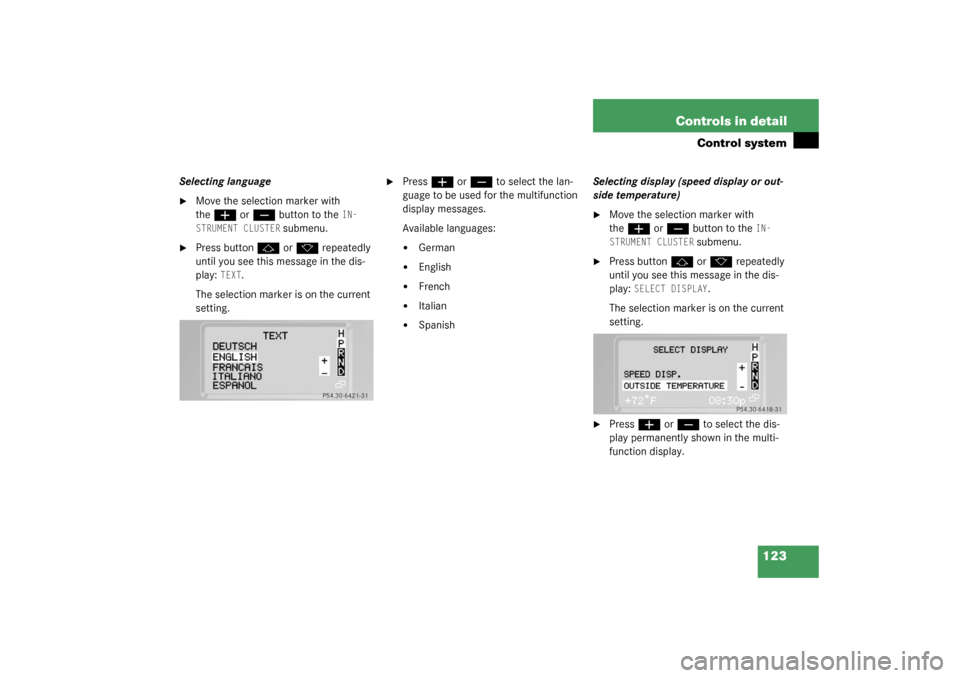

123 Controls in detail
Control system
Selecting language
Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
TEXT
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the lan-
guage to be used for the multifunction
display messages.
Available languages:


German


English


French


Italian


SpanishSelecting display (speed display or out-
side temperature)

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
SELECT DISPLAY
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the dis-
play permanently shown in the multi-
function display.

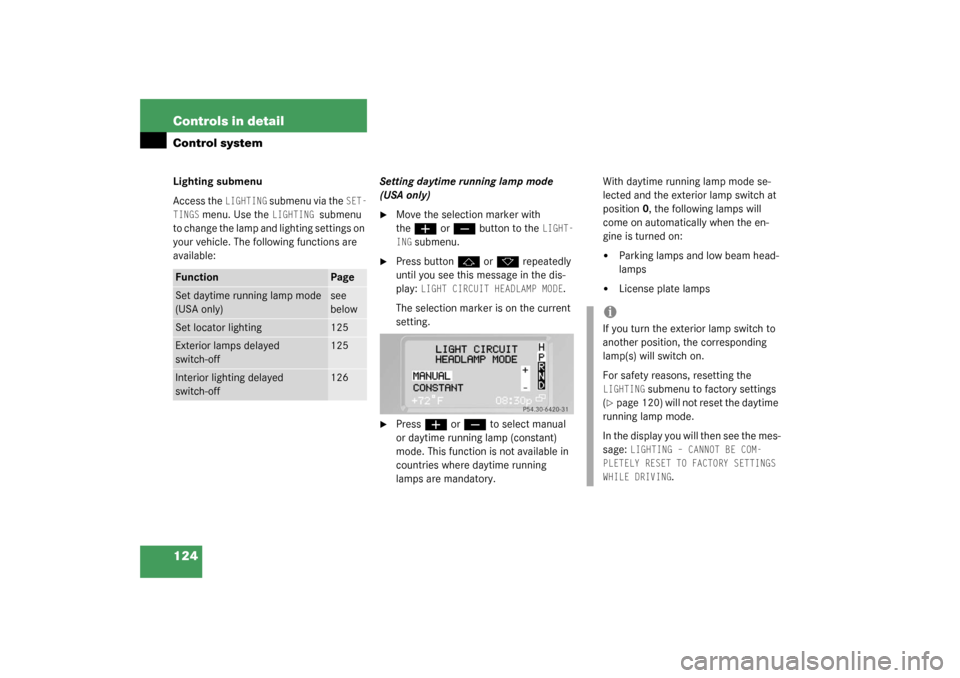

124 Controls in detailControl systemLighting submenu
Access the
LIGHTING
submenu via the
SET-
TINGS
menu. Use the
LIGHTING
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
the
æ
or
ç
button to the
LIGHT-
ING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
LIGHT CIRCUIT HEADLAMP MODE
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select manual
or daytime running lamp (constant)
mode. This function is not available in
countries where daytime running
lamps are mandatory.With daytime running lamp mode se-
lected and the exterior lamp switch at
position0, the following lamps will
come on automatically when the en-
gine is turned on:


Parking lamps and low beam head-
lamps


License plate lamps
Function
Page
Set daytime running lamp mode
(USA only)
see
below
Set locator lighting
125
Exterior lamps delayed
switch-off
125
Interior lighting delayed
switch-off
126
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the LIGHTING
submenu to factory settings
(
page 120) will not reset the daytime
running lamp mode.
In the display you will then see the mes-
sage:
LIGHTING – CANNOT BE COM-
PLETELY RESET TO FACTORY SETTINGS
WHILE DRIVING
.

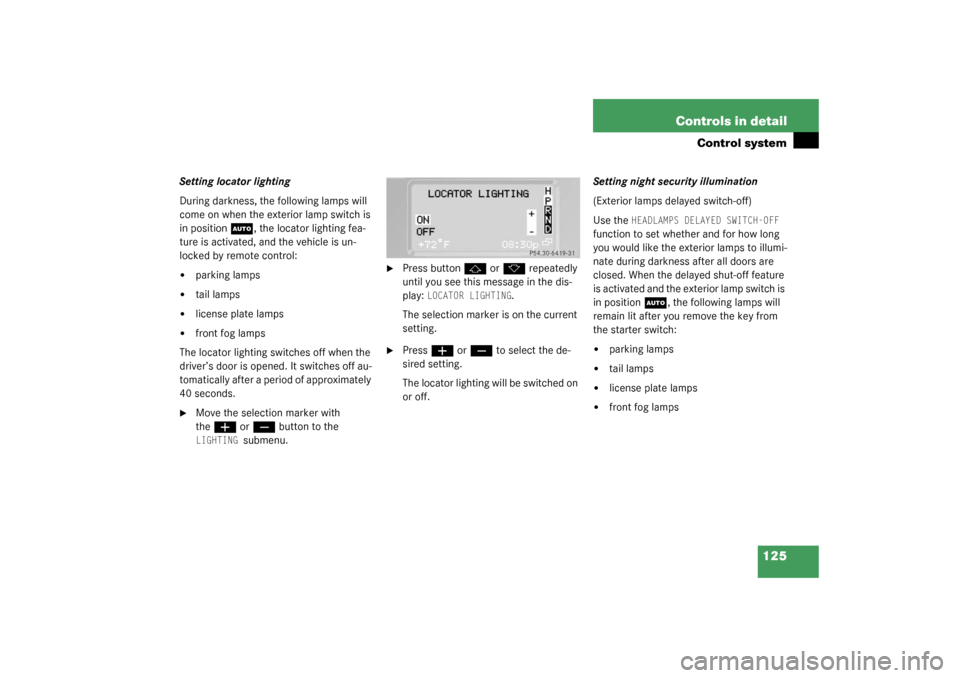

125 Controls in detail
Control system
Setting locator lighting
During darkness, the following lamps will
come on when the exterior lamp switch is
in position
U
, the locator lighting fea-
ture is activated, and the vehicle is un-
locked by remote control:


parking lamps


tail lamps


license plate lamps


front fog lamps
The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.

Move the selection marker with
the
æ
or
ç
button to the
LIGHTING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
LOCATOR LIGHTING
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired setting.
The locator lighting will be switched on
or off.Setting night security illumination
(Exterior lamps delayed switch-off)
Use the
HEADLAMPS DELAYED SWITCH-OFF

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed. When the delayed shut-off feature
is activated and the exterior lamp switch is
in position
U
, the following lamps will
remain lit after you remove the key from
the starter switch:


parking lamps


tail lamps


license plate lamps


front fog lamps

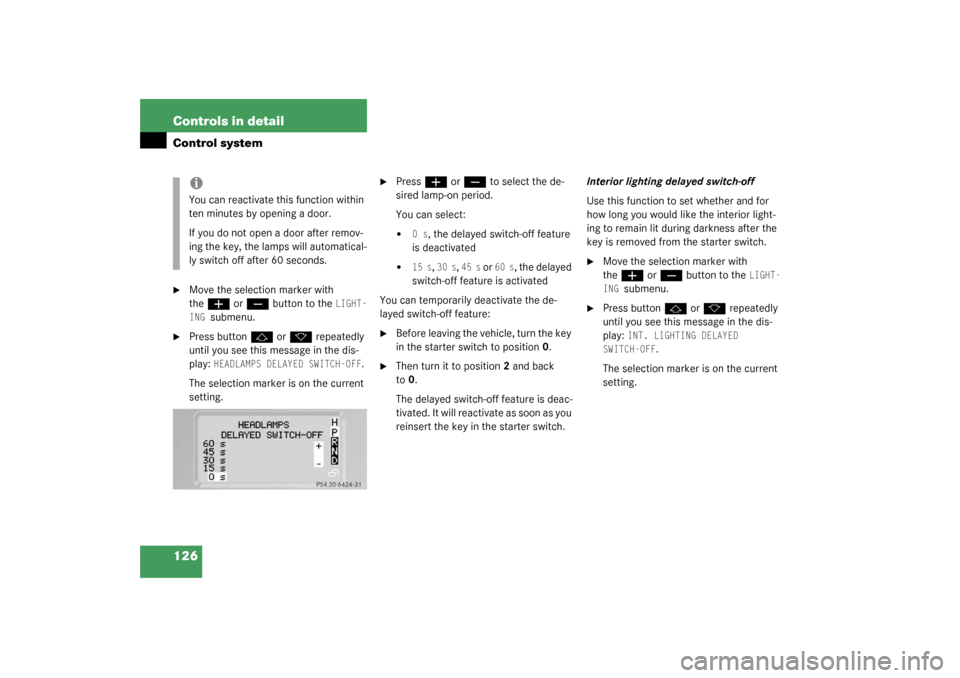

126 Controls in detailControl system
Move the selection marker with
the
æ
or
ç
button to the
LIGHT-
ING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
HEADLAMPS DELAYED SWITCH-OFF
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired lamp-on period.
You can select:


0 s
, the delayed switch-off feature
is deactivated


15 s
, 30 s
, 45 s
or
60 s
, the delayed
switch-off feature is activated
You can temporarily deactivate the de-
layed switch-off feature:

Before leaving the vehicle, turn the key
in the starter switch to position0.

Then turn it to position2 and back
to0.
The delayed switch-off feature is deac-
tivated. It will reactivate as soon as you
reinsert the key in the starter switch.Interior lighting delayed switch-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
key is removed from the starter switch.

Move the selection marker with
the
æ
or
ç
button to the
LIGHT-
ING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
INT. LIGHTING DELAYED
SWITCH-OFF
.
The selection marker is on the current
setting.
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after remov-
ing the key, the lamps will automatical-
ly switch off after 60 seconds.

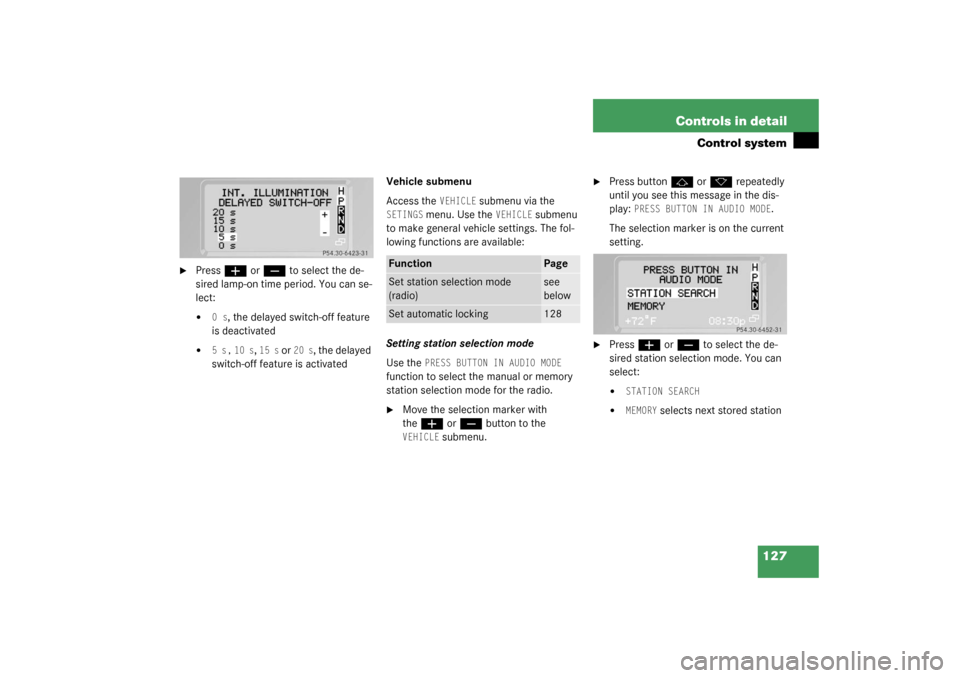

127 Controls in detail
Control system

Press
æ
or
ç
to select the de-
sired lamp-on time period. You can se-
lect:


0 s
, the delayed switch-off feature
is deactivated


5 s,
10 s
, 15 s
or
20 s
, the delayed
switch-off feature is activatedVehicle submenu
Access the
VEHICLE
submenu via the
SETINGS
menu. Use the
VEHICLE
submenu
to make general vehicle settings. The fol-
lowing functions are available:
Setting station selection mode
Use the
PRESS BUTTON IN AUDIO MODE
function to select the manual or memory
station selection mode for the radio.
Move the selection marker with
the
æ
or
ç
button to the
VEHICLE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
PRESS BUTTON IN AUDIO MODE
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired station selection mode. You can
select:


STATION SEARCH


MEMORY
selects next stored station
Function
Page
Set station selection mode
(radio)
see
below
Set automatic locking
128

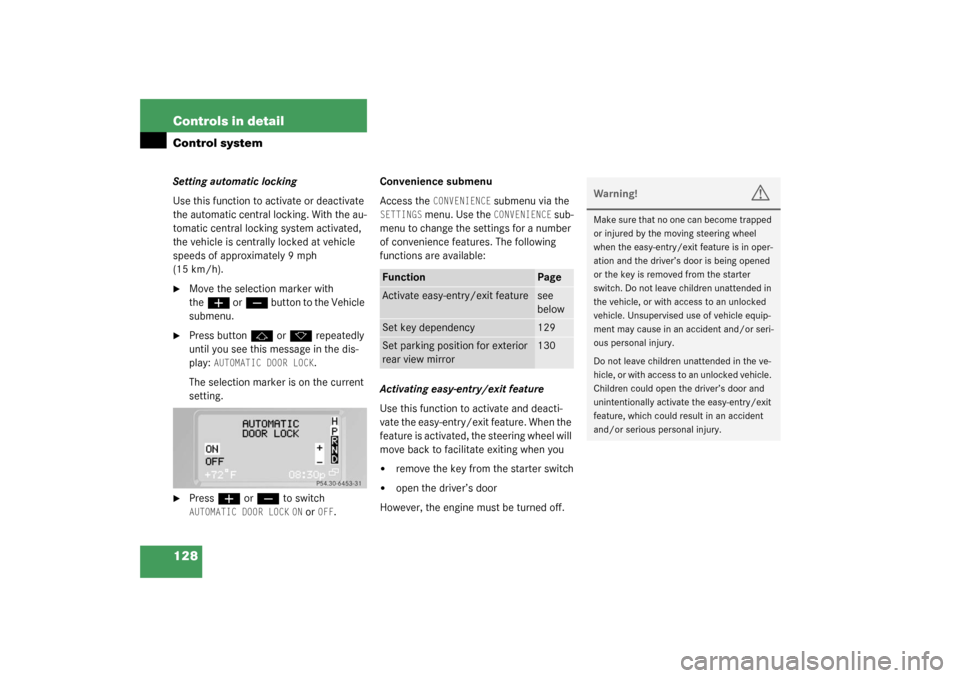

128 Controls in detailControl systemSetting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).
Move the selection marker with
the
æ
or
ç
button to the Vehicle
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
AUTOMATIC DOOR LOCK
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch
AUTOMATIC DOOR LOCK
ON or
OFF
.Convenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel will
move back to facilitate exiting when you


remove the key from the starter switch


open the driver’s door
However, the engine must be turned off.
Function
Page
Activate easy-entry/exit feature
see
below
Set key dependency
129
Set parking position for exterior
rear view mirror
130
Warning!
G
Make sure that no one can become trapped
or injured by the moving steering wheel
when the easy-entry/exit feature is in oper-
ation and the driver’s door is being opened
or the key is removed from the starter
switch. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause in an accident and/or seri-
ous personal injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

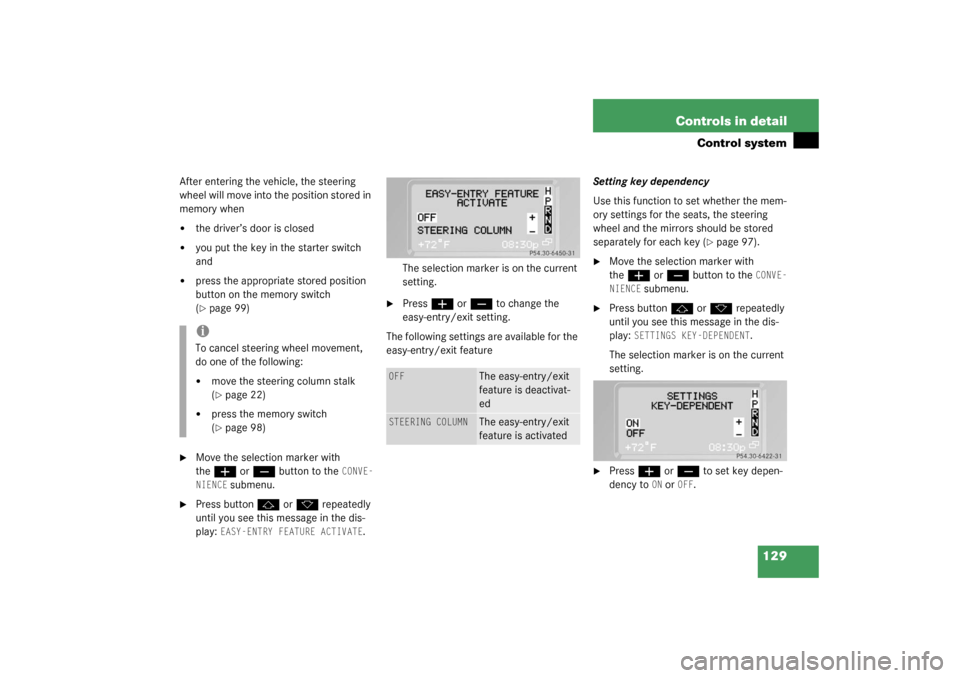

129 Controls in detail
Control system
After entering the vehicle, the steering
wheel will move into the position stored in
memory when

the driver’s door is closed


you put the key in the starter switch
and


press the appropriate stored position
button on the memory switch
(page 99)

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
EASY-ENTRY FEATURE ACTIVATE
.The selection marker is on the current
setting.

Press
æ
or
ç
to change the
easy-entry/exit setting.
The following settings are available for the
easy-entry/exit featureSetting key dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each key (
page 97).

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set key depen-
dency to
ON or
OFF
.
iTo cancel steering wheel movement,
do one of the following:

move the steering column stalk
(page 22)


press the memory switch
(page 98)
OFF
The easy-entry/exit
feature is deactivat-
ed
STEERING COLUMN
The easy-entry/exit
feature is activated

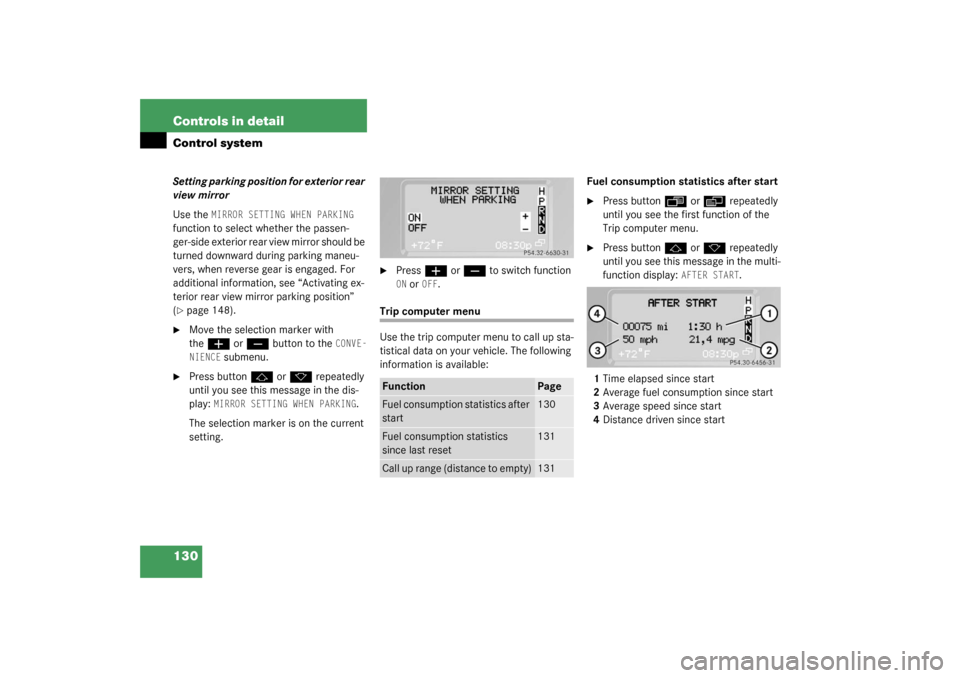

130 Controls in detailControl systemSetting parking position for exterior rear
view mirror
Use the
MIRROR SETTING WHEN PARKING

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers, when reverse gear is engaged. For
additional information, see “Activating ex-
terior rear view mirror parking position”
(
page 148).

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
MIRROR SETTING WHEN PARKING
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch function
ON or
OFF
.
Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:Fuel consumption statistics after start

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the multi-
function display:
AFTER START
.
1Time elapsed since start
2Average fuel consumption since start
3Average speed since start
4Distance driven since start
Function
Page
Fuel consumption statistics after
start
130
Fuel consumption statistics
since last reset
131
Call up range (distance to empty)
131
