MERCEDES-BENZ G55AMG 2003 W463 Owner's Manual

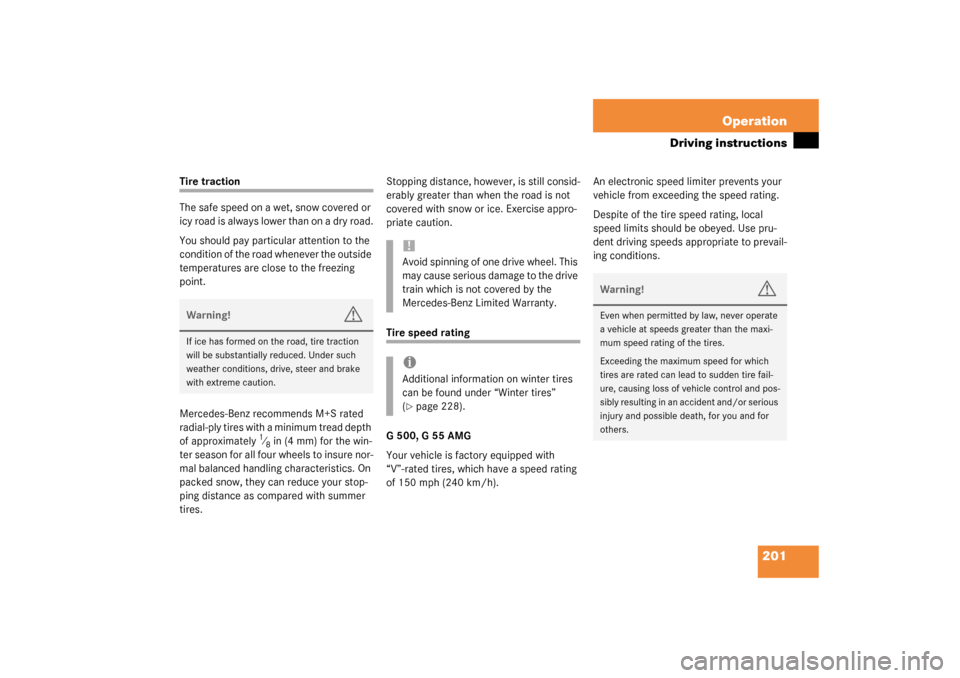

201 Operation
Driving instructions
Tire traction
The safe speed on a wet, snow covered or
icy road is always lower than on a dry road.
You should pay particular attention to the
condition of the road whenever the outside
temperatures are close to the freezing
point.
Mercedes-Benz recommends M+S rated
radial-ply tires with a minimum tread depth
of approximately
1⁄8in (4 mm) for the win-
ter season for all four wheels to insure nor-
mal balanced handling characteristics. On
packed snow, they can reduce your stop-
ping distance as compared with summer
tires.Stopping distance, however, is still consid-
erably greater than when the road is not
covered with snow or ice. Exercise appro-
priate caution.
Tire speed rating
G500, G55AMG
Your vehicle is factory equipped with
“V”-rated tires, which have a speed rating
of 150 mph (240 km/h).An electronic speed limiter prevents your
vehicle from exceeding the speed rating.
Despite of the tire speed rating, local
speed limits should be obeyed. Use pru-
dent driving speeds appropriate to prevail-
ing conditions.
Warning!
G
If ice has formed on the road, tire traction
will be substantially reduced. Under such
weather conditions, drive, steer and brake
with extreme caution.
!Avoid spinning of one drive wheel. This
may cause serious damage to the drive
train which is not covered by the
Mercedes-Benz Limited Warranty.iAdditional information on winter tires
can be found under “Winter tires”
(page 228).
Warning!
G
Even when permitted by law, never operate
a vehicle at speeds greater than the maxi-
mum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire fail-
ure, causing loss of vehicle control and pos-
sibly resulting in an accident and/or serious
injury and possible death, for you and for
others.

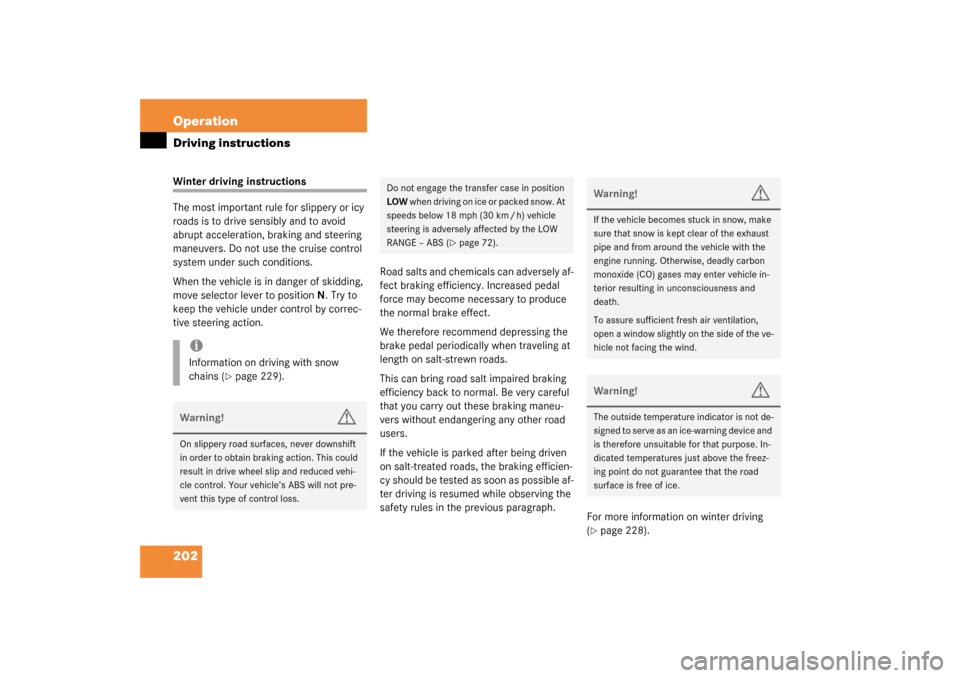

202 OperationDriving instructionsWinter driving instructions
The most important rule for slippery or icy
roads is to drive sensibly and to avoid
abrupt acceleration, braking and steering
maneuvers. Do not use the cruise control
system under such conditions.
When the vehicle is in danger of skidding,
move selector lever to positionN. Try to
keep the vehicle under control by correc-
tive steering action.Road salts and chemicals can adversely af-
fect braking efficiency. Increased pedal
force may become necessary to produce
the normal brake effect.
We therefore recommend depressing the
brake pedal periodically when traveling at
length on salt-strewn roads.
This can bring road salt impaired braking
efficiency back to normal. Be very careful
that you carry out these braking maneu-
vers without endangering any other road
users.
If the vehicle is parked after being driven
on salt-treated roads, the braking efficien-
cy should be tested as soon as possible af-
ter driving is resumed while observing the
safety rules in the previous paragraph.
For more information on winter driving
(
page 228).
iInformation on driving with snow
chains (
page 229).
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of control loss.
Do not engage the transfer case in position
LOW when driving on ice or packed snow. At
speeds below 18 mph (30 km / h) vehicle
steering is adversely affected by the LOW
RANGE – ABS (
page 72).
Warning!
G
If the vehicle becomes stuck in snow, make
sure that snow is kept clear of the exhaust
pipe and from around the vehicle with the
engine running. Otherwise, deadly carbon
monoxide (CO) gases may enter vehicle in-
terior resulting in unconsciousness and
death.
To assure sufficient fresh air ventilation,
open a window slightly on the side of the ve-
hicle not facing the wind.Warning!
G
The outside temperature indicator is not de-
s i g n e d t o s e r v e a s a n i c e - w a r n i n g d e v i c e a n d
is therefore unsuitable for that purpose. In-
dicated temperatures just above the freez-
ing point do not guarantee that the road
surface is free of ice.

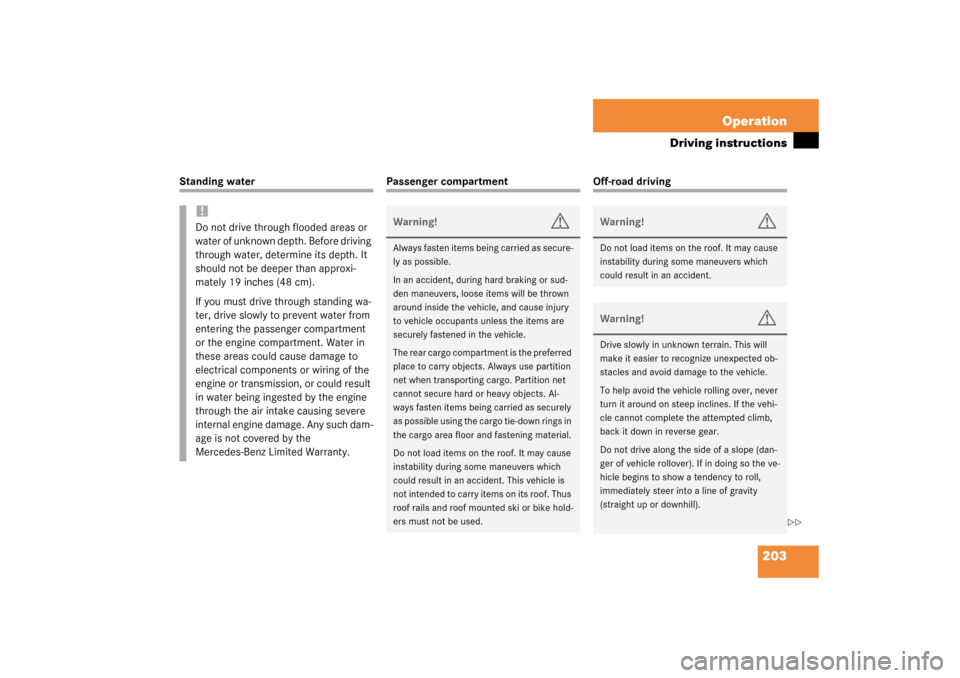

203 Operation
Driving instructions
Standing water
Passenger compartment
Off-road driving
!Do not drive through flooded areas or
water of unknown depth. Before driving
through water, determine its depth. It
should not be deeper than approxi-
mately 19 inches (48 cm).
If you must drive through standing wa-
ter, drive slowly to prevent water from
entering the passenger compartment
or the engine compartment. Water in
these areas could cause damage to
electrical components or wiring of the
engine or transmission, or could result
in water being ingested by the engine
through the air intake causing severe
internal engine damage. Any such dam-
age is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
The rear cargo compartment is the preferred
place to carry objects. Always use partition
net when transporting cargo. Partition net
cannot secure hard or heavy objects. Al-
ways fasten items being carried as securely
as possible using the cargo tie-down rings in
the cargo area floor and fastening material.
Do not load items on the roof. It may cause
instability during some maneuvers which
could result in an accident. This vehicle is
not intended to carry items on its roof. Thus
roof rails and roof mounted ski or bike hold-
ers must not be used.
Warning!
G
Do not load items on the roof. It may cause
instability during some maneuvers which
could result in an accident.Warning!
G
Drive slowly in unknown terrain. This will
make it easier to recognize unexpected ob-
stacles and avoid damage to the vehicle.
To help avoid the vehicle rolling over, never
turn it around on steep inclines. If the vehi-
cle cannot complete the attempted climb,
back it down in reverse gear.
Do not drive along the side of a slope (dan-
ger of vehicle rollover). If in doing so the ve-
hicle begins to show a tendency to roll,
immediately steer into a line of gravity
(straight up or downhill).

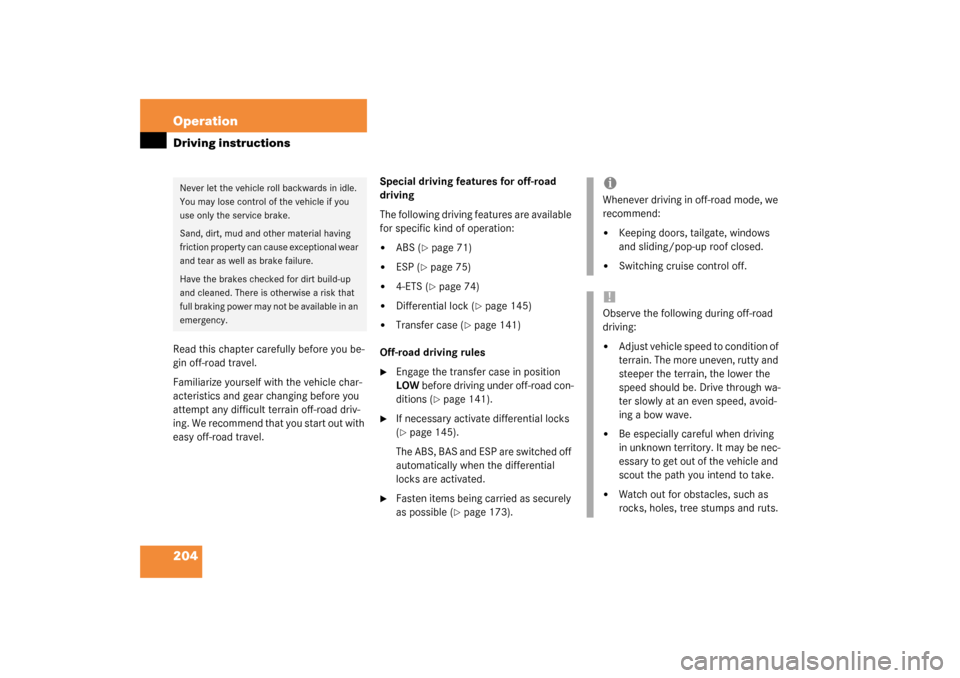

204 OperationDriving instructionsRead this chapter carefully before you be-
gin off-road travel.
Familiarize yourself with the vehicle char-
acteristics and gear changing before you
attempt any difficult terrain off-road driv-
ing. We recommend that you start out with
easy off-road travel.Special driving features for off-road
driving
The following driving features are available
for specific kind of operation:


ABS (
page 71)


ESP (
page 75)


4-ETS (
page 74)


Differential lock (
page 145)


Transfer case (
page 141)
Off-road driving rules

Engage the transfer case in position
LOW before driving under off-road con-
ditions (
page 141).

If necessary activate differential locks
(page 145).
The ABS, BAS and ESP are switched off
automatically when the differential
locks are activated.

Fasten items being carried as securely
as possible (
page 173).
Never let the vehicle roll backwards in idle.
You may lose control of the vehicle if you
use only the service brake.
Sand, dirt, mud and other material having
friction property can cause exceptional wear
and tear as well as brake failure.
Have the brakes checked for dirt build-up
and cleaned. There is otherwise a risk that
full braking power may not be available in an
emergency.
iWhenever driving in off-road mode, we
recommend:

Keeping doors, tailgate, windows
and sliding/pop-up roof closed.


Switching cruise control off.
!Observe the following during off-road
driving:

Adjust vehicle speed to condition of
terrain. The more uneven, rutty and
steeper the terrain, the lower the
speed should be. Drive through wa-
ter slowly at an even speed, avoid-
ing a bow wave.


Be especially careful when driving
in unknown territory. It may be nec-
essary to get out of the vehicle and
scout the path you intend to take.


Watch out for obstacles, such as
rocks, holes, tree stumps and ruts.

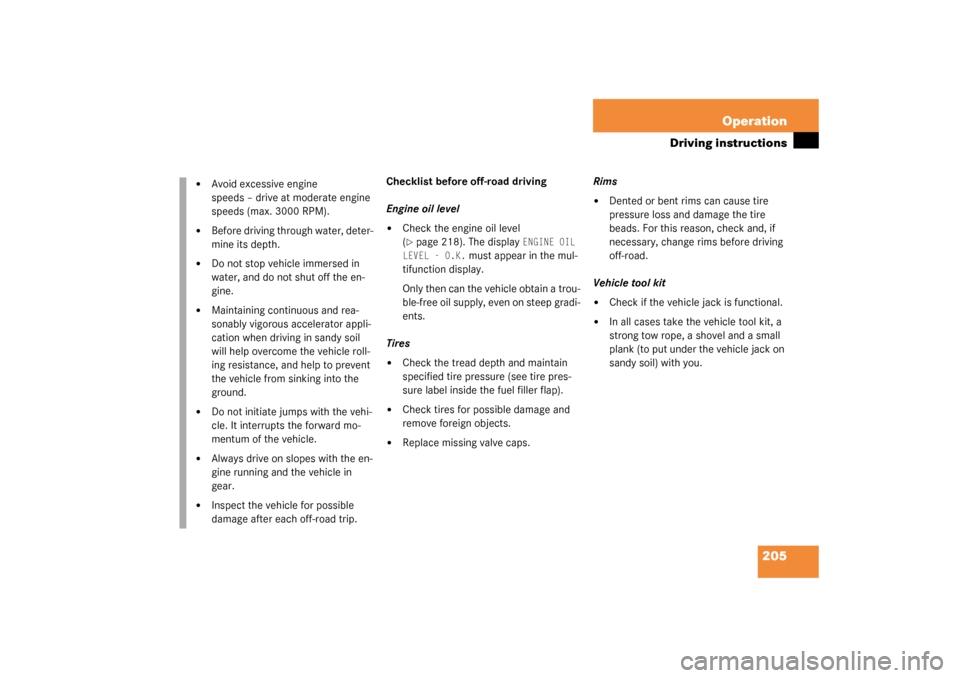

205 Operation
Driving instructions
Checklist before off-road driving
Engine oil level

Check the engine oil level
(page 218). The display
ENGINE OIL
LEVEL - O.K.
must appear in the mul-
tifunction display.
Only then can the vehicle obtain a trou-
ble-free oil supply, even on steep gradi-
ents.
Tires


Check the tread depth and maintain
specified tire pressure (see tire pres-
sure label inside the fuel filler flap).


Check tires for possible damage and
remove foreign objects.


Replace missing valve caps.Rims


Dented or bent rims can cause tire
pressure loss and damage the tire
beads. For this reason, check and, if
necessary, change rims before driving
off-road.
Vehicle tool kit


Check if the vehicle jack is functional.


In all cases take the vehicle tool kit, a
strong tow rope, a shovel and a small
plank (to put under the vehicle jack on
sandy soil) with you.


Avoid excessive engine
speeds – drive at moderate engine
speeds (max. 3000 RPM).


Before driving through water, deter-
mine its depth.


Do not stop vehicle immersed in
water, and do not shut off the en-
gine.


Maintaining continuous and rea-
sonably vigorous accelerator appli-
cation when driving in sandy soil
will help overcome the vehicle roll-
ing resistance, and help to prevent
the vehicle from sinking into the
ground.


Do not initiate jumps with the vehi-
cle. It interrupts the forward mo-
mentum of the vehicle.


Always drive on slopes with the en-
gine running and the vehicle in
gear.


Inspect the vehicle for possible
damage after each off-road trip.

206 OperationDriving instructionsDriving in steep terrainSlope angle127°
236°

Comply with the warnings
(page 203) and rules for off-road
driving (
page 204).


Driving on embankments, slopes and
other steep inclines should only be
done straight up or downhill, i.e. in the
line of gravity. Maximum vehicle climb-
ing ability is a 80% grade.


Select gear range2 or1 on the auto-
matic transmission (
page 137).


Drive slowly.


Utilize the engine’s braking power
when descending a slope, observe the
engine speed (do not overrev the en-
gine). Apply the service brake as need-
ed.


Check the brakes after a lengthy down-
grade drive.
Traction in steep terrain
Be easy on the accelerator and watch for
continuous wheel traction when driving in
steep terrain.Driving across a hilltop
Decelerate just ahead of a hilltop (do not
select gear rangeN), to prevent the vehi-
cle from speeding up too much after climb-
ing a hill.
Use the momentum of the vehicle to drive
across the hilltop.
After climbing a hill, driving in this manner
prevents the vehicle from:


jumping across the hilltop


loosing its forward momentum.


speeding up too much after climbing
the hill.
iThe 4-ETS helps greatly when starting
out on a steep incline when the front
wheels have then the tendency to slip
due to the weight shifting away the
front axle.The 4-ETS recognizes the sit-
uation and limits the torque for the
front wheels by braking them. Simulta-
neously the torque for the rear wheels
is provided.

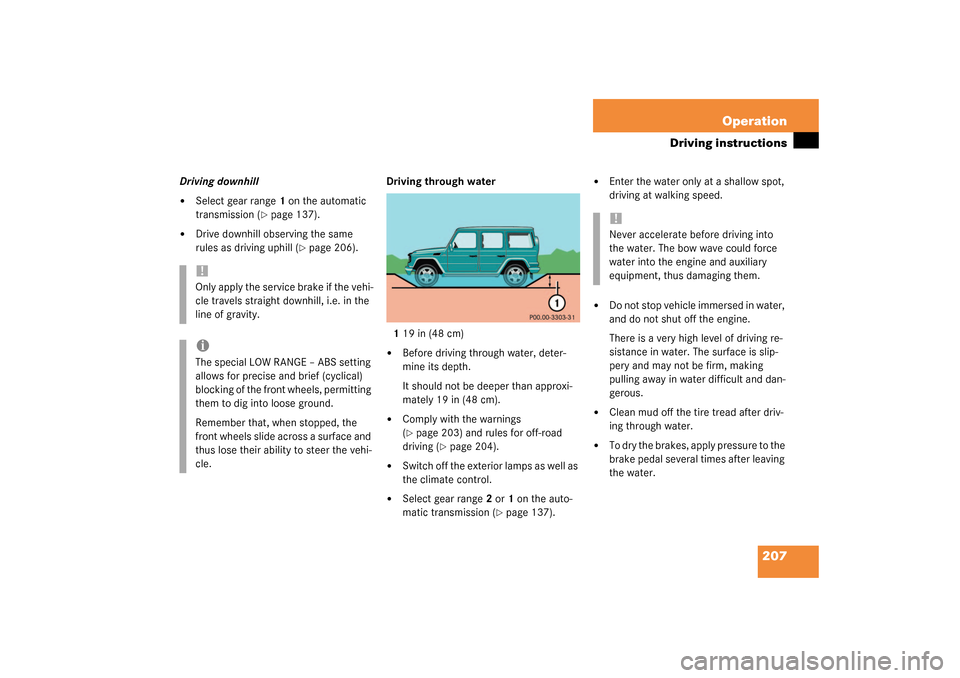

207 Operation
Driving instructions
Driving downhill

Select gear range1 on the automatic
transmission (
page 137).


Drive downhill observing the same
rules as driving uphill (
page 206).Driving through water
119 in (48 cm)


Before driving through water, deter-
mine its depth.
It should not be deeper than approxi-
mately 19 in (48 cm).


Comply with the warnings
(page 203) and rules for off-road
driving (
page 204).


Switch off the exterior lamps as well as
the climate control.


Select gear range2 or1 on the auto-
matic transmission (
page 137).


Enter the water only at a shallow spot,
driving at walking speed.


Do not stop vehicle immersed in water,
and do not shut off the engine.
There is a very high level of driving re-
sistance in water. The surface is slip-
pery and may not be firm, making
pulling away in water difficult and dan-
gerous.


Clean mud off the tire tread after driv-
ing through water.


To dry the brakes, apply pressure to the
brake pedal several times after leaving
the water.
!Only apply the service brake if the vehi-
cle travels straight downhill, i.e. in the
line of gravity.iThe special LOW RANGE – ABS setting
allows for precise and brief (cyclical)
blocking of the front wheels, permitting
them to dig into loose ground.
Remember that, when stopped, the
front wheels slide across a surface and
thus lose their ability to steer the vehi-
cle.
!Never accelerate before driving into
the water. The bow wave could force
water into the engine and auxiliary
equipment, thus damaging them.

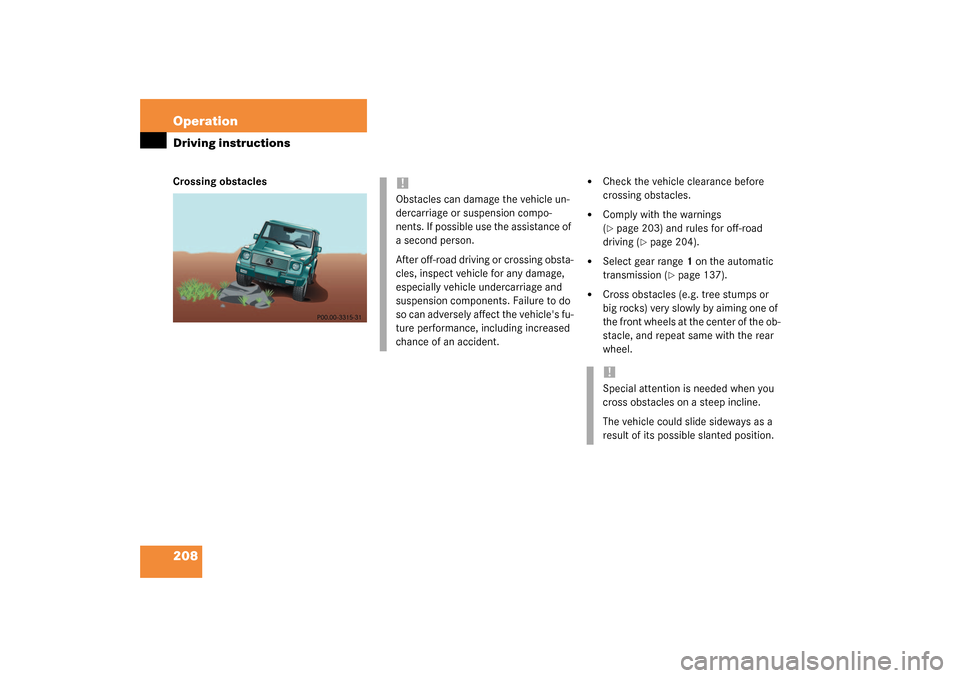

208 OperationDriving instructionsCrossing obstacles


Check the vehicle clearance before
crossing obstacles.


Comply with the warnings
(page 203) and rules for off-road
driving (
page 204).


Select gear range1 on the automatic
transmission (
page 137).


Cross obstacles (e.g. tree stumps or
big rocks) very slowly by aiming one of
the front wheels at the center of the ob-
stacle, and repeat same with the rear
wheel.
!Obstacles can damage the vehicle un-
dercarriage or suspension compo-
nents. If possible use the assistance of
a second person.
After off-road driving or crossing obsta-
cles, inspect vehicle for any damage,
especially vehicle undercarriage and
suspension components. Failure to do
so can adversely affect the vehicle's fu-
ture performance, including increased
chance of an accident.
!Special attention is needed when you
cross obstacles on a steep incline.
The vehicle could slide sideways as a
result of its possible slanted position.

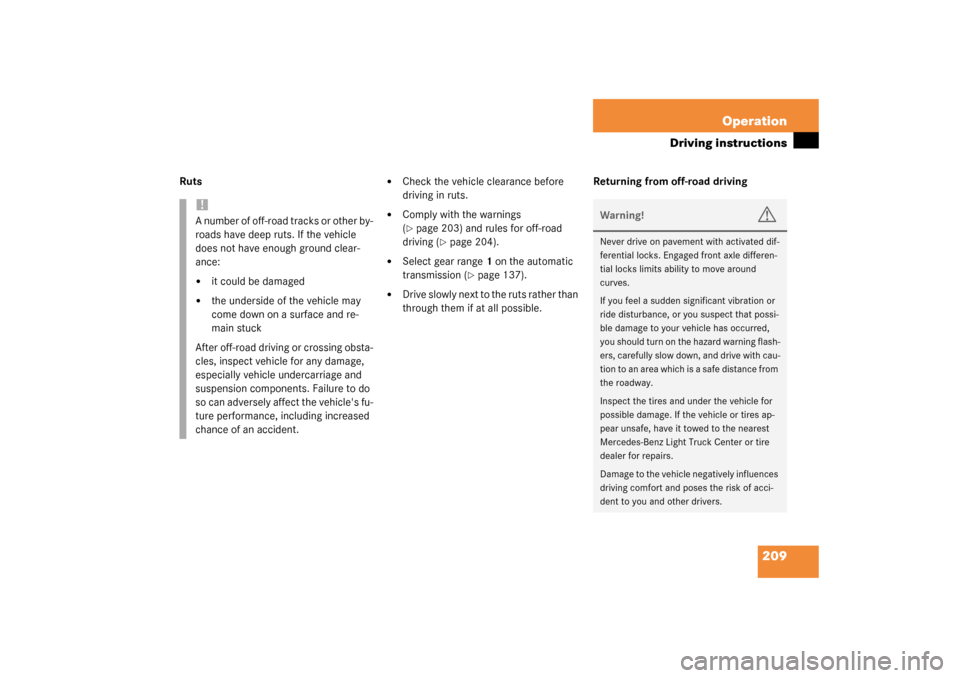

209 Operation
Driving instructions
Ruts


Check the vehicle clearance before
driving in ruts.


Comply with the warnings
(page 203) and rules for off-road
driving (
page 204).


Select gear range1 on the automatic
transmission (
page 137).


Drive slowly next to the ruts rather than
through them if at all possible.Returning from off-road driving
!A number of off-road tracks or other by-
roads have deep ruts. If the vehicle
does not have enough ground clear-
ance:

it could be damaged


the underside of the vehicle may
come down on a surface and re-
main stuck
After off-road driving or crossing obsta-
cles, inspect vehicle for any damage,
especially vehicle undercarriage and
suspension components. Failure to do
so can adversely affect the vehicle's fu-
ture performance, including increased
chance of an accident.
Warning!
G
Never drive on pavement with activated dif-
ferential locks. Engaged front axle differen-
tial locks limits ability to move around
curves.
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning flash-
ers, carefully slow down, and drive with cau-
ti o n to a n a r ea wh ic h i s a s a fe dis t an c e f ro m
the roadway.
Inspect the tires and under the vehicle for
possible damage. If the vehicle or tires ap-
pear unsafe, have it towed to the nearest
Mercedes-Benz Light Truck Center or tire
dealer for repairs.
Damage to the vehicle negatively influences
driving comfort and poses the risk of acci-
dent to you and other drivers.

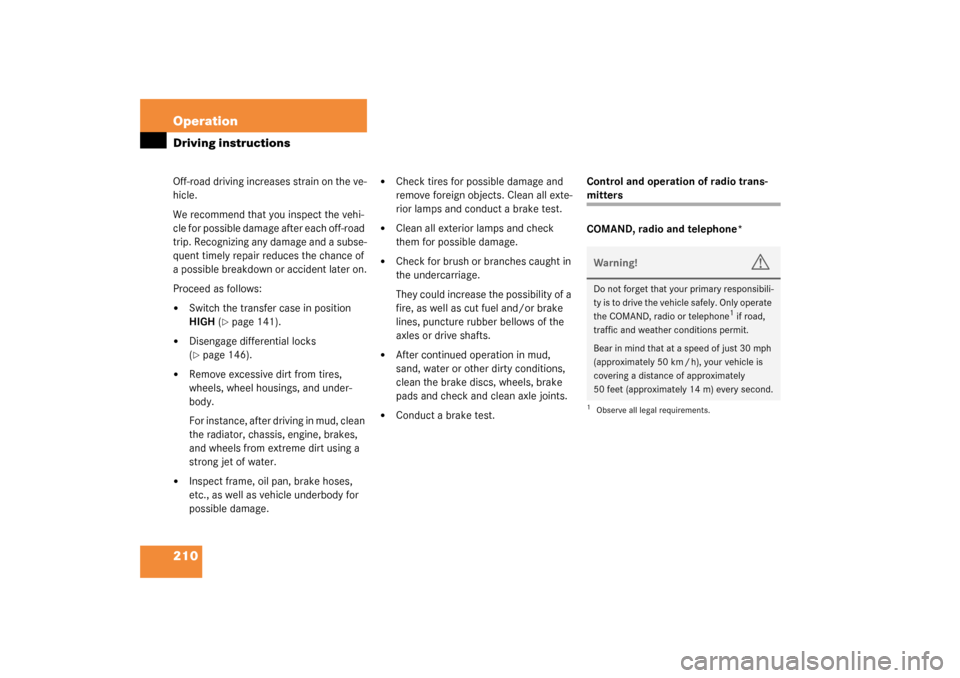

210 OperationDriving instructionsOff-road driving increases strain on the ve-
hicle.
We recommend that you inspect the vehi-
cle for possible damage after each off-road
trip. Recognizing any damage and a subse-
quent timely repair reduces the chance of
a possible breakdown or accident later on.
Proceed as follows:

Switch the transfer case in position
HIGH (
page 141).


Disengage differential locks
(page 146).


Remove excessive dirt from tires,
wheels, wheel housings, and under-
body.
For instance, after driving in mud, clean
the radiator, chassis, engine, brakes,
and wheels from extreme dirt using a
strong jet of water.


Inspect frame, oil pan, brake hoses,
etc., as well as vehicle underbody for
possible damage.


Check tires for possible damage and
remove foreign objects. Clean all exte-
rior lamps and conduct a brake test.


Clean all exterior lamps and check
them for possible damage.


Check for brush or branches caught in
the undercarriage.
They could increase the possibility of a
fire, as well as cut fuel and/or brake
lines, puncture rubber bellows of the
axles or drive shafts.


After continued operation in mud,
sand, water or other dirty conditions,
clean the brake discs, wheels, brake
pads and check and clean axle joints.


Conduct a brake test.Control and operation of radio trans-
mitters
COMAND, radio and telephone*Warning!
G
Do not forget that your primary responsibili-
ty is to drive the vehicle safely. Only operate
the COMAND, radio or telephone
1 if road,
traffic and weather conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of approximately
50 feet (approximately 14 m) every second.
1Observe all legal requirements.
