21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel
Page 22 of 416

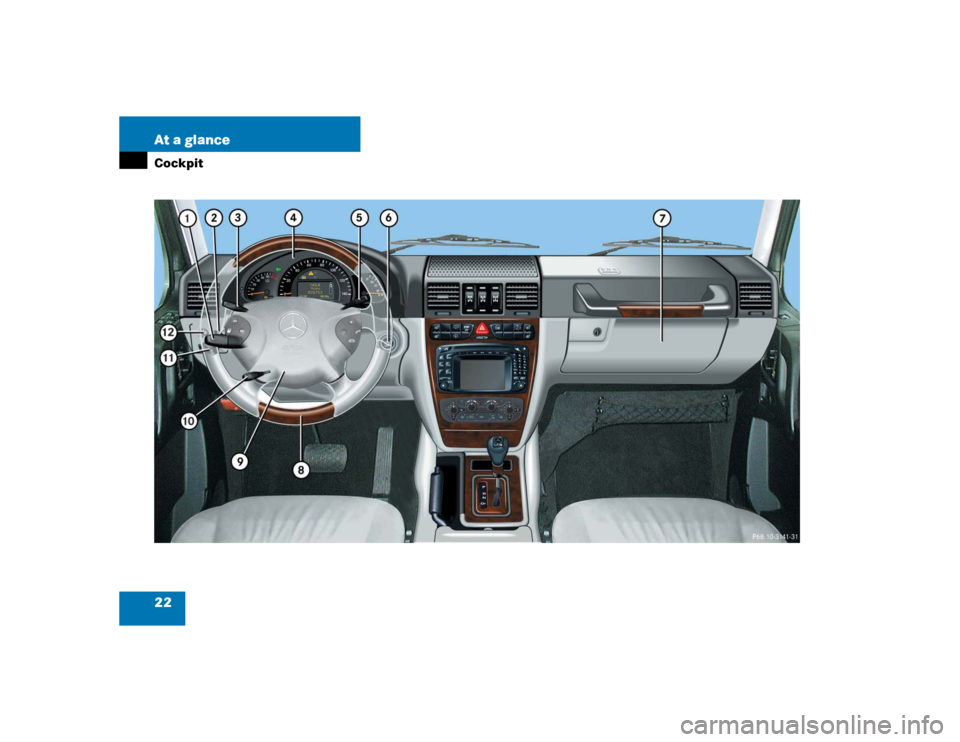

22 At a glanceCockpit
Page 23 of 416
23 At a glance

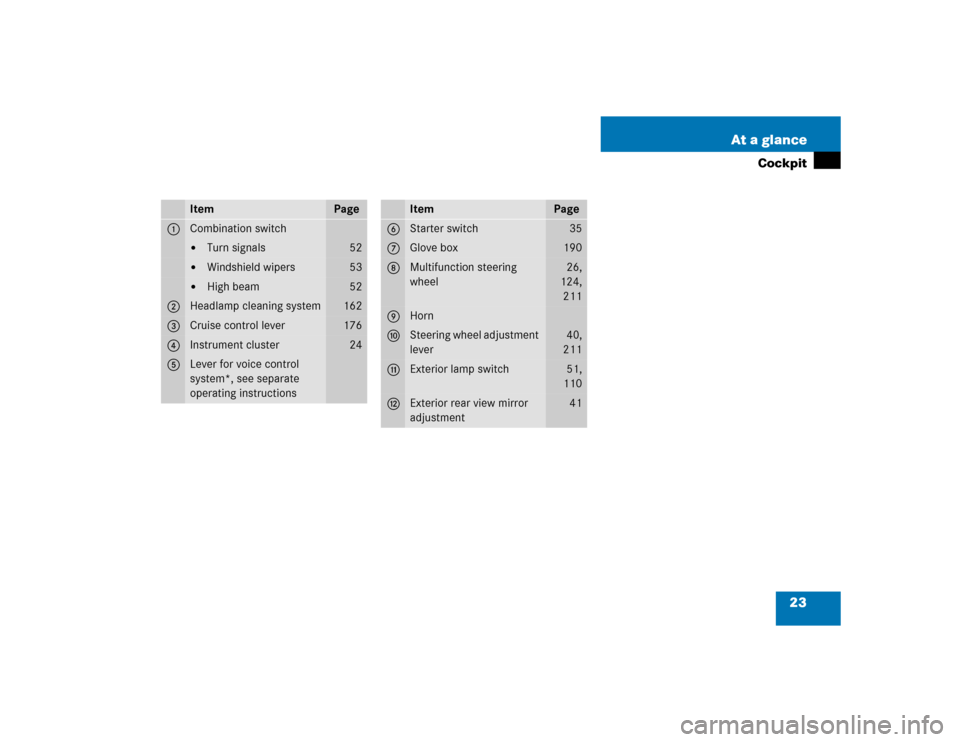

Cockpit
Item
Page
1
Combination switch
Turn signals
52
Windshield wipers
53
High beam
52
2
Headlamp cleaning system
162
3
Cruise control lever
176
4
Instrument cluster
24
5
Lever for voice control
system*, see separate
operating instructions
Item
Page
6
Starter switch
35
7
Glove box
190
8
Multifunction steering
wheel
26,
124,
211
9
Horn
a
Steering wheel adjustment
lever
40,
211
b
Exterior lamp switch
51,
110
c
Exterior rear view mirror
adjustment
41
Page 24 of 416

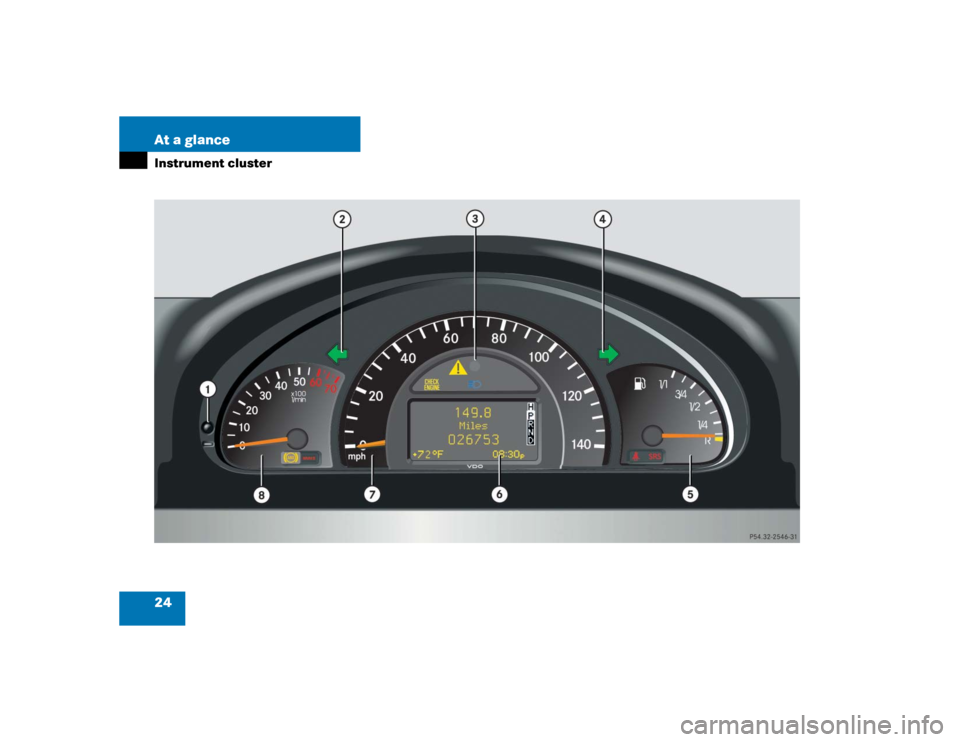

24 At a glanceInstrument cluster
Page 25 of 416
25 At a glance
Instrument cluster
Item
Page
1
Reset button for:
Resetting trip odometer
121
Resetting individual or
all settings
132,
133,
145,
279
Instrument cluster
illumination
120
2
LLeft turn signal
indicator lamp
24
3
?Engine malfunction
indicator lamp
(USA only)
292
±Engine malfunction
indicator lamp
(Canada only)
292
vElectronic Stability
Program (ESP)
warning lamp
84,
293
AHigh beam
headlamp indicator
lamp
52,
114
Item
Page
4
KRight turn signal
indicator lamp
24
5
Fuel gauge with:Fuel reserve warning lamp
24
1Supplemental
Restraint System
(SRS) indicator lamp
66,
294
294
6
Multifunction display
with:
123
Trip odometer
24
Main odometer
24
Transfer case program
mode
154
Gear selector lever position
148
Outside temperature
indicator
122
Clock (see COMAND
operating instructions)
123
Item
Page
7
Speedometer
8
Tachometer with:;Brake warning lamp
(USA only)
50,
290
3Brake warning lamp
(Canada only)
50,
290
-Antilock Brake
System (ABS)
indicator lamp
80,
288
Page 26 of 416

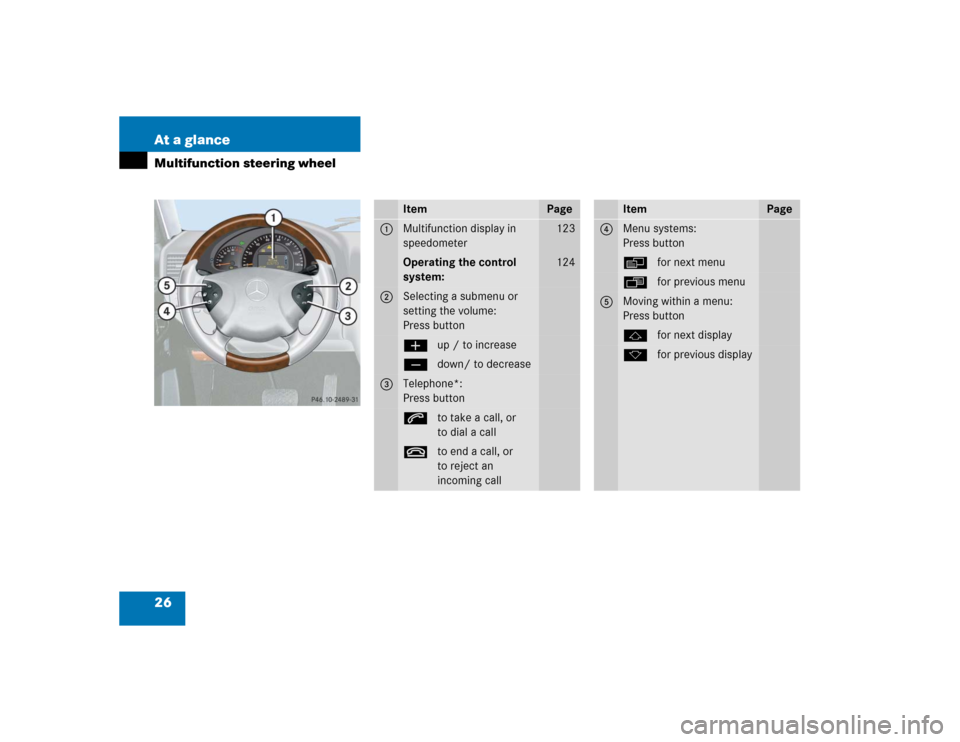

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
123
Operating the control
system:
124
2
Selecting a submenu or
setting the volume:
Press buttonæup / to increaseçdown/ to decrease
3
Telephone*:
Press buttonsto take a call, or
to dial a calltto end a call, or
to reject an
incoming call
Item
Page
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display
Page 27 of 416
27 At a glance
Multifunction steering wheel
iG55AMG:
The steering wheel in this vehicle may
vary from steering wheel shown.
However, multifunction steering wheel
symbols and feature description apply
to AMG vehicles as well.
Page 28 of 416

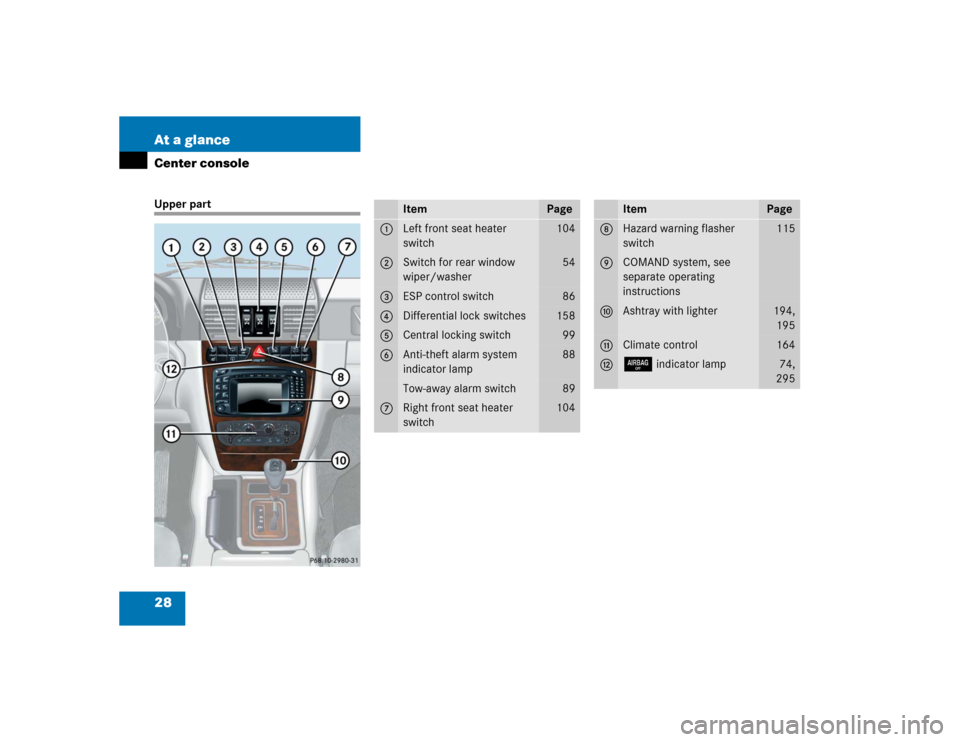

28 At a glanceCenter consoleUpper part
Item
Page
1
Left front seat heater
switch
104
2
Switch for rear window
wiper/washer
54
3
ESP control switch
86
4
Differential lock switches
158
5
Central locking switch
99
6
Anti-theft alarm system
indicator lamp
88
Tow-away alarm switch
89
7
Right front seat heater
switch
104
Item
Page
8
Hazard warning flasher
switch
115
9
COMAND system, see
separate operating
instructions
a
Ashtray with lighter
194,
195
b
Climate control
164
c
7
indicator lamp
74,
295
Page 29 of 416
29 At a glance
Center console

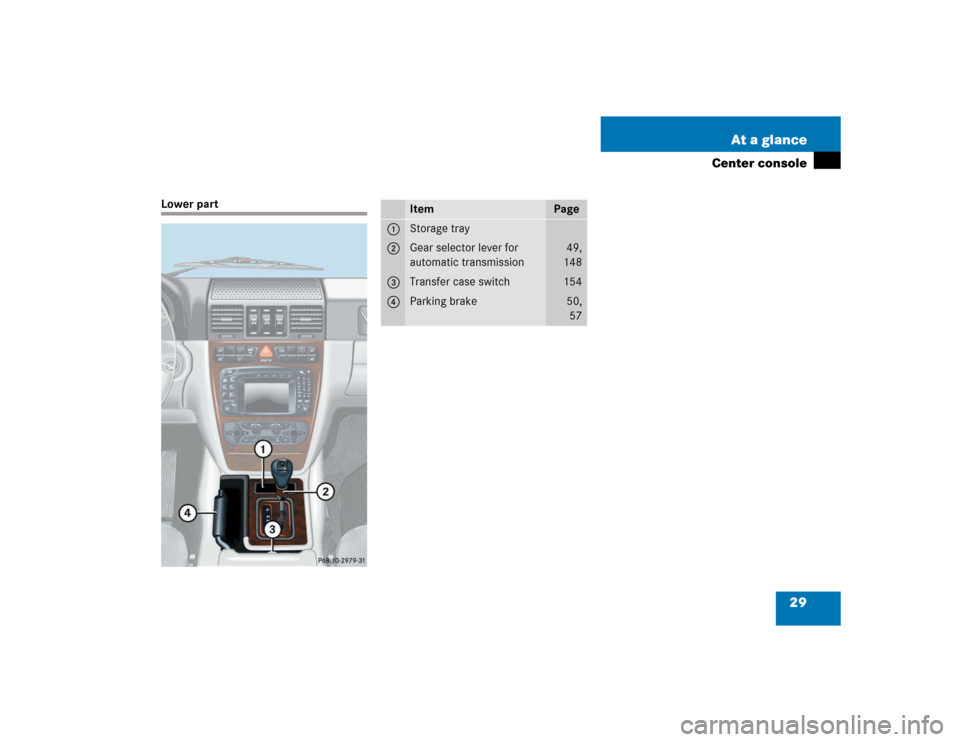

Lower part
Item
Page
1
Storage tray
2
Gear selector lever for
automatic transmission
49,
148
3
Transfer case switch
154
4
Parking brake
50,
57
Page 30 of 416

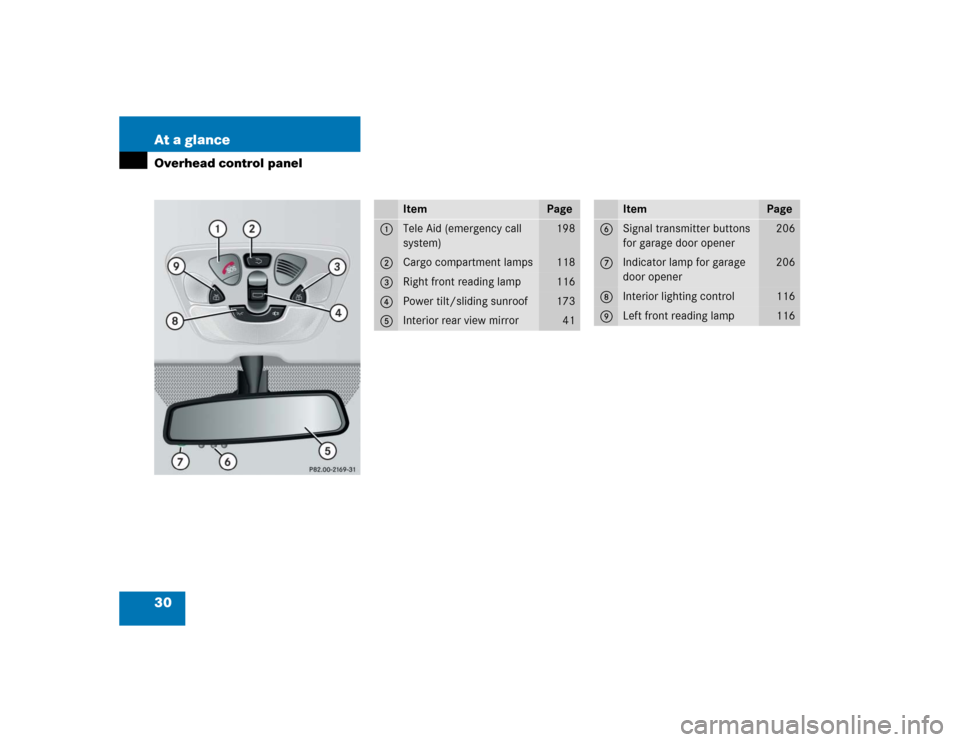

30 At a glanceOverhead control panel
Item
Page
1
Tele Aid (emergency call
system)
198
2
Cargo compartment lamps
118
3
Right front reading lamp
116
4
Power tilt/sliding sunroof
173
5
Interior rear view mirror
41
Item
Page
6
Signal transmitter buttons
for garage door opener
206
7
Indicator lamp for garage
door opener
206
8
Interior lighting control
116
9
Left front reading lamp
116
