MERCEDES-BENZ G55AMG 2006 W463 Owner's Manual

210 Controls in detail
Useful features
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.Stolen Vehicle Recovery services
In the event your vehicle was stolen:
Report the incident to the police.
The police will issue a numbered inci-
dent report.
Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is lo-
cated, the Response Center will con-
tact the local law enforcement and you.
The vehicle’s location will only be pro-
vided to law enforcement.
Garage door opener
The built-in remote control is capable of
operating up to three separately controlled
devices, for example garage door openers,
gate openers, or other devices compatible
with HomeLink
® or some other systems.
You can program the signal transmitter
buttons.
i
The remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The SOS button will flash and the mes-
sage
EMERGENCY CALL –
CALL CONNECTED
will appear in the mul-
tifunction display to indicate receipt of
the door unlock command.
Once the vehicle is unlocked, a
Response Center specialist will at-
tempt to establish voice contact with
the vehicle occupants.
If the tailgate lock was pressed for
more than 20 seconds before door un-
lock authorization was received by the
Response Center, you must wait
15 minutes before pressing the tailgate
lock again.

211 Controls in detail
Useful features
Remote control integrated into the interior
rear view mirror
1Indicator lamp
2 3 4Signal transmitter button
5Hand-held transmitter button
6Hand-held remote control trans-
mitter (not part of the vehicle
equipment)
Warning!G
Before programming the integrated remote
control to a garage door opener or gate op-
erator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage. When programming
a garage door opener, the door moves up or
down. When programming a gate operator,
the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks safe-
ty stop and reverse features as required by
U.S. federal safety standards (this includes
any garage door opener model manufac-
tured before April 1, 1982). A garage door
that cannot detect an object - signaling the
door to stop and reverse - does not meet
current U.S. federal safety standards.
i
Certain types of garage door openers
are incompatible with the integrated
opener. If you should experience diffi-
culties with programming the transmit-
ter, contact an authorized
Mercedes-Benz Light Truck Center, or
call Mercedes-Benz Customer
Assistance Center (in the USA only) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at
1-800-387-0100.

212 Controls in detail
Useful features
Programming or reprogramming the in-
tegrated remote control
Step 1:
Switch on the ignition (page 35).
Step 2:
If you have previously programmed an
integrated signal transmitter button
and wish to retain its programming,
proceed to step 3. Otherwise, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when the indicator lamp1
begins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory. If you later wish to program a
second and/or third hand-held trans-
mitter to the remaining two signal
transmitter buttons, do not repeat this
step and begin directly with step 3.
i
USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
i
Canada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

213 Controls in detail
Useful features
Step 3:
Hold the end of the hand-held remote
control transmitter6 of the device
you wish to train approximately 2 to
5 in (5 to12 cm) away from the surface
of the integrated remote control locat-
ed on the overhead control panel,
keeping the indicator lamp1 in view.
Step 4:
Using both hands, simultaneously
press the hand-held transmitter
button5 and the desired integrated
signal transmitter button (2, 3,
or4). Do not release the buttons until
completing step 5.
The indicator lamp1 on the integrat-
ed remote control will flash, first slowly
and then rapidly.Step 5:When the indicator lamp1 flashes
rapidly, release both buttons.
Step 6:
Press and hold the just-trained inte-
grated signal transmitter button and
observe the indicator lamp1.
If the indicator lamp1 stays on con-
stantly, programming is complete and
your device should activate when the
integrated signal transmitter button is
pressed and released.Step 7:
To program the remaining two buttons,
repeat the steps above starting with
step 3.
Rolling code programming
To train a garage door opener (or other roll-
ing code devices) with the rolling code fea-
ture, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:
Locate “training” button on the garage
door opener motor head unit.
i
The indicator lamp1 flashes the first
time the signal transmitter button is
programmed. If this button has already
been programmed, the indicator lamp
will only start flashing after 20 sec-
onds.
i
If the indicator lamp1 blinks rapidly
for about two seconds and then turns
to a constant light, continue with pro-
gramming steps 8 through 12 as your
garage door opener may be equipped
with the “rolling code” feature.


214 Controls in detail
Useful features
Exact location and color of the button
may vary by garage door opener brand.
Depending on manufacturer, the “train-
ing” button may also be referred to as
“learn”or “smart” button. If there is dif-
ficulty locating the transmitting button,
refer to the garage door opener opera-
tor’s manual.
Step 9:
Press “training” button on the garage
door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the follow-
ing step.
Step 10:
Firmly press, hold for two seconds and
release the programmed integrated
signal transmitter button (2, 3,
or4).
Step 11:
Press, hold for two seconds and re-
lease same button a second time to
complete the training process.Some garage door openers (or other rolling
code equipped devices) may require you to
perform this procedure a third time to
complete the training.
Step 12:
Confirm the garage door operation by
pressing the programmed integrated
signal transmitter button (2, 3,
or4).
Step 13:
To program the remaining two buttons,
repeat the steps above starting with
step 3.
Gate operator/Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the inte-
grated signal transmitter to pick up the sig-
nal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner. If you live in Canada or if you are having dif-
ficulties programming a gate operator (re-
gardless of where you live) by using the
programming procedures, replace step 4
with the following:
Step 4:
Continue to press and hold the inte-
grated signal transmitter button (2,
3, or4) while you press and re-press
(“cycle”) your hand-held remote con-
trol transmitter6 every two seconds
until the frequency signal has been
learned. Upon successful training, the
indicator lamp1 will flash slowly and
then rapidly after several seconds.
Proceed with programming step 5 and
step 6 to complete.


215 Controls in detail
Useful features
Operation of integrated remote control
Switch on the ignition (page 35).
Select and press the appropriate inte-
grated signal transmitter button (2,
3, or4) to activate the remote con-
trolled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
Erasing the integrated remote control
memory
Switch on the ignition (page 35).
Simultaneously hold down the signal
transmitter buttons2 and 4, for ap-
proximately 20 seconds, until the indi-
cator lamp1 blinks rapidly. Do not
hold for longer than 30 seconds.
The codes of all three channels are
erased.Reprogramming a single integrated sig-
nal transmitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:
Press and hold the desired signal trans-
mitter button (2, 3, or4). Do not re-
lease the button.
The indicator lamp will begin to flash af-
ter 20 seconds. Without releasing the
integrated signal transmitter button,
proceed with programming starting
with step 3.
Heated steering wheel
The steering wheel heater warms up the
leather area of the steering wheel.
The lever with the heated steering wheel
switch is on the lower left-hand side of the
steering wheel.
1Switching on
2Switching off
3Indicator lampi
If you sell your vehicle, erase the codes
of all three channels.

216 Controls in detail
Useful features
Switching on
Switch on the ignition (page 35).
All lamps in the instrument cluster
come on.
Turn switch at the tip of lever in direc-
tion of arrow1.
The steering wheel is heated. Indicator
lamp3 comes on.Switching off
Turn switch at the tip of lever in direc-
tion of arrow2.
The steering wheel heater is turned off.
Indicator lamp3 goes out.
i
The steering wheel heating is tempo-
rarily suspended while indicator
lamp3 remains on when

the temperature of the vehicle inte-
rior is above 86°F (30°C)

the temperature of the steering
wheel is above 95°F (35°C)
When these conditions do not apply
anymore, steering wheel heating con-
tinues.
i
Indicator lamp3 flashes or switches
off in case of

power surge or undervoltage

steering wheel heating malfunction
i
The steering wheel heating switches off
automatically when you remove the
SmartKey from the starter switch.

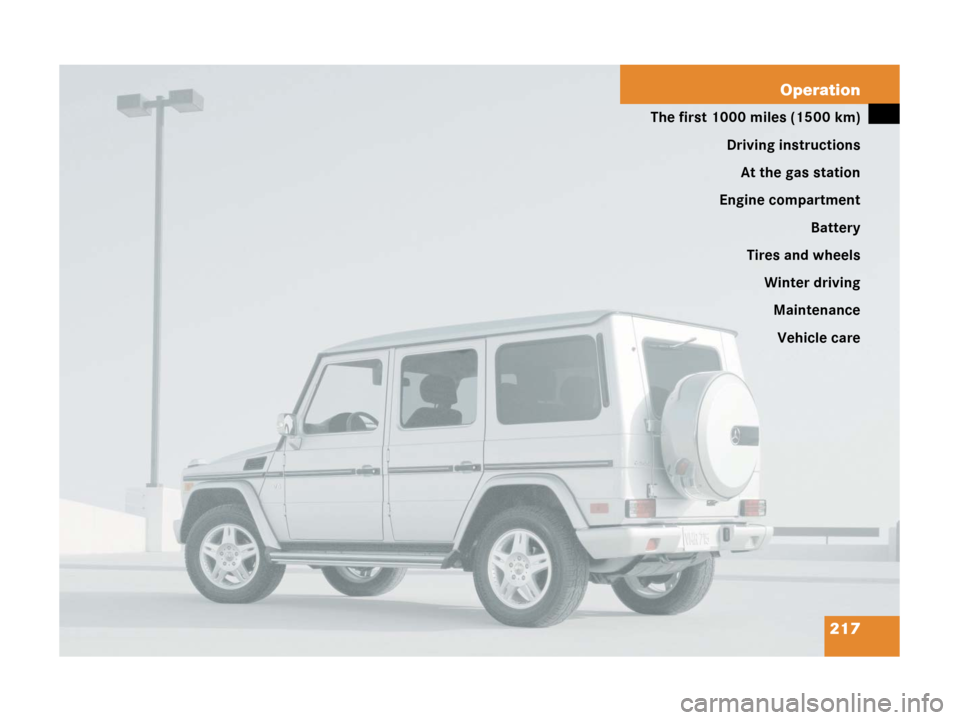

217 Operation
The first 1000 miles (1500 km)
Driving instructions
At the gas station
Engine compartment
Battery
Tires and wheels
Winter driving
Maintenance
Vehicle care

218 Operation
In the “Operation” section you will find de-
tailed information on operating, maintain-
ing and caring for your vehicle.
The first 1000 miles (1500 km)
The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on.

Drive your vehicle during the first
1000 miles (1500 km) at varying but
moderate vehicle and engine speeds.

During this period, avoid heavy loads
(full throttle driving) and excessive en-
gine speeds (no more than
2/3 of maxi-
mum rpm in each gear).

Avoid accelerating by kick-down.

Do not attempt to slow the vehicle
down by shifting to a lower gear using
the gear selector lever.

Select positions3, 2, or1 only when
driving at moderate speeds (for hill
driving).
After 1000 miles (1500 km) you may grad-
ually increase vehicle and engine speeds
to the permissible maximum.
!
Additional instructions for AMG vehi-
cles:

During the first 1000 miles
(1500 km), do not exceed a speed
of 85 mph (140 km / h).

During this period, avoid engine
speeds above 4500 rpm in each
gear.

219 Operation
The first 1000 miles (1500 km)
All of the above instructions, as may apply
to your vehicle type, also apply when driv-
ing the first 1000 miles (1500 km) after the
engine, the transfer case, the front differ-
ential or the rear differential has been re-
placed.i
G55AMG:
For better protection of the front and
rear differential, the oil must be
changed after a break-in period of
1900 miles (3000 km).
Changing oil in the front and rear
differential increases the service life
and helps reduce noise from the
differential locks.
See Maintenance Booklet for additional
information and Factory Approved
Service Products pamphlet for informa-
tion on the approved service product
required to perform the front and rear
axle oil change.
i
Always obey applicable speed limits.
