MERCEDES-BENZ G55AMG 2006 W463 Owner's Guide

30 At a glance

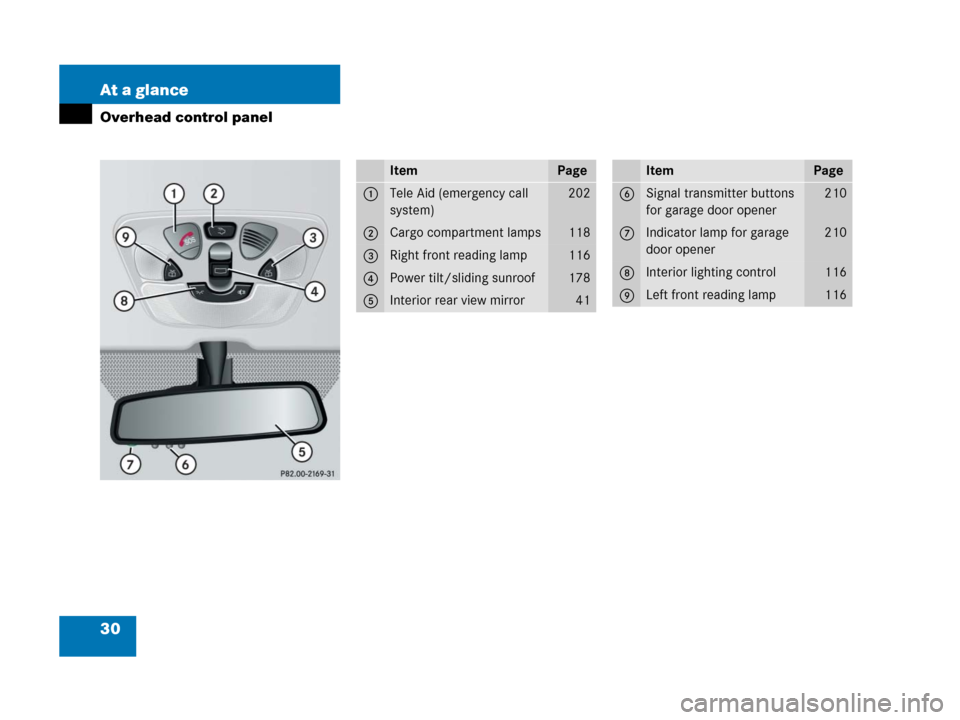

Overhead control panel
ItemPage
1Tele Aid (emergency call
system)202
2Cargo compartment lamps118
3Right front reading lamp116
4Power tilt/sliding sunroof178
5Interior rear view mirror 41
ItemPage
6Signal transmitter buttons
for garage door opener210
7Indicator lamp for garage
door opener210
8Interior lighting control116
9Left front reading lamp116

31 At a glance

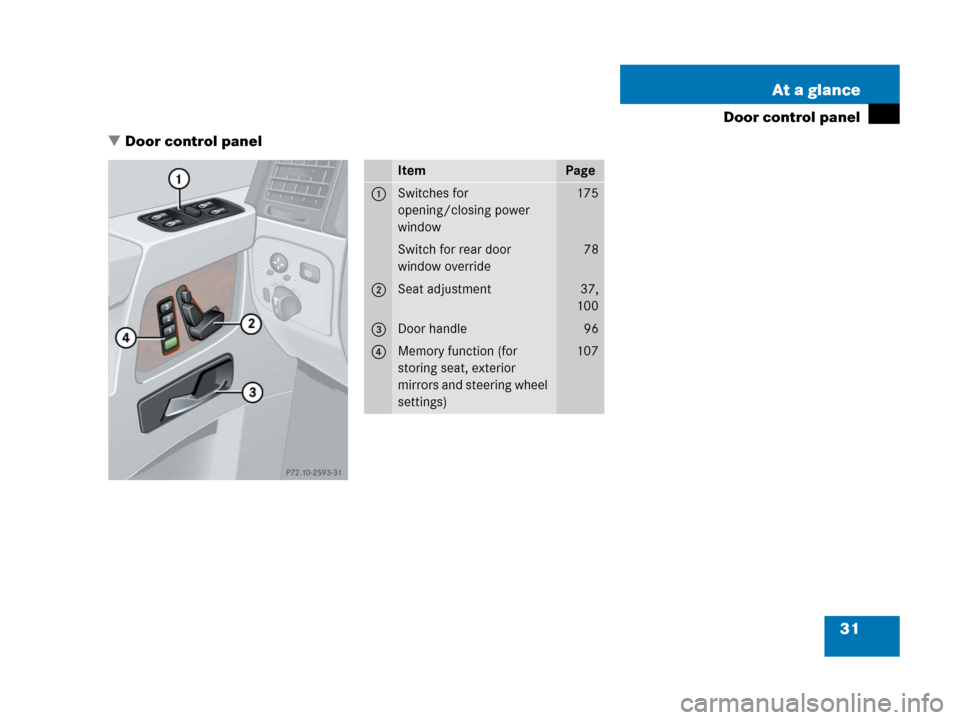

Door control panel
Door control panel
ItemPage
1Switches for
opening/closing power
window175
Switch for rear door
window override78
2Seat adjustment37,
100
3Door handle96
4Memory function (for
storing seat, exterior
mirrors and steering wheel
settings)107

32

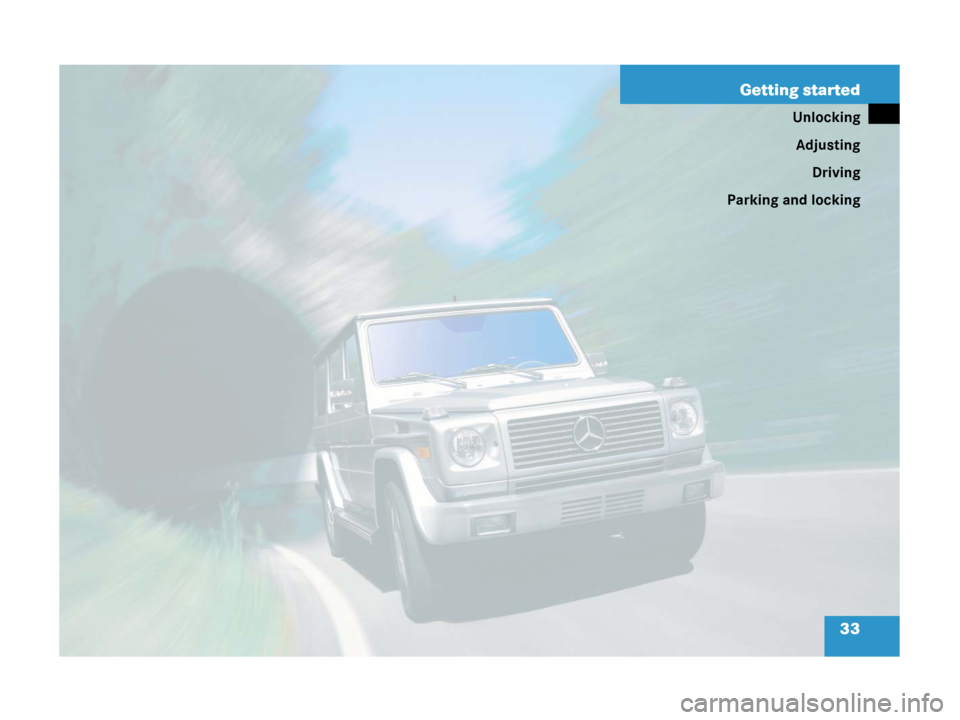

33 Getting started
Unlocking
Adjusting
Driving
Parking and locking

34 Getting started
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will help you with further in-
formation. The corresponding page refer-
ences are at the end of each segment.
Unlocking
Unlocking with the SmartKey
SmartKey with remote control
1‹Lock button
2ŒUnlock button
3ÂPanic button (
page 79)
Press unlock button Πon the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 92).

35 Getting started
Unlocking
Starter switch positions
Starter switch
0For removing SmartKey
The steering is locked when the
SmartKey is removed from the starter
switch.
1Power supply for some electrical con-
sumers, such as seat adjustment2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, see “Lamps in
instrument cluster” (page 290).
3Starting position
i
When you switch on ignition, the indi-
cator and warning lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. The indicator and warning lamps
(except high beam headlamp indicator
lamp and turn signal indicator lamps if
activated) will go out when the engine
is running. This indicates that the re-
spective systems are operational.
i
The SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.

36 Getting started
Unlocking
!
If the SmartKey cannot be turned, the
battery may not be sufficiently
charged.

Check the battery and charge it if
necessary (
page 353).

Get a jump start (page 356).
To prevent accelerated battery dis-
charge and a possible dead battery, al-
ways remove the SmartKey from the
starter switch when the engine is not in
operation.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

37 Getting started
Adjusting
Adjusting
Seats
Warning!G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.
Warning!G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in a nearly
upright position and belts are properly posi-
tioned on the body. Your seat must be ad-
justed so that you can correctly fasten your
seat belt (
page 43).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the power seats can be oper-
ated when the respective door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Warning!G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM1
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in the back seats and be seated in
an appropriate infant or child restraint sys-
tem, which is properly secured with the ve-
hicle’s seat belt and top tether strap, or
secured via lower anchors and top tether
strap, fully in accordance with the child seat
manufacturer’s instructions.
1BabySmartTM is a trademark of Siemens
Automotive Corp.


38 Getting started
Adjusting
Seat adjustment
The seat adjustment switches are located
in each front door.
1Head restraint height
2Seat backrest tilt
3Seat fore and aft adjustment
4Seat cushion tilt
5Seat height
Switch on the ignition (page 35).
or
Open the respective front door.
Seat fore and aft adjustment
Press the switch forward or back in the
direction of arrow3.
Adjust to a comfortable seating posi-
tion that still allows you to reach the
accelerator/brake pedal safely. The
position should be as far to the rear as
possible, consistent with ability to
properly operate controls.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.i
When moving the seat, be sure that

there are no items in the footwell or
behind the seats

the cup holder next to the armrest
is removed (
page 196)

the cup holder in the front passen-
ger footwell is folded closed
(
page 196)
Otherwise you could damage the seats
and/or cup holders.
The memory function (
page 107) lets
you store the setting for the seat posi-
tion together with the setting for the
steering wheel and the exterior rear
view mirrors.


39 Getting started
Adjusting
Seat cushion tilt
Press the switch up or down in the di-
rection of arrow4 until your upper
legs are lightly supported.
Seat backrest tilt
Press the switch forward or backward
in the direction of arrow2 until your
arms are slightly angled when holding
the steering wheel.
Seat height
Press the switch up or down in the di-
rection of arrow5.
Make sure you have sufficient head-
room.Head restraint height
Press the switch up or down in the di-
rection of arrow1.
Adjust head restraint to support the back
of the head approximately at eye level.Head restraint tilt
Manually adjust the angle of the head re-
straint.
Push or pull on the upper edge of the
head restraint cushion.
For more information, see “Seats”
(
page 100).
Warning!G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
