MERCEDES-BENZ G55AMG 2007 W463 Owners Manual

90 Safety and Security
Driving safety systems
LOW RANGE– ABS
During off-road driving a special low range
system for the Antilock Brake System
(ABS) is operational with transfer case in
position LOW (
page 170).
An improved braking action (dig-in effect)
is obtained for vehicle speeds up to
37 mph (60 km/h) through a change in the
ABS control function.
For more information, see “Practical hints”
(
page 324).
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing braking distance. Apply con-
tinuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal the
brakes function again as normal. The BAS
is then deactivated.
With the BAS malfunctioning, the ABS,
ESP
®, and 4-ETS are also switched off.
Warning!G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency
beyond that afforded by the condition of the
vehicle brakes and tires or the traction
afforded. The ABS cannot prevent acci-
dents, including those resulting from
excessive speed in turns, following another
vehicle too closely, or hydroplaning. Only a
safe, attentive, and skillful driver can pre-
vent accidents. The capabilities of an ABS
equipped vehicle must never be exploited in
a reckless or dangerous manner which
could jeopardize the user’s safety or the
safety of others.
Warning!G
If the BAS is malfunctioning, the brake
system is still functioning normally, but
without the additional brake boost available
that BAS would normally provide in an emer-
gency braking maneuver. Therefore, the
braking distance may increase.

91 Safety and Security
Driving safety systems
For more information, see “Practical hints”
(
page 340).
4-ETS
The 4-Electronic Traction System (4-ETS)
improves vehicle’s ability to utilize avail-
able traction, especially under slippery
road conditions. The brakes are applied to
the spinning wheel and power is allowed to
flow to the wheel(s) with traction.
The 4-ETS function is available between
vehicle speeds of 0 mph (km/h) and
37 mph (60 km/h).
The ESP
® warning lampv in the instru-
ment cluster (
page 26) comes on when
you switch on ignition (
page 39). It goes
out when the engine is running.
The ESP
® warning lampv starts to
flash at any vehicle speed, as soon as a tire
loses traction and the wheel begins to
spin.
Warning!G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that
afforded by the condition of the vehicle
brakes and tires or the traction afforded.
The BAS cannot prevent accidents, includ-
ing those resulting from excessive speed in
turns, following another vehicle too closely,
or hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The
capabilities of a BAS equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the
user’s safety or the safety of others.
Warning!G
When you see the ESP® warning lampv
flashing in the instrument cluster, then
proceed as follows:

While driving off, apply as little throttle
as possible.

While driving ease up on the accelera-
tor.

Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The 4-ETS cannot prevent accidents result-
ing from excessive speed.

92 Safety and Security
Driving safety systems
For more information, see “Practical hints”
(
page 330).
EBB
The Electronic Brake Booster (EBB)
enhances braking effectiveness by allow-
ing the rear brakes to supply a greater
proportion of the braking effort in straight
line braking circumstances without a loss
of vehicle stability.
For more information, see the “Practical
hints” section (
page 327).
ESP®
The Electronic Stability Program (ESP®) is
operational as soon as the engine is run-
ning and monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP
® recognizes when a wheel is
spinning or if the vehicle starts to skid.
By applying the brakes to the appropriate
wheel and by limiting engine output, the
ESP
® works to stabilize the vehicle.
The ESP® is especially useful while driving
off and on wet or slippery road surfaces.
The ESP
® also stabilizes the vehicle during
braking and steering maneuvers.
The ESP
® warning lampv in the instru-
ment cluster (
page 26) flashes when the
ESP® is engaged.
The ESP
® warning lampv comes on
when you switch on ignition (
page 39).
It goes out when the engine is running.
!Operational or performance test must only
be conducted on a two-axle dynamometer. If
such tests are necessary, contact an authorized
Mercedes-Benz Light Truck Center. You could
otherwise seriously damage the brake system or
the transfer case which is not covered by the
Mercedes-Benz Limited Warranty.
!Because the ESP® operates automatically,
the engine and ignition must be shut off
(SmartKey in starter switch position0 or1)
when testing the parking brake on a brake test
dynamometer and such testing should be no
longer than 10 seconds.
Active braking action through ESP
® may
otherwise seriously damage the brake system
which is not covered by the Mercedes-Benz
Limited Warranty.
Warning!G
If the EBB is malfunctioning, the brake
system is still functioning. However, the rear
wheels may lock during hard braking, caus-
ing you to lose control over the vehicle and
possibly causing an accident. Adjust your
driving style to the non-operating status of
the EBB.

93 Safety and Security
Driving safety systems
Warning!G
Never switch off the ESP® when you see the
ESP® warning lampv flashing in the
instrument cluster. In this case proceed as
follows:

While driving off, apply as little throttle
as possible.

While driving ease up on the accelera-
tor.

Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP
® cannot prevent accidents result-
ing from excessive speed.
Warning!G
The ESP® cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
®
cannot prevent accidents, including those
resulting from excessive speed in turns, fol-
lowing another vehicle too closely, or hydro-
planing. Only a safe, attentive, and skillful
driver can prevent accidents. The capabili-
ties of a ESP
® equipped vehicle must never
be exploited in a reckless or dangerous
manner which could jeopardize the user’s
safety or the safety of others.
!Operational or performance test must only
be conducted on a two-axle dynamometer. If
such tests are necessary, contact an authorized
Mercedes-Benz Light Truck Center. You could
otherwise seriously damage the brake system or
the transfer case which is not covered by the
Mercedes-Benz Limited Warranty.
!Because the ESP® operates automatically,
the engine and ignition must be shut off when
testing the parking brake on a brake test
dynamometer and such testing should be no
longer than 10 seconds.
Active braking action through ESP
® may
otherwise seriously damage the brake system
which is not covered by the Mercedes-Benz
Limited Warranty.
iThe ESP® will only function properly if you
use wheels of the recommended tire size
(
page 416).
iThe ABS, BAS, and ESP® are automatically
switched off when the differential locks are
switched on (
page 175).

94 Safety and Security
Driving safety systems
Switching off the ESP®
To improve the vehicle’s traction, switch
off the ESP® in driving situations where it
would be advantageous to have the drive
wheels spin and thus cut into surfaces for
better grip such as:

when driving with snow chains

in deep snow

sand or gravel

when driving off-roadWhen you switch off the ESP
®

the ESP® does not stabilize the vehicle

the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip

the 4-ETS will still apply the brake to a
spinning wheel

the ESP® continues to operate when
you are braking

you cannot activate the cruise control
system

the cruise control system switches off
if currently activatedThe ESP
® switch is located on the upper
part of the center console.
1ESP
® switch
With the engine running, press
switch1.
The ESP
® warning lampv in the
instrument cluster comes on.
The ESP
® is deactivated.
Warning!G
The ESP® should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.
Warning!G
Switch on the ESP® immediately if the afore-
mentioned circumstances do not apply any-
more. Otherwise the ESP
® will not stabilize
the vehicle when it is starting to skid or a
wheel is spinning.
iWhen the ESP® is switched off and one or
more drive wheels are spinning, the ESP® warn-
ing lampv in the instrument cluster flashes.
However, the ESP
® will then not stabilize the
vehicle.

95 Safety and Security
Driving safety systems
Even if the ESP® has been switched off, it
is still active in the following situations:

when braking

at vehicle speeds up to approximately
37 mph (60 km/h), if one wheel
reaches the grip limit, e.g. when the
street is icy on one side
The brake is applied until the wheel
regains sufficient traction.
If one or more drive wheels are spinning,
the ESP
® warning lampv in the instru-
ment cluster flashes, regardless of the
speed.Switching on the ESP
®
Press switch1 once more.
The ESP
® warning lampv in the
instrument cluster goes out.
You are now again in normal driving
mode with the ESP
® switched on.
For more information, see “Practical hints”
(
page 330).
Warning!G
When the ESP® warning lampv is
illuminated continuously, the ESP® is
switched off or it is not operational due to a
malfunction.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!Avoid spinning of a drive wheel for an
extended period of time with the ESP® switched
off. This may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
iIf the ESP® is switched off, it will be auto-
matically activated when exceeding a vehicle
speed of 37 mph (60 km/h) or exceeding a
severity threshold of side acceleration.

96 Safety and Security
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
Remove the SmartKey from the starter
switch.
Deactivating
Turn the SmartKey in the starter switch
to position2 (
page 39).
Anti-theft alarm
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door

the tailgate

the hood
The alarm will stay on, even if the activat-
ing element (a door, for example) is imme-
diately closed.The alarm system will also be triggered
when

someone attempts to raise the vehicle

the vehicle is opened with the
mechanical key

someone opens a door from the inside

someone opens the tailgate from the
inside
iStarting the engine will also deactivate the
immobilizer.
In case the engine cannot be started (yet the
vehicle’s battery is charged), the system is not
operational. Contact an authorized
Mercedes-Benz Light Truck Center or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).

97 Safety and Security
Anti-theft systems
Arming the alarm system
The alarm system is armed after you have
locked the vehicle with the SmartKey.
The alarm system indicator lamp is located
in the tow-away alarm switch on the upper
part of the center console.
1Alarm system indicator lampMake sure all doors and the tailgate are
closed.
Lock the vehicle with the SmartKey
(
page 65).
The turn signal lamps flash three times
to indicate that the vehicle is locked.
The alarm system is armed within
approximately 15 seconds. Alarm
system indicator lamp1 flashes.Disarming the alarm system
Unlock the vehicle with the SmartKey
(
page 38).
The turn signal lamps flash once to
indicate that the alarm system is
disarmed. Alarm system indicator
lamp1 goes out.
Canceling the alarm
Insert the SmartKey in the starter
switch.
or
Press buttonŒ or‹ on the
SmartKey.
iIf the turn signal lamps do not blink three
times, one of the following elements may not be
properly closed:

a door

the tailgate
Close the respective element and lock the
vehicle again.
iThe alarm system will rearm automatically
after approximately 40 seconds if neither a door
nor the tailgate is opened.

98 Safety and Security
Anti-theft systems
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
Arming tow-away alarm
Lock the vehicle with the SmartKey
(
page 65).
The tow-away alarm is automatically
armed after approximately
30 seconds.Disarming tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.
The tow-away alarm off switch is located
on the upper part of the center console.
1Tow-away alarm off switch
2Indicator lamp
Switch off the ignition and remove the
SmartKey from the starter switch.
Press switch1.
Indicator lamp2 comes on briefly.
Exit and lock the vehicle with the
SmartKey (
page 65).
Canceling the tow-away alarm
Press theŒ or‹ button on the
SmartKey.
or
Insert the SmartKey in the starter
switch.
iYou cannot disarm the tow-away alarm
when the ignition is switched on.
iWhen you unlock the vehicle, the tow-away
protection disarms automatically.
The tow-away alarm remains disarmed until you
lock your vehicle again.

99

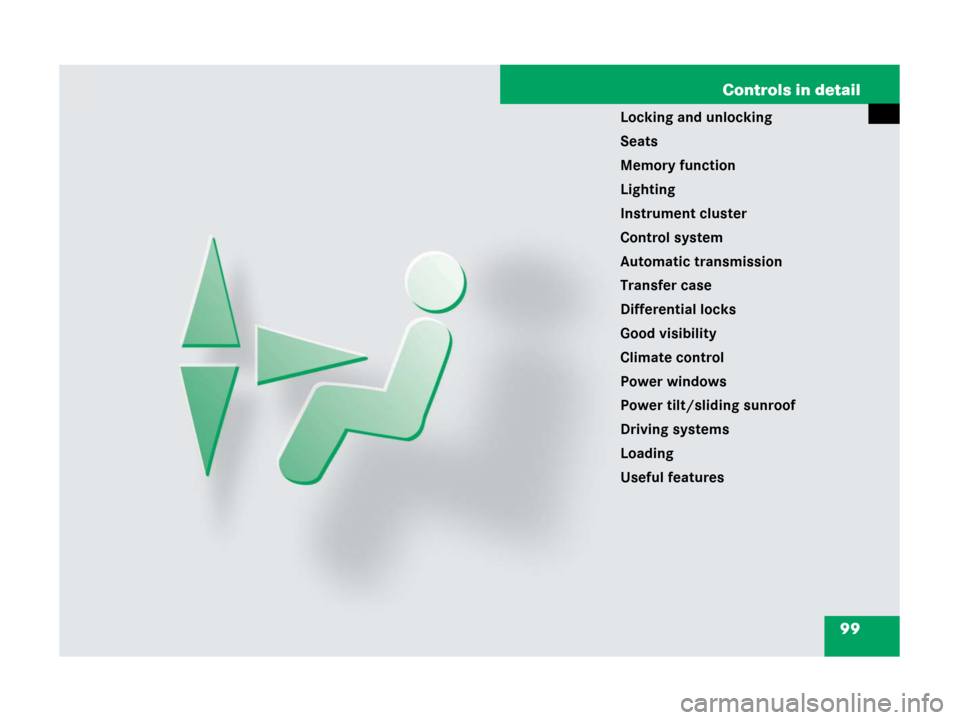

Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Transfer case
Differential locks
Good visibility
Climate control
Power windows
Power tilt/sliding sunroof
Driving systems
Loading
Useful features
