220 Controls in detail
Useful features
Cup holder in front passenger footwell
1Cupholder
Swing cupholder1 upwards until it
clicks into place.Cup holder in rear passenger footwell
Rear cup holder
Ashtrays
Your vehicle is equipped with an ashtray
and a cigarette lighter located in the center
console and two ashtrays located in the
rear passenger compartment
(
page 221).
Ashtray in the center console
1Ashtray
2Cigarette lighter (
page 222)
3Cover plate
!Fold the cup holder closed before moving
the front passenger seat fully forward.
!Before folding the seat backrest forward
and the rear seat bench down, be sure that all
containers in the rear cup holder are removed.

221 Controls in detail
Useful features
Opening the ashtray
Briefly touch at top of cover plate3.
The ashtray opens automatically.
Removing the ashtray insert
Secure the vehicle from movement by
setting the parking brake.
Move the gear selector lever to neutral
positionN.
Now you have more room to take out
the ashtray insert.

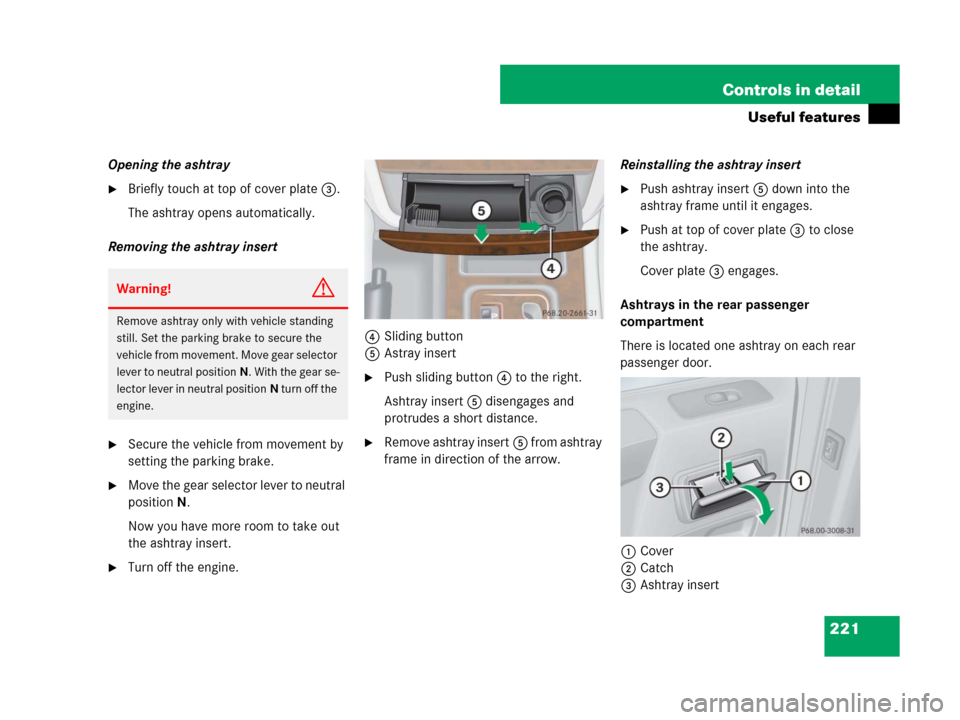

Turn off the engine.4Sliding button
5Astray insert
Push sliding button4 to the right.
Ashtray insert5 disengages and
protrudes a short distance.
Remove ashtray insert5 from ashtray
frame in direction of the arrow.Reinstalling the ashtray insert
Push ashtray insert5 down into the
ashtray frame until it engages.
Push at top of cover plate3 to close
the ashtray.
Cover plate3 engages.
Ashtrays in the rear passenger
compartment
There is located one ashtray on each rear
passenger door.
1Cover
2Catch
3Ashtray insert
Warning!G
Remove ashtray only with vehicle standing
still. Set the parking brake to secure the
vehicle from movement. Move gear selector
lever to neutral positionN. With the gear se-
lector lever in neutral positionN turn off the
engine.

222 Controls in detail
Useful features
Opening the ashtray
Pull at top of cover1.
Removing the ashtray insert
Push down on catch2.
Pull out ashtray insert3.
Reinstalling the ashtray insert
Position ashtray insert3.
Push at top of cover1 to close the
ashtray.
Cigarette lighter
Switch on the ignition (page 39).1Cigarette lighter
Briefly touch at top of the cover plate.
The ashtray opens automatically.

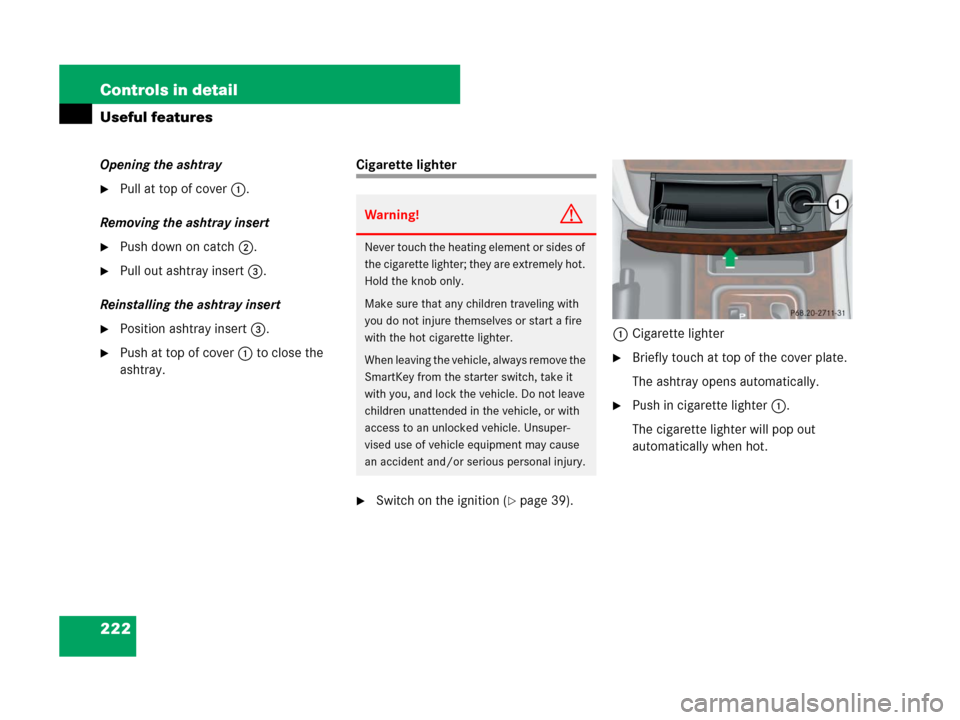

Push in cigarette lighter1.
The cigarette lighter will pop out
automatically when hot.
Warning!G
Never touch the heating element or sides of
the cigarette lighter; they are extremely hot.
Hold the knob only.
Make sure that any children traveling with
you do not injure themselves or start a fire
with the hot cigarette lighter.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

223 Controls in detail
Useful features
Electrical outlet
Power outlets are located

in the front passenger footwell
(
page 223)

in the rear passenger footwell
(
page 224)

on the left-hand side of the cargo
compartment (

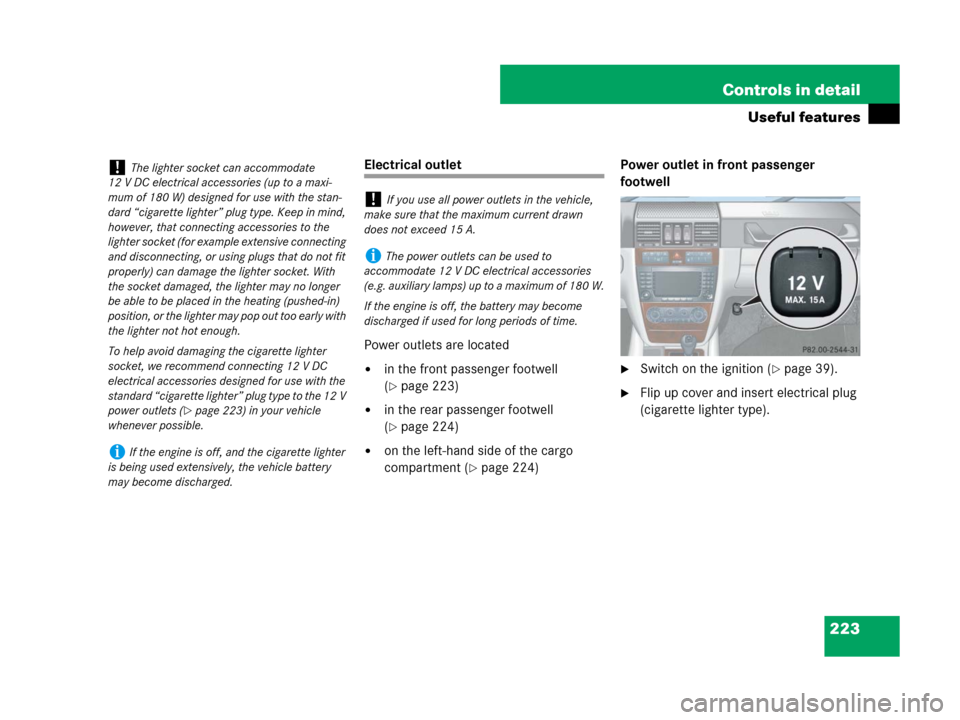

page 224)Power outlet in front passenger
footwell
Switch on the ignition (page 39).
Flip up cover and insert electrical plug
(cigarette lighter type).
!The lighter socket can accommodate
12 V DC electrical accessories (up to a maxi-
mum of 180 W) designed for use with the stan-
dard “cigarette lighter” plug type. Keep in mind,
however, that connecting accessories to the
lighter socket (for example extensive connecting
and disconnecting, or using plugs that do not fit
properly) can damage the lighter socket. With
the socket damaged, the lighter may no longer
be able to be placed in the heating (pushed-in)
position, or the lighter may pop out too early with
the lighter not hot enough.
To help avoid damaging the cigarette lighter
socket, we recommend connecting 12 V DC
electrical accessories designed for use with the
standard “cigarette lighter” plug type to the 12 V
power outlets (
page 223) in your vehicle
whenever possible.
iIf the engine is off, and the cigarette lighter
is being used extensively, the vehicle battery
may become discharged.
!If you use all power outlets in the vehicle,
make sure that the maximum current drawn
does not exceed 15 A.
iThe power outlets can be used to
accommodate 12 V DC electrical accessories
(e.g. auxiliary lamps) up to a maximum of 180 W.
If the engine is off, the battery may become
discharged if used for long periods of time.
N

224 Controls in detail
Useful features

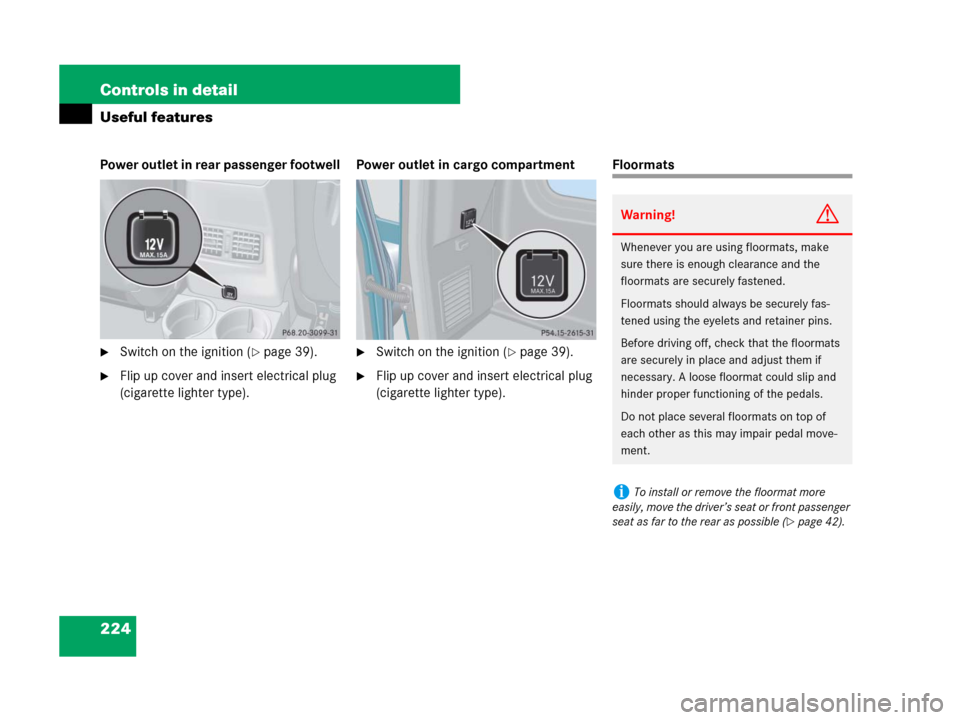

Power outlet in rear passenger footwell
Switch on the ignition (page 39).
Flip up cover and insert electrical plug
(cigarette lighter type).Power outlet in cargo compartment
Switch on the ignition (page 39).
Flip up cover and insert electrical plug
(cigarette lighter type).
Floormats
NN
Warning!G
Whenever you are using floormats, make
sure there is enough clearance and the
floormats are securely fastened.
Floormats should always be securely fas-
tened using the eyelets and retainer pins.
Before driving off, check that the floormats
are securely in place and adjust them if
necessary. A loose floormat could slip and
hinder proper functioning of the pedals.
Do not place several floormats on top of
each other as this may impair pedal move-
ment.
iTo install or remove the floormat more
easily, move the driver’s seat or front passenger
seat as far to the rear as possible (
page 42).

225 Controls in detail
Useful features
Heated steering wheel
The steering wheel heating warms up the
leather area of the steering wheel.
The stalk is located on the lower left-hand
side of the steering wheel.
1Switching on
2Switching off
3Indicator lampSwitching on
Switch on the ignition (page 39).
Turn switch at the tip of stalk in
direction of arrow1.
The steering wheel is heated.
Indicator lamp3 comes on.Switching off
Turn switch at the tip of stalk in
direction of arrow2.
The heated steering wheel is switched
off.
Indicator lamp3 goes out.
For information on adjusting the steering
wheel, see “Steering wheel” (
page 44).
iThe steering wheel heating is temporarily
suspended while the indicator lamp3 remains
on when

the temperature of the vehicle interior is
above 86°F (30°C)

the temperature of the steering wheel is
above 95°F (35°C)
When these conditions do not apply anymore,
steering wheel heating continues.
iIndicator lamp3 flashes or goes out

in case of power surge or undervoltage

in case of a steering wheel heating
malfunction
iThe steering wheel heating switches off
automatically when you remove the SmartKey
from the starter switch.

226 Controls in detail
Useful features
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Light Truck Center
for information on the installation of an
approved external antenna. Refer to the
radio transmitter operation instructions
regarding use of an external antenna.When the mobile phone is inserted in the
cradle, you can operate the telephone
using the following devices:

mobile phone keypad

COMAND system (see separate
operating instructions)

buttonss andt on the multi-
function steering wheel (
page 134)

Voice Control System* (see separate
operating instructions)
Warning!G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system,
possibly resulting in an accident and/or
serious personal injury.
Warning!G
Please do not forget that your primary
responsibility is to drive the vehicle.
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we
recommend that you pull over to a safe
location and stop before placing or taking a
telephone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
mobile telephone while driving a vehicle.
Only operate the COMAND system
1 if road,
weather and traffic conditions permit.
Bear in mind that at a speed of just
30 mph (approximately 50 km/h), your
vehicle is covering a distance of 44 feet
(approximately 14 m) every second.
1Observe all legal requirements.
iVarious mobile phone cradles can be
installed in the front center armrest, see
separate installation instructions for the mobile
phone cradle. These mobile phone cradles can
be obtained from an authorized Mercedes-Benz
Light Truck Center.
The functions and services available to you while
using the mobile phone depend on your service
provider and the type of mobile phone you are
using. See also separate operating manual for
instructions on how to use the mobile phone.

227 Controls in detail
Useful features
Please note that these functions are only
available with Mercedes-Benz approved
mobile phones. Please contact an
authorized Mercedes-Benz Light Truck
Center for information on features avail-
able for your mobile phone of choice.
The cradle is located in the armrest.
Open the telephone tray (page 216).
Inserting mobile phone in mobile phone
cradle
Once the mobile phone has been inserted
in the mobile phone cradle, you have to
use the hands-free device to respond
during phone calls.
If applicable, remove the cover for the
external antenna connection from the
back of the mobile phone and store it in
a s a f e p l a c e . B e s u r e t o c o m p l y w i t h t h e
mobile phone’s operating instructions
as well.

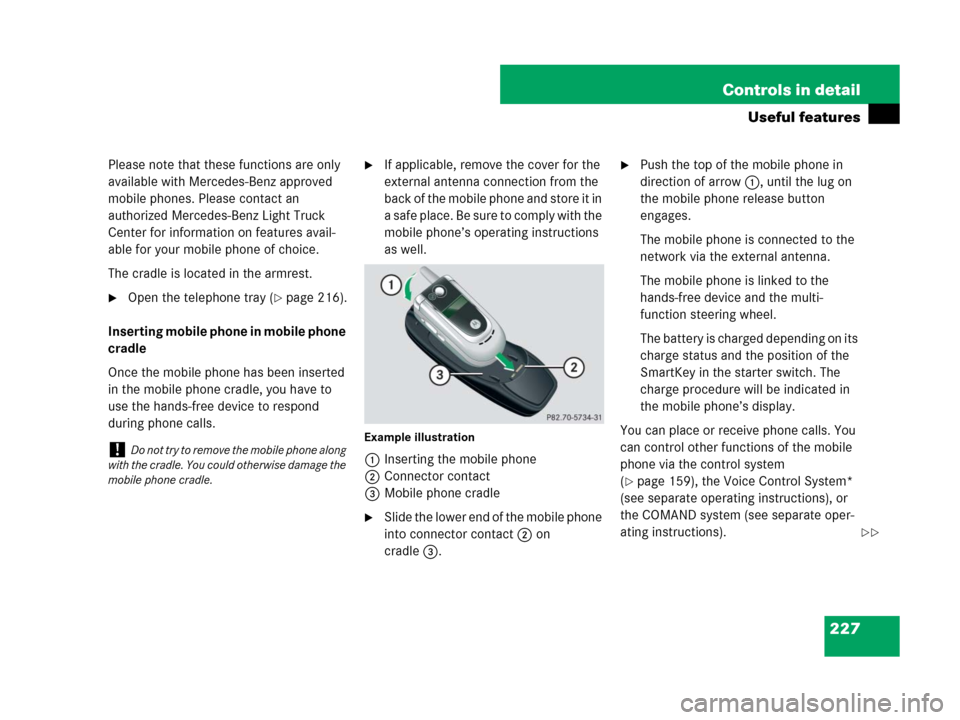

Example illustration
1Inserting the mobile phone
2Connector contact
3Mobile phone cradle

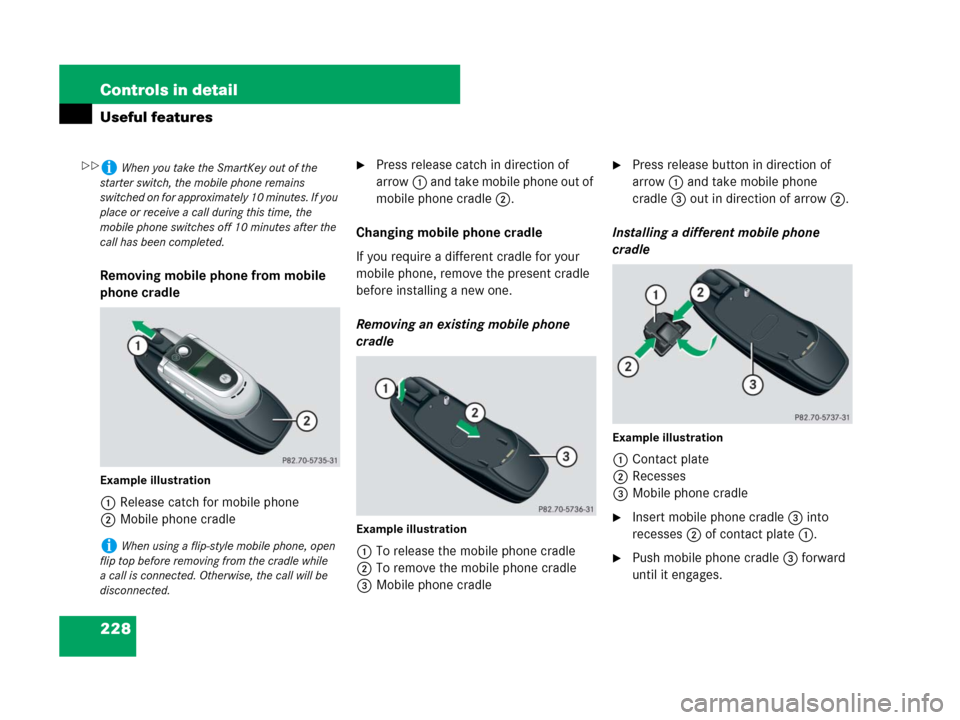

Slide the lower end of the mobile phone
into connector contact2 on
cradle3.
Push the top of the mobile phone in
direction of arrow 1, until the lug on
the mobile phone release button
engages.
The mobile phone is connected to the
network via the external antenna.
The mobile phone is linked to the
hands-free device and the multi-
function steering wheel.
The battery is charged depending on its
charge status and the position of the
SmartKey in the starter switch. The
charge procedure will be indicated in
the mobile phone’s display.
You can place or receive phone calls. You
can control other functions of the mobile
phone via the control system
(
page 159), the Voice Control System*
(see separate operating instructions), or
the COMAND system (see separate oper-
ating instructions).
!Do not try to remove the mobile phone along
with the cradle. You could otherwise damage the
mobile phone cradle.


228 Controls in detail
Useful features
Removing mobile phone from mobile
phone cradle
Example illustration
1Release catch for mobile phone
2Mobile phone cradle
Press release catch in direction of
arrow1 and take mobile phone out of
mobile phone cradle2.
Changing mobile phone cradle
If you require a different cradle for your
mobile phone, remove the present cradle
before installing a new one.
Removing an existing mobile phone
cradle
Example illustration
1To release the mobile phone cradle
2To remove the mobile phone cradle
3Mobile phone cradle
Press release button in direction of
arrow1 and take mobile phone
cradle3 out in direction of arrow2.
Installing a different mobile phone
cradle
Example illustration
1Contact plate
2Recesses
3Mobile phone cradle
Insert mobile phone cradle3 into
recesses2 of contact plate1.
Push mobile phone cradle3 forward
until it engages.
iWhen you take the SmartKey out of the
starter switch, the mobile phone remains
switched on for approximately 10 minutes. If you
place or receive a call during this time, the
mobile phone switches off 10 minutes after the
call has been completed.
iWhen using a flip-style mobile phone, open
flip top before removing from the cradle while
a call is connected. Otherwise, the call will be
disconnected.


229 Controls in detail
Useful features
Tele Aid
Shortly after the completion of your
Tele Aid acquaintance call, you will receive
a user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.The Tele Aid system
(Tele
matic Alarm Identification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency

roadside assistance

information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and
cellular and GPS coverage are available.
The speaker volume of a Tele Aid call can
be adjusted by using the volume control on
the COMAND system headunit or on the
multifunction steering wheel. To raise, turn
the rotary volume control on the COMAND
system headunit clockwise or press
buttonæ on the multifunction steering
wheel. To lower, turn the rotary volume
control on the COMAND system headunit
counterclockwise or press buttonç on
the multifunction steering wheel.
To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.
!The initial activation of the Tele Aid system
may only be performed by completing the sub-
scriber agreement and placing an acquaintance
call using the Information button¡. Failure
to complete either of these steps will result in a
system that is not activated.
If you have any questions regarding activation,
please call the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).
iThe SOS button is located in the overhead
control panel (
page 231).
The Roadside Assistance button•
(
page 232) and the Information button¡
(
page 233) are located below the center
armrest cover.
!The Tele Aid system utilizes the cellular
network for communication and the GPS
(G
lobal Positioning System) satellites for vehicle
location. If either of these signals are unavail-
able, the Tele Aid system may not function and if
this occurs, assistance must be summoned by
other means.
