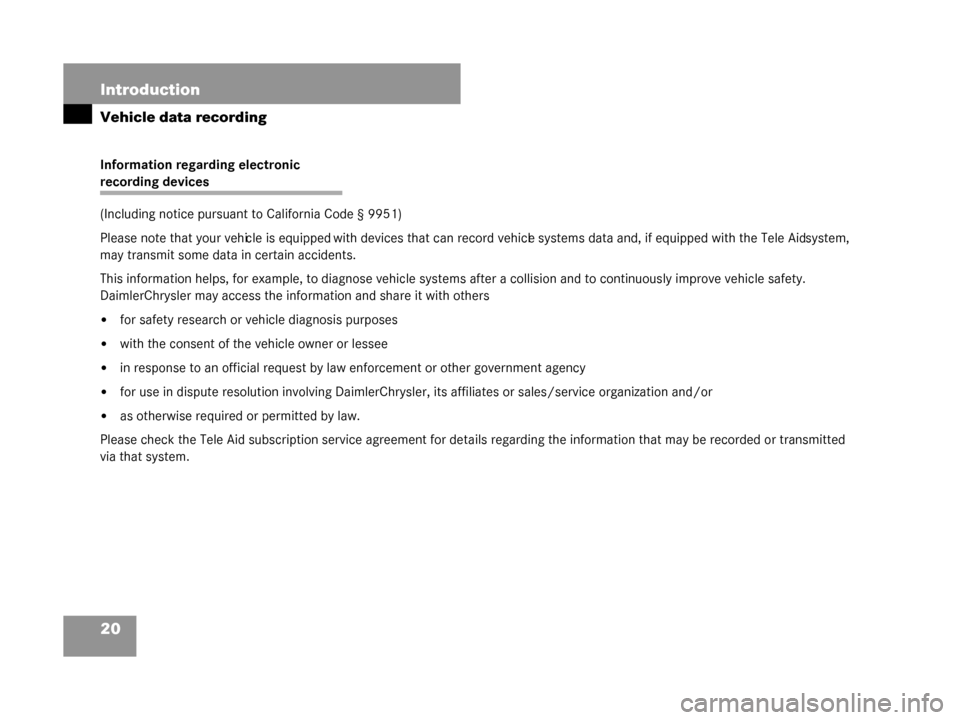

20 Introduction
Vehicle data recording
Information regarding electronic
recording devices
(Including notice pursuant to California Code § 9951)
Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system,
may transmit some data in certain accidents.
This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety.
DaimlerChrysler may access the info rmation and share it with others
for safety research or vehicle diagnosis purposes
with the consent of the vehicle owner or lessee
in response to an official request by la w enforcement or other government agency
for use in dispute resolution involving DaimlerChrysler , its affiliates or sales/service organization and/or
as otherwise required or permitted by law.
Please check the Tele Aid subscription service agreement for deta ils regarding the information that may be recorded or transmitted
via that system.
W463.boo Seite 20 Montag, 19. November 2007 8:41 08
Page 22 of 457
21
At a glance
Exterior view

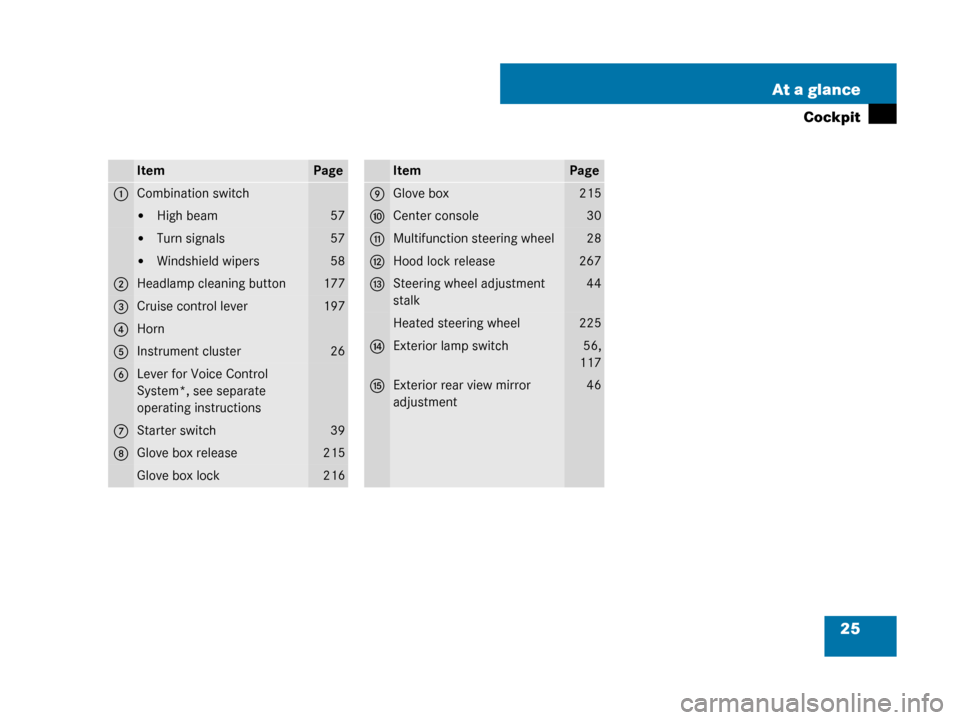

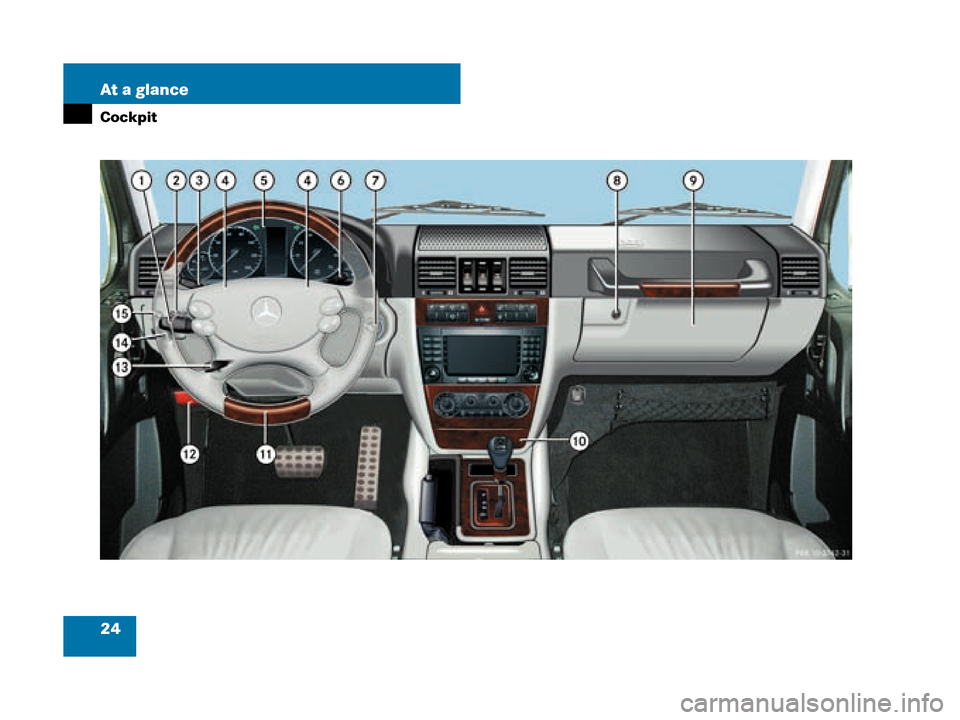

Cockpit

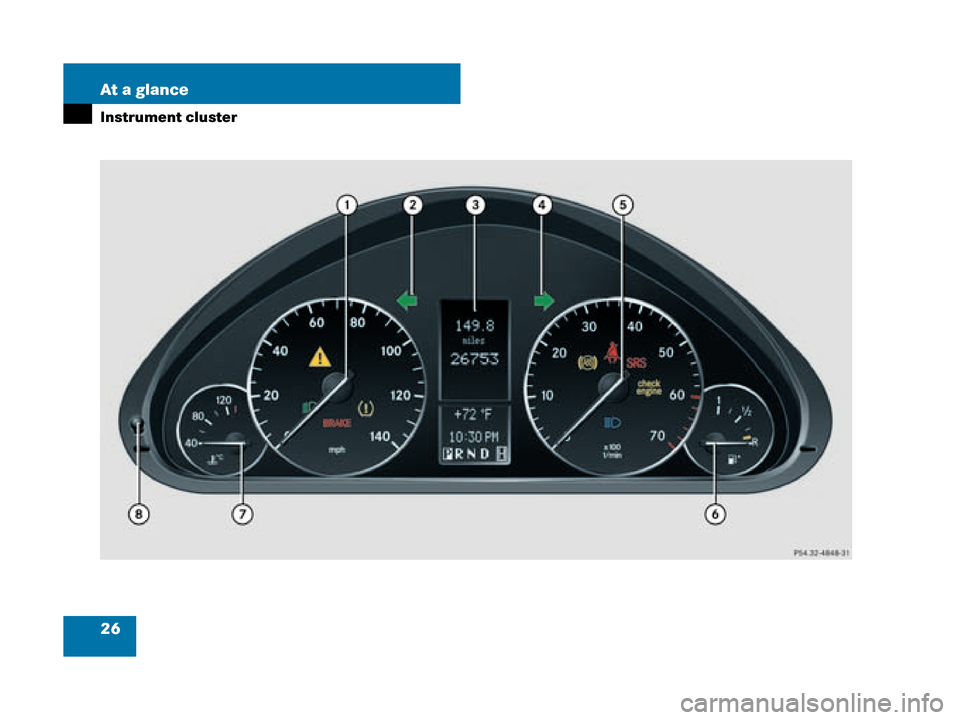

Instrument cluster

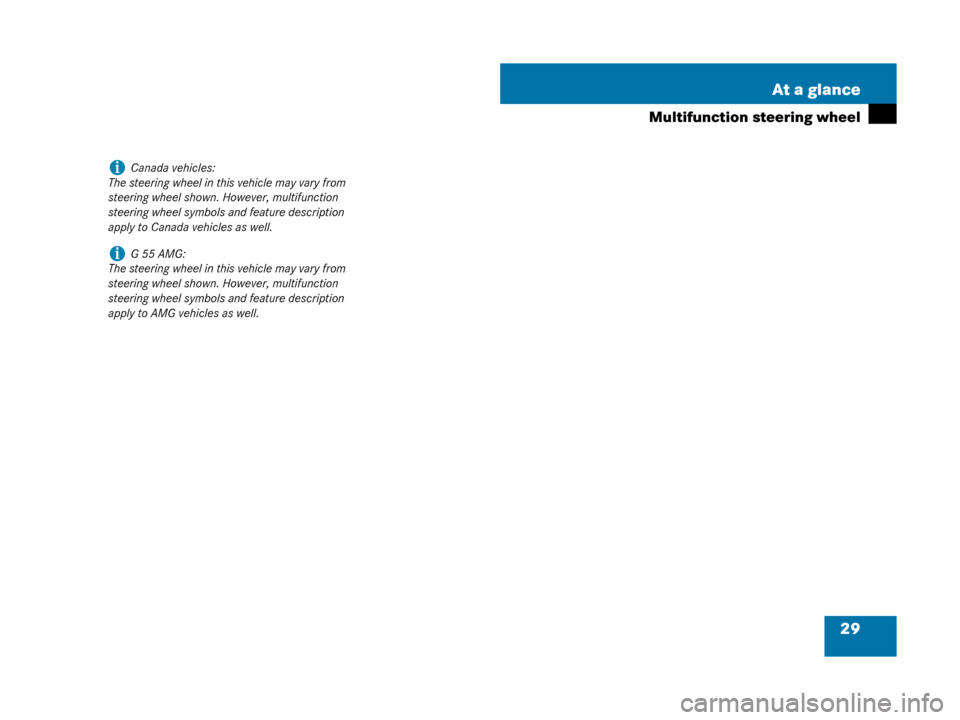

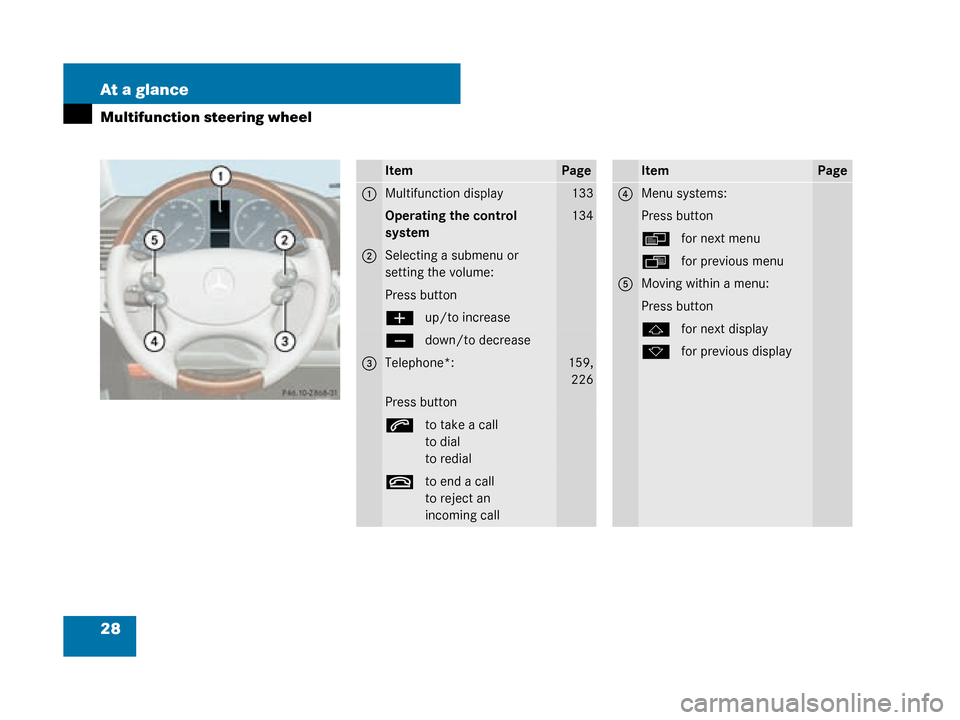

Multifunction steering wheel
Center console
Overhead control panel
Door control panel
Storage compartments
W463.boo Seite 21 Montag, 19. November 2007 8:41 08
Page 23 of 457
22 At a glance

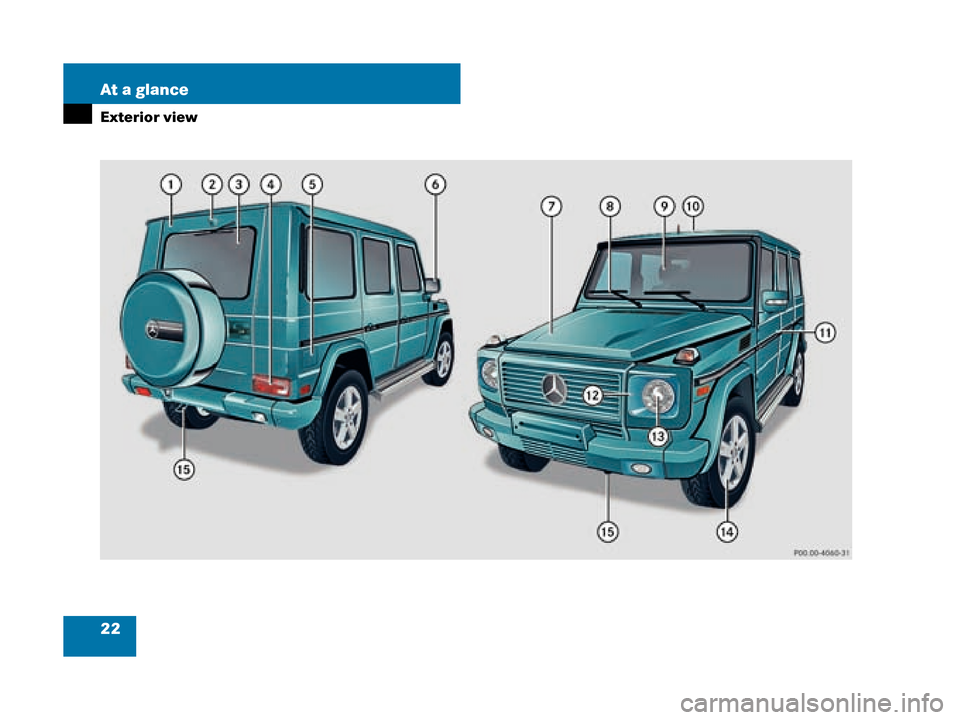

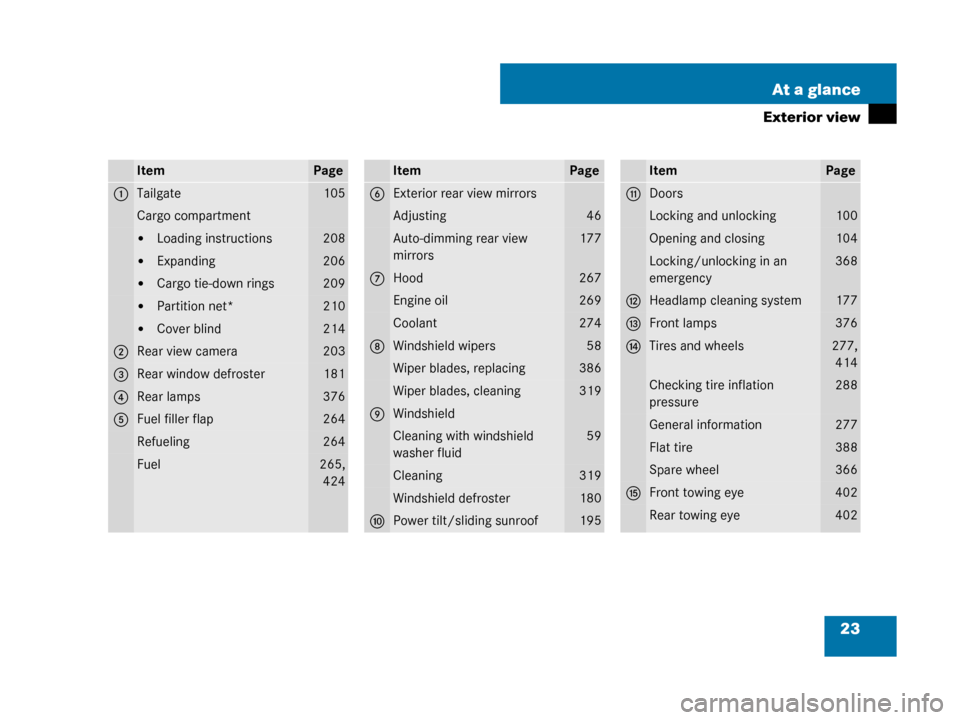

Exterior view
