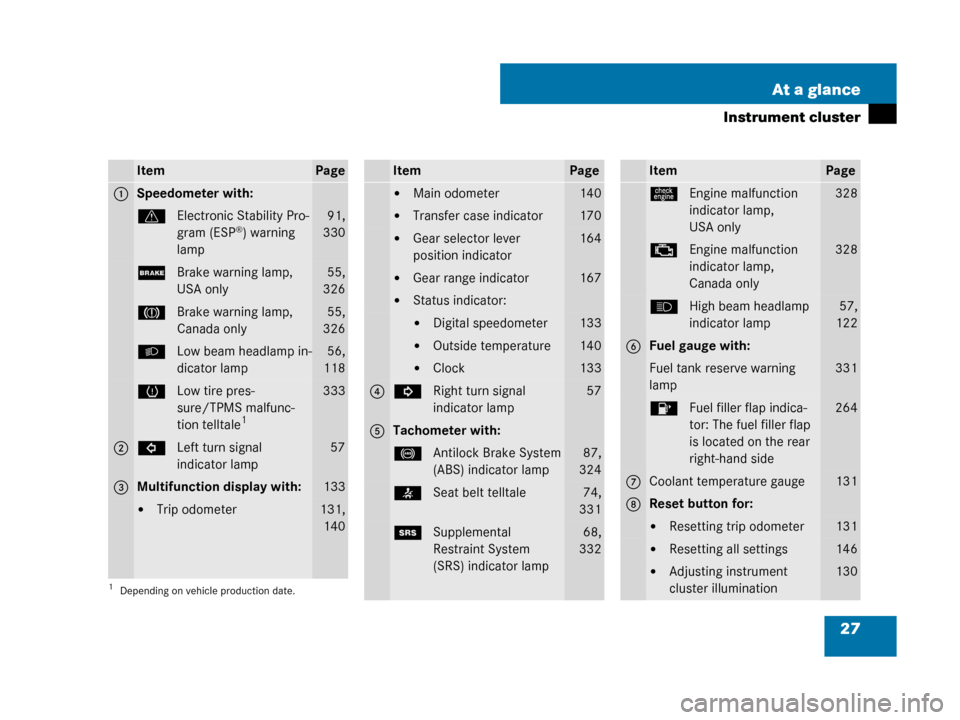

27
At a glance
Instrument cluster
ItemPage
1Speedometer with:
v
Electronic Stability Pro-
gram (ESP®) warning
lamp
91,
330
; Brake warning lamp,
USA only55,
326
3 Brake warning lamp,
Canada only55,
326
B Low beam headlamp in-
dicator lamp56,
118
H Low tire pres-
sure/TPMS malfunc-
tion telltale
1
1Depending on vehicle production date.
333
2LLeft turn signal
indicator lamp57
3Multifunction display with:133

Trip odometer131,
140
ItemPage

Main odometer140

Transfer case indicator170

Gear selector lever
position indicator164

Gear range indicator167

Status indicator:

Digital speedometer133

Outside temperature140

Clock133
4K Right turn signal
indicator lamp 57
5Tachometer with:
-Antilock Brake System
(ABS) indicator lamp87,
324
< Seat belt telltale74,
331
1 Supplemental
Restraint System
(SRS) indicator lamp68,
332
ItemPage
ú Engine malfunction
indicator lamp,
USA only328
±Engine malfunction
indicator lamp,
Canada only328
AHigh beam headlamp
indicator lamp57,
122
6Fuel gauge with:
Fuel tank reserve warning
lamp331
4 Fuel filler flap indica-
tor: The fuel filler flap
is located on the rear
right-hand side264
7Coolant temperature gauge131
8Reset button for:

Resetting trip odometer131

Resetting all settings146

Adjusting instrument
cluster illumination130
W463.boo Seite 27 Montag, 19. November 2007 8:41 08

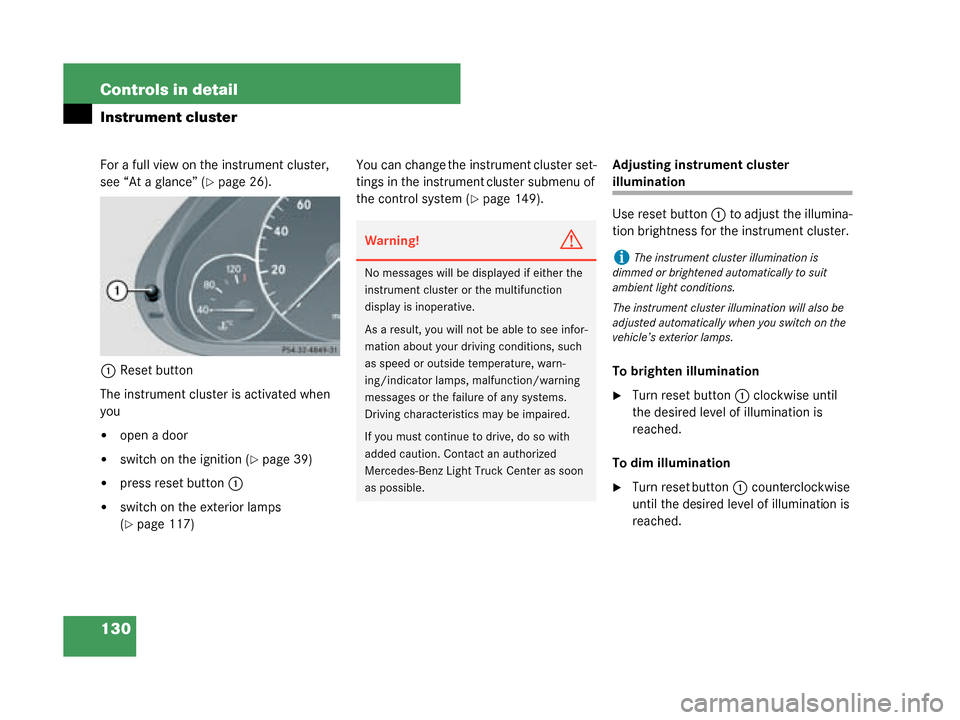

130 Controls in detail
Instrument cluster
For a full view on the instrument cluster,
see “At a glance” (
page 26).
1 Reset button
The instrument cluster is activated when
you

open a door

switch on the ignition (page 39)

press reset button 1

switch on the exterior lamps
(
page 117) You can change the instrument cluster set-
tings in the instrument
cluster submenu of
the control system (
page 149). Adjusting instrument cluster
illumination
Use reset button
1 to adjust the illumina-
tion brightness for the instrument cluster.
To brighten illumination
Turn reset button 1 clockwise until
the desired level of illumination is
reached.
To dim illumination
Turn reset button 1 counterclockwise
until the desired level of illumination is
reached.
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
As a result, you will not be able to see infor-
mation about your driv ing conditions, such
as speed or outside temperature, warn-
ing/indicator lamps, malfunction/warning
messages or the failure of any systems.
Driving characteristics may be impaired.
If you must continue to drive, do so with
added caution. Contact an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
iThe instrument cluster illumination is
dimmed or brightened automatically to suit
ambient light conditions.
The instrument cluster illu mination will also be
adjusted automatically when you switch on the
vehicle’s exterior lamps.
W463.boo Seite 130 Montag, 19 . November 2007 8:41 08

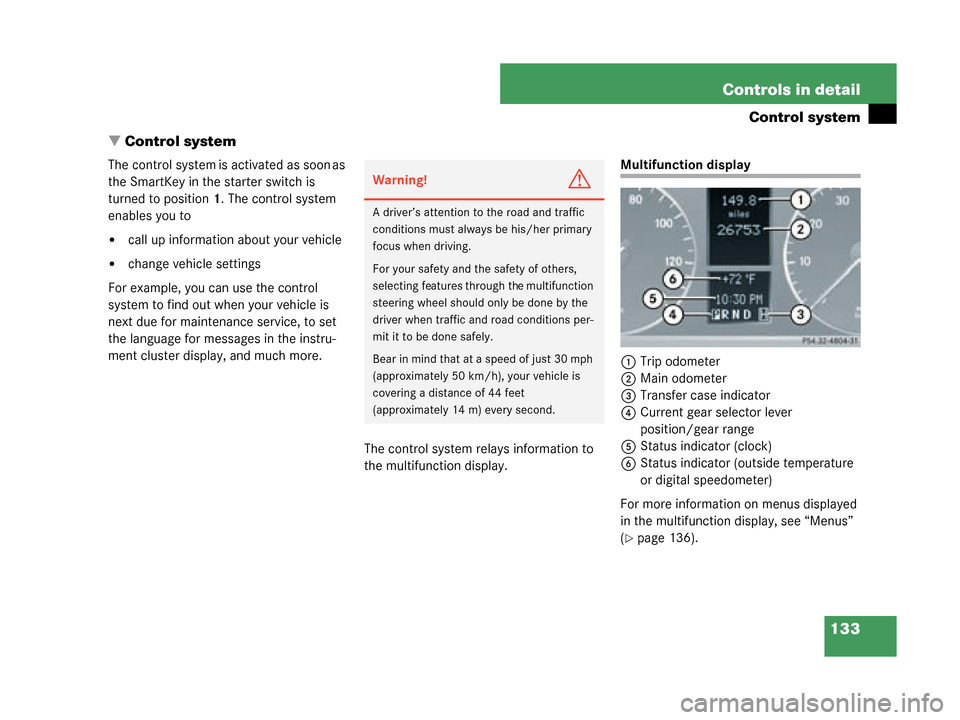

133
Controls in detail
Control system
 Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position 1. The control system
enables you to

call up information about your vehicle

change vehicle settings
For example, you can use the control
system to find out when your vehicle is
next due for maintenance service, to set
the language for messages in the instru-
ment cluster display, and much more.
The control system relays information to
the multifunction display.
Multifunction display
1 Trip odometer
2 Main odometer
3 Transfer case indicator
4 Current gear selector lever
position/gear range
5 Status indicator (clock)
6 Status indicator (outside temperature
or digital speedometer)
For more information on menus displayed
in the multifunction display, see “Menus”
(
page 136).
Warning!G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others,
selecting features thro ugh the multifunction
steering wheel should only be done by the
driver when traffic and road conditions per-
mit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
W463.boo Seite 133 Montag, 19 . November 2007 8:41 08

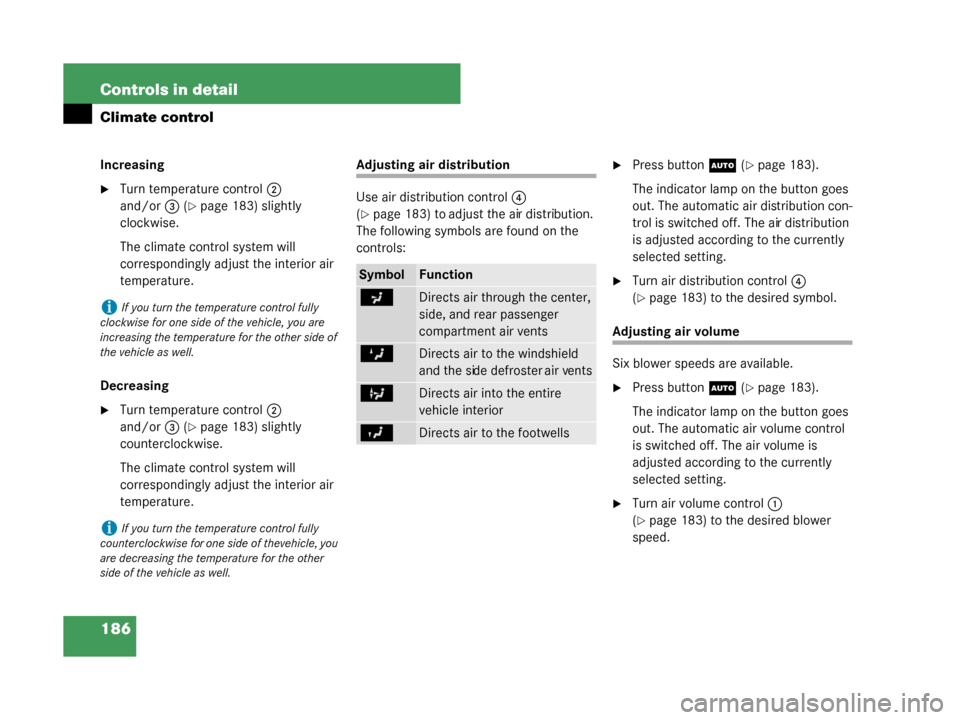

186 Controls in detail
Climate control
Increasing
Turn temperature control2
and/or 3 (
page 183) slightly
clockwise.
The climate control system will
correspondingly adjust the interior air
temperature.
Decreasing
Turn temperature control 2
and/or 3 (
page 183) slightly
counterclockwise.
The climate control system will
correspondingly adjust the interior air
temperature.
Adjusting air distribution
Use air distribution control 4
(
page 183) to adjust the air distribution.
The following symbols are found on the
controls:
Press button U (page 183).
The indicator lamp on the button goes
out. The automatic air distribution con-
trol is switched off. The air distribution
is adjusted according to the currently
selected setting.
Turn air distribution control 4
(
page 183) to the desired symbol.
Adjusting air volume
Six blower speeds are available.
Press button U (page 183).
The indicator lamp on the button goes
out. The automatic air volume control
is switched off. The air volume is
adjusted according to the currently
selected setting.
Turn air volume control 1
(
page 183) to the desired blower
speed.
iIf you turn the temperature control fully
clockwise for one side of the vehicle, you are
increasing the temperature for the other side of
the vehicle as well.
iIf you turn the temperature control fully
counterclockwise for one side of the vehicle, you
are decreasing the temperature for the other
side of the vehicle as well.
SymbolFunction
aDirects air through the center,
side, and rear passenger
compartment air vents
ZDirects air to the windshield
and the side defroster air vents
bDirects air into the entire
vehicle interior
YDirects air to the footwells
W463.boo Seite 186 Montag, 19 . November 2007 8:41 08

229
Controls in detail
Useful features
Tele Aid
Shortly after the completion of your
Tele Aid acquaintance call, you will receive
a user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.
The Tele Aid system
(Tele
matic Alarm Identification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency

roadside assistance

information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and
cellular and GPS coverage are available.
The speaker volume of a Tele Aid call can
be adjusted by using the volume control on
the COMAND system he adunit or on the
multifunction steering wheel. To raise, turn
the rotary volume control on the COMAND
system headunit clockwise or press
button æ on the multifunction steering
wheel. To lower, turn the rotary volume
control on the COMAND system headunit
counterclockwise or press button ç on
the multifunction steering wheel.
To activate, press the SOS button, the
Roadside Assistance button • or
the Information button ¡, depend-
ing on the type of response required.
!The initial activation of the Tele Aid system
may only be performed by completing the sub-
scriber agreement and pl acing an acquaintance
call using the Information button ¡. Failure
to complete either of these steps will result in a
system that is not activated.
If you have any questions regarding activation,
please call the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).
iThe SOS button is located in the overhead
control panel (
page 231).
The Roadside Assistance button •
(
page 232) and the Information button ¡
(
page 233) are located below the center
armrest cover.
!The Tele Aid system utilizes the cellular
network for communication and the GPS
(G
lobal Positioning System) satellites for vehicle
location. If either of these signals are unavail-
able, the Tele Aid system may not function and if
this occurs, assistance must be summoned by
other means.
W463.boo Seite 229 Montag, 19 . November 2007 8:41 08

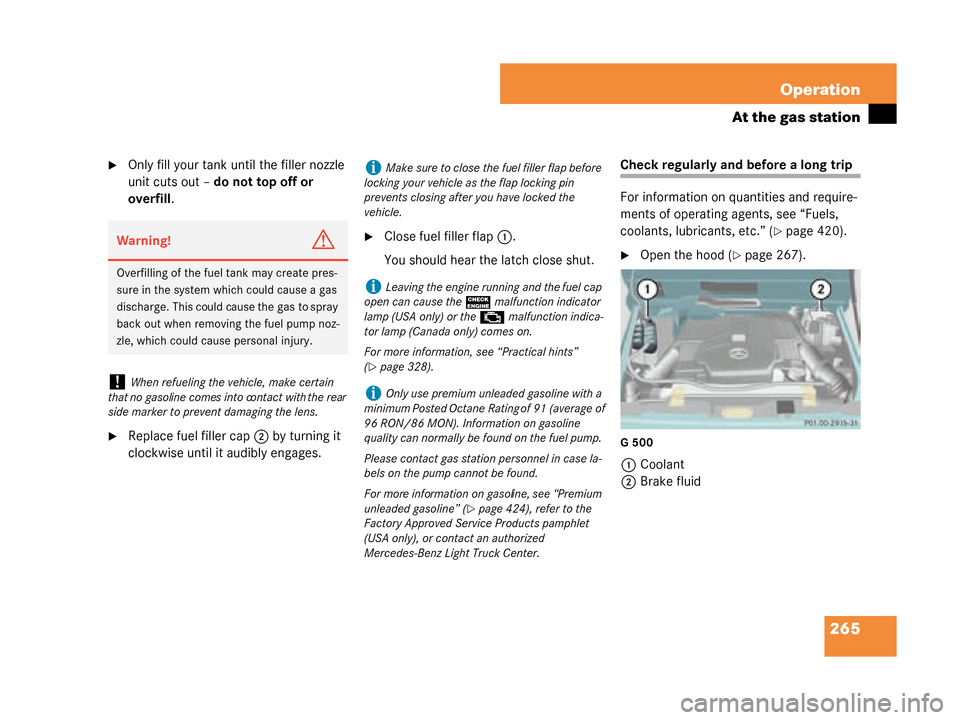

265
Operation
At the gas station
Only fill your tank until the filler nozzle
unit cuts out –
do not top off or
overfill .
Replace fuel filler cap 2 by turning it
clockwise until it audibly engages.
Close fuel filler flap 1.
You should hear the latch close shut.
Check regularly and before a long trip
For information on quantities and require-
ments of operating agents, see “Fuels,
coolants, lubricants, etc.” (
page 420).
Open the hood (page 267).
G 500
1 Coolant
2 Brake fluid
Warning!G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could caus e personal injury.
!When refueling the vehicle, make certain
that no gasoline comes into contact with the rear
side marker to prevent damaging the lens.
iMake sure to close the fuel filler flap before
locking your vehicle as the flap locking pin
prevents closing after you have locked the
vehicle.
iLeaving the engine running and the fuel cap
open can cause the ? malfunction indicator
lamp (USA only) or the ± malfunction indica-
tor lamp (Canada only) comes on.
For more information, see “Practical hints”
(
page 328).
iOnly use premium unleaded gasoline with a
minimum Posted Octane Rating of 91 (average of
96 RON/86 MON). Information on gasoline
quality can normally be found on the fuel pump.
Please contact gas station personnel in case la-
bels on the pump cannot be found.
For more information on gasoline, see “Premium
unleaded gasoline” (
page 424), refer to the
Factory Approved Service Products pamphlet
(USA only), or contact an authorized
Mercedes-Benz Light Truck Center.
W463.boo Seite 265 Montag, 19 . November 2007 8:41 08

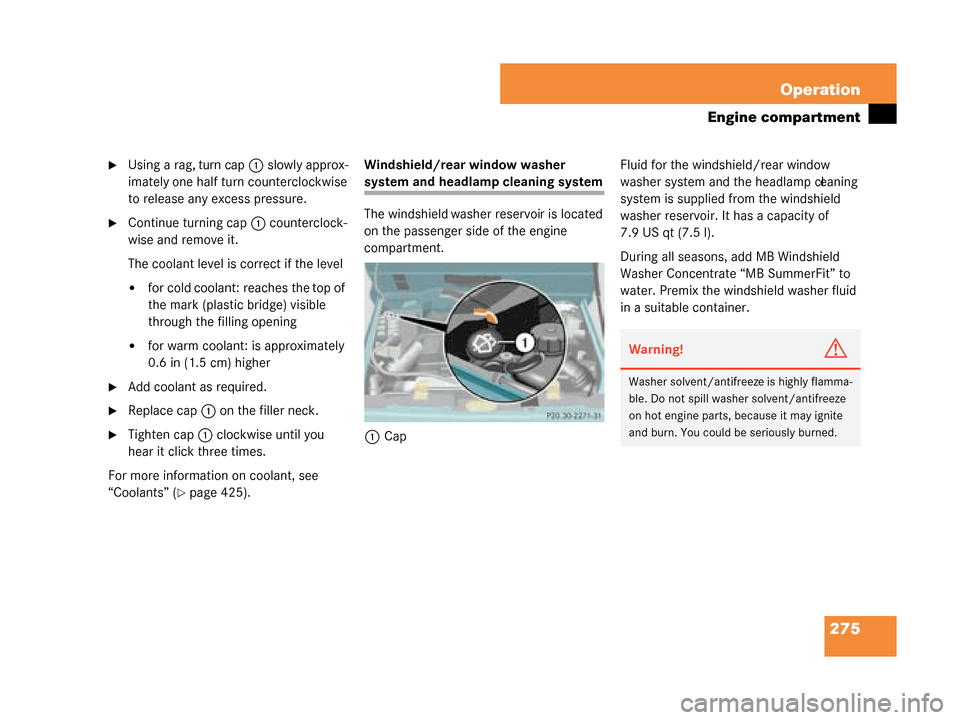

275
Operation
Engine compartment
Using a rag, turn cap
1 slowly approx-
imately one half turn counterclockwise
to release any excess pressure.
Continue turning cap 1 counterclock-
wise and remove it.
The coolant level is correct if the level

for cold coolant: reaches the top of
the mark (plastic bridge) visible
through the filling opening

for warm coolant: is approximately
0.6 in (1.5 cm) higher
Add coolant as required.
Replace cap 1 on the filler neck.
Tighten cap 1 clockwise until you
hear it click three times.
For more information on coolant, see
“Coolants” (
page 425). Windshield/rear window washer
system and headlamp cleaning system
The windshield washer reservoir is located
on the passenger side of the engine
compartment.
1 Cap Fluid for the windshield/rear window
washer system and the headlamp cleaning
system is supplied from the windshield
washer reservoir. It
has a capacity of
7.9 US qt (7.5 l).
During all seasons, add MB Windshield
Washer Concentrate “MB SummerFit” to
water. Premix the windshield washer fluid
in a suitable container.
Warning!G
Washer solvent/antifreez e is highly flamma-
ble. Do not spill wash er solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
W463.boo Seite 275 Montag, 19 . November 2007 8:41 08

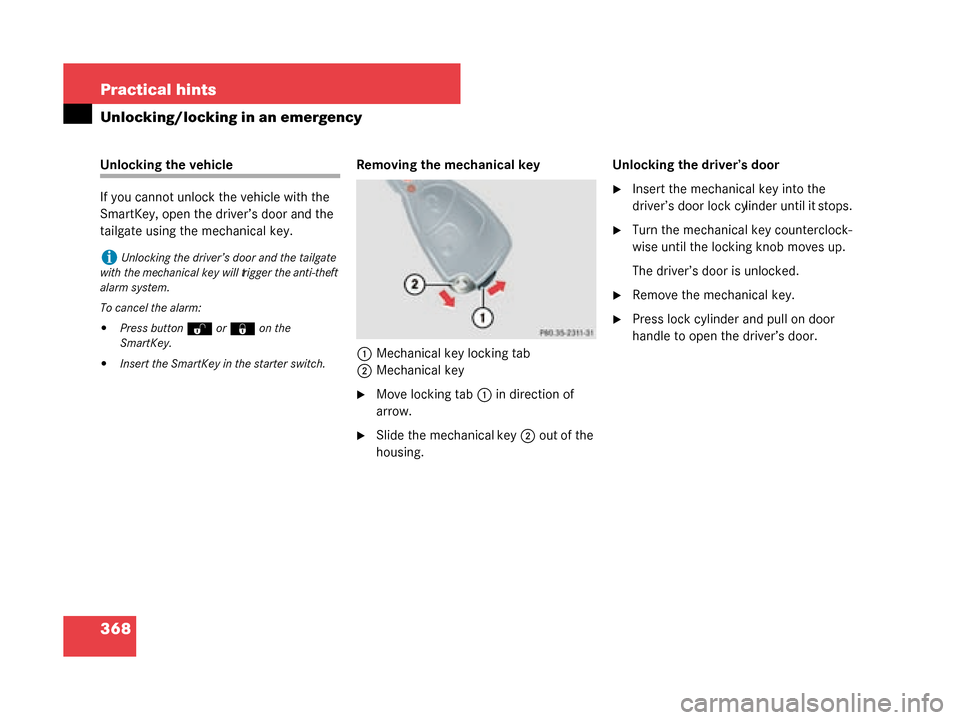

368 Practical hints
Unlocking/locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey, open the driver’s door and the
tailgate using the mechanical key.Removing the mechanical key
1 Mechanical key locking tab
2 Mechanical key
Move locking tab 1 in direction of
arrow.
Slide the mechanical key 2 out of the
housing. Unlocking the driver’s door
Insert the mechanical key into the
driver’s door lock cy
linder until it stops.
Turn the mechanical key counterclock-
wise until the locking knob moves up.
The driver’s door is unlocked.
Remove the mechanical key.
Press lock cylinder and pull on door
handle to open the driver’s door.
iUnlocking the driver’s door and the tailgate
with the mechanical key will trigger the anti-theft
alarm system.
To cancel the alarm:

Press button Œ or‹ on the
SmartKey.

Insert the SmartKey in the starter switch.
W463.boo Seite 368 Montag, 19 . November 2007 8:41 08

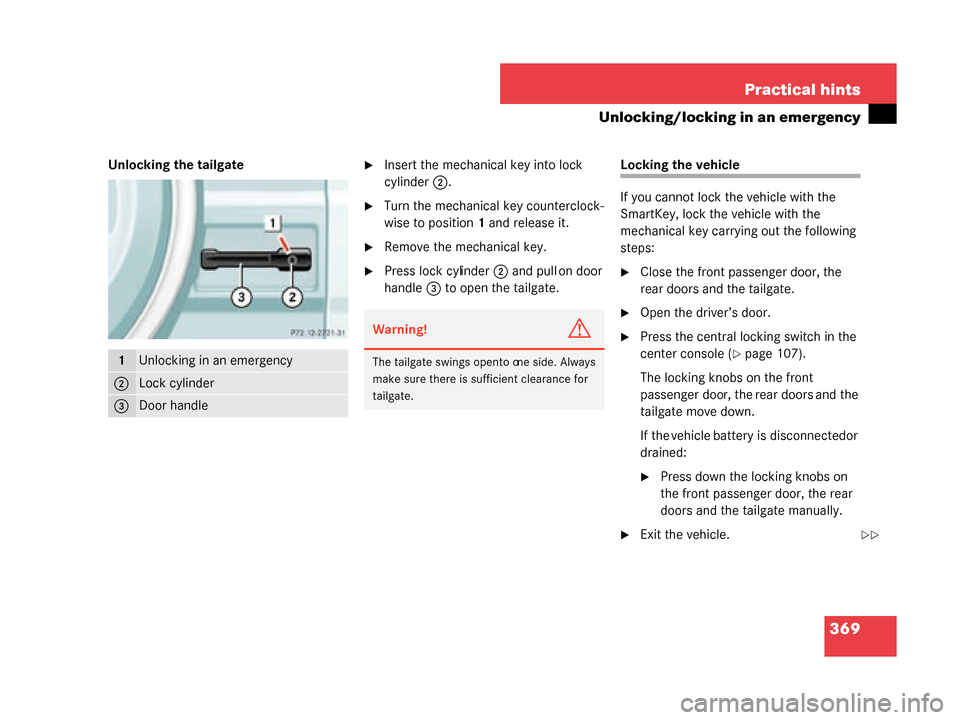

369
Practical hints
Unlocking/locking in an emergency
Unlocking the tailgateInsert the mechanical key into lock
cylinder
2.
Turn the mechanical key counterclock-
wise to position 1 and release it.
Remove the mechanical key.
Press lock cylinder 2 and pull on door
handle 3 to open the tailgate.
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey, lock the vehicle with the
mechanical key carrying out the following
steps:
Close the front passenger door, the
rear doors and the tailgate.
Open the driver’s door.
Press the central locking switch in the
center console (
page 107).
The locking knobs on the front
passenger door, the rear doors and the
tailgate move down.
If the vehicle battery is disconnected or
drained:
Press down the locking knobs on
the front passenger door, the rear
doors and the tailgate manually.
Exit the vehicle.
1Unlocking in an emergency
2Lock cylinder
3Door handle
Warning!G
The tailgate swings open to one side. Always
make sure there is sufficient clearance for
tailgate.

W463.boo Seite 369 Montag, 19 . November 2007 8:41 08

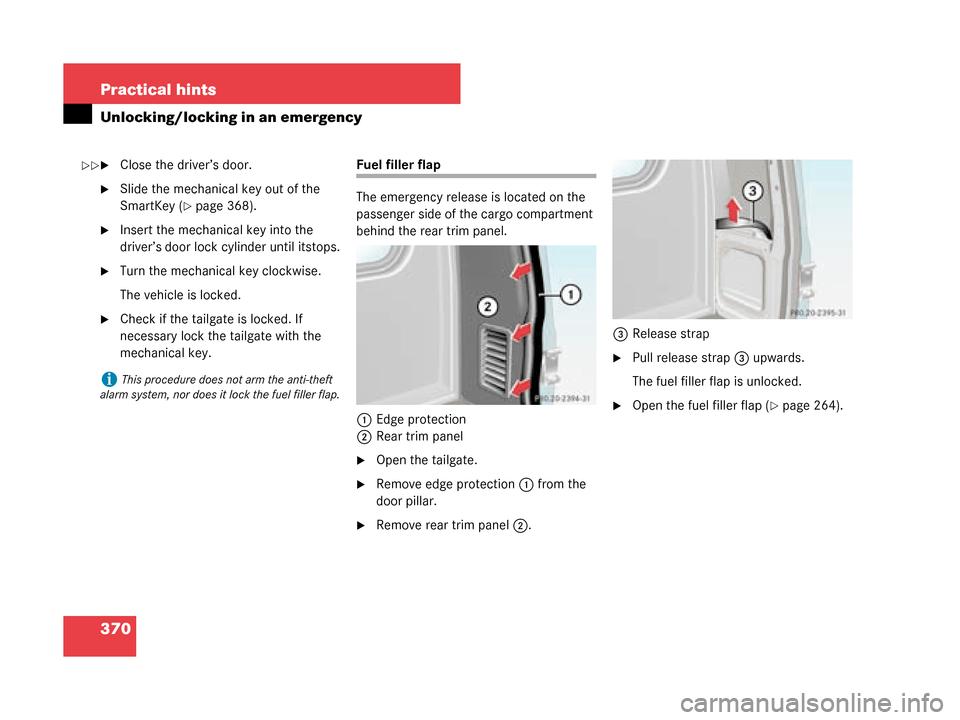

370 Practical hints
Unlocking/locking in an emergency
Close the driver’s door.
Slide the mechanical key out of the
SmartKey (
page 368).
Insert the mechanical key into the
driver’s door lock cylinder until it stops.
Turn the mechanical key clockwise.
The vehicle is locked.
Check if the tailgate is locked. If
necessary lock the tailgate with the
mechanical key.
Fuel filler flap
The emergency release is located on the
passenger side of the cargo compartment
behind the rear trim panel.1 Edge protection
2 Rear trim panel
Open the tailgate.
Remove edge protection 1 from the
door pillar.
Remove rear trim panel 2. 3
Release strap
Pull release strap 3 upwards.
The fuel filler flap is unlocked.
Open the fuel filler flap (page 264).
iThis procedure does not arm the anti-theft
alarm system, nor does it lock the fuel filler flap.

W463.boo Seite 370 Montag, 19 . November 2007 8:41 08
