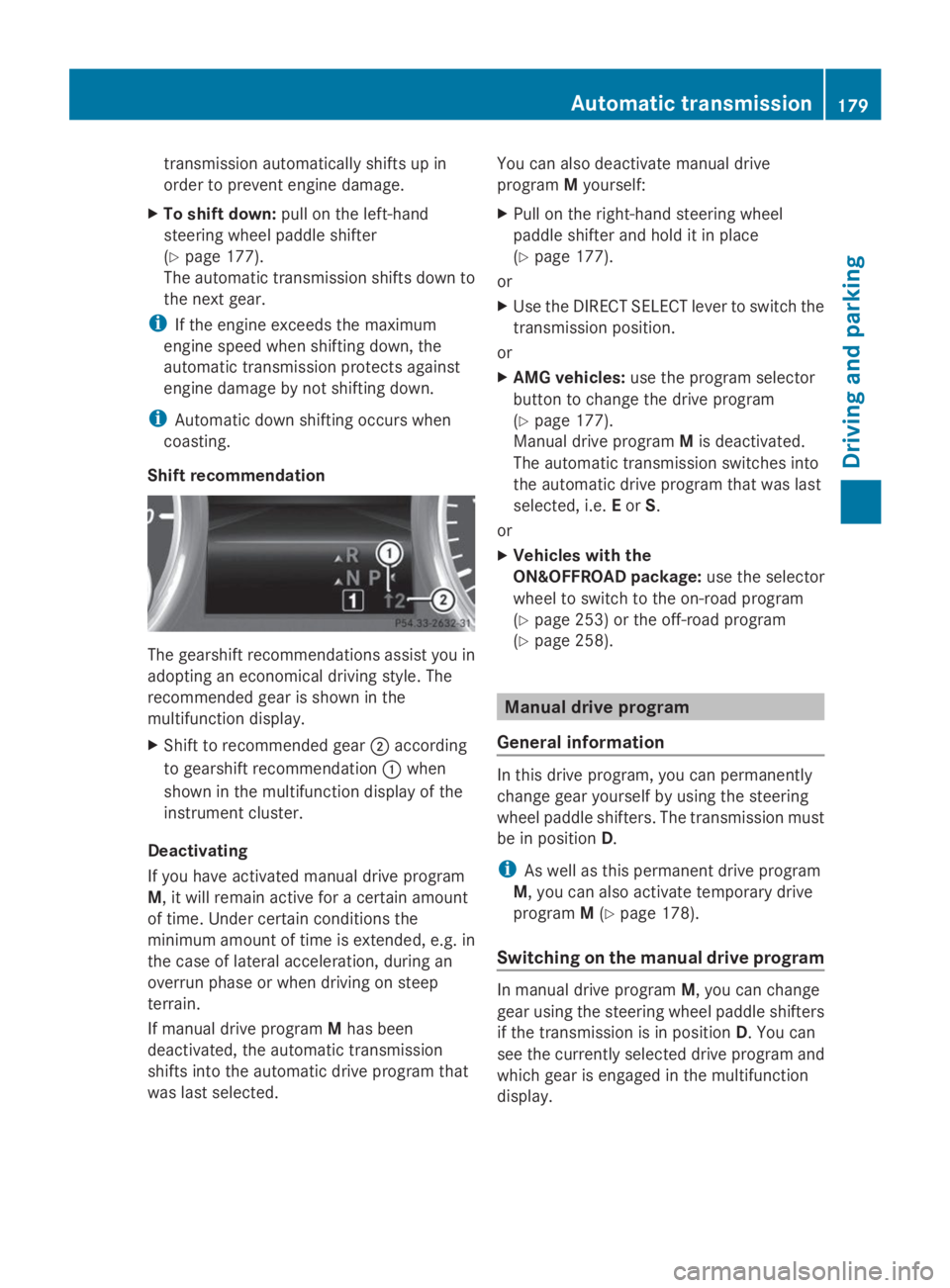

transmission automatically shifts up in
order to prevent engine damage.
XTo shift down:pull on the left-hand
steering wheel paddle shifter
(Ypage 177).
The automatic transmission shifts down to
the next gear.
iIf the engine exceeds the maximum
engine speed when shifting down, the
automatic transmission protects against
engine damage by not shifting down.
iAutomatic down shifting occurs when
coasting.
Shift recommendation
The gearshift recommendations assist you in
adopting an economical driving style. The
recommended gear is shown in the
multifunction display.
XShift to recommended gearDaccording
to gearshift recommendationCwhen
shown in the multifunction display of the
instrument cluster.
Deactivating
If you have activated manual drive program
M, it will remain active for a certain amount
of time. Under certain conditions the
minimum amount of time is extended, e.g. in
the case of lateral acceleration, during an
overrun phase or when driving on steep
terrain.
If manual drive programMhas been
deactivated, the automatic transmission
shifts into the automatic drive program that
was last selected.
You can also deactivate manual drive
programMyourself:
XPull on the right-hand steering wheel
paddle shifter and hold it in place
(Ypage 177).
or
XUse the DIRECT SELECT lever to switch the
transmission position.
or
XAMG vehicles:use the program selector
button to change the drive program
(Ypage 177).
Manual drive programMis deactivated.
The automatic transmission switches into
the automatic drive program that was last
selected, i.e.EorS.
or
XVehicles with the
ON&OFFROAD package:use the selector
wheel to switch to the on-road program
(Ypage 253) or the off-road program
(Ypage 258).
Manual drive program
General information
In this drive program, you can permanently
change gear yourself by using the steering
wheel paddle shifters. The transmission must
be in positionD.
iAs well as this permanent drive program
M, you can also activate temporary drive
programM(Ypage 178).
Switching on the manual drive program
In manual drive programM, you can change
gear using the steering wheel paddle shifters
if the transmission is in positionD. You can
see the currently selected drive program and
which gear is engaged in the multifunction
display.
Automatic transmission179
Driving and pa rking
Z

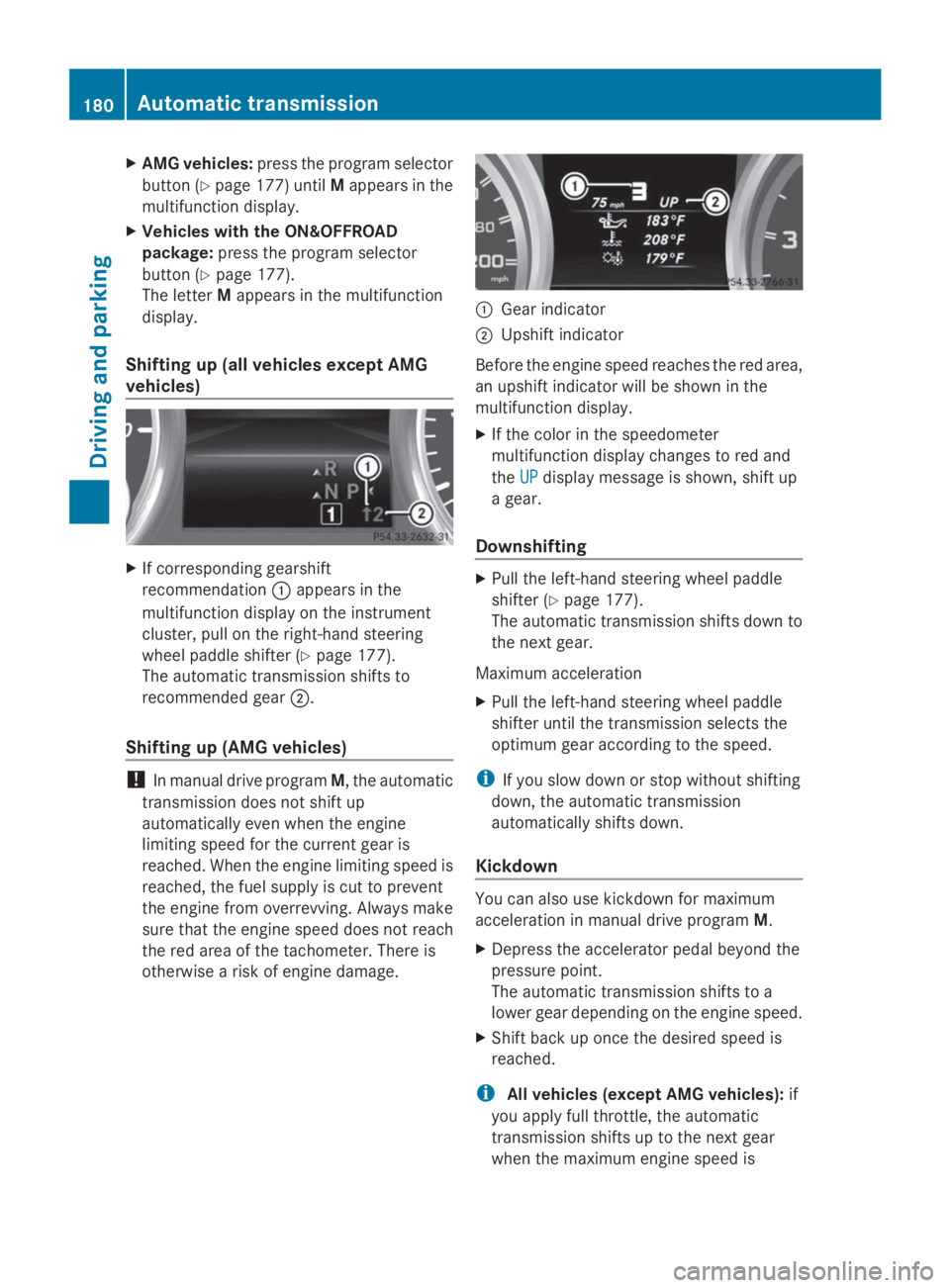

XAMG vehicles:press the program selector
button (Ypage 177) untilMappears in the
multifunction display.
XVehicles with the ON&OFFROAD
package:press the program selector
button (Ypage 177).
The letterMappears in the multifunction
display.
Shifting up (all vehicles except AMG
vehicles)
XIf corresponding gearshift
recommendationCappears in the
multifunction display on the instrument
cluster, pull on the right-hand steering
wheel paddle shifter (Ypage 177).
The automatic transmission shifts to
recommended gearD.
Shifting up (AMG vehicles)
!In manual drive programM, the automatic
transmission does not shift up
automatically even when the engine
limiting speed for the current gear is
reached. When the engine limiting speed is
reached, the fuel supply is cut to prevent
the engine from overrevving. Always make
sure that the engine speed does not reach
the red area of the tachometer. There is
otherwise a risk of engine damage.
CGear indicator
DUpshift indicator
Before the engine speed reaches the red area,
an upshift indicator will be shown in the
multifunction display.
XIf the color in the speedometer
multifunction display changes to red and
theUPUPdisplay message is shown, shift up
a gear.
Downshifting
XPull the left-hand steering wheel paddle
shifter (Ypage 177).
The automatic transmission shifts down to
the next gear.
Maximum acceleration
XPull the left-hand steering wheel paddle
shifter until the transmission selects the
optimum gear according to the speed.
iIf you slow down or stop without shifting
down, the automatic transmission
automatically shifts down.
Kickdown
You can also use kickdown for maximum
acceleration in manual drive programM.
XDepress the accelerator pedal beyond the
pressure point.
The automatic transmission shifts to a
lower gear depending on the engine speed.
XShift back up once the desired speed is
reached.
iAll vehicles (except AMG vehicles):if
you apply full throttle, the automatic
transmission shifts up to the next gear
when the maximum engine speed is
180Automatic transmission
Driving and pa rking

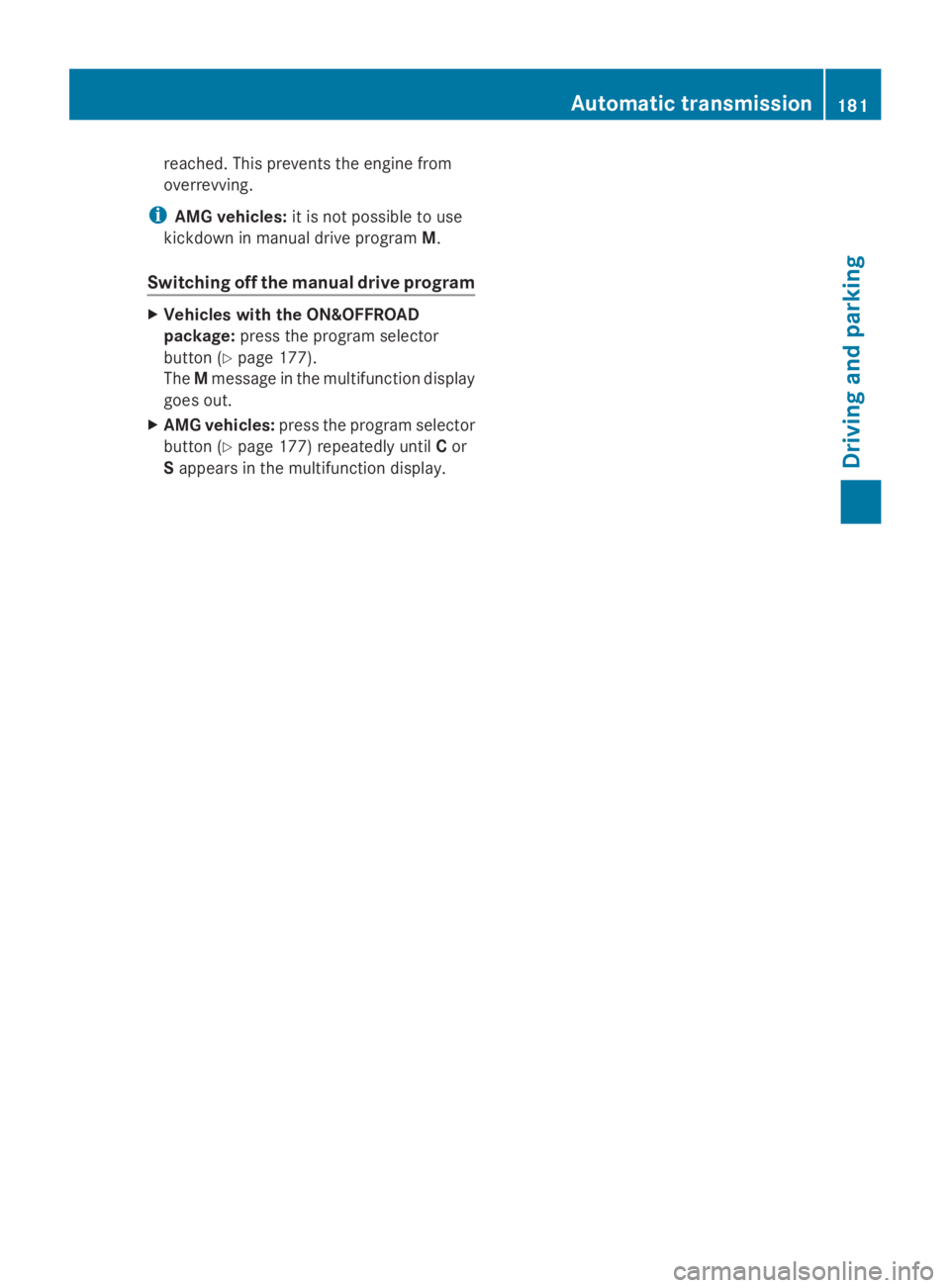

reached. This prevents the engine from
overrevving.
iAMG vehicles:it is not possible to use
kickdown in manual drive programM.
Switching off the manual drive program
XVehicles with the ON&OFFROAD
package:press the program selector
button (Ypage 177).
TheMmessage in the multifunction display
goes out.
XAMG vehicles:press the program selector
button (Ypage 177) repeatedly untilCor
Sappears in the multifunction display.
Automatic transmission181
Driving and parking
Z

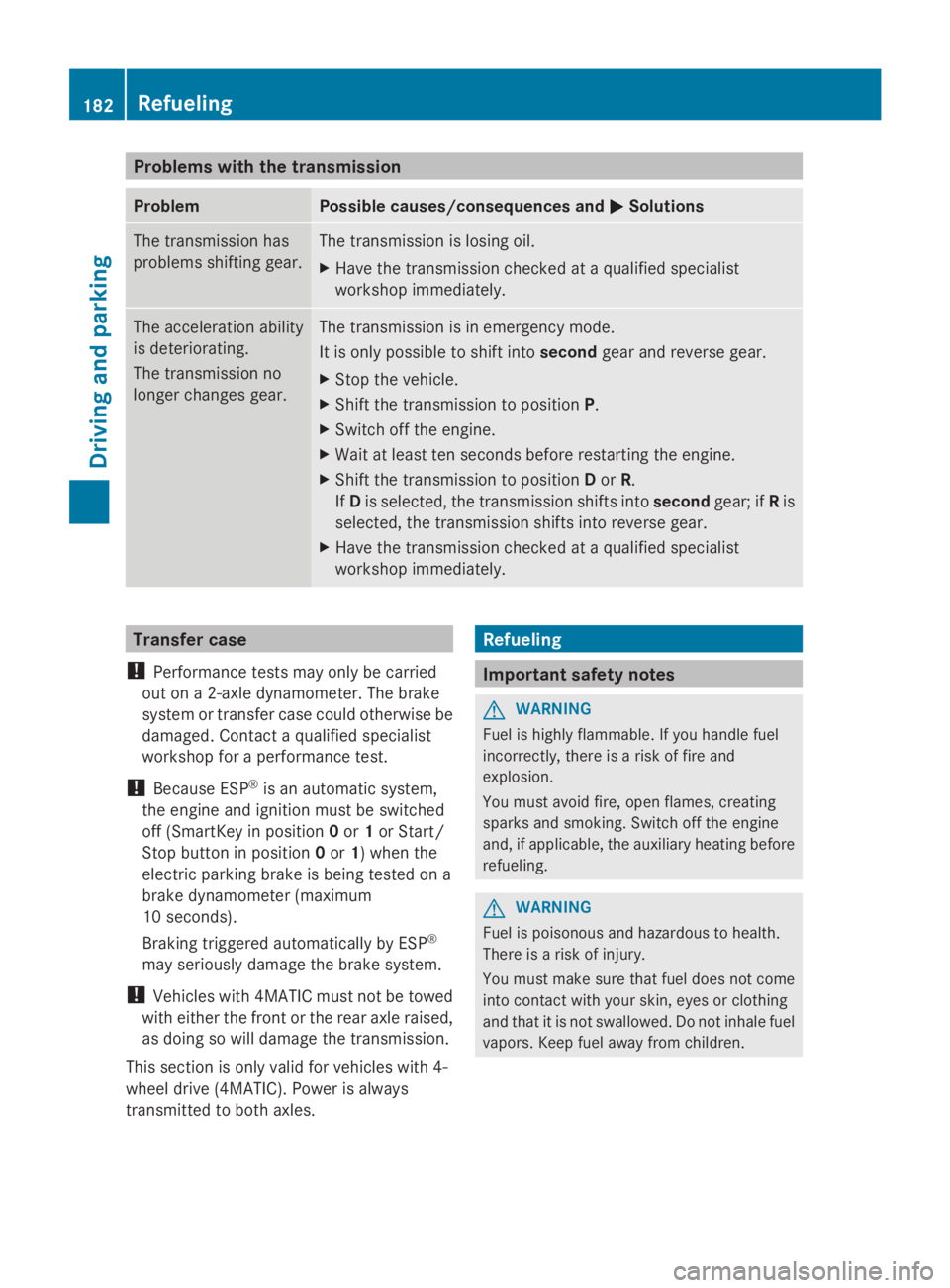

Problems with the transmission
ProblemPossible causes/consequences andPPSolutions
The transmission has
problems shifting gear.
The transmission is losing oil.
XHave the transmission checked at a qualified specialist
workshop immediately.
The acceleration ability
is deteriorating.
The transmission no
longer changes gear.
The transmission is in emergency mode.
It is only possible to shift intosecondgear and reverse gear.
XStop the vehicle.
XShift the transmission to positionP.
XSwitch off the engine.
XWait at least ten seconds before restarting the engine.
XShift the transmission to positionDorR.
IfDis selected, the transmission shifts intosecondgear; ifRis
selected, the transmission shifts into reverse gear.
XHave the transmission checked at a qualified specialist
workshop immediately.
Transfer case
!Performance tests may only be carried
out on a 2-axle dynamometer. The brake
system or transfer case could otherwise be
damaged. Contact a qualified specialist
workshop for a performance test.
!Because ESP®is an automatic system,
the engine and ignition must be switched
off (SmartKey in position0or1or Start/
Stop button in position0or1) when the
electric parking brake is being tested on a
brake dynamometer (maximum
10 seconds).
Braking triggered automatically by ESP®
may seriously damage the brake system.
!Vehicles with 4MATIC must not be towed
with either the front or the rear axle raised,
as doing so will damage the transmission.
This section is only valid for vehicles with 4-
wheel drive (4MATIC). Power is always
transmitted to both axles.
Refueling
Important safety notes
GWARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and
explosion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before
refueling.
GWARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury.
You must make sure that fuel does not come
into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
182Refueling
Driving and parking

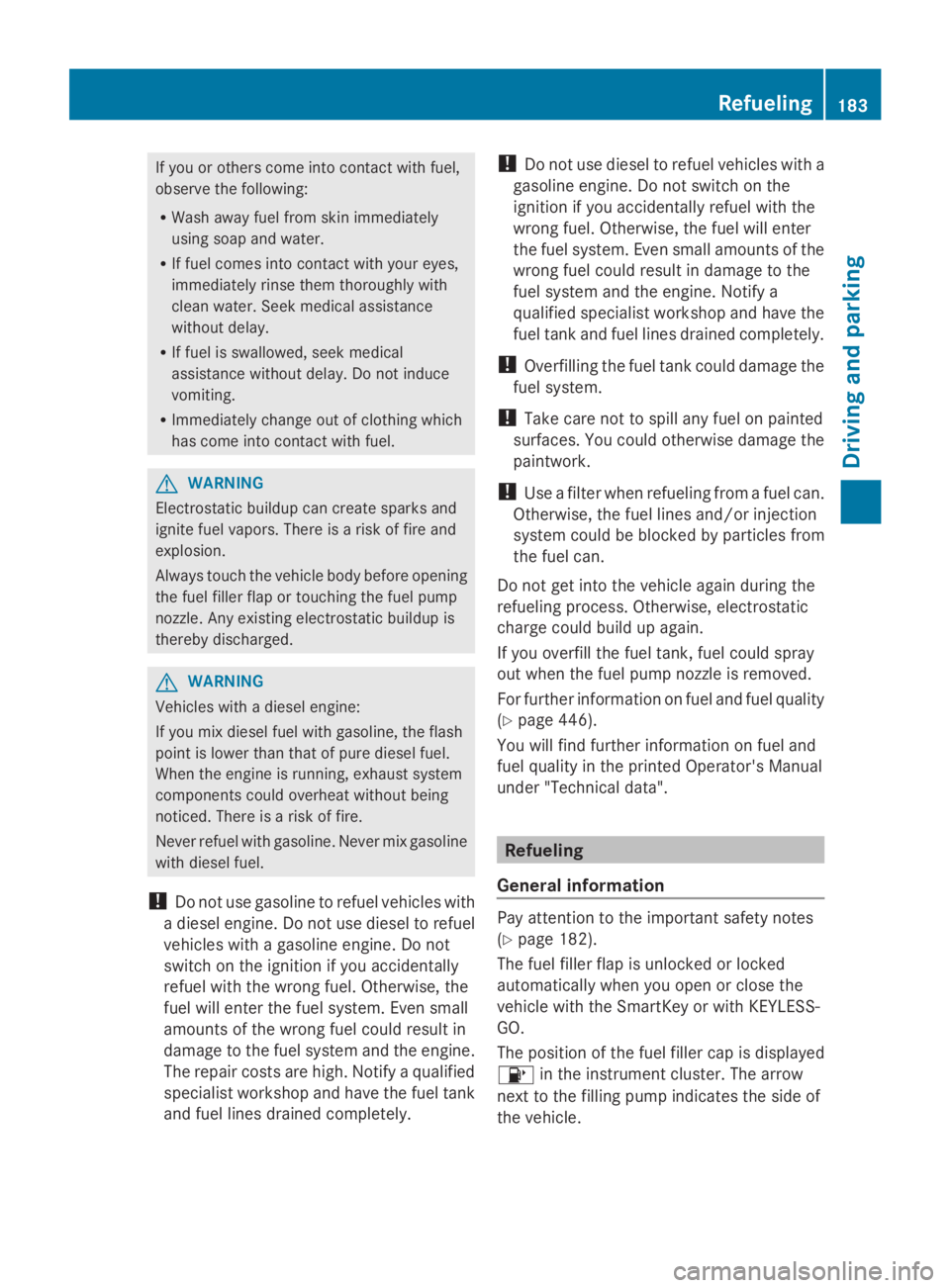

If you or others come into contact with fuel,
observe the following:
RWash away fuel from skin immediately
using soap and water.
RIf fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance
without delay.
RIf fuel is swallowed, seek medical
assistance without delay. Do not induce
vomiting.
RImmediately change out of clothing which
has come into contact with fuel.
GWARNING
Electrostatic buildup can create sparks and
ignite fuel vapors. There is a risk of fire and
explosion.
Always touch the vehicle body before opening
the fuel filler flap or touching the fuel pump
nozzle. Any existing electrostatic buildup is
thereby discharged.
GWARNING
Vehicles with a diesel engine:
If you mix diesel fuel with gasoline, the flash
point is lower than that of pure diesel fuel.
When the engine is running, exhaust system
components could overheat without being
noticed. There is a risk of fire.
Never refuel with gasoline. Never mix gasoline
with diesel fuel.
!Do not use gasoline to refuel vehicles with
a diesel engine. Do not use diesel to refuel
vehicles with a gasoline engine. Do not
switch on the ignition if you accidentally
refuel with the wrong fuel. Otherwise, the
fuel will enter the fuel system. Even small
amounts of the wrong fuel could result in
damage to the fuel system and the engine.
The repair costs are high. Notify a qualified
specialist workshop and have the fuel tank
and fuel lines drained completely.
!Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the
ignition if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notify a
qualified specialist workshop and have the
fuel tank and fuel lines drained completely.
!Overfilling the fuel tank could damage the
fuel system.
!Take care not to spill any fuel on painted
surfaces. You could otherwise damage the
paintwork.
!Use a filter when refueling from a fuel can.
Otherwise, the fuel lines and/or injection
system could be blocked by particles from
the fuel can.
Do not get into the vehicle again during the
refueling process. Otherwise, electrostatic
charge could build up again.
If you overfill the fuel tank, fuel could spray
out when the fuel pump nozzle is removed.
For further information on fuel and fuel quality
(Ypage 446).
You will find further information on fuel and
fuel quality in the printed Operator's Manual
under "Technical data".
Refueling
General information
Pay attention to the important safety notes
(Ypage 182).
The fuel filler flap is unlocked or locked
automatically when you open or close the
vehicle with the SmartKey or with KEYLESS-
GO.
The position of the fuel filler cap is displayed

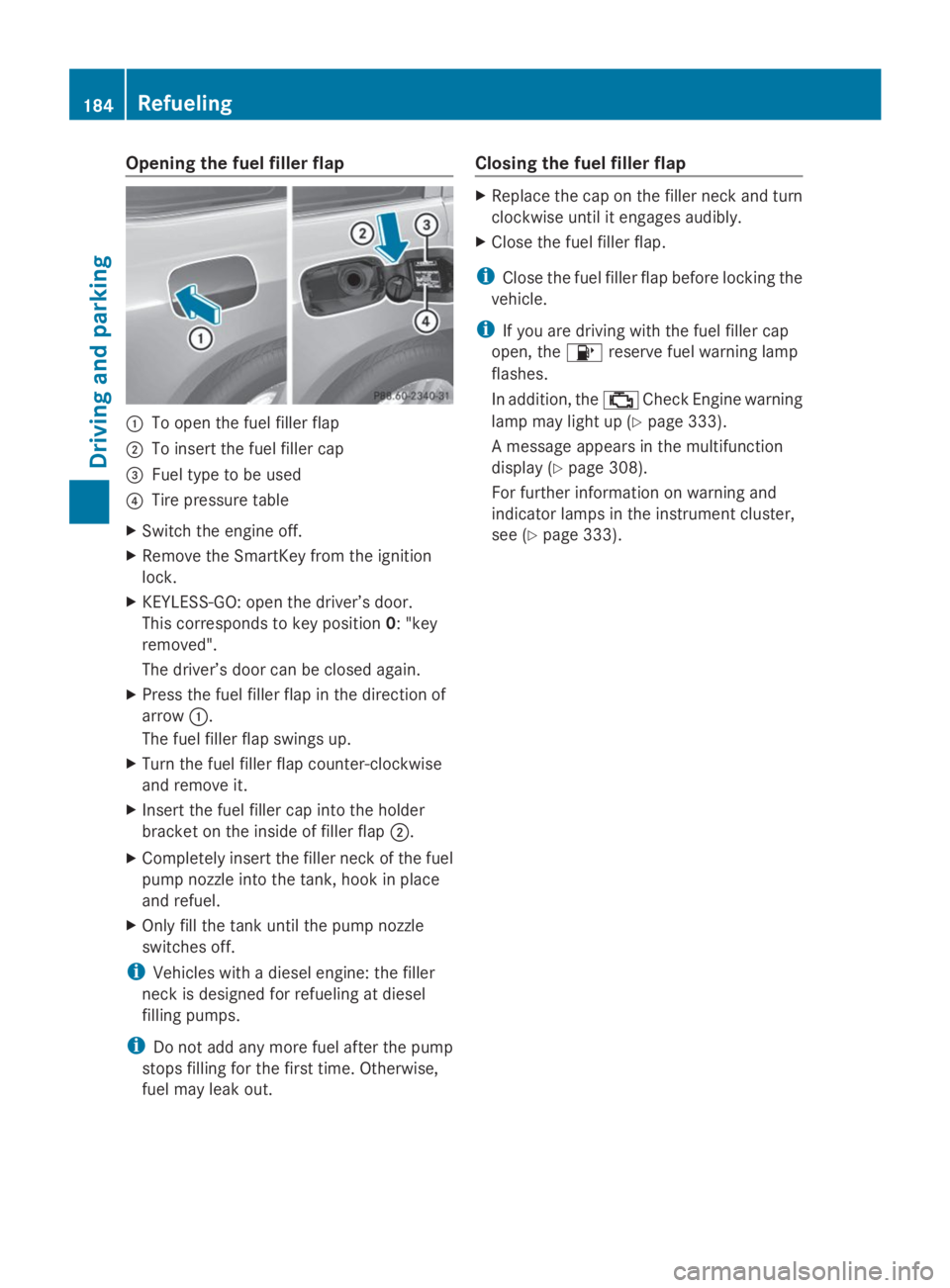

Opening the fuel filler flap
CTo open the fuel filler flap
DTo insert the fuel filler cap

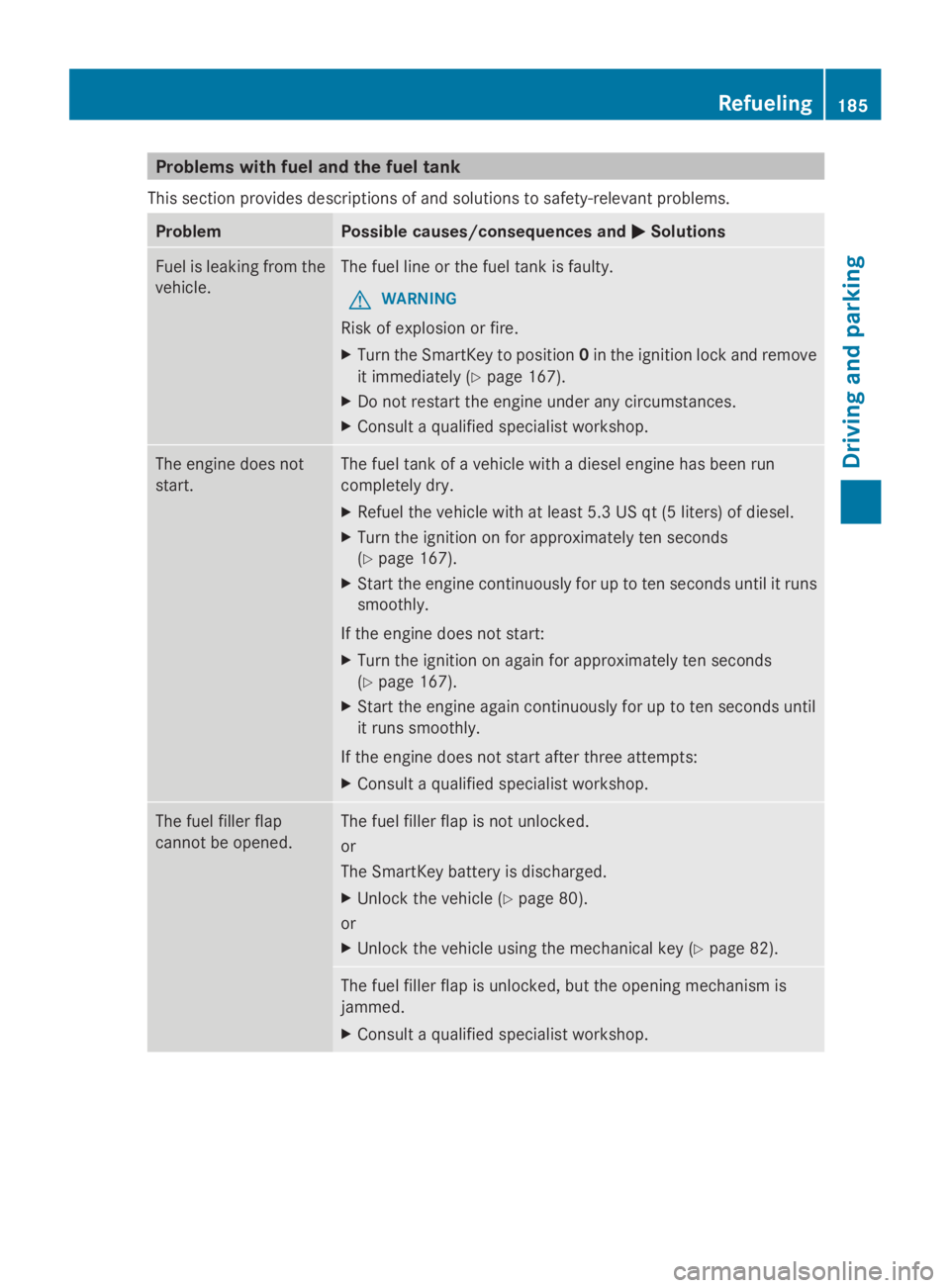

Problems with fuel and the fuel tank
This section provides descriptions of and solutions to safety-relevant problems.
ProblemPossible causes/consequences andPPSolutions
Fuel is leaking from the
vehicle.
The fuel line or the fuel tank is faulty.
GWARNING
Risk of explosion or fire.
XTurn the SmartKey to position0in the ignition lock and remove
it immediately (Ypage 167).
XDo not restart the engine under any circumstances.
XConsult a qualified specialist workshop.
The engine does not
start.
The fuel tank of a vehicle with a diesel engine has been run
completely dry.
XRefuel the vehicle with at least 5.3 US qt (5 liters) of diesel.
XTurn the ignition on for approximately ten seconds
(Ypage 167).
XStart the engine continuously for up to ten seconds until it runs
smoothly.
If the engine does not start:
XTurn the ignition on again for approximately ten seconds
(Ypage 167).
XStart the engine again continuously for up to ten seconds until
it runs smoothly.
If the engine does not start after three attempts:
XConsult a qualified specialist workshop.
The fuel filler flap
cannot be opened.
The fuel filler flap is not unlocked.
or
The SmartKey battery is discharged.
XUnlock the vehicle (Ypage 80).
or
XUnlock the vehicle using the mechanical key (Ypage 82).
The fuel filler flap is unlocked, but the opening mechanism is
jammed.
XConsult a qualified specialist workshop.
Refueling185
Driving and parking
Z

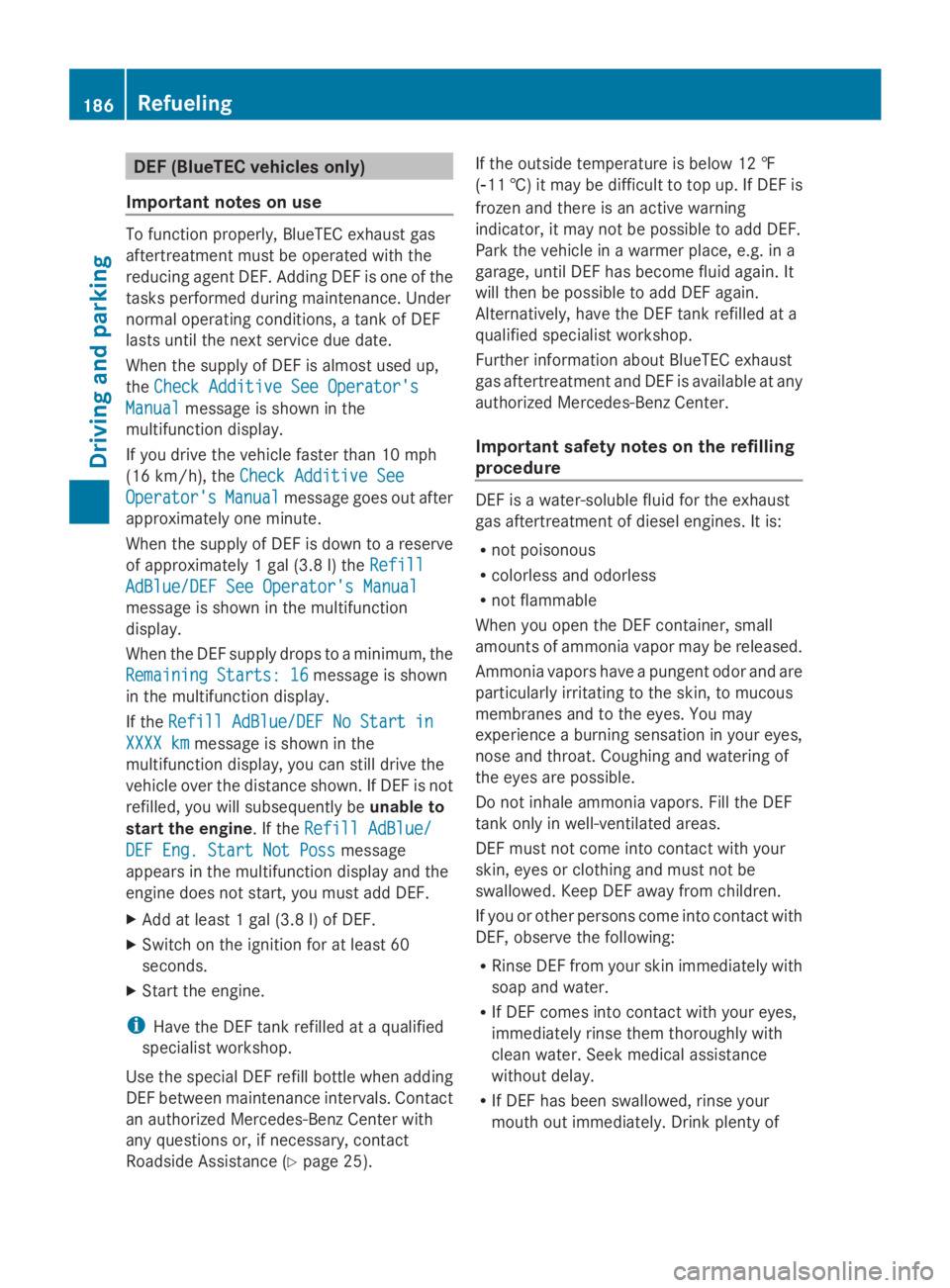

DEF (BlueTEC vehicles only)
Important notes on use
To function properly, BlueTEC exhaust gas
aftertreatment must be operated with the
reducing agent DEF. Adding DEF is one of the
tasks performed during maintenance. Under
normal operating conditions, a tank of DEF
lasts until the next service due date.
When the supply of DEF is almost used up,
theCheck Additive See Operator'sCheck Additive See Operator's
ManualManualmessage is shown in the
multifunction display.
If you drive the vehicle faster than 10 mph
(16 km/h), theCheck Additive SeeCheck Additive See
Operator'sOperator'sManualManualmessage goes out after
approximately one minute.
When the supply of DEF is down to a reserve
of approximately 1 gal (3.8 l) theRefillRefill
AdBlue/DEF See Operator's ManualAdBlue/DEF See Operator's Manual
message is shown in the multifunction
display.
When the DEF supply drops to a minimum, the
Remaining Starts: 16Remaining Starts: 16message is shown
in the multifunction display.
If theRefill AdBlue/DEF No Start inRefill AdBlue/DEF No Start in
XXXX kmXXXX kmmessage is shown in the
multifunction display, you can still drive the
vehicle over the distance shown. If DEF is not
refilled, you will subsequently beunable to
start the engine. If theRefill AdBlue/Refill AdBlue/
DEF Eng. Start Not PossDEF Eng. Start Not Possmessage
appears in the multifunction display and the
engine does not start, you must add DEF.
XAdd at least 1 gal(3.8l) of DEF.
XSwitch on the ignition for at least 60
seconds.
XStart the engine.
iHave the DEF tank refilled at a qualified
specialist workshop.
Use the special DEF refill bottle when adding
DEF between maintenance intervals. Contact
an authorized Mercedes-Benz Center with
any questions or, if necessary, contact
Roadside Assistance (Ypage 25).
If the outside temperature is below 12 ‡
(

water. Seek medical assistance without
delay.
RChange out of clothing contaminated with
DEF immediately.
!Only use DEF in accordance with
ISO 22241. Do not mix any additives with
DEF, and do not dilute DEF with water. This
may destroy the BlueTEC exhaust gas
aftertreatment system.
!The vehicle must be parked on level
ground to fill the DEF tank. The DEF tank
can only be filled as intended with the
vehicle parked on a level surface. This
avoids false level readings. Filling the tank
is not permitted if the vehicle is not parked
on a level surface. There is a danger of
overfilling, which could result in damage to
components of the BlueTEC exhaust gas
aftertreatment.
!Rinse surfaces that have come into
contact with DEF immediately with water or
remove DEF using a damp cloth and cold
water. If the DEF has already crystallized,
use a sponge and cold water to clean it. DEF
residues crystallize after time and
contaminate the affected surfaces.
!DEF is not a fuel additive and must not be
added to the fuel tank. If DEF is added to
the fuel tank, this can lead to engine
damage.
For further information on DEF, see
(Ypage 448).
You will find further information on DEF in the
printed Operator's Manual under "Technical
data".

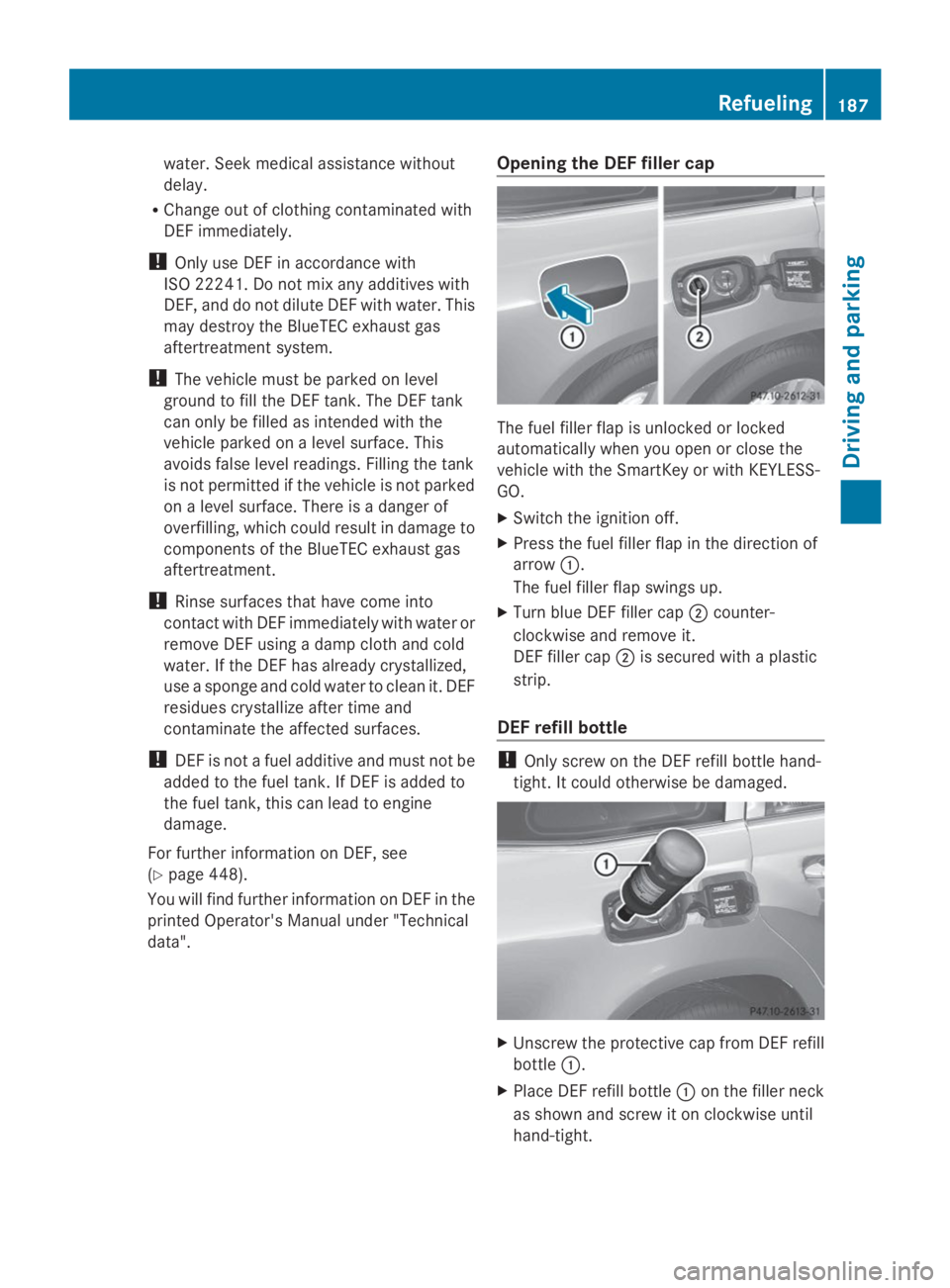

Opening the DEF filler cap
The fuel filler flap is unlocked or locked
automatically when you open or close the
vehicle with the SmartKey or with KEYLESS-
GO.
XSwitch the ignition off.
XPress the fuel filler flap in the direction of
arrowC.
The fuel filler flap swings up.
XTurn blue DEF filler capDcounter-
clockwise and remove it.
DEF filler capDis secured with a plastic
strip.
DEF refill bottle
!Only screw on the DEF refill bottle hand-
tight. It could otherwise be damaged.
XUnscrew the protective cap from DEF refill
bottleC.
XPlace DEF refill bottleCon the filler neck
as shown and screw it on clockwise until
hand-tight.
Refueling187
Driving and parking
Z

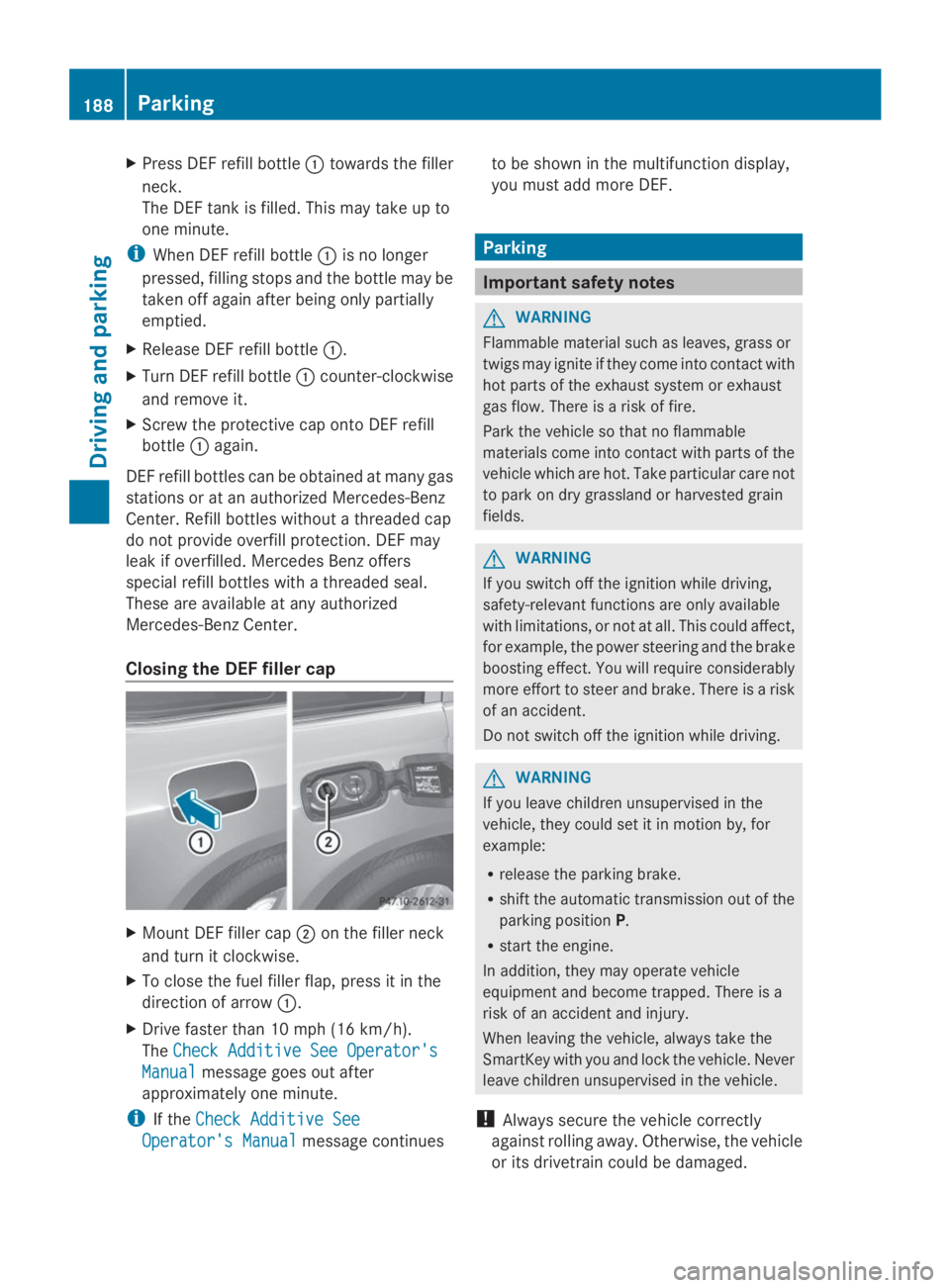

XPress DEF refill bottleCtowards the filler
neck.
The DEF tank is filled. This may take up to
one minute.
iWhen DEF refill bottleCis no longer
pressed, filling stops and the bottle may be
taken off again after being only partially
emptied.
XRelease DEF refill bottleC.
XTurn DEF refill bottleCcounter-clockwise
and remove it.
XScrew the protective cap onto DEF refill
bottleCagain.
DEF refill bottles can be obtained at many gas
stations or at an authorized Mercedes-Benz
Center. Refill bottles without a threaded cap
do not provide overfill protection. DEF may
leak if overfilled. Mercedes Benz offers
special refill bottles with a threaded seal.
These are available at any authorized
Mercedes-Benz Center.
Closing the DEF filler cap
XMount DEF filler capDon the filler neck
and turn it clockwise.
XTo close the fuel filler flap, press it in the
direction of arrowC.
XDrive faster than 10 mph (16 km/h).
TheCheck Additive See Operator'sCheck Additive See Operator's
ManualManualmessage goes out after
approximately one minute.
iIf theCheck Additive SeeCheck Additive See
Operator's ManualOperator's Manualmessage continues
to be shown in the multifunction display,
you must add more DEF.
Parking
Important safety notes
GWARNING
Flammable material such as leaves, grass or
twigs may ignite if they come into contact with
hot parts of the exhaust system or exhaust
gas flow. There is a risk of fire.
Park the vehicle so that no flammable
materials come into contact with parts of the
vehicle which are hot. Take particular care not
to park on dry grassland or harvested grain
fields.
GWARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect. You will require considerably
more effort to steer and brake. There is a risk
of an accident.
Do not switch off the ignition while driving.
GWARNING
If you leave children unsupervised in the
vehicle, they could set it in motion by, for
example:
Rrelease the parking brake.
Rshift the automatic transmission out of the
parking positionP.
Rstart the engine.
In addition, they may operate vehicle
equipment and become trapped. There is a
risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
!Always secure the vehicle correctly
against rolling away. Otherwise, the vehicle
or its drivetrain could be damaged.
188Parking
Driving and parking
