Page 221 of 462

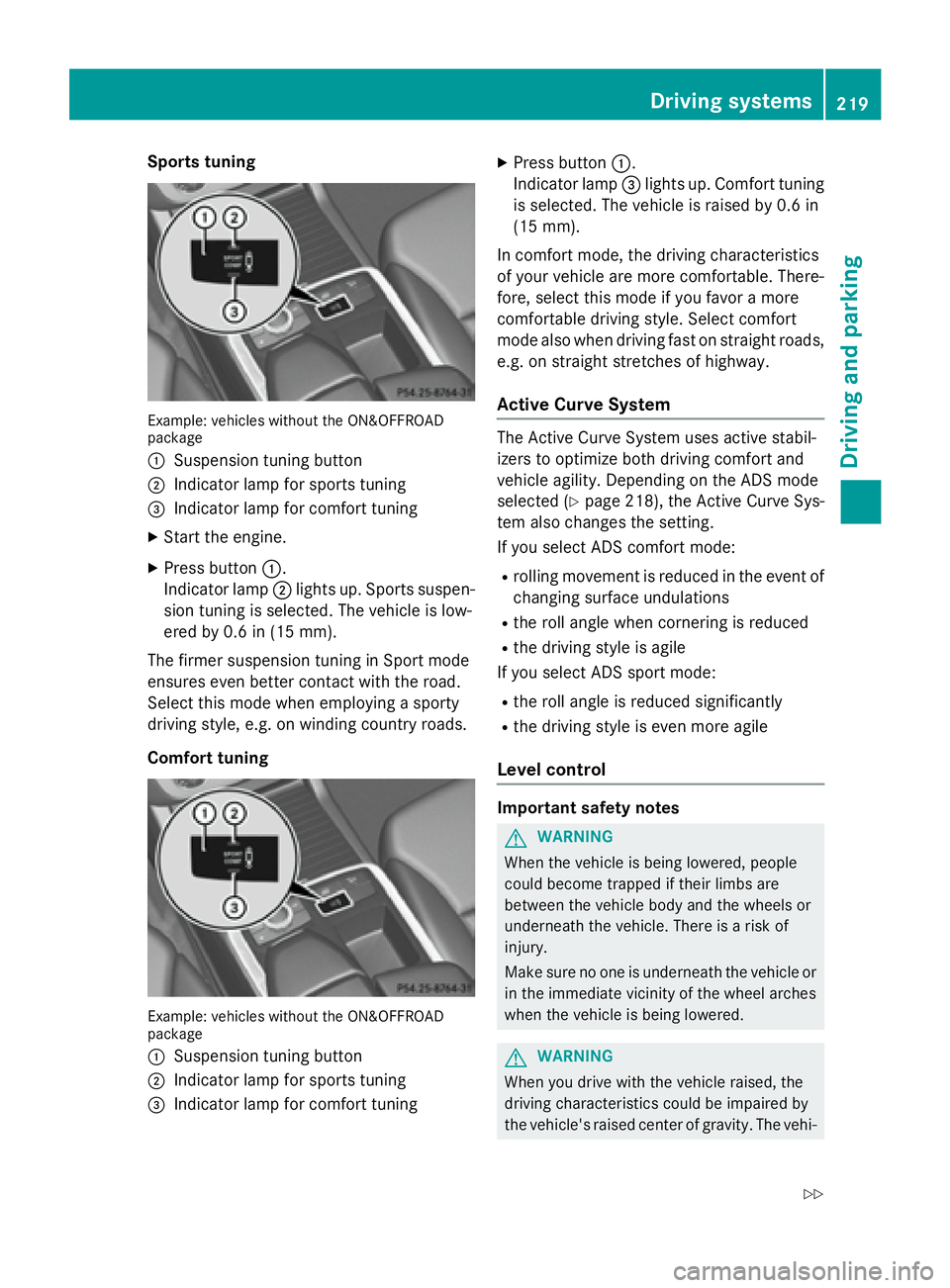

MERCEDES-BENZ GL 2016  Owners Manual Sports tuning
Example: vehicles without the ON&OFFROAD
package
�C
Suspension tuning button�D
Indicator lamp for sports tuning�

Page 222 of 462

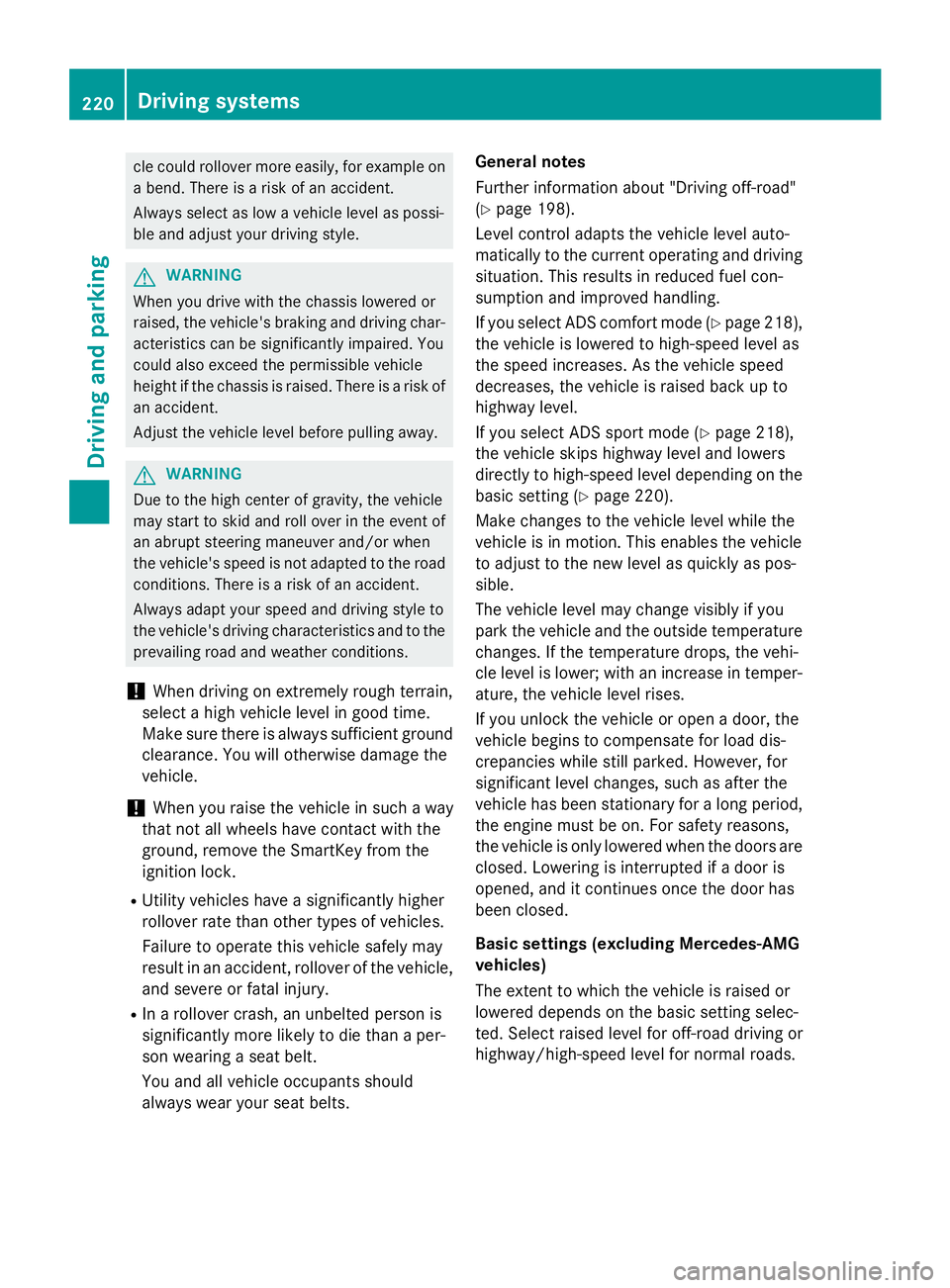

MERCEDES-BENZ GL 2016  Owners Manual cle could rollover more easily, for example on
a bend. There is a risk of an accident.
Always select as low a vehicle level as possi-
ble and adjust your driving style.
G WARNING
When you drive with t

Page 223 of 462

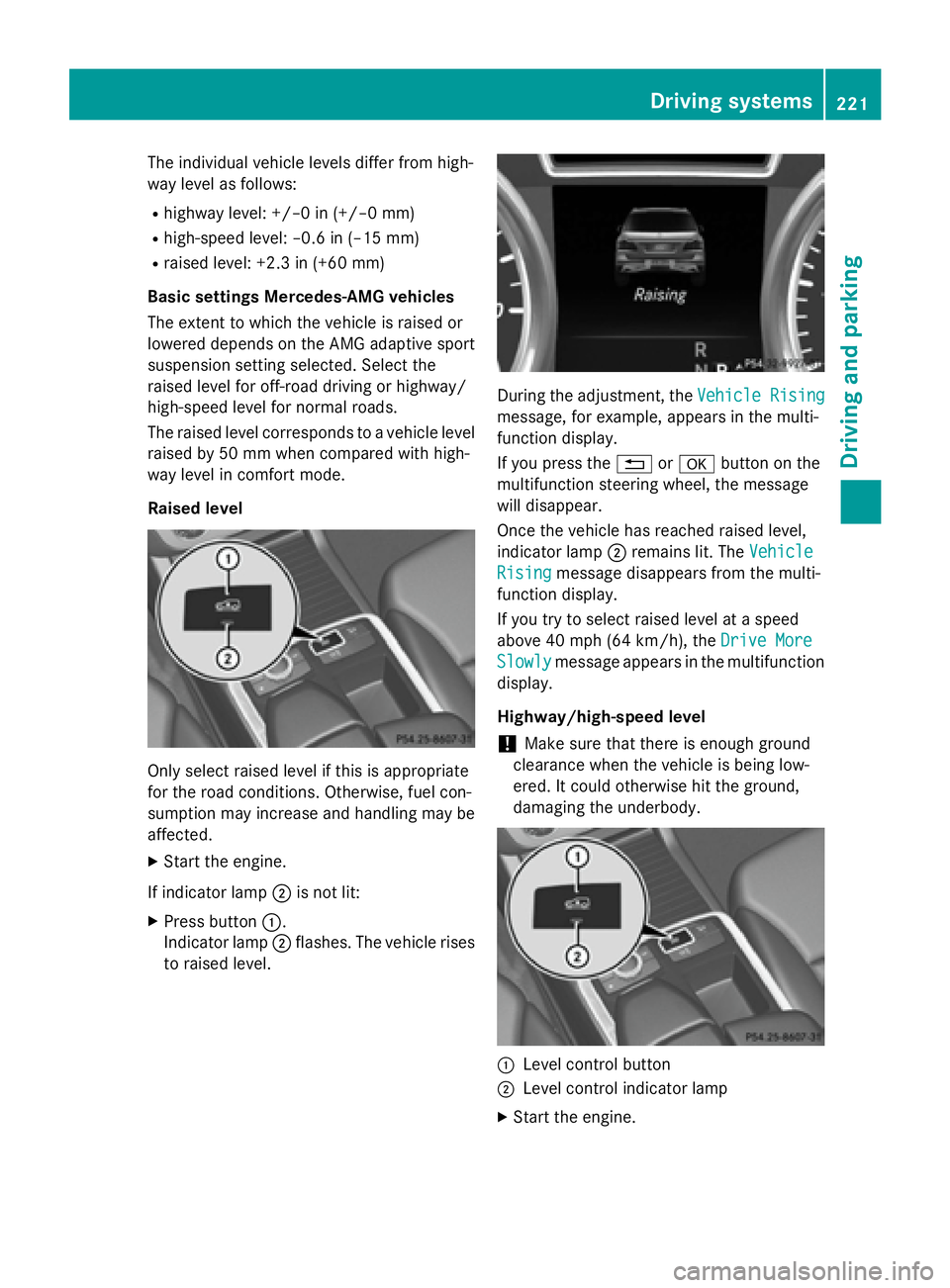

MERCEDES-BENZ GL 2016  Owners Manual The individual vehicle levels differ from high-
way level as follows: R
highway level: +/–0 in (+/–0 mm) R
high-speed level: –0.6 in (–15 mm) R
raised level: +2.3 in (+60 mm)
Basic settings Me

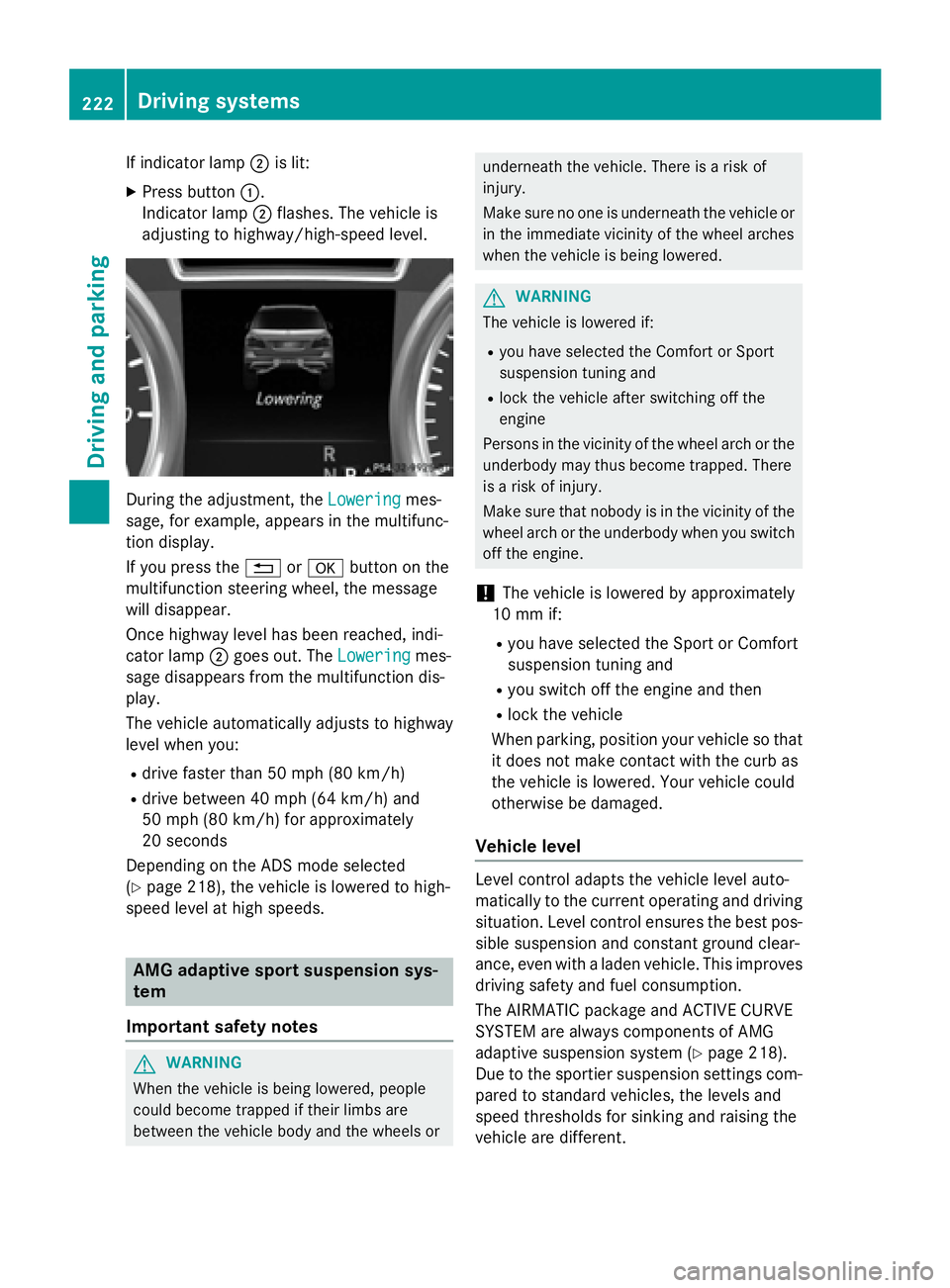

Page 224 of 462

MERCEDES-BENZ GL 2016  Owners Manual If indicator lamp �D is lit:X
Press button �C .
Indicator lamp �D flashes. The vehicle is
adjusting to highway/high-speed level.
During the adjustment, the Lowering mes-
sage, for example, appears in

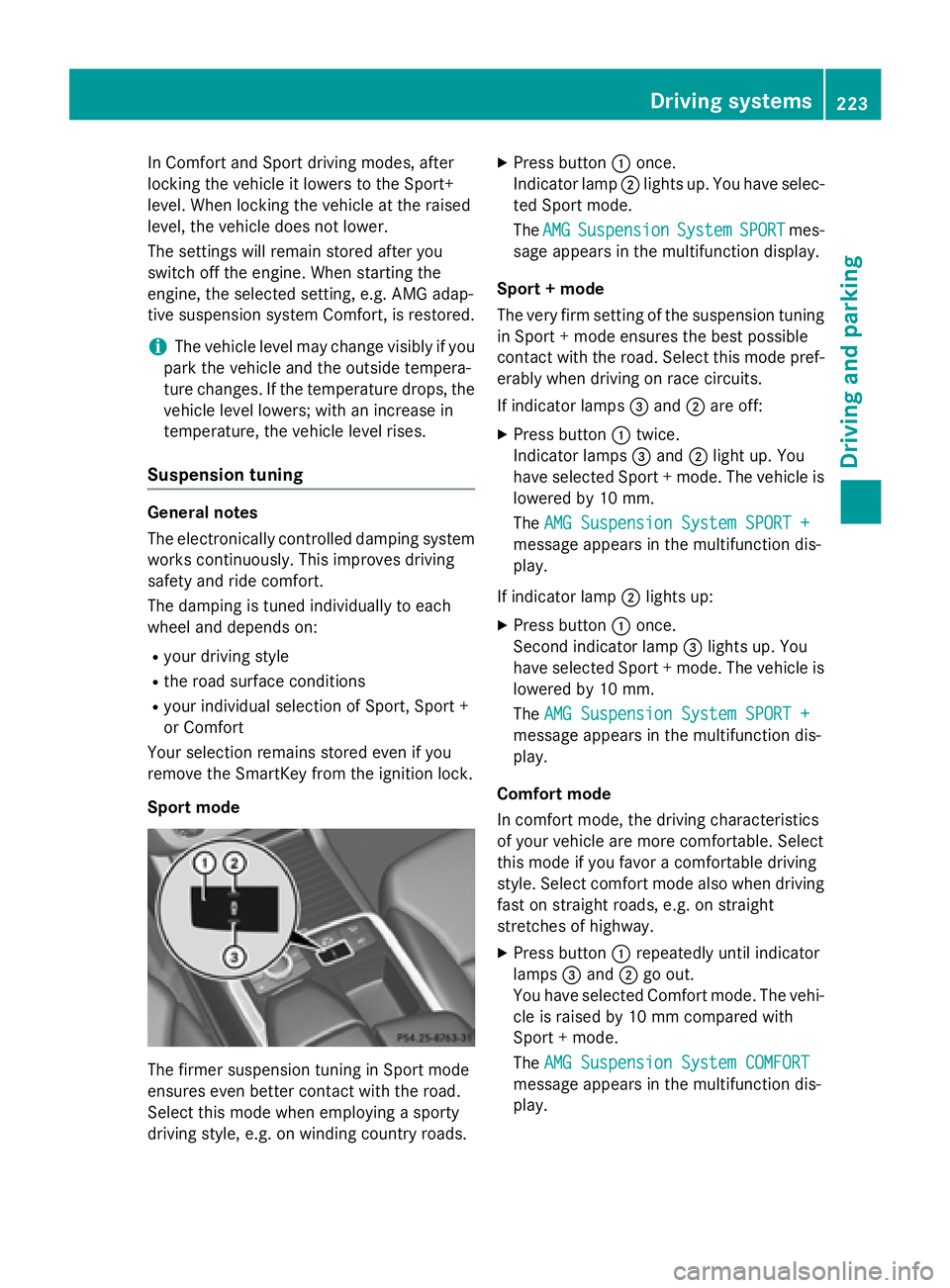

Page 225 of 462

MERCEDES-BENZ GL 2016  Owners Manual In Comfort and Sport driving modes, after
locking the vehicle it lowers to the Sport+
level. When locking the vehicle at the raised
level, the vehicle does not lower.
The settings will remain stored a

Page 226 of 462

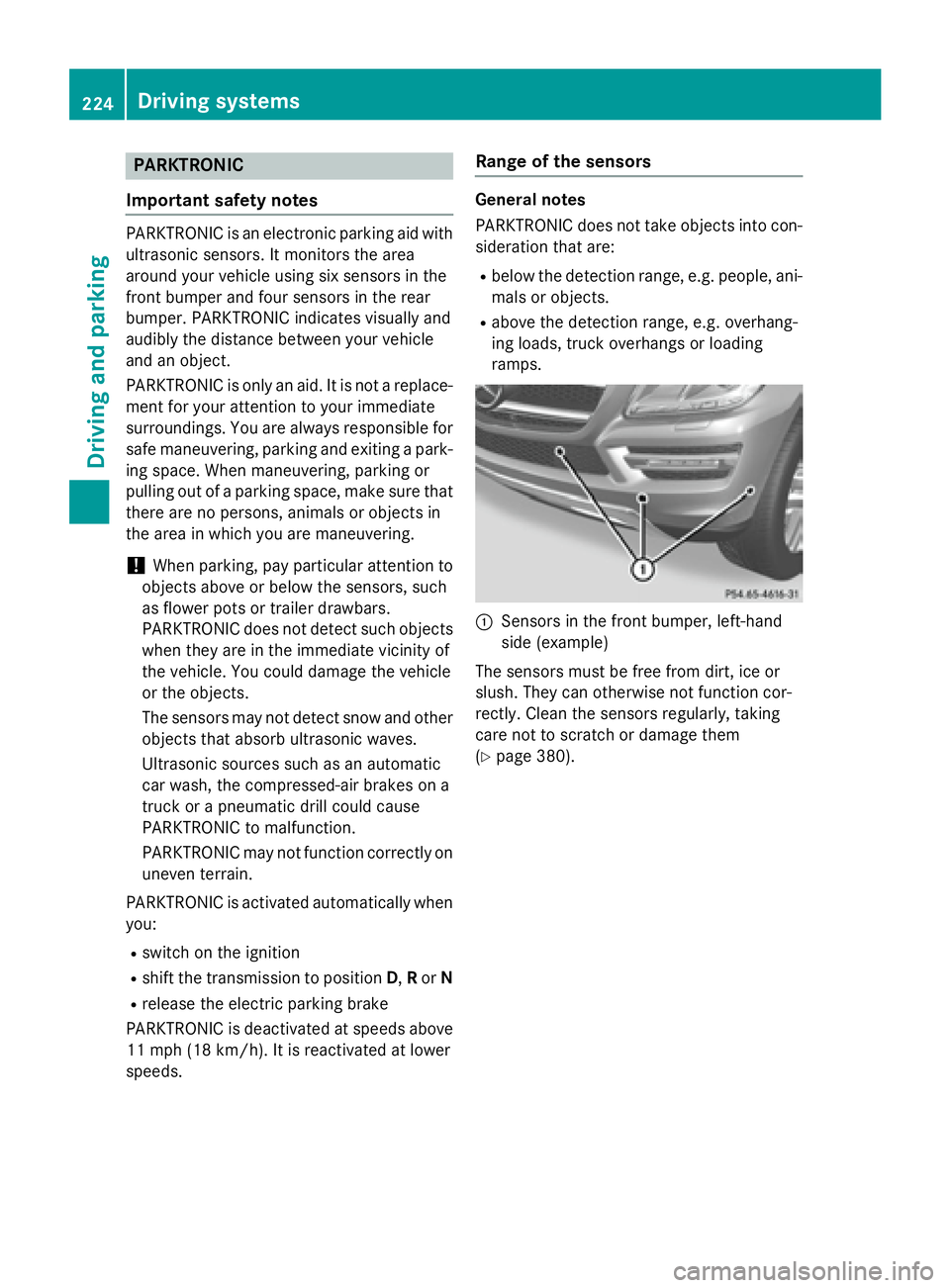

MERCEDES-BENZ GL 2016  Owners Manual PARKTRONIC
Important safety notes PARKTRONIC is an electronic parking aid with
ultrasonic sensors. It monitors the area
around your vehicle using six sensors in the
front bumper and four sensors in th

Page 227 of 462

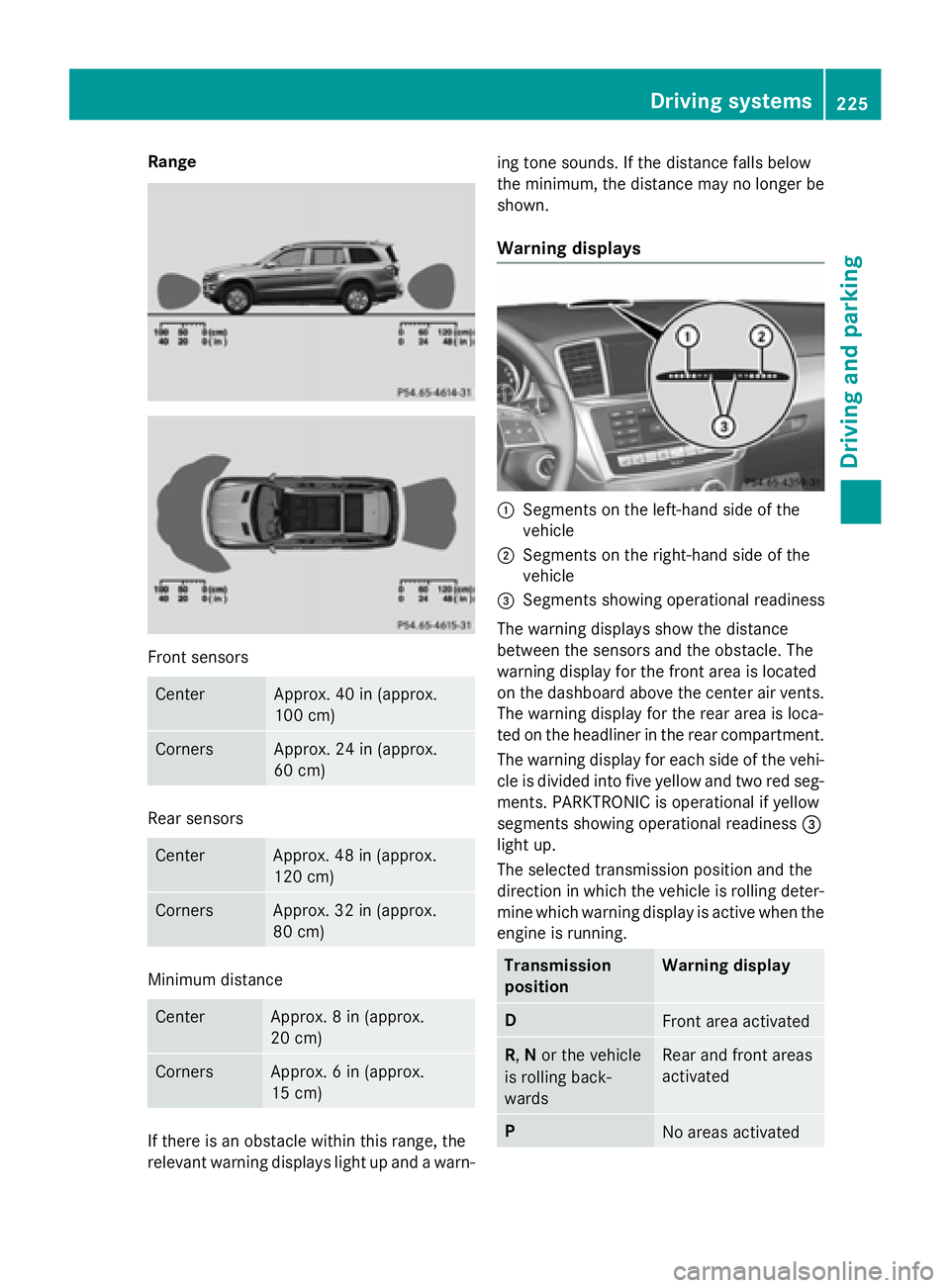

MERCEDES-BENZ GL 2016  Owners Manual Range
Front sensors
Center Approx. 40 in (approx.
100 cm)
Corners Approx. 24 in (approx.
60 cm)
Rear sensors
Center Approx. 48 in (approx.
120 cm)
Corners Approx. 32 in (approx.
80 cm)
Minimum distanc

Page 228 of 462

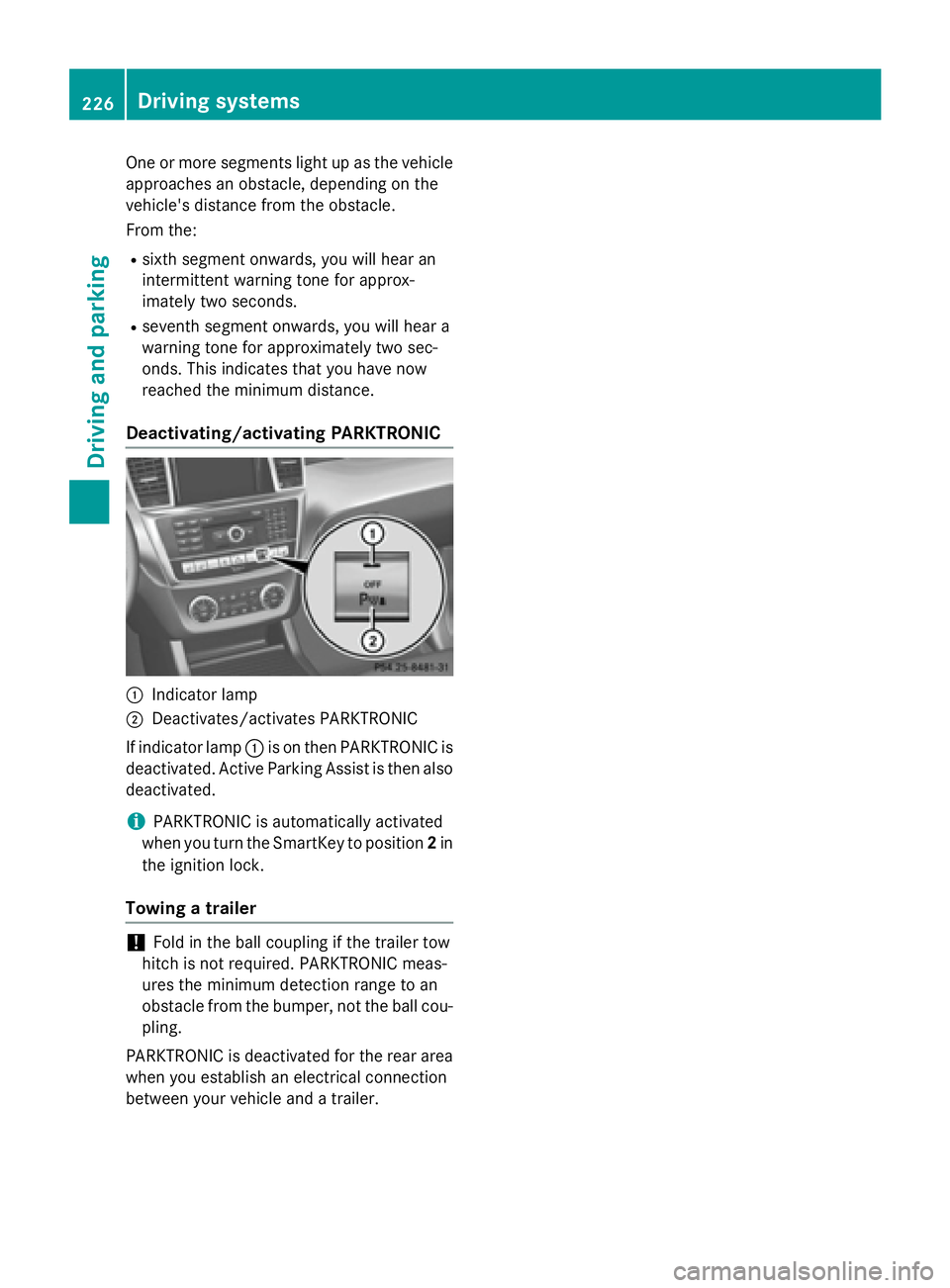

MERCEDES-BENZ GL 2016  Owners Manual One or more segments light up as the vehicle
approaches an obstacle, depending on the
vehicle's distance from the obstacle.
From the: R
sixth segment onwards, you will hear an
intermittent warning

Page 229 of 462

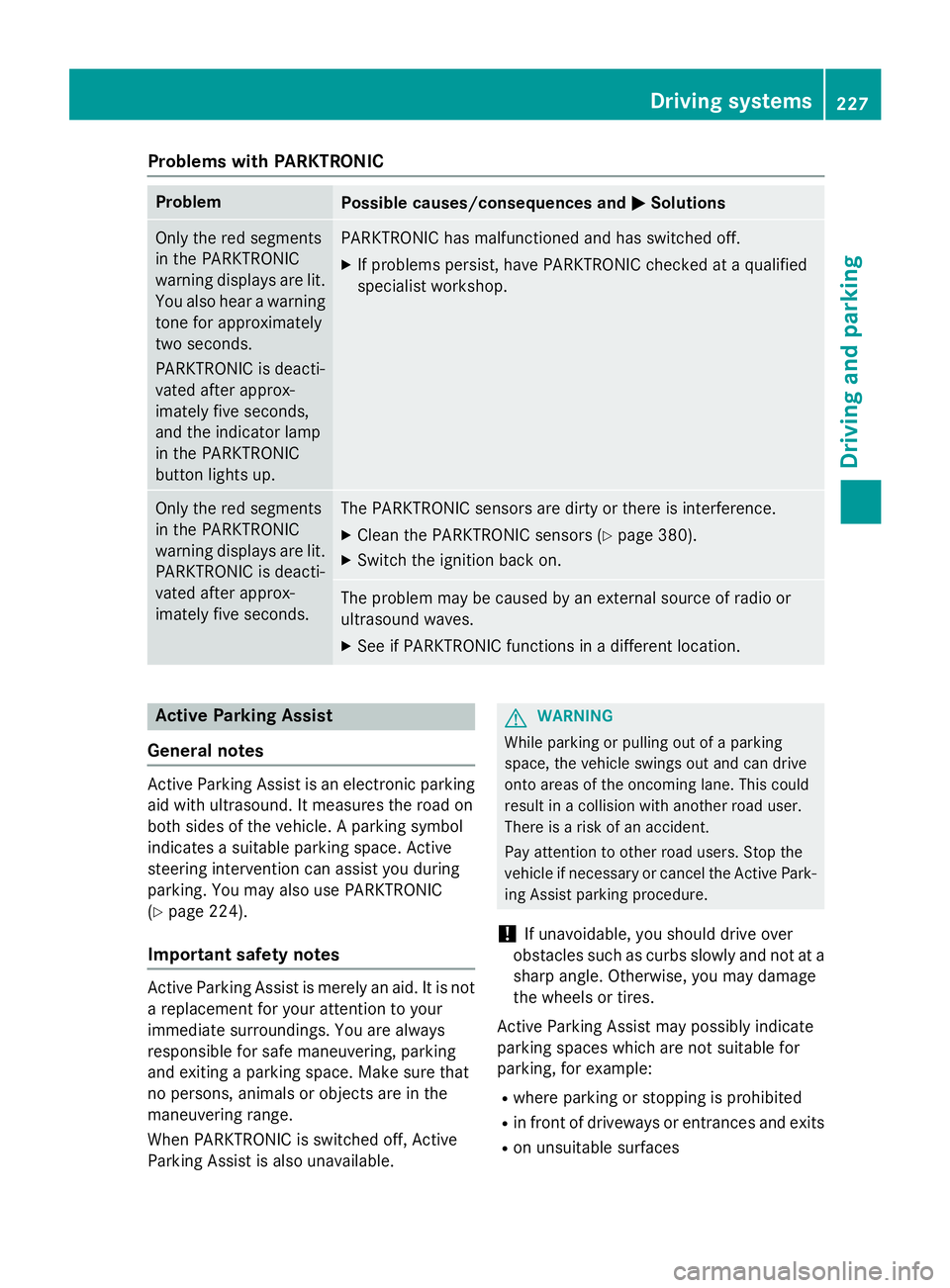

MERCEDES-BENZ GL 2016  Owners Manual Problems with PARKTRONIC Problem
Possible causes/consequences and �P Solutions
Only the red segments
in the PARKTRONIC
warning displays are lit.
You also hear a warning
tone for approximately
two seco

Page 230 of 462

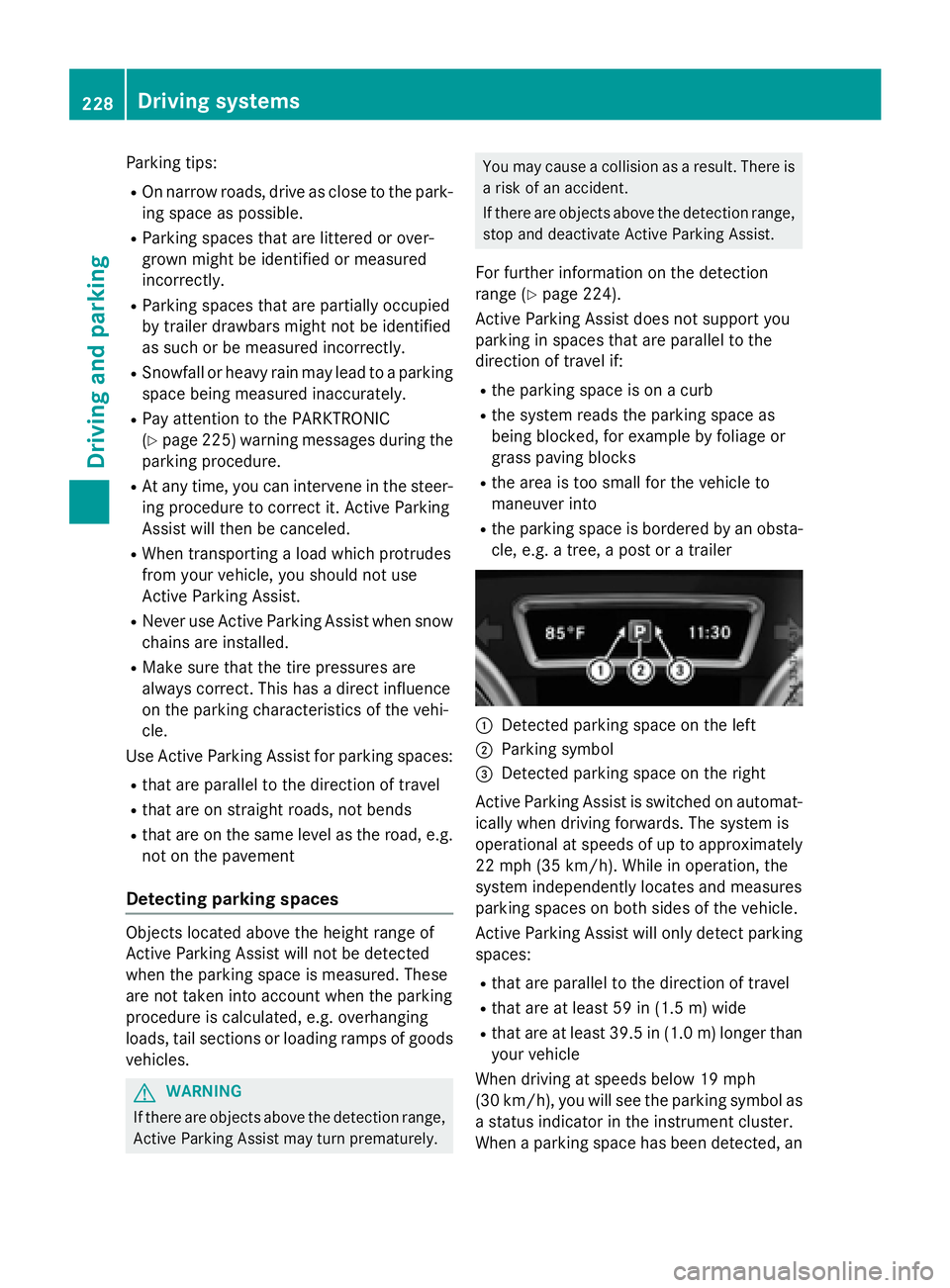

MERCEDES-BENZ GL 2016  Owners Manual Parking tips: R
On narrow roads, drive as close to the park-
ing space as possible. R
Parking spaces that are littered or over-
grown might be identified or measured
incorrectly. R
Parking spaces that
