Driving in winter ............................. 197
Driving on flooded roads ................ 196
Driving on sand .............................. 200
Driving on wet roads ...................... 196
Driving over obstacles ................... 201
Exhaust check ............................... 193
Fuel ................................................ 193
General .......................................... 192
Hydroplaning ................................. 196
Icy road surfaces ........................... 197
Limited braking efficiency on sal-
ted roads ....................................... 195
Off-road driving .............................. 199
Off-road fording ............................. 197
Snow chains .................................. 407
Tire ruts ......................................... 201
Towing a trailer .............................. 264
Traveling uphill ............................... 201
Wet road surface ........................... 195
DSR (Downhill Speed Regulation)
Display message ............................ 313
Function/notes ............................. 257
DVD video
Operating (on-board computer) ..... 279
E
EASY-ENTRY feature
Activating/deactivating ................. 285
Function/notes ............................. 123
EASY-EXIT feature
Crash-responsive ........................... 124
Function/notes ............................. 123
Switching on/off ........................... 285
EBD (electronic brake force distri-
bution)
Display message ............................ 293
Function/notes ................................ 75
ECO display
Function/notes ............................. 193
On-board computer ....................... 276
ECO start/stop function
Automatic engine start .................. 170
Automatic engine switch-off .......... 169
Deactivating/activating ................. 170
General information ....................... 169
Important safety notes .................. 169
Introduction ................................... 169 Electronic Stability Program
see ESP ®
(Electronic Stability Program)
Emergency
Automatic measures after an acci-
dent ................................................. 60
Emergency release
Driver's door .................................... 92
Vehicle ............................................. 92
Emergency spare wheel
General notes ................................ 438
Important safety notes .................. 438
Removing ....................................... 439
Storage location ............................ 439
Technical data ............................... 441
Emergency Tensioning Devices
Activation ......................................... 58
Emergency unlocking
Tailgate ............................................ 97
Emissions control
Service and warranty information .... 25
Engine
Check Engine warning lamp ........... 334
Display message ............................ 306
ECO start/stop function ................ 169
Engine number ............................... 447
Irregular running ............................ 172
Jump-starting ................................. 395
Starting (important safety notes) ... 167
Starting problems .......................... 172
Starting the engine with the
SmartKey ....................................... 167
Starting with KEYLESS-GO ............. 168
Switching off .................................. 189
Tow-starting (vehicle) ..................... 400
Engine electronics
Problem (malfunction) ................... 172
En g
ine jump starting
see Jump starting (engine)
Engine oil
Adding ........................................... 372
Additives ........................................ 451
Checking the oil level ..................... 371
Checking the oil level using the
dipstick .......................................... 371
Display message ............................ 308
Filling capacity ............................... 451
Notes about oil grades ................... 450
Notes on oil level/consumption .... 37110
Index

Temperature (on-board computer,
Mercedes-AMG vehicles) ............... 287
Viscosity ....................................... .4 51
ESP ®
(Electronic Stability Pro-
gram)
AMG menu (on-board computer) ... 287
Characteristics ................................. 74
Deactivating/activating ................... 74
Display message ............................ 291
Function/notes ................................ 73
General notes .................................. 73
Important safety information ........... 73
Trailer stabilization ........................... 75
Warning lamp ................................. 330
ETS/4ETS (Electronic Traction Sys-
tem) ...................................................... 73
Exhaust check ................................... 193
Exhaust pipe (cleaning instruc-
tions) ................................................. .3 81
Exterior lighting
see Lights
Exterior mirrors
Adjusting ....................................... 124
Dipping (automatic) ....................... 125
Folding in when locking (on-board
computer) ...................................... 286
Folding in/out (automatically) ....... 125
Folding in/out (electrically) ........... 125
Out of position (troubleshooting) ... 125
Setting ........................................... 125
Storing settings (memory func-
tion) ............................................... 127
Storing the parking position .......... 126
Eyeglasses compartment ................. 342
F
Filler cap
see Fuel filler flap
Flat tire
MOExtended tires .......................... 387
Preparing the vehicle ..................... 387
TIREFIT kit ...................................... 388
see Emergency spare wheel
Floormats ........................................... 368
Folding the rear bench seat for-
wards/back ....................................... 344 Fording
Off-road ......................................... 197
On flooded roads ........................... 196
Frequencies
Mobile phone ................................. 444
Two-way radio ................................ 444
Fuel
Additives ........................................ 449
Consumption statistics .................. 276
Displaying the current consump-
tion ................................................ 276
Displaying the range ...................... 276
Driving tips .................................... 193
Fuel gauge ....................................... 35
Grade (gasoline) ............................ 448
Important safety notes .................. 447
Low outside temperatures ............. 450
Problem (malfunction) ................... 185
Quality (diesel) ............................... 449
Refueling ........................................ 182
Tank content/reserve fuel ............. 448

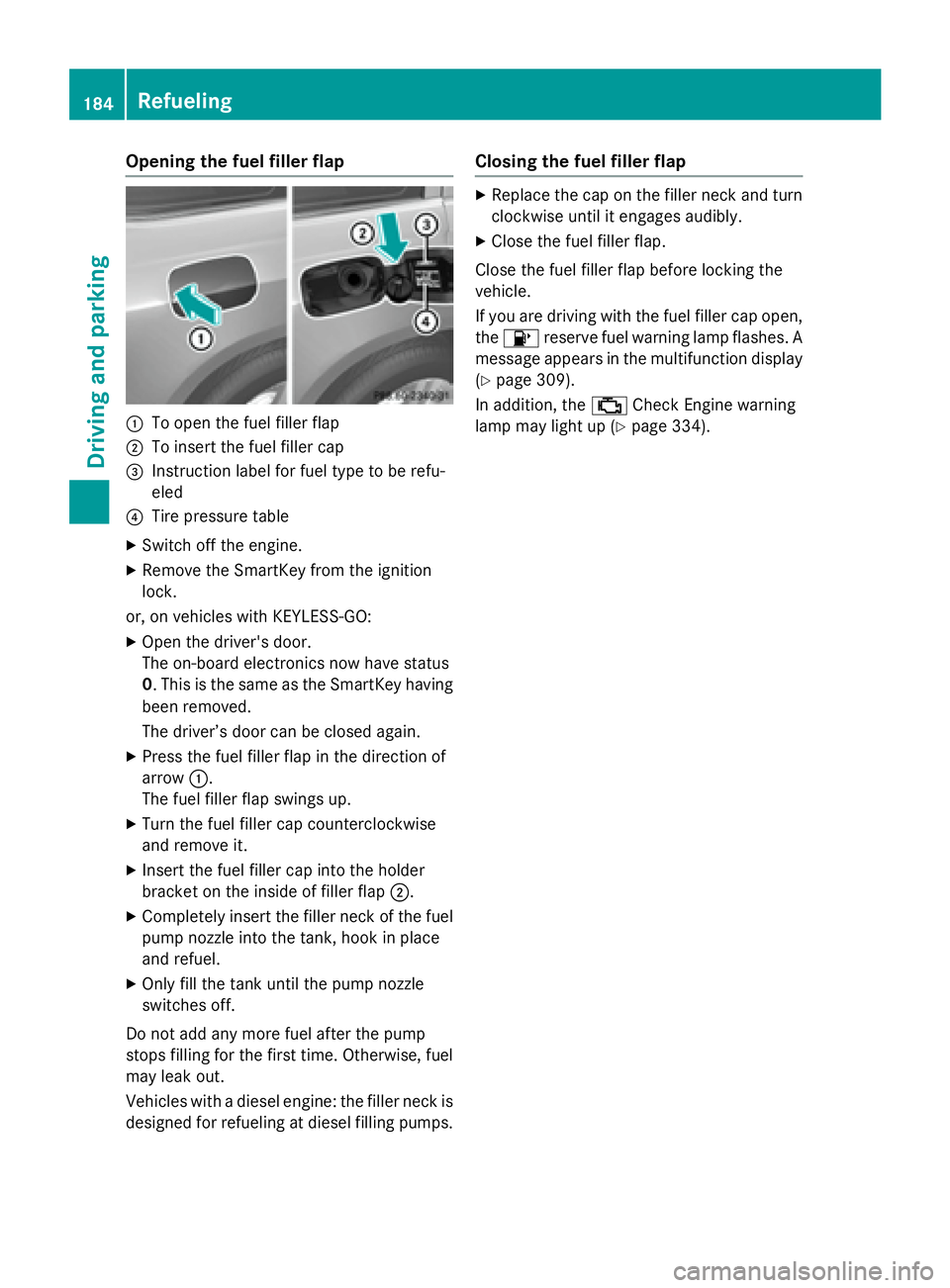

Fuel filler flap
Opening ......................................... 184
Fuel filter (display message) ............ 309
Fuel level
Calling up the range (on-board
computer) ...................................... 276
Fuel tank
Capacity ........................................ 448
Problem (malfunction) ................... 185
Fuses
Allocation chart ............................. 400
Before changing ............................. 400
Dashboard fuse box ....................... 400
Fuse box in the engine compart-
ment .............................................. 401
Fuse box under rear bench seat .... 401
Important safety notes .................. 400
G
Garage door opener
Clearing the memory ..................... 367
General notes ................................ 364
Important safety notes .................. 365
Opening/closing the garage doo r. .3 67
Programming (button in the rear-
view mirror) ................................... 365 Index 11

Selecting the unit of measure-
ment .............................................. 283
see Instrument cluster
Standing lamps
Display message ............................ 305
Switching on/off ........................... 132
Start/stop function
see ECO start/stop function
Starting (engine) ................................ 167
STEER CONTROL .................................. 77
Steering (display message) .............. 322
Steering assistant STEER CON-
TROL
see STEER CONTROL
Steering wheel
Adjusting (electrically) ................... 122
Adjusting (manually) ...................... 121
Button overview ............................... 37
Buttons (on-board computer) ......... 273
Cleaning ......................................... 382
Important safety notes .................. 121
Paddle shifters ............................... 178
Steering wheel heating .................. 122
Storing settings (memory func-
tion) ............................................... 127
Steering wheel heating
Problem (malfunction) ................... 123
Switching on/off ........................... 122
Steering wheel paddle shifters ........ 178
Stopwatch (RACETIMER) ................... 288
Stowage areas ................................... 340
Stowage compartments
Armrest (under) ............................. 342
Center console .............................. 342
Center console (rear) ..................... 342
Cup holders ................................... 349
Eyeglasses compartment ............... 342
Glove box ....................................... 341
Important safety information ......... 341
Stowage net ................................... 343
Stowage net ....................................... 343
Summer tires ..................................... 406
Sun visor ............................................ 350
Surround lighting (on-board com-
puter) .................................................. 284 Suspension tuning
AMG adaptive sport suspension
system ........................................... 223
SETUP (on-board computer) .......... 287
SUV
(Sport Utility Vehicle) ....................... 27
Switching air-recirculation mode
on/off ................................................. 159
T Tachometer ........................................ 273
Tail lamps
Display message ............................ 304
Tailgate
Display message ............................ 321
Emergency unlocking ....................... 97
Important safety notes .................... 93
Limiting the opening angle ............... 96
Opening dimensions ...................... 454
Opening/closing (automatically
from inside) ...................................... 96
Opening/closing (automatically
from outside) ................................... 94
Opening/closing (from outside) ....... 94
Tank
see Fuel tank
Tank content
Fuel gauge ....................................... 35
Technical data
Capacities ...................................... 447
Emergency spare wheel ................. 441
Information .................................... 444
Tires/wheels ................................. 432
Trailer loads ................................... 458
Vehicle data ................................... 454
TELEAID
Call priority .................................... 360
Downloading destinations
(COMAND) ..................................... 360
Downloading routes ....................... 363
Emergency call .............................. 357
General notes ................................ 356
Geo fencing ................................... 364
Locating a stolen vehicle ............... 362
MB info call button ........................ 359
Remote vehicle locking .................. 362
Roadside Assistance button .......... 358 Index 19

However, NHTSA cannot become involved in
individual problems between you, your
dealer, or Mercedes-Benz USA, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at
1-888-327-4236(TTY: 1-800-424-9153); go
to http://www.safercar.gov ; or write to:
Administrator, NHTSA, 400 Seventh Street,
SW., Washington, DC 20590.
You can also obtain other information about
motor vehicle safety from
http://www.safercar.gov
Limited Warranty
! Follow the instructions in this manual
about the proper operation of your vehicle
as well as about possible vehicle damage.
Damage to your vehicle that arises from
culpable contraventions against these
instructions is not covered either by the
Mercedes-Benz Limited Warranty or by the
New or Used-Vehicle Warranty.
QR codes for the rescue card
The QR codes are secured in the fuel filler flap
and on the opposite side on the B-pillar. In the
event of an accident, rescue services can use
the QR code to quickly find the appropriate
rescue card for your vehicle. The current res-
cue card contains the most important infor-
mation about your vehicle in a compact form,
e.g. the routing of the electric cables.
You can find more information under http://
portal.aftersales.i.daimler.com/public/
content/asportal/en/communication/
informationen_fuer/QRCode.html.
Data stored in the vehicle
Data recording
This vehicle is capable of recording diagnostic
information relating to vehicle operation, mal- functions, and user settings. This may include
information about the performance or status
of various systems, including but not limited
to, engine, throttle, steering or brake sys-
tems, that is stored and can be read out with
suitable devices, particularly when the vehi-
cle is serviced. The data obtained is used to
properly diagnose and service your vehicle or
to further optimize and develop vehicle func-
tions.
COMAND/mbrace (Canada: TELEAID) If the vehicle is equipped with COMAND or
mbrace, additional data about the vehicle’s
operation, the use of the vehicle in certain
situations, and the location of the vehicle may
be compiled through COMAND or the mbrace
system.
For additional information please refer to the
COMAND User Manual and/or the mbrace
Terms and Conditions.
Event data recorders
This vehicle is equipped with an event data
recorder (EDR). The main purpose of an EDR
is to record data that will assist in under-
standing how a vehicle’s systems performed
in certain crash or near crash-like situations,
such as during air bag deployment or when
hitting a road obstacle. The EDR is designed
to record data related to vehicle dynamics
and safety systems for a short period of time,
typically 30 seconds or less.
The EDR in this vehicle is designed to record
such data as: R
how various systems in your vehicle are
operating R
whether or not the driver and passenger
seat belts are fastened R
how far (if at all) the driver is depressing the
accelerator and/or brake pedal and R
how fast the vehicle is traveling30
Introduction

If you or others come into contact with fuel,
observe the following: R
Wash away fuel from skin immediately
using soap and water. R
If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay. R
If fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing. R
Immediately change out of clothing which
has come into contact with fuel.
G WARNING
Electrostatic buildup can create sparks and
ignite fuel vapors. There is a risk of fire and
explosion.
Always touch the vehicle body before opening
the fuel filler flap or touching the fuel pump
nozzle. Any existing electrostatic buildup is
thereby discharged.
G WARNING
Vehicles with a diesel engine:
If you mix diesel fuel with gasoline, the flash
point is lower than that of pure diesel fuel.
When the engine is running, exhaust system
components could overheat without being
noticed. There is a risk of fire.
Never refuel with gasoline. Never mix gasoline
with diesel fuel.
! Do not use gasoline to refuel vehicles with
a diesel engine. Do not switch on the igni-
tion if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. The repair
costs are high. Notify a qualified specialist
workshop and have the fuel tank and fuel
lines drained completely.
! Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the igni- tion if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notify a quali-
fied specialist workshop and have the fuel
tank and fuel lines drained completely.
! Overfilling the fuel tank could damage the
fuel system.
! Take care not to spill any fuel on painted
surfaces. You could otherwise damage the
paintwork.
! Use a filter when refueling from a fuel can.
Otherwise, the fuel lines and/or injection
system could be blocked by particles from
the fuel can.
Do not get into the vehicle again during the
refueling process. Otherwise, electrostatic
charge could build up again.
If you overfill the fuel tank, fuel could spray
out when the fuel pump nozzle is removed.
For further information on fuel and fuel quality
( Y
page 447).
Refueling
General information
Pay attention to the important safety notes
( Y
page 182).
The fuel filler flap is unlocked or locked auto-
matically when you unlock or lock the vehicle
with the SmartKey or using KEYLESS-GO.
The position of the fuel filler cap is displayed

Opening the fuel filler flap
C
To open the fuel filler flapD
To insert the fuel filler cap

water. Seek medical assistance without
delay. R
Change out of clothing contaminated with
DEF immediately.
! Only use DEF in accordance with
ISO 22241. Do not mix any additives with
DEF, and do not dilute DEF with water. This
may destroy the BlueTEC exhaust gas after-
treatment system.
! The vehicle must be parked on level
ground to fill the DEF tank. The DEF tank
can only be filled as intended with the vehi-
cle parked on a level surface. This avoids
false level readings. Filling the tank is not
permitted if the vehicle is not parked on a
level surface. There is a danger of overfill-
ing, which could result in damage to com-
ponents of the BlueTEC exhaust gas after-
treatment.
! Rinse surfaces that have come into con-
tact with DEF immediately with water or
remove DEF using a damp cloth and cold
water. If the DEF has already crystallized,
use a sponge and cold water to clean it. DEF
residues crystallize after time and contam-
inate the affected surfaces.
! DEF is not a fuel additive and must not be
added to the fuel tank. If DEF is added to
the fuel tank, this can lead to engine dam-
age.
For further information on DEF, see
( Y
page 450).
Opening the DEF filler cap The fuel filler flap is unlocked or locked auto-
matically when you open or close the vehicle
with the SmartKey or with KEYLESS-GO. X
Switch the ignition off. X
Press the fuel filler flap in the direction of
arrow C .
The fuel filler flap swings up. X
Turn blue DEF fuel filler cap D counter-
clockwise and remove it.
DEF filler cap D is secured with a plastic
strip.
DEF refill canisters
! Do not tighten the disposable hose with
too much force. The disposable hose may
otherwise be destroyed.
X
Unscrew the cap from the opening on top of
DEF refill canister D . X
Place disposable hose C on the opening of
DEF refill canister D and screw it on clock-
wise until hand-tight. Refueling 187
Driving and parking Z

i Disposable hose C remains closed until
you fasten disposable hose C to the DEF
filler neck of the vehicle. X
Place disposable hose C on the filler neck
on the vehicle and screw it on clockwise
until hand-tight. When you feel resistance,
disposable hose C is sufficiently secured.X
Lift up and tip DEF refill canister D .
i Filling stops when the DEF tank is com-
pletely filled. Do not fill the DEF tank any
further. DEF refill canister D can be
removed when it has been only partially
emptied. X
Turn disposable hose C on the filler neck
of the vehicle counter-clockwise and
remove it. X
Turn disposable hose C on the opening of
DEF refill canister D counter-clockwise
and remove it. X
Reseal DEF refill canister D with the cap.
DEF refill canisters can be obtained at many
gas stations or at an authorized Mercedes-
Benz Center. DEF refill canisters are often
sold with a filler hose. A filler hose that does
not exactly fit the vehicle's DEF tank offers no
protection against overfilling. DEF may leak if
overfilled. Mercedes-Benz offers a special
disposable hose with overfill protection. You
can obtain this from any authorized
Merced es-Benz Center. DEF is available in a
variety of containers and receptacles. Only
use the disposable hose with the Mercedes-
Benz DEF refill canisters.
DEF refill bottle
! Only screw on the DEF refill bottle hand-
tight. It could otherwise be damaged. X
Unscrew the protective cap from DEF refill
bottle C . X
Place DEF refill bottle C on the filler neck
as shown and screw it on clockwise until
hand-tight. X
Press DEF refill bottle C towards the filler
neck.
The DEF tank is filled. This may take up to
one minute.
i When DEF refill bottle C is no longer
pressed, filling stops and the bottle may be
taken off again after being only partially
emptied. X
Release DEF refill bottle C .X
Turn DEF refill bottle C counter-clockwise
and remove it. X
Screw the protective cap onto DEF refill
bottle C again.
DEF refill bottles can be obtained at many gas
stations or at an authorized Mercedes-Benz
Center. Refill bottles without a threaded cap
do not provide overfill protection. DEF may
leak if overfilled. Mercedes Benz offers spe-
cial refill bottles with a threaded seal. These
are available at any authorized Mercedes-
Benz Center.188
Refueling
Driving an d parking

Closing the DEF filler cap X
Install DEF filler cap D on the filler neck
and turn it clockwise. X
To close the fuel filler flap, press it in the
direction of arrow C .X
Drive faster than 10 mph (16 km/h).
The Check Additive See Operator's
Manual message goes out after approx-
imately one minute.
i If the Check Additive See Opera‐
tor's Manual message continues to be
shown in the multifunction display, you
must add more DEF.
Parking
Important safety notes
G WARNING
Flammable material such as leaves, grass or
twigs may ignite if they come into contact with
hot parts of the exhaust system or exhaust
gas flow. There is a risk of fire.
Park the vehicle so that no flammable mate-
rials come into contact with parts of the vehi-
cle which are hot. Take particular care not to
park on dry grassland or harvested grain
fields.
G WARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect. You will require considerably more effort to steer and brake. There is a risk
of an accident.
Do not switch off the ignition while driving.
G WARNING
If you leave children unsupervised in the vehi-
cle, they could set it in motion by, for example: R
release the parking brake. R
shift the automatic transmission out of the
parking position P . R
start the engine.
In addition, they may operate vehicle equip-
ment and become trapped. There is a risk of
an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
! Always secure the vehicle correctly
against rolling away. Otherwise, the vehicle
or its drivetrain could be damaged.
To ensure that the vehicle is secured against
rolling away unintentionally: R
the electric parking brake must be applied. R
the transmission must be in position P and
the SmartKey must be removed from the
ignition lock. R
the front wheels must be turned towards
the curb on steep uphill or downhill gradi-
ents. R
the empty vehicle must be secured at the
front axle with a wheel chock or similar, for
example, on uphill or downhill gradients. R
a laden vehicle must also be secured at the
rear axle with a wheel chock or similar, for
example, on uphill or downhill gradients.
Switching off the engine
Important safety notes
G WARNING
The automatic transmission switches to neu-
tral position N when you switch off the engine.Parking 189
Driving and parking Z

When driving on steep gradients, the
engine oil level must be sufficiently high to
ensure a correct oil supply in the vehicle. X
DEF tank (BlueTEC vehicles): check the
level and add if necessary ( Y
page 186).X
Tire-changing tool kit: check that the jack
is working and make sure you have the lug
wrench, a robust tow cable and a folding
spade in the vehicle. X
Wheels and tires: check the tire tread
depth and tire pressure. X
Check for damage and remove any foreign
objects, e.g. small stones, from the
wheels/tires. X
Replace any missing valve caps. X
Replace dented or damaged wheels. X
Rims: dented or bent rims can result in a
loss of tire pressure and damage the tire
bead. Before driving off-road, check the
wheels and replace them if necessary.
Checklist after driving off-road
! If you detect damage to the vehicle after
driving off-road, have the vehicle checked
immediately at a qualified specialist work-
shop.
Driving over rough terrain places greater
demands on your vehicle than driving on nor-
mal roads. After driving off-road, check the
vehicle. This allows you to detect damage
promptly and reduce the risk of an accident to
yourself and other road users. X
Vehicles with the ON&OFFROAD pack-
age: activate the on-road program
( Y
page 258). X
Deactivate the LOW RANGE off-road gear
( Y
page 259). X
Deactivate DSR ( Y
page 257).X
Lower the vehicle level again to a level suit-
able to the road conditions, e.g. to the high-
way level. X
Clean the headlamps and rear lights and
check for damage. X
Clean the front and rear license plates. X
Clean the wheels and tires with a water jet
and remove any foreign objects. X
Clean the wheels, wheel housings and the
vehicle underside with a water jet; check
for any foreign objects and damage. X
Check whether twigs or other parts of
plants have become trapped. These
increase the risk of fire and can damage
fuel pipes, brake hoses or the rubber bel-
lows of the axle joints and propeller shafts. X
After the trip, examine without fail the
entire undercarriage, wheels, tires, brakes,
bodywork structure, steering, chassis and
exhaust system for damage. X
After driving for extended periods across
sand, mud, gravel, water or in similarly dirty
conditions, have the brake discs, wheels,
brake pads/linings and axle joints checked
and cleaned. X
If you detect strong vibrations after off-road
travel, check for foreign objects in the
wheels and drive train and remove them if
necessary. Foreign objects can disturb the
balance and cause vibrations.
Driving on sand
Observe the following rules when driving on
sand: R
Vehicles with the ON&OFFROAD pack-
age: select off-road program 1
( Y
page 258). R
Select a higher vehicle level. R
Avoid high engine speeds. R
Use the left-hand steering wheel paddle
shifter to shift to a lower gear appropriate
to the terrain.200
Driving tips
Driving and parking
