Amb ient lighting
Se tting the brightness (on-board
computer) ...................................... 284
Se tting the color (on-board com-
puter) ............................................ .2 84
AMG adaptive sport suspension
system ................................................ 222
AMG menu (on-board computer) ..... 287
Anti-lock braking system
see ABS (Anti-lock Braking System)
Anti-Theft Alarm system
see ATA (Anti-Theft Alarm system)
Approach/departure angle .............. 201
Ashtray ............................................... 351
Assistance display (on-board com-
puter) ................................................. .2 81
Assistance menu (on-board com-
puter) ................................................. .2 81
ASSYST PLUS
Displaying a service message ....... .3 75
Hiding a service message .............. 375
Resetting the service interval dis-
play ................................................ 375
Service message ............................ 374
Special service requirements ......... 375
ATA (Anti-Theft Alarm system)
Activating/deactivating ................... 78
Function .......................................... .7 8
Switching off the alarm .................... 78
ATTENTION ASSIST
Activating/deactivating ................. 282
Display message ............................ 310
Function/notes ............................. 240
Audio menu (on-board computer) .... 278
Audio system
see separate operating instructions
Authorized Mercedes-Benz Center
see Qualified specialist workshop
Authorized workshop
see Qualified specialist workshop
AUTO lights
Display message ............................ 306
see Lights
Automatic car wash (care) ............... 376
Automatic engine start (ECO start/
stop function) .................................... 170 A
utomatic engine switch-off (ECO
start/stop function) .......................... 169
Automatic headlamp mode .............. 130
Automatic transmission
Accelerator pedal position ............. 176
Automatic drive program ............... 178
Changing gear ............................... 176
DIRECT SELECT lever ..................... 173
Display message ............................ 320
Drive program display .................... 174
Driving tips .................................... 176
Emergency running mode .............. 182
Engaging drive position .................. 175
Engaging neutral ............................ 175
Engaging park position automati-
cally ............................................... 174
Engaging reverse gear ................... 174
Engaging the park position ............ 174
Kickdown ....................................... 177

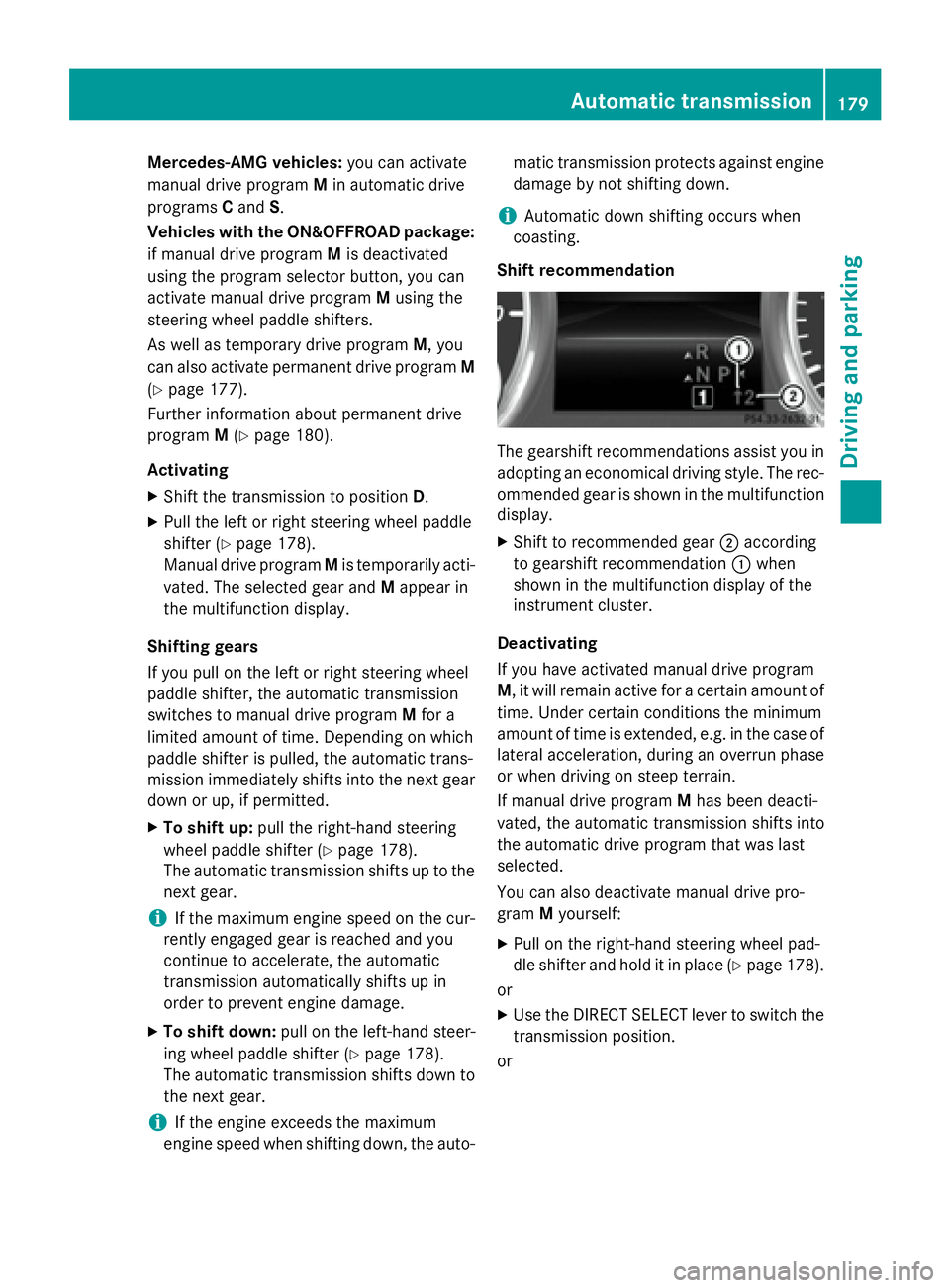

Manual drive program .................... 178
Manual drive program (Mercedes-
AMG vehicles) ................................ 180

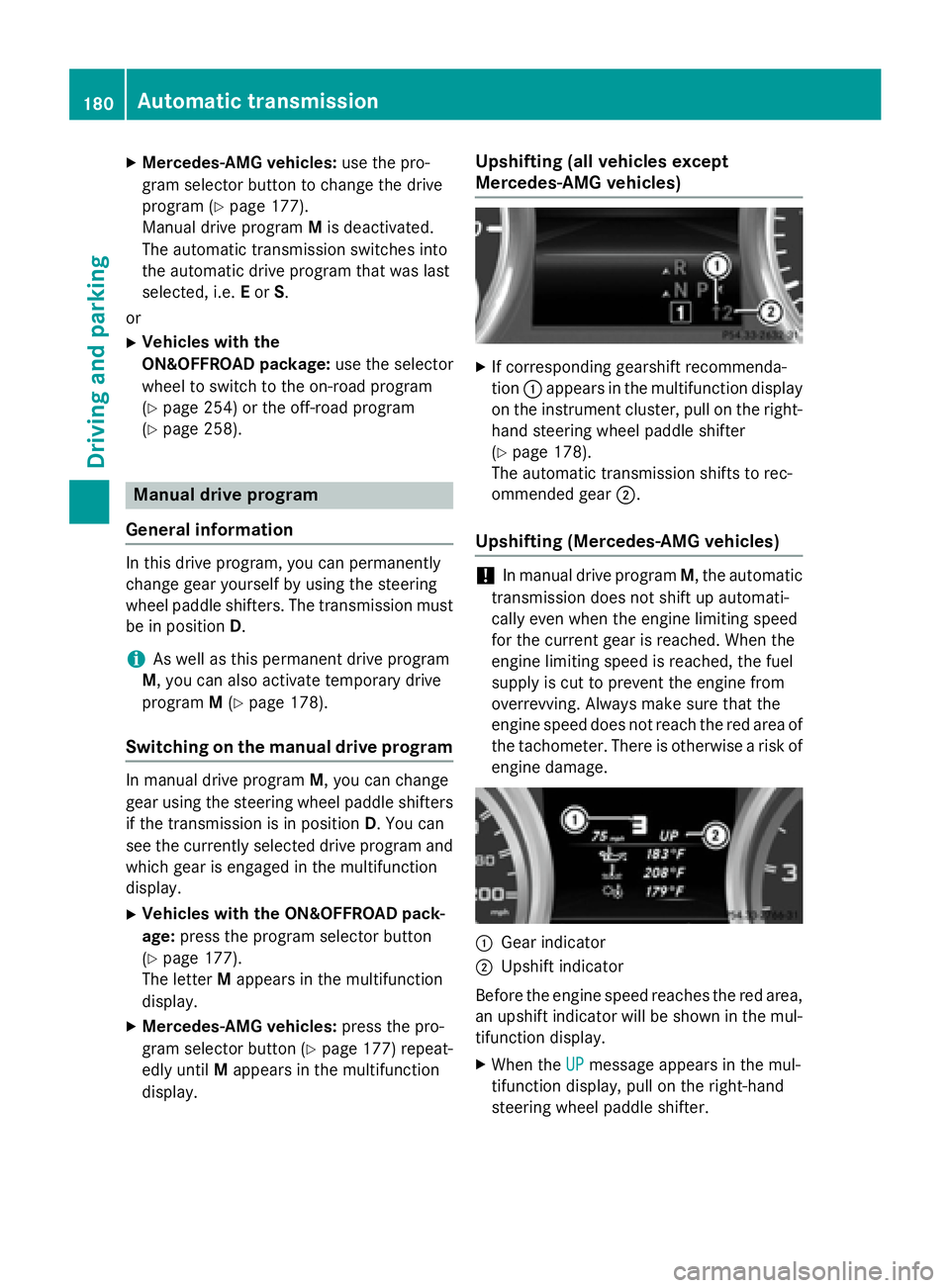

Manual drive program (vehicles
with the ON&OFFROAD package) .. 180
Oil temperature (on-board com-
puter, Mercedes-AMG vehicles) ..... 287
Overview ........................................ 173
Problem (malfunction) ................... 182
Program selector button ................ 177
Pulling away ................................... 168
Starting the engine ........................ 167
Steering wheel paddle shifters ...... 178
Trailer towing ................................. 177
Transmission position display ........ 174
Transmission positions .................. 176
Automatic transmission emer-
gency mode ....................................... 182
Axle load, permissible (trailer tow-
ing) ...................................................... 458
B
Bag hook ............................................ 346
Ball coupling
Installing ........................................ 265
Removing ....................................... 269
BAS (Brake Assist System) ................. 69Index 5

Displays in the multifunction dis-
play ................................................ 211
Driving tips .................................... 212
Function/notes ............................. 205
Important safety notes .................. 206
Setting the specified minimum
distance ......................................... 210
Stopping ........................................ 209
Warning lamp ................................. 337
Doors
Automatic locking (on-board com-
puter) ............................................. 285
Automatic locking (switch) ............... 91
Central locking/unlocking
(SmartKey) ....................................... 82
Control panel ................................... 42
Display message ............................ 322
Emergency locking ........................... 92
Emergency unlocking ....................... 92
Important safety notes .................... 90
Opening (from inside) ...................... 90
Overview .......................................... 90
Power closing feature ...................... 92
Drinking and driving ......................... 193
Drive program
Automatic ...................................... 178
Display (DIRECT SELECT lever) ...... 174
Manual ........................................... 178
Manual (Mercedes-AMG vehi-
cles) ............................................... 180
Manual (vehicles with the
ON&OFFROAD package) ................ 180
Off-road program (vehicles with
the ON&OFFROAD package) .......... 258
SETUP (on-board computer) .......... 287
see On-road programs
Driver's door
see Doors
Driving abroad
Mercedes-Benz Service ................. 375
Driving in mountainous terrain
Approach/departure angle ............ 201
Driving lamps
see Daytime running lamps
Driving off-road
see Off-road driving
Driving safety systems
ABS (Anti-lock Braking System) ....... 68 ADAPTIVE BRAKE ............................. 76
Adaptive Brake Assist ...................... 72
BAS (Brake Assist System) .............. 69
BAS PLUS (Brake Assist System
PLUS) ............................................... 69
COLLISION PREVENTION ASSIST .... 70
Distance warning function ............... 70
EBD (electronic brake force distri-
bu tion) ............................................. 75
ESP ®
(Electronic Stability Pro-
gram) ............................................... 73
Important safety information ........... 68
Overview .......................................... 68
PRE-SAFE ®
Brake ............................. 76
STEER CONTROL ............................. 77
Driving systems
360°camera .................................. 236
Active Blind Spot Assist ................. 248
Active Curve System ...................... 219
Active Driving Assistance pack-
age ................................................. 248
Active Lane Keeping Assist ............ 251
Active Parking Assist ..................... 227
ADS ............................................... 218
AIRMATIC package ........................ 218
AMG adaptive sport suspension
system ........................................... 222
ATTENTION ASSIST ........................ 240
Blind Spot Assist ............................ 244
Cruise control ................................ 202
Display message ............................ 310
DISTRONIC PLUS ........................... 205
HOLD function ............................... 217
Lane Keeping Assist ...................... 246
Level control (vehicles with AIR-
MATIC package) ............................. 219
Level control (vehicles with the
ON&OFFROAD package) ................ 213
On-road programs .......................... 254
PARKTRONIC ................................. 224
Rear view camera .......................... 231
Driving tips
Automatic transmission ................. 176
Brakes ........................................... 194
Break-in period .............................. 164
DISTRONIC PLUS ........................... 212
Downhill gradient ........................... 194
Drinking and driving ....................... 193 Index 9

Search & Send ............................... 361
Self-test ......................................... 357
Speed alert .................................... 364
System .......................................... 357
Triggering the vehicle alarm ........... 364
Vehicle Health Check .................... 363
Vehicle remote unlocking .............. 362
Telephone
Accepting a call ............................. 280
Display message ............................ 322
Menu (on-board computer) ............ 279
Number from the phone book ........ 280
Redialing ........................................ 280
Rejecting/ending a call ................. 280
Temperature
Coolant (display in the instrument
cluster) .......................................... 273
Coolant (on-board computer,
Mercedes-AMG vehicles) ............... 287
Engine oil (on-board computer,
Mercedes-AMG vehicles) ............... 287
Outside temperature ...................... 273
Setting (climate control) ................ 155
Transmission oil (on-board com-
puter, Mercedes-AMG vehicles) ..... 287
Through-loading feature ................... 343
Time
see separate operating instructions
Timing (RACETIMER) ......................... 288
Tire pressure
Calling up (on-board computer) ..... 412
Checking manually ........................ 411
Display message ............................ 318
Maximum ....................................... 411
Not reached (TIREFIT) .................... 390
Notes ............................................. 409
Reached (TIREFIT) .......................... 390
Recommended ............................... 408
Tire pressure loss warning system
General notes ................................ 411
Important safety notes .................. 411
Restarting ...................................... 412
Tire pressure monitor
Checking the tire pressure elec-
tronically ........................................ 414
Function/notes ............................. 412
General notes ................................ 412
Important safety notes .................. 413 Radio type approval for the tire
pressure monitor ........................... 415
Restarting ...................................... 415
Warning lamp ................................. 338
Warning message .......................... 414
TIREFIT kit .......................................... 388
Tire pressure not rea ched .............. 390
Tire p ressure reached .................... 390
Tires
Aspect ratio (definition) ................. 426
Average weight of the vehicle
occupants (definition) .................... 425
Bar (definition) ............................... 424
Changing a wheel .......................... 427
Characteristics .............................. 424
Checking ........................................ 405
Curb weight (definition) ................. 426
Definition of terms ......................... 424
Direction of rotation ...................... 427
Display message ............................ 318
Distribution of the vehicle occu-
pants (definition) ............................ 427
DOT (Department of Transporta-
tion) (definition) ............................. 425
DOT, Tire Identification Number
(TIN) ............................................... 424
GAWR (Gross Axle Weight Rating)
(definition) ..................................... 425
General notes ................................ 432
GTW (Gross Trailer Weight) (defi-
nition) ............................................ 425
GVW (Gross Vehicle Weight) (def-
inition) ........................................... 425
GVWR (Gross Vehicle Weight Rat-
ing) (definition) .............................. 425
Important safety notes .................. 404
Increased vehicle weight due to
optional equipment (definition) ...... 425
Information on driving .................... 404
Kilopascal (kPa) (definition) ........... 425
Labeling (overview) ........................ 421
Load bearing index (definition) ...... 426
Load index ..................................... 423
Load index (definition) ................... 425
M+S tires ....................................... 406
Maximum load on a tire (defini-
tion) ............................................... 42620
Index

Useful information
i This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops ( Y
page 29).
SmartKey
Important safety notes
G WARNING
If children are left unsupervised in the vehicle,
they could: R
open the doors, thus endangering other
people or road users. R
get out and disrupt traffic. R
operate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they: R
release the parking brake. R
shifting the automatic transmission out of
park position PR
Start the engine.
There is a risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
G WARNING
If persons, particularly children are subjected
to prolonged exposure to extreme heat or
cold, there is a risk of injury, possibly even
fatal. Never leave children unattended in the
vehicle. G WARNING
If you attach heavy or large objects to the
SmartKey, the SmartKey could be uninten-
tionally turned in the ignition lock. This could
cause the engine to be switched off. There is a
risk of an accident.
Do not attach any heavy or large objects to the
SmartKey. Remove any bulky key rings before
inserting the SmartKey into the ignition lock.
! Keep the SmartKey away from strong
magnetic fields. Otherwise, the remote
control function could be affected.
Strong magnetic fields can occur in the
vicinity of powerful electrical installations.
Do not store the SmartKey: R
with electronic devices, e.g. a mobile
phone or another SmartKey. R
with metallic objects, e.g. coins or metal
foil. R
inside metallic objects, e.g. a metal case.
This can affect the functionality of the
SmartKey.
Do not keep the KEYLESS-GO key in the tem-
perature-controlled cup holder. Otherwise,
the KEYLESS-GO key will not be recognized.
SmartKey functions
C
7 Locks the vehicleD
T Opens/closes the tailgate

The HOLD function can also be activated if the
engine has been switched off automatically. It
is then not necessary to continue applying the
brakes during the automatic stop phase.
When you depress the accelerator pedal, the
engine starts automatically and the braking
effect of the HOLD function is deactivated.
All vehicles (except Mercedes-AMG vehi-
cles): automatic engine switch-off can take
place a maximum of four times in a row (initial
stop, then three subsequent stops).
Mercedes-AMG vehicles: the number of
consecutive automatic engine switch-offs is
unlimited.
Automatic engine start The engine starts automatically if: R
you switch off the ECO start/stop function
by pressing the ECO button R
in transmission position D or N the brake
pedal is released and the HOLD function is
not active R
you depress the accelerator pedal R
you engage reverse gear RR
you move the transmission out of position
P R
you switch to drive program S or M
(Mercedes-AMG vehicles) R
you switch to an off-road program (except
Mercedes-AMG vehicles) R
you unfasten your seat belt or open the
driver's door R
the vehicle starts to roll R
the brake system requires this R
the temperature in the vehicle interior devi-
ates from the set range R
the system detects moisture on the wind-
shield when the air-conditioning system is
switched on R
the battery's condition of charge is too low
Shifting the transmission to position P does
not start the engine. Deactivating or activating the ECO
start/stop function All vehicles (except Mercedes-AMG vehi-
cles) X
To deactivate: press ECO button C .
Indicator lamp D goes out. X
To activate: press ECO button C .
Indicator lamp D lights up.
If the indicator lamp on the ECO button is off,
the ECO start/stop function has been deac-
tivated manually or as the result of a mal-
function.
Mercedes-AMG vehicles
X
To deactivate: in drive program C , press
ECO button C .
or X
Switch to drive program S or M
( Y
page 177).
Indicator lamp D goes out.170
Driving
Driving and parking

Kickdown Use kickdown for maximum acceleration .X
Depress th e accelerato r pedal beyon d th e
pressur e point.
The automatic transmission shifts to a
lower gear depending on th e engin e speed.X
Eas e off th e accelerato r pedal once th e
desired spee d is reached.
The automatic transmission shifts bac k up.
Rocking the vehicle free Shifting th e transmission repeatedly between
gear s D and R may help to free th e vehicl e if it
has become stuck in slus h or snow. The vehi-
cle's engin e managemen t system limits th e
spee d to a maximum of 5 mph (9 km/h) when
shifting bac k and forth . To shif t bac k and forth
between transmission position s D and R ,
mov e th e DIRECT SELECT lever up and down
past th e poin t of resistance.
Towing a trailer X
Drive in th e middle of th e engin e spee d
range on uphill gradients .X
Dependin g on th e uphill or downhill gradi-
ent, use left-han d steering whee l paddle
shifte r ( Y
page 178) to select a lower gear ,
eve n if cruise control or DISTRONI C PLU S
are activated.
Program select or button Vehicles wit h th e ON& OFFROAD package: X
Press program selector butto n C .
The lette r M appear s in th e multifunction
display. The manual drive program M is
activated.
Mercedes-AM G vehicles: X
Pre ss program selector butto n C repeat -
edly until th e lette r for th e desired drive
program appear s in th e multifunction dis-
play.
The program selector butto n allows you to
choos e between differen t drivin g character-
istics .
i The permanen t drive program M is avail -
able on th e followin g vehicles: R
Vehicles wit h th e
ON& OF FROAD packag e R
Mercedes-AM G vehicles
Further information about permanen t drive
program M ( Y
page 180).
As well as this permanen t drive program M ,
you can also activat e temporar y drive pro -
gram M ( Y
page 178).
i Mercedes-AMG veh icles: th e automatic
transmission switches to automatic drive
program C eac h time th e engin e is started.
i Drive program M is no t saved after th e
engin e has been switched off . If required,
you mus t select th e drive program again
after st artin g th e engine.Automatic transmission 17 7
Driving an d parking Z

Drive program on vehicles wit h th e
ON&OFFROAD package
M Manual Permanen t manual gear -
shiftin g
Drive program s on Mercedes-AMG vehi-
cles
C Controlle d
Efficiency Comfortable, economical
drivin g
S Sport Sport y drivin g style
M Manual Permanen t manual gear -
shiftin g
i Fo r further information on th e automati c
drive program, see ( Y
page 178).
Steering wheel paddle shifter s
In th e manual drive program, you can chang e
gear s manually usin g steerin g whee l paddl e
shifters C and D .
Further information about permanen t drive
progra m M ( Y
page 180).
Further information about temporar y drive
progra m M ( Y
page 178).
You can only chang e gear wit h th e steerin g
whee l paddl e shifters when th e transmissio n
is in position D . Automatic drive program (Mercedes-
AMG vehicles)
Automatic drive program CDrive progra m C is characterized by th e fol-
lowing: R
comfort-oriented engin e and transmissio n
settings. R
optimal fue l consumption resultin g from
th e automati c transmissio n shiftin g up
sooner. R
th e vehicl e pullin g away mor e gentl y in
forwar d and revers e gears, unless th e
accelerato r pedal is depressed fully. R
th e vehicl e has improved drivin g stabilit y
on slipper y roa d surfaces, fo r example.R
th e automati c transmissio n shiftin g up
sooner. This result s in th e vehicl e bein g
driven at lowe r engin e speeds and th e
wheels bein g less likely to spin .
Automatic drive program S
Drive progra m S is characterized by th e fol-
lowing: R
sport y engin e and transmissio n settings.R
th e automati c transmissio n shiftin g up
later. R
th e fue l consumption possibl y bein g higher
as a result of th e later automati c transmis -
sio n shift points .
Manua l drive program M
General notes
In this drive program, you can briefl y chang e
gear yourself by usin g th e steerin g whee l pad-
dle shifters . The transmissio n mus t be in posi-
tion D .
All vehicles (excep t Mercedes-AMG vehi-
cles and vehicles wit h th e
ON&OFFROAD package): you can activat e
manual drive progra m M usin g th e steerin g
whee l paddl e shifters .178
Automatic transmission
Driving and parking

Mercedes-AMG vehicles: you can activate
manual drive program M in automatic drive
programs C and S .
Vehicles with the ON&OFFROAD package:
if manual drive program M is deactivated
using the program selector button, you can
activate manual drive program M using the
steering wheel paddle shifters.
As well as temporary drive program M , you
can also activate permanent drive program M
( Y
page 177).
Further information about permanent drive
program M ( Y
page 180).
Activating X
Shift the transmission to position D .X
Pull the left or right steering wheel paddle
shifter ( Y
page 178).
Manual drive program M is temporarily acti-
vated. The selected gear and M appear in
the multifunction display.
Shifting gears
If you pull on the left or right steering wheel
paddle shifter, the automatic transmission
switches to manual drive program M for a
limited amount of time. Depending on which
paddle shifter is pulled, the automatic trans-
mission immediately shifts into the next gear
down or up, if permitted. X
To shift up: pull the right-hand steering
wheel paddle shifter ( Y
page 178).
The automatic transmission shifts up to the
next gear.
i If the maximum engine speed on the cur-
rently engaged gear is reached and you
continue to accelerate, the automatic
transmission automatically shifts up in
order to prevent engine damage. X
To shift down: pull on the left-hand steer-
ing wheel paddle shifter ( Y
page 178).
The automatic transmission shifts down to
the next gear.
i If the engine exceeds the maximum
engine speed when shifting down, the auto- matic transmission protects against engine
damage by not shifting down.
i Automatic down shifting occurs when
coasting.
Shift recommendation
The gearshift recommendations assist you in
adopting an economical driving style. The rec-
ommended gear is shown in the multifunction
display. X
Shift to recommended gear D according
to gearshift recommendation C when
shown in the multifunction display of the
instrument cluster.
Deactivating
If you have activated manual drive program
M , it will remain active for a certain amount of
time. Under certain conditions the minimum
amount of time is extended, e.g. in the case of
lateral acceleration, during an overrun phase
or when driving on steep terrain.
If manual drive program M has been deacti-
vated, the automatic transmission shifts into
the automatic drive program that was last
selected.
You can also deactivate manual drive pro-
gram M yourself: X
Pull on the right-hand steering wheel pad-
dle shifter and hold it in place ( Y
page 178).
or X
Use the DIRECT SELECT lever to switch the
transmission position.
orAutomatic transmission 179
Driving and parking Z

X
Mercedes-AMG vehicles: use the pro-
gram selector button to change the drive
program ( Y
page 177).
Manual drive program M is deactivated.
The automatic transmission switches into
the automatic drive program that was last
selected, i.e. E or S .
or X
Vehicles with the
ON&OFFROAD package: use the selector
wheel to switch to the on-road program
( Y
page 254) or the off-road program
( Y
page 258).
Manual drive program
General information In this drive program, you can permanently
change gear yourself by using the steering
wheel paddle shifters. The transmission must
be in position D .
i As well as this permanent drive program
M , you can also activate temporary drive
program M ( Y
page 178).
Switching on the manual drive program
In manual drive program M , you can change
gear using the steering wheel paddle shifters
if the transmission is in position D . You can
see the currently selected drive program and
which gear is engaged in the multifunction
display. X
Vehicles with the ON&OFFROAD pack-
age: press the program selector button
( Y
page 177).
The letter M appears in the multifunction
display. X
Mercedes-AMG vehicles: press the pro-
gram selector button ( Y
page 177) repeat-
edly until M appears in the multifunction
display. Upshifting (all vehicles except
Mercedes-AMG vehicles) X
If corresponding gearshift recommenda-
tion C appears in the multifunction display
on the instrument cluster, pull on the right-
hand steering wheel paddle shifter
( Y
page 178).
The automatic transmission shifts to rec-
ommended gear D .
Upshifting (Mercedes-AMG vehicles)
! In manual drive program M , the automatic
transmission does not shift up automati-
cally even when the engine limiting speed
for the current gear is reached. When the
engine limiting speed is reached, the fuel
supply is cut to prevent the engine from
overrevving. Always make sure that the
engine speed does not reach the red area of
the tachometer. There is otherwise a risk of
engine damage.
C
Gear indicator D
Upshift indicator
Before the engine speed reaches the red area,
an upshift indicator will be shown in the mul-
tifunction display. X
When the UP message appears in the mul-
tifunction display, pull on the right-hand
steering wheel paddle shifter.180
Automatic transmission
Driving and parking

Downshifting X
Pull th e left-han d steerin g whee l paddle
shifter ( Y
page 178).
The automatic transmissio n shift s down to
th e next gear .
Maximum acceleration X
Pull th e left-han d steerin g whee l paddle
shifter until th e transmissio n selects th e
optimum gear fo r th e curren t speed.
i If you slo w down or stop without shiftin g
down , th e automatic transmissio n auto-
matically shift s down .
Kickdown You can also use kickdown fo r maximum
acceleration in manual drive program M .X
Depress th e accelerator peda l beyond th e
pressure point.
The automatic transmissio n shift s to a
lowe r gear dependin g on th e engin e speed.X
Shift bac k up once th e desire d speed is
reached.
i All vehicles (except Mercedes-AMG
vehicles): if you apply full throttle, th e
automatic transmissio n shift s up to th e
next gear when th e maximum engin e speed
is reached. Thi s prevents th e engin e from
overrevving.
i Mercedes-AMG vehicles : it is no t possi-
ble to use kickdown in manual drive pro -
gram M .
Switchin g off th e manual drive programX
Vehicles wit h th e ON&OFFROAD pack-
age : press th e program selecto r butto n
( Y
page 177).
The M message in th e multifunction display
goe s out .X
Mercedes-AMG vehicles : press th e pro -
gram selecto r butto n ( Y
page 177) repeat -
edly until C or S appears in th e multifunc-
tion display. Automatic transmission 181
Driving and parking Z
