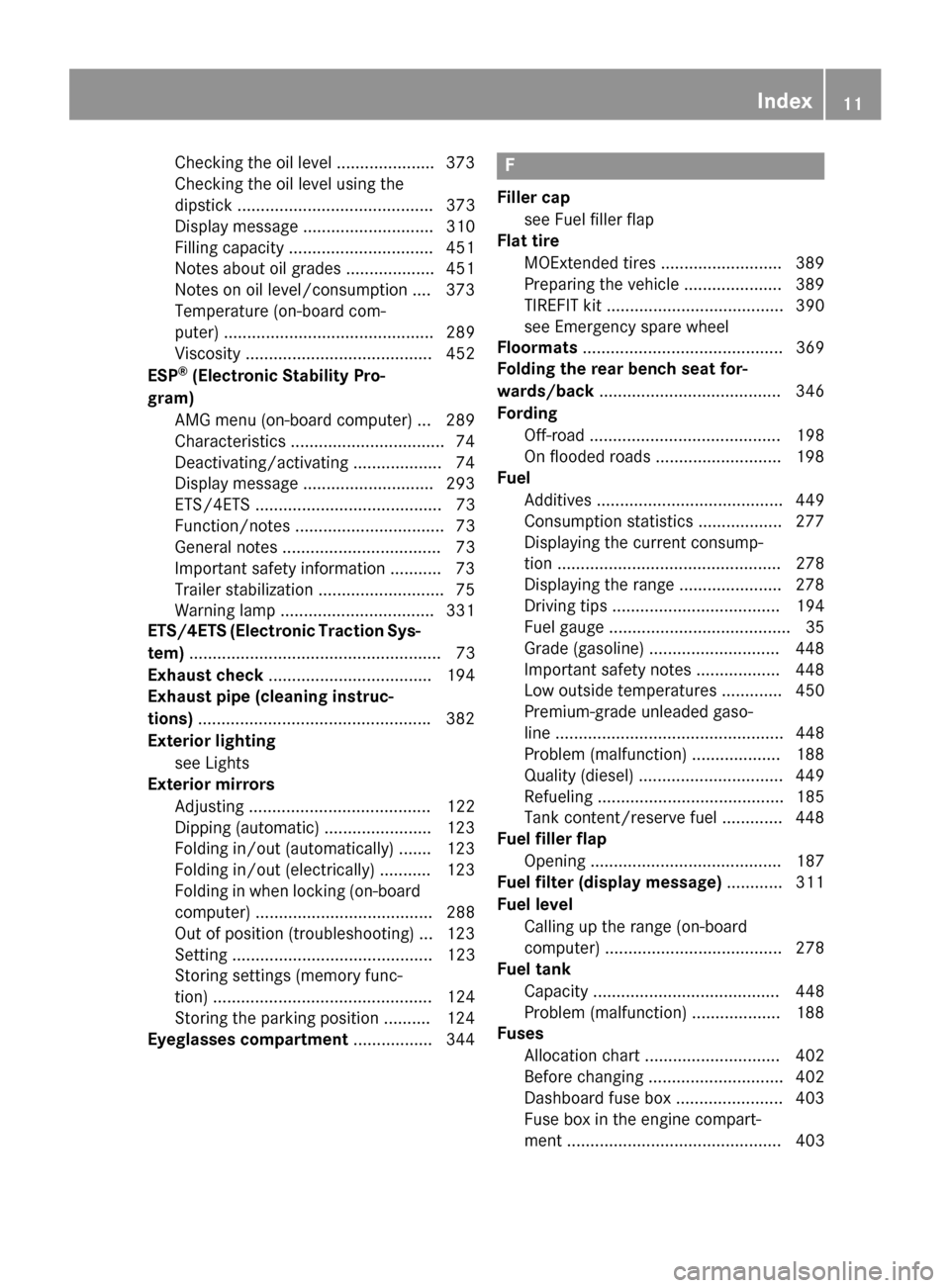

Checking the oil leve
l .....................373
Checking the oil level using the
dipstick .......................................... 373
Display message ............................ 310
Filling capacity ............................... 451
Notes about oil grades ................... 451
Notes on oil level/consumption .... 373
Temperature (on-board com-
puter) ............................................. 289
Viscosity ........................................ 452
ESP ®
(Electronic Stability Pro-
gram) AMG menu (on-board computer) ... 289
Characteristics ................................. 74
Deactivating/activating ................... 74
Display message ............................ 293
ETS/4ETS ........................................ 73
Function/notes ................................ 73
General notes .................................. 73
Important safety information ........... 73
Trailer stabilization ........................... 75
Warning lamp ................................. 331
ETS/4ETS (Electronic Traction Sys-
tem) ...................................................... 73
Exhaust check ................................... 194
Exhaust pipe (cleaning instruc-
tions) ................................................. .382
Exterior lighting see Lights
Exterior mirrors
Adjusting ....................................... 122
Dipping (automatic) ....................... 123
Folding in/out (automatically) ....... 123
Folding in/out (electrically) ........... 123
Folding in when locking (on-board computer) ...................................... 288
Out of position (troubleshooting) ... 123
Setting ........................................... 123
Storing settings (memory func-
tion) ............................................... 124
Storing the parking position .......... 124
Eyeglasses compartment ................. 344 F
Filler cap see Fuel filler flap
Flat tire
MOExtended tire s.......................... 389
Preparing the vehicle ..................... 389
TIREFIT kit ...................................... 390
see Emergency spare wheel
Floormats ........................................... 369
Folding the rear bench seat for-
wards/back ....................................... 346
Fording Off-road ......................................... 198
On flooded roads ........................... 198
Fuel
Additives ........................................ 449
Consumption statistics .................. 277
Displaying the current consump-
tion ................................................ 278
Displaying the range ...................... 278
Driving tips .................................... 194
Fuel gaug e....................................... 35
Grade (gasoline )............................ 448
Important safety notes .................. 448
Low outside temperature s............. 450
Premium-grade unleaded gaso-
line ................................................. 448
Problem (malfunction) ................... 188
Quality (diesel )............................... 449
Refueling ........................................ 185
Tank content/reserve fue l............. 448
Fuel filler flap
Opening ......................................... 187
Fuel filter (display message) ............ 311
Fuel level Calling up the range (on-board
computer) ...................................... 278
Fuel tank
Capacity ........................................ 448
Problem (malfunction) ................... 188
Fuses
Allocation chart ............................. 402
Before changing ............................. 402
Dashboard fuse box ....................... 403
Fuse box in the engine compart-
ment .............................................. 403 Index
11

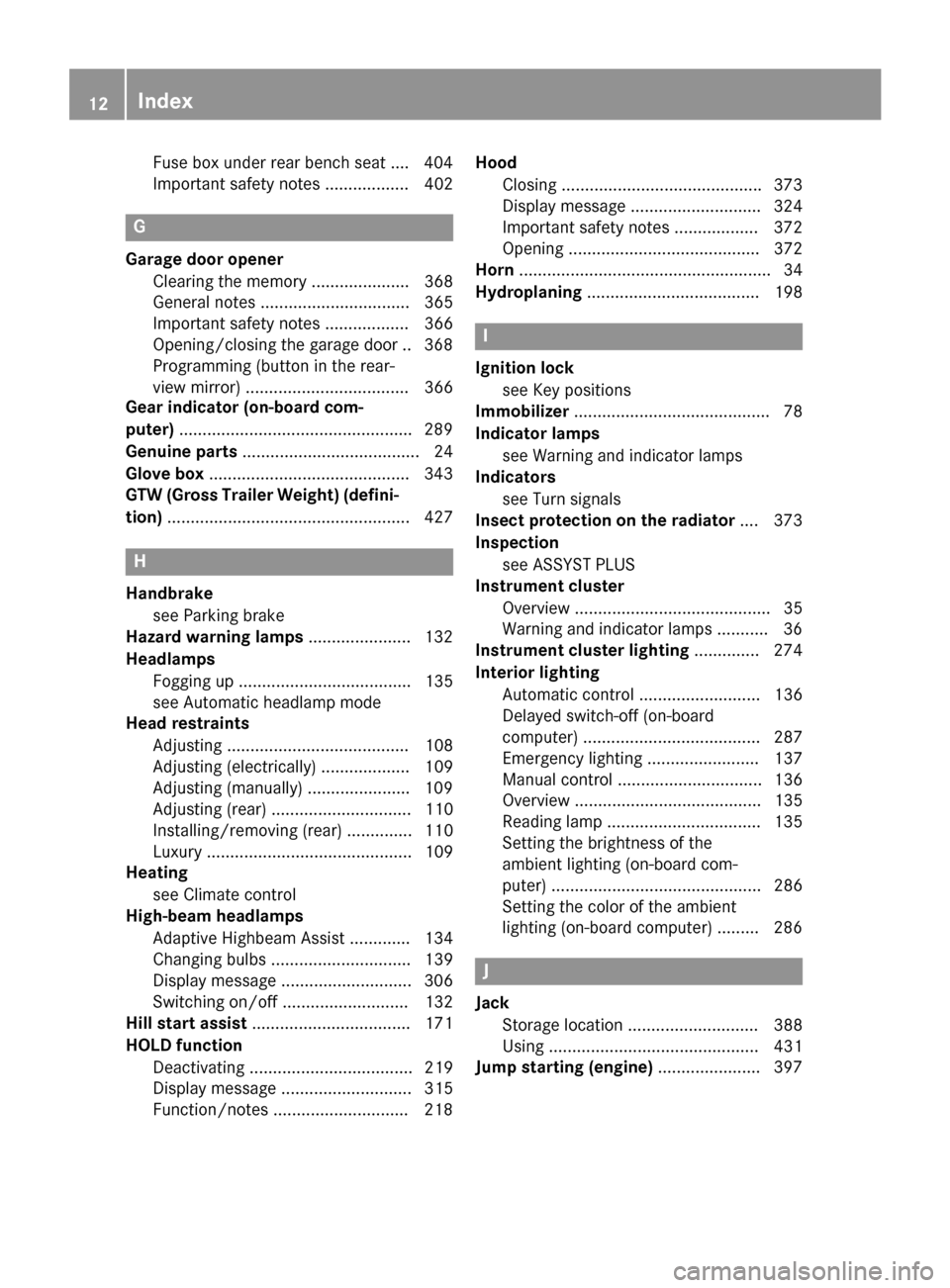

Fuse box under rear bench sea
t.... 404
Important safety notes .................. 402 G
Garage door opener Clearing the memory ..................... 368
General notes ................................ 365
Important safety notes .................. 366
Opening/closing the garage doo r..3 68
Programming (button in the rear-
view mirror) ................................... 366
Gear indicator (on-board com-
puter) ................................................. .289
Genuine parts ...................................... 24
Glove box .......................................... .343
GTW (Gross Trailer Weight) (defini-
tion) .................................................... 427 H
Handbrake see Parking brake
Hazard warning lamps ......................132
Headlamps Fogging up ..................................... 135
see Automatic headlamp mode
Head restraints
Adjusting ....................................... 108
Adjusting (electrically) ................... 109
Adjusting (manually) ..................... .109
Adjusting (rear) .............................. 110
Installing/removing (rear) .............. 110
Luxury ............................................ 109
Heating
see Climate control
High-beam headlamps
Adaptive Highbeam Assist ............. 134
Changing bulbs .............................. 139
Display message ............................ 306
Switching on/off ........................... 132
Hill start assist .................................. 171
HOLD function Deactivating ................................... 219
Display message ............................ 315
Function/notes ............................ .218 Hood
Closing .......................................... .373
Display message ............................ 324
Important safety notes .................. 372
Opening ......................................... 372
Horn ...................................................... 34
Hydroplaning ..................................... 198 I
Ignition lock see Key positions
Immobilizer .......................................... 78
Indicator lamps see Warning and indicator lamps
Indicators
see Turn signals
Insect protection on the radiator .... 373
Inspection see ASSYST PLUS
Instrument cluster
Overview .......................................... 35
Warning and indicator lamps ........... 36
Instrument cluster lighting .............. 274
Interior lighting Automatic control .......................... 136
Delayed switch-off (on-board
computer) ...................................... 287
Emergency lighting ........................ 137
Manual control ............................... 136
Overview ........................................ 135
Reading lamp ................................. 135
Setting the brightness of the
ambient lighting (on-board com-
puter) ............................................. 286
Setting the color of the ambient
lighting (on-board computer) ......... 286 J
Jack Storage location ............................ 388
Using ............................................. 431
Jump starting (engine) ......................397 12
Index

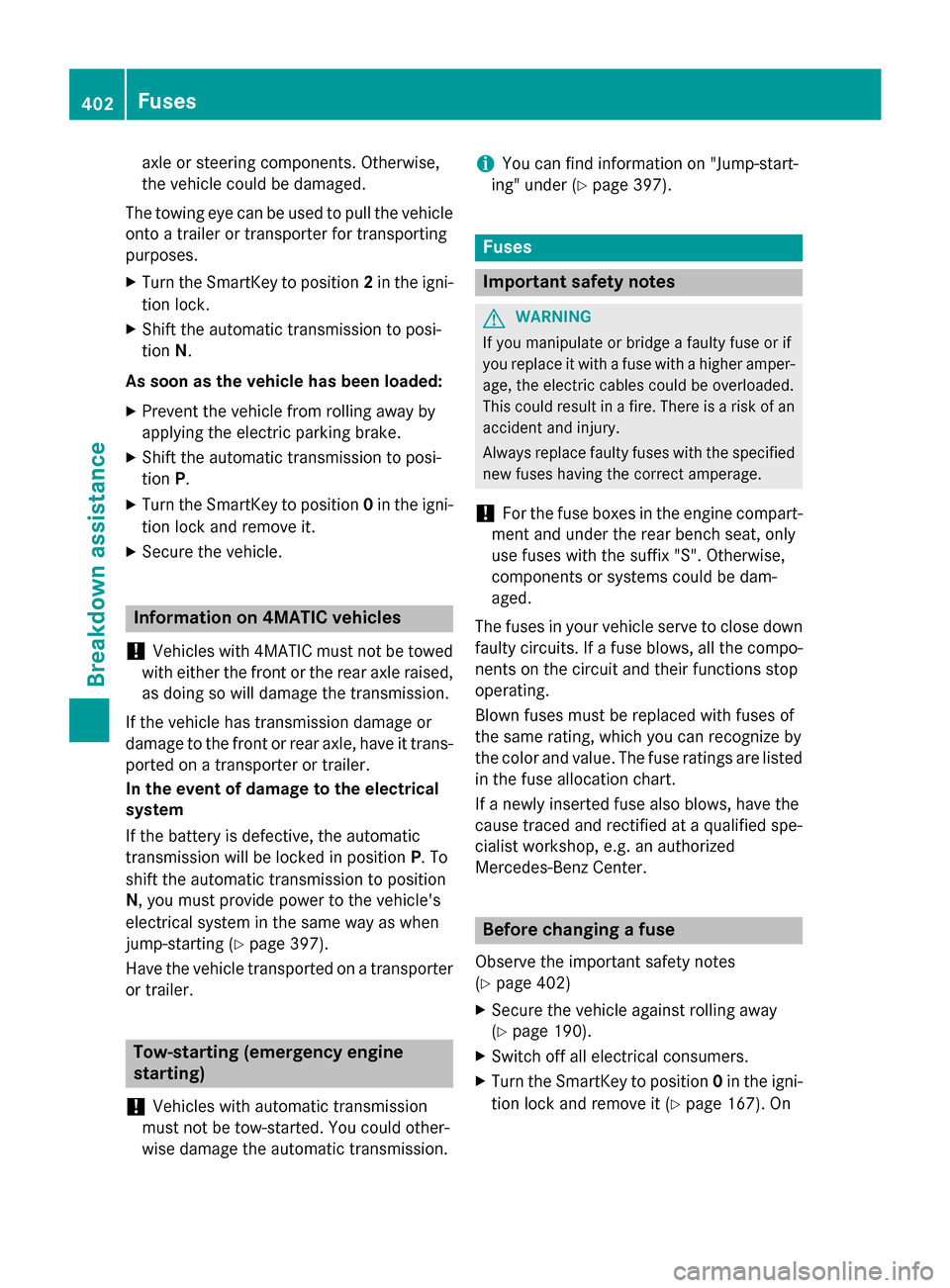

axle or steering components. Otherwise,
the vehicle could be damaged.
The towing eye can be used to pull the vehicle
onto a trailer or transporter for transporting
purposes.
X Turn the SmartKey to position 2in the igni-
tion lock.
X Shift the automatic transmission to posi-
tion N.
As soon as the vehicle has been loaded:
X Prevent the vehicle from rolling away by
applying the electric parking brake.
X Shift the automatic transmission to posi-
tion P.
X Turn the SmartKey to position 0in the igni-
tion lock and remove it.
X Secure the vehicle. Information on 4MATIC vehicles
! Vehicles with 4MATIC must not be towed
with either the front or the rear axle raised,
as doing so will damage the transmission.
If the vehicle has transmission damage or
damage to the front or rear axle, have it trans- ported on a transporter or trailer.
In the event of damage to the electrical
system
If the battery is defective, the automatic
transmission will be locked in position P. To
shift the automatic transmission to position
N, you must provide power to the vehicle's
electrical system in the same way as when
jump-starting (Y page 397).
Have the vehicle transported on a transporter
or trailer. Tow-starting (emergency engine
starting)
! Vehicles with automatic transmission
must not be tow-started. You could other-
wise damage the automatic transmission. i
You can find information on "Jump-start-
ing" under (Y page 397). Fuses
Important safety notes
G
WARNING
If you manipulate or bridge a faulty fuse or if
you replace it with a fuse with a higher amper- age, the electric cables could be overloaded.
This could result in a fire. There is a risk of an
accident and injury.
Always replace faulty fuses with the specified
new fuses having the correct amperage.
! For the fuse boxes in the engine compart-
ment and under the rear bench seat, only
use fuses with the suffix "S". Otherwise,
components or systems could be dam-
aged.
The fuses in your vehicle serve to close down faulty circuits. If a fuse blows, all the compo- nents on the circuit and their functions stop
operating.
Blown fuses must be replaced with fuses of
the same rating, which you can recognize by
the color and value. The fuse ratings are listed in the fuse allocation chart.
If a newly inserted fuse also blows, have the
cause traced and rectified at a qualified spe-
cialist workshop, e.g. an authorized
Mercedes-Benz Center. Before changing a fuse
Observe the important safety notes
(Y page 402)
X Secure the vehicle against rolling away
(Y page 190).
X Switch off all electrical consumers.
X Turn the SmartKey to position 0in the igni-
tion lock and remove it (Y page 167). On402
FusesBreakdown assistance

vehicles with KEYLESS-GO, make sure the
ignition is switched off (Y
page 167).
All indicator lamps in the instrument cluster must be off.
The fuses are located in various fuse boxes: R Fuse box on the front-passenger side of the
dashboard
R Fuse box in the engine compartment on the
right-hand side of the vehicle, when viewed
in the direction of travel
R Fuse box under the rear bench seat
The fuse allocation chart is located in the fuse box under the rear bench seat (Y page 404).Dashboard fuse box
Observe the important safety notes
(Y page 402)
! Do not use a pointed object such as a
screwdriver to open the cover in the dash-
board. You could damage the dashboard or
the cover.
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture seeping in or dirt could otherwise impair

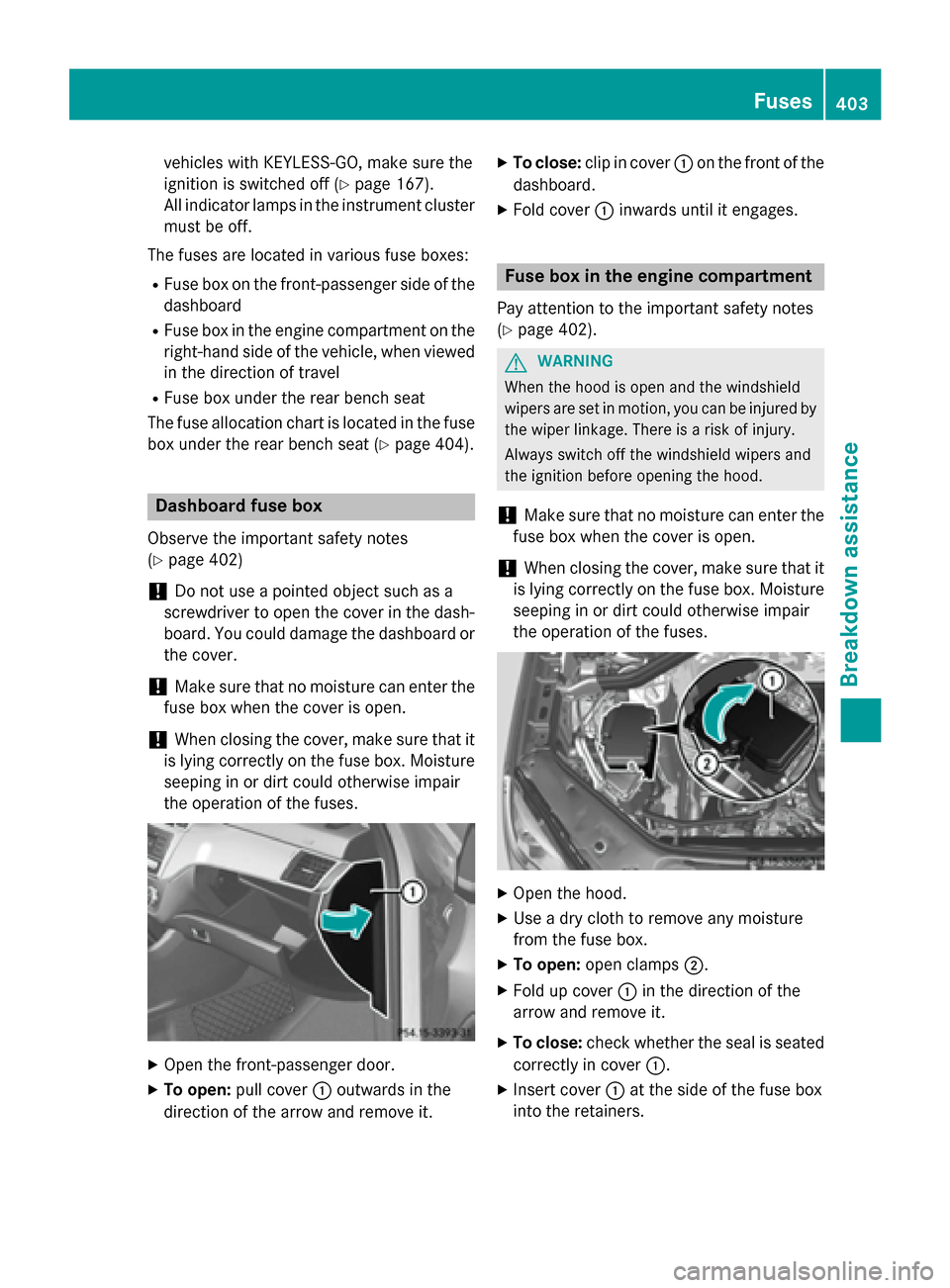

the operation of the fuses. X
Open the front-passenger door.
X To open: pull cover 0043outwards in the
direction of the arrow and remove it. X
To close: clip in cover 0043on the front of the
dashboard.
X Fold cover 0043inwards until it engages. Fuse box in the engine compartment
Pay attention to the important safety notes
(Y page 402). G
WARNING
When the hood is open and the windshield
wipers are set in motion, you can be injured by the wiper linkage. There is a risk of injury.
Always switch off the windshield wipers and
the ignition before opening the hood.
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses. X
Open the hood.
X Use a dry cloth to remove any moisture
from the fuse box.
X To open: open clamps 0044.
X Fold up cover 0043in the direction of the
arrow and remove it.
X To close: check whether the seal is seated
correctly in cover 0043.
X Insert cover 0043at the side of the fuse box
into the retainers. Fuses
403Breakdown assistance Z

X
Fold down cover 0043and close clamps 0044.

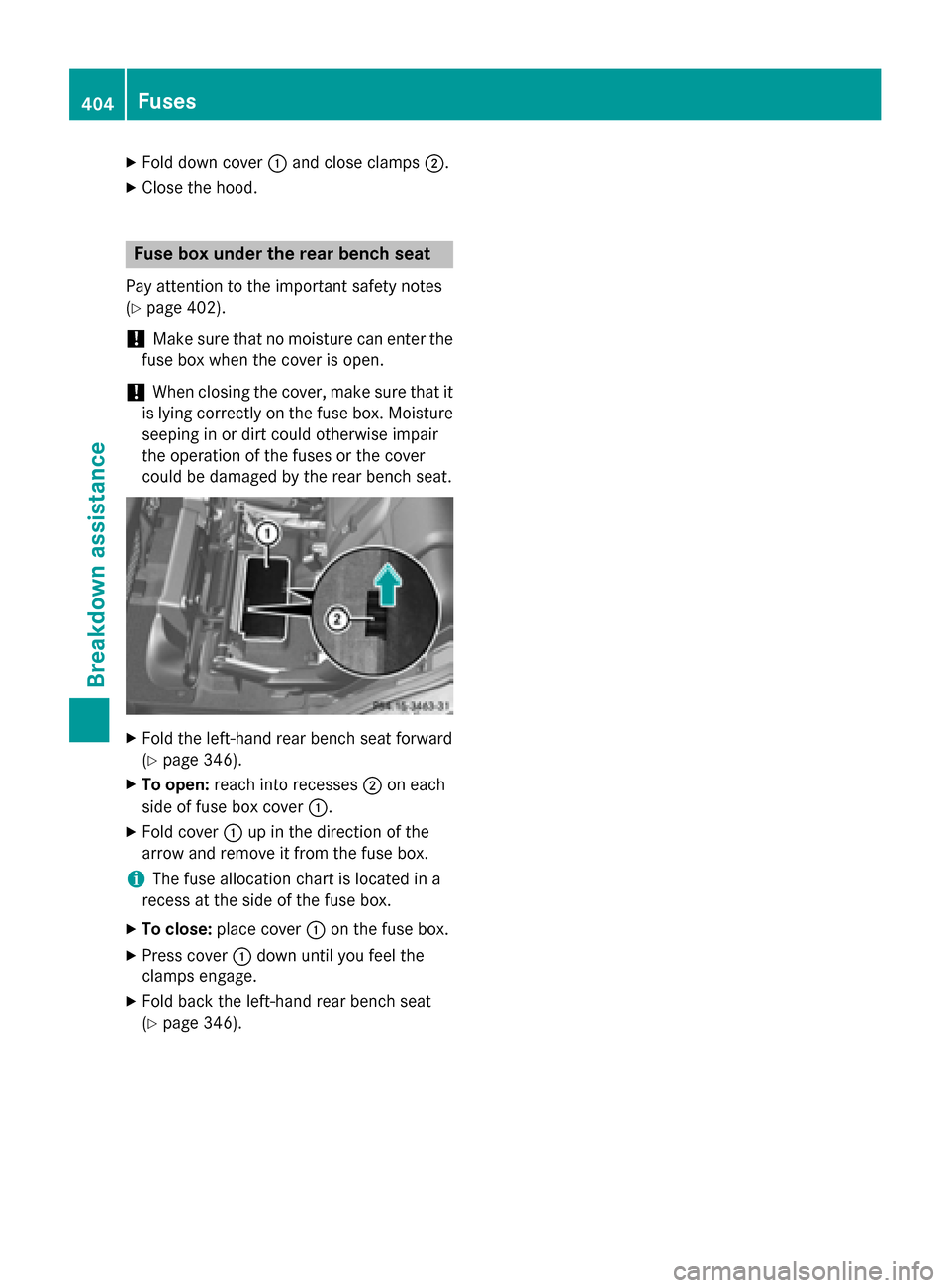

X Close the hood. Fuse box under the rear bench seat
Pay attention to the important safety notes
(Y page 402).
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture seeping in or dirt could otherwise impair
the operation of the fuses or the cover
could be damaged by the rear bench seat. X
Fold the left-hand rear bench seat forward
(Y page 346).
X To open: reach into recesses 0044on each
side of fuse box cover 0043.
X Fold cover 0043up in the direction of the
arrow and remove it from the fuse box.
i The fuse allocation chart is located in a
recess at the side of the fuse box.
X To close: place cover 0043on the fuse box.
X Press cover 0043down until you feel the
clamps engage.
X Fold back the left-hand rear bench seat
(Y page 346). 404
FusesBreakdown assistance
