MERCEDES-BENZ GL320CDI 2007 X164 Owner's Manual

560 Technical data
Fuels, coolants, lubricants
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by
Mercerdes-Benz.
Please refer to the Factory Approved
Service Products pamphlet (USA only), or
inquire at an authorized Mercedes-Benz
Light Truck Center.
Warning!G
Comply with all valid regulations with re-
spect to handling, storing and disposing of
service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct
contact with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.
ModelCapacityFuels, coolants, lubricants, etc.
Engine with oil filterAll models9.0 US qt (8.5 l)Approved engine oils
Automatic transmissionAll models9.5 US qt (9.0 l)MB Automatic Transmission Fluid
Transfer case single speedAll models0.5 US qt (0.5 l)MB Automatic Transmission Fluid
Transfer case double speed*All models1.6 US qt (1.5 l)MB Automatic Transmission Fluid
Front axleAll models1.2 US qt (1.1 l)Hypoid gear oil
Rear axleAll models1.2 US qt (1.1 l)Hypoid gear oil
Rear axle with differential lock*All models1.7 US qt (1.6 l)Hypoid gear oil

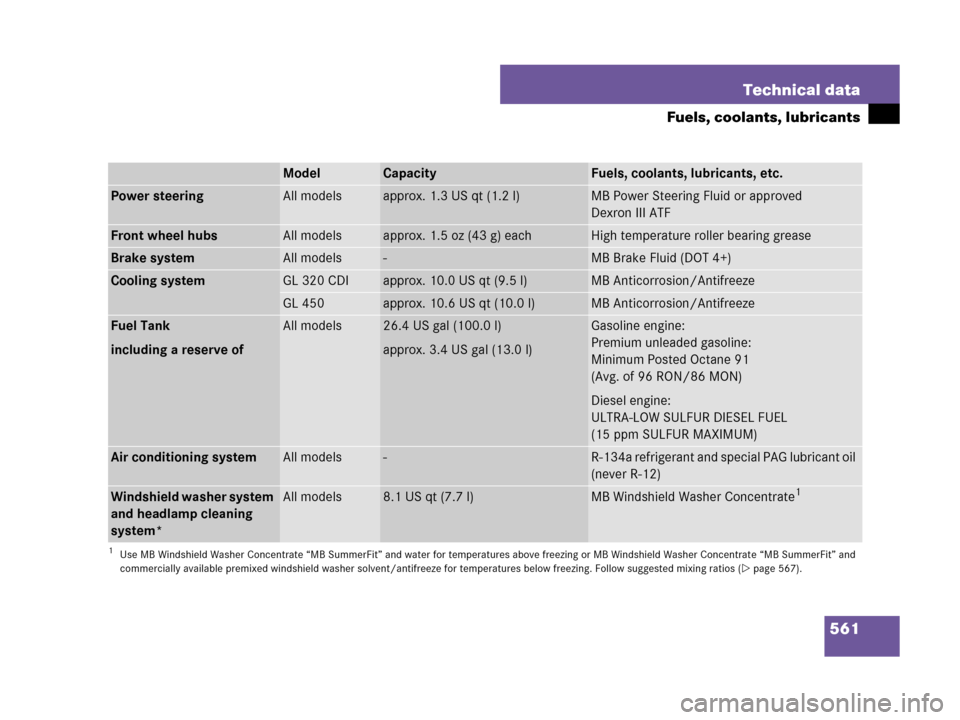

561 Technical data
Fuels, coolants, lubricants
ModelCapacityFuels, coolants, lubricants, etc.
Power steeringAll modelsapprox. 1.3 US qt (1.2 l)MB Power Steering Fluid or approved
Dexron III ATF
Front wheel hubsAll modelsapprox. 1.5 oz (43 g) eachHigh temperature roller bearing grease
Brake systemAll models-MB Brake Fluid (DOT 4+)
Cooling systemGL 320 CDIapprox. 10.0 US qt (9.5 l)MB Anticorrosion/Antifreeze
GL 450approx. 10.6 US qt (10.0 l)MB Anticorrosion/Antifreeze
Fuel Tank
including a reserve ofAll models26.4 US gal (100.0 l)
approx. 3.4 US gal (13.0 l)Gasoline engine:
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
Diesel engine:
ULTRA-LOW SULFUR DIESEL FUEL
(15 ppm SULFUR MAXIMUM)
Air conditioning systemAll models-R-134a refrigerant and special PAG lubricant oil
(never R-12)
Windshield washer system
and headlamp cleaning
system*All models8.1 US qt (7.7 l)MB Windshield Washer Concentrate1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing or MB Windshield Washer Concentrate “MB SummerFit” and
commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios (page 567).

562 Technical data
Fuels, coolants, lubricants
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System. For a listing of approved engine
oils and oil filters, refer to the Factory
Approved Service Products pamphlet
(USA only), or contact an authorized
Mercedes-Benz Light Truck Center.Engine oil additives
Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air
conditioning system.
Brake fluid
Only brake fluid approved by
Mercedes-Benz is recommended. Your
authorized Mercedes-Benz Light Truck
Center will provide you with additional
information.
!Using engine oils and oil filters of
specification other than those expressly
required for the Maintenance System, or chang-
ing of oil and oil filter at change intervals longer
than those called for by the Maintenance System
will result in engine or emission control system
damage not covered by the Mercedes-Benz
Limited Warranty.
Please follow Maintenance System recommen-
dations for scheduled oil changes. Failure to do
so will result in engine or emission control
system damage not covered by the
Mercedes-Benz Limited Warranty.
!Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from blending
oil additives are not covered by the
Mercedes-Benz Limited Warranty.
!Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the system
will occur.
Warning!G
During vehicle operation, the boiling point of
the brake fluid is continuously reduced
through the absorption of moisture from the
atmosphere. Under extremely strenuous
operating conditions, this moisture content
can lead to the formation of bubbles in the
system, thus reducing the system’s
efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s
Maintenance Booklet for replacement inter-
val.

563 Technical data
Fuels, coolants, lubricants
Premium unleaded gasoline
(gasoline engine)
Fuel requirements
Gasoline engine
Only use premium unleaded fuel:

The octane number (posted at the
pu m p) m us t b e 91 mi n. It is an a vera ge
of both the Research Octane Number
(RON) and the Motor Octane Number
(MON): (RON+MON) /2. This is also
known as the ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not
exceed 10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains
10% ethanol and 90% unleaded gasoline,
can be used.
Warning!G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
personal injury.
Never allow sparks, flame or smoking mate-
rials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid in-
haling fumes and skin or clothing contact,
extinguish all smoking materials.
Direct skin contact with fuels and the inha-
lation of fuel vapors are damaging to your
health.
!To maintain the engine’s durability and per-
formance, premium unleaded gasoline must be
used. If premium unleaded gasoline is not avail-
able and low octane fuel is used, follow these
precautions:

Have the fuel tank only partially filled with
unleaded regular gasoline and fill up with
premium unleaded gasoline as soon as
possible.

Avoid full throttle driving and abrupt
acceleration.

Do not exceed an engine speed of 3000 rpm
if the vehicle is loaded with a light load such
as two persons and no luggage.

Do not exceed 2/3 of maximum accelerator
pedal position if the vehicle is fully loaded or
operating in mountainous terrain.

564 Technical data
Fuels, coolants, lubricants
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
Diesel engine
Only use commercially available vehicular
ULTRA-LOW SULFUR DIESEL FUEL
(15 ppm SULFUR MAXIMUM).
To prevent malfunctions, diesel fuel with
improved cold flow characteristics is of-
fered in the winter months. Check with
your fuel retailer.Gasoline additives (gasoline engine)
A major concern among engine
manufacturers is carbon build-up caused
by gasoline. Mercedes-Benz recommends
only the use of quality gasoline containing
additives that prevent the build-up of
carbon deposits.
After an extended period of using fuels
without such additives carbon deposits
can build up, especially on the intake
valves and in the combustion area, leading
to engine performance problems such as:

Warm-up hesitation

Unstable idle

Knocking/pinging

Misfire

Power lossIn areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives,
Mercedes-Benz recommends the use of
additives approved by us for use on
Mercedes-Benz vehicles. Refer to the
Factory Approved Service Products
pamphlet (USA only) or contact an
authorized Mercedes-Benz Light Truck
Center for a listing of approved product(s).
Follow directions on product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary costs and
may be harmful to the engine operation.
!Do not fill the tank with gasoline. Do not
blend diesel fuel with gasoline or kerosine. The
fuel system and engine will otherwise be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.
!Damage or malfunction resulting from poor
fuel quality or from blending additional fuel
additives other than those tested and approved
by us for use on Mercedes-Benz vehicles are not
covered by the Mercedes-Benz Limited
Warranty.

565 Technical data
Fuels, coolants, lubricants
Coolants
The engine coolant is a mixture of water
and anticorrosion/antifreeze, which
provides:

Corrosion protection

Freeze protection

Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -35°F (-37°C) and corro-
sion protection.If the antifreeze mixture is effective to
-35°F (-37°C), the boiling point of the cool-
ant in the pressurized cooling system is
reached at approximately 266°F (130°C).
The coolant solution must be used year
round to provide the necessary corrosion
protection and increase boil-over protec-
tion. Refer to Maintenance Booklet for
replacement interval.
Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance booklet is only applicable if
MB 325.0 Anticorrosion/Antifreeze solu-
tion or other Mercedes-Benz approved
products of equal specification are used to
renew the coolant concentration or bring it
back up to the proper level.
For information on other Mercedes-Benz
approved products of equal specification,
refer to the Factory Approved Service
Products pamphlet (USA only) or contact
an authorized Mercedes-Benz Light Truck
Center.To provide important corrosion protection,
the solution must be at least 50% anticor-
rosion/antifreeze (equivalent to freeze
protection to approximately -35°F
[-37°C]). If you use a solution that is more
than 55% anticorrosion/antifreeze (freeze
protection to approximately -49°F
[-45°C]), the engine temperature will
increase due to the lower heat transfer
capability of the solution. Therefore, do not
use more than this amount of anticorro-
sion/antifreeze.
If the coolant level is low, water and
MB 325.0 Anticorrosion/Antifreeze
should be used to bring it up to the proper
level (have cooling system checked for
signs of leakage). Please make sure the
mixture is in accordance with label instruc-
tions.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water. If you
are not sure about the water quality, con-
sult an authorized Mercedes-Benz Light
Truck Center.
!Add premixed coolant solution only. Adding
water and MB 325.0 Anticorrosion/Antifreeze
separately from each other, could cause engine
damage not covered by the
Mercedes-Benz Limited Warranty.

566 Technical data
Fuels, coolants, lubricants
Anticorrosion/antifreeze
Your vehicle contains a number of
aluminum parts. The use of aluminum
components in motor vehicle engines
necessitates that anticorrosion/antifreeze
coolant used in such engines be
specifically formulated to protect the aluminum parts. Failure to use such
anticorrosion/antifreeze coolant will result
in a significantly shortened service life.
Therefore, the following product is strongly
recommended for use in your vehicle:
MB 325.0 Anticorrosion/Antifreeze agent.Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked. The coolant is also
regularly checked each time you bring your
vehicle to an authorized Mercedes-Benz
Light Truck Center for service.
Anticorrosion/antifreeze quantity
Approximate freeze protection
Model-35°F (-37°C)-49°F (-45°C)
GL 320 CDI5.0 US qt (4.75 l)5.5 US qt (5.2 l)
GL 4505.3 US qt (5.0 l)5.8 US qt (5.5 l)

567 Technical data
Fuels, coolants, lubricants
Windshield washer system and
headlamp cleaning system*
Both the windshield washer system and
headlamp cleaning system* are supplied
from the windshield washer reservoir.
The windshield washer reservoir has a ca-
pacity of approximately 8.1 US qt (7.7 l).
Refill the reservoir with MB Windshield
Washer Concentrate and water (or con-
centrate and commercially available
premixed windshield washer sol-
vent/antifreeze, depending on ambient
temperatures).Windshield and headlamp washer fluid
mixing ration
For temperatures above freezing point, use
MB Windshield Washer Concentrate
“MB SummerFit” and water:

1 part “MB SummerFit” to 100 parts
water
(1.34 fl oz [40 ml] “MB SummerFit” to
1gal [4.0l] water)
For temperatures below freezing point, use
MB Windshield Washer Concentrate
“MB SummerFit ” and commercially avail-
able premixed windshield washer
solvent/antifreeze:

1 part “MB SummerFit” to 100 parts
solvent
(1.34 fl oz [40 ml] “MB SummerFit” to
1 gal [4.0 l] solvent)Warning!G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.

568

569 Index
A
ABS 103
Indicator lamp 436
Messages in the
multifunction display 453
Off-road - ABS 104
Accelerator position, automatic
transmission 198
Accessory weight 415
Accident 67
Active head restraint 92, 135, 504
Adaptive Damping System (ADS)* 280
Air bags 76
Children 77, 93
Front passenger front air bag off
indicator lamp 31, 32, 85
Front, Driver 79
Front, Passenger 79
Occupant Classification System*
(OCS) 81
Safety guidelines 78
Side impact (front and rear*) 80
Window curtain 80Air conditioning refrigerant 562
Air conditioning system see
Climate control or
Automatic climate control (3-zone)*
Air conditioning, Cooling 226, 241
Air distribution, Front 221, 236
Air distribution, Rear 229, 245
Air pressure see Tire inflation pressure
Air recirculation mode 224, 239
Air suspension package 280
Adaptive Damping System
(ADS)* 280
Messages in the
multifunction display 490
Vehicle level control 281
Air vents 229
Air vents*, Rear 246
Air vents, Front 222, 236
Air volume 222, 237
Alarm system see Anti-theft systems
Alignment bolt (vehicle tool kit) 496, 526
Anticorrosion/antifreeze 561, 566Antiglare, Interior rear view mirror 210
Antiglare, Rear view mirrors* 211
Antilock Brake System see ABS
Anti-theft systems 112
Anti-theft alarm system 111, 112
Immobilizer 111
Aquaplaning see Hydroplaning
Armrest storage compartments
Front 318
Ashtrays* 322
Aspect ratio 415
ATF 382
Attaching a trailer 368
Audio menu 166
CD operation 167
Radio operation 166
Satellite radio* operation
(USA only) 166
Auto-dimming*, Rear view mirrors 211
Automatic central locking,
Control system 183
