29 At a glance

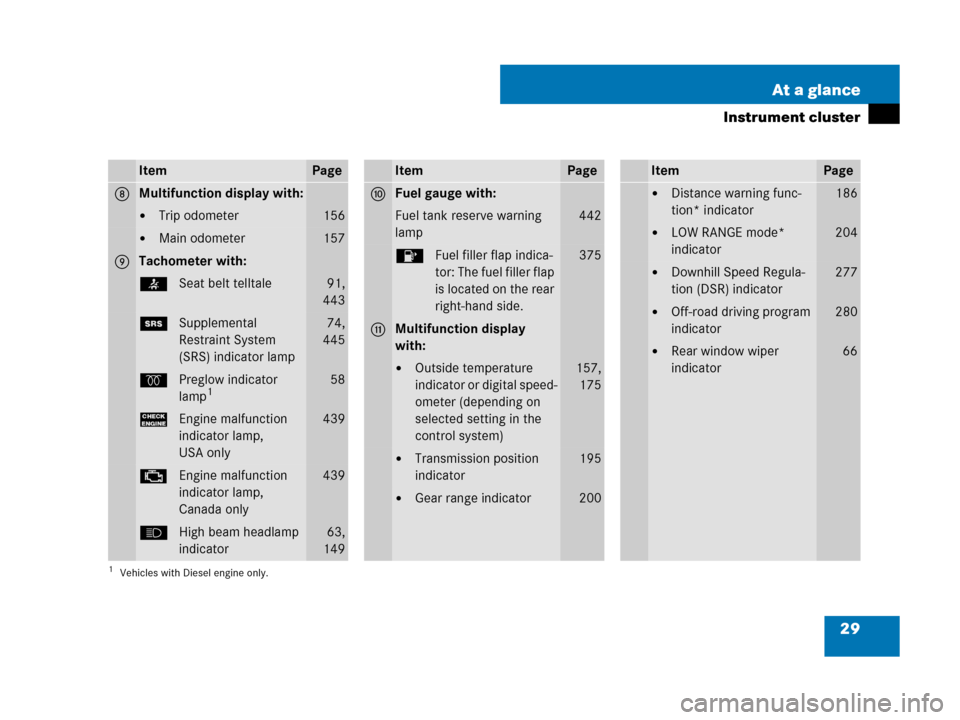

Instrument cluster
ItemPage
8Multifunction display with:
Trip odometer156
Main odometer157
9Tachometer with:
1Supplemental
Restraint System
(SRS) indicator lamp74,
445
qPreglow indicator
lamp1
1Vehicles with Diesel engine only.
58
?Engine malfunction
indicator lamp,
USA only439
±Engine malfunction
indicator lamp,
Canada only439
AHigh beam headlamp
indicator63,
149
ItemPage
aFuel gauge with:
Fuel tank reserve warning
lamp442
4Fuel filler flap indica-
tor: The fuel filler flap
is located on the rear
right-hand side.375
bMultifunction display
with:
Outside temperature
indicator or digital speed-
ometer (depending on
selected setting in the
control system)157,
175
Transmission position
indicator195
Gear range indicator200
ItemPage
Distance warning func-
tion* indicator186
LOW RANGE mode*
indicator204
Downhill Speed Regula-
tion (DSR) indicator277
Off-road driving program
indicator280
Rear window wiper
indicator66
Page 63 of 595
62 Getting started
Driving
For more information, see “Driving instruc-
tions” (
page 349).
For information on off-road driving, see
“Off-road driving” (
page 357).
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
Exterior lamp switch
1Off
2Low beam headlamps on
Turn the exterior lamp switch to
positionB.
The low beam headlamps come on.

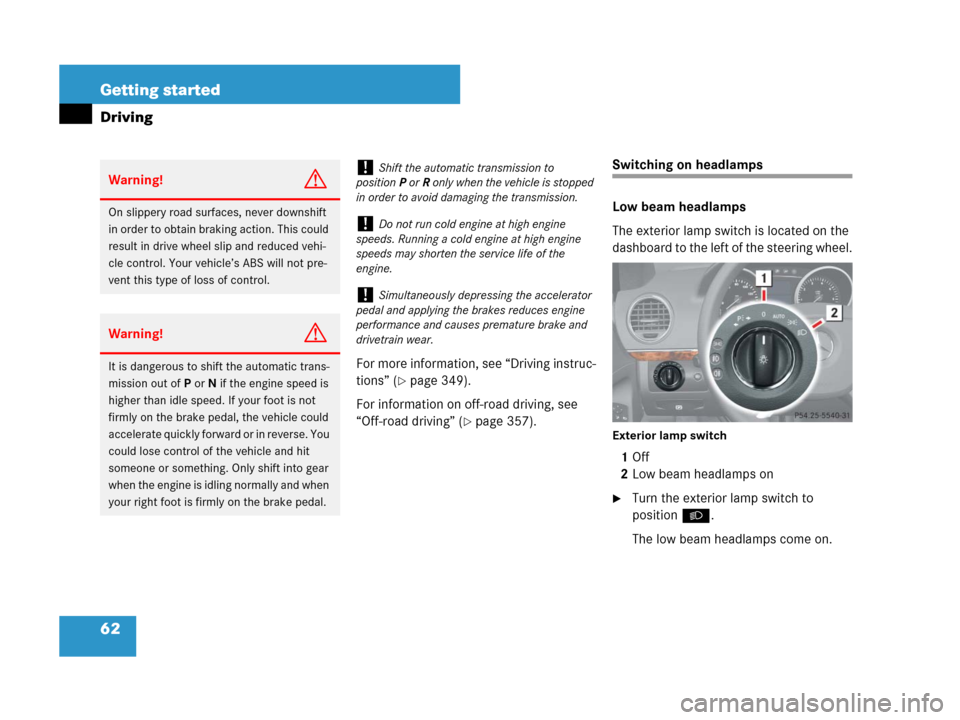

Warning!G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
Warning!G
It is dangerous to shift the automatic trans-
mission out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
!Shift the automatic transmission to
positionPorR only when the vehicle is stopped
in order to avoid damaging the transmission.
!Do not run cold engine at high engine
speeds. Running a cold engine at high engine
speeds may shorten the service life of the
engine.
!Simultaneously depressing the accelerator
pedal and applying the brakes reduces engine
performance and causes premature brake and
drivetrain wear.
Page 146 of 595
145 Controls in detail
Lighting
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 62)
and “Turn signals” (
page 63).

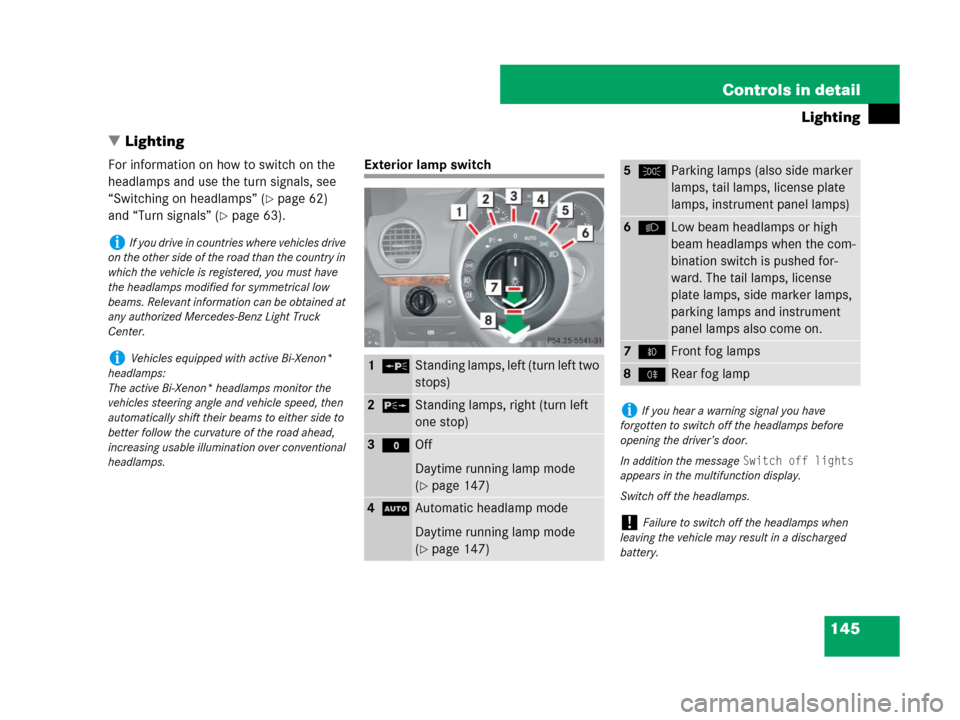

Exterior lamp switch
iIf you drive in countries where vehicles drive
on the other side of the road than the country in
which the vehicle is registered, you must have
the headlamps modified for symmetrical low
beams. Relevant information can be obtained at
any authorized Mercedes-Benz Light Truck
Center.
iVehicles equipped with active Bi-Xenon*
headlamps:
The active Bi-Xenon* headlamps monitor the
vehicles steering angle and vehicle speed, then
automatically shift their beams to either side to
better follow the curvature of the road ahead,
increasing usable illumination over conventional
headlamps.1‚Standing lamps, left (turn left two
stops)
2ˆStanding lamps, right (turn left
one stop)
3MOff
Daytime running lamp mode
(
page 147)
4UAutomatic headlamp mode
Daytime running lamp mode
(
page 147)
5CParking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
6BLow beam headlamps or high
beam headlamps when the com-
bination switch is pushed for-
ward. The tail lamps, license
plate lamps, side marker lamps,
parking lamps and instrument
panel lamps also come on.
7‡Front fog lamps
8†Rear fog lamp
iIf you hear a warning signal you have
forgotten to switch off the headlamps before
opening the driver’s door.
In addition the message
Switch off lights
appears in the multifunction display.
Switch off the headlamps.
!Failure to switch off the headlamps when
leaving the vehicle may result in a discharged
battery.
Page 147 of 595
146 Controls in detail
Lighting
Manual headlamp mode
The low beam headlamps and the parking
lamps can be switched on and off with the
exterior lamp switch.
Turn the exterior lamp switch to
positionB.
Automatic headlamp mode
The following lamps switch on and off au-
tomatically depending on the brightness of
the ambient light:
Low beam headlamps
Tail and parking lamps
License plate lamps
Side marker lamps
Turn the exterior lamp switch to
positionU.
With the SmartKey in starter switch
position1 or the KEYLESS-GO*
start/stop button pressed once, only
the parking lamps and the side marker
lamps will switch on and off automati-
cally.
When the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps, and the
side marker lamps will switch on and
off automatically.

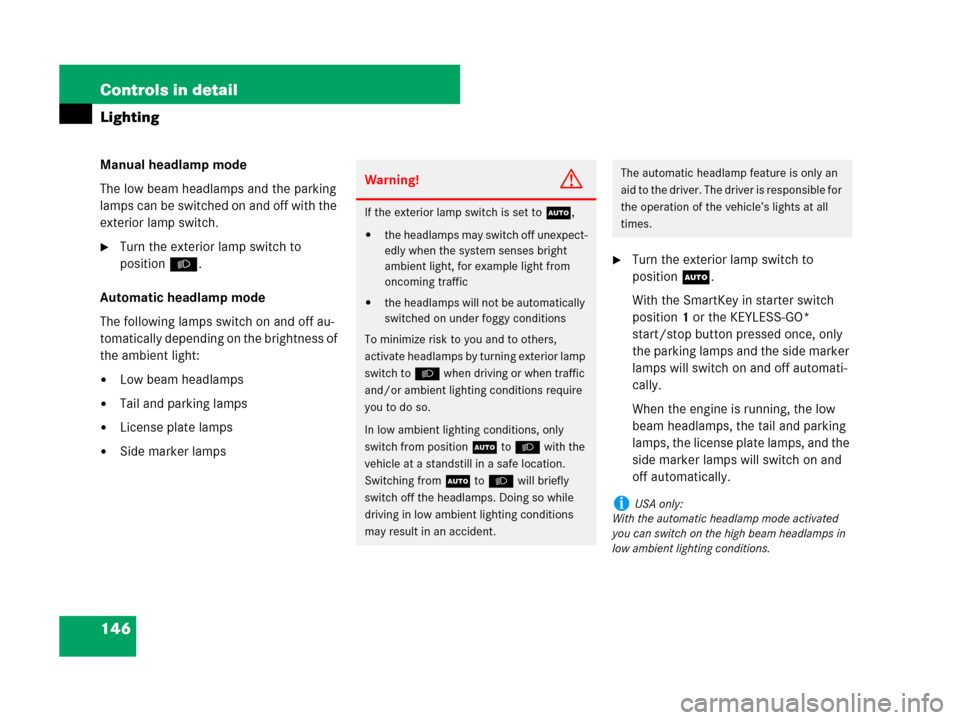

Warning!G
If the exterior lamp switch is set toU,
the headlamps may switch off unexpect-
edly when the system senses bright
ambient light, for example light from
oncoming traffic
the headlamps will not be automatically
switched on under foggy conditions
To minimize risk to you and to others,
activate headlamps by turning exterior lamp
switch toB when driving or when traffic
and/or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from positionU toB with the
vehicle at a standstill in a safe location.
Switching fromUtoB will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle’s lights at all
times.
iUSA only:
With the automatic headlamp mode activated
you can switch on the high beam headlamps in
low ambient lighting conditions.
Page 148 of 595
147 Controls in detail
Lighting
Daytime running lamp mode
Turn the exterior lamp switch to
positionM orU.
When the engine is running, the low
beam headlamps are switched on.
In low ambient light conditions, the
following lamps will switch on
additionally:
Tail and parking lamps
License plate lamps
Side marker lamps
Canada only
The daytime running lamp mode is manda-
tory and therefore in a constant mode.When the engine is running, and you shift
from a driving position to positionN orP,
the low beam headlamps will switch off
with a 3 minute delay.
When the engine is running, and youturn the exterior lamp switch to
positionC, the parking lamps and
the side marker lamps switch on
additionally
turn the exterior lamp switch to
positionB, the manual headlamp
mode has priority over the daytime
running lamp mode
The corresponding exterior lamps
switch on (
page 62).USA only
By default, the daytime running lamp mode
is deactivated. Activate the daytime
running lamp mode using the control
system, see “Setting daytime running lamp
mode (USA only)” (
page 178).
When the engine is running, and you turn
the exterior lamp switch to positionC
orB, the manual headlamp mode has
priority over the daytime running lamp
mode.
The corresponding exterior lamps switch
on (
page 62).
iWith the daytime running lamp mode
activated and the engine running, you cannot
switch off the low beam headlamps manually.
iWith the exterior lamp switch in
positionM orU, you cannot switch on the
high beam headlamps.
The high beam flasher is available at all times.
For nighttime driving turn the exterior lamp
switch to positionB to permit activation of
the high beam headlamps.
iWith the exterior lamp switch in
positionM, you cannot switch on the high
beam headlamps.
The high beam flasher is available at all times.
For nighttime driving turn the exterior lamp
switch to positionB orU to permit
activation of the high beam headlamps.
Page 149 of 595
148 Controls in detail
Lighting
Locator lighting and night security
illumination
The locator lighting and the night security
illumination are described in the “Control
system” section, see “Setting locator light-
ing” (
page 179) and “Setting night secu-
rity illumination” (
page 179).Fog lampsFront fog lamps
Switch on the low beam headlamps
(
page 62).
Pull out the exterior lamp switch to first
stop.
The front fog lamps switch on.
The green indicator lamp‡ in the
exterior lamp switch comes on.
Push in the exterior lamp switch.
The front fog lamps switch off.
The green indicator lamp‡ in the
exterior lamp switch goes out.

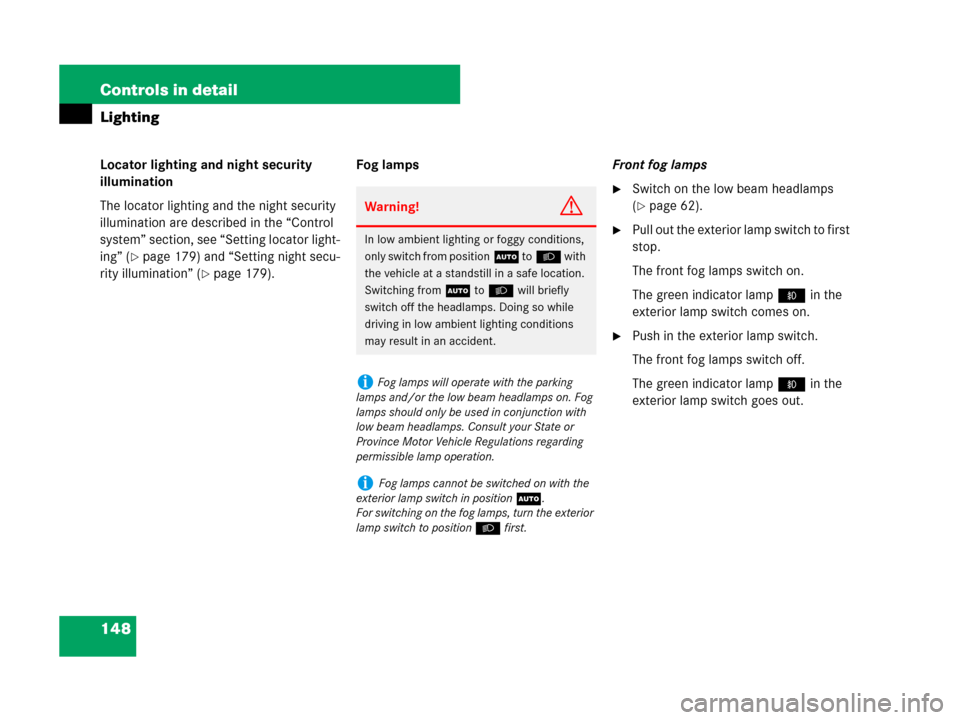

Warning!G
In low ambient lighting or foggy conditions,
only switch from positionU toB with
the vehicle at a standstill in a safe location.
Switching fromU toB will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
iFog lamps will operate with the parking
lamps and/or the low beam headlamps on. Fog
lamps should only be used in conjunction with
low beam headlamps. Consult your State or
Province Motor Vehicle Regulations regarding
permissible lamp operation.
iFog lamps cannot be switched on with the
exterior lamp switch in positionU.
For switching on the fog lamps, turn the exterior
lamp switch to positionB first.
Page 150 of 595
149 Controls in detail
Lighting
Rear fog lamp (driver’s side only)
Switch on the low beam headlamps
(
page 62).
Pull out the exterior lamp switch to
second stop.
The rear fog lamp switches on.
The yellow indicator lamp† in the
exterior lamp switch comes on.
Push in the exterior lamp switch to first
stop.
The rear fog lamp switches off.
The yellow indicator lamp† in the
exterior lamp switch goes out.
The front fog lamps remain lit.

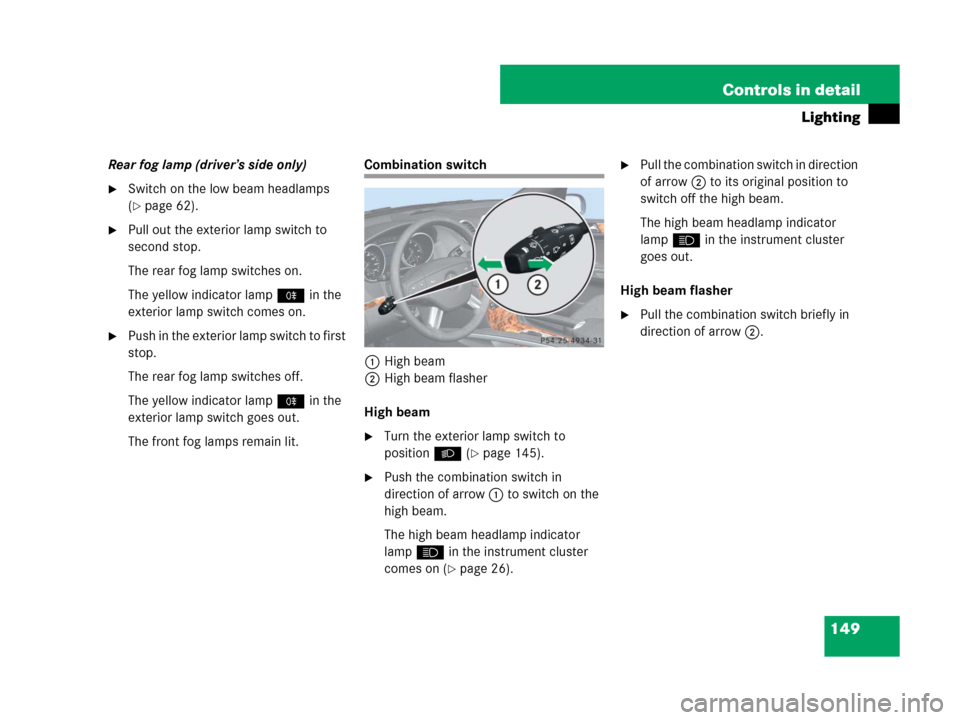

Combination switch
1High beam
2High beam flasher
High beam
Turn the exterior lamp switch to
positionB (
page 145).
Push the combination switch in
direction of arrow1 to switch on the
high beam.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 26).
Pull the combination switch in direction
of arrow2 to its original position to
switch off the high beam.
The high beam headlamp indicator
lampA in the instrument cluster
goes out.
High beam flasher
Pull the combination switch briefly in
direction of arrow2.
Page 179 of 595
178 Controls in detail
Control system
Lighting submenu
Access the
Lighting submenu via the
Settings menu. Use the Lighting
submenu to change the lamp and lighting
settings on your vehicle.
The following functions are available:
Setting daytime running lamp mode
(USA only)
Move the selection marker with
buttonæ orç to the
Lighting
submenu.
Press buttonj ork repeatedly
until the message
Lamp circuit
headlamp
appears in the multifunction
display.
The selection marker is on the current
setting.
Press buttonæ orç to select
manual operation (
Manual) or daytime
running lamp mode (
Constant).
With daytime running lamp mode activated
and the exterior lamp switch at
positionMorU, the low beam
headlamps are switched on when the
engine is running.In low ambient light conditions the
following lamps will switch on additionally:
Parking lamps
Tail lamps
License plate lamps
Side marker lamps
For more information on the daytime
running lamp mode, see “Lighting”
(
page 145).
FunctionPage
Setting daytime running lamp
mode (USA only)178
Setting locator lighting179
Setting night security illumination179
Setting interior lighting delayed
shut-off180
iThis function is not available in countries
where the daytime running lamp mode is
mandatory and therefore in a constant mode.
iFor safety reasons, changing the setting for
the daytime running lamp mode is not possible
while the vehicle is in motion. The following
message appears in the multifunction display:
Settings
only possible
at standstill
For safety reasons, resetting to factory settings
(
page 171) while driving will not deactivate the
daytime running lamp mode.

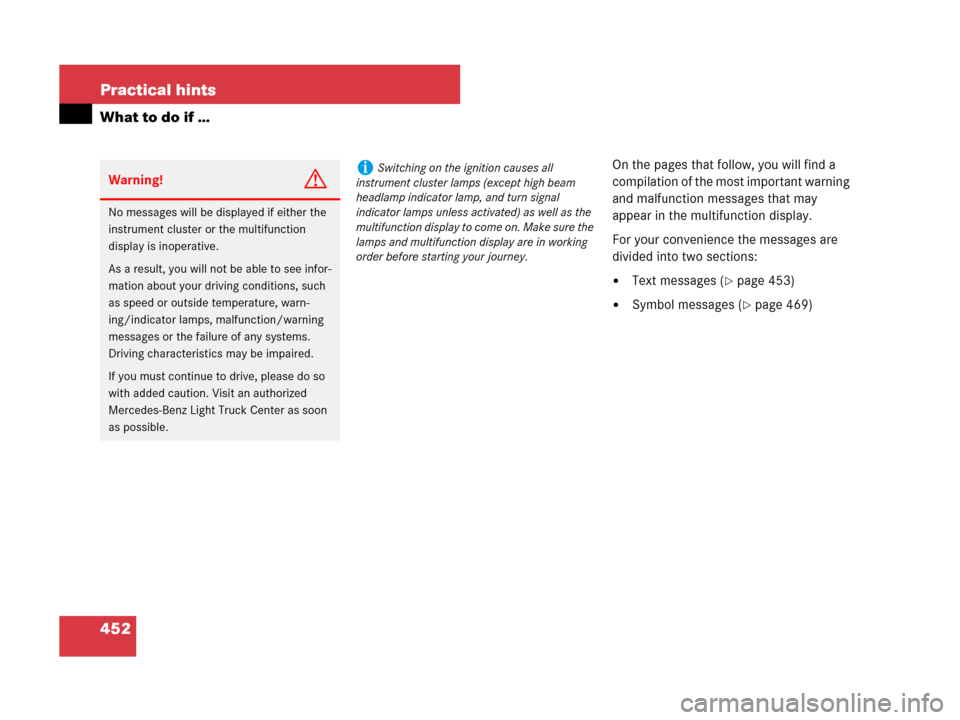

Page 453 of 595
452 Practical hints
What to do if …
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may
appear in the multifunction display.
For your convenience the messages are
divided into two sections:
Text messages (page 453)
Symbol messages (page 469)
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
As a result, you will not be able to see infor-
mation about your driving conditions, such
as speed or outside temperature, warn-
ing/indicator lamps, malfunction/warning
messages or the failure of any systems.
Driving characteristics may be impaired.
If you must continue to drive, please do so
with added caution. Visit an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
iSwitching on the ignition causes all
instrument cluster lamps (except high beam
headlamp indicator lamp, and turn signal
indicator lamps unless activated) as well as the
multifunction display to come on. Make sure the
lamps and multifunction display are in working
order before starting your journey.

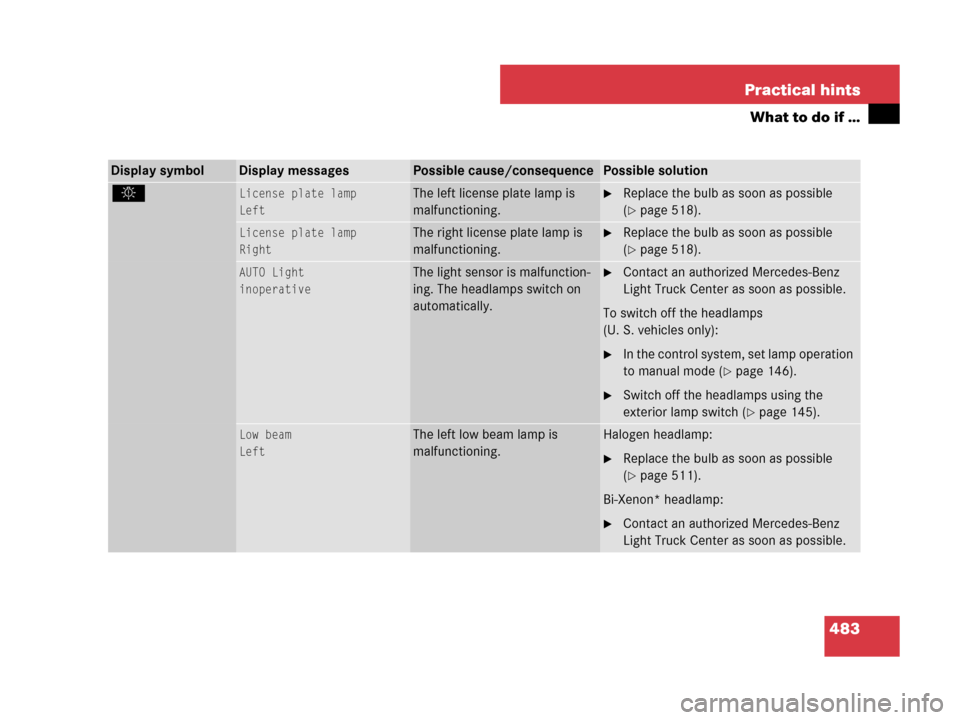

Page 484 of 595
483 Practical hints
What to do if …
Display symbolDisplay messagesPossible cause/consequencePossible solution
. License plate lamp
LeftThe left license plate lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 518).
License plate lamp
RightThe right license plate lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 518).
AUTO Light
inoperativeThe light sensor is malfunction-
ing. The headlamps switch on
automatically.Contact an authorized Mercedes-Benz
Light Truck Center as soon as possible.
To switch off the headlamps
(U. S. vehicles only):
In the control system, set lamp operation
to manual mode (
page 146).
Switch off the headlamps using the
exterior lamp switch (
page 145).
Low beam
LeftThe left low beam lamp is
malfunctioning.Halogen headlamp:
Replace the bulb as soon as possible
(
page 511).
Bi-Xenon* headlamp:
Contact an authorized Mercedes-Benz
Light Truck Center as soon as possible.
