MERCEDES-BENZ GLA 2016 Owners Manual

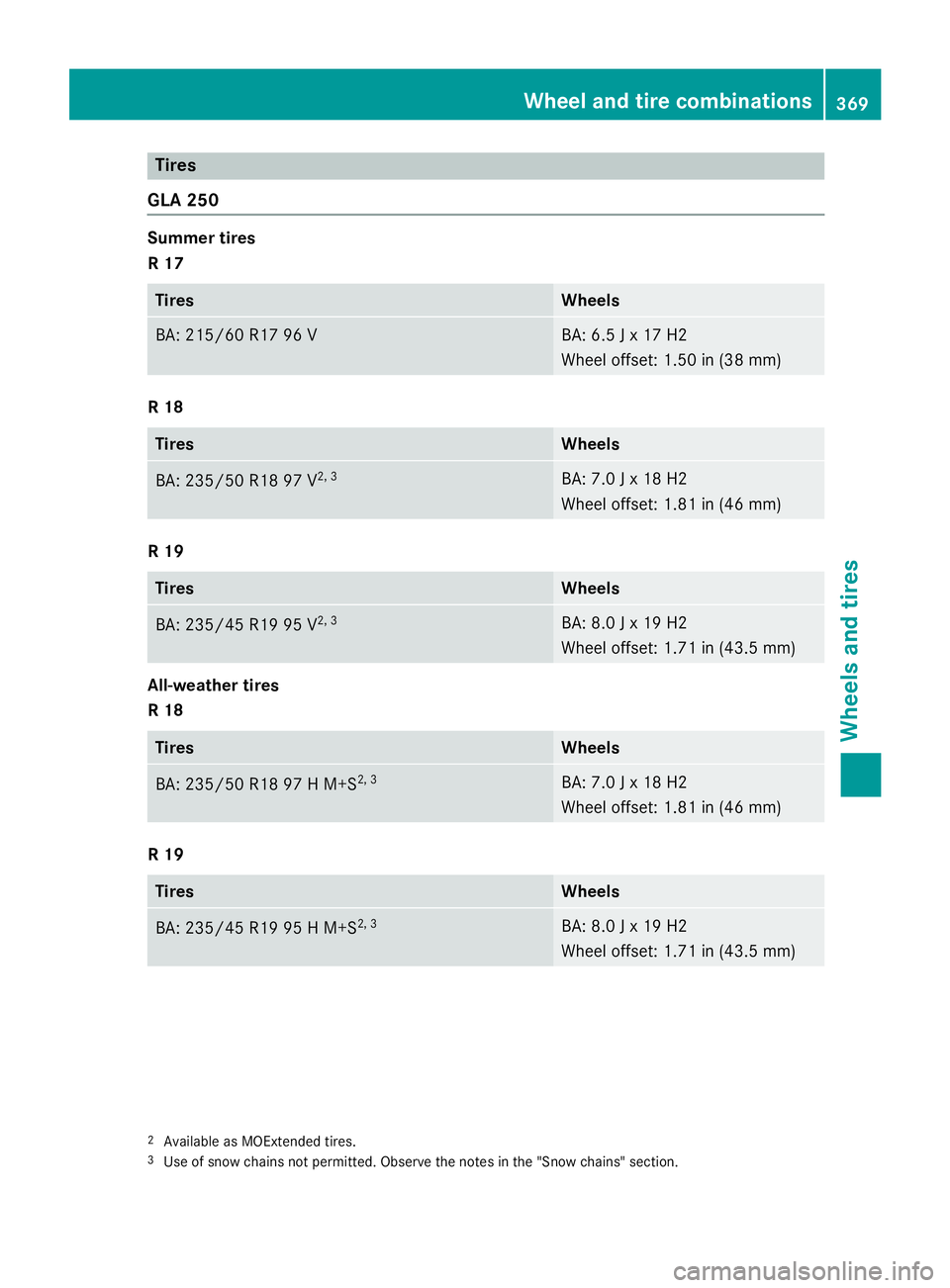

Tires
GLA 250 Summer tires
R 17
Tires Wheels
BA: 215/60 R1 7 96 V BA: 6.5 J x 17 H2
Wheel offset: 1.50 in (38 mm)
R 18
Tires Wheels
BA: 235/50 R18 97 V 2, 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 V 2, 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
All-weather tires
R 18
Tires Wheels
BA: 235/50 R18 97 H M+S 2, 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 H M+S 2, 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
2
Available as MOExtended tires. 3
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations 369
Wheels and tires Z

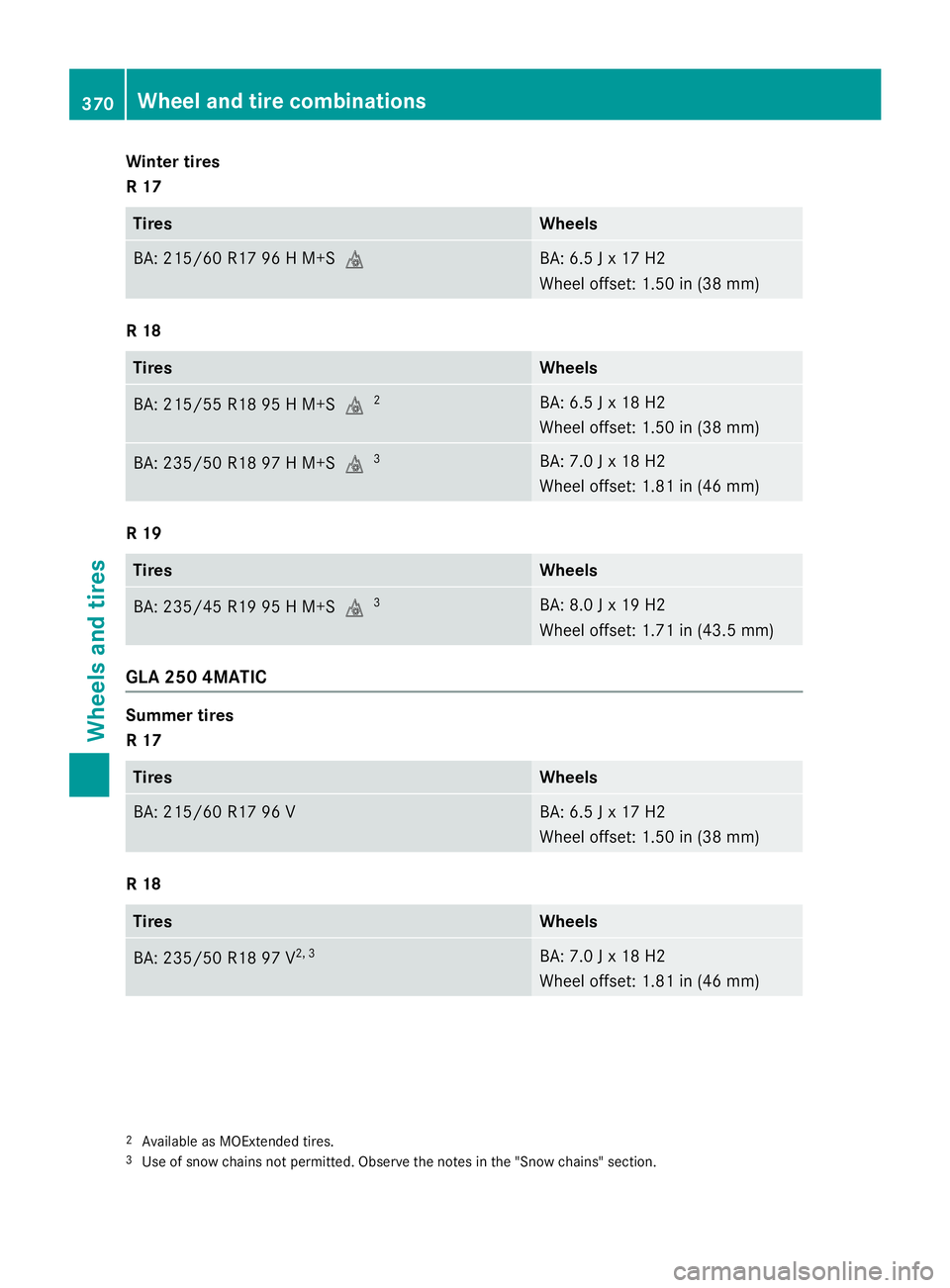

Winter tires
R 17
Tires Wheels
BA: 215/60 R17 96 H M+S M BA: 6.5 J x 17 H2
Wheel offset: 1.50 in (38 mm)
R 18
Tires Wheels
BA: 215/55 R18 95 H M+S M 2
BA: 6.5 J x 18 H2
Wheel offset: 1.50 in (38 mm)
BA: 235/50 R18 97 H M+S M 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 H M+S M 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
GLA 250 4MATIC
Summer tires
R 17
Tires Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2
Wheel offset: 1.50 in (38 mm)
R 18
Tires Wheels
BA: 235/50 R18 97 V 2, 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
2
Available as MOExtended tires. 3
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.370
Wheel and tire combinations
Wheels and tires

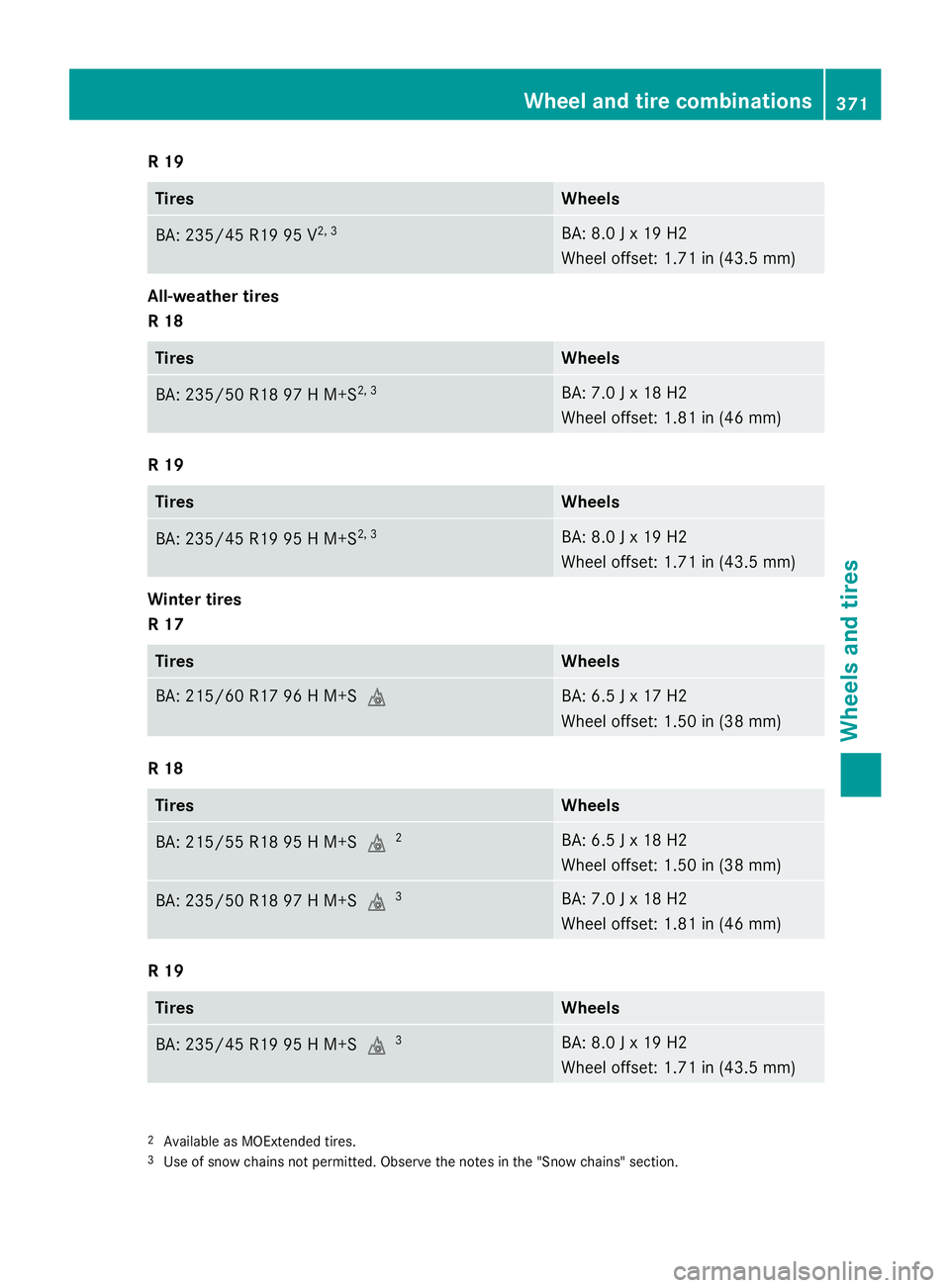

R 19
Tires Wheels
BA: 235/45 R19 95 V 2, 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
All-weather tires
R 18
Tires Wheels
BA: 235/50 R18 97 H M+S 2, 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 H M+S 2, 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
Winter tires
R 17
Tires Wheels
BA: 215/60 R17 96 H M+S M BA: 6.5 J x 17 H2
Wheel offset: 1.50 in (38 mm)
R 18
Tires Wheels
BA: 215/55 R18 95 H M+S M 2
BA: 6.5 J x 18 H2
Wheel offset: 1.50 in (38 mm)
BA: 235/50 R18 97 H M+S M 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 H M+S M 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
2
Available as MOExtended tires. 3
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations 371
Wheels and tires Z

Mercedes-AMG GLA 45 4MATIC Summer tires
R 19
Tires Wheels
BA: 235/45 ZR19 99 Y XL 3
BA: 8.0 J x 19 H2
Wheel offset: 1.72 in (43.7 mm)
R 20
Tires Wheels
BA: 235/40 ZR20 96 Y XL 3
BA: 8.0 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
Winter tires
R 18
Tires Wheels
BA: 215/55 R18 99 V XL M+S M BA: 7.5 J x 18 H2
Wheel offset: 1.67 in (42.5 mm)
R 19
Tires Wheels
BA: 235/45 R19 99 V XL M+S M 3
BA: 8.0 J x 19 H2
Wheel offset: 1.72 in (43.7 mm)
3
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.372
Wheel and tire combinations
Wheels and tires

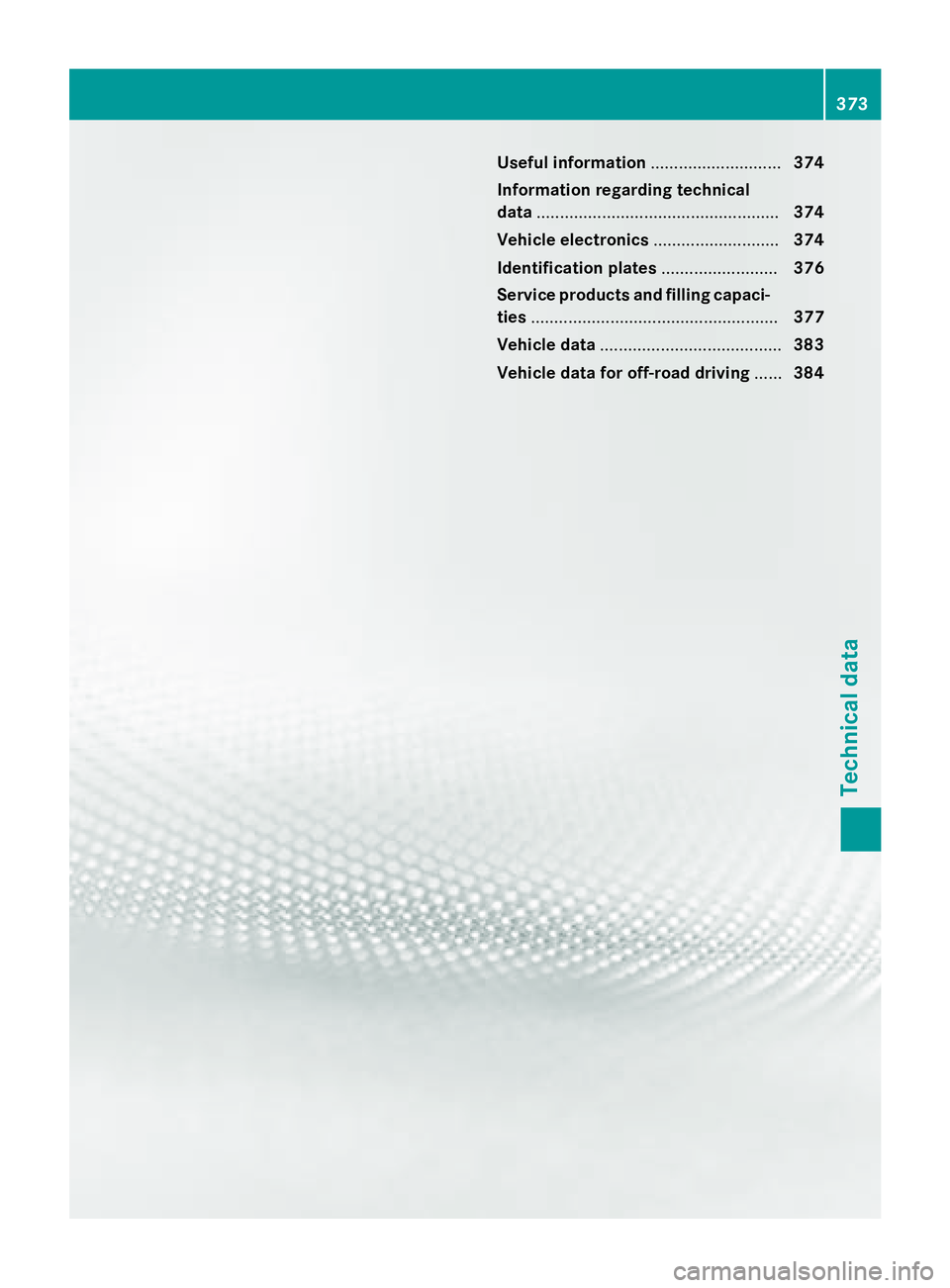

Useful information ............................ 374
Information regarding technical
data .................................................... 374
Vehicle electronics ........................... 374
Identification plates ......................... 376
Service products and filling capaci-
ties ..................................................... 377
Vehicle data ....................................... 383
Vehicle data for off-road driving ...... 384 373
Technical data

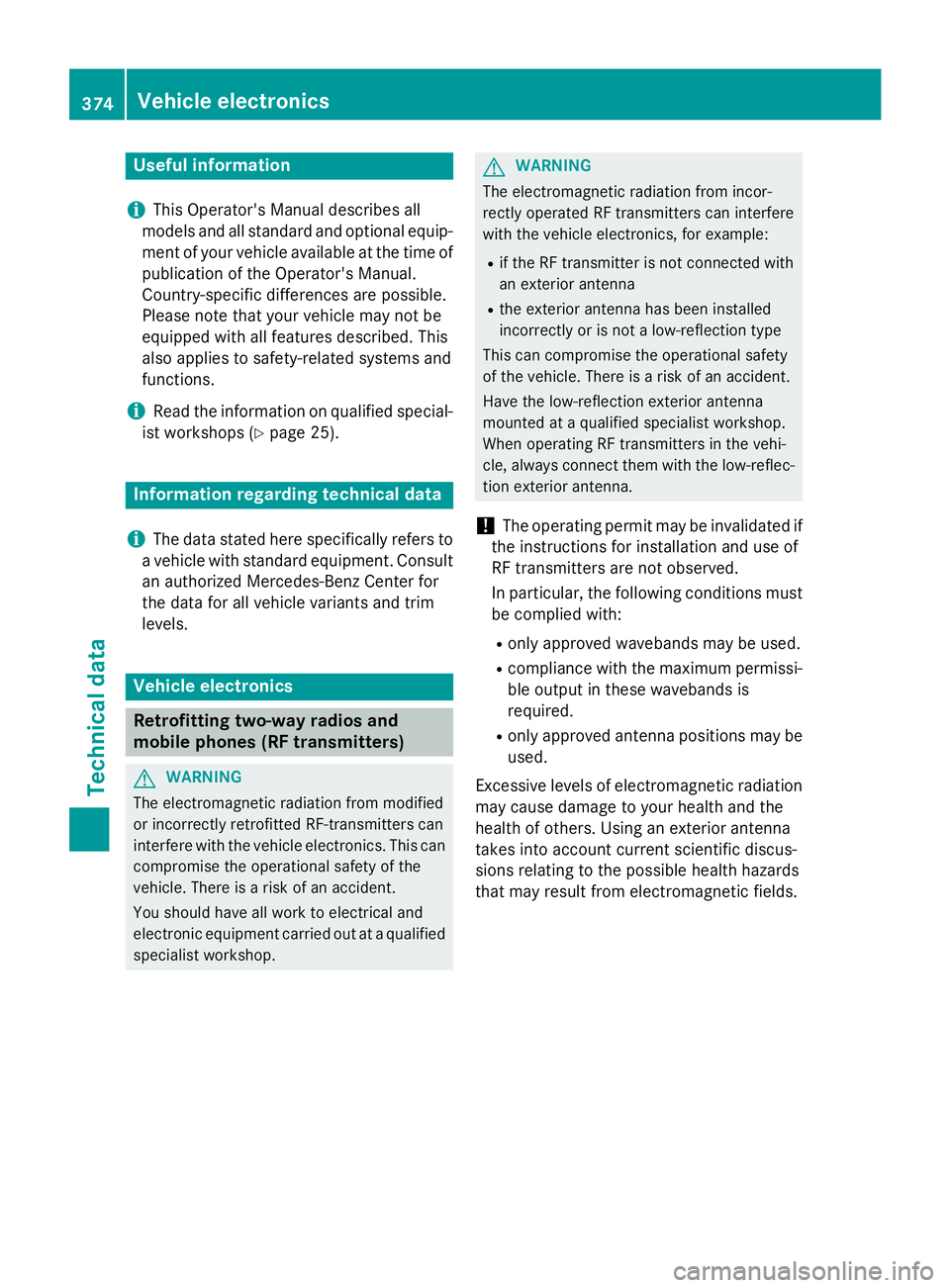

Useful information
i This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops ( Y
page 25).
Information regarding technical data
i The data stated here specifically refers to
a vehicle with standard equipment. Consult
an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels.
Vehicle electronics
Retrofitting two-way radios and
mobile phones (RF transmitters)
G WARNING
The electromagnetic radiation from modified
or incorrectly retrofitted RF-transmitters can
interfere with the vehicle electronics. This can
compromise the operational safety of the
vehicle. There is a risk of an accident.
You should have all work to electrical and
electronic equipment carried out at a qualified
specialist workshop. G WARNING
The electromagnetic radiation from incor-
rectly operated RF transmitters can interfere
with the vehicle electronics, for example: R
if the RF transmitter is not connected with
an exterior antenna R
the exterior antenna has been installed
incorrectly or is not a low-reflection type
This can compromise the operational safety
of the vehicle. There is a risk of an accident.
Have the low-reflection exterior antenna
mounted at a qualified specialist workshop.
When operating RF transmitters in the vehi-
cle, always connect them with the low-reflec-
tion exterior antenna.
! The operating permit may be invalidated if
the instructions for installation and use of
RF transmitters are not observed.
In particular, the following conditions must
be complied with: R
only approved wavebands may be used. R
compliance with the maximum permissi-
ble output in these wavebands is
required. R
only approved antenna positions may be
used.
Excessive levels of electromagnetic radiation
may cause damage to your health and the
health of others. Using an exterior antenna
takes into account current scientific discus-
sions relating to the possible health hazards
that may result from electromagnetic fields.374
Vehicle electronics
Technical data

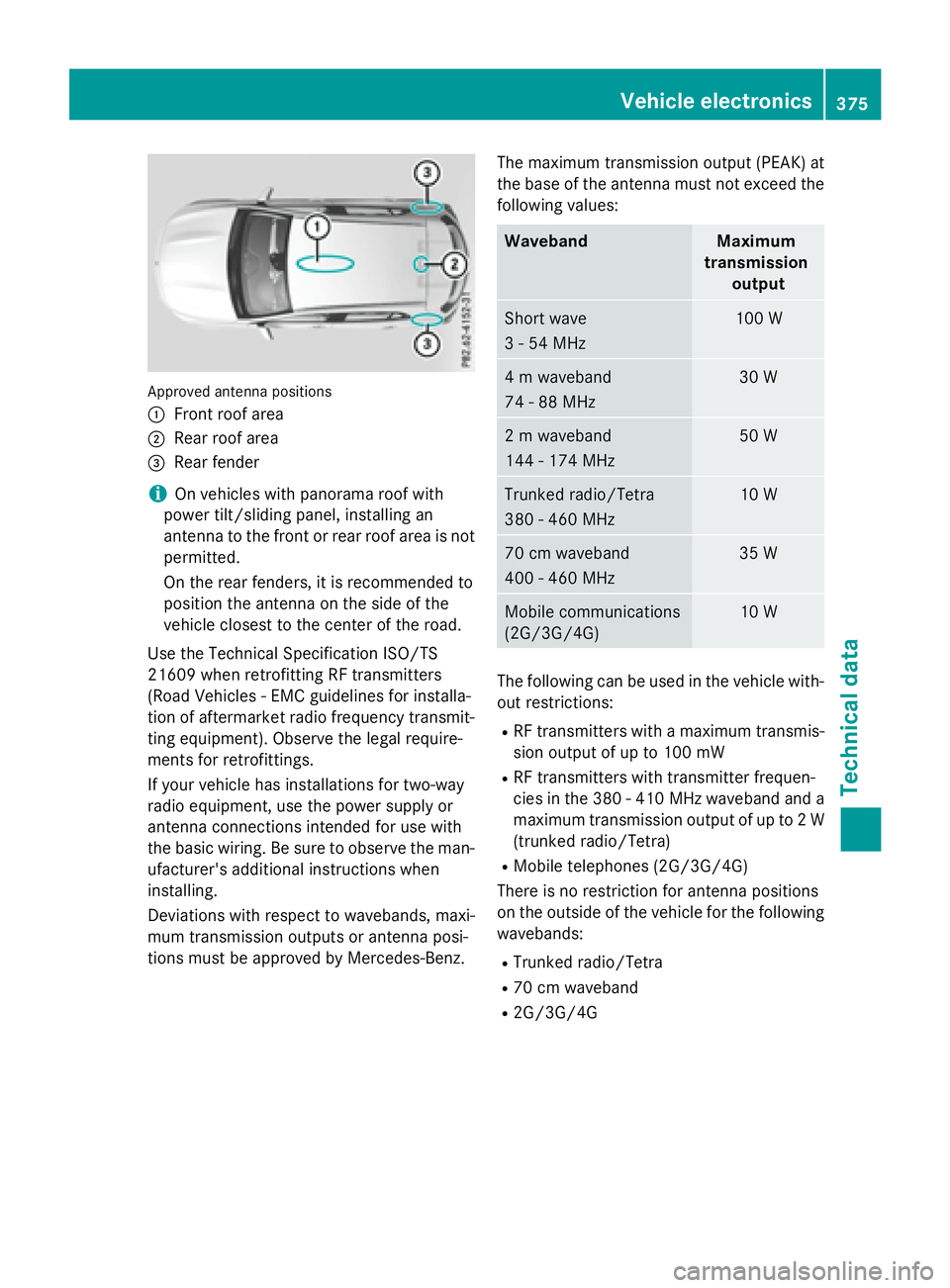

Approved antenna positions
C
Front roof areaD
Rear roof area

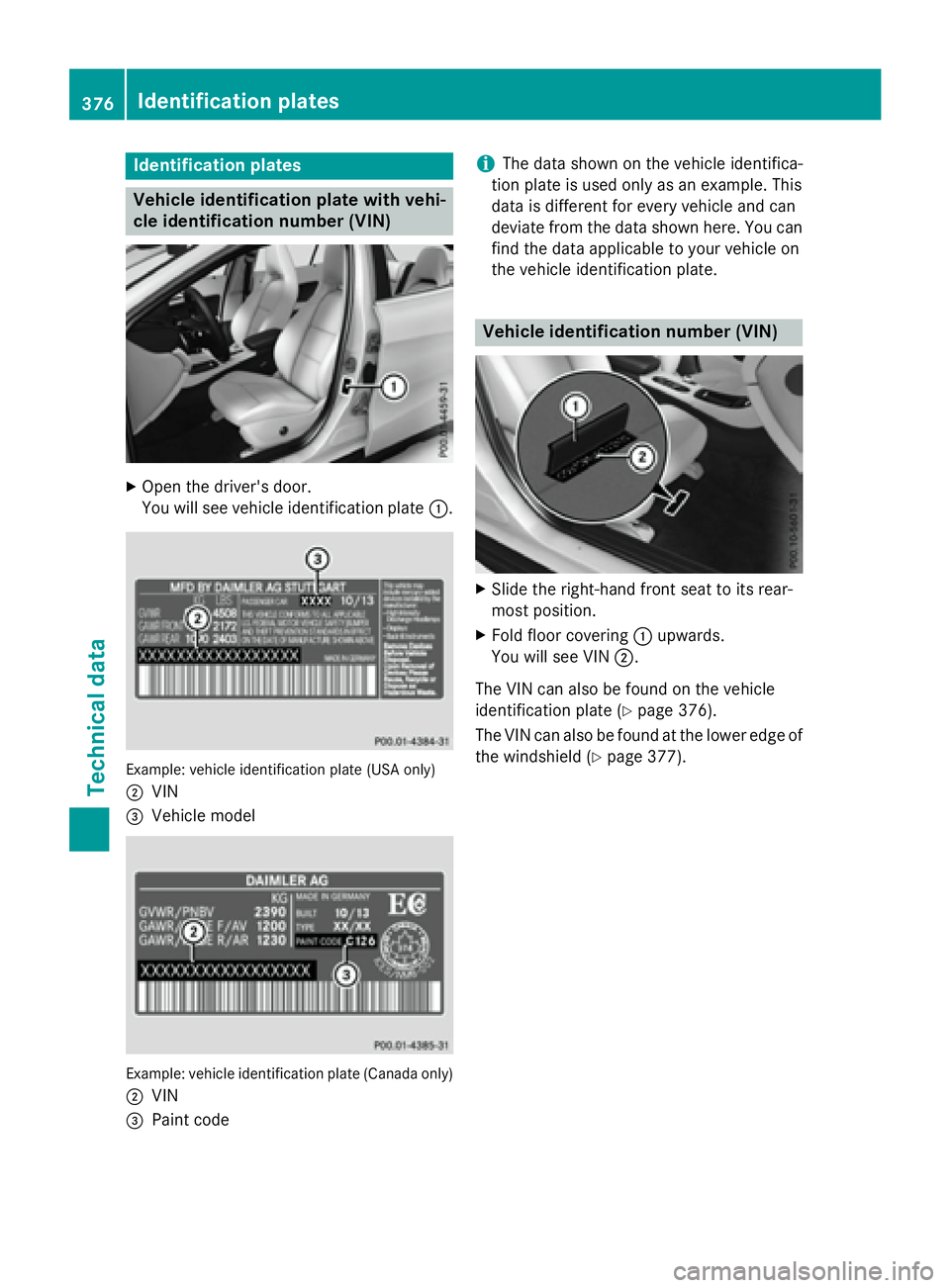

Identification plates
Vehicle identification plate with vehi-
cle identification number (VIN) X
Open the driv er's door.
You will see vehicle identification plate C .
Example: vehicl e identification plat e (US A only)
D
VIN

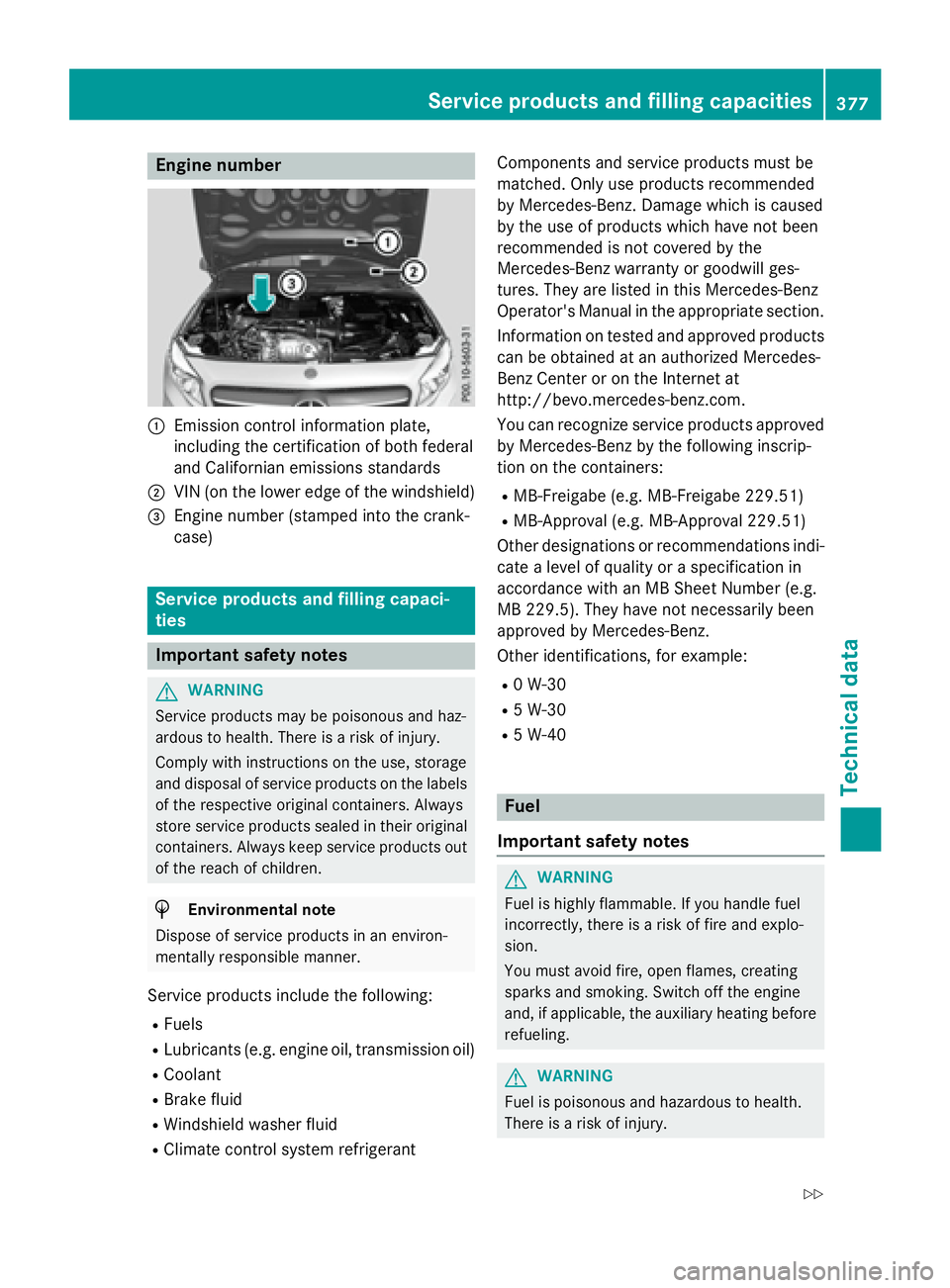

Engine number
C
Emission control information plate,
including the certification of both federal
and Californian emissions standardsD
VIN (on the lower edge of the windshield)

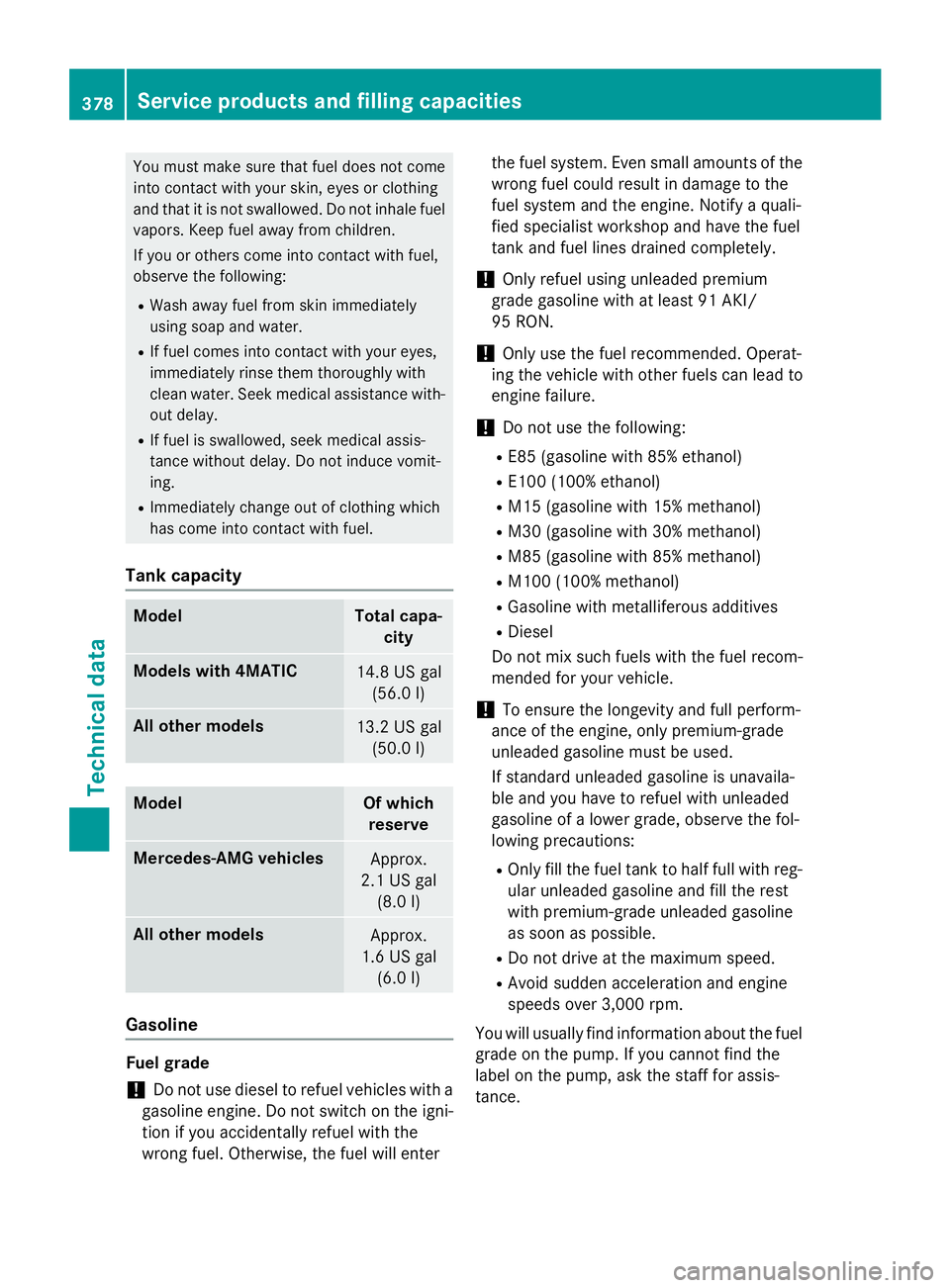

You must make sure that fuel does not come
into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following: R
Wash away fuel from skin immediately
using soap and water. R
If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay. R
If fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing. R
Immediately change out of clothing which
has come into contact with fuel.
Tank capacity
Model Total capa-
city
Models with 4MATIC
14.8 US gal
(56.0 l)
All other models
13.2 US gal
(50.0 l)
Model Of which
reserve
Mercedes ‑ AMG vehicles
Approx.
2.1 US gal
(8.0 l)
All other models
Approx.
1.6 US gal
(6.0 l)
Gasoline
Fuel grade
! Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the igni-
tion if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notify a quali-
fied specialist workshop and have the fuel
tank and fuel lines drained completely.
! Only refuel using unleaded premium
grade gasoline with at least 91 AK I/
95 RON.
! Only use the fuel recommended. Operat-
ing the vehicle with other fuels can lead to
engine failure.
! Do not use the following: R
E85 (gasoline with 85% ethanol) R
E100 (100% ethanol) R
M15 (gasoline with 15% methanol) R
M30 (gasoline with 30% methanol) R
M85 (gasoline with 85% methanol) R
M100 (1 00% methanol) R
Gasoline with metalliferous additives R
Diesel
Do not mix such fuels with the fuel recom-
mended for your vehicle.
! To ensure the longevity and full perform-
ance of the engine, only premium-grade
unleaded gasoline must be used.
If standard unleaded gasoline is unavaila-
ble and you have to refuel with unleaded
gasoline of a lower grade, observe the fol-
lowing precautions: R
Only fill the fuel tank to half full with reg-
ular unleaded gasoline and fill the rest
with premium-grade unleaded gasoline
as soon as possible. R
Do not drive at the maximum speed. R
Avoid sudden acceleration and engine
speeds over 3,000 rpm.
You will usually find information about the fuel
grade on the pump. If you cannot find the
label on the pump, ask the sta ff for assis-
ta nce.378
Service products and filling capacities
Technical data
