Dep endingonthemodel, thetir e-c hang e
to ol kit maybe locat edinother positions
under thecar gocom partmen tfloor . 1
Jack
2 Ratche tfo rjac k
3 Lugwr enc h
4 Folding choc k 5
Alignmen tbolt
6 Socketwr enc hfo rra tche t Pr
epa ring theve hicl efo ra wh eelch ang e Re
quirement s:
R The requ ired tire-c hang eto ol isavailable. If
yo ur vehicle isno teq uipped withth etir e-
ch ang eto ol kit, consult aqu alif ied spec ialist
wo rkshop tofind outab ou tsu itab letools.
R The vehicle isno ton aslope.
R The vehicle ison solid, non-slipper yand leve l
gr ou nd . #
Apply theelectr icpar king brak emanually . #
Movethefront wheels tothest ra ight -ahead
posit ion. #
Vehicl eswith automatic transmiss ion:
Shif tto position 005D. #
Vehicl eswith leve lcontr olsystem: Setth e
nor malve hicle leve l(/ page208 ). #
Swit choffth eengine. #
Mak esur eth at theengine cannotbe star ted. #
Place choc ks orother suitable items under
th efront and rear ofthewheel that isdiago‐
nall yoppos ite th ewheel youwish tochang e. #
Ifnec essar y,remo vethewheel trim/hub
caps (/page339). #
Raise theve hicle (/page340). Re
mo ving and inst alli ng thewheel trim/h ub
cap s Re
quirement s:
R The vehicle isprepar edfora whee lch ang e
(/ page33 9).
Pla stic hub cap #
Toremo ve:tur nth ecent ercoverof thehub
cap count er-cloc kwise andremo vethehub
cap. #
Toins tall: makesur eth at thecent ercover
of thehub capistur ned count er-cloc kwise. #
Position thehub capand turnth ecent er
co vercloc kwise untilthehub capengages
ph ysicall yand audibly . Wheels
andtires 339

Alum
inum hubcap #
Toremo ve:po sitio nsoc ket2 from thetir e-
ch ang eto ol kit onhub cap1. #
Position wheel wrenc h3 onsoc ket2. #
Usingwheelwr enc h3, turnhu bcap 1
cou nter-clo ckwise andremo veit. #
Toins tall: follo wtheins truction sabo vein
re ve rseor der .
% Specif iedtight ening torq ue: 18lb-f t
(25 Nm). Ra
ising theve hicl ewhe nch angi ngawhe el Re
quirement s:
R Ther ear eno per sons intheve hicle.
R The vehicle hasbeen prepar edfora whee l
ch ang e(/ page33 9).
Im por tant noteson using thejac k:
R Use onlya ve hicle-specif icjac kth at has
been approvedby Mer cedes-Ben zto raise
th eve hicle.
R The jackis onl ydesigned forra ising and
holdin gth eve hicle fora shor ttime whilea
whee lis being chang edand notfo rmaint e‐
nance workund ertheve hicle.
R The jackmus tbe placed onafirm ,fl at and
no n-slip surface. Ifneces sary,use alar ge,
fl at, load- bearing,no n-slip unde rlay .
R The foot ofthejac kmus tbe position edverti‐
call yunder thejac ksuppor tpoint . Ru
les ofcon duct when theve hicle israised:
R Neverpla ceyour han dsorfeet und erthe
ve hicle.
R Neverlie under theve hicle.
R Donotst ar tth eengine anddonotre lease
th eelectr icpar king brak e.
R Donotopen orclose anydoor sor theta il‐
ga te. 34
0
Wheels andtires

#

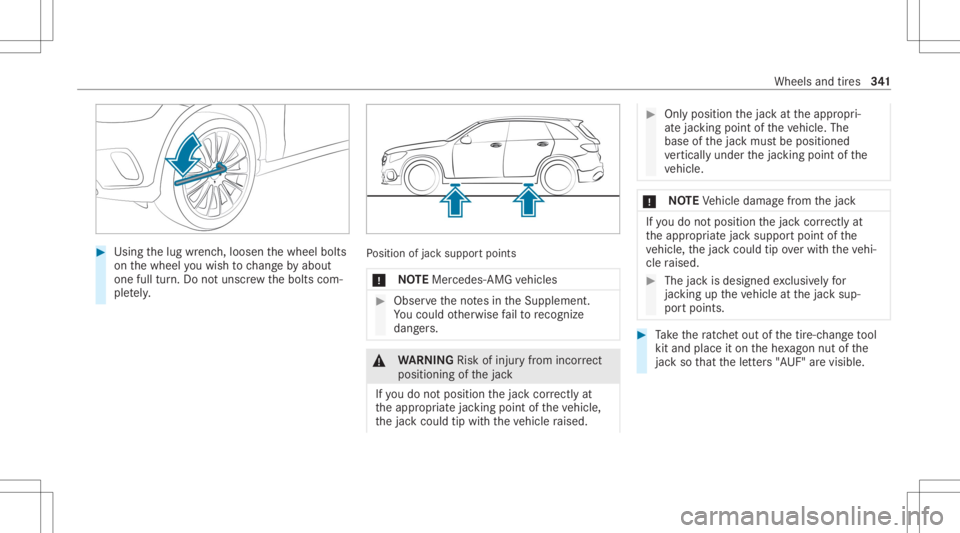

Using thelug wrenc h,loosen thewheel bolts
on thewheel youwish tochang eby about
on efull turn.Do notuns crew thebolts com‐
ple tely. Po
sition ofjac ksuppor tpoints
* NO
TEMer cedes-AMG vehicles #
Obser vetheno tesin theSupplement .
Yo uco uld other wise failto recogni ze
da ngers. &
WARNIN GRisk ofinju ryfrom incor rect
pos itioning ofthejac k
If yo udo notposi tionth ejac kcor rectl yat
th eappr opriatejac king point oftheve hicle,
th ejac kcould tipwithth eve hicle raised. #
Onlyposit ionthejac kat theappr opri‐
at ejac king point oftheve hicle. The
base ofthejac kmus tbe position ed
ve rticall yunder thejac king point ofthe
ve hicle. *
NO
TEVehicle damag efrom thejac k If
yo udo notposi tionth ejac kcor rectl yat
th eappr opriatejac ksuppor tpoint ofthe
ve hicle, thejac kcould tipove rwit hth eve hi‐
cle raised. #
The jackis design edexclu sively for
jac king uptheve hicle atthejac ksup‐
por tpoints . #
Take thera tche tou tof thetir e-c hang eto ol
kit and place iton thehe xagon nutofthe
jac kso that theletter s"A UF" arevisible. Wheels
andtires 34
1

#

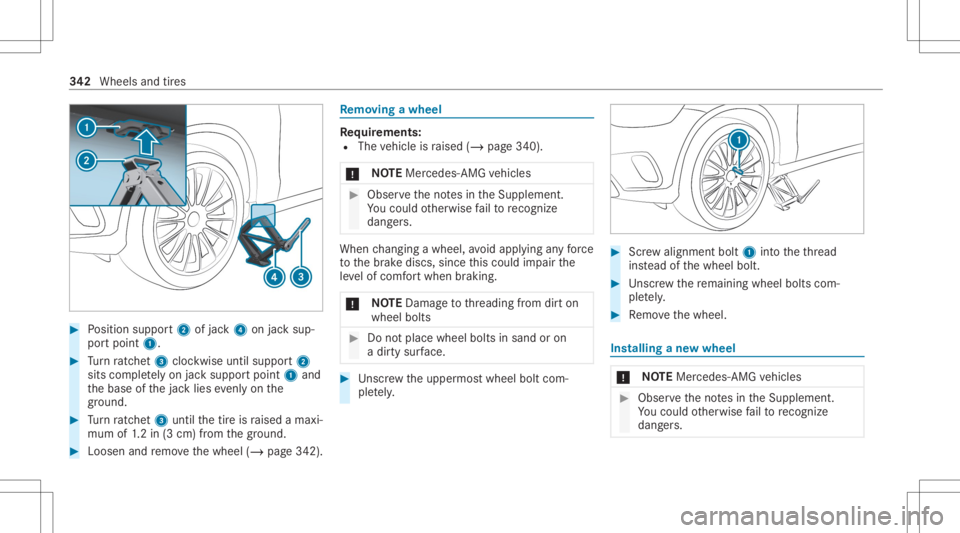

Position suppor t2 ofjac k4 onjacksup‐
por tpoint 1. #
Turn ratche t3 clockwise untilsuppor t2
sit scom pletely on jacksuppor tpoint 1and
th ebase ofthejac klies evenlyon the
gr ou nd . #
Turn ratche t3 unti lth etir eis raised amaxi‐
mum of1.2 in (3 cm) from thegr ound. #
Loosen andremo vethewheel (/page342). Re
mo ving awh eel Re
quirement s:
R The vehicle israised (/page340).
* NO
TEMer cedes-AMG vehicles #
Obser vetheno tesin theSupplement .
Yo uco uld other wise failto recogni ze
da ngers. Whe
nch ang ingawheel, avoidapplyin gan yfo rc e
to thebr ak ediscs, sincethis could impair the
le ve lof com fort when brakin g.
* NO
TEDama getothre adin gfrom dirton
wheel bolts #
Donotplace wheel boltsin san dor on
a dir tysur face. #
Unscr ew theupper mostwheel boltcom‐
ple tely. #
Screw align mentbolt 1intoth eth re ad
ins tead ofthewheel bolt. #
Unscr ew there maini ngwhee lbolts com‐
ple tely. #
Remo vethewheel. Ins
talling ane wwheel *
NO
TEMercede s-AMG vehicles #
Obser vetheno tesin theSupplement .
Yo uco uld other wise failto recogni ze
da ngers. 34
2
Wheels andtires

&

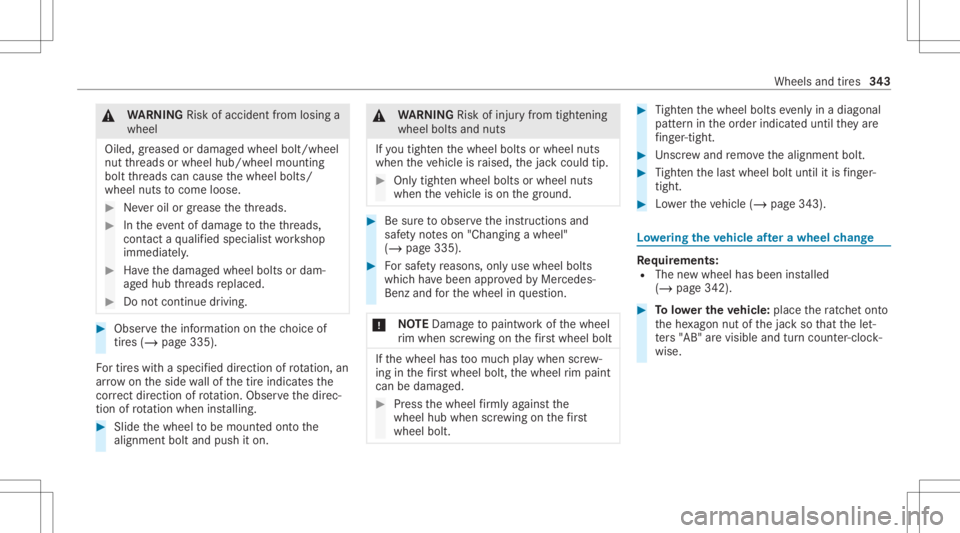

WARNIN GRisk ofacci dent from losing a
whe el
Oil ed, grea sed ordamag edwhe elbol t/whe el
nut thre ads orwheel hub/wheel mounting
bolt thre ads can caus eth ewheel bolts/
wheel nutstocome loose. #
Neveroil orgrease theth re ads. #
Intheeve ntofdamag eto theth re ads,
con tact aqu alif ied spec ialistwo rkshop
immediat ely. #
Have thedamag edwheel boltsordam‐
ag ed hub thre ads replaced. #
Donotcon tinue driving. #
Obser vetheinf ormation onthech oice of
tir es (/ page335).
Fo rtir es wit haspecif ieddirection ofrotatio n,an
ar ro w on theside wallof thetir eindicat esthe
cor rect dire ction ofrotatio n.Ob serveth edir ec‐
tion ofrotatio nwh en installing. #
Slide thewheel tobe mount edont oth e
align mentbolt andpush iton . &
WARNIN GRisk ofinju ryfrom tight ening
whee lbol tsand nuts
If yo utig hten thewheel boltsorwheel nuts
when theve hicle israised, thejac kcould tip. #
Onlytight enwheel boltsorwheel nuts
when theve hicle ison thegr ound. #
Besureto obser vetheins truction sand
saf etyno teson "Cha nging awheel"
(/ page335). #
Forsaf etyre ason s,on lyuse wheel bolts
whic hha ve been approvedby Mer cedes-
Benz andforth ewheel inqu estion .
* NO
TEDama getopaintw orkof thewheel
ri m when screwing onthefirs twh eelbo lt If
th ewheel hastoomuc hpla ywhen screw‐
ing inthefirs twh eelbo lt, thewheel rim pai nt
can bedama ged. #
Press thewheel firm lyag ains tth e
wheel hubwhen screwing onthefirs t
wheel bolt. #
Tight enthewheel boltsevenlyin adi ag ona l
pa tter nin theor der indicat eduntil they are
fi ng er-tig ht. #
Unscr ew and remo vethealignment bolt. #
Tight enthelas twheel boltuntil itis fing er-
tig ht. #
Lowe rth eve hicle (/page343). Lo
we ring theve hicl eaf te ra wh eelch ang e Re
quirement s:
R The newwheel hasbeen installed
(/ page342) . #
Tolowe rthe vehicl e:pla cethera tche tont o
th ehe xagon nutofthejac kso that thelet‐
te rs "AB "ar evis ible and turnco unt er-cloc k‐
wise. Whee
lsand tires 34
3

#

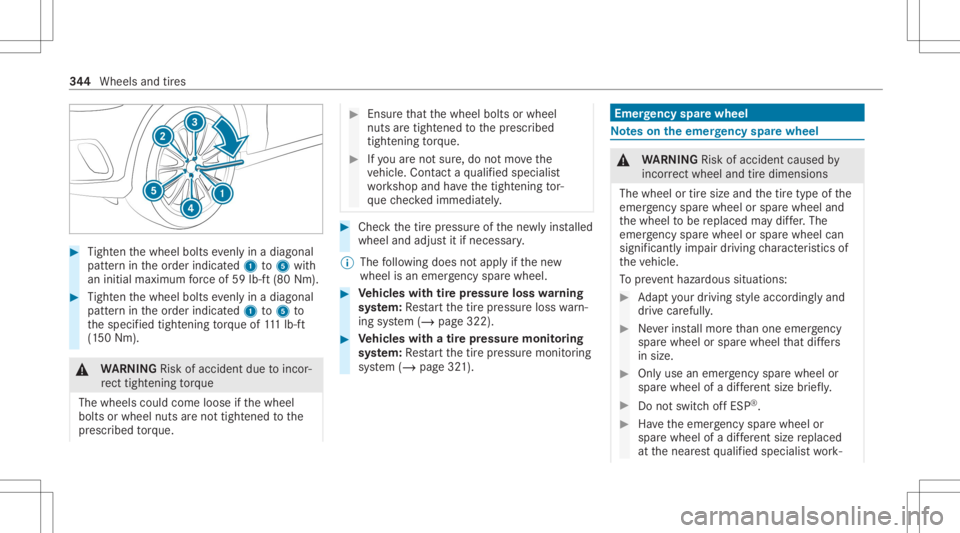

Tight enthewheel boltsevenlyin adi ag ona l
pa tter nin theor der indicat ed1 to5 with
an init ialmax imum forc eof 59 lb-ft(80 Nm). #
Tight enthewheel boltsevenlyin adi ag ona l
pa tter nin theor der indicat ed1 to5 to
th especif iedtight ening torq ue of111 lb-ft
(1 50 Nm). &
WARNIN GRisk ofacci dent dueto inc or‐
re ct tigh tening torq ue
Th ewh eelscou ldcome looseifth ewheel
bolts orwheel nutsareno ttight ened tothe
pr escr ibed torq ue. #
Ensu rethat thewheel boltsorwheel
nuts aretight ened tothepr escr ibed
tight ening torq ue. #
Ifyo uar eno tsur e,do notmo vethe
ve hicle. Contactaqu alif ied spec ialist
wo rkshop andhave thetight ening tor‐
qu ech eckedimmediat ely. #
Chec kth etir epr essur eof thene wlyins talled
wheel andadjus tit ifnec essar y.
% The follo wing does notappl yif th ene w
wheel isan emer gency sparewheel. #
Vehicl eswith tirepr ess urelos swa rning
sy stem: Restar tth etir epr essur eloss warn‐
ing system (/ page322). #
Vehicl eswith atir epr ess uremonit oring
sy stem: Restar tth etir epr essur emonit oring
sy stem (/ page32 1). Emer
gency spar ewheel No
teson theemer gency spar ewheel &
WARNIN GRisk ofacci dent caused by
inc orrect whe eland tiredimensi ons
The wheelor tiresize andthetir etype ofthe
emer gency sparewheel orspar ewheel and
th ewheel tobe replaced maydif fer. The
emer gency sparewheel orspar ewheel can
sign ifican tly im pair drivin gch aract eristic sof
th eve hicle.
To preve nthazardous situa tions: #
Adaptyo ur drivin gst yle accor dinglyand
dr ive car efull y. #
Neverins tallmor eth an oneemer gency
spa rewheel orspar ewheel that dif fers
in size . #
Onlyuse anemer gency sparewheel or
spar ewheel ofadif fere nt size briefly. #
Donotsw itchof fESP ®
. #
Have theemer gency sparewheel or
spar ewheel ofadif fere nt size replaced
at thenear estqu alif ied spec ialistwo rk‐ 34
4
Wheels andtires

shop.
Thenewwheel mustha ve the
cor rect dimensi ons. %

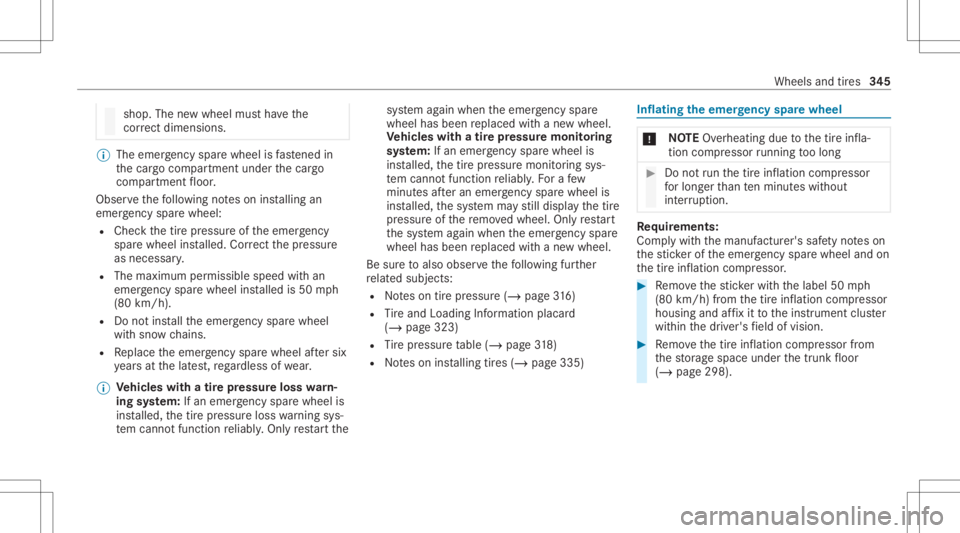

The eme rgency sparewheel isfastened in
th ecar gocom partmen tunder thecar go
com partmen tfloor .
Obser vethefo llo wing noteson installing an
emer gency sparewheel:
R Chec kth etir epr essur eof theemer gency
spa rewheel installed. Correct thepr essur e
as neces sary.
R The maximum permissible speedwithan
emer gency sparewheel installed is50 mph
(80 km/ h).
R Donotins tallth eemer gency sparewheel
wit hsn ow chains .
R Replace theemer gency sparewheel afte rsix
ye arsat thelat est,re ga rdless ofwe ar.
% Ve
hicl eswith atir epr ess urelos swa rn‐
ing system: Ifan emer gency sparewheel is
ins talled, thetir epr essur eloss warning sys‐
te m canno tfunction reliabl y.Onl yre star tth e sy
stem again when theemer gency spare
wheel hasbeen replaced withane wwheel.
Ve hicl eswith atir epr ess uremonit oring
sy stem: Ifan emer gency sparewheel is
ins talled, thetir epr essur emonit oring sys‐
te m canno tfunction reliabl y.Fo ra fe w
minut esafte ran emerg encysparewhee lis
ins talled, thesy stem mayst ill displa yth etir e
pr essur eof there mo vedwheel. Onlyre star t
th esy stem again when theemer gency spare
wheel hasbeen replaced withane wwheel.
Be sureto also obse rveth efo llo wing further
re lat ed subje cts:
R Noteson tirepr essur e(/ page31 6)
R Tire and Loadi ngInfo rm atio nplacar d
(/ page32 3)
R Tire pressur eta ble (/ page31 8)
R Noteson installing tires (/ page335 ) Inflating

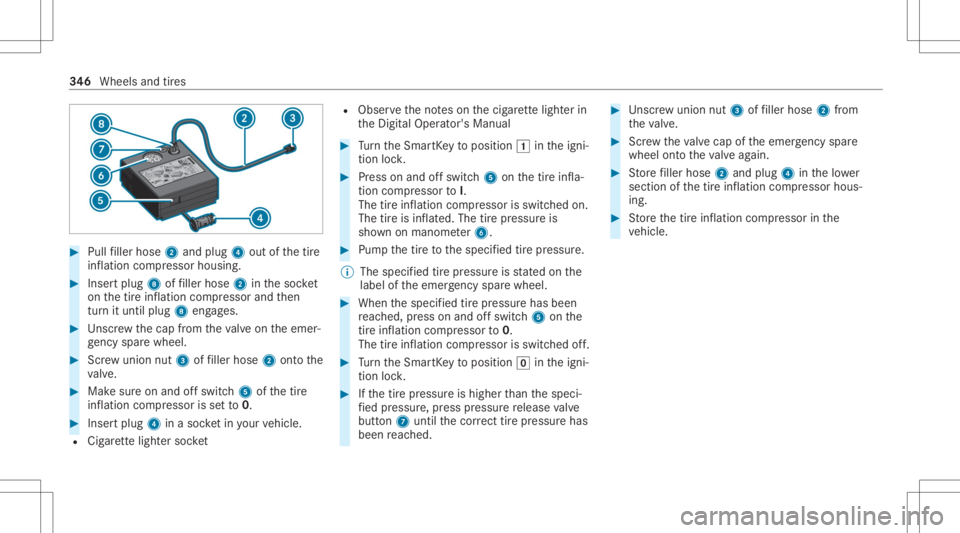

theemer gency spar ewheel *
NO
TEOverhea ting dueto thetir einf la‐
tion compressor running toolong #
Donotru nth etir einf lation compressor
fo rlong erthan tenminu teswit hout
int erru ption. Re
quirement s:
Com plywit hth emanuf acturer'ssafetyno teson
th est icke rof theemer gency sparewheel andon
th etir einf lation compressor . #
Remo vethest icke rwit hth elabel 50mph
(80 km/ h)from thetir einf lation compressor
housing andaffix it to theins trument cluster
wit hin thedr iver's field ofvision. #
Remo vethetir einf lation compressor from
th estor ag espace underthetrunk floor
(/ page298). Wheels
andtires 34
5

#
Pull filler hose 2and plug 4out ofthetir e
inf lation compressor housing. #
Inser tplug 8offiller hose 2inthesoc ket
on thetir einf lation compressor andthen
tur nit until plug8eng ages. #
Unscr ew thecap from theva lve on theemer‐
ge ncy sparewheel. #
Screw union nut3offiller hose 2ontoth e
va lve. #
Mak esur eon and offswitc h5 ofthetir e
inf lation compressor issetto 0. #
Inser tplu g4 inasoc ketin your vehicle.
R Cigarette light ersoc ket R
Obser vetheno teson thecig arette light erin
th eDigit alOper ator's Manual #
Turn theSmar tKey toposition 0047intheigni‐
tion lock. #
Press onand offswitc h5 onthetir einf la‐
tion compressor toI.
The tireinf lation compressor isswitc hedon.
The tireis inf lated. The tirepr essur eis
sho wnonmanome ter6. #
Pum pth etir eto thespecif iedtirepr essur e.
% The specif iedtirepr essur eis stat ed on the
label oftheemer gency sparewheel. #
When thespecif iedtirepr essur ehas been
re ac hed, press onand offswit ch5 onthe
tir einf latio ncom pres sor to0.
The tireinf lation compressor isswitc hedoff. #
Turn theSmar tKey toposition 005Aintheigni‐
tion lock. #
Ifth etir epr essur eis higher than thespeci‐
fi ed pressur e,press pressur ere lease valve
bu tton 7 unti lth ecor rect tirepr ess ureha s
bee nre ac hed. #
Unscr ew unio nnut 3offiller hose 2from
th eva lve. #
Screw theva lve cap oftheemer gency spare
wheel ontoth eva lve ag ain. #
Storefiller hose 2and plug 4inthelowe r
section ofthetir einf lation compressor hous‐
ing. #
Storeth etir einf lation compressor inthe
ve hicle. 34
6
Wheels andtires

No
teson tech nical data
* NO
TEMercede s-AMG vehicles #
Obser vetheno tesin theSupplement .
Yo uco uld other wise failto recogni ze
da ngers. The
data stat ed onlyapplies tovehicles with
st andar deq uipme nt.Yo ucan obtain further
inf ormation from anaut hor ized Mercedes- Benz
Cent er. Ve
hicl eele ctroni cs Tw
o-w ayradio s No
teson installing two-w ayradio s &
WARNIN GRisk ofacci dent dueto
im proper workon two-w ayradios
If tw o-w ayradios aremanipulat edorretrof it‐
te dincor rectl y,theelectr omagne ticradiation
fr om thetw o-w ayradios caninterfere wit h
th eve hicle electr onics andjeopar dizethe
oper ating safetyof theve hicle. #
Yousho uld have all workon electr ical
and electr oniccomponent scar ried out
at aqu alif ied spec ialistwo rkshop. &
WARNIN GRisk ofacci dent dueto
im proper opera tionoftwo-w ayradios
If yo uuse two-wa yra dios intheve hicle
im proper ly,th eir electr omagne ticradiation
can disruptth eve hicle's electronics. Thisis
th ecase inthefo llo wing situat ions,in par tic‐
ular :
R The two-w ayradio isno tcon nectedto an
ex terior ant enna.
R The exterior ant enna isins talled incor‐
re ctly orisno ta low- reflect ion antenn a.
This could jeopar dizetheoper ating safetyof
th eve hicle. #
Have thelow- reflect ion exterior
ant enna installed ataqu alif ied spec ial‐
is two rkshop. #
When operating two-w ayradios inthe
ve hicle, alwaysconn ectthem tothe
lo w- reflect ion exterior ant enna. *
NO
TEInva lidation oftheoper ating per‐
mit due tofailur eto com plywith the
ins truct ions forins tallation anduse The
oper atingper mit maybe inva lidat edif
th eins truction sfo rins tallation anduseof
tw o-w ayradios areno tobser ved. #
Onlyuse appr oved freq uency bands. #
Obser vethemaximum permissible out‐
put powe rin these freq uency bands. #
Onlyuse appr oved ant enn aposition s. Te
ch nica lda ta 34
7

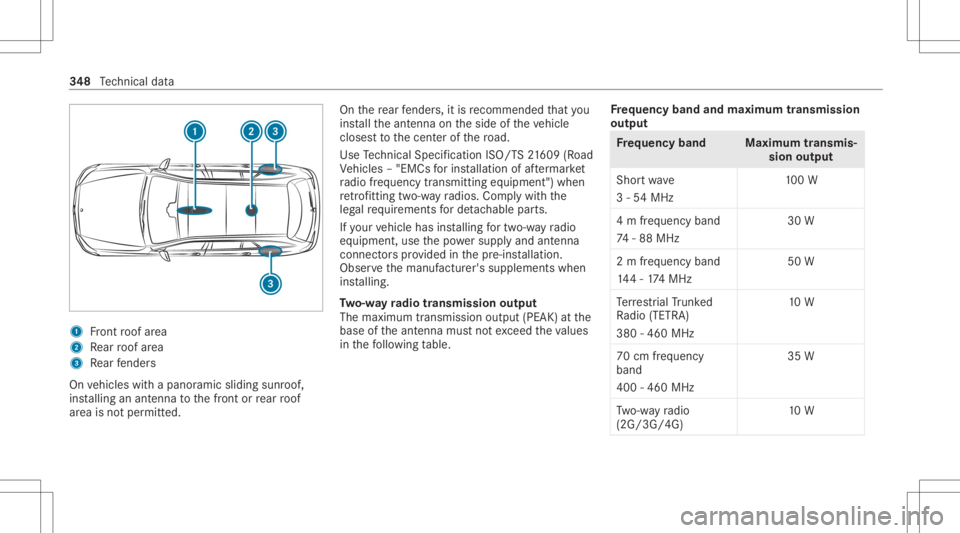

1
Front roof area
2 Rear roof area
3 Rear fende rs
On vehicles withapanor amicsliding sunroof,
ins talling anant enn ato thefront orrear roof
ar ea isno tper mitt ed. On
there ar fende rs,it is recomme ndedthat you
ins tallth eant enn aon theside oftheve hicle
closes tto thecent erofthero ad.
Use Tech nica lSpe cifica tionISO/T S21 609 (Road
Ve hicles –"EMCs forins tallation ofafte rm arke t
ra dio freq uency transmit tingeq uipment ")when
re trof itti ng two-w ayradios. Complywithth e
leg alrequ iremen tsforde tach able parts.
If yo ur vehicle hasinstalling fortw o-w ayradio
eq uipment ,use thepo we rsupp lyand antenn a
con nectors prov ided inthepr e-ins tallation .
Obser vethemanuf acturer'ssupplement swhen
ins talling.
Tw o-w ayradio transmi ssion output
The maxi mum transm ission outpu t(PEAK) atthe
base oftheant enn amus tno texc eed theva lues
in thefo llo wing table. Fr
eq uency bandandmaxim um transm ission
out put Fr
eq uency band Maximumtransm is‐
sion output
Sho rtwa ve
3 -54 MHz 10
0W
4 m freq uency band
74 -88 MHz 30
W
2 m frequency band
14 4-17 4MHz 50
W
Te rres trial Trunk ed
Ra dio (TETRA)
380 -460 MHz 10
W
70 cm freq uency
band
400 -460 MHz 35
W
Tw o-w ayradio
(2G/3G/ 4G) 10
W 34
8
Tech nica lda ta
