MERCEDES-BENZ GLC SUV 2022 Owners Manual

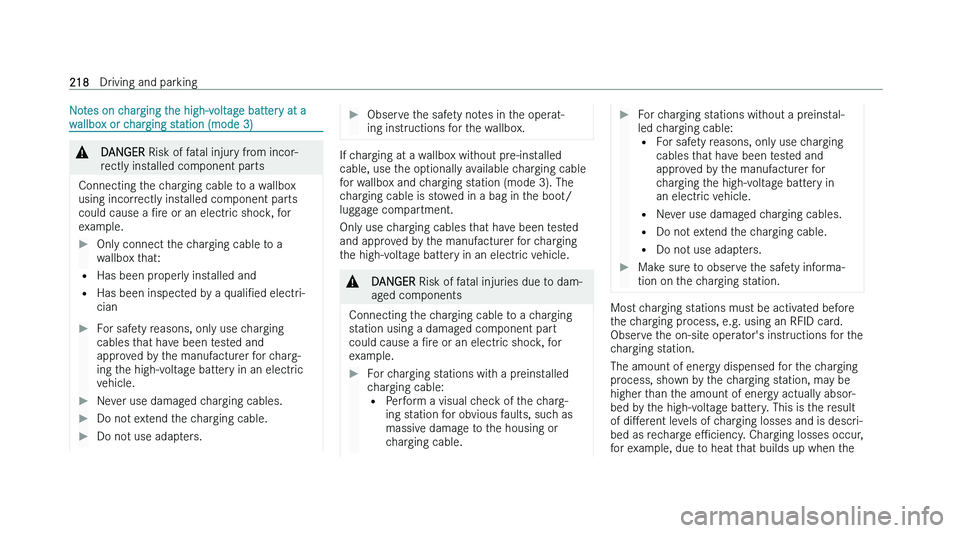

Notes on charging the high-voltage battery at a
w
allbox or charging station (mode 3) &
DANGER Risk of f
atal injury from incor-
rectly installed component parts
Connecting the charging cable to a wallbox
using incor
rectly installed component parts
could cause a Nre or an electric shock, for
example.
Only connect the charging cable to a
w
allbox that:
= Has been pr
operly installed and
= Has been inspected by a qualiNed electri-
cian
For safety reasons, only use charging
cables t

hat have been tested and
approved by the manufacturer for charg-
ing the high-voltage battery in an electric
vehicle.
Never use damaged charging cables.
Do not extend the charging cable.
Do not use adapters.
Observe the safety notes in the operat-
ing ins
tructions for the wallbox. If charging at a wallbox without pre-installed
cable, use t

he optionally available charging cable
for wallbox and charging station (mode 3). The
charging cable is stowed in a bag in the boot/
luggage compartment.
Only use charging cables that have been tested
and approved by the manufacturer for charging
the high-voltage battery in an electric vehicle. &
DANGER Risk of f
atal injuries due to dam-
aged components
Connecting the charging cable to a charging
s
tation using a damaged component part
could cause a Nre or an electric shock, for
example.
For charging stations with a preinstalled
c

harging cable:
= Perform a visual check of the charg-
ing station for obvious faults, such as
massive damage to the housing or
charging cable.
For charging stations without a preinstal-
led c

harging cable:
= For safety reasons, only use charging
cables that have been tested and
approved by the manufacturer for
charging the high-voltage battery in
an electric vehicle.
= Never use damaged charging cables.
= Do not extend the charging cable.
= Do not use adapters.
Make sure to observe the safety informa-
tion on t

he charging station. Most charging stations must be activated before
t

he charging process, e.g. using an RFID card.
Observe the on-site operator's instructions for the
charging station.
The amount of energy dispensed for the charging
process, shown by the charging station, may be
higher than the amount of energy actually absor-
bed by the high-voltage battery. This is the result
of diMerent levels of charging losses and is descri-
bed as recharge ePciency. Charging losses occur,
for example, due to heat that builds up when the 218
Driving and parking

vehicle is charging or from auxiliary consumers
t hat are switched on. Further information on
recharge ePciency can be obtained at a qualiNed

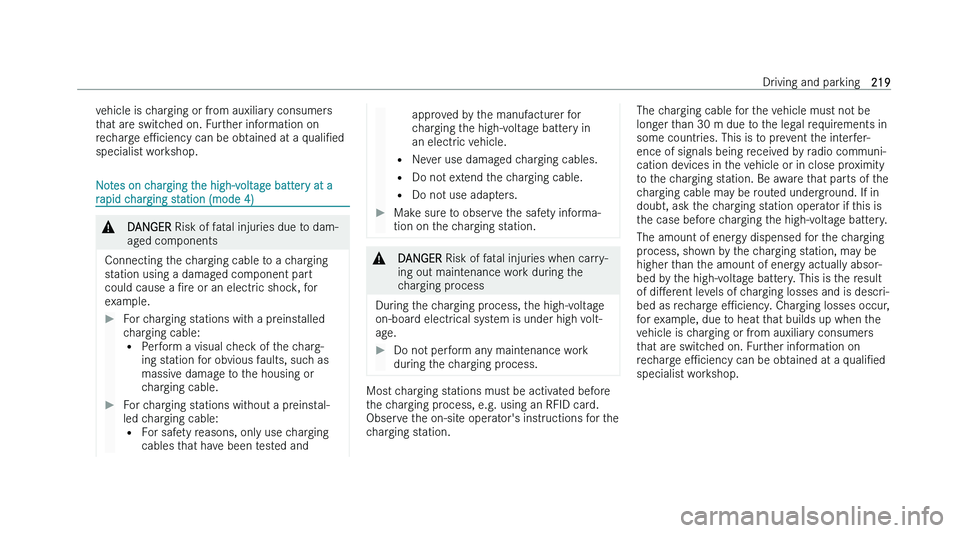

specialist workshop. Notes on charging the high-voltage battery at a
r

apid charging station (mode 4) &
DANGER Risk of f
atal injuries due to dam-
aged components
Connecting the charging cable to a charging
s
tation using a damaged component part
could cause a Nre or an electric shock, for
example.
For charging stations with a preinstalled
c

harging cable:
= Perform a visual check of the charg-
ing station for obvious faults, such as
massive damage to the housing or
charging cable.
For charging stations without a preinstal-
led c

harging cable:
= For safety reasons, only use charging
cables that have been tested and approved by the manufacturer for
c

harging the high-voltage battery in
an electric vehicle.
= Never use damaged charging cables.
= Do not extend the charging cable.
= Do not use adapters.
Make sure to observe the safety informa-
tion on t

he charging station. &
DANGER Risk of f
atal injuries when carry-
ing out maintenance work during the
charging process
During the charging process, the high-voltage
on-boar
d electrical system is under high volt-
age.
Do not perform any maintenance work
dur

ing the charging process. Most charging stations must be activated before
t

he charging process, e.g. using an RFID card.
Observe the on-site operator's instructions for the
charging station. The charging cable for the vehicle must not be
long
er than 30 m due to the legal requirements in
some countries. This is to prevent the interfer-
ence of signals being received by radio communi-
cation devices in the vehicle or in close proximity
to the charging station. Be aware that parts of the
charging cable may be routed underground. If in
doubt, ask the charging station operator if this is
the case before charging the high-voltage battery.
The amount of energy dispensed for the charging
process, shown by the charging station, may be
higher than the amount of energy actually absor-
bed by the high-voltage battery. This is the result
of diMerent levels of charging losses and is descri-
bed as recharge ePciency. Charging losses occur,
for example, due to heat that builds up when the
vehicle is charging or from auxiliary consumers
that are switched on. Further information on
recharge ePciency can be obtained at a qualiNed
specialist workshop. Driving and parking
219

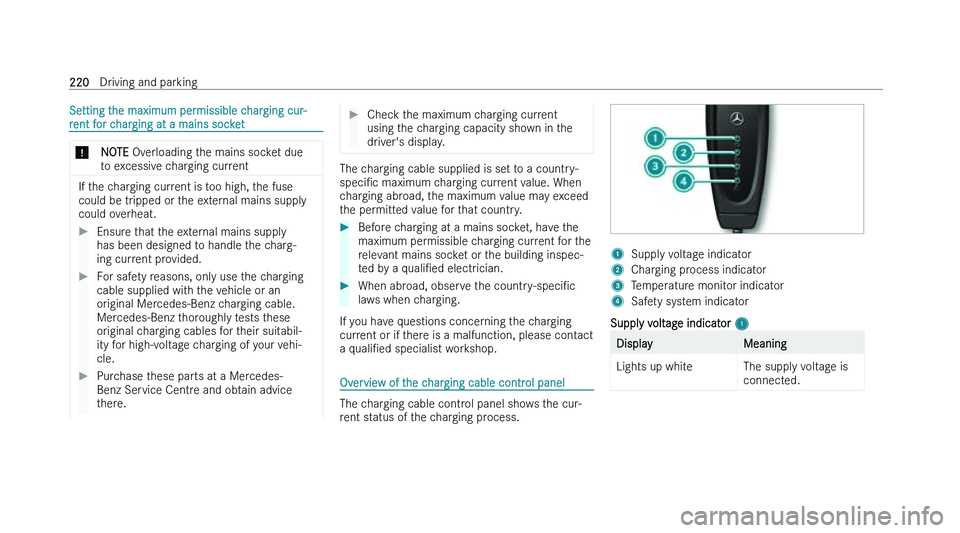

Setting the maximum permissible charging cur-
r
ent for charging at a mains socket *
NOTE Ov
erloading the mains socket due
to excessive charging current If the charging current is too high, the fuse
could be tr
ipped or the external mains supply
could overheat.
Ensure that the external mains supply
has been designed t

o handle the charg-
ing current provided.
For safety reasons, only use the charging
cable supplied wit

h the vehicle or an
original Mercedes-Benz charging cable.
Mercedes-Benz thoroughly tests these
original charging cables for their suitabil-
ity for high-voltage charging of your vehi-
cle.
Purchase these parts at a Mercedes-
Benz Ser

vice Centre and obtain advice
there.
Check the maximum charging current
using t

he charging capacity shown in the
driver's display. The charging cable supplied is set to a
countr
y-
speciNc maximum charging current value. When
charging abroad, the maximum value may exceed
the permitted value for that country.
Before charging at a mains socket, have the
maximum per

missible charging current for the
relevant mains socket or the building inspec-
ted by a qualiNed electrician.
When abroad, observe the countr
y-speciNc
laws when charging.
If you have questions concerning the charging
cur
rent or if there is a malfunction, please contact
a qualiNed specialist workshop. Overview of the charging cable control panel
The charging cable control panel shows the cur-
r

ent status of the charging process. 1
Supply voltage indicator
2 Charging process indicator
3 Temperature monitor indicator
4 Safety system indicator
Supply voltage indicator 1 Display
Meaning
Lights up white The supply voltage is connect
ed. 220
Driving and parking

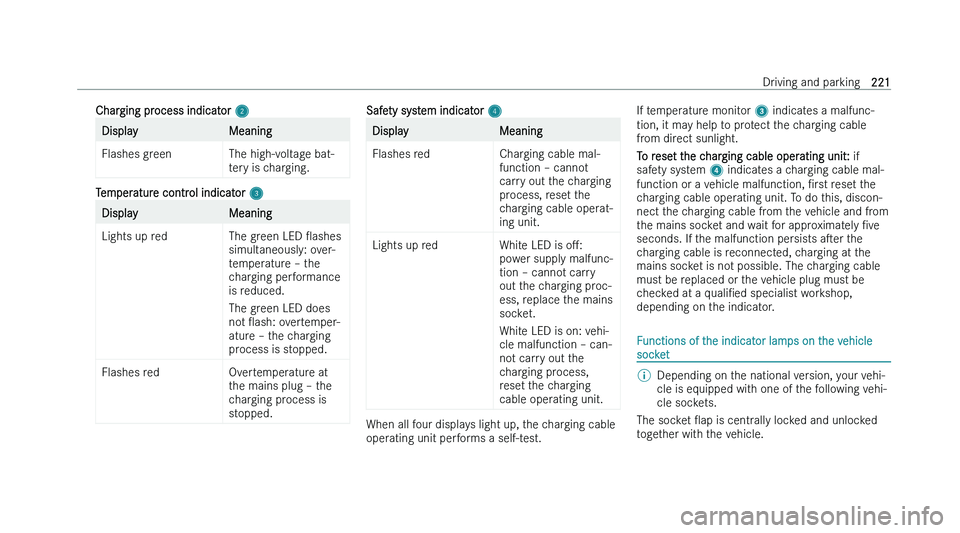

Charging process indicator
2Display
Meaning
Flashes green The high-voltage bat- tery is charging. Temperature control indicator
3Display
Meaning
Lights up red The green LED Oashes simult
aneously: over-
temperature !

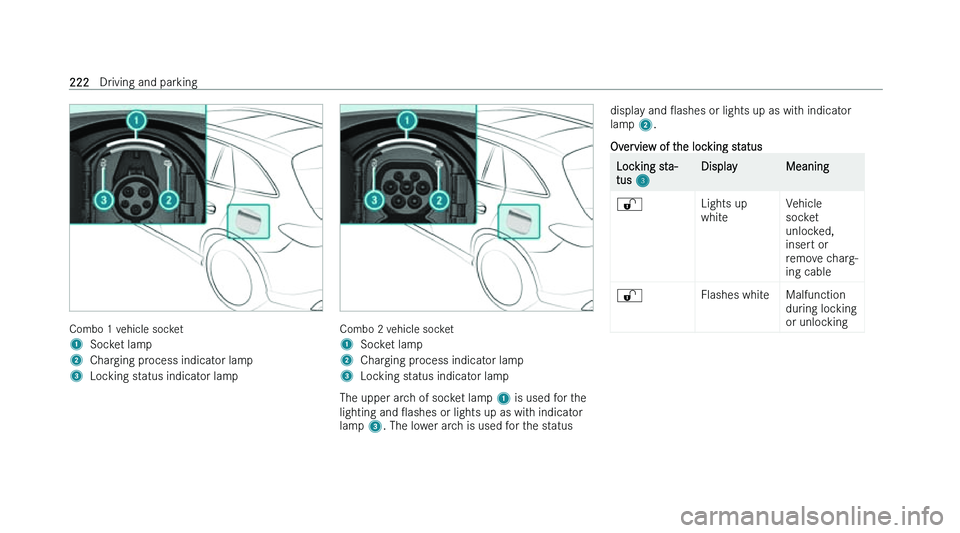

Combo 1 vehicle socket
1
Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp Combo 2 vehicle socket
1
Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp
The upper arch of socket lamp 1 is used f or the
lighting and Oashes or lights up as with indicator
lamp 3. The lower arch is used for the status display and
Oashes or lights up as wit
h indicator
lamp 2.
Overview of the locking status Locking sta-
tus 3
Display Meaning
6 !

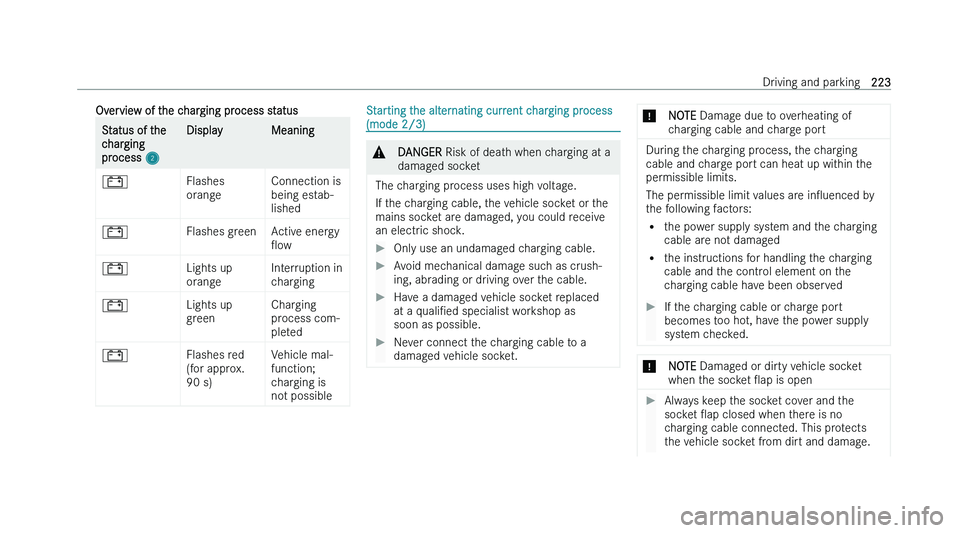

Overview of the charging process status
Status of the
c
harging
process 2Display Meaning
= !

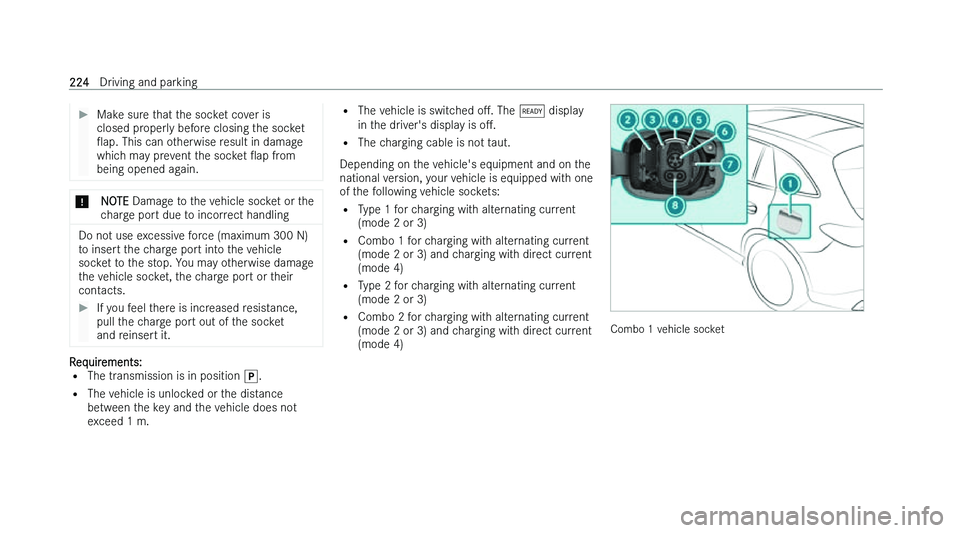

Make sure that the socket cover is
closed pr
operly before closing the socket
Oap. This can otherwise result in damage
which may prevent the socket Oap from
being opened again. *
NOTE Damag
e to the vehicle socket or the
charge port due to incorrect handling Do not use excessive force (maximum 300 N)
t
o insert the charge port into the vehicle
socket to the stop. You may otherwise damage
the vehicle socket, the charge port or their
contacts.
If you feel there is increased resistance,
pull t

he charge port out of the socket
and reinsert it. Requirements:
= The tr

ansmission is in position j.
= The vehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m. =
The v
ehicle is switched oM. The

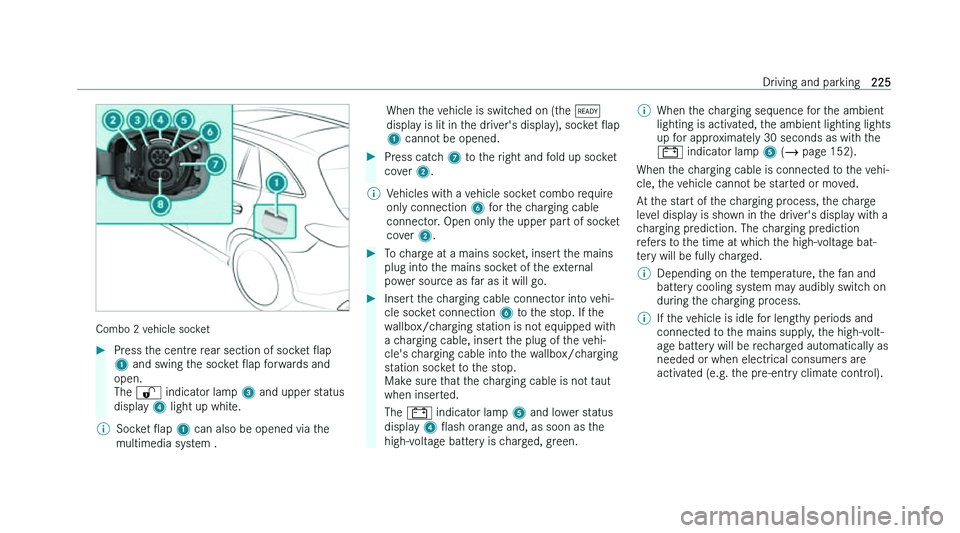

Combo 2 vehicle socket

Press the centre rear section of socket Oap
1 and swing t he socket Oap forwards and
open.
The 6 indicator lamp 3 and upper status
display 4 light up white.
% Socket Oap 1 can also be opened via t
he
multimedia system . When the vehicle is switched on (the

%

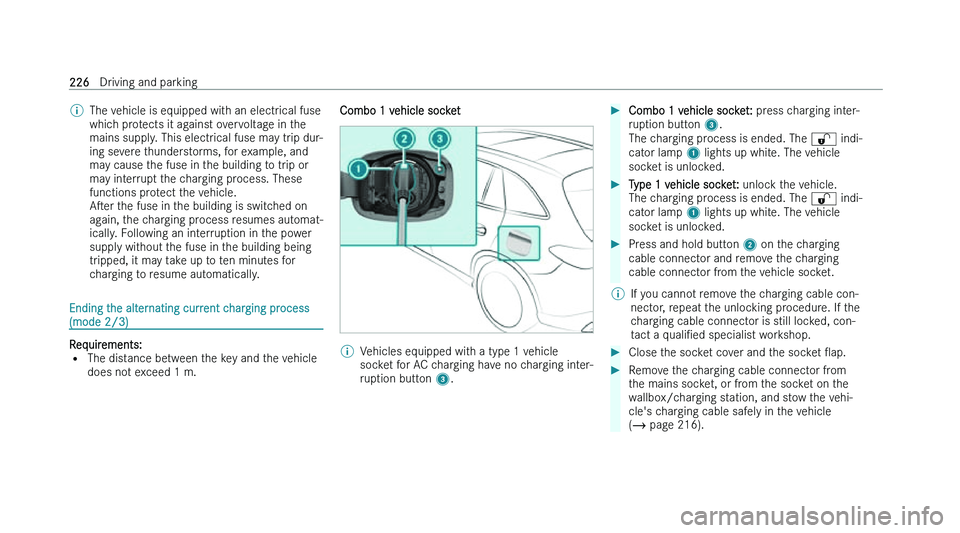

The vehicle is equipped with an electrical fuse
whic h protects it against overvoltage in the
mains supply. This electrical fuse may trip dur-
ing severe thunderstorms, for example, and
may cause the fuse in the building to trip or
may interrupt the charging process. These
functions protect the vehicle.
Aser the fuse in the building is switched on
again, the charging process resumes automat-
ically. Following an interruption in the power
supply without the fuse in the building being
tripped, it may take up to ten minutes for
charging to resume automatically. Ending the alternating current charging process
(mode 2/3)
Requirements:
= The dis

tance between the key and the vehicle
does not exceed 1 m. Combo 1 vehicle socket
%
Vehicles equipped with a type 1 vehicle
soc
ket for AC charging have no charging inter-
ruption button 3.
Combo 1 vehicle socket: pr
ess charging inter-
ruption button 3.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Type 1 vehicle socket: unloc
k the vehicle.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Press and hold button 2 on t
he charging
cable connector and remove the charging
cable connector from the vehicle socket.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 216). 226
Driving and parking

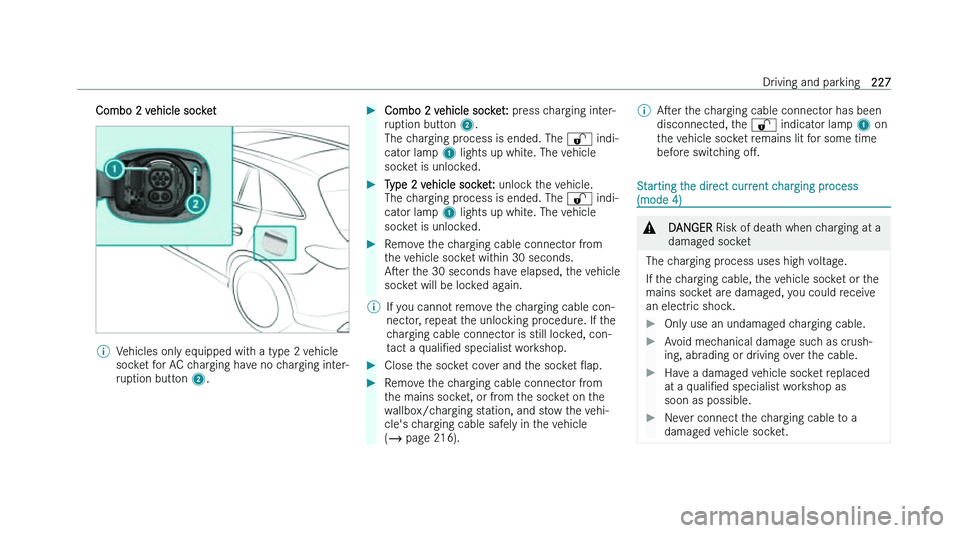

Combo 2 vehicle socket
%
Vehicles only equipped with a type 2 vehicle
soc
ket for AC charging have no charging inter-
ruption button 2.
Combo 2 vehicle socket: pr
ess charging inter-
ruption button 2.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Type 2 vehicle socket: unloc
k the vehicle.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Remove the charging cable connector from
t
he vehicle socket within 30 seconds.
Aser the 30 seconds have elapsed, the vehicle
socket will be locked again.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 216). %
Aser t
he charging cable connector has been
disconnected, the 6 indicator lamp 1 on
the vehicle socket remains lit for some time
before switching oM. Starting the direct current charging process
(mode 4)
&
DANGER Risk of deat
h when charging at a
damaged socket
The charging process uses high voltage.
If t
he charging cable, the vehicle socket or the
mains socket are damaged, you could receive
an electric shock.
Only use an undamaged charging cable.
Avoid mechanical damage such as crush-
ing, abr
ading or driving over the cable.
Have a damaged vehicle socket replaced
at a q

ualiNed specialist workshop as
soon as possible.
Never connect the charging cable to a
damag
ed vehicle socket. Driving and parking
227
