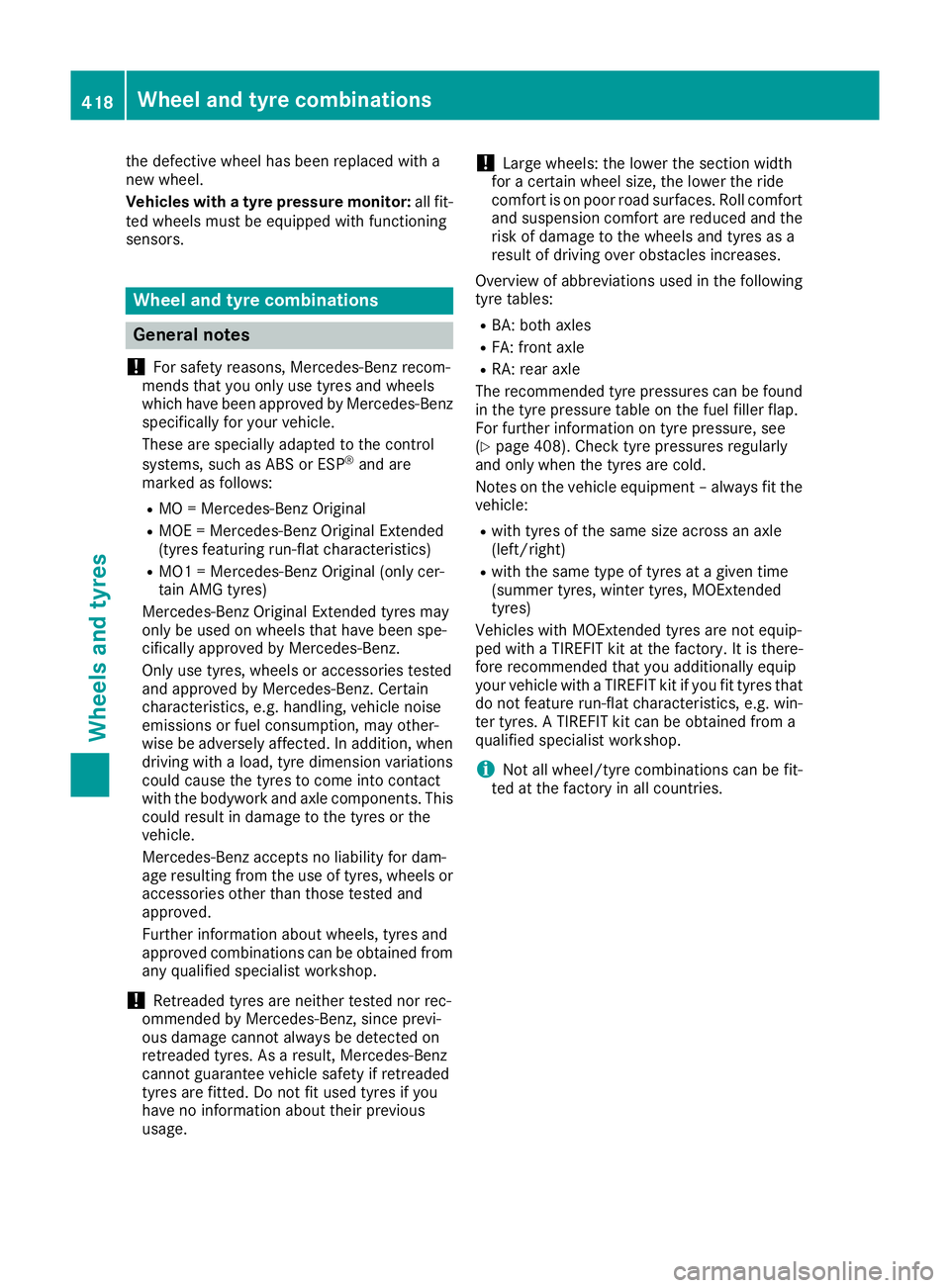

the defective wheel has been replaced with a
new wheel.
Vehicles with a tyre pressure monitor: all fit-
ted wheels must be equipped with functioning
sensors. Wheel and tyre combinations
General notes
! For safety reasons, Mercedes-Benz recom-
mends that you only use tyres and wheels
which have been approved by Mercedes-Benz specifically for your vehicle.
These are specially adapted to the control
systems, such as ABS or ESP ®
and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tyres featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres may
only be used on wheels that have been spe-
cifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tested
and approved by Mercedes-Benz. Certain
characteristics, e.g. handling, vehicle noise
emissions or fuel consumption, may other-
wise be adversely affected. In addition, when driving with a load, tyre dimension variations
could cause the tyres to come into contact
with the bodywork and axle components. This
could result in damage to the tyres or the
vehicle.
Mercedes-Benz accepts no liability for dam-
age resulting from the use of tyres, wheels or accessories other than those tested and
approved.
Further information about wheels, tyres and
approved combinations can be obtained from
any qualified specialist workshop.
! Retreaded tyres are neither tested nor rec-
ommended by Mercedes-Benz, since previ-
ous damage cannot always be detected on
retreaded tyres. As a result, Mercedes-Benz
cannot guarantee vehicle safety if retreaded
tyres are fitted. Do not fit used tyres if you
have no information about their previous
usage. !
Large wheels: the lower the section width
for a certain wheel size, the lower the ride
comfort is on poor road surfaces. Roll comfort and suspension comfort are reduced and therisk of damage to the wheels and tyres as a
result of driving over obstacles increases.
Overview of abbreviations used in the following
tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
The recommended tyre pressures can be found in the tyre pressure table on the fuel filler flap.
For further information on tyre pressure, see
(Y page 408). Check tyre pressures regularly
and only when the tyres are cold.
Notes on the vehicle equipment – always fit the
vehicle:
R with tyres of the same size across an axle
(left/right)
R with the same type of tyres at a given time
(summer tyres, winter tyres, MOExtended
tyres)
Vehicles with MOExtended tyres are not equip-
ped with a TIREFIT kit at the factory. It is there-
fore recommended that you additionally equip
your vehicle with a TIREFIT kit if you fit tyres that do not feature run-flat characteristics, e.g. win-
ter tyres. A TIREFIT kit can be obtained from a
qualified specialist workshop.
i Not all wheel/tyre combinations can be fit-
ted at the factory in all countries. 418
Wheel and tyre combinationsWheels and tyres

Tyres

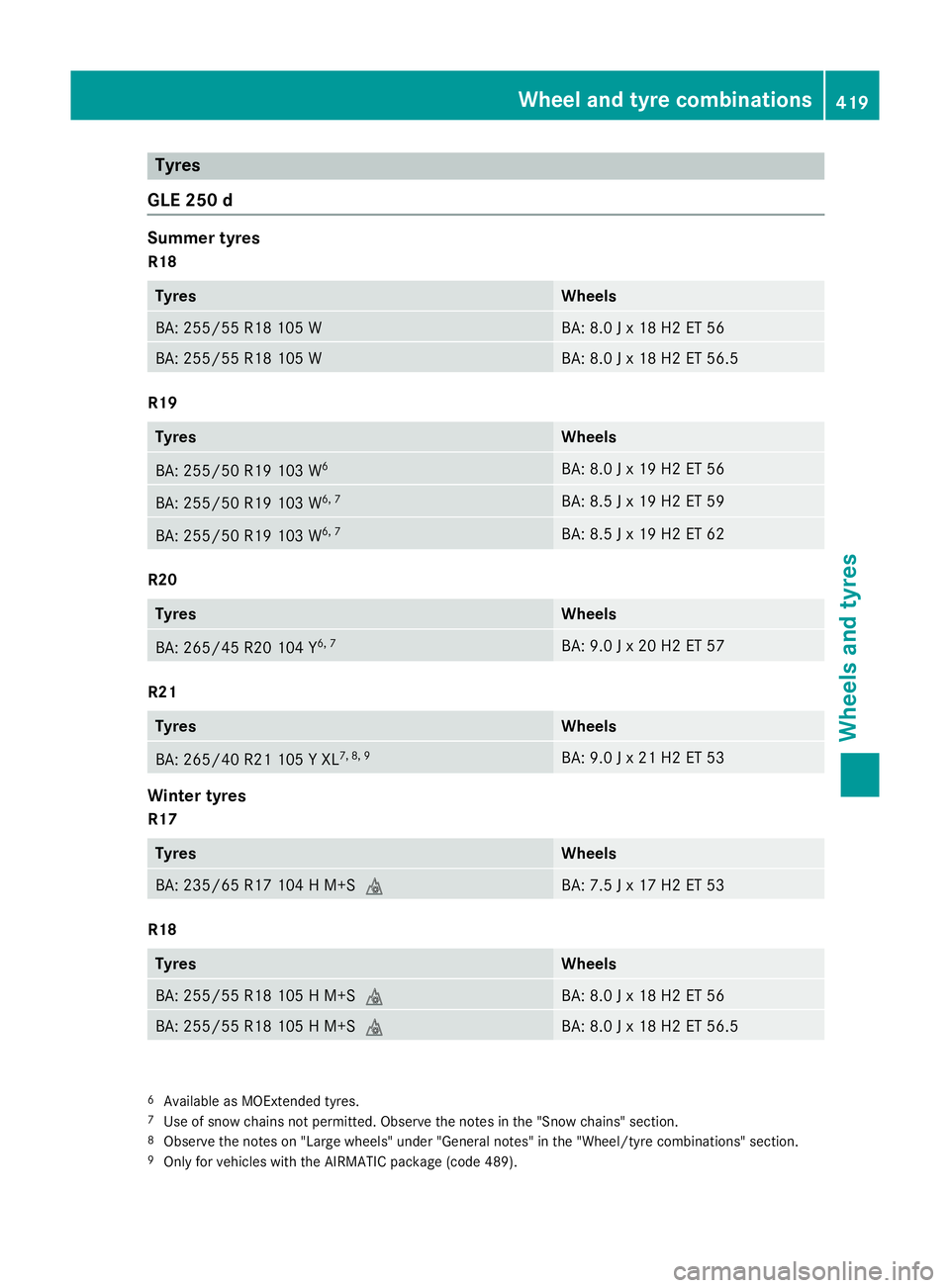

GLE 250 d Summer tyres
R18 Tyres Wheels
BA: 255/5
5 R18 105 W BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R18 105 W BA: 8.0 J x 18 H2 ET 56.5
R19
Tyres Wheels
BA: 255/50 R19 103 W
6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 104 Y
6, 7 BA: 9.0 J x 20 H2 ET 57
R21
Tyres Wheels
BA: 265/40 R21 105 Y XL
7, 8, 9 BA: 9.0 J x 21 H2 ET 53
Winter tyres
R17 Tyres Wheels
BA: 235/65 R17 104 H M+S
i BA: 7.5 J x 17 H2 ET 53
R18
Tyres Wheels
BA: 255/55 R18 105 H M+S
i BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R18 105 H M+S
i BA: 8.0 J x 18 H2 ET 56.5
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
9 Only for vehicles with the AIRMATIC package (code 489). Wheel and tyre combinations
419Wheels and tyres Z

R19
Tyres Wheels
BA: 255/50 R19 107 H XL M+S
i6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 108 V XL M+S
i7 BA: 9.0 J x 20 H2 ET 57
GLE 250 d 4MATIC
Summer tyres
R18 Tyres Wheels
BA: 255/55 R18 105 W BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R18 105 W BA: 8.0 J x 18 H2 ET 56.5
R19
Tyres Wheels
BA: 255/50 R19 103 W
6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 104 Y
6, 7 BA: 9.0 J x 20 H2 ET 57
R21
Tyres Wheels
BA: 265/40 R21 105 Y XL
7, 8, 9 BA: 9.0 J x 21 H2 ET 53
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
9 Only for vehicles with the AIRMATIC package (code 489). 420

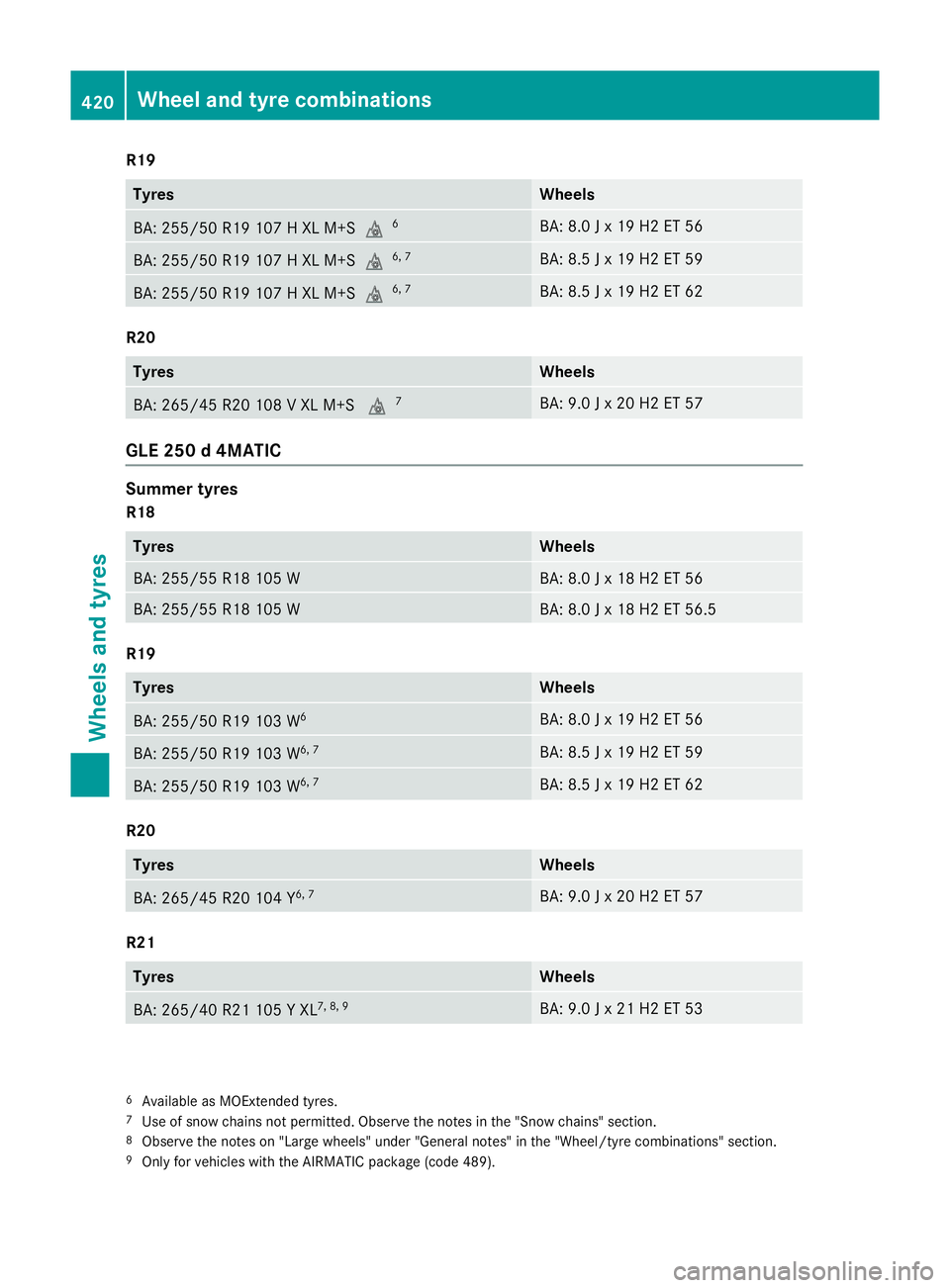

Wheel and tyre combinationsWheels and tyres

Winter tyres
R17 Tyres Wheels
BA: 235/65 R17 104 H M+Si BA: 7.5 J x 17 H2 ET 53
R18
Tyres Wheels
BA: 255/55 R18 105 H M+Si BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R18 105 H M+Si BA: 8.0 J x 18 H2 ET 56.5
R19
Tyres Wheels
BA: 255/50 R19 107 H XL M+Si
6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 107 H XL M+Si
6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 107 H XL M+Si
6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 108 V XL M+S
i7 BA: 9.0 J x 20 H2 ET 57
GLE 320 4MATIC
Summer tyres
R18 Tyres Wheels
BA: 255/55 R18 105 W BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R18 105 W BA: 8.0 J x 18 H2 ET 56.5
R19
Tyres Wheels
BA: 255/50 R19 103 W
6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 62
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tyre combinations

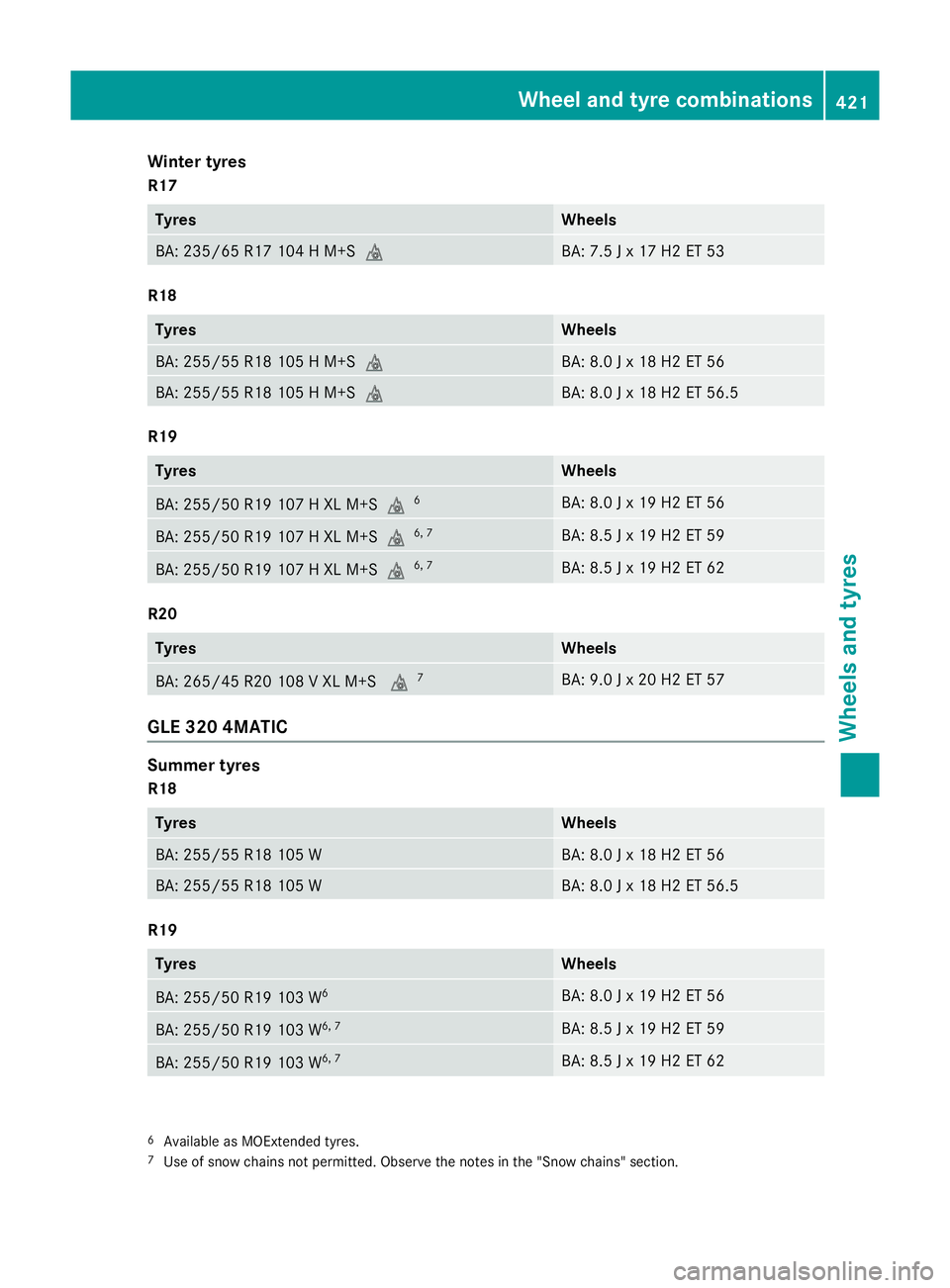

421Wheels and tyres Z

R20
Tyres Wheels
BA: 265/45 R20 104 Y
6, 7 BA: 9.0 J x 20 H2 ET 57
R21
Tyres Wheels
BA: 265/40 R21 105 Y XL
7, 8, 9 BA: 9.0 J x 21 H2 ET 53
Winter tyres
R18 Tyres Wheels
BA: 255/55 R18 105 H M+S
i BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R18 105 H M+S
i BA: 8.0 J x 18 H2 ET 56.5
R19
Tyres Wheels
BA: 255/50 R19 107 H XL M+S
i6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 108 V XL M+S
i7 BA: 9.0 J x 20 H2 ET 57
GLE 350 d 4MATIC
Summer tyres
R18 Tyres Wheels
BA: 255/55 R18 105 W BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R18 105 W BA: 8.0 J x 18 H2 ET 56.5
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
9 Only for vehicles with the AIRMATIC package (code 489). 422

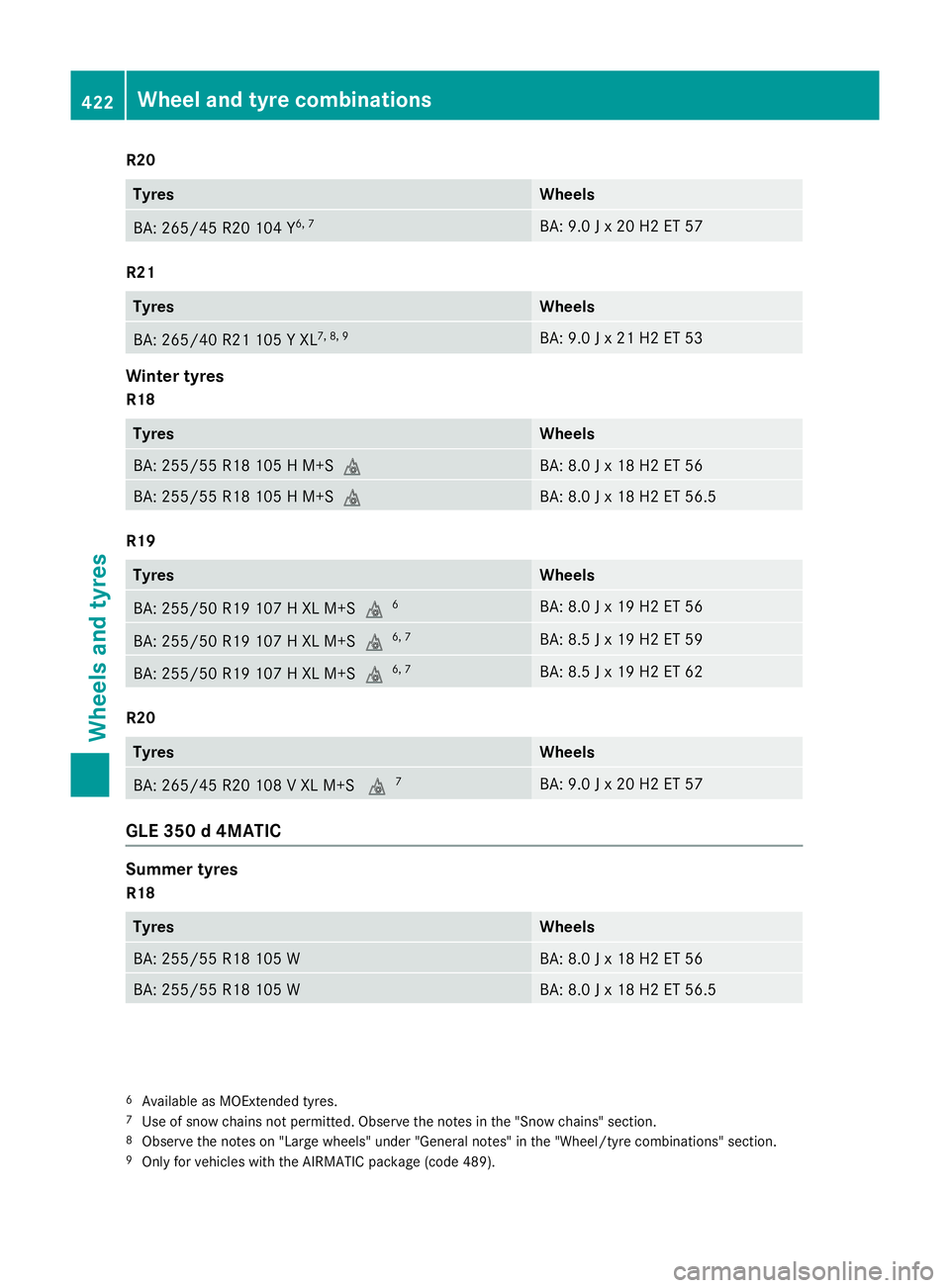

Wheel and tyre combinationsWheels and tyres

R19
Tyres Wheels
BA: 255/50 R19 103 W
6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 104 Y
6, 7 BA: 9.0 J x 20 H2 ET 57
R21
Tyres Wheels
BA: 265/40 R21 105 Y XL
7, 8, 9 BA: 9.0 J x 21 H2 ET 53
Winter tyres
R17 Tyres Wheels
BA: 235/65 R17 104 H M+S
i BA: 7.5 J x 17 H2 ET 53
R18
Tyres Wheels
BA: 255/55 R18 105 H M+S
i BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R18 105 H M+S
i BA: 8.0 J x 18 H2 ET 56.5
R19
Tyres Wheels
BA: 255/50 R19 107 H XL M+S
i6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 62
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
9 Only for vehicles with the AIRMATIC package (code 489). Wheel and tyre combinations

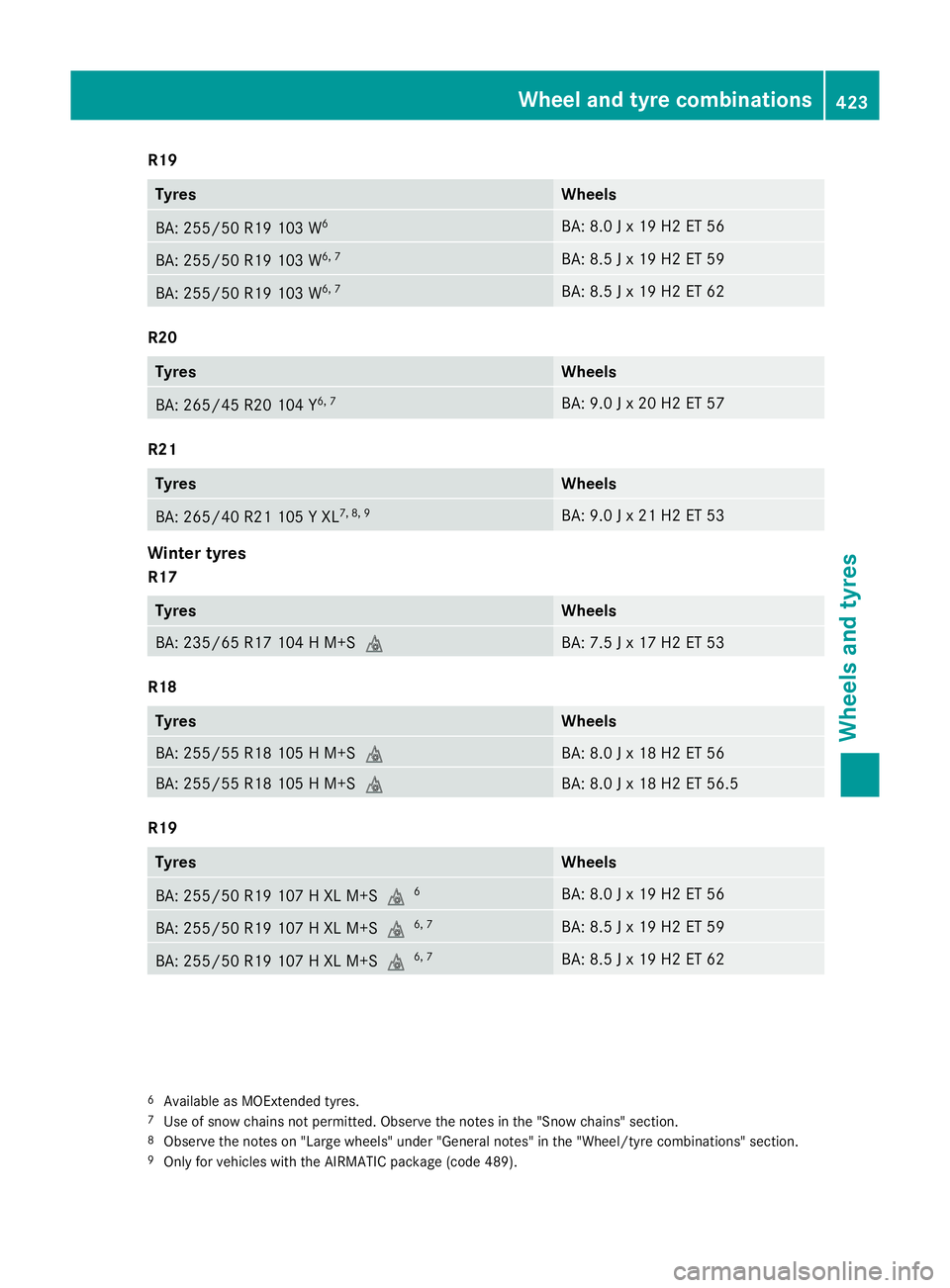

423Wheels and tyres Z

R20
Tyres Wheels
BA: 265/45 R20 108 V XL M+S
i7 BA: 9.0 J x 20 H2 ET 57
GLE 400 4MATIC
Summer tyres
R18 Tyres Wheels
BA: 255/55 R 18 105 W BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R 18 105 W BA: 8.0 J x 18 H2 ET 56.5
R19
Tyres Wheels
BA: 255/50 R19 103 W
6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 104 Y
6, 7 BA: 9.0 J x 20 H2 ET 57
R21
Tyres Wheels
BA: 265/40 R21 105 Y XL
7, 8, 9 BA: 9.0 J x 21 H2 ET 53
Winter tyres
R18 Tyres Wheels
BA: 255/55 R18 105 H M+S
i BA: 8.0 J x 18 H2 ET 56
BA: 255/55 R18 105 H M+S
i BA: 8.0 J x 18 H2 ET 56.5
7
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
6 Available as MOExtended tyres.
8 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
9 Only for vehicles with the AIRMATIC package (code 489). 424

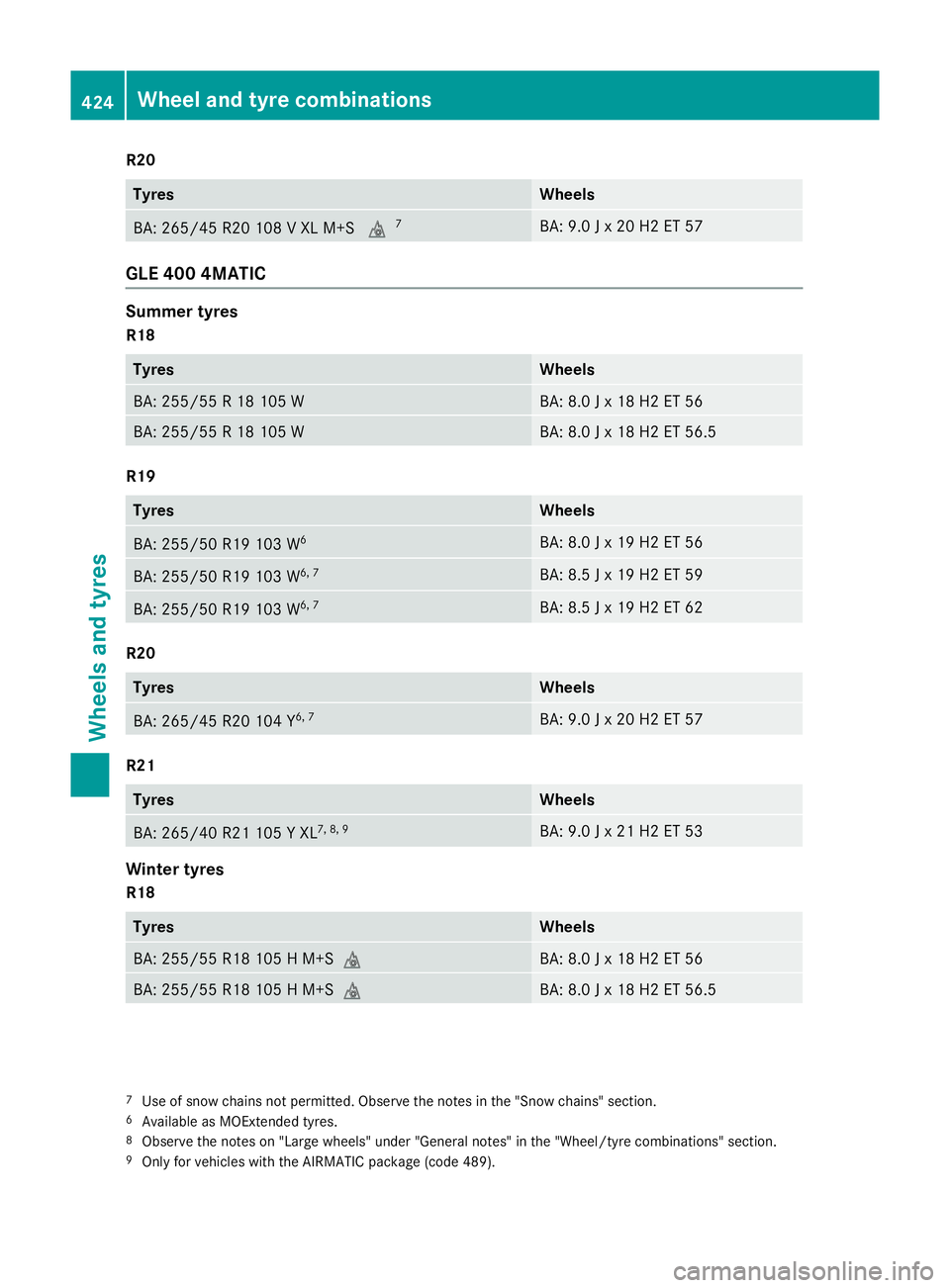

Wheel and tyre combinationsWheels and tyres

R19
Tyres Wheels
BA: 255/50 R19 107 H XL M+S
i6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 108 V XL M+S
i7 BA: 9.0 J x 20 H2 ET 57
GLE 450 Sport AMG 4MATIC
Summer tyres
R20 Tyres Wheels
BA: 265/45 ZR20 108 Y XL
6, 7 BA: 9.0 J x 20 H2 ET 57
R21
Tyres Wheels
BA: 265/40 R21 105 Y XL
7, 8, 9 BA: 9.0 J x 21 H2 ET 53
Winter tyres
R20 Tyres Wheels
BA: 255/45 R20 105 V XL M+S
i BA: 9.0 J x 20 H2 ET 57
GLE 500 4MATIC
Summer tyres
R19 Tyres Wheels
BA: 255/50 R19 103 W
6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 62
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
9 Only for vehicles with the AIRMATIC package (code 489). Wheel and tyre combinations

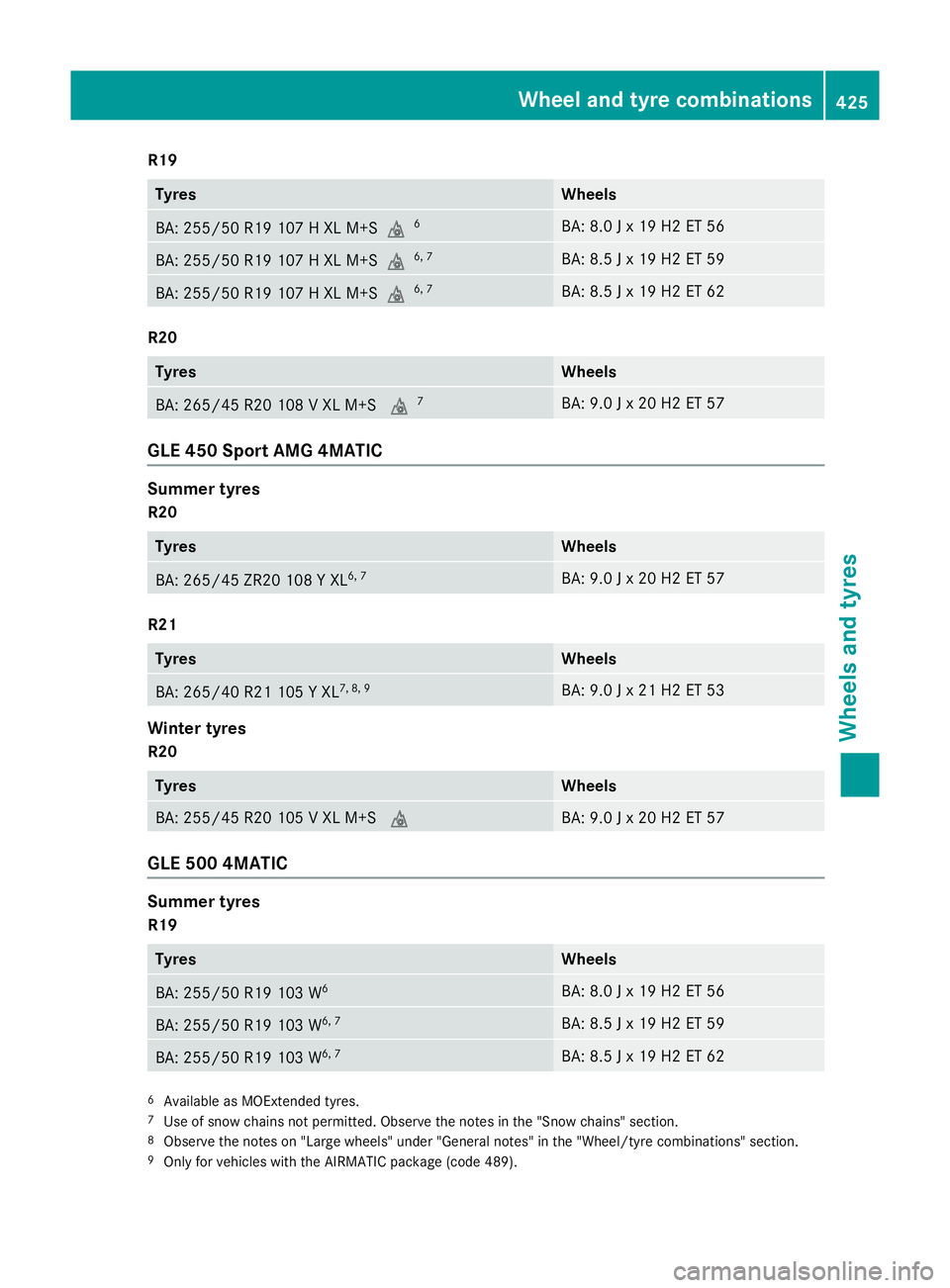

425Wheels and tyres Z

R20
Tyres Wheels
BA: 265/45 R20 104 Y
6, 7 BA: 9.0 J x 20 H2 ET 57
R21
Tyres Wheels
BA: 265/40 R21 105 Y XL
7, 8, 9 BA: 9.0 J x 21 H2 ET 53
Winter tyres
R19 Tyres Wheels
BA: 255/50 R19 107 H XL M+S
i6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R 20 108 V XL M+S
i7 BA: 9.0 J x 20 H2 ET 57
GLE 500 e 4MATIC
Summer tyres
R19 Tyres Wheels
BA: 255/50 R19 103 W
6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 103 W
6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 104 Y
6, 7 BA: 9.0 J x 20 H2 ET 57
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
9 Only for vehicles with the AIRMATIC package (code 489). 426

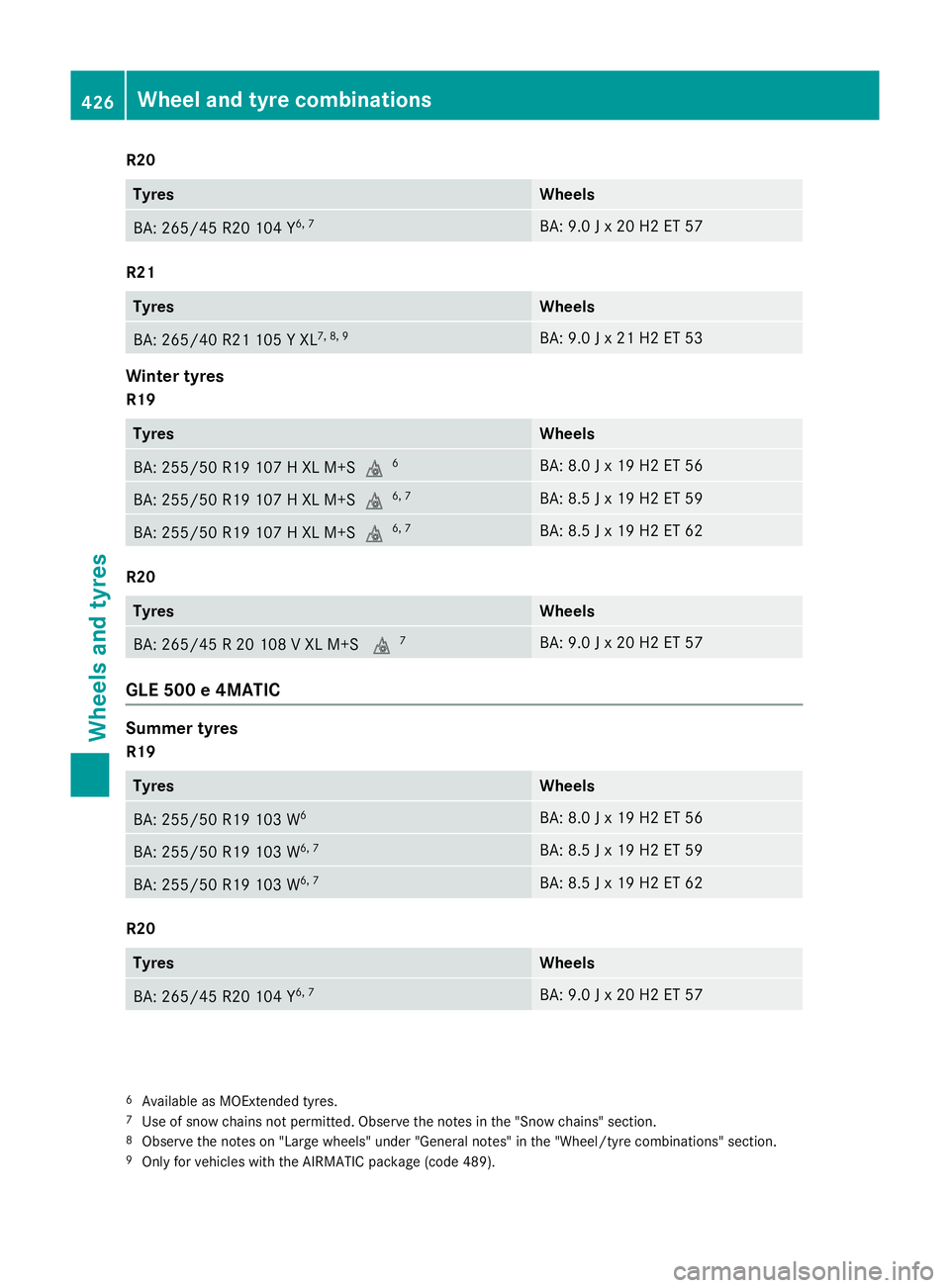

Wheel and tyre combinationsWheels and tyres

R21
Tyres Wheels
BA: 265/40 R21 105 Y XL
7, 8, 9 BA: 9.0 J x 21 H2 ET 53
Winter tyres
R19 Tyres Wheels
BA: 255/50 R19 107 H XL M+S

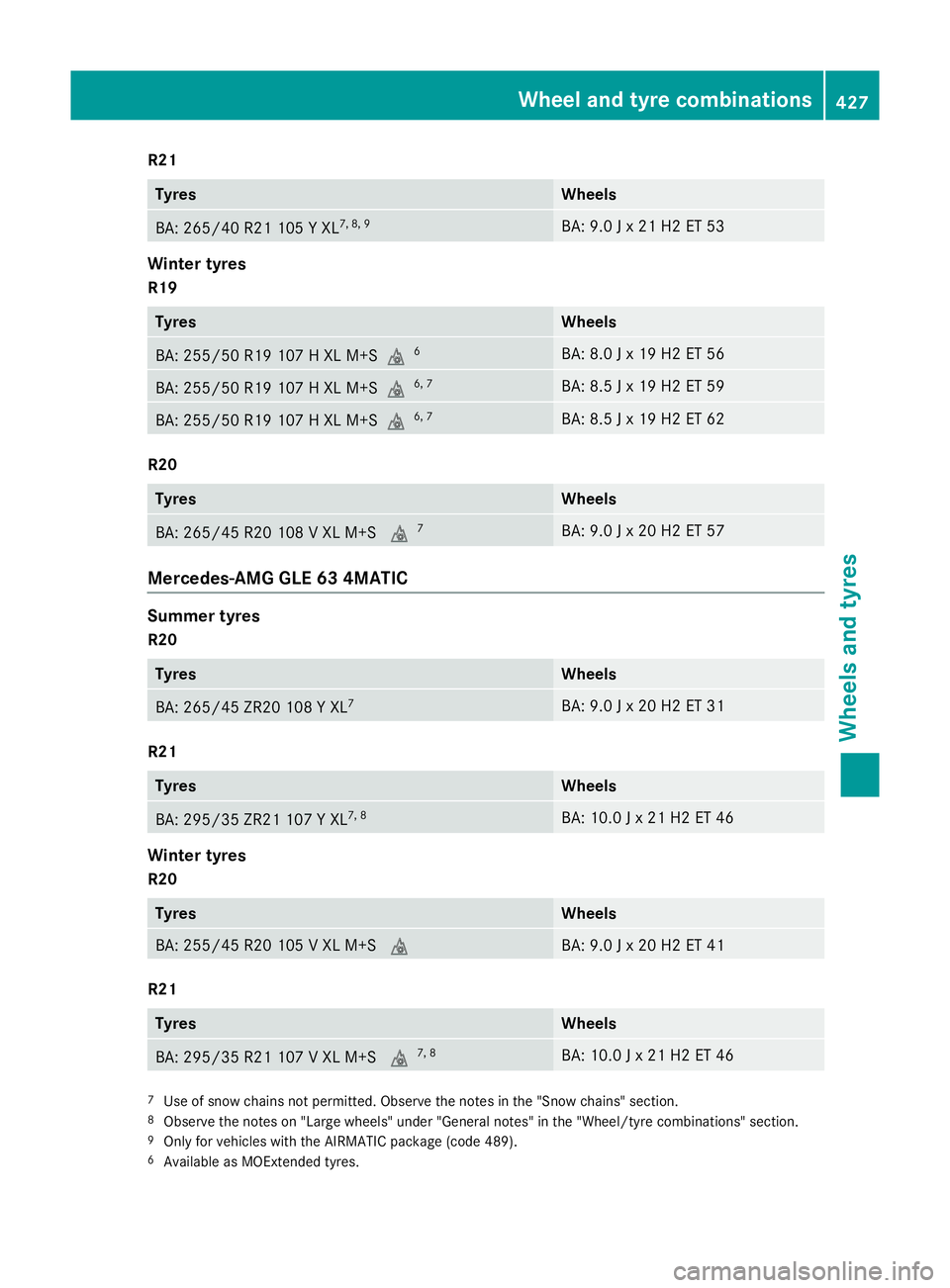

i6 BA: 8.0 J x 19 H2 ET 56
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 59
BA: 255/50 R19 107 H XL M+S
i6, 7 BA: 8.5 J x 19 H2 ET 62
R20
Tyres Wheels
BA: 265/45 R20 108 V XL M+S
i7 BA: 9.0 J x 20 H2 ET 57
Mercedes-AMG GLE 63 4MATIC
Summer tyres
R20 Tyres Wheels
BA: 265/45 ZR20 108 Y XL
7 BA: 9.0 J x 20 H2 ET 31
R21
Tyres Wheels
BA: 295/35 ZR21 107 Y XL
7, 8 BA: 10.0 J x 21 H2 ET 46
Winter tyres
R20 Tyres Wheels
BA: 255/45 R20 105 V XL M+S
i BA: 9.0 J x 20 H2 ET 41
R21
Tyres Wheels
BA: 295/35 R21 107 V XL M+S
i7, 8 BA: 10.0 J x 21 H2 ET 46
7
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
9 Only for vehicles with the AIRMATIC package (code 489).
6 Available as MOExtended tyres. Wheel and tyre combinations
427Wheels and tyres Z
