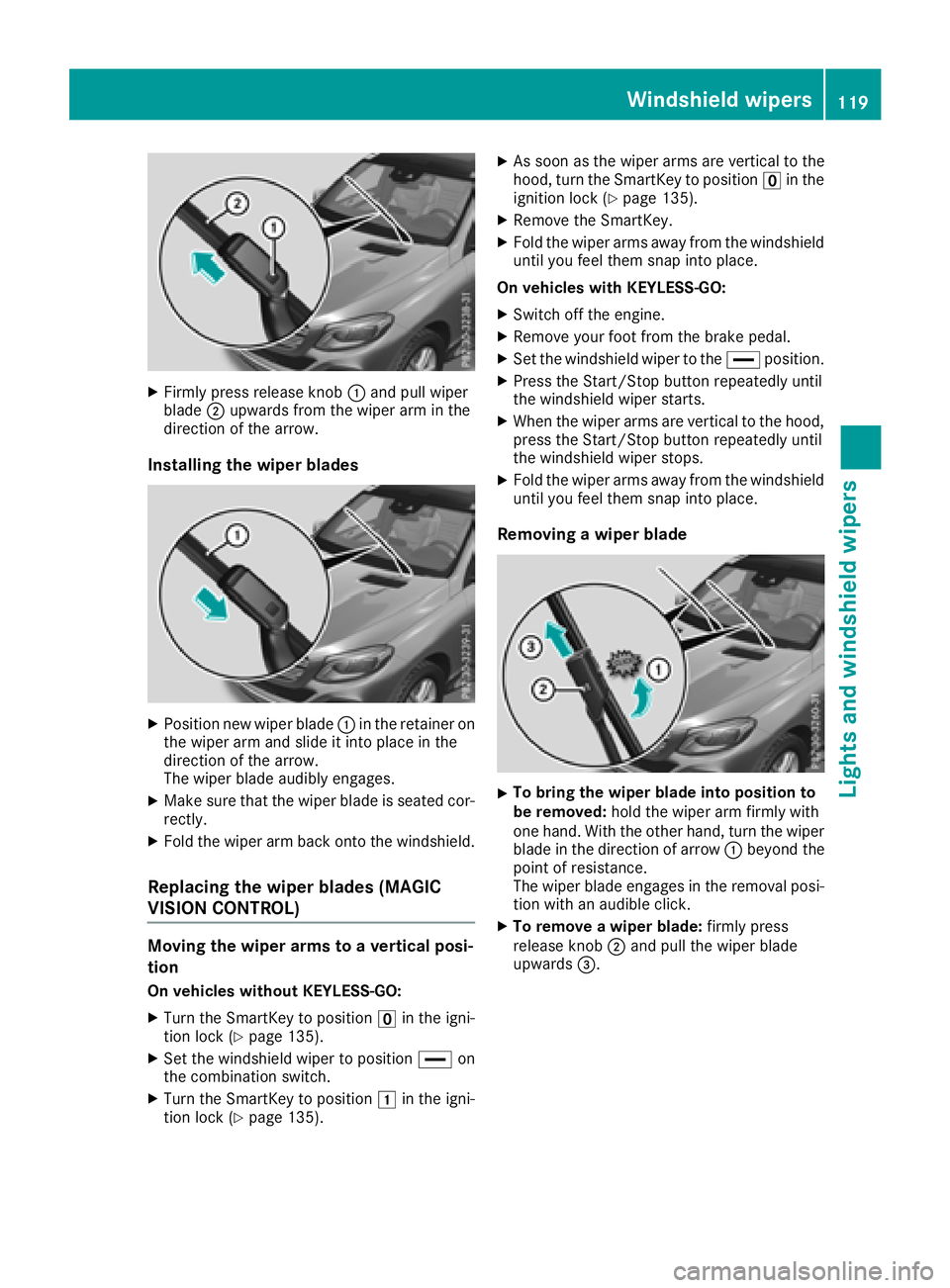

XFirmly press release knob:and pull wiper
blade ;upwards from the wiper arm in the
direction of the arrow.
Installing the wiper blades
XPosition new wiper blade :in the retainer on
the wiper arm and slide it into place in the
direction of the arrow.
The wiper blade audibly engages.
XMake sure that the wiper blade is seated cor- rectly.
XFold the wiper arm back onto the windshield.
Replacing the wiper blades (MAGIC
VISION CONTROL)
Moving the wiper arms to a vertical posi-
tion
On vehicles without KEYLESS-GO:
XTurn the SmartKey to position uin the igni-
tion lock (Ypage 135).
XSet the windshield wiper to position °on
the combination switch.
XTurn the SmartKey to position 1in the igni-
tion lock (Ypage 135).
XAs soon as the wiper arms are vertical to the
hood, turn the SmartKey to position uin the
ignition lock (
Ypage 135).
XRemove the SmartKey.
XFold the wiper arms away from the windshield
until you feel them snap into place.
On vehicles with KEYLESS-GO:
XSwitch off the engine.
XRemove your foot from the brake pedal.
XSet the windshield wiper to the °position.
XPress the Start/Stop button repeatedly until
the windshield wiper starts.
XWhen the wiper arms are vertical to the hood,
press the Start/Stop button repeatedly until
the windshield wiper stops.
XFold the wiper arms away from the windshield
until you feel them snap into place.
Removing a wiper blade
XTo bring the wiper blade into position to
be removed: hold the wiper arm firmly with
one hand. With the other hand, turn the wiper
blade in the direction of arrow :beyond the
point of resistance.
The wiper blade engages in the removal posi-
tion with an audible click.
XTo remove a wiper blade: firmly press
release knob ;and pull the wiper blade
upwards =.
Windshield wipers119
Lights and windshield wipers
Z

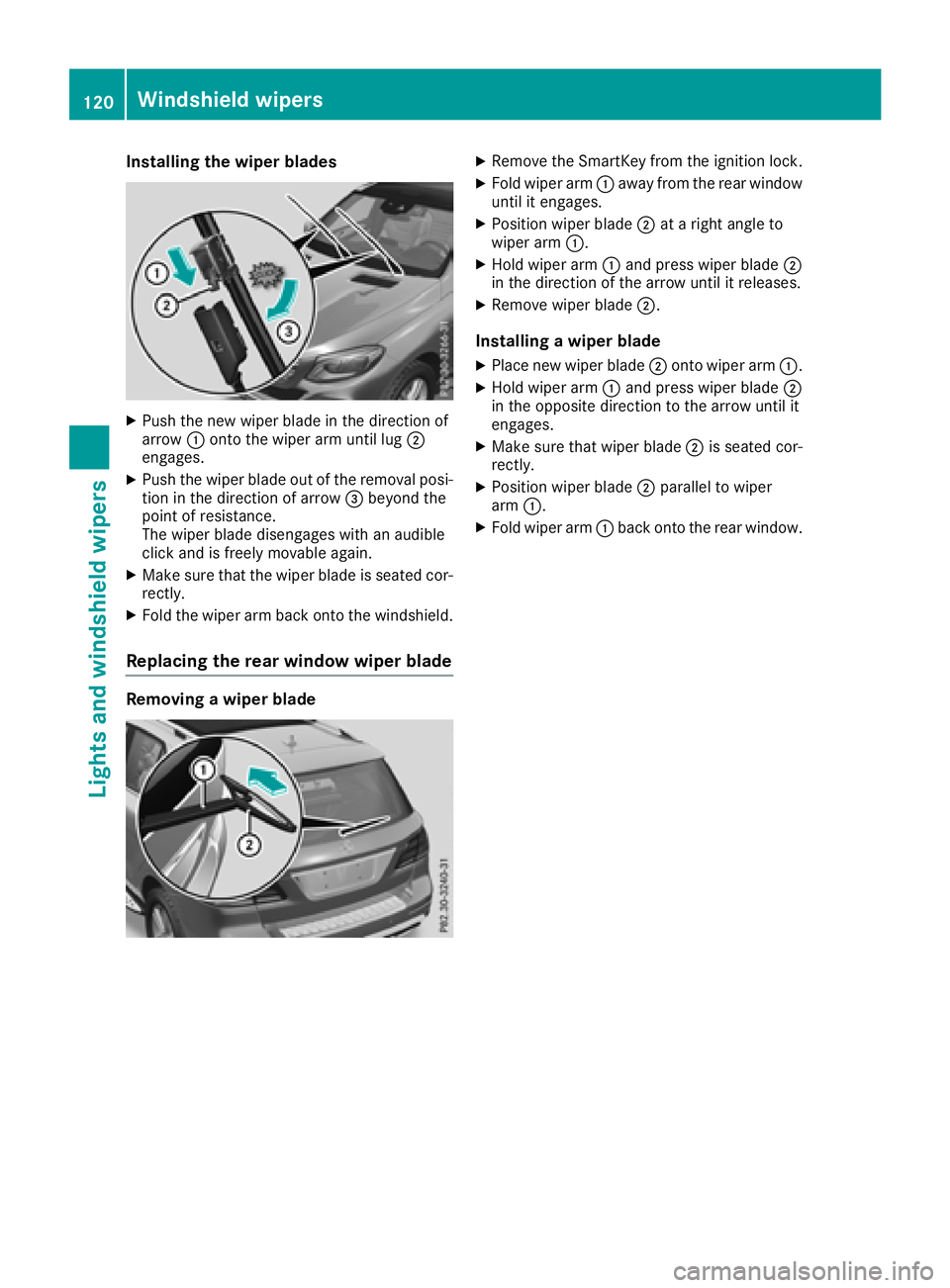

Installing the wiper blades
XPush the newwiper blade in thedirection of
arrow :onto the wiperarm unt illug ;
engages.
XPush the wiper blade out of the removal posi-
tion inthe direction of arrow =beyond the
poin t of resistance.
The wiper blade dise ngageswith an audible
clic k and isfreely mov ableagain.
XMake sure that the wiper blade isseated cor-
rectly.
XFold the wiperarm back onto the windshield.
Replacing the rear window wiper blade
Removing a wiper blade
XRemo vethe SmartKey from the ignition lock.
XFold wiper arm:away from the rear window
unt il it engages.
XPosition wiperblade;at a right angle to
wiper arm:.
XHold wiper arm:and press wiperblade;
in the direction of the arrow until it releases.
XRemove wiperblade;.
Installing a wiper blade
XPlace new wiperblade;onto wiper arm:.
XHold wiper arm:and press wiperblade;
in the oppo site direction to the arrow until it
engages.
XMake sure that wiperblade;is seated cor-
rectly.
XPosition wiper blade ;parallel to wiper
arm :.
XFold wiper arm :back onto the rear window.
120Windshield wipers
Lights and windshield wipers

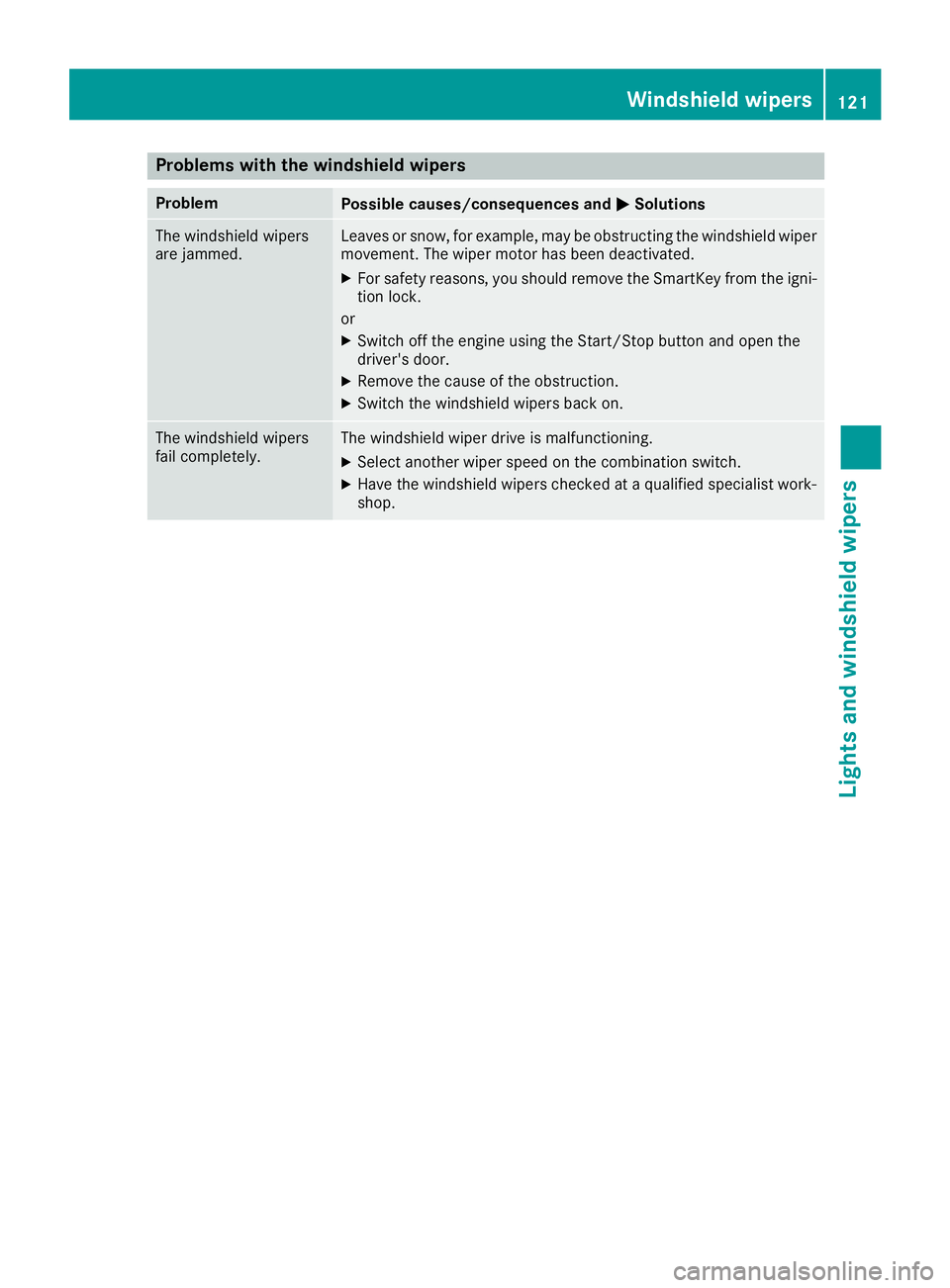

Problems with the windshield wipers
ProblemPossible causes/consequences andMSolutions
The windshield wipers
are jammed.Leaves or snow, for example, may be obstructing the windshield wiper
movement. The wiper motor has been deactivated.
XFor safety reasons, you should remove the SmartKey from the igni-
tion lock.
or
XSwitch off the engine using the Start/Stop button and open the
driver's door.
XRemove the cause of the obstruction.
XSwitch the windshield wipers back on.
The windshield wipers
fail completely.The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the combination switch.
XHave the windshield wipers checked at a qualified specialist work-
shop.
Windshield wipers121
Lights and windshield wipers
Z

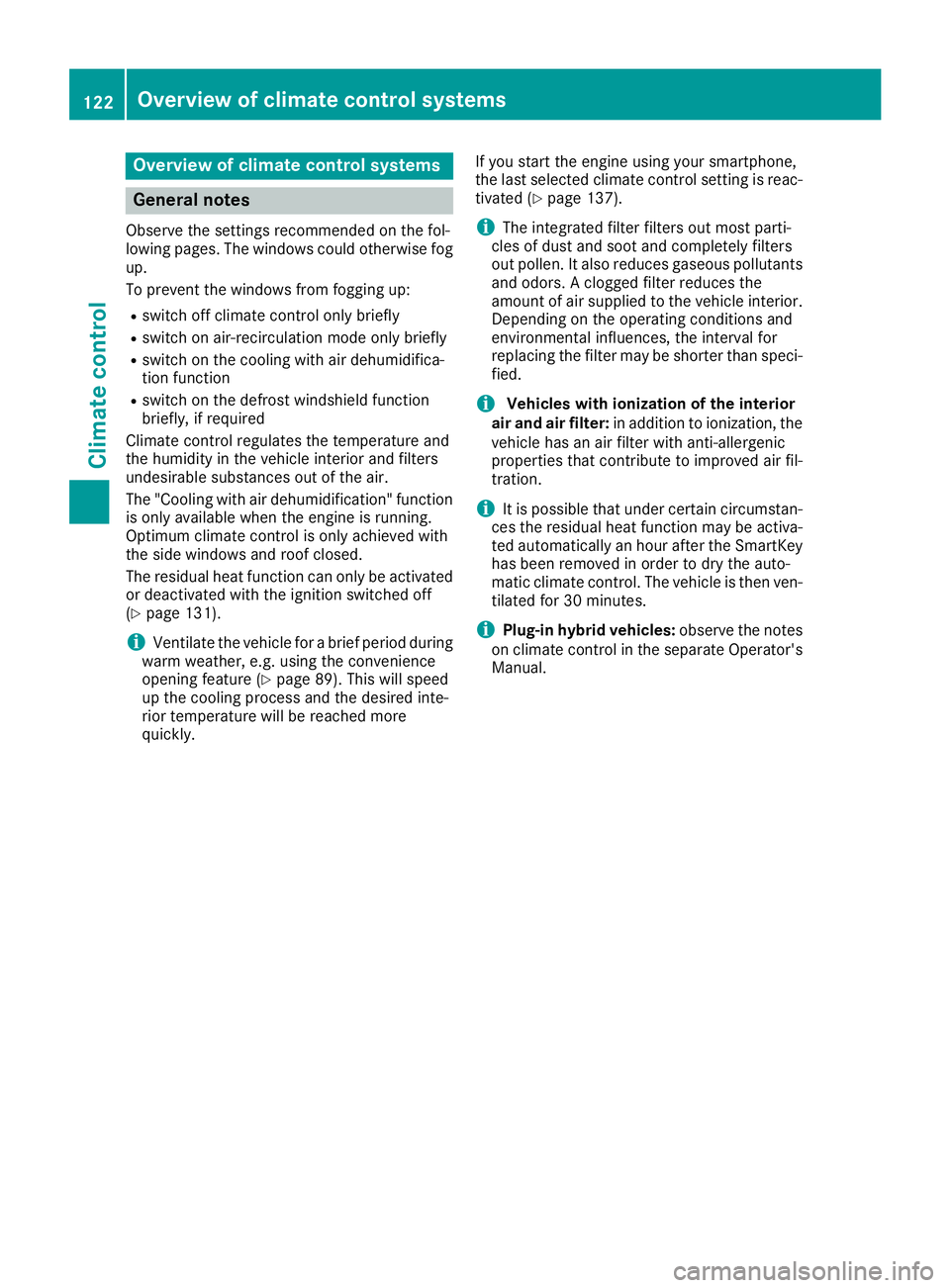

Overview of climate control systems
General notes
Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To prevent the windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only briefly
Rswitch on the cooling with air dehumidifica-
tion function
Rswitch on the defrost windshield function
briefly, if required
Climate control regulates the temperature and
the humidity in the vehicle interior and filters
undesirable substances out of the air.
The "Cooling with air dehumidification" function
is only available when the engine is running.
Optimum climate control is only achieved with
the side windows and roof closed.
The residual heat function can only be activated
or deactivated with the ignition switched off
(
Ypage 131).
iVentilate the vehicle for a brief period during
warm weather, e.g. using the convenience
opening feature (
Ypage 89). This will speed
up the cooling process and the desired inte-
rior temperature will be reached more
quickly. If you start the engine using your smartphone,
the last selected climate control setting is reac-
tivated (
Ypage 137).
iThe integrated filter filters out most parti-
cles of dust and soot and completely filters
out pollen. It also reduces gaseous pollutants
and odors. A clogged filter reduces the
amount of air supplied to the vehicle interior.
Depending on the operating conditions and
environmental influences, the interval for
replacing the filter may be shorter than speci-
fied.
iVehicles with ionization of the interior
air and air filter: in addition to ionization, the
vehicle has an air filter with anti-allergenic
properties that contribute to improved air fil-
tration.
iIt is possible that under certain circumstan-
ces the residual heat function may be activa-
ted automatically an hour after the SmartKey
has been removed in order to dry the auto-
matic climate control. The vehicle is then ven-
tilated for 30 minutes.
iPlug-in hybrid vehicles: observe the notes
on climate control in the separate Operator's
Manual.
122Overview of climate control systems
Climate control

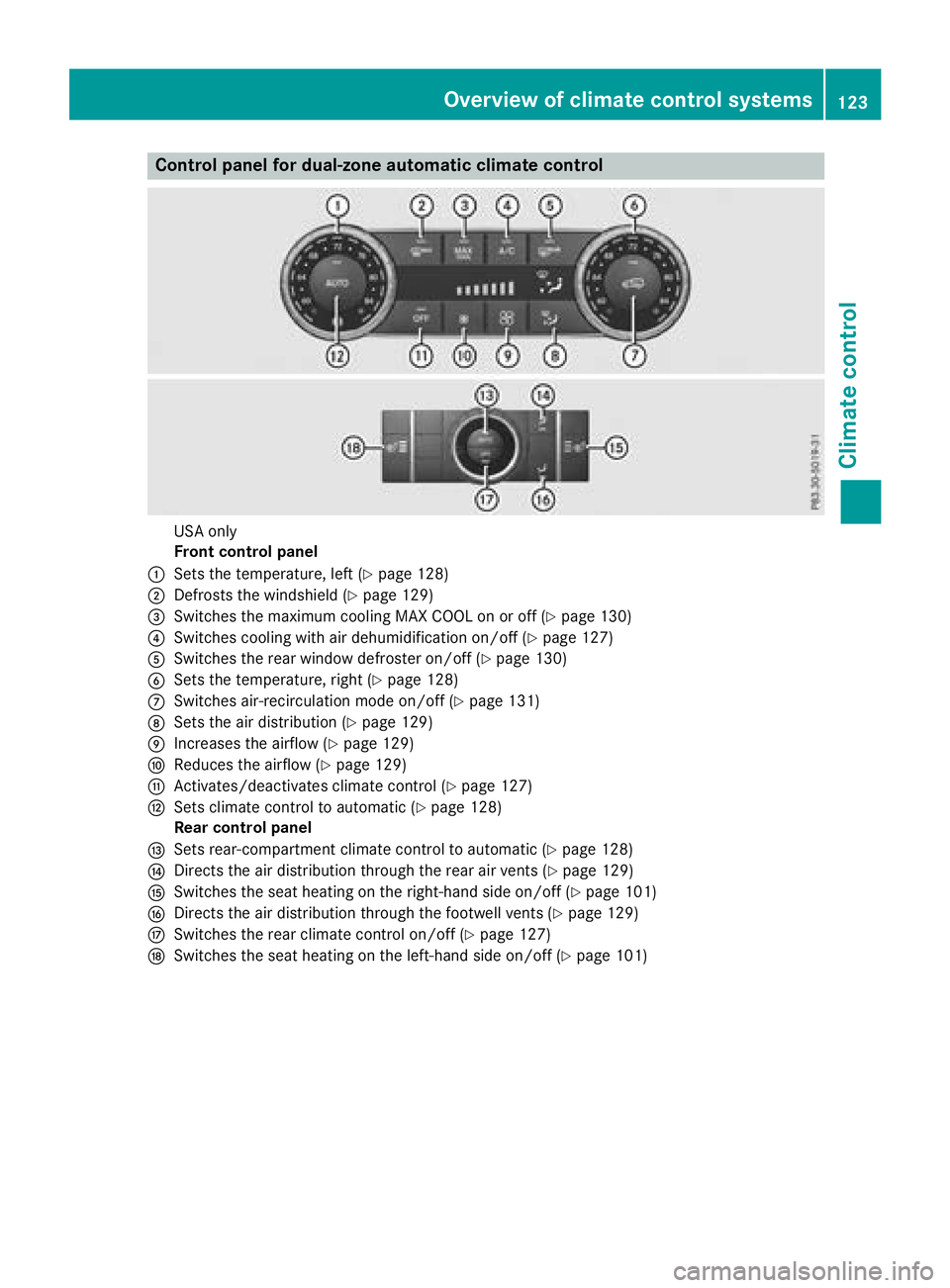

Control panel for dual-zone automatic climate control
USA only
Front control panel
:Sets the temperature, left (Ypage 128)
;Defrosts the windshield (Ypage 129)
=Switches the maximum cooling MAX COOL on or off (Ypage 130)
?Switches cooling with air dehumidification on/off (Ypage 127)
ASwitches the rear window defroster on/off (Ypage 130)
BSets the temperature, right (Ypage 128)
CSwitches air-recirculation mode on/off (Ypage 131)
DSets the air distribution (Ypage 129)
EIncreases the airflow (Ypage 129)
FReduces the airflow (Ypage 129)
GActivates/deactivates climate control (Ypage 127)
HSets climate control to automatic (Ypage 128)
Rear control panel
ISets rear-compartment climate control to automatic (Ypage 128)
JDirects the air distribution through the rear air vents (Ypage 129)
KSwitches the seat heating on the right-hand side on/off (Ypage 101)
LDirects the air distribution through the footwell vents (Ypage 129)
MSwitches the rear climate control on/off (Ypage 127)
NSwitches the seat heating on the left-hand side on/off (Ypage 101)
Overview of climate control systems123
Climate control

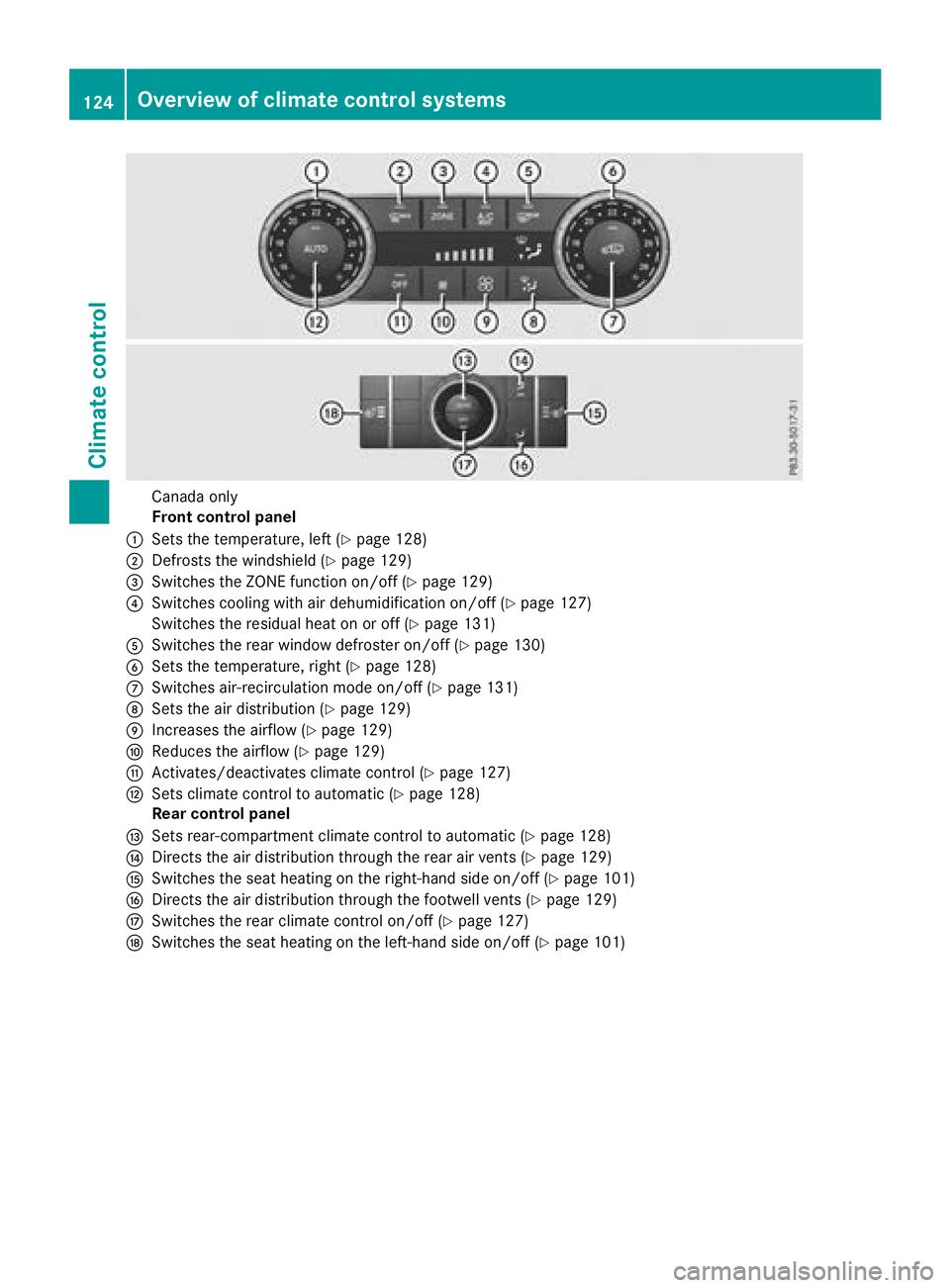

Canada only
Front control panel
:Sets the temperature, left (Ypage 128)
;Defrosts the windshield (Ypage 129)
=Switches the ZONE function on/off (Ypage 129)
?Switches co olingwit h air dehumidif ication on/off (Ypage 127)
Swit ches the residual heat on or off (
Ypage 131)
ASwitches the rear window defroster on/off (Ypage 130)
BSets the temperature, right (Ypage 128)
CSwitches air-recirculation mode on/off (Ypage 131)
DSets the air distribution (Ypage 129)
EIncreases the airflow (Ypage 129)
FReduces the airflow (Ypage 129)
GActivates/deactivates climate control (Ypage 127)
HSets climate control to automat ic(Ypage 128)
Rear control panel
ISets rear-compartment climate control to automatic (Ypage 128)
JDirects the air distribution through the rear air vents (Ypage 129)
KSwit ches the seat heating on the right-hand sideon/off (Ypage 101)
LDirects the air distribution through the footwe llvents (Ypage 129)
MSwit ches the rear climate control on/off (Ypage 127)
NSwit ches the seat heating on the left-hand sideon/off (Ypage 101)
124Overview of climate control systems
Climate control

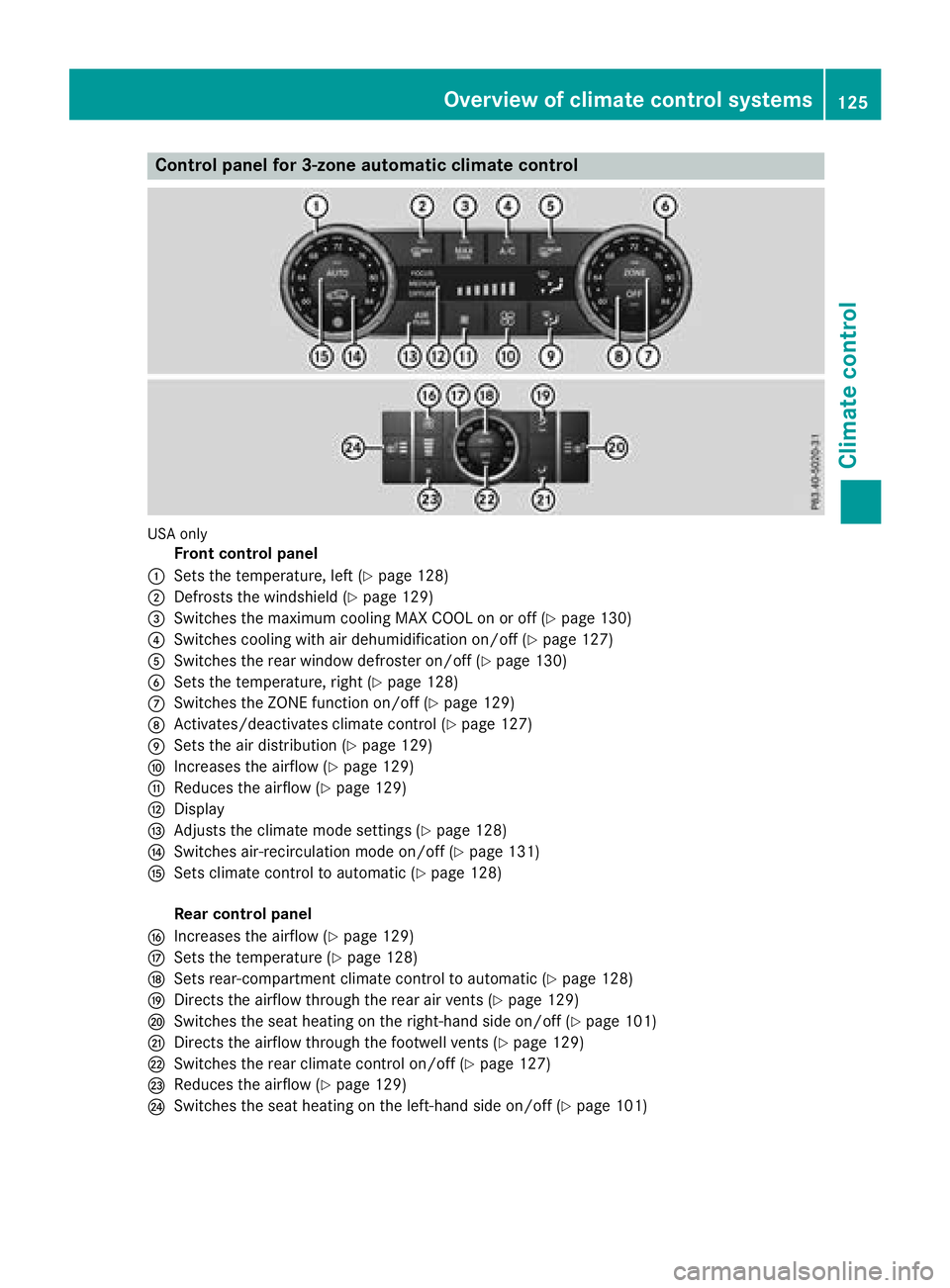

Control panel for 3-zone automatic climate control
USAonly
Front control panel
:Sets the temperature, left (Ypage 128)
;Defrosts the windshield (Ypage 129)
=Switches the maximum cooling MAX COOL on or off (Ypage 130)
?Switches cooling with air dehumidification on/off (Ypage 127)
ASwitches the rear window defroster on/off (Ypage 130)
BSets the temperature, right (Ypage 128)
CSwitches the ZONE function on/off (Ypage 129)
DActivates/deactivates climate control (Ypage 127)
ESets the air distribution (Ypage 129)
FIncreases the airflow (Ypage 129)
GReduces the airflow (Ypage 129)
HDisplay
IAdjusts the climate mode settings (Ypage 128)
JSwitches air-recirculation mode on/off (Ypage 131)
KSets climate control to automatic (Ypage 128)
Rear control panel
LIncreases the airflow (Ypage 129)
MSets the temperature (Ypage 128)
NSets rear-compartment climate control to automatic (Ypage 128)
ODirects the airflow through the rear air vents (Ypage 129)
PSwitches the seat heating on the right-hand side on/off (Ypage 101)
QDirects the airflow through the footwell vents (Ypage 129)
RSwitches the rear climate control on/off (Ypage 127)
SReduces the airflow (Ypage 129)
TSwitches the seat heating on the left-hand side on/off (Ypage 101)
Overview of climate control systems125
Climate control

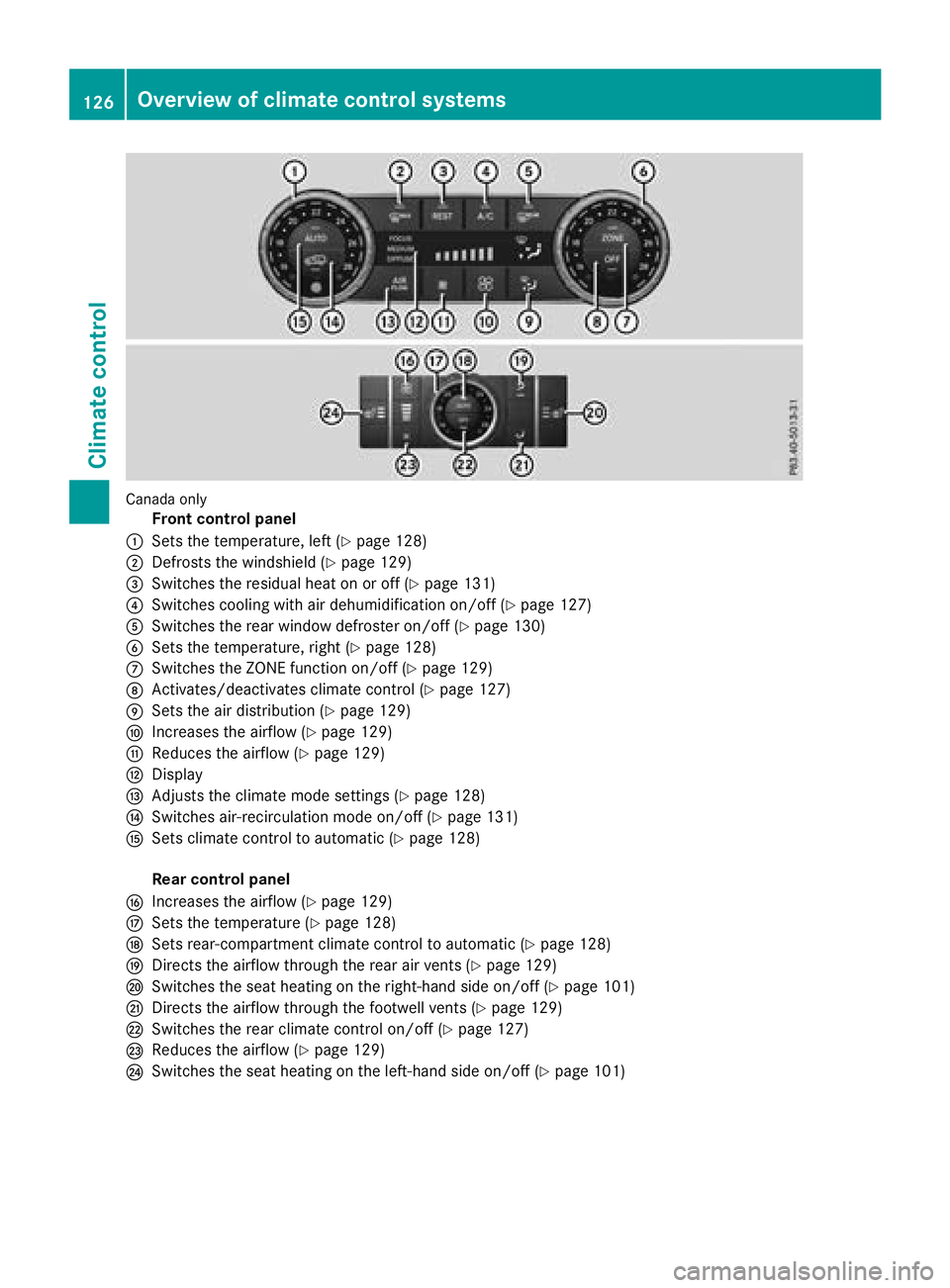

Canada only
Front control panel
:Sets the temperature, left (Ypage 128)
;Defrosts the windshield (Ypage 129)
=Switches the residual heat on or off (Ypage 131)
?Switches cooling with air dehumidification on/off (Ypage 127)
ASwitches the rear window defroster on/off (Ypage 130)
BSets the temperature, right (Ypage 128)
CSwitches the ZONE function on/off (Ypage 129)
DActivates/deactivates climate control (Ypage 127)
ESets the air distribution (Ypage 129)
FIncreases the airflow (Ypage 129)
GReduces the airflow (Ypage 129)
HDisplay
IAdjusts the climate mode settings (Ypage 128)
JSwitches air-recirculation mode on/off (Ypage 131)
KSets climate control to automatic (Ypage 128)
Rear control panel
LIncreases the airflow (Ypage 129)
MSets the temperature (Ypage 128)
NSets rear-compartment climate control to automatic (Ypage 128)
ODirects the airflow through the rear air vents (Ypage 129)
PSwitches the seat heating on the right-hand side on/off (Ypage 101)
QDirects the airflow through the footwell vents (Ypage 129)
RSwitches the rear climate control on/off (Ypage 127)
SReduces the airflow (Ypage 129)
TSwitches the seat heating on the left-hand side on/off (Ypage 101)
126Overview of climate control systems
Climate control

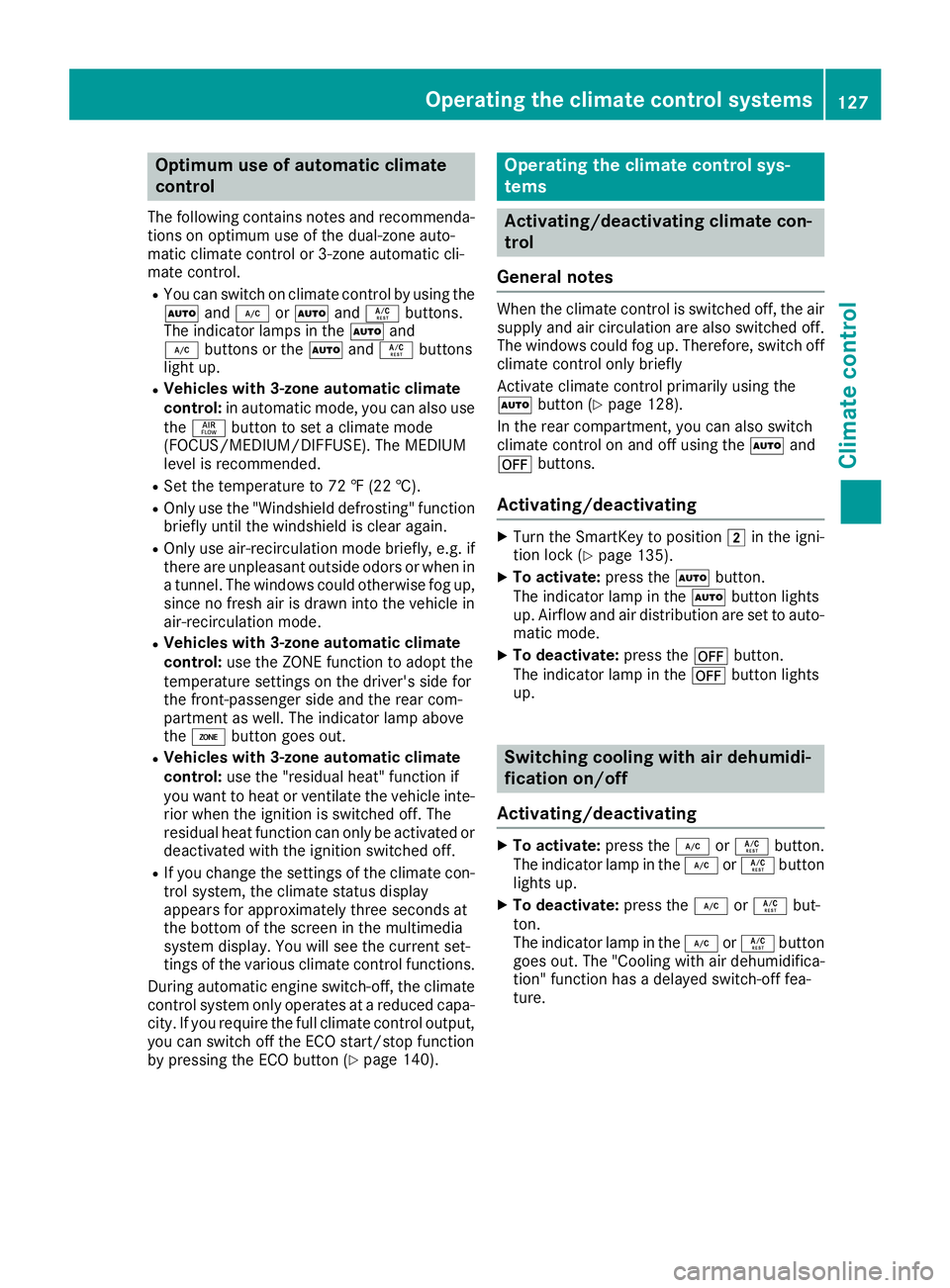

Optimum use of automatic climate
control
The following contains notes and recommenda-
tions on optimum use of the dual-zone auto-
matic climate control or 3-zone automatic cli-
mate control.
RYou can switch on climate control by using the
Ãand¿ orà andÁ buttons.
The indicator lamps in the Ãand
¿ buttons or the ÃandÁ buttons
light up.
RVehicles with 3-zone automatic climate
control: in automatic mode, you can also use
the ñ button to set a climate mode
(FOCUS/MEDIUM/DIFFUSE). The MEDIUM
level is recommended.
RSet the temperature to 72 ‡ (22 †).
ROnly use the "Windshield defrosting" function
briefly until the windshield is clear again.
ROnly use air-recirculation mode briefly, e.g. if
there are unpleasant outside odors or when in
a tunnel. The windows could otherwise fog up,
since no fresh air is drawn into the vehicle in
air-recirculation mode.
RVehicles with 3-zone automatic climate
control: use the ZONE function to adopt the
temperature settings on the driver's side for
the front-passenger side and the rear com-
partment as well. The indicator lamp above
the á button goes out.
RVehicles with 3-zone automatic climate
control: use the "residual heat" function if
you want to heat or ventilate the vehicle inte- rior when the ignition is switched off. The
residual heat function can only be activated or
deactivated with the ignition switched off.
RIf you change the settings of the climate con-
trol system, the climate status display
appears for approximately three seconds at
the bottom of the screen in the multimedia
system display. You will see the current set-
tings of the various climate control functions.
During automatic engine switch-off, the climate
control system only operates at a reduced capa-
city. If you require the full climate control output,
you can switch off the ECO start/stop function
by pressing the ECO button (
Ypage 140).
Operating the climate control sys-
tems
Activating/deactivating climate con-
trol
General notes
When the climate control is switched off, the air
supply and air circulation are also switched off.
The windows could fog up. Therefore, switch off
climate control only briefly
Activate climate control primarily using the
à button (
Ypage 128).
In the rear compartment, you can also switch
climate control on and off using the Ãand
^ buttons.
Activating/deactivating
XTurn the SmartKey to position 2in the igni-
tion lock (Ypage 135).
XTo activate: press theÃbutton.
The indicator lamp in the Ãbutton lights
up. Airflow and air distribution are set to auto-
matic mode.
XTo deactivate: press the^button.
The indicator lamp in the ^button lights
up.
Switching cooling with air dehumidi-
fication on/off
Activating/deactivating
XTo activate: press the¿orÁ button.
The indicator lamp in the ¿orÁ button
lights up.
XTo deactivate: press the¿orÁ but-
ton.
The indicator lamp in the ¿orÁ button
goes out. The "Cooling with air dehumidifica-
tion" function has a delayed switch-off fea-
ture.
Operating the climate control systems127
Climate control

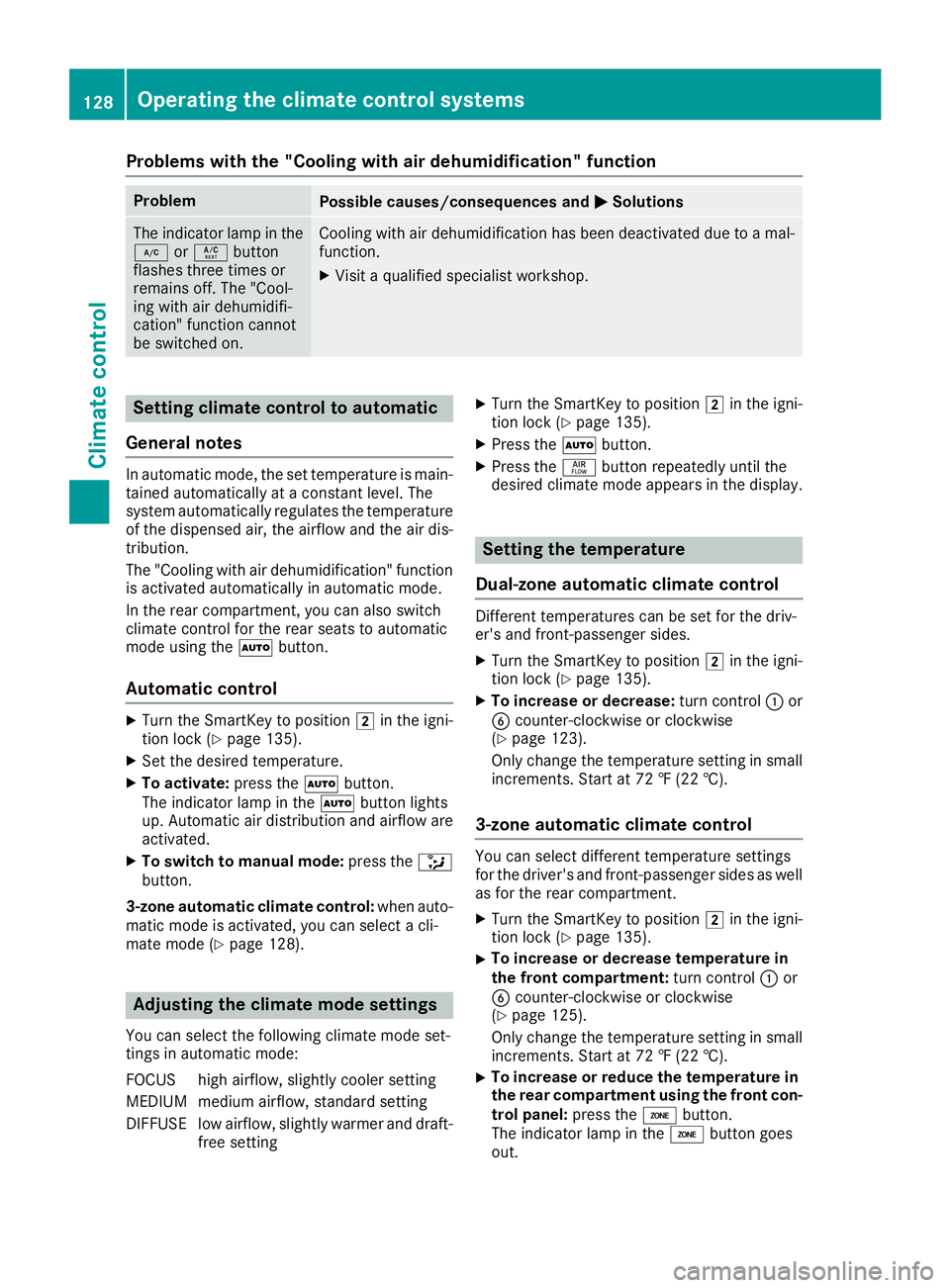

Problems with the "Cooling with air dehumidification" function
ProblemPossible causes/consequences andMSolutions
The indicator lamp in the
¿orÁ button
flashes three times or
remains off. The "Cool-
ing with air dehumidifi-
cation" function cannot
be switched on.Cooling with air dehumidification has been deactivated due to a mal-
function.
XVisit a qualified specialist workshop.
Setting climate control to automatic
General notes
In automatic mode, the set temperature is main-
tained automatically at a constant level. The
system automatically regulates the temperature
of the dispensed air, the airflow and the air dis-
tribution.
The "Cooling with air dehumidification" function
is activated automatically in automatic mode.
In the rear compartment, you can also switch
climate control for the rear seats to automatic
mode using the Ãbutton.
Automatic control
XTurn the SmartKey to position 2in the igni-
tion lock (Ypage 135).
XSet the desired temperature.
XTo activate: press theÃbutton.
The indicator lamp in the Ãbutton lights
up. Automatic air distribution and airflow are
activated.
XTo switch to manual mode: press the_
button.
3-zone automatic climate control: when auto-
matic mode is activated, you can select a cli-
mate mode (
Ypage 128).
Adjusting the climate mode settings
You can select the following climate mode set-
tings in automatic mode:
FOCUS high airflow, slightly cooler setting
MEDIUM medium airflow, standard setting
DIFFUSE low airflow, slightly warmer and draft- free setting
XTurn the SmartKey to position 2in the igni-
tion lock (Ypage 135).
XPress the Ãbutton.
XPress the ñbutton repeatedly until the
desired climate mode appears in the display.
Setting the temperature
Dual-zone automatic climate control
Different temperatures can be set for the driv-
er's and front-passenger sides.
XTurn the SmartKey to position 2in the igni-
tion lock (Ypage 135).
XTo increase or decrease: turn control:or
B counter-clockwise or clockwise
(
Ypage 123).
Only change the temperature setting in small
increments. Start at 72 ‡ (22 †).
3-zone automatic climate control
You can select different temperature settings
for the driver's and front-passenger sides as well
as for the rear compartment.
XTurn the SmartKey to position 2in the igni-
tion lock (Ypage 135).
XTo increase or decrease temperature in
the front compartment: turn control:or
B counter-clockwise or clockwise
(
Ypage 125).
Only change the temperature setting in small
increments. Start at 72 ‡ (22 †).
XTo increase or reduce the temperature in
the rear compartment using the front con- trol panel: press theábutton.
The indicator lamp in the ábutton goes
out.
128Operating the climate control systems
Climate control
