MERCEDES-BENZ GLK-Class 2012 X204 Owner's Manual

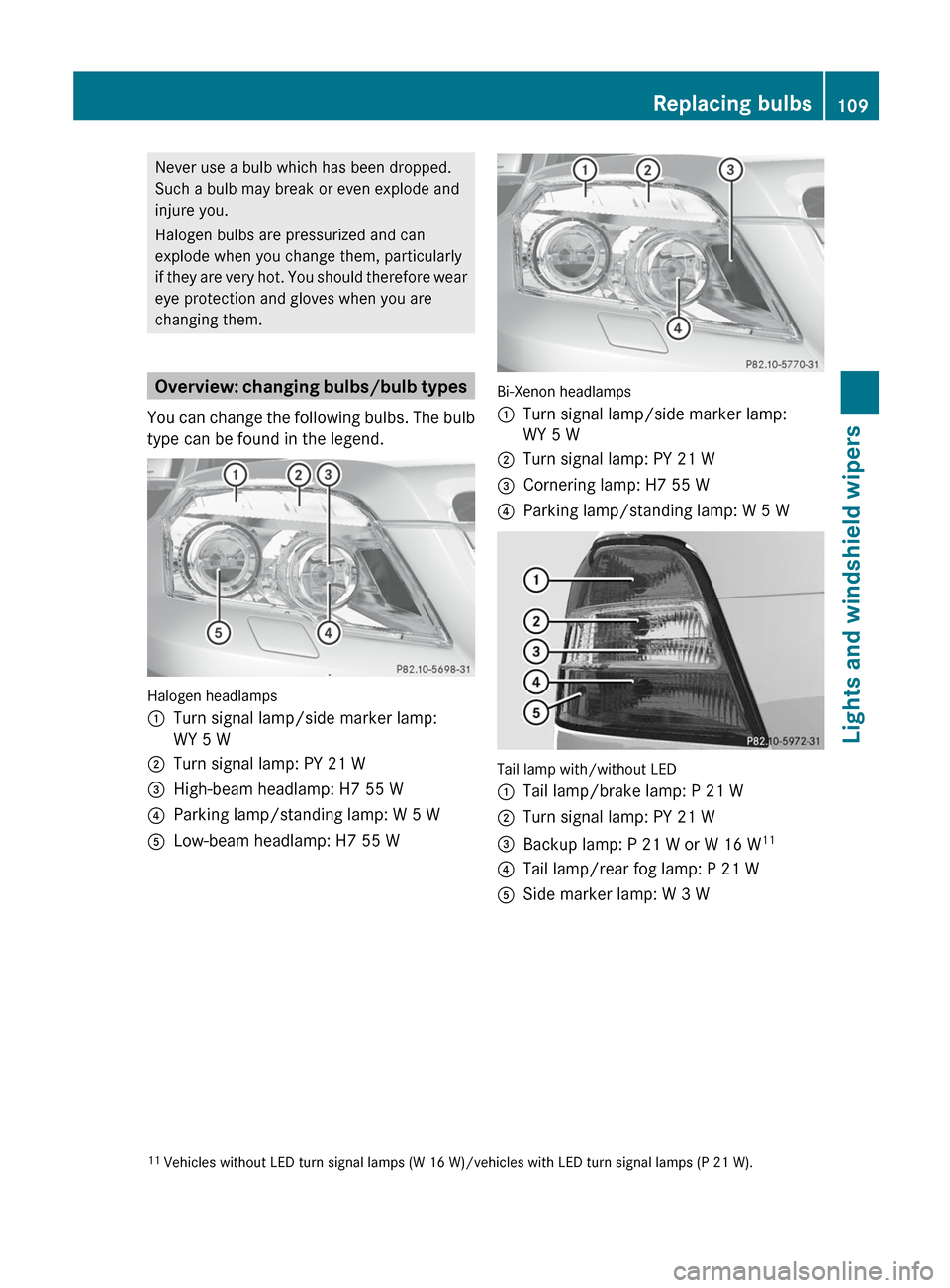

Never use a bulb which has been dropped.
Such a bulb may break or even explode and
injure you.
Halogen bulbs are pressurized and can
explode when you change them, particularly
if they are very hot. You should therefore wear
eye protection and gloves when you are
changing them.
Overview: changing bulbs/bulb types
You can change the following bulbs. The bulb
type can be found in the legend.
Halogen headlamps
:Turn signal lamp/side marker lamp:
WY 5 W;Turn signal lamp: PY 21 W=High-beam headlamp: H7 55 W?Parking lamp/standing lamp: W 5 WALow-beam headlamp: H7 55 W
Bi-Xenon headlamps
:Turn signal lamp/side marker lamp:
WY 5 W;Turn signal lamp: PY 21 W=Cornering lamp: H7 55 W?Parking lamp/standing lamp: W 5 W
Tail lamp with/without LED
:Tail lamp/brake lamp: P 21 W;Turn signal lamp: PY 21 W=Backup lamp: P 21 W or W 16 W 11?Tail lamp/rear fog lamp: P 21 WASide marker lamp: W 3 W11
Vehicles without LED turn signal lamps (W 16 W)/vehicles with LED turn signal lamps (P 21 W).Replacing bulbs109Lights and windshield wipersZ

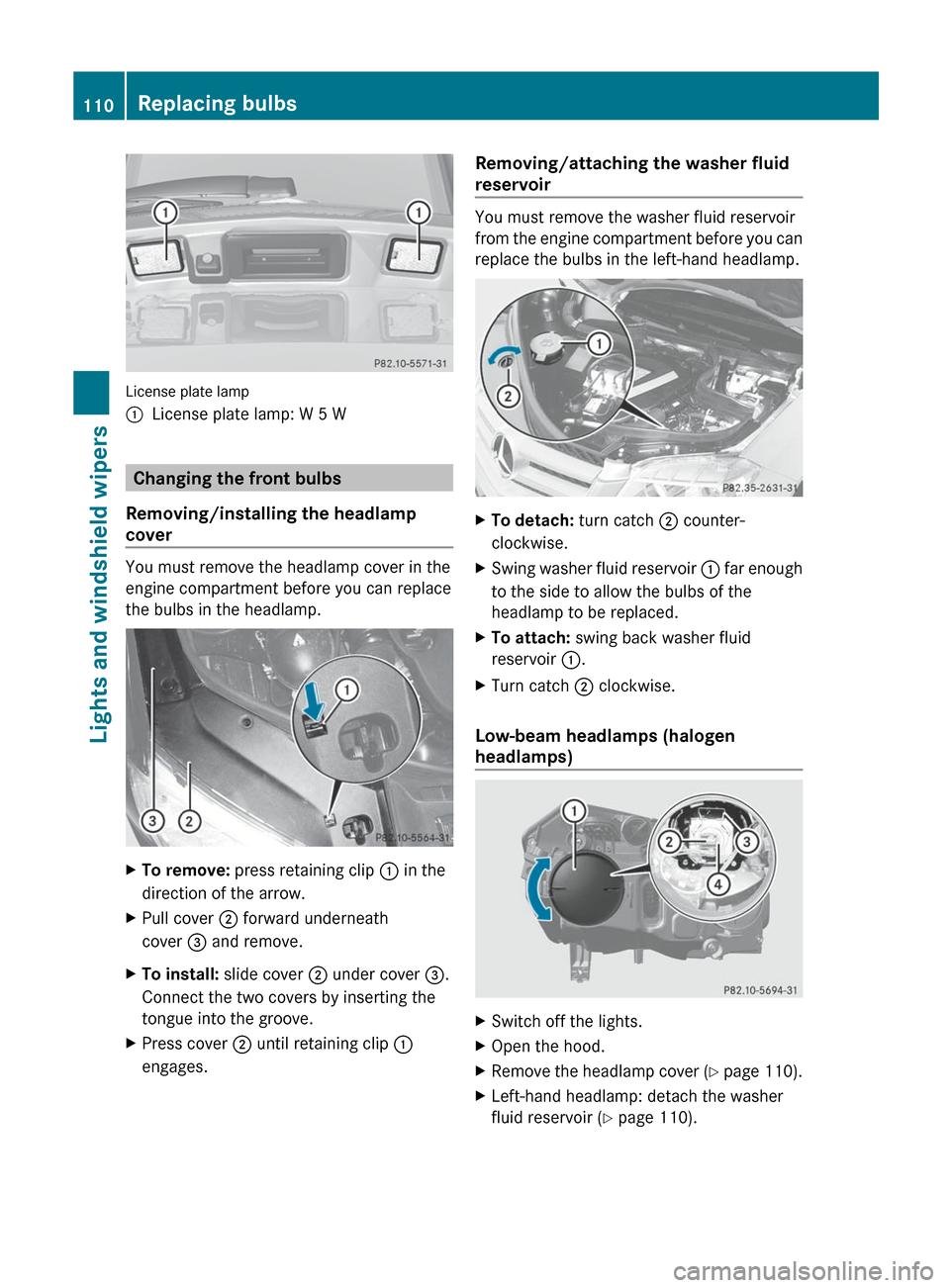

License plate lamp
:License plate lamp: W 5 W
Changing the front bulbs
Removing/installing the headlamp
cover
You must remove the headlamp cover in the
engine compartment before you can replace
the bulbs in the headlamp.
XTo remove: press retaining clip : in the
direction of the arrow.XPull cover ; forward underneath
cover = and remove.XTo install: slide cover ; under cover =.
Connect the two covers by inserting the
tongue into the groove.XPress cover ; until retaining clip :
engages.Removing/attaching the washer fluid
reservoir
You must remove the washer fluid reservoir
from the engine compartment before you can
replace the bulbs in the left-hand headlamp.
XTo detach: turn catch ; counter-
clockwise.XSwing washer fluid reservoir : far enough
to the side to allow the bulbs of the
headlamp to be replaced.XTo attach: swing back washer fluid
reservoir :.XTurn catch ; clockwise.
Low-beam headlamps (halogen
headlamps)
XSwitch off the lights.XOpen the hood.XRemove the headlamp cover (Y page 110).XLeft-hand headlamp: detach the washer
fluid reservoir ( Y page 110).110Replacing bulbsLights and windshield wipers

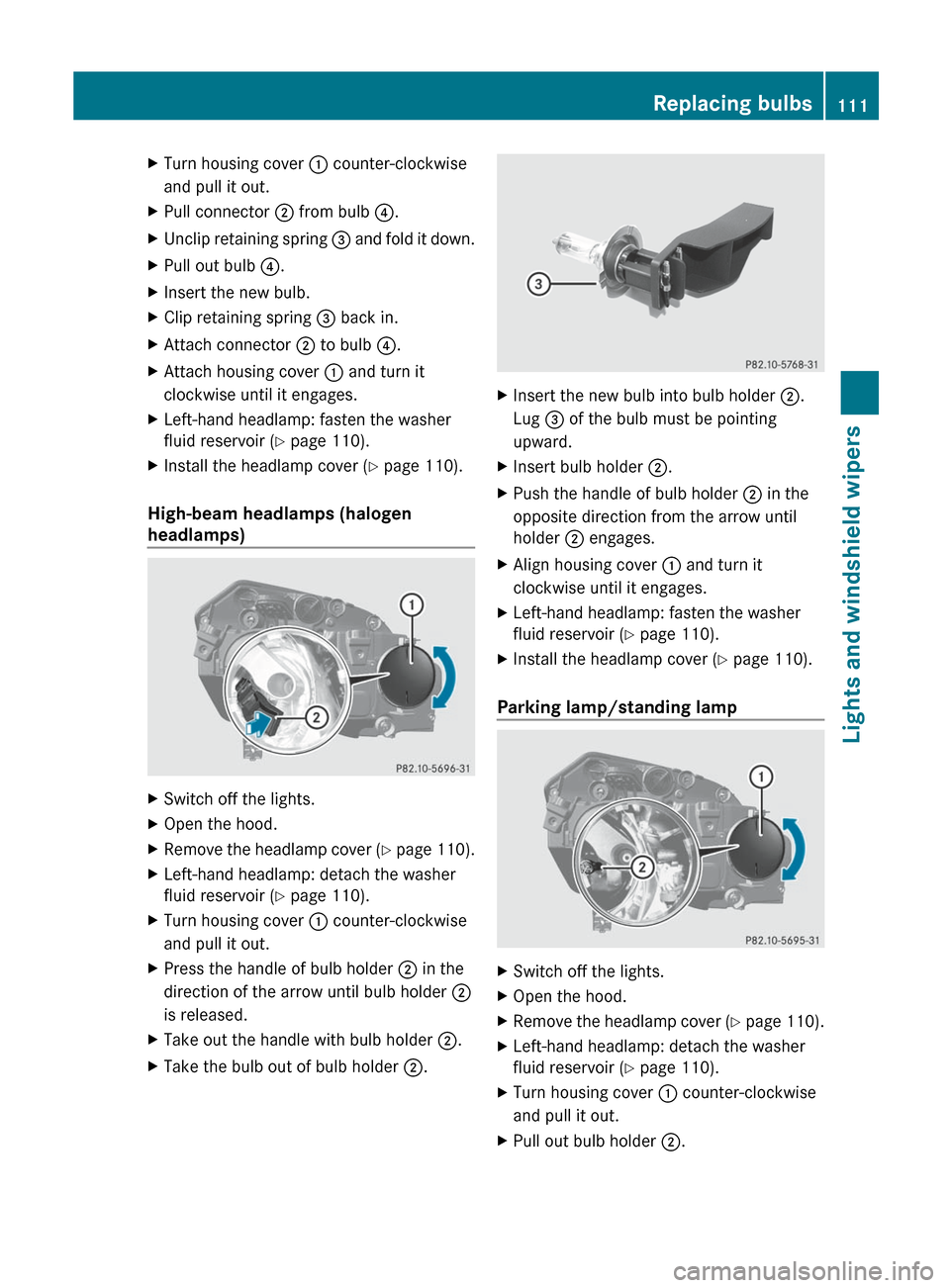

XTurn housing cover : counter-clockwise
and pull it out.XPull connector ; from bulb ?.XUnclip retaining spring = and fold it down.XPull out bulb ?.XInsert the new bulb.XClip retaining spring = back in.XAttach connector ; to bulb ?.XAttach housing cover : and turn it
clockwise until it engages.XLeft-hand headlamp: fasten the washer
fluid reservoir ( Y page 110).XInstall the headlamp cover ( Y page 110).
High-beam headlamps (halogen
headlamps)
XSwitch off the lights.XOpen the hood.XRemove the headlamp cover (Y page 110).XLeft-hand headlamp: detach the washer
fluid reservoir ( Y page 110).XTurn housing cover : counter-clockwise
and pull it out.XPress the handle of bulb holder ; in the
direction of the arrow until bulb holder ;
is released.XTake out the handle with bulb holder ;.XTake the bulb out of bulb holder ;.XInsert the new bulb into bulb holder ;.
Lug = of the bulb must be pointing
upward.XInsert bulb holder ;.XPush the handle of bulb holder ; in the
opposite direction from the arrow until
holder ; engages.XAlign housing cover : and turn it
clockwise until it engages.XLeft-hand headlamp: fasten the washer
fluid reservoir ( Y page 110).XInstall the headlamp cover ( Y page 110).
Parking lamp/standing lamp
XSwitch off the lights.XOpen the hood.XRemove the headlamp cover (Y page 110).XLeft-hand headlamp: detach the washer
fluid reservoir ( Y page 110).XTurn housing cover : counter-clockwise
and pull it out.XPull out bulb holder ;.Replacing bulbs111Lights and windshield wipersZ

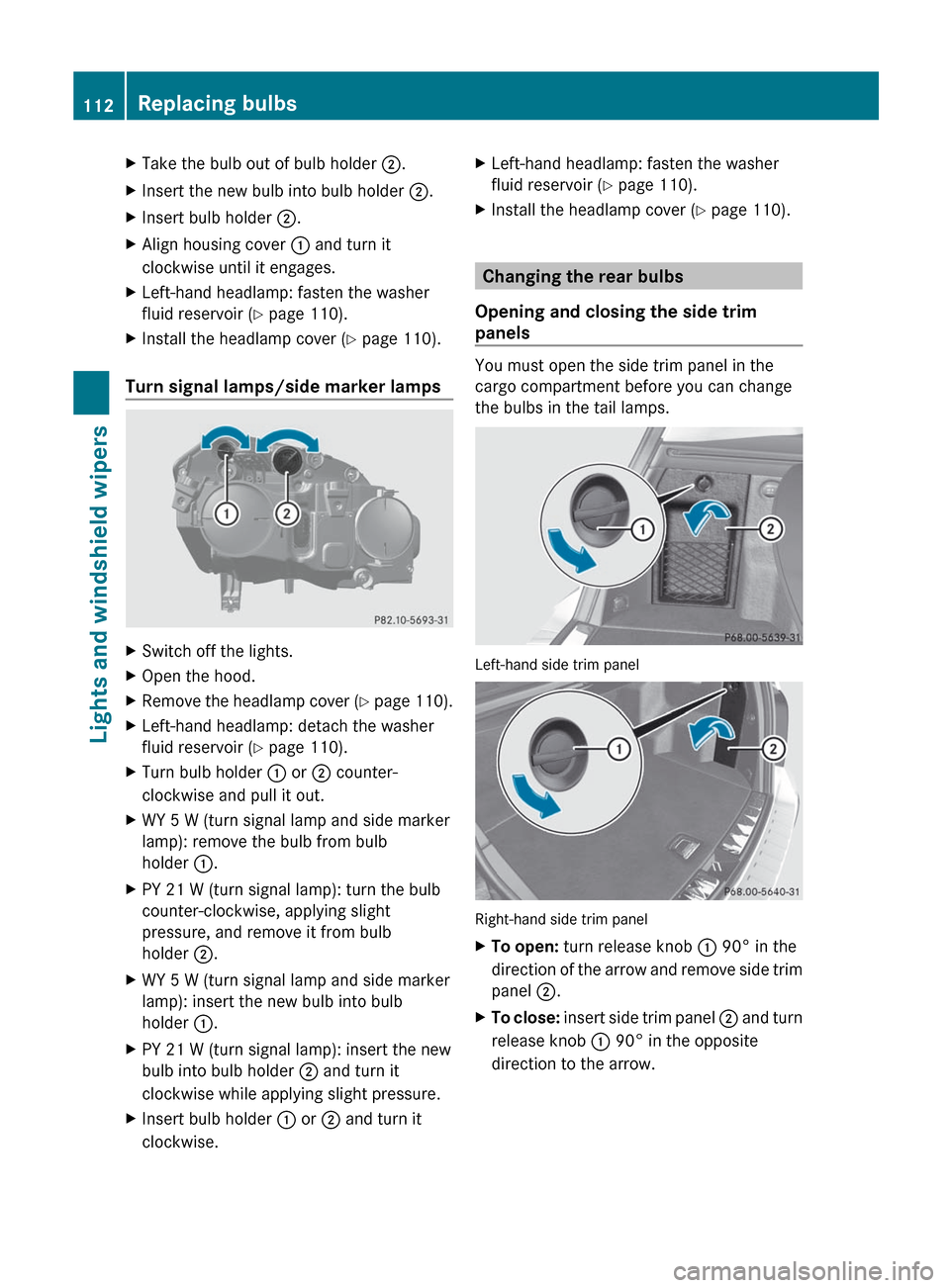

XTake the bulb out of bulb holder ;.XInsert the new bulb into bulb holder ;.XInsert bulb holder ;.XAlign housing cover : and turn it
clockwise until it engages.XLeft-hand headlamp: fasten the washer
fluid reservoir ( Y page 110).XInstall the headlamp cover ( Y page 110).
Turn signal lamps/side marker lamps
XSwitch off the lights.XOpen the hood.XRemove the headlamp cover (Y page 110).XLeft-hand headlamp: detach the washer
fluid reservoir ( Y page 110).XTurn bulb holder : or ; counter-
clockwise and pull it out.XWY 5 W (turn signal lamp and side marker
lamp): remove the bulb from bulb
holder :.XPY 21 W (turn signal lamp): turn the bulb
counter-clockwise, applying slight
pressure, and remove it from bulb
holder ;.XWY 5 W (turn signal lamp and side marker
lamp): insert the new bulb into bulb
holder :.XPY 21 W (turn signal lamp): insert the new
bulb into bulb holder ; and turn it
clockwise while applying slight pressure.XInsert bulb holder : or ; and turn it
clockwise.XLeft-hand headlamp: fasten the washer
fluid reservoir ( Y page 110).XInstall the headlamp cover ( Y page 110).
Changing the rear bulbs
Opening and closing the side trim
panels
You must open the side trim panel in the
cargo compartment before you can change
the bulbs in the tail lamps.
Left-hand side trim panel
Right-hand side trim panel
XTo open: turn release knob : 90° in the
direction of the arrow and remove side trim
panel ;.XTo close: insert side trim panel ; and turn
release knob : 90° in the opposite
direction to the arrow.112Replacing bulbsLights and windshield wipers

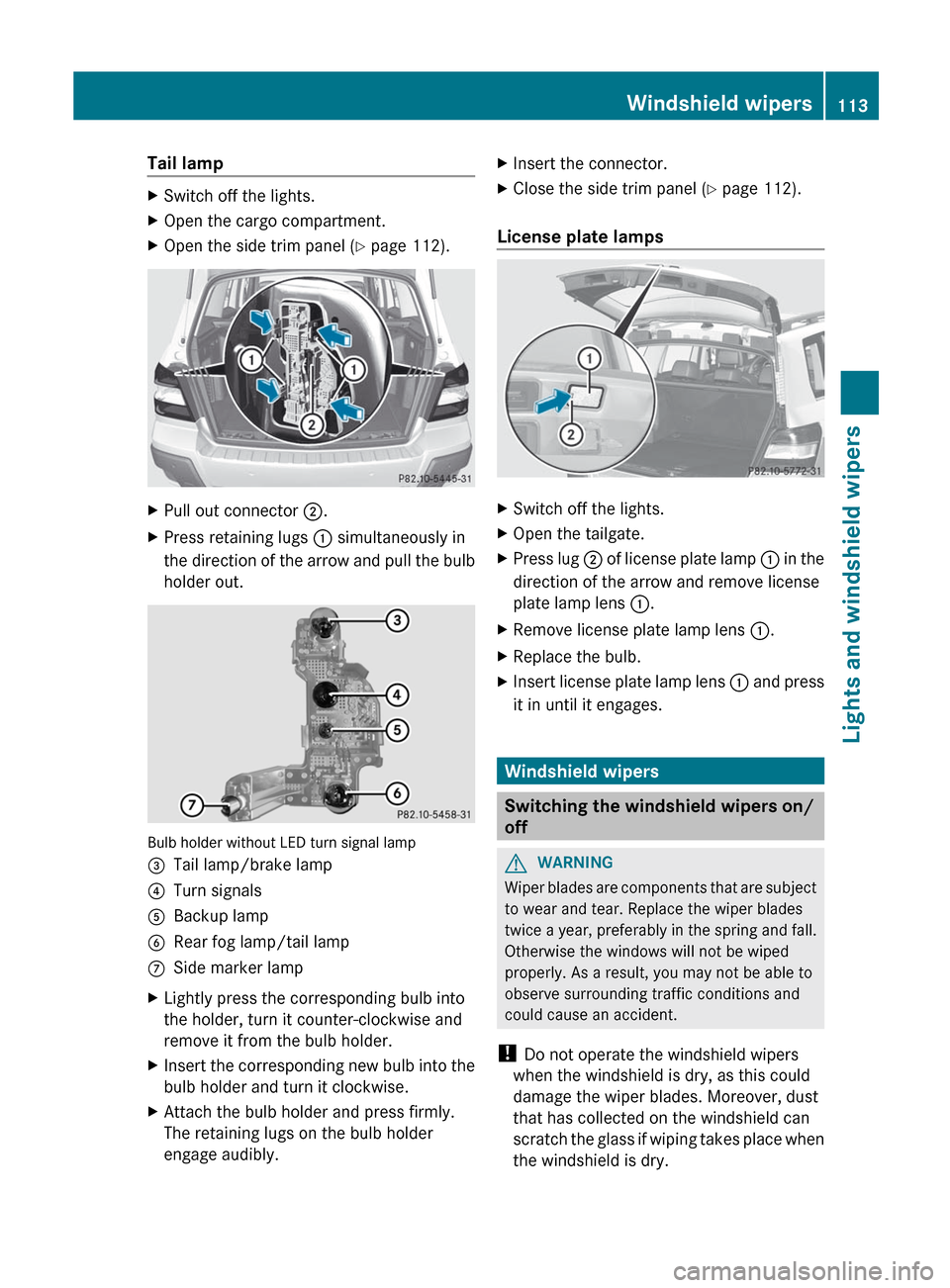

Tail lampXSwitch off the lights.XOpen the cargo compartment.XOpen the side trim panel (Y page 112).XPull out connector ;.XPress retaining lugs : simultaneously in
the direction of the arrow and pull the bulb
holder out.
Bulb holder without LED turn signal lamp
=Tail lamp/brake lamp?Turn signalsABackup lampBRear fog lamp/tail lampCSide marker lampXLightly press the corresponding bulb into
the holder, turn it counter-clockwise and
remove it from the bulb holder.XInsert the corresponding new bulb into the
bulb holder and turn it clockwise.XAttach the bulb holder and press firmly.
The retaining lugs on the bulb holder
engage audibly.XInsert the connector.XClose the side trim panel ( Y page 112).
License plate lamps
XSwitch off the lights.XOpen the tailgate.XPress lug ; of license plate lamp : in the
direction of the arrow and remove license
plate lamp lens :.XRemove license plate lamp lens :.XReplace the bulb.XInsert license plate lamp lens : and press
it in until it engages.
Windshield wipers
Switching the windshield wipers on/
off
GWARNING
Wiper blades are components that are subject
to wear and tear. Replace the wiper blades
twice a year, preferably in the spring and fall.
Otherwise the windows will not be wiped
properly. As a result, you may not be able to
observe surrounding traffic conditions and
could cause an accident.
! Do not operate the windshield wipers
when the windshield is dry, as this could
damage the wiper blades. Moreover, dust
that has collected on the windshield can
scratch the glass if wiping takes place when
the windshield is dry.
Windshield wipers113Lights and windshield wipersZ

! If the windshield wipers leave smears on
the windshield after the vehicle has been
washed in an automatic car wash, wax or
other residues may be the reason for this.
Clean the windshield using washer fluid
after washing the vehicle in an automatic
car wash.
Combination switch
1$ Windshield wipers off2Ä Intermittent wipe, low 123Å
Intermittent wipe, high 134°
Continuous wipe, slow5¯ Continuous wipe, fastBí Single wipe/ î To wipe the
windshield using washer fluidXSwitch on the ignition.XTurn the combination switch to the
corresponding position.
! Vehicles with a rain sensor: if the
windshield becomes dirty in dry weather
conditions, the windshield wipers may be
activated inadvertently. This could then
damage the windshield wiper blades or
scratch the windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
Vehicles with a rain sensor: in the Ä or
Å position, the appropriate wiping
frequency is automatically set according to
the intensity of the rain. In the Å position,
the rain sensor is more sensitive than in
the Ä position, causing the windshield
wipers to wipe more frequently.
Switching the rear window wiper on/
off
Combination switch
:è Switch2ô To wipe with washer fluid3I To switch on intermittent wiping40 To switch off intermittent wiping5ô To wipe with washer fluidXTurn the SmartKey to position 1 or 2 in the
ignition lock.XTurn switch : on the combination switch
to the corresponding position.
When the rear window wiper is switched on,
the icon appears in the instrument cluster.
Replacing the wiper blades
Important safety notes
GWARNING
For safety reasons, switch off the windshield
wipers and remove the key from the ignition
lock before changing the wiper blades
(vehicles with KEYLESS-GO: make sure that
the on-board electronics are in state 0).
Otherwise, the wiper motor could be switched
on suddenly and cause injury.
12 Rain sensor set to low sensitivity.
13 Rain sensor set to high sensitivity.114Windshield wipersLights and windshield wipers

! To avoid damaging the wiper blades,
make sure that you touch only the wiper
arm of the wiper.
! Never open the hood if a windshield wiper
arm has been folded away from the
windshield.
Never fold a windshield wiper arm without
a wiper blade back onto the windshield/
rear window.
Hold the windshield wiper arm firmly when
you change the wiper blade. If you release
the windshield wiper arm without a wiper
blade and it falls onto the windshield, the
windshield may be damaged by the force of
the impact.

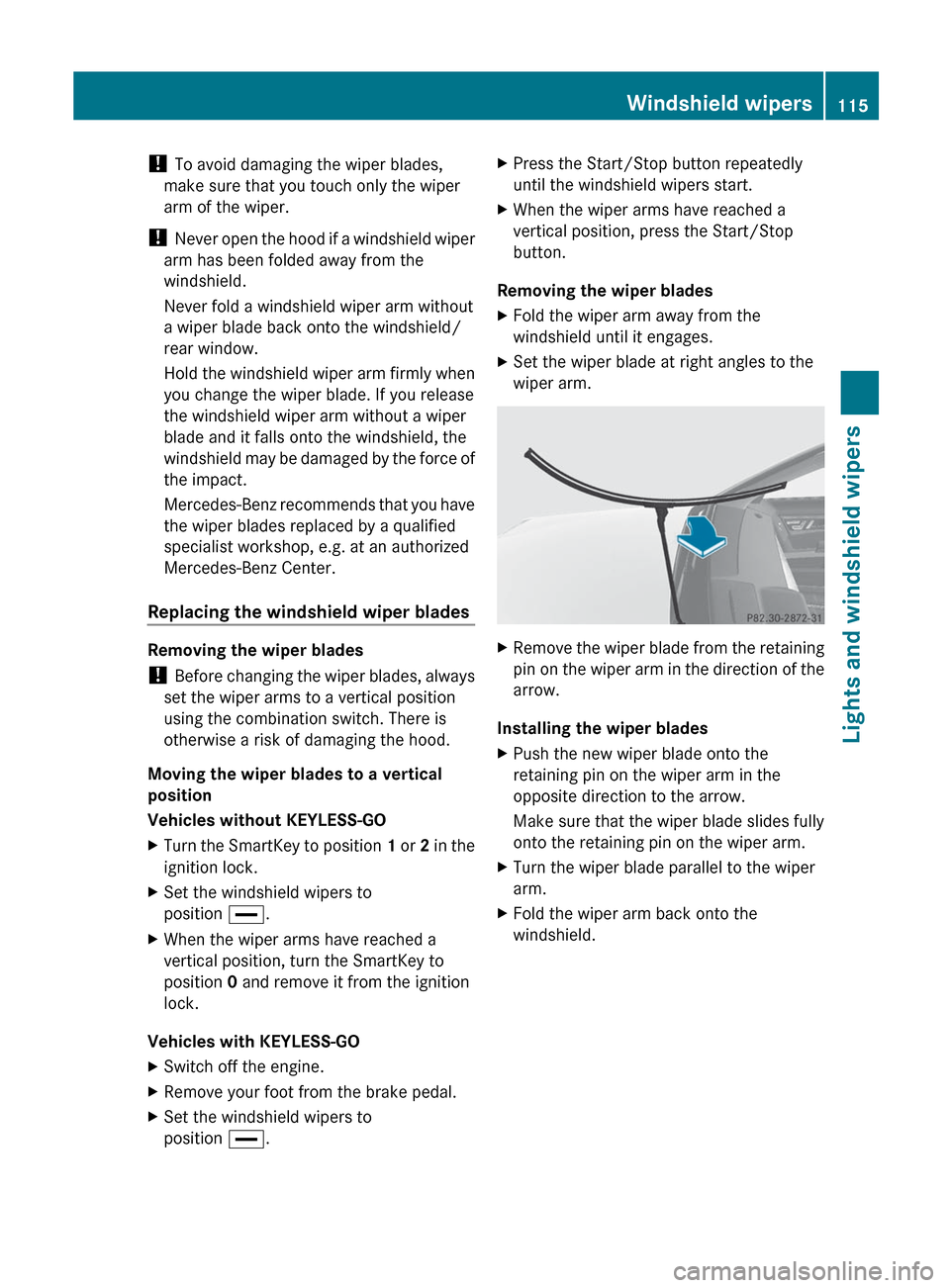

Mercedes-Benz recommends that you have
the wiper blades replaced by a qualified
specialist workshop, e.g. at an authorized
Mercedes-Benz Center.
Replacing the windshield wiper blades
Removing the wiper blades
! Before changing the wiper blades, always
set the wiper arms to a vertical position
using the combination switch. There is
otherwise a risk of damaging the hood.
Moving the wiper blades to a vertical
position
Vehicles without KEYLESS-GO
XTurn the SmartKey to position 1 or 2 in the
ignition lock.XSet the windshield wipers to
position °.XWhen the wiper arms have reached a
vertical position, turn the SmartKey to
position 0 and remove it from the ignition
lock.
Vehicles with KEYLESS-GO
XSwitch off the engine.XRemove your foot from the brake pedal.XSet the windshield wipers to
position °.XPress the Start/Stop button repeatedly
until the windshield wipers start.XWhen the wiper arms have reached a
vertical position, press the Start/Stop
button.
Removing the wiper blades
XFold the wiper arm away from the
windshield until it engages.XSet the wiper blade at right angles to the
wiper arm.XRemove the wiper blade from the retaining
pin on the wiper arm in the direction of the
arrow.
Installing the wiper blades
XPush the new wiper blade onto the
retaining pin on the wiper arm in the
opposite direction to the arrow.
Make sure that the wiper blade slides fully
onto the retaining pin on the wiper arm.XTurn the wiper blade parallel to the wiper
arm.XFold the wiper arm back onto the
windshield.Windshield wipers115Lights and windshield wipersZ

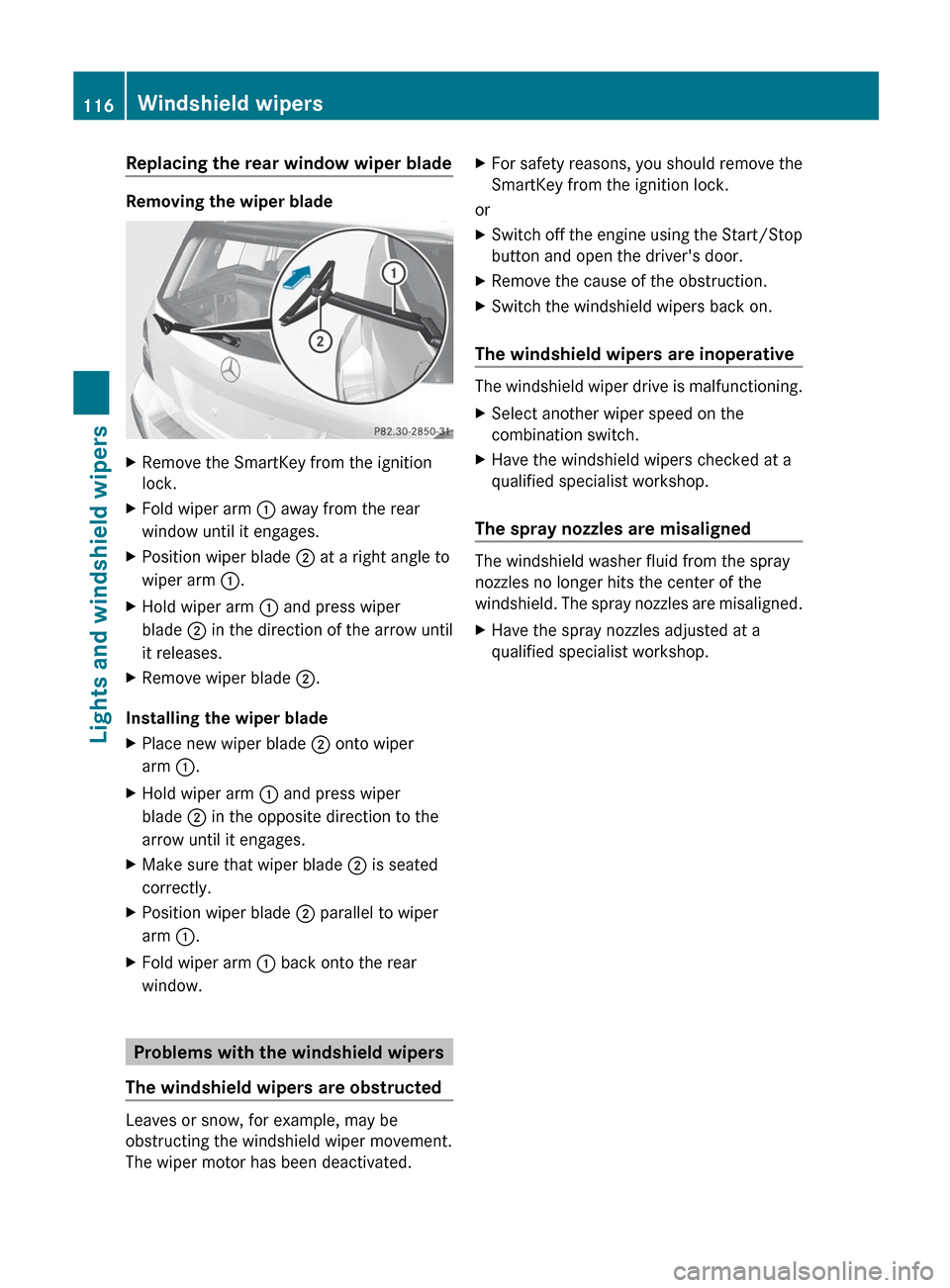

Replacing the rear window wiper blade
Removing the wiper blade
XRemove the SmartKey from the ignition
lock.XFold wiper arm : away from the rear
window until it engages.XPosition wiper blade ; at a right angle to
wiper arm :.XHold wiper arm : and press wiper
blade ; in the direction of the arrow until
it releases.XRemove wiper blade ;.
Installing the wiper blade
XPlace new wiper blade ; onto wiper
arm :.XHold wiper arm : and press wiper
blade ; in the opposite direction to the
arrow until it engages.XMake sure that wiper blade ; is seated
correctly.XPosition wiper blade ; parallel to wiper
arm :.XFold wiper arm : back onto the rear
window.
Problems with the windshield wipers
The windshield wipers are obstructed
Leaves or snow, for example, may be
obstructing the windshield wiper movement.
The wiper motor has been deactivated.
XFor safety reasons, you should remove the
SmartKey from the ignition lock.
or
XSwitch off the engine using the Start/Stop
button and open the driver's door.XRemove the cause of the obstruction.XSwitch the windshield wipers back on.
The windshield wipers are inoperative
The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the
combination switch.XHave the windshield wipers checked at a
qualified specialist workshop.
The spray nozzles are misaligned
The windshield washer fluid from the spray
nozzles no longer hits the center of the
windshield. The spray nozzles are misaligned.
XHave the spray nozzles adjusted at a
qualified specialist workshop.116Windshield wipersLights and windshield wipers

Useful information ............................118
Overview of climate control sys-
tems ................................................... 118
Operating the climate control sys-
tem ..................................................... 121
Setting the air vents .........................125117Climate control

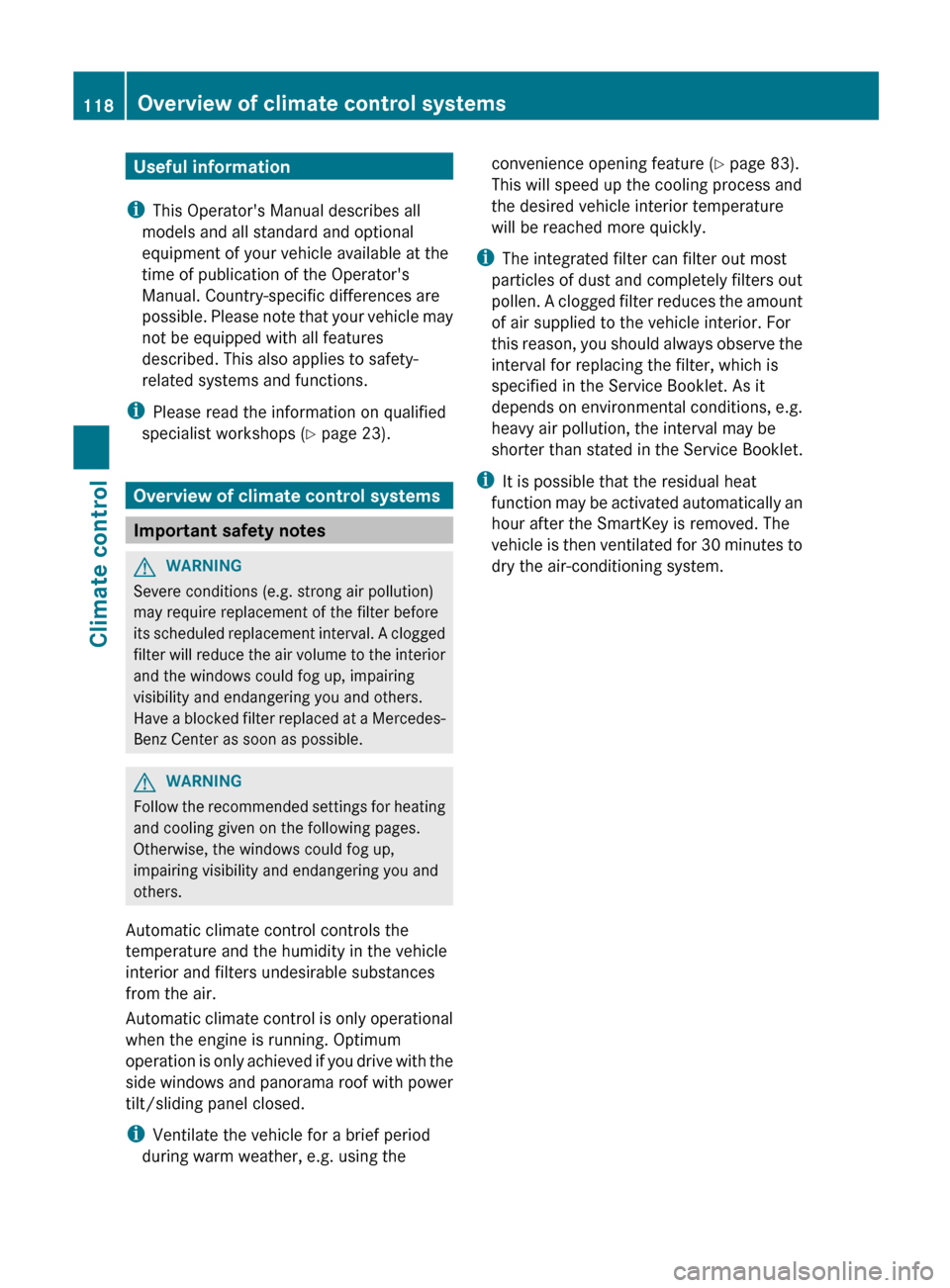

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Please read the information on qualified
specialist workshops ( Y page 23).
Overview of climate control systems
Important safety notes
GWARNING
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before
its scheduled replacement interval. A clogged
filter will reduce the air volume to the interior
and the windows could fog up, impairing
visibility and endangering you and others.
Have a blocked filter replaced at a Mercedes-
Benz Center as soon as possible.
GWARNING
Follow the recommended settings for heating
and cooling given on the following pages.
Otherwise, the windows could fog up,
impairing visibility and endangering you and
others.
Automatic climate control controls the
temperature and the humidity in the vehicle
interior and filters undesirable substances
from the air.
Automatic climate control is only operational
when the engine is running. Optimum
operation is only achieved if you drive with the
side windows and panorama roof with power
tilt/sliding panel closed.
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the
convenience opening feature ( Y page 83).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly.
i The integrated filter can filter out most
particles of dust and completely filters out
pollen. A clogged filter reduces the amount
of air supplied to the vehicle interior. For
this reason, you should always observe the
interval for replacing the filter, which is
specified in the Service Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Service Booklet.
i It is possible that the residual heat
function may be activated automatically an
hour after the SmartKey is removed. The
vehicle is then ventilated for 30 minutes to
dry the air-conditioning system.118Overview of climate control systemsClimate control
