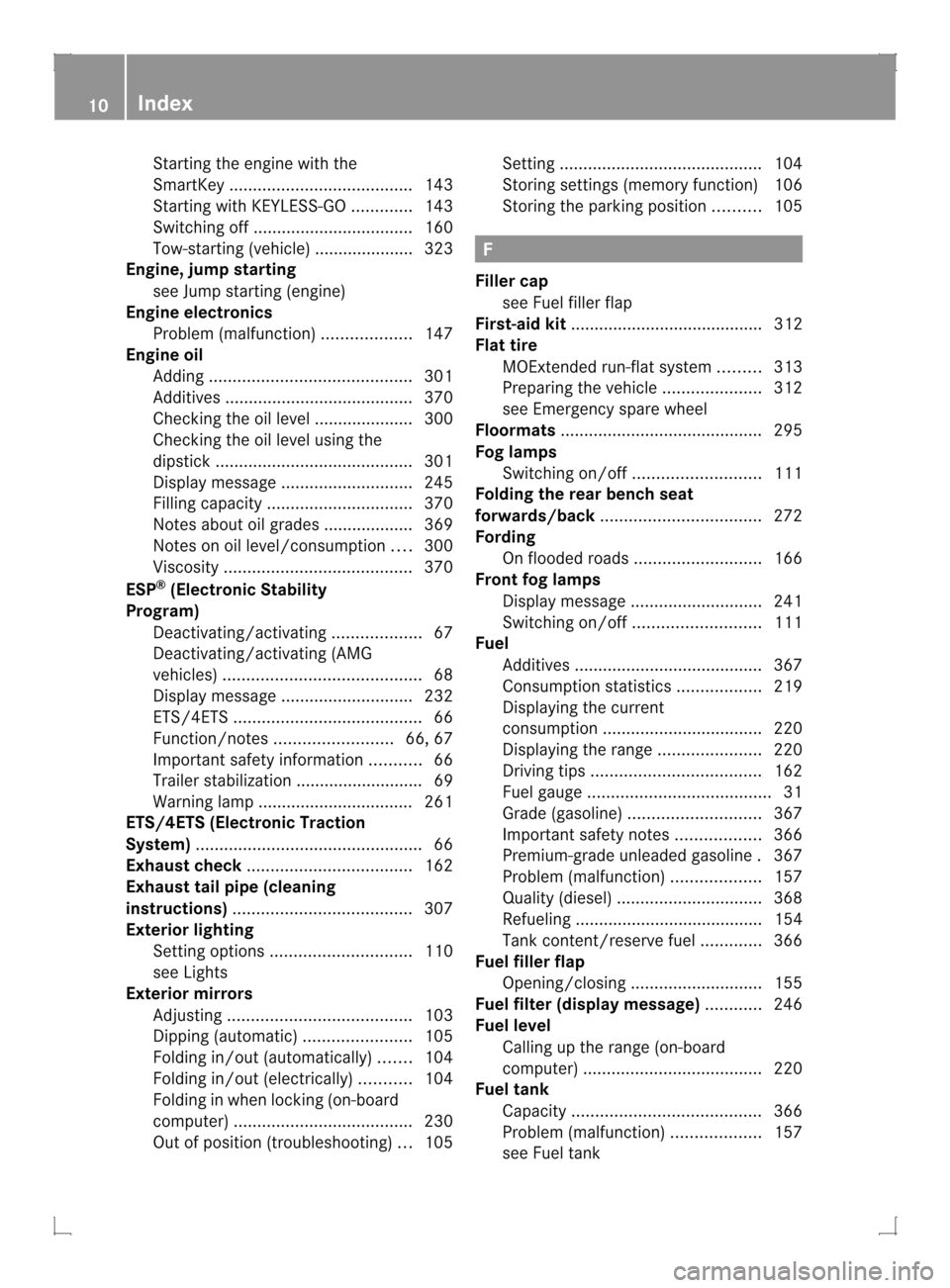

Page 12 of 378

Starting the engine with the
SmartKey
....................................... 143
Starting with KEYLESS-GO .............143
Switching off .................................. 160
Tow-starting (vehicle) ..................... 323
Engine, jump starting
see Jump starting (engine)
Engine electronics
Problem (malfunction) ...................147
Engine oil
Adding ........................................... 301
Additives ........................................ 370
Checking the oil level ..................... 300
Checking the oil level using the
dipstick .......................................... 301
Display message ............................ 245
Filling capacity ............................... 370
Notes about oil grades ................... 369
Notes on oil level/consumption ....300
Viscosity ........................................ 370
ESP ®
(Electronic Stability
Program) Deactivating/activating ...................67
Deactivating/activating (AMG
vehicles) .......................................... 68
Display message ............................ 232
ETS/4ETS ........................................ 66
Function/notes ......................... 66, 67
Important safety information ...........66
Trailer stabilization ........................... 69
Warning lamp ................................. 261
ETS/4ETS (Electronic Traction
System) ................................................ 66
Exhaus tcheck ................................... 162
Exhaus ttail pipe (cleaning
instructions) ...................................... 307
Exterior lighting Setting options .............................. 110
see Lights
Exterior mirrors
Adjusting ....................................... 103
Dipping (automatic) .......................105
Folding in/ou t(automatically) .......104
Folding in/ou t(electrically) ...........104
Folding in whe nlocking (on-board
computer) ...................................... 230
Out of position (troubleshooting) ...105 Setting
........................................... 104
Storing settings (memory function) 106
Storing the parking position ..........105 F
Fille rcap
see Fuel filler flap
First-aid kit ......................................... 312
Flat tire MOExtended run-fla tsystem ......... 313
Preparing the vehicle .....................312
see Emergency spare wheel
Floormats ........................................... 295
Fog lamps Switching on/off ........................... 111
Folding the rear bench seat
forwards/back .................................. 272
Fording On flooded road s........................... 166
Front fog lamps
Display message ............................ 241
Switching on/off ........................... 111
Fuel
Additives ........................................ 367
Consumption statistics ..................219
Displaying the current
consumption .................................. 220
Displaying the range ......................220
Driving tips .................................... 162
Fuel gauge ....................................... 31
Grade (gasoline) ............................ 367
Important safety notes ..................366
Premium-grade unleaded gasoline .367
Problem (malfunction) ...................157
Quality (diesel )............................... 368
Refueling ........................................ 154
Tank content/reserve fuel .............366
Fuel filler flap
Opening/closing ............................ 155
Fuel filte r(display message) ............246
Fuel level Calling up the range (on-board
computer) ...................................... 220
Fuel tank
Capacity ........................................ 366
Problem (malfunction) ...................157
see Fuel tank 10
Index

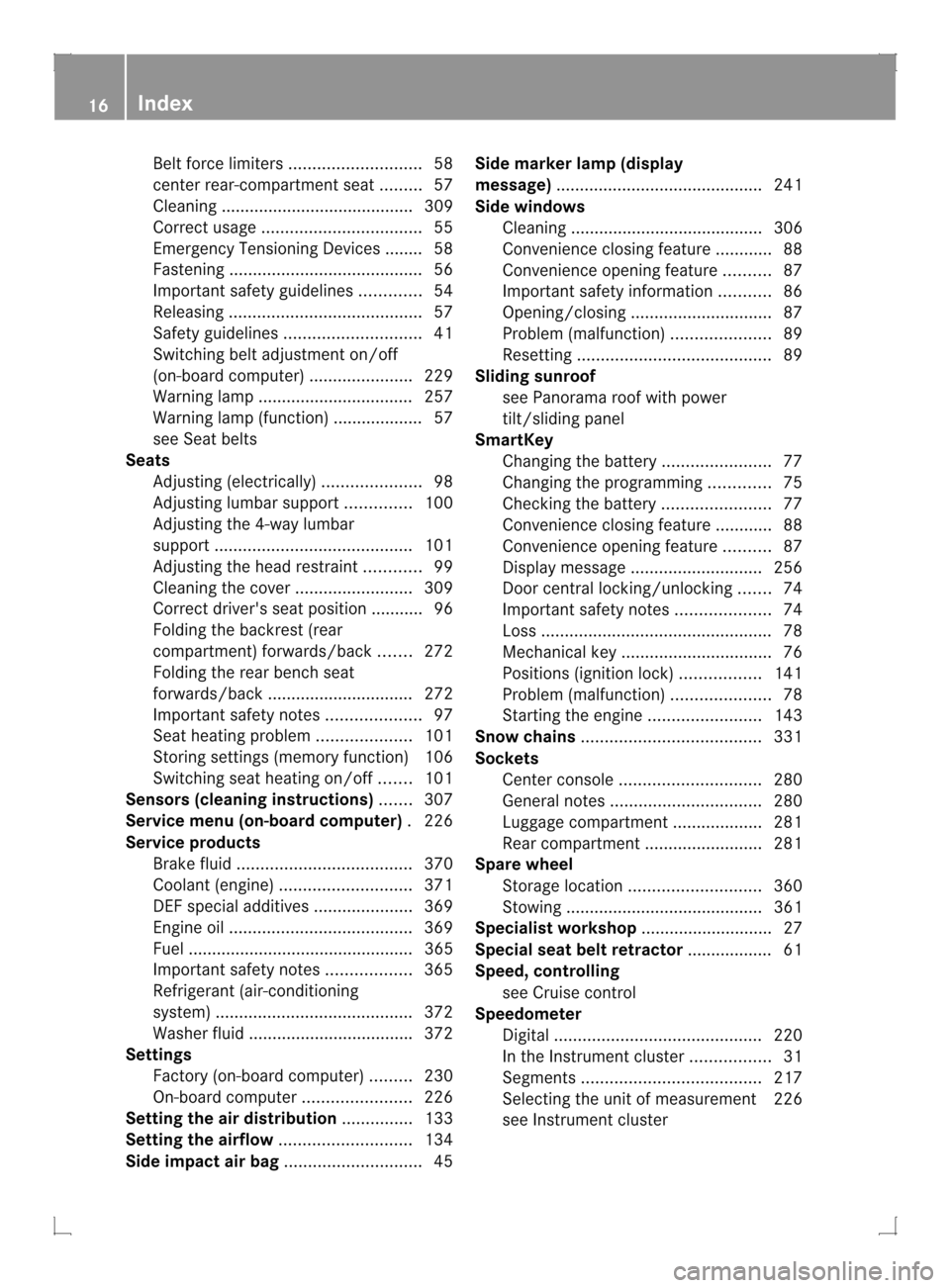

Page 18 of 378

Bel
tforce limiters ............................ 58
center rear-compartment sea t......... 57
Cleaning ......................................... 309
Correct usage .................................. 55
Emergency Tensioning Devices ....... .58
Fastening ......................................... 56
Important safety guidelines .............54
Releasing ......................................... 57
Safety guidelines ............................. 41
Switching belt adjustment on/off
(on-board computer) ......................229
Warning lamp ................................. 257
Warning lamp (function) ................... 57
see Seat belts
Seats
Adjusting (electrically). ....................98
Adjusting lumba rsuppor t.............. 100
Adjusting the 4-way lumbar
support .......................................... 101
Adjusting the head restraint ............99
Cleaning the cover .........................309
Correct driver's seat position ........... 96
Folding the backres t(rear
compartment) forwards/back .......272
Folding the rear bench seat
forwards/back ............................... 272
Important safety notes ....................97
Seat heating problem ....................101
Storing settings (memory function) 106
Switching sea theating on/off .......101
Sensors (cleaning instructions) .......307
Service menu (on-board computer) .226
Service products Brake fluid ..................................... 370
Coolant (engine) ............................ 371
DEF special additive s..................... 369
Engine oil ....................................... 369
Fuel ................................................ 365
Important safety notes ..................365
Refrigerant (air-conditioning
system) .......................................... 372
Washer fluid .................................. .372
Settings
Factory (on-board computer) .........230
On-board computer .......................226
Setting the air distribution ...............133
Setting the airflow ............................134
Side impact air bag .............................45Side marker lamp (display
message)
............................................ 241
Side windows Cleaning ......................................... 306
Convenience closing feature ............88
Convenience opening feature ..........87
Important safety information ...........86
Opening/closing .............................. 87
Problem (malfunction) .....................89
Resetting ......................................... 89
Sliding sunroof
see Panorama roof with power
tilt/sliding panel
SmartKey
Changing the battery .......................77
Changing the programming .............75
Checking the battery .......................77
Convenience closing feature ............88
Convenience opening feature ..........87
Display message ............................ 256
Door central locking/unlocking .......74
Important safety notes ....................74
Loss ................................................. 78
Mechanical key ................................ 76
Positions (ignition lock) .................141
Problem (malfunction) .....................78
Starting the engine ........................143
Snow chains ...................................... 331
Sockets Center console .............................. 280
General notes ................................ 280
Luggage compartment ...................281
Rea rcompartmen t......................... 281
Spare wheel
Storage location ............................ 360
Stowing .......................................... 361
Specialist workshop ............................ 27
Special seat bel tretractor .................. 61
Speed ,controlling
see Cruise control
Speedometer
Digital ............................................ 220
In the Instrument cluster .................31
Segments ...................................... 217
Selecting the unit of measurement 226
see Instrument cluster 16
Index

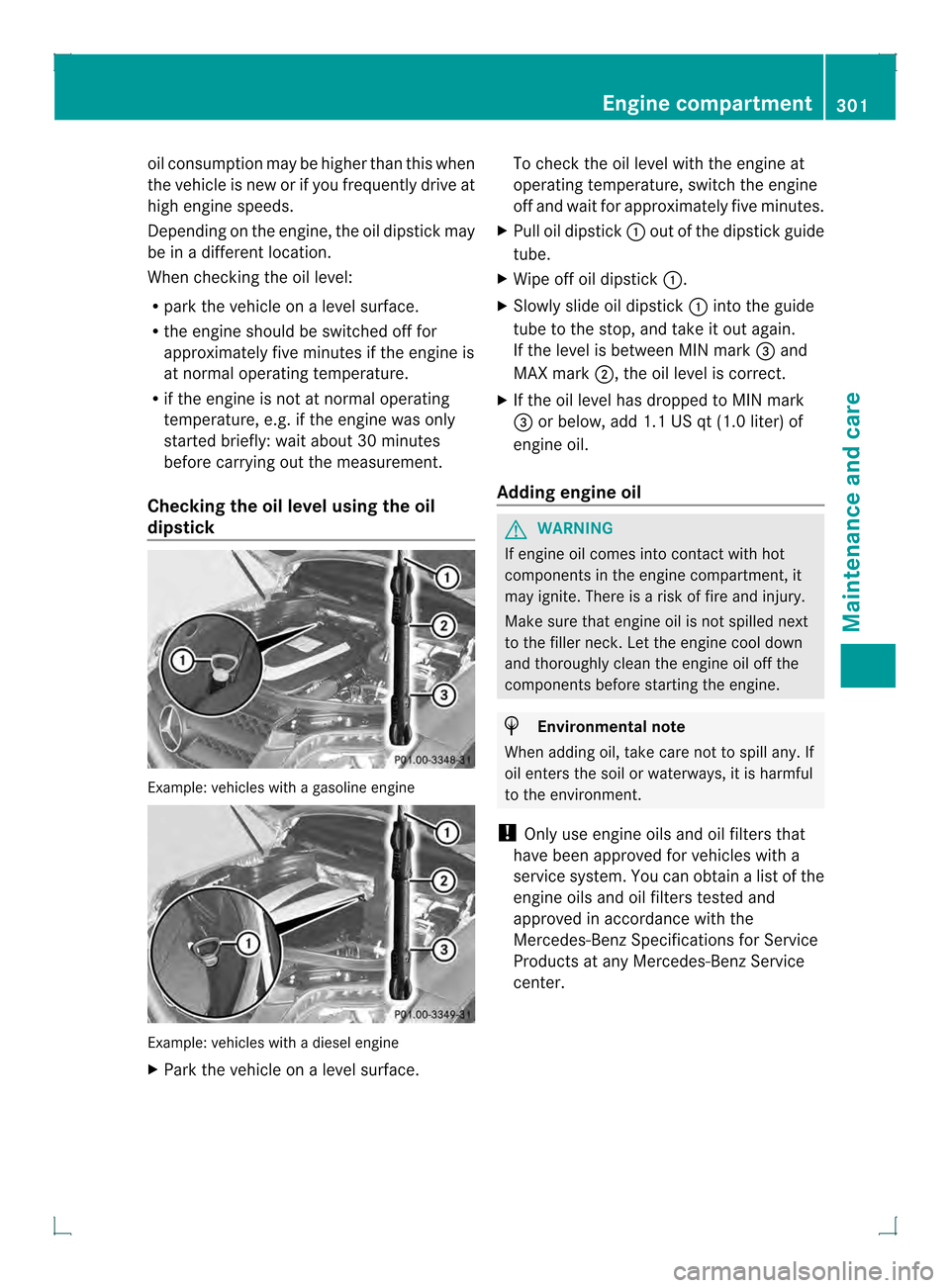

Page 303 of 378

oil consumption may be higher than this when
the vehicle is new or if you frequently drive at
high engine speeds.
Depending on the engine, the oil dipstick may
be in a different location.
When checking the oil level:
R park the vehicle on a level surface.
R the engine should be switched off for
approximately five minutes if the engine is
at normal operating temperature.
R if the engine is not at normal operating
temperature, e.g. if the engine was only
started briefly: wait about 30 minutes
before carrying out the measurement.
Checking the oil level using the oil
dipstick Example: vehicles with a gasoline engine
Example: vehicles with a diesel engine
X
Park the vehicle on a level surface. To check the oil level with the engine at
operating temperature, switch the engine
off and wait for approximately five minutes.
X Pull oil dipstick 0002out of the dipstick guide
tube.
X Wipe off oil dipstick 0002.
X Slowly slide oil dipstick 0002into the guide
tube to the stop, and take it out again.
If the level is between MIN mark 0021and
MAX mark 0003, the oil level is correct.
X If the oil level has dropped to MIN mark
0021 or below, add 1.1 US qt (1.0 liter) of
engine oil.
Adding engine oil G
WARNING
If engine oil comes into contact with hot
components in the engine compartment, it
may ignite. There is a risk of fire and injury.
Make sure that engine oil is not spilled next
to the filler neck. Let the engine cool down
and thoroughly clean the engine oil off the
components before starting the engine. H
Environmental note
When adding oil, take care not to spill any. If
oil enters the soil or waterways, it is harmful
to the environment.
! Only use engine oils and oil filters that
have been approved for vehicles with a
service system. You can obtain a list of the
engine oils and oil filters tested and
approved in accordance with the
Mercedes-Benz Specifications for Service
Products at any Mercedes-Benz Service
center. Engine compartment
301Maintenance and care Z
Page 304 of 378

Damage to the engine or exhaust syste
mis
caused by the following:
R using engine oils and oil filters that have
not bee nspecifically approved for the
service system
R replacing engine oil and oil filters after
the interval for replacemen tspecified by
the service system has been exceeded
R using engine oil additives.
! Do not add too much oil. If the oil level is
above the "max" mark on the dipstick, too
much oil has been added. This can lead to
damage to the engine or the catalytic
converter. Have excess oil siphoned off. Example: engine oil cap
X
Turn cap 0002counter-clockwise and remove
it.
X Add engine oil.
If the oil level is at or below the MIN mark
on the oil dipstick, add 1.1 US qt (1.0 liter)
of engine oil.
X Replace cap 0002on the filler neck and turn
clockwise.
Ensure that the cap locks into place
securely.
X Check the oil level agai nwith the oil
dipstick (Y page 301).
Further information on engine oil
(Y page 369). Checking and adding other service
products
Checking coolant level G
WARNING
The engine cooling system is pressurized,
particularly when the engine is warm. When
opening the cap, you could be scalded by hot
coolan tspraying out. There is a risk of injury.
Let the engine cool down before opening the
cap. Wear eye and hand protection when
opening the cap. Open the cap slowly half a
turn to allow pressure to escape.
Only chec kthe coolant level when the vehicle
is on a level surface and the engine has cooled
down.
X Turn the SmartKey to position 2in the
ignition lock (Y page 141).
On vehicles with KEYLESS-GO, press the
Start/Stop button twice (Y page 141).
X Check the coolant temperature display in
the instrument cluster.
The coolant temperature must be below
158 ‡ (70 †). X
Slowly turn cap 0002half a turn counter-
clockwise and allow excess pressure to
escape.
X Turn cap 0002further counter-clockwise and
remove it.
If the coolant is at the level of marker bar
0021 in the filler neck when cold, there is
enough coolant in coolant expansion
tank 0003. 302
Engine compartmentMaintenance and care
