MERCEDES-BENZ GLS 2018 Owners Manual

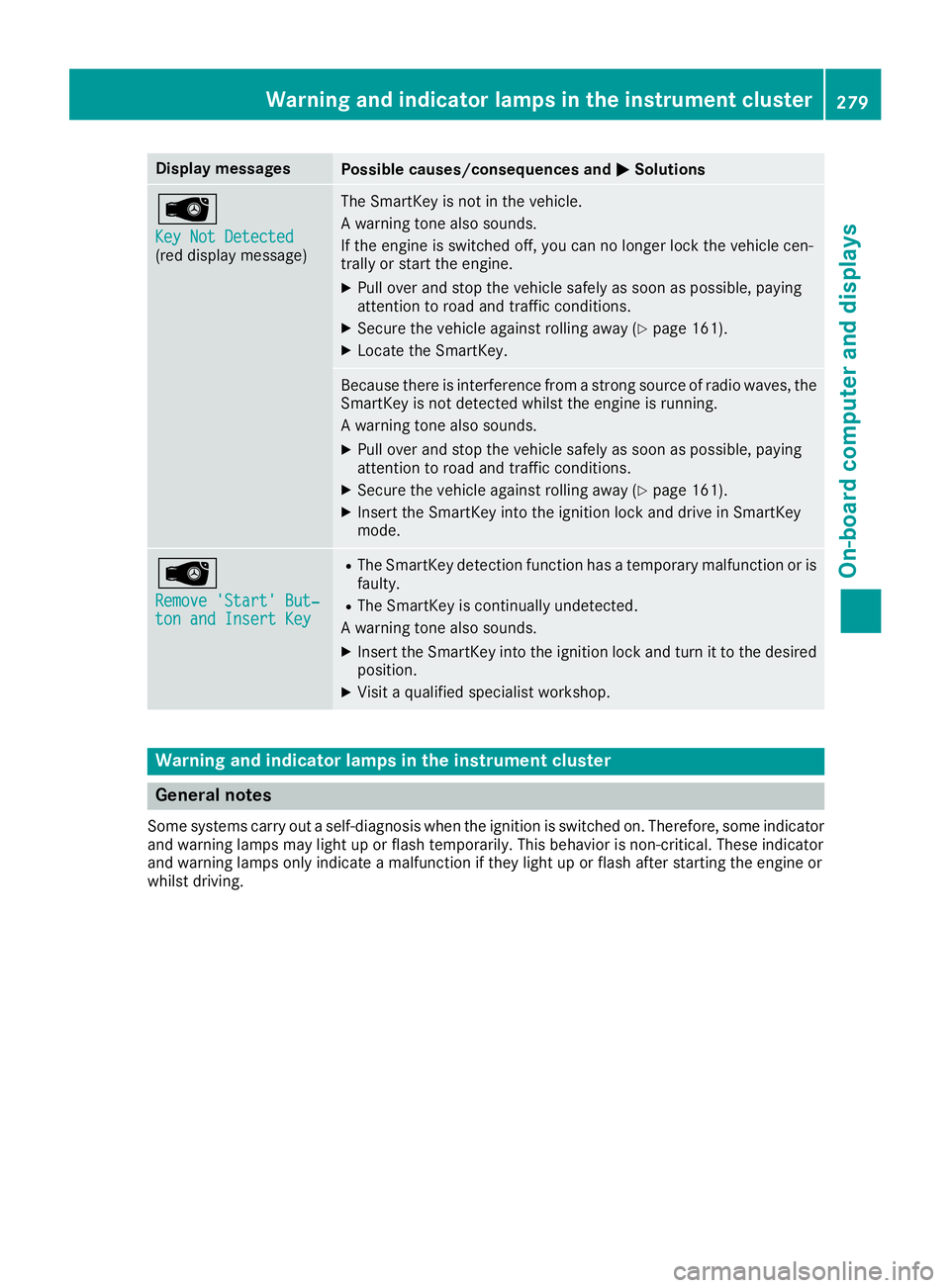

Display messages
Possible causes/consequences and P Solutions

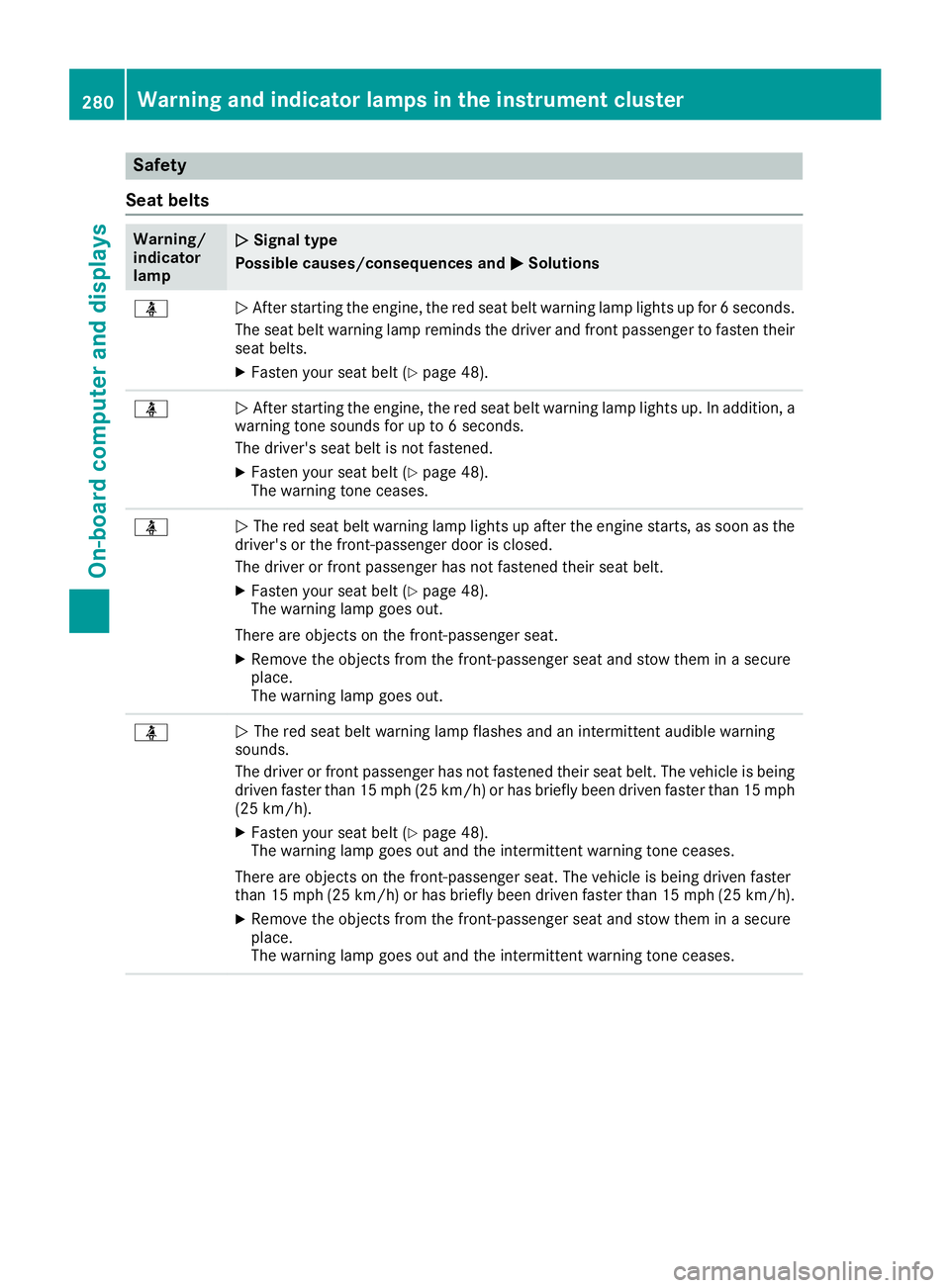

Safety
Seat belts Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

Safety systems Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

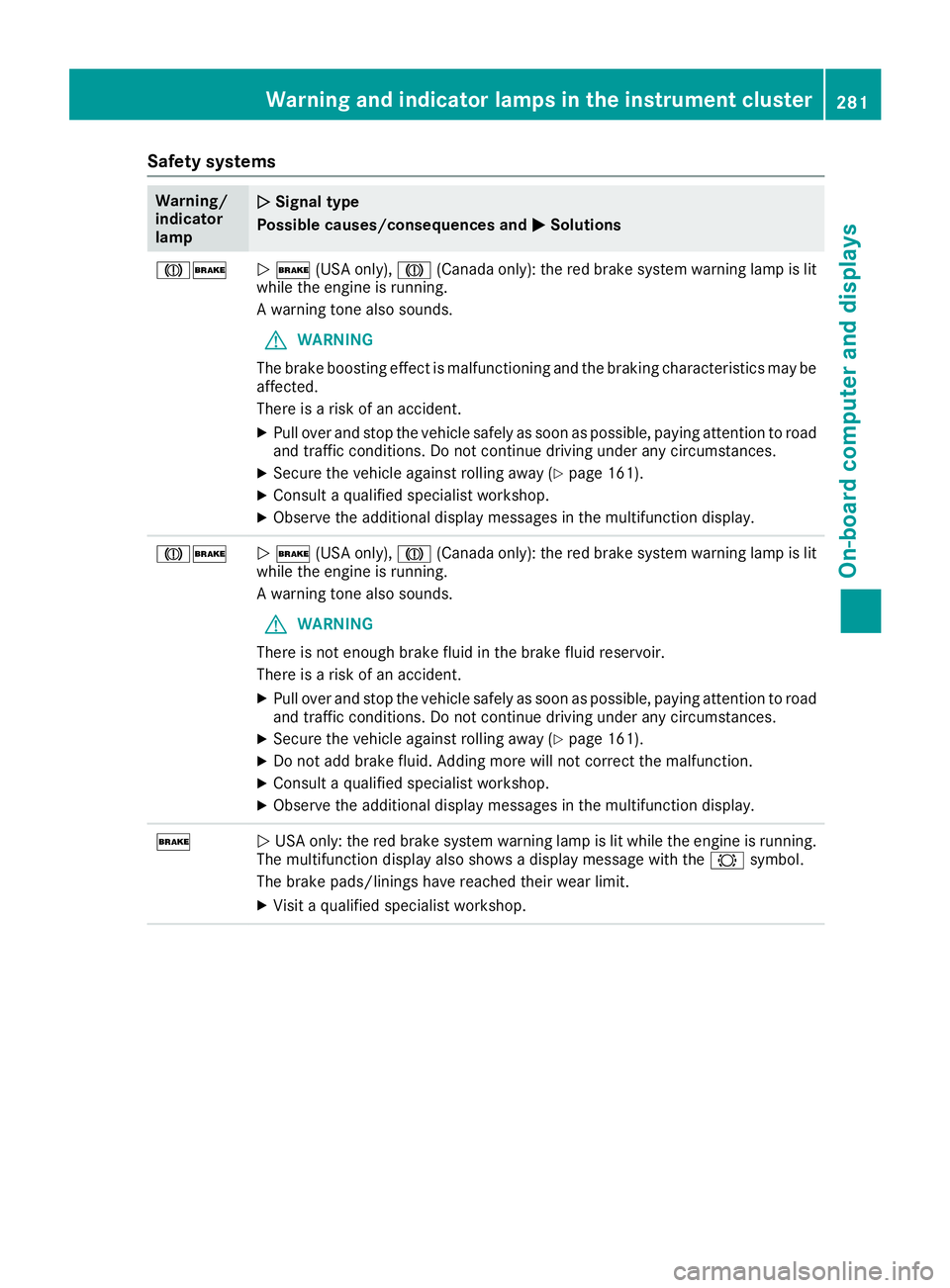

M'
Q ' (USA only), M (Canada only): the red brake system warning lamp is lit
while the engine is running.
A warning tone also sounds.
G WARNING
The brake boosting effect is malfunctioning and the braking characteristics may be
affected.
There is a risk of an accident. X
Pull over and stop the vehicle safely as soon as possible, paying attention to road
and traffic conditions. Do not continue driving under any circumstances. X
Secure the vehicle against rolling away ( Y
page 161).X
Consult a qualified specialist workshop. X
Observe the additional display messages in the multifunction display.
M'
Q ' (USA only), M (Canada only): the red brake system warning lamp is lit
while the engine is running.
A warning tone also sounds.
G WARNING
There is not enough brake fluid in the brake fluid reservoir.
There is a risk of an accident. X
Pull over and stop the vehicle safely as soon as possible, paying attention to road
and traffic conditions. Do not continue driving under any circumstances. X
Secure the vehicle against rolling away ( Y
page 161).X
Do not add brake fluid. Adding more will not correct the malfunction. X
Consult a qualified specialist workshop. X
Observe the additional display messages in the multifunction display.
'
Q USA only: the red brake system warning lamp is lit while the engine is running.
The multifunction display also shows a display message with the & symbol.
The brake pads/linings have reached their wear limit. X
Visit a qualified specialist workshop.Warning and indicator lamps in the instrument cluster 281
On-board computer and displays Z

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
%

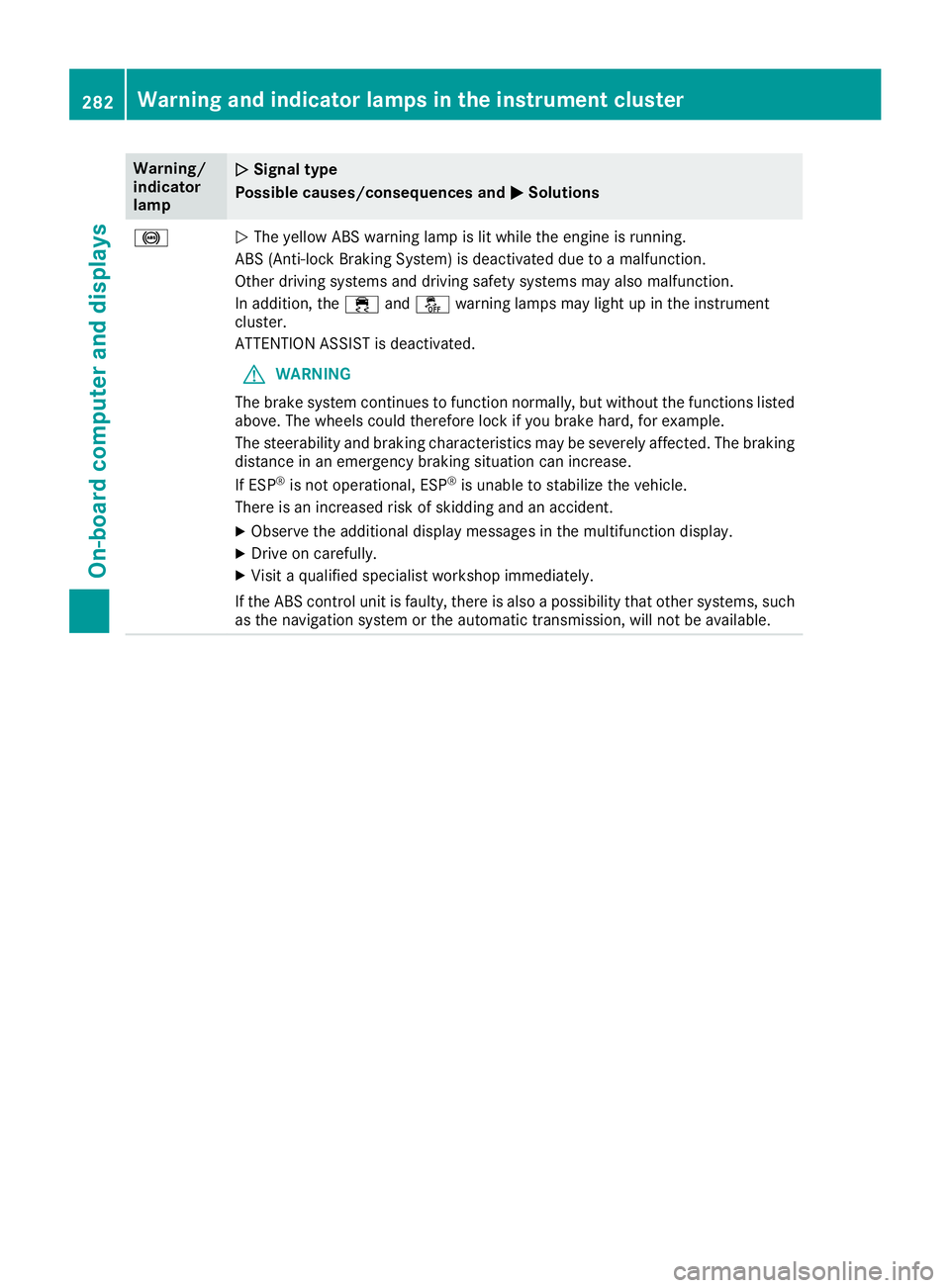

Q The yellow ABS warning lamp is lit while the engine is running.
ABS (Anti-lock Braking System) is deactivated due to a malfunction.
Other driving systems and driving safety systems may also malfunction.
In addition, the

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
%

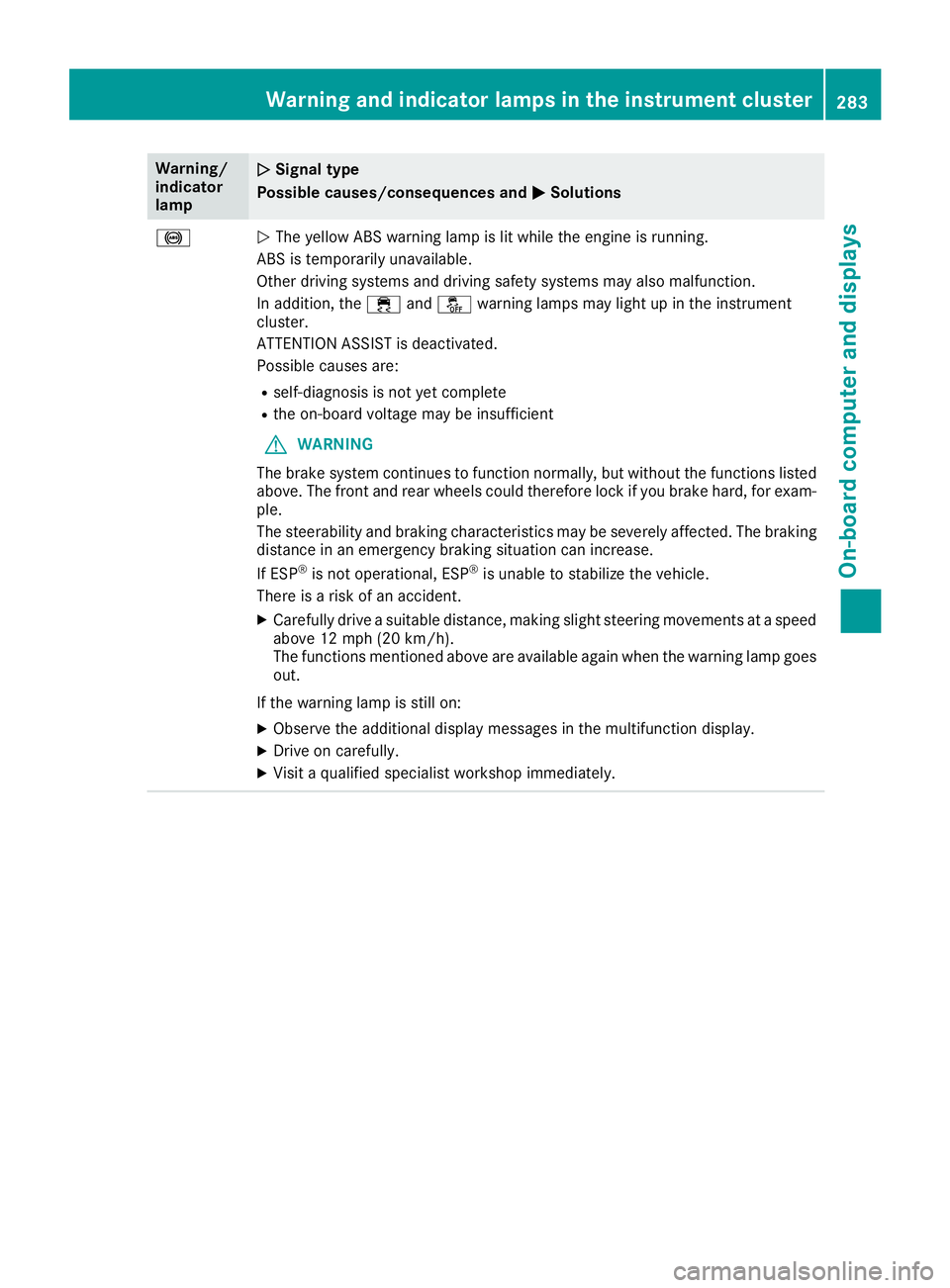

Q The yellow ABS warning lamp is lit while the engine is running.
ABS is temporarily unavailable.
Other driving systems and driving safety systems may also malfunction.
In addition, the

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
%

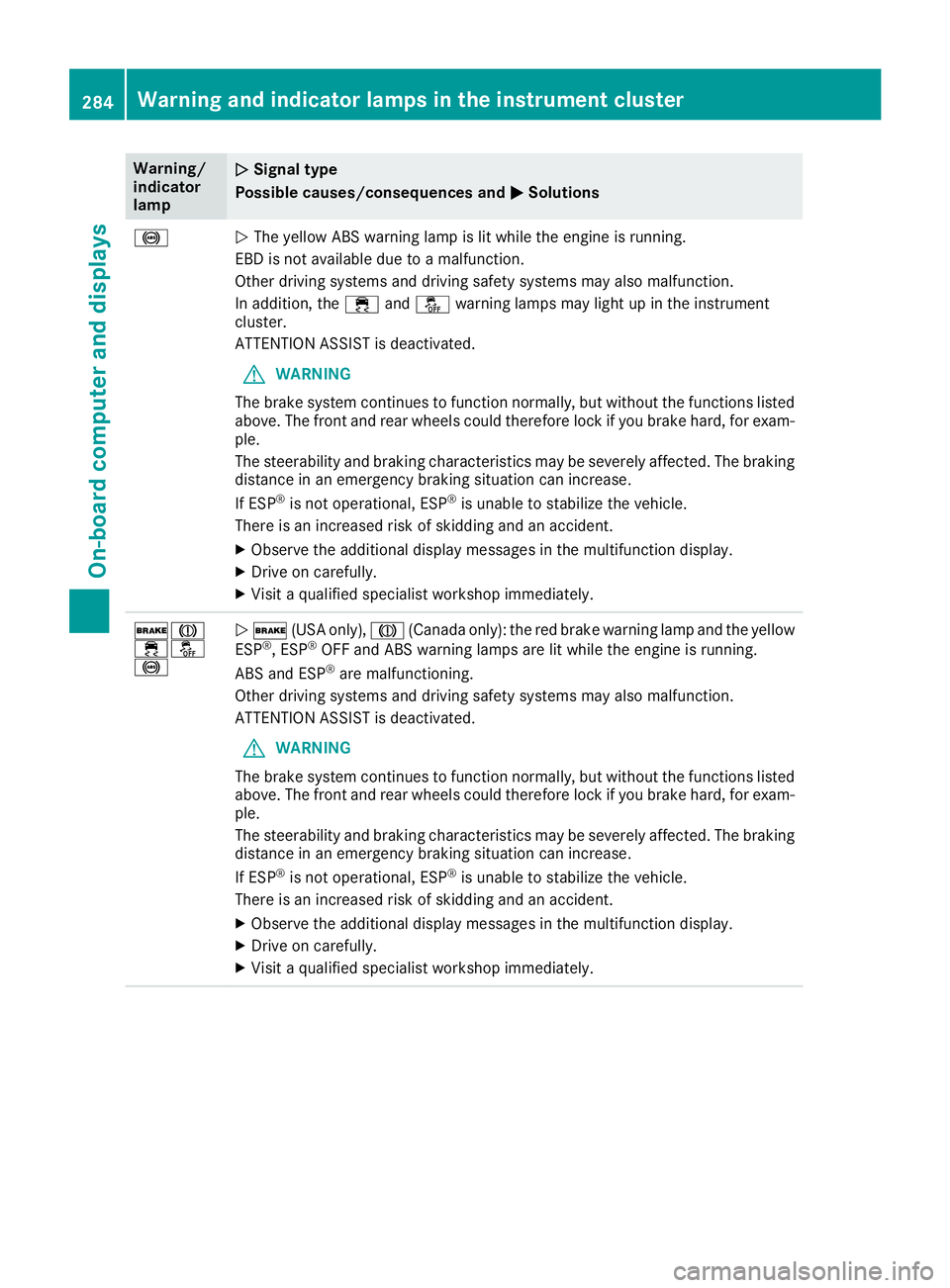

Q The yellow ABS warning lamp is lit while the engine is running.
EBD is not available due to a malfunction.
Other driving systems and driving safety systems may also malfunction.
In addition, the

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

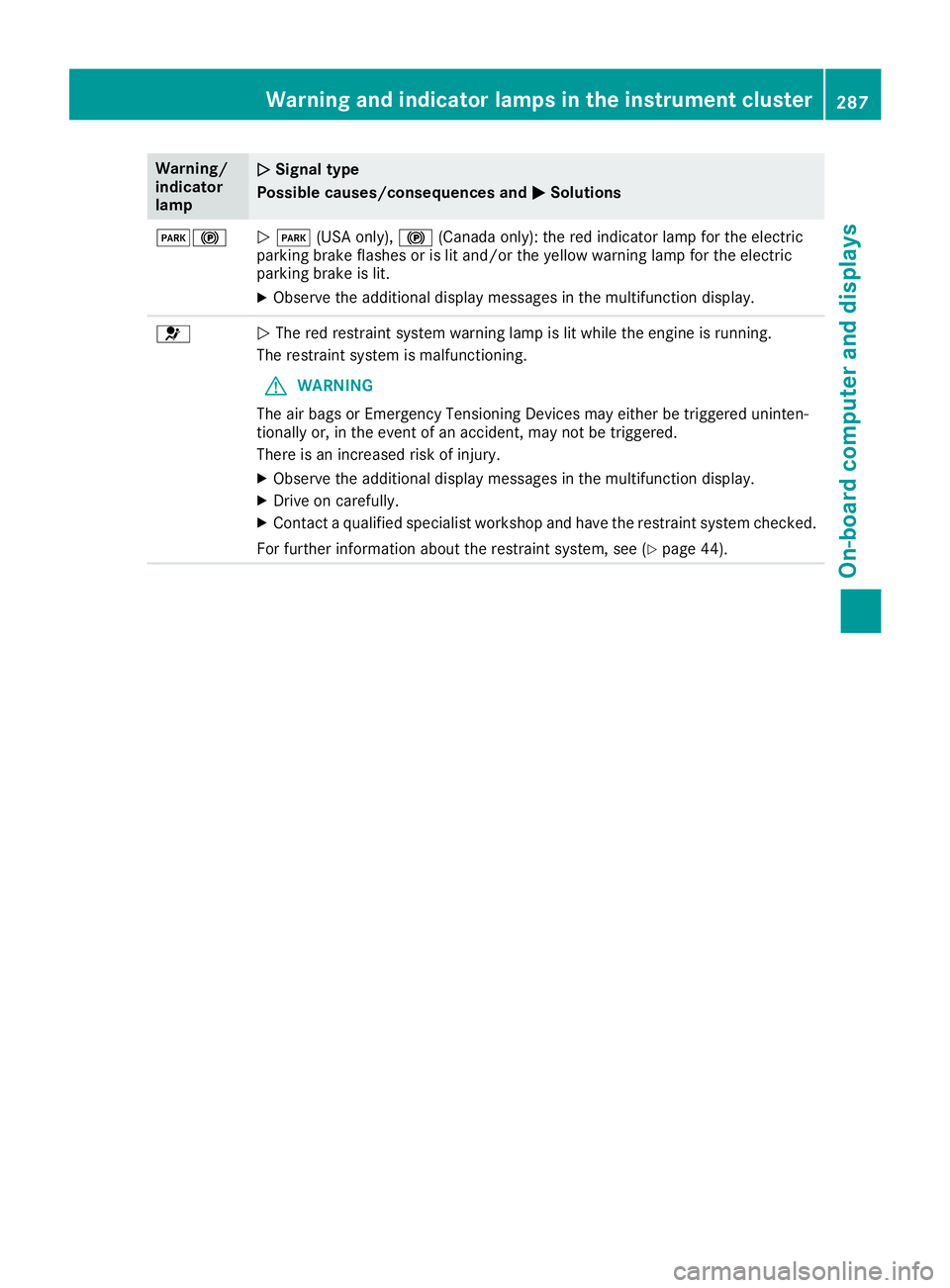

I$
Q I (USA only), $ (Canada only): the red indicator lamp for the electric
parking brake flashes or is lit and/or the yellow warning lamp for the electric
parking brake is lit. X
Observe the additional display messages in the multifunction display.
u
Q The red restraint system warning lamp is lit while the engine is running.
The restraint system is malfunctioning.
G WARNING
The air bags or Emergency Tensioning Devices may either be triggered uninten-
tionally or, in the event of an accident, may not be triggered.
There is an increased risk of injury. X
Observe the additional display messages in the multifunction display. X
Drive on carefully. X
Contact a qualified specialist workshop and have the restraint system checked.
For further information about the restraint system, see ( Y
page 44).Warning and indicator lamps in the instrument cluster 287
On-board computer and displays Z

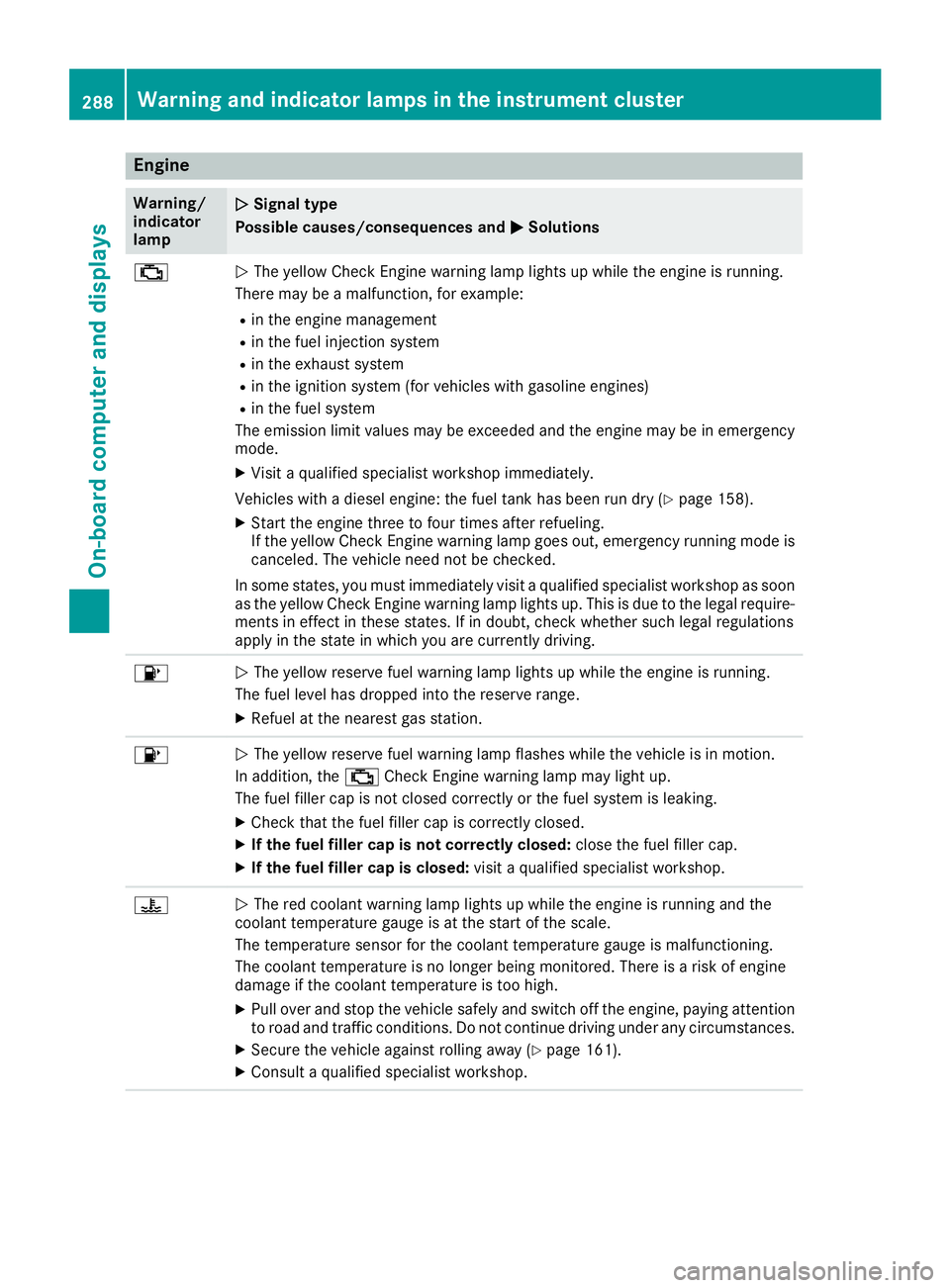

Engine Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
