380 OperationTires and wheels
Reactivating the TPMS
The TPMS must be reactivated when you
have adjusted the tire inflation pressure to
a new level (e.g. because of different load
or driving conditions). The TPMS is then
recalibrated to the current tire inflation
pressures.
Using the tire placard on the driver’s
door B-pillar (
page 369) or, if avail-
able, the supplemental tire pressure
information on the inside of the fuel
filler flap (
page 374), make sure the
tire inflation pressure of all four tires is
correct.

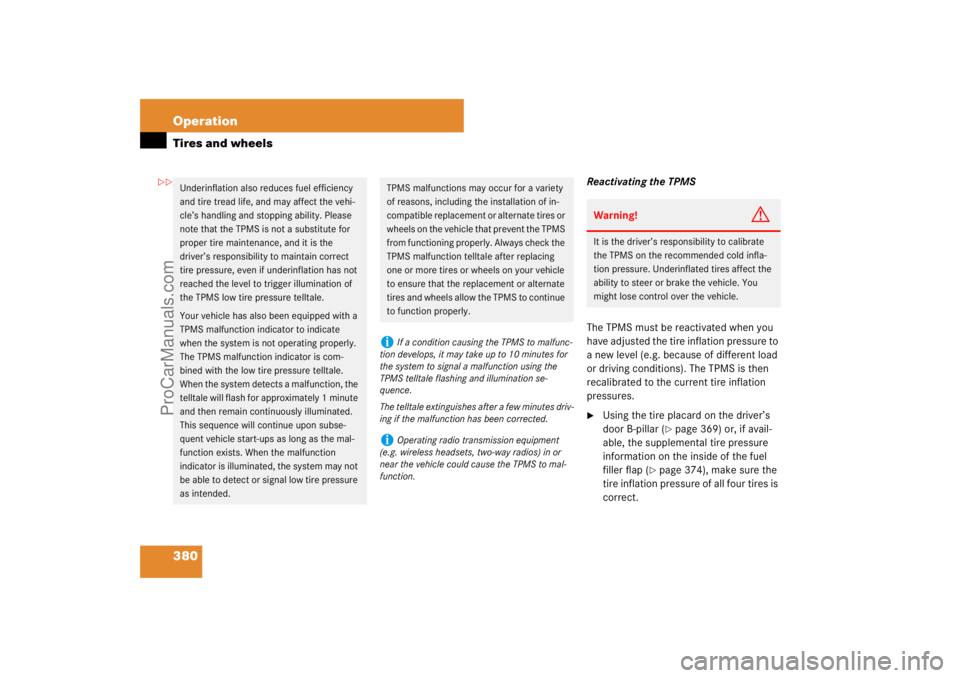

Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the
driver’s responsibility to maintain correct
tire pressure, even if underinflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately 1 minute
and then remain continuously illuminated.
This sequence will continue upon subse-
quent vehicle start-ups as long as the mal-
function exists. When the malfunction
indicator is illuminated, the system may not
be able to detect or signal low tire pressure
as intended.
TPMS malfunctions may occur for a variety
of reasons, including the installation of in-
compatible replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your vehicle
to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue
to function properly.i
If a condition causing the TPMS to malfunc-
tion develops, it may take up to 10 minutes for
the system to signal a malfunction using the
TPMS telltale flashing and illumination se-
quence.
The telltale extinguishes after a few minutes driv-
ing if the malfunction has been corrected.
i
Operating radio transmission equipment
(e.g. wireless headsets, two-way radios) in or
near the vehicle could cause the TPMS to mal-
function.

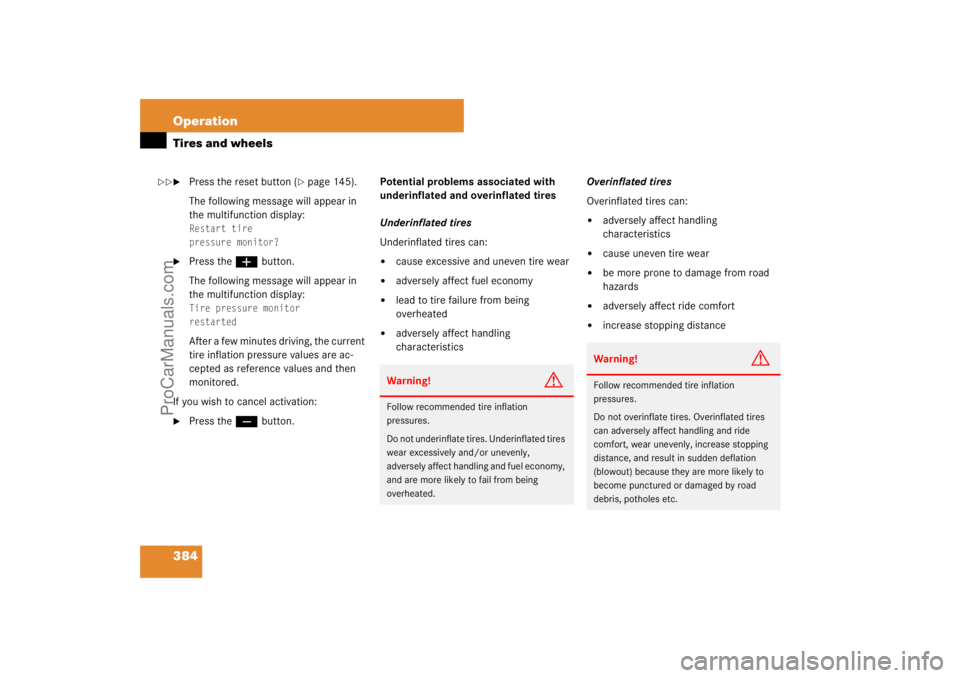

Warning!
G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might lose control over the vehicle.

ProCarManuals.com

381 Operation
Tires and wheels

Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu ap-
pears in the multifunction display
(page 147).

Press thej or kbutton repeat-
edly until you see the following
message:Tire pressure monitor
active
Menu: R-Button

Press the reset button (
page 145).
The following message will appear in
the multifunction display:
Restart tire
pressure monitor?

Press the æbutton.
The following message will appear in
the multifunction display:Tire pressure monitor
restartedAfter driving a few minutes the system
verifies that the current tire inflation
pressures are within the system’s
specified range. Afterwards the current
tire inflation pressures are accepted as
reference pressures and then moni-
tored.
If you wish to cancel activation:

Press the çbutton.Checking tire pressure electronically
with the Advanced Tire Pressure Moni-
toring System (Advanced TPMS)*,
(Canada only)
The TPMS only functions on wheels that
are equipped with the proper electronic
sensors. It monitors the tire inflation pres-
sure, as selected by the driver, in all four
tires. A warning is issued to alert you to a
decrease in pressure in one or more of the
tires.
Tire pressure inquiries are made using the
multifunction display. The present inflation
pressures are displayed only after a few
minutes’ travel time.
i
Reactivate the TPMS after adjusting the tire
inflation pressure to the inflation pressure rec-
ommended for the vehicle operating condition.
Tire pressure should only be adjusted on cold
tires. Observe the recommended tire inflation
pressure on the placard on the driver’s door
B-pillar (
page 369). Some vehicles may have
supplemental tire pressure information for driv-
ing at high speeds (
page 375) or for vehicle
loads less than the maximum loaded vehicle con-
dition (
page 375). If such information is pro-
vided, it can be found on the inside of the fuel
filler flap.
i
Possible differences between the readings
of a tire pressure gauge of an air hose, e.g. gas
station equipment, and the vehicle’s control
system can occur. Usually the readings issued by
the control system are more precise.
ProCarManuals.com

382 OperationTires and wheels
Switch on the ignition (
page 40).

Press thej or kbutton on the
multifunction steering wheel until the
current inflation pressures for each tire
appear in the multifunction display.
i
When the message
Tire pressure
displayed after driving for a few
minutes
appears in the multifunction display,
the individual inflation pressure values are
matched with the tires. The individual values are
displayed after a few minutes driving.
Warning!
G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might lose control over the vehicle.
i
With a spare wheel without wheel sensor
mounted, the system may still indicate the tire
inflation pressure of the removed wheel for some
minutes. If this happens, keep in mind that the
indicated value where the spare wheel is mount-
ed does not reflect the actual spare tire inflation
pressure.Warning!
G
The TPMS does not indicate a warning for
wrongly selected inflation pressures. Always
adjust tire inflation pressure according to
the placard on the driver’s door B-pillar or, if
available, the supplemental tire pressure in-
formation on the inside of the fuel filler flap.
The TPMS is not able to issue a warning due
to a sudden dramatic loss of pressure (e.g.
tire blowout caused by a foreign object). In
this case bring the vehicle to a halt by care-
fully applying the brakes and avoiding
abrupt steering maneuvers.
Warning!
G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or the tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or the tire inflation pressure label,
you should determine the proper tire infla-
tion pressure for those tires).
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires are significantly underinflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible. Driving on a signif-
icantly underinflated tire causes the tire to
overheat and can lead to tire failure.
ProCarManuals.com

383 Operation
Tires and wheels
Reactivating Advanced TPMS*
The TPMS must be reactivated when you
have adjusted the tire inflation pressure to
a new level (e.g. because of different load
or driving conditions). The TPMS is then
recalibrated to the current tire inflation
pressures.
Using the tire placard on the driver’s
door B-pillar (
page 369) or, if avail-
able, the supplemental tire pressure
information on the inside of the fuel
filler flap (
page 374), make sure the
tire inflation pressure of all four tires is
correct.

Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu
appears in the multifunction display
(page 147).

Press thej or kbutton repeat-
edly until you see the current inflation
pressures for each tire appear in the
display or the following message ap-
pears in the displayTire pressure
displayed after
driving for
a few minutes

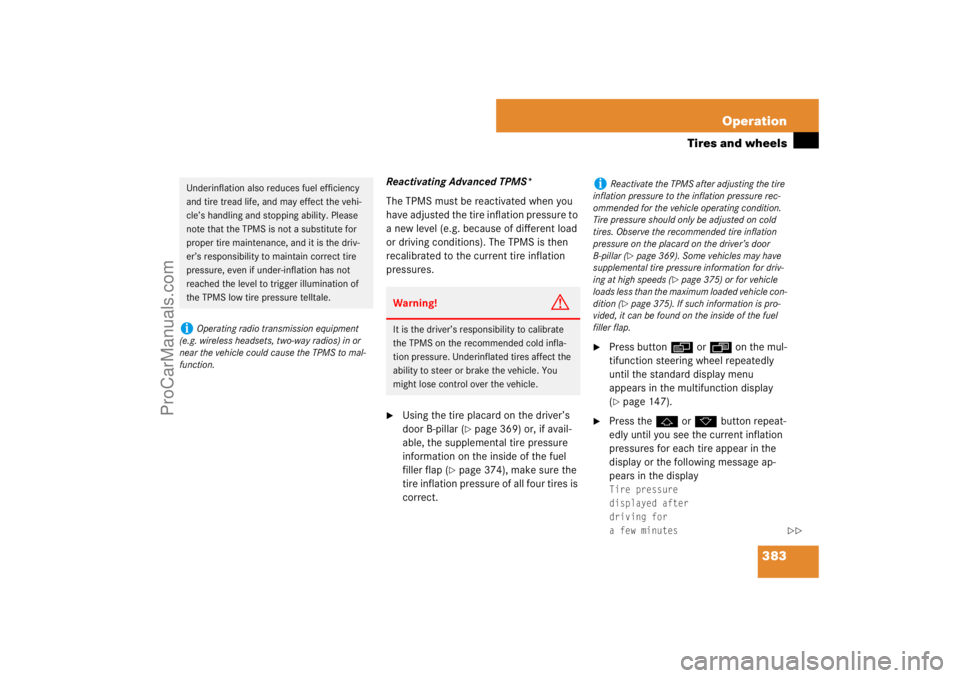

Underinflation also reduces fuel efficiency
and tire tread life, and may effect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.i
Operating radio transmission equipment
(e.g. wireless headsets, two-way radios) in or
near the vehicle could cause the TPMS to mal-
function.
Warning!
G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might lose control over the vehicle.
i
Reactivate the TPMS after adjusting the tire
inflation pressure to the inflation pressure rec-
ommended for the vehicle operating condition.
Tire pressure should only be adjusted on cold
tires. Observe the recommended tire inflation
pressure on the placard on the driver’s door
B-pillar (
page 369). Some vehicles may have
supplemental tire pressure information for driv-
ing at high speeds (
page 375) or for vehicle
loads less than the maximum loaded vehicle con-
dition (
page 375). If such information is pro-
vided, it can be found on the inside of the fuel
filler flap.

ProCarManuals.com

384 OperationTires and wheels
Press the reset button (
page 145).
The following message will appear in
the multifunction display:
Restart tire
pressure monitor?

Press the æbutton.
The following message will appear in
the multifunction display:Tire pressure monitor
restartedAfter a few minutes driving, the current
tire inflation pressure values are ac-
cepted as reference values and then
monitored.
If you wish to cancel activation:

Press the çbutton.Potential problems associated with
underinflated and overinflated tires
Underinflated tires
Underinflated tires can:


cause excessive and uneven tire wear


adversely affect fuel economy


lead to tire failure from being
overheated


adversely affect handling
characteristicsOverinflated tires
Overinflated tires can:


adversely affect handling
characteristics


cause uneven tire wear


be more prone to damage from road
hazards


adversely affect ride comfort


increase stopping distance
Warning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Warning!
G
Follow recommended tire inflation
pressures.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.

ProCarManuals.com

385 Operation
Tires and wheels
Tire labeling

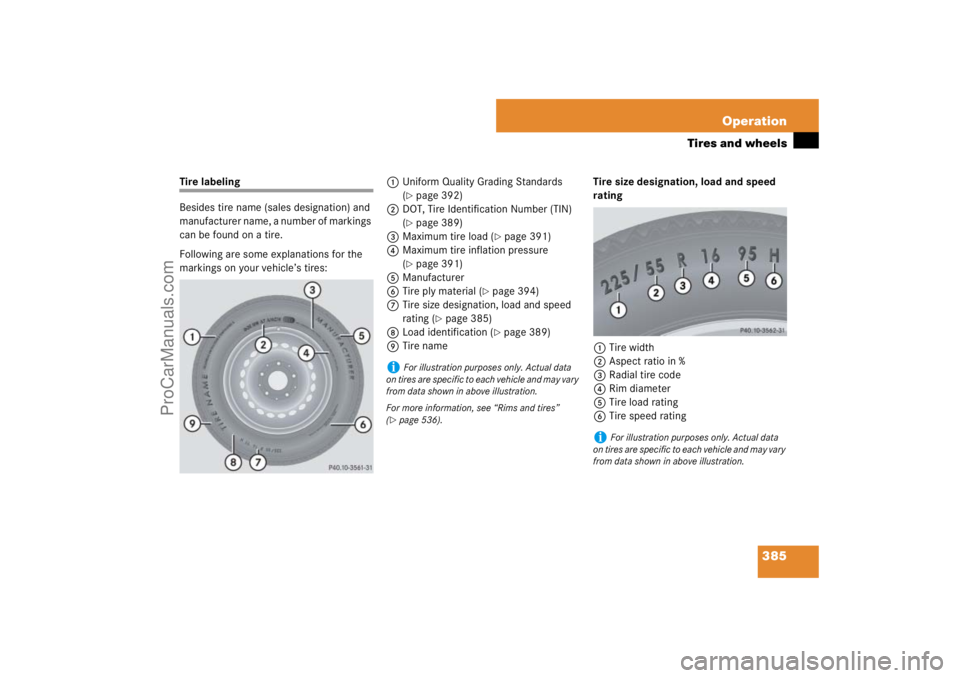

Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.
Following are some explanations for the
markings on your vehicle’s tires:1Uniform Quality Grading Standards
(
page 392)
2DOT, Tire Identification Number (TIN)
(page 389)
3Maximum tire load (
page 391)
4Maximum tire inflation pressure
(
page 391)
5Manufacturer
6Tire ply material (
page 394)
7Tire size designation, load and speed
rating (
page 385)
8Load identification (
page 389)
9Tire nameTire size designation, load and speed
rating
1Tire width
2Aspect ratio in %
3Radial tire code
4Rim diameter
5Tire load rating
6Tire speed rating
i
For illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
For more information, see “Rims and tires”
(
page 536).
i
For illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
ProCarManuals.com

386 OperationTires and wheelsGeneral:
Depending on the design standards used,
the tire size molded into the sidewall may
have no letter or a letter preceding the tire
size designation.
No letter preceding the size designation
(as illustrated above): Passenger car tire
based on European design standards.
Letter “P” preceding the size designation:
Passenger car tire based on U.S. design
standards.
Letter “LT” preceding the size designation:
Light Truck tire based on U.S. design
standards.
Letter “T” preceding the size designation:
Temporary spare tires which are high
pressure compact spares designed for
temporary emergency use only.Tire width
The tire width1 (
page 385) indicates
the nominal tire width in mm.
Aspect ratio
The aspect ratio2 (page 385) is the
dimensional relationship between tire
section height and section width and is
expressed in percentage. The aspect ratio
is arrived at by dividing section height by
section width.
Tire code
The tire code3 (
page 385) indicates
the tire construction type. The “R” stands
for radial tire type. Letter “D” means diag-
onal or bias ply construction; letter “B”
means belted-bias ply construction.
At the tire manufacturer’s option, any tire
with a speed capability above 149 mph
(240 km/h) can include a “ZR” in the size
designation (for example: 245/40 ZR 18).
For additional information, see “Tire speed
rating” (
page 387).Rim diameter
The rim diameter4 (
page 385) is the
diameter of the bead seat, not the
diameter of the rim edge. Rim diameter is
indicated in inches (in).
Tire load rating
The tire load rating5 (page 385) is a
numerical code associated with the
maximum load a tire can support.
For example, a load rating of 91 corre-
sponds to a maximum load of 1 356 lbs
(615 kg) the tire is designed to support.
See also “Maximum tire load”
(
page 391) where the maximum load as-
sociated with the load index is indicated in
kilograms and lbs.
ProCarManuals.com

387 Operation
Tires and wheels
For additional information on tire load
rating, see “Load identification”
(page 389).

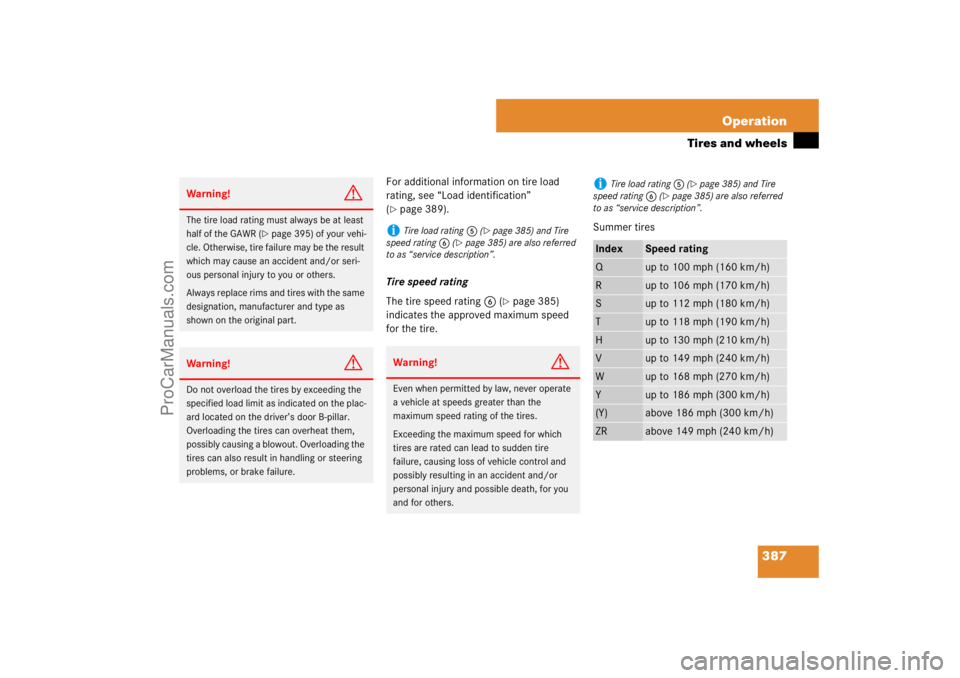

Tire speed rating
The tire speed rating6 (
page 385)
indicates the approved maximum speed
for the tire.Summer tires
Warning!
G
The tire load rating must always be at least
half of the GAWR (
page 395) of your vehi-
cle. Otherwise, tire failure may be the result
which may cause an accident and/or seri-
ous personal injury to you or others.
Always replace rims and tires with the same
designation, manufacturer and type as
shown on the original part.
Warning!
G
Do not overload the tires by exceeding the
specified load limit as indicated on the plac-
ard located on the driver’s door B-pillar.
Overloading the tires can overheat them,
possibly causing a blowout. Overloading the
tires can also result in handling or steering
problems, or brake failure.
i
Tire load rating5 (
page 385) and Tire
speed rating6 (
page 385) are also referred
to as “service description”.
Warning!
G
Even when permitted by law, never operate
a vehicle at speeds greater than the
maximum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire
failure, causing loss of vehicle control and
possibly resulting in an accident and/or
personal injury and possible death, for you
and for others.
i
Tire load rating5 (
page 385) and Tire
speed rating6 (
page 385) are also referred
to as “service description”.
Index
Speed rating
Q
up to 100 mph (160 km/h)
R
up to 106 mph (170 km/h)
S
up to 112 mph (180 km/h)
T
up to 118 mph (190 km/h)
H
up to 130 mph (210 km/h)
V
up to 149 mph (240 km/h)
W
up to 168 mph (270 km/h)
Y
up to 186 mph (300 km/h)
(Y)
above 186 mph (300 km/h)
ZR
above 149 mph (240 km/h)
ProCarManuals.com

388 OperationTires and wheels

At the tire manufacturer’s option, any
tire with a speed capability above
149 mph (240 km/h) can include a
“ZR” in the size designation (for exam-
ple: 245/40 ZR18). To determine the
maximum speed capability of the tire,
the service description for the tire must
be referred to. The service description
is comprised of the tire load rating5
(page 385) and the tire speed
rating6 (
page 385).
If your tire includes “ZR” in the size
designation and no service
description5 and6 (
page 385) is
given, the tire manufacturer must be
consulted for the maximum speed ca-
pability.
If a service description5 and6
(
page 385) is given, the speed capa-
bility is limited by the speed symbol in
the service description.
Example: 245/40 ZR18 97Y.
In this example, “97Y” is the service
description. The letter “Y” designates the speed rating and the speed capabil-
ity of the tire is limited to 186 mph
(300 km/h).


Any tire with a speed capability above
186 mph (300 km/h) must include a
“ZR” in the size designation AND the
service description must be placed in
parenthesis. Example: 275/40 ZR 18
(99Y). The “(Y)” speed rating in paren-
thesis designates the maximum speed
capability of the tire as being above
186 mph (300 km/h). Consult the tire
manufacturer for the actual maximum

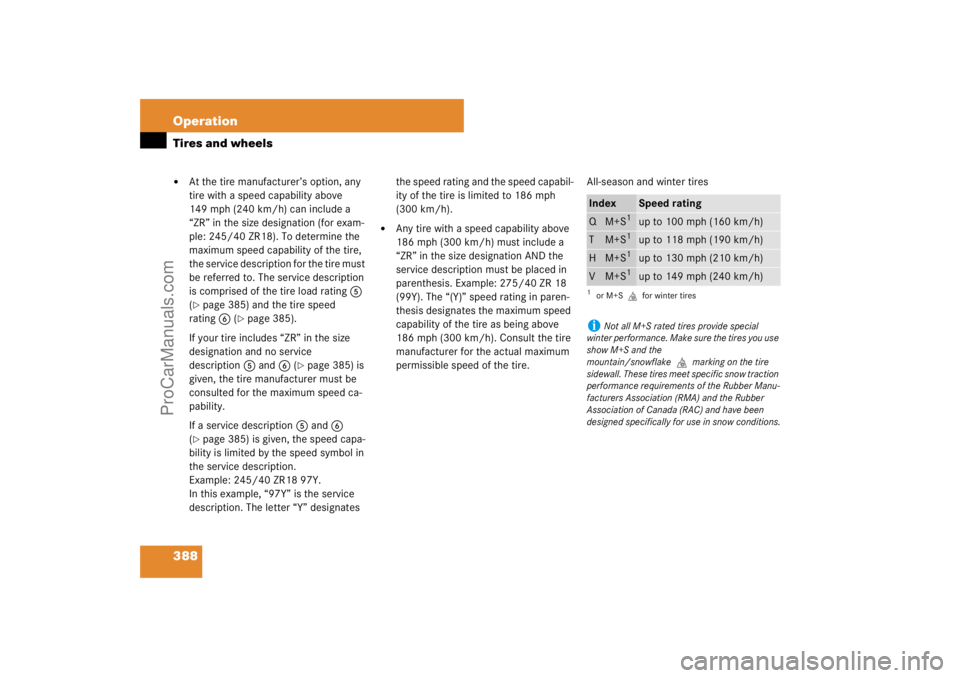

permissible speed of the tire.All-season and winter tires
Index
Speed rating
QM+S
1
1or M+S.for winter tires
up to 100 mph (160 km/h)
TM+S
1
up to 118 mph (190 km/h)
HM+S
1
up to 130 mph (210 km/h)
VM+S
1
up to 149 mph (240 km/h)
i
Not all M+S rated tires provide special
winter performance. Make sure the tires you use
show M+S and the
mountain/snowflake.marking on the tire
sidewall. These tires meet specific snow traction
performance requirements of the Rubber Manu-
facturers Association (RMA) and the Rubber
Association of Canada (RAC) and have been
designed specifically for use in snow conditions.
ProCarManuals.com

389 Operation
Tires and wheels

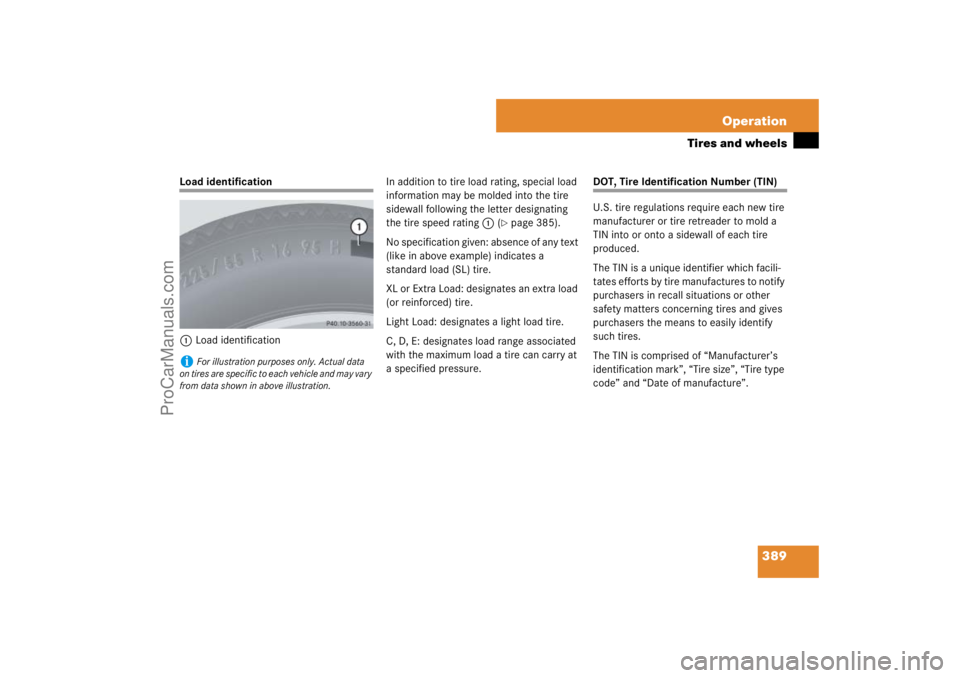

Load identification
1Load identificationIn addition to tire load rating, special load
information may be molded into the tire
sidewall following the letter designating
the tire speed rating1 (
page 385).
No specification given: absence of any text
(like in above example) indicates a
standard load (SL) tire.
XL or Extra Load: designates an extra load
(or reinforced) tire.
Light Load: designates a light load tire.
C, D, E: designates load range associated
with the maximum load a tire can carry at
a specified pressure.
DOT, Tire Identification Number (TIN)
U.S. tire regulations require each new tire
manufacturer or tire retreader to mold a
TIN into or onto a sidewall of each tire
produced.
The TIN is a unique identifier which facili-
tates efforts by tire manufactures to notify
purchasers in recall situations or other
safety matters concerning tires and gives
purchasers the means to easily identify
such tires.
The TIN is comprised of “Manufacturer’s
identification mark”, “Tire size”, “Tire type
code” and “Date of manufacture”.
i
For illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
ProCarManuals.com
