MERCEDES-BENZ M-CLASS 2007 Workshop Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2007, Model line: M-CLASS, Model: MERCEDES-BENZ M-CLASS 2007Pages: 585, PDF Size: 12.61 MB
Page 51 of 585
50 Getting startedAdjustingThe buttons are located on the driver’s
door.
1Driver’s side exterior rear view mirror
button
2Adjustment button
3Passenger-side exterior rear view mir-
ror button
Switch on the ignition (
page 40).
Press button1 for the driver’s side ex-
terior rear view mirror or button3 for
the passenger-side exterior rear view
mirror.
The indicator lamp on the respective
button comes on for
approximately 15 seconds.
Push adjustment button2 up, down,
left, or right according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 200).
i
If you do not make adjustments to the
selected exterior rear view mirror within
15 seconds, the indicator lamp goes out. You will
then have to select the desired exterior rear view
mirror again before any adjustments can be
made. Adjustments can only be made with the
indicator lamp for the respective exterior rear
view mirror button illuminated.
!
If an exterior rear view mirror was forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front), reposition
it by applying firm pressure until it snaps into
place. The mirror housing is then properly posi-
tioned and you can adjust the mirror in the usual
manner.
!
Vehicle with power folding exterior rear view
mirrors*:
If an exterior rear view mirror housing is forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front), press fold
button1 (
page 202) to fold mirrors in, then
press fold button1 (
page 202) again to fold
mirrors out. Do not force mirrors by hand as this
may damage the adjustment mechanism.
The mirror housing is then properly positioned
and you can adjust the mirror in the usual man-
ner.
i
The memory function* (
page 134) lets
you store the settings for the exterior rear view
mirrors together with the setting for the steering
wheel column and the seat positions.
At low ambient temperatures, the exterior rear
view mirrors will be heated automatically.
ProCarManuals.com
Page 52 of 585

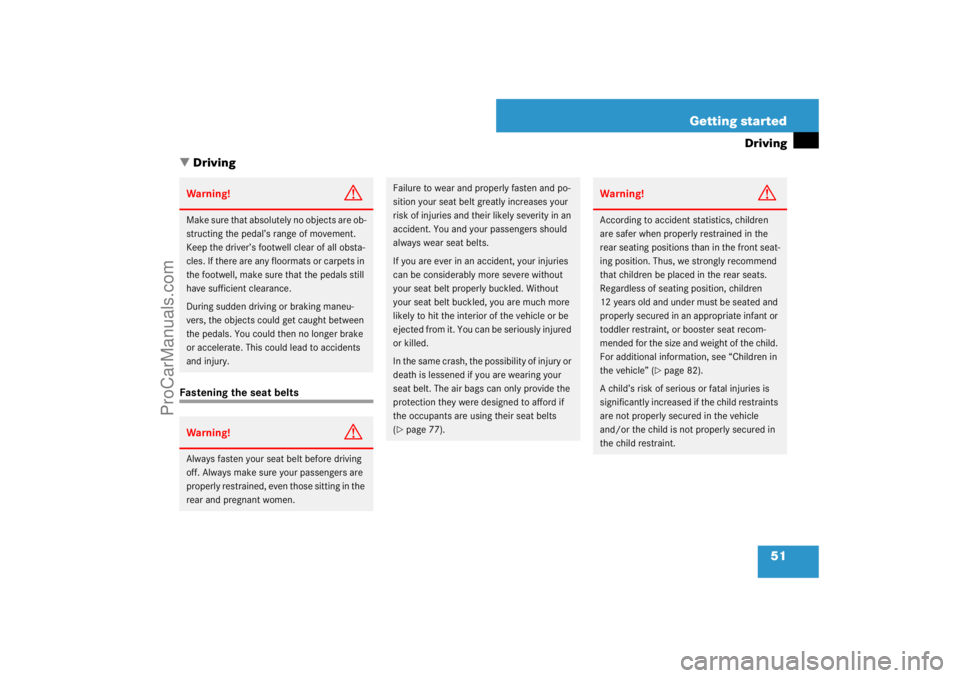

51 Getting started
Driving
Driving
Fastening the seat beltsWarning!
G
Make sure that absolutely no objects are ob-
structing the pedal’s range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate. This could lead to accidents
and injury.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(page 77).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 82).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
ProCarManuals.com
Page 53 of 585

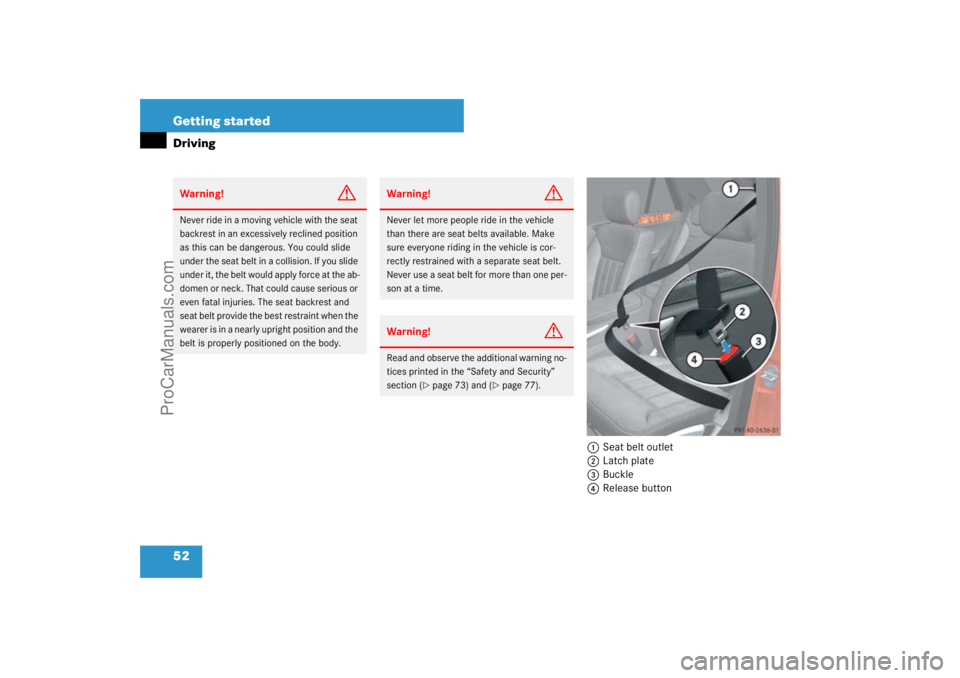

52 Getting startedDriving
1Seat belt outlet
2Latch plate
3Buckle
4Release button
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is cor-
rectly restrained with a separate seat belt.
Never use a seat belt for more than one per-
son at a time.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 73) and (
page 77).
ProCarManuals.com
Page 54 of 585
53 Getting started
Driving
With a smooth motion, pull the belt out
of seat belt outlet1.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate2 into buckle3
(page 52) until it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Seat belt height adjustment
1Release button
Press release button1 and move the
seat belt height adjuster upward or
downward.
Proper use of seat belts
Do not twist the belt when fastening.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet
(page 53).
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly
upright position.
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions.
Check your seat belt periodically
during travel to make sure that it is
properly positioned.
Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.
ProCarManuals.com
Page 55 of 585

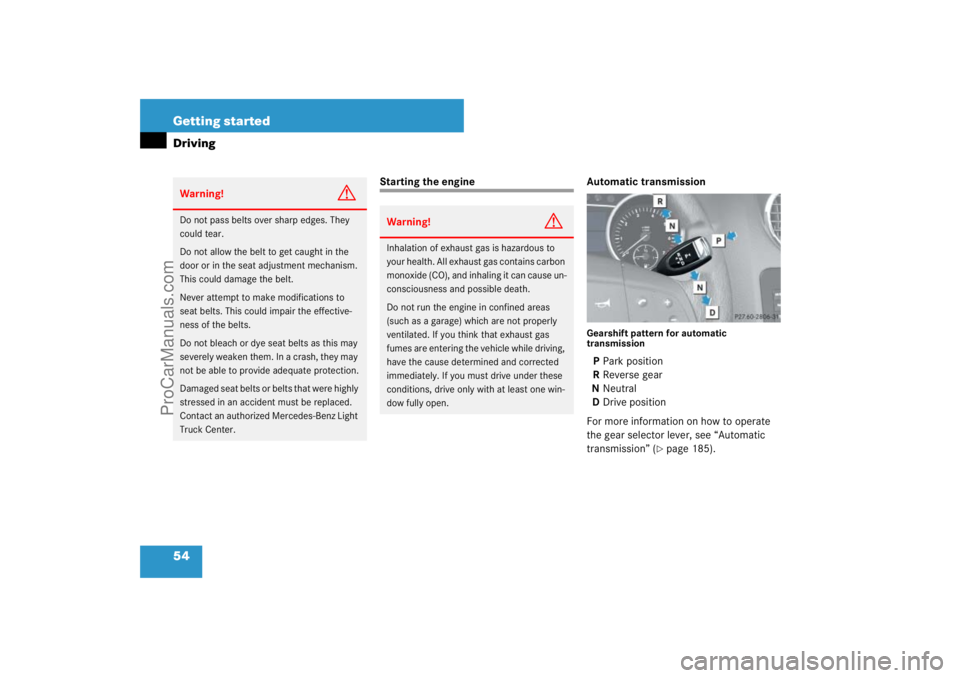

54 Getting startedDriving
Starting the engine Automatic transmission
Gearshift pattern for automatic
transmissionPPark position
RReverse gear
NNeutral
DDrive position
For more information on how to operate
the gear selector lever, see “Automatic
transmission” (
page 185).
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz Light
Truck Center.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open.
ProCarManuals.com
Page 56 of 585
55 Getting started
Driving
Starting with the SmartKey
For information on turning off the engine
with the SmartKey, see “Turning off the en-
gine” (
page 66).
Gasoline engine
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P (page 147).
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 39) and hold until
the engine starts.Diesel engine
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P (page 147).
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position2 (
page 40).
Preglow indicator lampqin the
instrument cluster comes on.
As soon as preglow indicator
lampq goes out, turn the SmartKey
in the starter switch to position3
(page 40) and release it.
The engine starts automatically.Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button in the
starter switch.
The SmartKey with KEYLESS-GO must be
located in the vehicle.
i
You can also use the “touch-start” function.
Turn the SmartKey to position3 and release it
again immediately. The engine then starts auto-
matically.
i
If the engine is at operating temperature,
preglow indicator lampqmay not stay on
and you can start the engine without preglowing.
Warning!
G
As long as the SmartKey with KEYLESS-GO
is in your vehicle, the vehicle can be started.
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle.
ProCarManuals.com
Page 57 of 585
56 Getting startedDrivingKEYLESS-GO start/stop button1USA only
2Canada only
Make sure KEYLESS-GO start/stop
button1 is inserted in the starter
switch (
page 41).
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 67).Gasoline engine
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P (page 147).
Depress the brake pedal during the
starting procedure.
Do not depress the accelerator.
Press KEYLESS-GO start/stop
button1 once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.Diesel engine
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P.
Depress the brake pedal during the
starting procedure.
Do not depress the accelerator.
Press KEYLESS-GO start / stop
button1 once.
The engine preglows and starts if the
SmartKey with KEYLESS-GO is in the
vehicle.
i
If you wish to start the engine using the
SmartKey instead of the KEYLESS-GO feature,
remove the KEYLESS-GO start/stop button from
the starter switch (
page 41).
i
If the engine is at operating temperature,
the time the engine needs to preglow is reduced.
ProCarManuals.com
Page 58 of 585
57 Getting started
Driving
Starting difficulties
If the engine does not start as described,
carry out the following steps:
If you are starting the engine with the
SmartKey, turn SmartKey in starter
switch to position0 and repeat starting
procedure.
If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better
detection of the SmartKey with
KEYLESS-GO*.
Or:
Remove KEYLESS-GO* start/stop
button from starter switch (
page 41).
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO*.
Repeat the starting procedure
(page 54). Remember that extended
starting attempts can drain the battery.
Get a jump start (
page 515).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Notify an authorized Mercedes-Benz
Light Truck Center.
Parking brake
1Parking brake pedal
2Release handle
Release the parking brake by pulling on
release handle2.
The warning lamp; (USA only)
or3(Canada only) in the
instrument cluster goes out.Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could release the
parking brake, which could result in an acci-
dent and/or serious injury.
ProCarManuals.com
Page 59 of 585
58 Getting startedDrivingDriving off
Depress the brake pedal.
The gear selector lever can now be
used.
Shift automatic transmission toD orR
(page 187).
Release the brake pedal.
Carefully depress the accelerator
pedal.After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter (gaso-
line engine) or the oxidation catalyst (die-
sel engine) to reach its operating
temperature earlier.
i
Wait for the gear selection process to com-
plete before setting the vehicle in motion.
i
Shifting from gear positionP to positionR,
N, orD is only possible with the brake pedal
depressed. Without the brake pedal depressed,
the gear selector lever can be moved, but the
parking pawl remains engaged, not allowing
shifting to occur.
!
If you hear a warning signal and the
message
Release parking brake
appears in
the multifunction display when driving off, you
have forgotten to release the parking brake.
Release the parking brake (
page 57).
i
Once the vehicle is in motion, the automatic
central locking system engages and the locking
knobs drop down.
The automatic door lock feature can be
deactivated (
page 176).
You can open a locked door from the inside.
Open door only when conditions are safe to do
so.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.Warning!
G
It is dangerous to shift the automatic trans-
mission out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
ProCarManuals.com
Page 60 of 585
59 Getting started
Driving
For more information, see “Driving instruc-
tions” (
page 325).
For information on off-road driving, see
“Off-road driving” (
page 333).
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Off
2Low beam headlamps on
Turn the exterior lamp switch to
positionB.
The low beam headlamps come on.High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
Push the combination switch in
direction of arrow1.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 26).
For more information on headlamps, see
“Lighting” (
page 136).
!
Shift the automatic transmission to
positionPorR only when the vehicle is stopped
in order to avoid damaging the transmission.
!
Do not run cold engine at high engine
speeds. Running a cold engine at high engine
speeds may shorten the service life of the
engine.
ML 63 AMG:
At engine temperatures below 68°F (20°C), the
engine’s maximum speed is restricted in order to
protect it from damage. Avoid driving your vehi-
cle at full speed when the engine is cold to pre-
vent premature engine wear and/or diminished
comfort.
!
Simultaneously depressing the accelerator
pedal and applying the brake reduces engine
performance and causes premature brake and
drivetrain wear.
ProCarManuals.com
