Removing/installing the cargo
compartment cove
r(withou tintegrated
cargo net) X
To remove: make sure that cargo
compartment cover 0002is rolled up.
X Push end cap 001Fof cargo compartment
cover 0002in the direction of the arrow on
the right or left-hand side.
X Push cargo compartment cover 0002into
opposite anchorage 0003.
X Remove cargo compartment cover 0002.
X To install: if installed, remove the
protective caps from the side panels of the
seat row in which the cargo compartment
cover is to be installed. Use a suitable
objec there, e.g. a coin.
X Install the protective caps to the side
panels of the other seat row.
X Place cargo compartment cover 0002into
anchorage 0003on the right or left-hand side.
X Push in opposite end cap 001Fof cargo
compartment cover 0002in the direction of
the arrow and insert cargo compartment
cover 0002into opposite anchorage 0003.Removing/installing the combined
cargo cover and net (cargo
compartment cover with integrated
cargo net) You can install and remove the combined
cargo cover and net from the cargo
compartment.
X
Make sure that the cargo net and the cargo
compartment cover are rolled up.
X To remove: press button 0003.
X Swing the combined cargo cover and net in
the direction of the arrow.
X First, detach the combined cargo cover and
net from left-hand catch 0002and then
remove it from right-hand fixture 001F.
X To install: push the combined cargo cover
and net up to the stop into right-hand
fixture 001F.
X Place the combined cargo cover and net
into the left-hand fixture and push it into
catch 0002until the combined cargo cover
and net engages audibly. Stowage areas

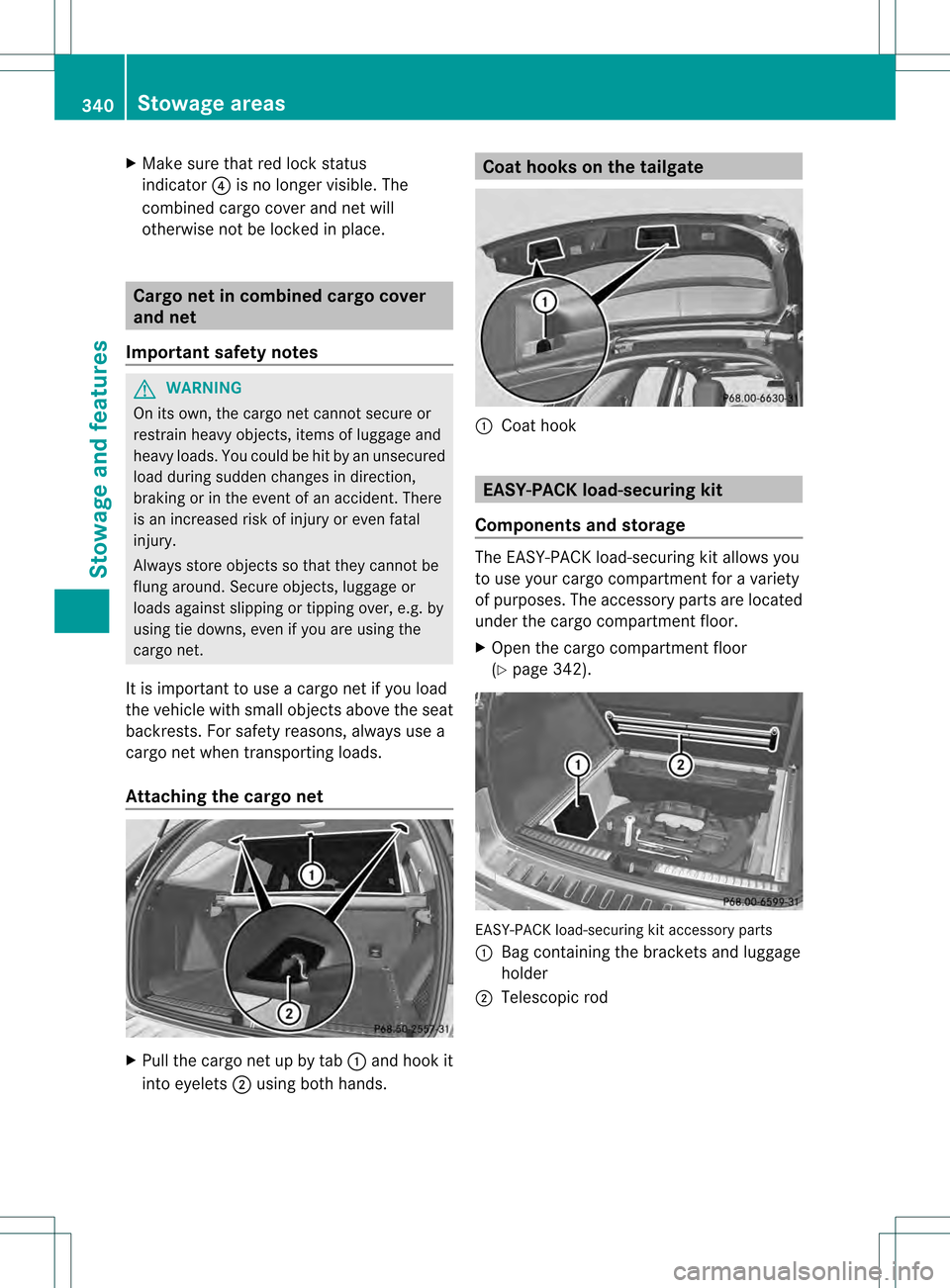

339Stowage and features Z

X
Make sure that red lock status
indicator 001Eis no longer visible. The
combined cargo cover and net will
otherwise not be locked in place. Cargo net in combined cargo cover
and net
Important safety notes G
WARNING
On its own, the cargo net cannot secure or
restrain heavy objects, items of luggage and
heavy loads. You could be hit by an unsecured
load during sudden changes in direction,
braking or in the event of an accident. There
is an increased risk of injury or even fatal
injury.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping over, e.g. by
using tie downs, even if you are using the
cargo net.
It is important to use a cargo net if you load
the vehicle with small objects above the seat
backrests.F or safety reasons, always use a
cargo net when transporting loads.
Attaching the cargo net X
Pull the cargo net up by tab 0002and hook it
into eyelets 0003using both hands. Coat hooks on the tailgate
0002
Coat hook EASY-PACK load-securing kit
Components and storage The EASY-PACK load-securing kit allows you
to use your cargo compartment for a variety
of purposes. The accessory parts are located
under the cargo compartment floor.
X
Open the cargo compartment floor
(Y page 342). EASY-PACK load-securing kit accessory parts
0002
Bag containing the brackets and luggage
holder
0003 Telescopic rod 340
Stowage areasStowage and features

Inserting the brackets int
othe loading
rail X
Insert bracket 0002into the center of loading
rail 001E.
X Press release button 0003and push
bracket 0002into the desired position in
loading rail 001E.
X Let go of release button 0003.
X Press locking button 001F.
Bracket 0002is locked in loading rail 001E.
X If necessary, fold cargo tie-dow nring 001C
upwards.
Luggage holder !
Only use the luggage holder to secure
cargo with a maximum weight of 15.4 lbs
(7 kg) and with dimensions that the luggage
holder can safely and securely contain. The luggage holder can be used to secure
light loads against the side wall of the cargo
compartment to prevent them from moving
around. X
To install: insert two brackets 001Cinto the
left or right loading rail (Y page 340).
X Press release button 0002of the luggage
holder and pull the strap out slightly.
X Insert luggage holder 0003into brackets 001C
and, while doing so, press release button
001F and push the luggage holder downwards
until it engages.
X Press release button 0002of the luggage
holder and pull the strap out in the direction
of the arrow.
X Place the load between the strap and the
cargo compartmen tside wall.
X Using one hand, press locking button 0002of
the luggage holder.
X With your other hand, let the strap go slowly
until the load is secured.
X Make sure that locking button 001Eon
brackets 001Cis pressed.
This keeps brackets 001Cin place on the
loading rail.
X To remove: press release button 001Fon
respective bracket 001Cand remove luggage
holder 0003by pulling upwards and out.
Telescopic rod The telescopic rod can be used to secure the
load against the rear seats to prevent it from
moving around. Stowage areas
341Stowage and features Z

X
To install: insert one bracket 0003into both
the left and the right loading rails and slide
it to the desired positio n(Ypage 340).
X Insert telescopic rod 0002into brackets 0003
and, while doing so, press release
button 001Eand push the rod downwards
until it engages.
X Make sure that locking button 001Fon
brackets 0003is pressed.
This keeps brackets 0003in place on the
loading rail.
X To remove: press release button 001Eon
respective bracket 0003and remove
telescopic rod 0002by pulling it upwards and
out. Stowage well under the cargo
compartment floor
G
WARNING
If you drive when the cargo compartment floor
is open, objects could be flung around, thus
striking vehicle occupants. There is a risk of
injury, particularly in the event of sudden
braking or a sudden change in direction.
Always close the cargo compartment floor
before a journey. A removable insert under the cargo
compartment floor contains the parts of the
EASY-PACK load-securing kit. The tire-
change tool kit is stored beneath this insert. X
To open: holding the ribbing, press
handle 0002downwards 0003.
Handle 0002folds up.
X Swing the cargo compartment floor
upwards using handle 0002until it rests
against the cargo compartment cover. X
Fold out hook 001Fon the underside of the
cargo compartment floor in the direction of
the arrow. X
Attach hook 001Fto the cargo
compartment's upper seal 001E.
X To close: detach hook 001Ffrom the cargo
compartment's upper seal 001E.
X Fasten hook 001Fto the bracket on the
underside of the cargo compartment floor.
X Fold the trunk floor down.
X Press the cargo compartment floor
down 0003until it engages.
i To remove the cargo compartment floor,
undo the press studs below the cargo
compartment floor. When you re-install the 342

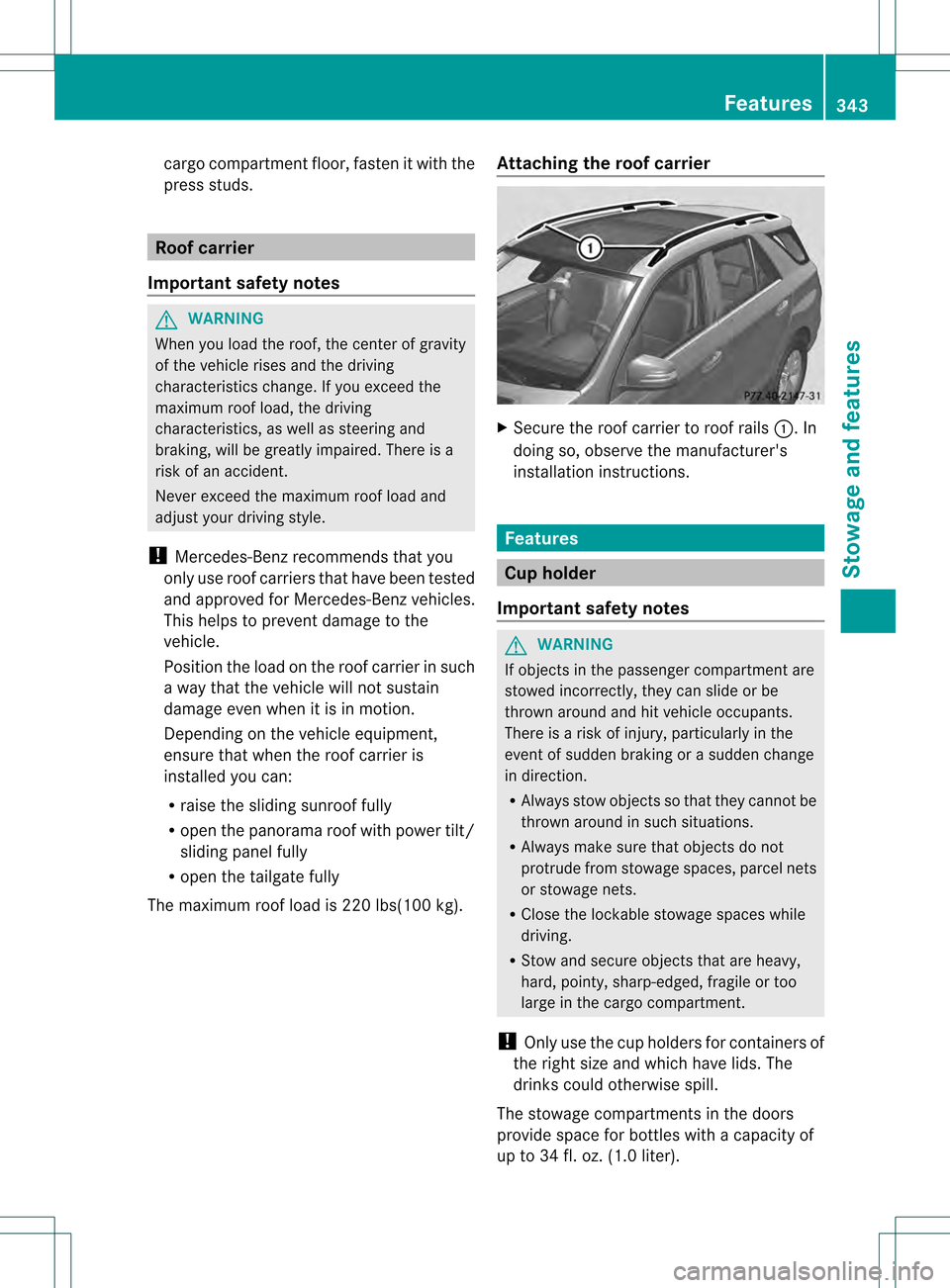

Stowage areasStowage and features

cargo compartment floor, fasten it with the
press studs. Roof carrier
Important safety notes G
WARNING
Whe nyou load the roof, the center of gravity
of the vehicle rises and the driving
characteristics change. If you exceed the
maximum roof load, the driving
characteristics, as well as steering and
braking, will be greatly impaired. There is a
risk of an accident.
Never exceed the maximum roof load and
adjust your driving style.
! Mercedes-Benz recommends that you
only use roof carriers that have been tested
and approved for Mercedes-Benz vehicles.
This helps to prevent damage to the
vehicle.
Position the load on the roof carrier in such
a way that the vehicle will not sustain
damage even when it is in motion.
Depending on the vehicle equipment,
ensure that when the roof carrier is
installed you can:
R raise the sliding sunroof fully
R open the panorama roof with power tilt/
sliding panel fully
R open the tailgate fully
The maximum roof load is 220 lbs(100 kg). Attaching the roof carrier X
Secure the roof carrier to roof rails 0002. In
doing so, observe the manufacturer's
installation instructions. Features
Cup holder
Important safety notes G
WARNING
If objects in the passenger compartment are
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants.
There is a risk of injury, particularly in the
event of sudden braking or a sudden change
in direction.
R Always stow objects so that they cannot be
thrown around in such situations.
R Always make sure that objects do not
protrude from stowage spaces, parcel nets
or stowage nets.
R Close the lockable stowage spaces while
driving.
R Stow and secure objects that are heavy,
hard, pointy, sharp-edged, fragile or too
large in the cargo compartment.
! Only use the cup holders for containers of
the right size and which have lids. The
drinks could otherwise spill.
The stowage compartments in the doors
provide space for bottles with a capacity of
up to 34 fl. oz. (1.0 liter). Features
343Stowage and features Z

The bottles are not secured or prevented from
tipping over. Therefore, do not place any open
drink containers in the stowage
compartments.
Cup holder in the front-compartment
center console
0002
Cup holder
0003 Cover
X To open: slide cover 0003to its foremost
position.
X To close: pull cover 0003back as far as it will
go.
You can remove the cup holder's rubber mat
for cleaning. Clean with clear, lukewarm
water only.
Temperature-controlled cup holder in
the front-compartment center console 0002
Cup holder
0003 Residual heat indicator lamp
001F Switch The temperature-controlled cup holder can
be used to keep cold drink
scool and warm
drinks warm.
X Turn the SmartKey to position 2in the
ignition lock.
X To switch on the cooling function: press
and hold button 001Funtil the blue indicator
lamp on the button lights up.
X To switch on the heating function: press
and hold button 001Funtil the red indicator
lamp on the button lights up.
X To switch off the function: press and hold
button 001Funtil the indicator lamp on the
button goes out.
When the heating function is used, the metal
insert of the cup holder is heated. Once a
certain temperature is reached, residual heat
indicator lamp 0003lights up. This means that
the metal insert of the cup holder is hot. For
this reason, you must not reach into the cup
holder metal insert.
Do not use hard or sharp objects to clean the
cup holder. Use only a soft cloth to clean it.
Cup holder in the rear seat armrest !
Do not sit on or support your body weight
on the rear seat armrest when it is folded
down, as you could otherwise damage it. X
Fold down the rear seat armrest.
Cup holder 0002is located in the rear seat
armrest. 344
FeaturesStowage and features

Sun visors
Overview G
WARNING
If the mirror cover of the vanity mirror is folded
up when the vehicle is in motion, you could be
blinded by incident light. There is a risk of an
accident.
Always keep the mirror cover folded down
while driving. 0002
Mirror light
0003 Bracket
001F Retaining clip, e.g. for a car park ticket
001E Vanity mirror
001C Mirror cover
Vanity mirror in the sun visor Mirror light
0002only functions if the sun visor
is clipped into bracket 0003and mirror cover
001C has been folded up.
Glare from the side X
Fold down sun visor 0002.
X Pull sun visor 0002out of retainer 001F.
X Swing sun visor 0002to the side.
X Slide sun visor 0002horizontally as required.
X Fold down additional sun visor 0003to the
windshield. Roller sunblinds on the rear side
windows
! Always guide the roller sunblind by hand.
Do not let it snap back suddenly as this
would damage the automatic roller
mechanism.
! Do not drive the vehicle with the roller
sunblind hooked in and the side windows
opened simultaneously .The roller sunblind
can jump out of the retainers and spring
back suddenly when driving at high speeds,
e.g. when driving on the freeway. This could
damage the inertia reel. Therefore, either
close the side window or retract the roller
sunblind before driving at high speeds. X
To extend: pull the roller sunblind out by
tab 0002and hook it onto retainers 0003at the
back of the window. Features
345Stowage and features Z

The roller sunblind can be hooked back into
place should it pop out from the top of the
guide rail.
X Tilt pull-out profile 0002as illustrated.
X Slip guide bush 0003into open area of guide
rail 001F.
X Straighten up pull-out profile 0002again. Ashtray
Front ashtray !
The holder under the ashtray is not heat
resistant .Before placing lit cigarettes in the
ashtray, make sure that the ashtray is
properly engaged. Otherwise, the holder
could be damaged. X
To open: slide cover 0002to its foremost
position.
X Fold cover 001Fof the insert upwards.
X To remove the insert: push insert001Fto
the left 001E.
Insert 001Fslides out slightly to the right. X
Lift insert 001Fup0003 and out.
X To re-install the insert: place insert001F
into the holder and press it down on the
right until it engages.
X To close: pull cover 0002back as far as it will
go.
Rear-compartment ashtray !
Close the ashtray when it is not in use and
before you fold the rear seats forward. You
can otherwise damage the ashtray. X
To open: briefly press cover 0003at the top.
The ashtray opens.
X To remove the insert: push into recess
001F from the right.
Ashtray insert 0002slides out slightly to the
right.
X Lift insert 0002up and out.
X To re-install the insert: place insert0002
into the holder and press down on the right
until it engages.
Vehicles without a Rear Seat Entertainment
System have an ashtray in the center console
in the rear compartment. Cigarette lighter
G
WARNING
You can burn yourself if you touch the hot
heating element or the socket of the cigarette
lighter. 346
FeaturesStowage and features

In addition, flammable materials can ignite if:
R
the hot cigarette lighter falls
R a child holds the hot cigarette lighter to
objects, for example
There is a risk of fire and injury.
Always hold the cigarette lighter by the knob.
Always make sure that the cigarette lighter is
out of reach of children. Never leave children
unsupervised in the vehicle.
! The cigarette lighter in the center console
in the front compartment is not intended
for operating the tire inflation compressor. Youra
ttention must always be focused on the
traffic conditions. Only use the cigarette
lighter when road and traffi cconditions
permit.

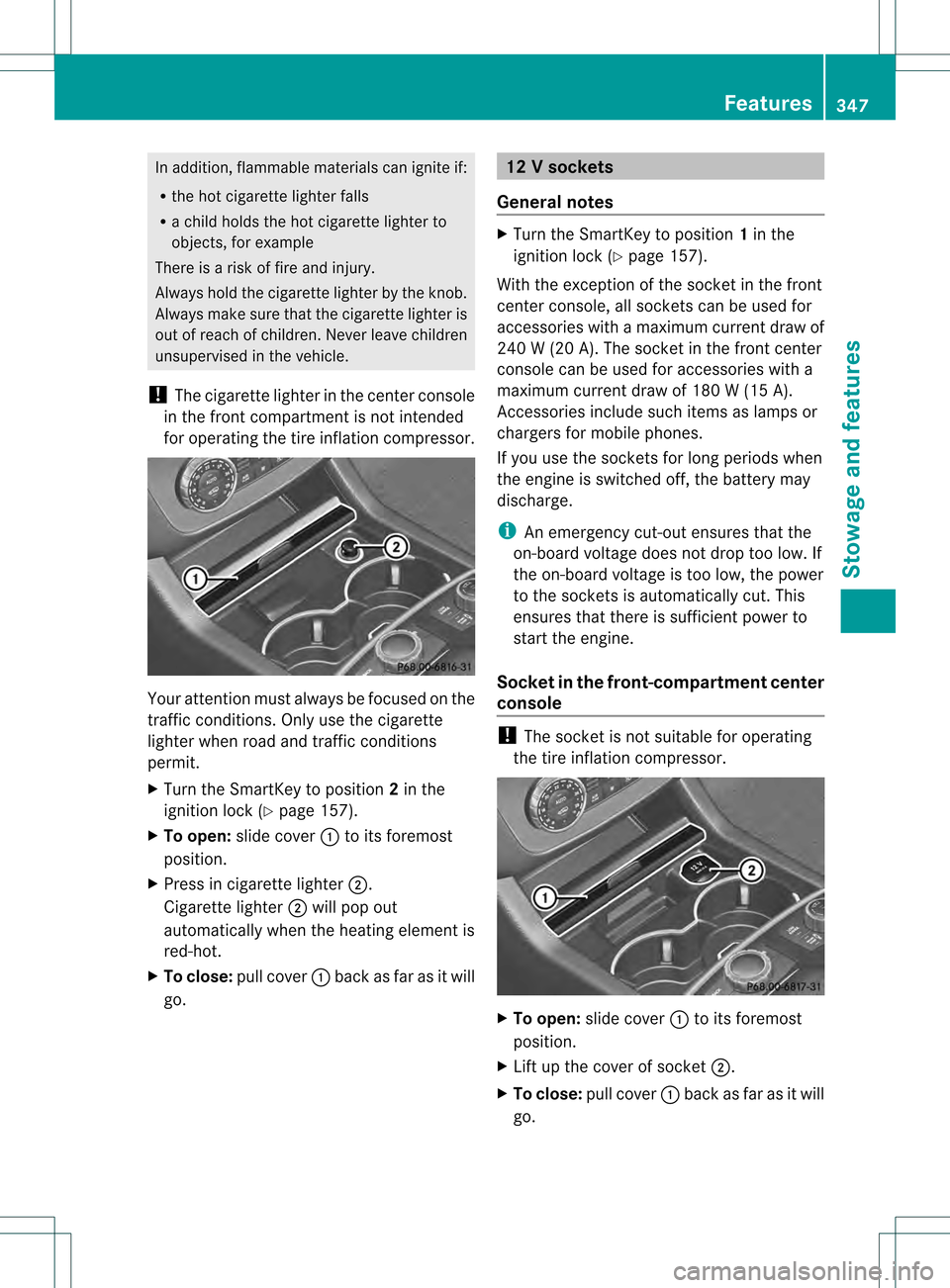

X Turn the SmartKey to position 2in the
ignition lock (Y page 157).
X To open: slide cover 0002to its foremost
position.
X Press in cigarette lighter 0003.
Cigarette lighter 0003will pop out
automatically when the heating element is
red-hot.
X To close: pull cover 0002back as far as it will
go. 12
Vsockets
General notes X
Turn the SmartKey to position 1in the
ignitio nlock (Y page 157).
With the exception of the socket in the front
center console, all socket scan be used for
accessories with a maximum curren tdraw of
240 W (20 A). The socket in the front center
console can be used for accessories with a
maximum current draw of 180 W (15 A).
Accessories include such items as lamps or
chargers for mobile phones.
If you use the sockets for long periods when
the engine is switched off, the battery may
discharge.
i An emergency cut-out ensures that the
on-board voltage does not drop too low.If
the on-board voltage is too low, the power
to the sockets is automatically cut. This
ensures tha tthere is sufficient power to
start the engine.
Socket in the front-compartment center
console !
The socket is not suitable for operating
the tire inflation compressor. X
To open: slide cover 0002to its foremost
position.
X Lift up the cover of socket 0003.
X To close: pull cover 0002back as far as it will
go. Features
347Stowage and features Z

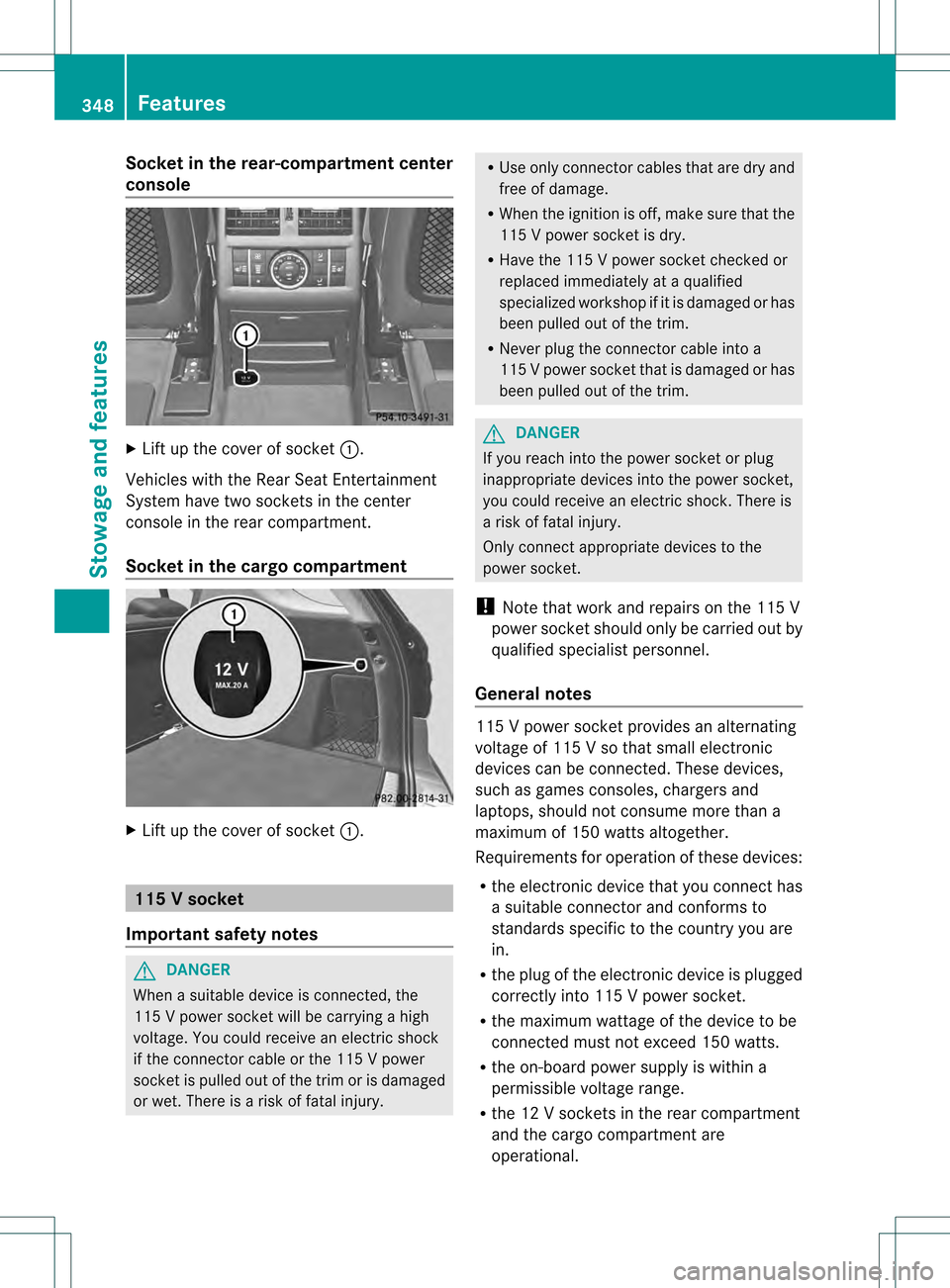

Socket in the rear-compartment center
console X
Lift up the cover of socket 0002.
Vehicles with the Rear Seat Entertainment
System have two sockets in the center
console in the rear compartment.
Socket in the cargo compartment X
Lift up the cover of socket 0002.115
Vsocket
Important safety notes G
DANGER
When a suitable device is connected, the
11 5Vp ower socket will be carrying a high
voltage. You could receive an electric shock
if the connector cable or the 115 V power
socket is pulled out of the trim or is damaged
or wet. There is a risk of fatal injury. R
Use only connector cables that are dry and
free of damage.
R When the ignition is off, make sure that the
115 V power socket is dry.
R Have the 115 V power socket checked or
replaced immediately at a qualified
specialized workshop if it is damaged or has
been pulled out of the trim.
R Never plug the connector cable into a
115 Vpower socket that is damaged or has
been pulled out of the trim. G
DANGER
If you reach into the power socket or plug
inappropriate devices into the power socket,
you could receive an electric shock. There is
a risk of fatal injury.
Only connect appropriate devices to the
power socket.
! Note that work and repairs on the 115 V
power socket should only be carried out by
qualified specialist personnel.
General notes 115 V power socket provides an alternating
voltage of 115 V so that small electronic
devices can be connected. These devices,
such as games consoles, chargers and
laptops, should not consume more than a
maximum of 150 watts altogether.
Requirements for operation of these devices:
R the electronic device that you connect has
a suitable connector and conforms to
standards specific to the country you are
in.
R the plug of the electronic device is plugged
correctly into 115 V power socket.
R the maximum wattage of the device to be
connected must not exceed 150 watts.
R the on-board power supply is within a
permissible voltage range.
R the 12 V sockets in the rear compartment
and the cargo compartment are
operational. 348
FeaturesStowage and features
