Transmission
107Automatic transmission
! Warm up the engine quickly. Do not use
the engine's full performance until it has
reached operating temperature.
Only shift the automatic transmission to R
or Pwhen the vehicle is stationary.
Where possible, avoid spinning the drive
wheels when pulling away on slippery
roads. You could otherwise damage the
drive train.
The DIRECT SELECT selector lever is on the
right of the steering column. Gearshift pattern
P
Park position with selector lever lock
N To select neutral
R To select reverse gear
D To select drive i
The DIRECT SELECT selector lever always
returns to its original position. The current
transmission position P,N, R, or Dappears
in the transmission position display
(Y page 108).
Shifting to neutral N X
Push the DIRECT SELECT selector lever up
or down to the first point of resistance.
Engaging reverse gear R X
Push the DIRECT SELECT selector lever up
past the first point of resistance.
Shifting to transmission position D X
Push the DIRECT SELECT selector lever
down past the first point of resistance.
Engaging park position P X
Push the DIRECT SELECT selector lever in
the direction of the arrow P.
i Depress the brake and push the DIRECT
SELECT selector lever up or down to disen-
gage park position.
If you want to switch from the park position
directly to reverse gear, depress the brake and push the DIRECT SELECT selector lever
up past the first point of resistance.
If you want to switch from the park position
directly to the transmission position,
depress the brake and push the DIRECT
SELECT selector lever down past the first
point of resistance.
! If the engine speed is too high, do not shift
the automatic transmission directly from
D to R, from Rto Dor directly to P. The
automatic transmission could otherwise be
damaged.
Changing gears The automatic transmission shifts into indi-
vidual gears automatically. This automatic
gearshifting behaviour is determined by:
R
the transmission position D(Y page 108)
with shift ranges 6,5,4,3,2and
1 (Y page 108)
R the selected drive program
(S/M)* (Ypage 111), on the ML 63 AMG
(C/S/M) (Ypage 112)
R the position of the accelerator pedal
(Y page 109)
R the road speed Controls
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 107 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Transmission
108
In transmission position
D(Y page 109), you
can influence the gearshifts made by the
automatic transmission by using the DIRECT
SELECT steering wheel gearshift buttons to:
R restrict the shift range
R change gear yourself on vehicles with the
manual gearshift program (S/M)*
R change gear yourself on the ML 63 AMG
with the manual gearshift program
(S/C/M)*
Transmission display The current transmission position and drive
program appear in the display. !
If the transmission display is not working,
you should pull away carefully to check
whether the desired gear is selected. Ide-
ally, you should select transmission posi-
tion Dand drive program S*. On AMG vehicles, select gearshift program
C. Do
not restrict the shift range.
Transmission positions ì Park position
Prevents the vehicle from rolling
away when stopped. Only select
P
when your vehicle is stationary.
If you switch off the engine using
the key and then remove the key or
open one of the front doors, the
automatic transmission will auto-
matically shift to park position P.
If you switch off the engine using
the KEYLESS GO button* and open
the driver's door, the automatic
transmission will automatically
shift to park position P. í Reverse gear
Only shift the automatic transmis-
sion to
Rwhen the vehicle is sta-
tionary. ë Neutral
Do not shift the automatic trans-
mission to
Nwhile you are driving.
The automatic transmission could
otherwise be damaged.
If you switch off the engine using
the key or the KEYLESS GO but-
ton*, the automatic transmission
will automatically shift to neutral
N.
If ESP ®
is deactivated or faulty,
only shift the automatic transmis-
sion to Nif the vehicle is in danger
of skidding, e.g. on icy roads. ê Drive
The automatic transmission
changes gear automatically. All
forward gears are available.
Shift ranges
In transmission position
D, you can use the
DIRECT SELECT steering wheel gearshift but-
tons (Y page 109) to restrict or derestrict the
shift range for the automatic transmission.
i If the maximum engine speed for the shift
range is reached and you continue to accel-
erate, the automatic transmission shifts up Controls
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 108 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Transmission
109
in order to prevent the engine from over-
revving, even if the shift range is restricted. Driving situation
è The braking effect of the engine can
be used in this position.
ç To use the braking effect of the
engine on downhill gradients and
for driving:
R
on steep mountain roads
R in mountainous terrain
R in arduous conditions æ To use the braking effect of the
engine on extremely steep downhill
gradients and long downhill
stretches
Restricting the shift range
X
Press the left-hand button on the steering
wheel (Y page 109).
The set shift range appears in the multi-
function display. Derestricting the shift range
X
Press the right-hand button on the steering
wheel (Y page 109).
The set shift range appears in the multi-
function display.
Driving tips Accelerator pedal position
Your style of driving influences how the auto-
matic transmission shifts gear:
R
little throttle: early upshifts
R more throttle: late upshifts
Kickdown
Use kickdown for maximum acceleration.
X Depress the accelerator pedal beyond the
pressure point.
The transmission shifts to a lower gear
depending on the engine speed.
X Ease off the accelerator pedal once the
desired speed is reached.
The automatic transmission shifts back up. Trailer towing
X
Drive in the middle of the engine speed
range on uphill gradients.
X Shift down to shift range 3or 2depending
on the incline of the uphill or downhill gra-
dient (Y page 108), even if cruise control is
activated. DIRECT SELECT steering wheel gear-
shift buttons
You can restrict or derestrict the shift range
using the DIRECT SELECT steering wheel
gearshift buttons. In the manual drive pro-
gram, you can use the DIRECT SELECT steer-
ing wheel gearshift buttons or DIRECT
SELECT steering wheel gearshift paddles to
change gears.
i You can only use all the functions of the
DIRECT SELECT steering wheel gearshift
buttons in drive program Monce the vehi-
cle has reached its operating temperature. Controls
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 109 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Transmission
1101
Right button: to derestrict the shift range
or shift up (in manual drive program M)
2 Left button: to restrict the shift range or
shift down (in manual drive program M)
i When the automatic transmission is in
position P,Nor R, you cannot shift gears
using the DIRECT SELECT steering wheel
gearshift buttons.
Derestricting the shift range X
Press right-hand button 1on the steering
wheel.
The shift range is derestricted
(Y page 108). If you are driving in manual
drive program M, the automatic transmis-
sion shifts up to the next gear. i
If the maximum engine speed for the shift
range is reached and you continue to accel-
erate, the automatic transmission shifts up,
even if the shift range is restricted.
Restricting the shift range G
Risk of accident
Do not change down for additional engine
braking on a slippery road surface. This
could cause the drive wheels to lose their
grip and the vehicle could skid.
i In order to prevent the engine from over-
revving, the automatic transmission does
not shift down when the engine speed is
too high.
X Press left-hand button 2on the steering
wheel.
The shift range is restricted (Y page 108).
If you are driving in manual drive program
M, the automatic transmission shifts down
to the next gear. Selecting the ideal shift range X
Press and hold the left-hand button on the
steering wheel until a shift range appears
in the display.
The automatic transmission will shift to a
range which allows ideal acceleration and
deceleration. To do this, the automatic
transmission will shift down one or more
gears.
Derestricting the shift range X
Press and hold the right-hand button on the
steering wheel until the corresponding
number for the gear disappears from the
display.
The automatic transmission shifts from the
current shift range directly to D.Controls
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 110 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Transmission
111Gearshift program
i The description does not apply to the ML
63 AMG. For a description of the gearshift
program of the ML 63 AMG, see
(Y page 112).
You can select either gearshift program Sor
M on vehicles with the Off-Road Pro engi-
neering package*.
The program selector button is located on the
centre console. 1
Program selector button S
Sport For all normal driving con-
ditions
M
Manual For manual gearshifting The selected gearshift program is shown in
the multi-function display.
1
Current gearshift program
X To activate: press program selector but-
ton repeatedly until Mappears in the dis-
play.
The automatic transmission changes to
manual gearshift program M. Automatic
gearshifting is deactivated.
If you have selected transmission position D,
you can activate the manual gearshift pro-
gram and shift up or down through the indi-
vidual gears. The gear currently selected and
engaged is shown in the display.
X To deactivate: press program selector
button repeatedly until Sor Mappears in
the display.
or X
Restart the engine.
The automatic transmission then switches
to the automatic gearshift program.
Upshifting X
Press the right-hand button on the steering
wheel.
The automatic transmission shifts up to the
next gear.
Downshifting G
Risk of accident
Do not change down for additional engine
braking on a slippery road surface. This
could cause the drive wheels to lose their
grip and the vehicle could skid.
X Press the left-hand button on the steering
wheel.
The automatic transmission shifts down to
the next gear.
Kickdown You can also use kickdown for maximum
acceleration in manual gearshift program
M. Controls
* optional
164_AKB; 5; 5, en-GB
wobuchh
, Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 111 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Instrument cluster
113
Upshifting !
In manual gearshift program M, the auto-
matic transmission does not shift up auto-
matically even when the limiting speed for
the current gear is reached. When the lim-
iting speed is reached, the fuel supply is cut
to prevent the engine from overrevving.
You must make sure that the engine speed
does not reach the red area of the rev coun-
ter. There is otherwise a risk of engine
damage.
If the engine speed reaches the red area, an
upshift indicator will be shown in the display
if the AMG display is switched on. 1
Gear indicator
2 Upshift indicator
X Press the right-hand button on the steering
wheel.
The automatic transmission shifts up to the
next gear. Downshifting G
Risk of accident
Do not change down for additional engine
braking on a slippery road surface. This
could cause the drive wheels to lose their
grip and the vehicle could skid.
X Press the left-hand button on the steering
wheel.
The automatic transmission shifts down to
the next gear. Instrument cluster
Points to remember
You will find an illustration of the instrument
cluster in the "At a glance" section
(Y page 26). G
Risk of accident
If the instrument cluster or the multi-func-
tion display fails, no messages can be dis-
played.
This means that you will not see information
about the driving situation, such as the
speed, outside temperature, warning/indi-
cator lamps, display messages or system
failures. The handling characteristics may
be affected. Adapt your driving style and
speed accordingly.
Immediately consult a qualified specialist
workshop which has the necessary special-
ist knowledge and tools to carry out the
work required. Mercedes-Benz recom-
mends that you use a Mercedes-Benz
Service Centre for this purpose. In particu-
lar, work relevant to safety or on safety-
related systems must be carried out at a
qualified specialist workshop. Cont
rols
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 113 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

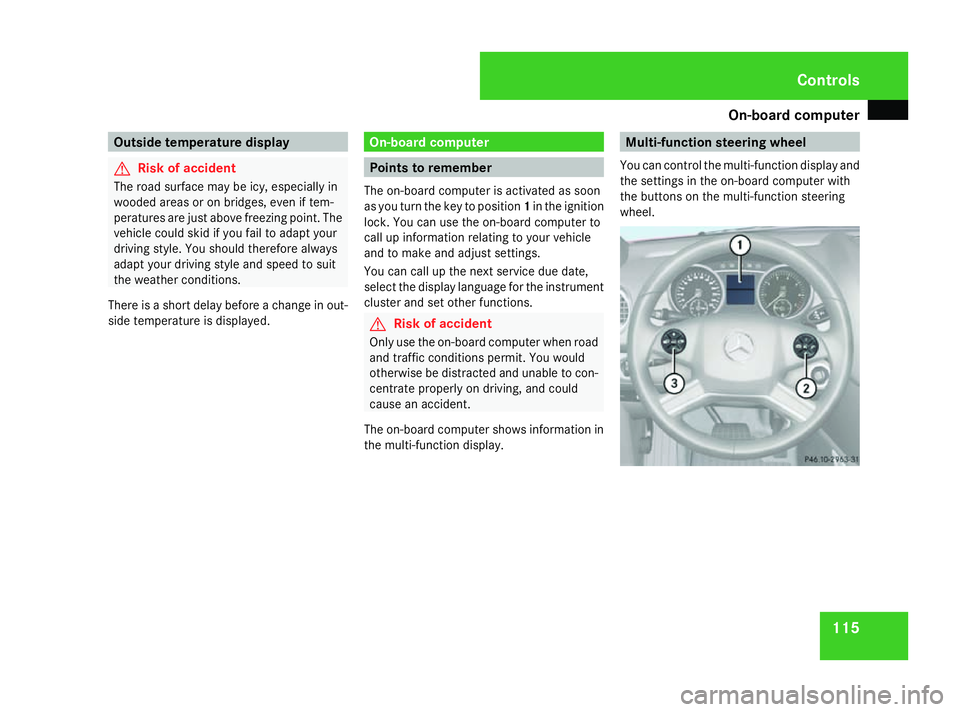

On-board computer
115Outside temperature display
G
Risk of accident
The road surface may be icy, especially in
wooded areas or on bridges, even if tem-
peratures are just above freezing point. The
vehicle could skid if you fail to adapt your
driving style. You should therefore always
adapt your driving style and speed to suit
the weather conditions.
There is a short delay before a change in out-
side temperature is displayed. On-board computer
Points to remember
The on-board computer is activated as soon
as you turn the key to position 1in the ignition
lock. You can use the on-board computer to
call up information relating to your vehicle
and to make and adjust settings.
You can call up the next service due date,
select the display language for the instrument
cluster and set other functions. G
Risk of accident
Only use the on-board computer when road
and traffic conditions permit. You would
otherwise be distracted and unable to con-
centrate properly on driving, and could
cause an accident.
The on-board computer shows information in
the multi-function display. Multi-function steering wheel
You can control the multi-function display and
the settings in the on-board computer with
the buttons on the multi-function steering
wheel. Controls
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 115 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

On-board computer
123
X
Press the èor· button to select the
AMG menu.
X Press the jbutton repeatedly until the
overall evaluation appears. 1
RACETIMER overall evaluation
2 Total time driven
3 Top speed
4 Distance covered
5 Average speed
Lap evaluation This function is only available if you have
stored at least two laps and have stopped the
RACETIMER. X
Press the èor· button to select the
AMG menu.
X Press the jbutton repeatedly until a lap
evaluation appears.
Each lap is shown in a separate submenu.
The fastest lap is indicated by flashing sym-
bol 1. 1
Lap
2 Lap time
3 Top speed during lap
4 Lap length
5 Average lap speed
X Press the jork button to select a
different lap evaluation. Off-road mode menu
(only ML 63 AMG)
In the Off-road mode menu you can switch
the off-road drive program (Y page 140) on
or off. Use the buttons on the multi-function
steering wheel.
X Press the èor· button to select the
Off-road mode menu.
X Press the æorç button to switch
Off-road mode on or off.
i The setting will remain stored after you
switch off the engine.
If the off-road drive program is switched on,
you will see off-road display 1in the multi-
function display. 1
Off-road display Controls
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 123 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

On-board computer
133
X
Press the æorç button to select
one of the three switch-on times or Timer
off (auxiliary heating switched off).
When a switch-on time is selected, the yel-
low indicator lamp lights up in the auxiliary
heating button.
X Press the j,èorÿ button to
select a different display.
Changing the switch-on time for the
auxiliary heating* This function is only displayed if you have
selected a switch-on time. Here you can enter
the time at which the auxiliary heating is to
be switched on.
X
Press èor· to select the Set-
tings menu.
X Press the jbutton to call up the selec-
tion of submenus.
X Press the æorç button to select the
Heater submenu.
X Press the jbutton to select Switch-on
time X Set hours.
X Press the æorç button to set the
hour.
X Press the jbutton to select Switch-on
time X Set minutes . X
Press the æorç button to set the
minutes.
After changing from one menu to another,
the new time setting is stored. The yellow
indicator lamp lights up on the button for
the auxiliary heating on the centre console.
X Press the j,èorÿ button to
select a different display.
Activating or deactivating the easy-
entry/exit feature* i
For more information on the easy-entry/
exit feature, (Y page 84). G
Risk of injury
When the easy-entry/exit feature is active,
the steering wheel moves. There is a risk of
occupants becoming trapped. Before acti-
vating the easy-entry/exit feature, make
sure that nobody can become trapped.
Do not leave children unsupervised in the
vehicle, even if they are secured in a child
restraint system. The children could open
the driver's door and thereby unintention-
ally activate the easy-entry/exit feature
and become trapped. X
Press èor· to select the Set-
tings menu.
X Press the jbutton to call up the selec-
tion of submenus.
X Press æorç to select the Conve-
nience submenu.
X Press the jbutton to select the EASY-
ENTRY system.
X Press the æorç button to activate
or deactivate the EASY-ENTRY system.
X Press the j,èorÿ button to
select a different display.
Activating/deactivating the Fold in mir-
rors when locking* function The
Fold in mirrors when locking func-
tion allows you to determine whether the
exterior mirrors should fold in when you lock
the vehicle. When you switch on the ignition,
the exterior mirrors fold out again.
If you have switched the function on and you
fold in the exterior mirrors using the button
on the door (Y page 86), they will not fold out
automatically. The exterior mirrors can then
only be folded out using the button on the
door. Controls
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 133 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys
tems 159
consumption increases and handling per-
formance is affected.
1
Button
2 Indicator lamp
X Start the engine.
X Press button 1.
Indicator lamp 2flashes. The vehicle rises
to the raised level. While the adjustment is taking place, a mes-
sage appears in the multi-function display,
e.g. : If you press the
æorç button on the
multi-function steering wheel, the message
will disappear.
Once the vehicle has reached the raised level,
indicator lamp 2remains lit. You will see a
message in the multi-function display, for
example: If you have not previously selected the off-
road menu (Y
page 126) in the on-board
computer, the message disappears after
about five seconds. If you try to select the raised level at a speed
above 70 km/h, the Level selection not
permitted message appears
Highway/high-speed level
! Make sure there is enough ground clear-
ance when the vehicle is being lowered. It
could otherwise hit the ground, damaging
the underbody. 1
Button
2 Indicator lamp
X Start the engine.
If indicator lamp 2is lit:
X Press button 1.
Indicator lamp 2flashes. The vehicle is
adjusting to highwa y/high-speed level. Controls
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 159 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
