MERCEDES-BENZ ML320 2008 W164 Owner's Manual

460 Practical hints
Resetting activated head restraints
Firmly press the active head restraint
cushion backward towards the head
restraint cover in direction of arrow
until it engages.
Repeat this procedure on the active
head restraint for the second front
seat.
After resetting the active head
restraints store reset tool1 in the
Mercedes-Benz vehicle literature
pouch.
For information on active head restraints,
see “Active head restraint” (
page 88).
For information on head restraint adjust-
ment, see “Seats” (
page 43).


461 Practical hints
Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove mechanical key1 from the
SmartKey or SmartKey with
KEYLESS-GO* (
page 455).1Mechanical key
2Battery compartment
Insert mechanical key1 into opening.
Press mechanical key1 in direction of
arrow.
The battery compartment2 is
unlatched.
Pull battery compartment2 out of the
SmartKey housing.
Warning!G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen inserting the batteries, make sure
they are clean and free of lint.
iWhen replacing batteries, always replace
both batteries.
The required replacement batteries are available
at any Mercedes-Benz Light Truck Center.


462 Practical hints
Replacing SmartKey batteries
3Batteries
4Contact spring
Pull out batteries3.
Using a line-free cloth, insert new
batteries3 under contact springs4
with the positive terminal (+) side
facing up.
Return battery compartment2 into
housing until it locks into place.
Slide mechanical key1 back into the
SmartKey or SmartKey with
KEYLESS-GO*.
Check the operation of the SmartKey
or SmartKey with KEYLESS-GO*.


463 Practical hints
Replacing bulbs
Replacing bulbs
Bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Light Truck Center for
headlamp adjustment.iIf the headlamps or front fog lamps are
fogged up on the inside as a result of high humid-
ity, driving the vehicle a distance with the lights
on should clear up the fogging.iSubstitute bulbs will be brought into use
when the following lamps malfunction:

Turn signal lamps

Brake lamps

Parking lamps

Tail lamps
Read and observe the messages in the multi-
function display (
page 438).

464 Practical hints
Replacing bulbs

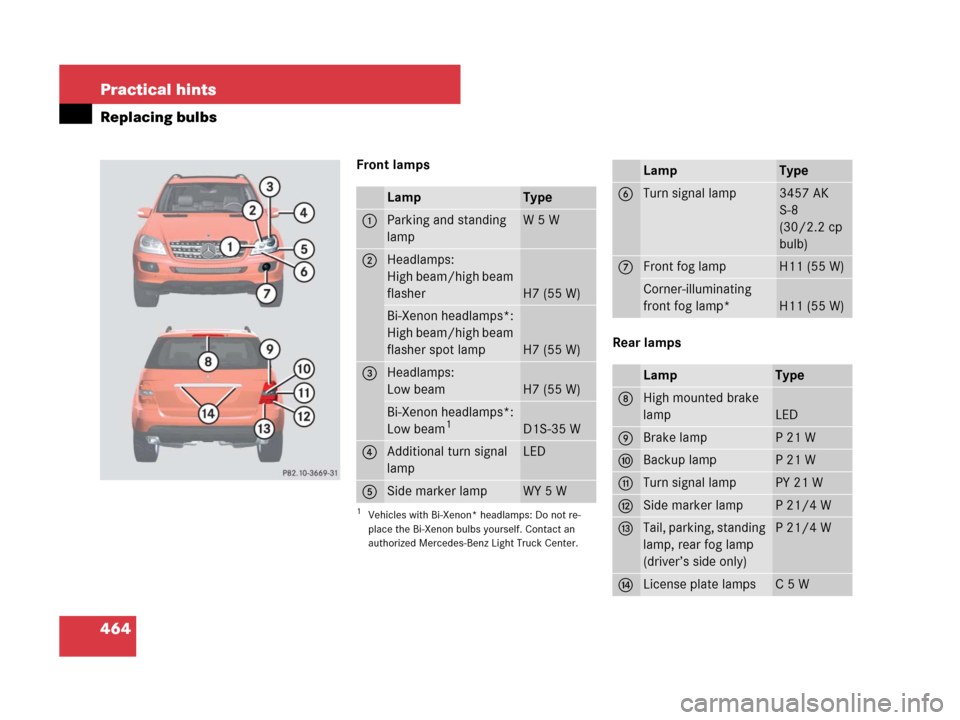

Front lamps
Rear lamps
LampType
1Parking and standing
lampW5W
2Headlamps:
High beam/high beam
flasher
H7 (55 W)
Bi-Xenon headlamps*:
High beam/high beam
flasher spot lamp
H7 (55 W)
3Headlamps:
Low beam
H7 (55 W)
Bi-Xenon headlamps*:
Low beam1
1Vehicles with Bi-Xenon* headlamps: Do not re-
place the Bi-Xenon bulbs yourself. Contact an
authorized Mercedes-Benz Light Truck Center.
D1S-35 W
4Additional turn signal
lampLED
5Side marker lampWY 5 W
LampType
6Turn signal lamp3457 AK
S-8
(30/2.2 cp
bulb)
7Front fog lampH11 (55 W)
Corner-illuminating
front fog lamp*
H11 (55 W)
LampType
8High mounted brake
lamp
LED
9Brake lampP21W
aBackup lampP21W
bTurn signal lampPY 21 W
cSide marker lampP 21/4 W
dTail, parking, standing
lamp, rear fog lamp
(driver’s side only)P 21/4 W
eLicense plate lampsC5W

465 Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12-volt bulbs of the same type
and with the specified watt rating.

Switch lights off before changing a bulb
to prevent short circuits.

Always use a clean lint-free cloth when
handling bulbs.

Your hands should be dry and free of oil
and grease.

If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Light Truck Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Light Truck Center:

the additional turn signal lamps in the
exterior rear view mirrors

the high mounted brake lamp

the Bi-Xenon* low beam lamps

the Bi-Xenon high beam flasher spot-
light*
Warning!G
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before chang-
ing a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot

drop the bulb

scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
!Do not replace the LEDs yourself. You could
otherwise damage the LEDs or parts of the vehi-
cle. Only have the LEDs replaced by a an autho-
rized Mercedes-Benz Light Truck Center.
iReplacing the bulbs for the front lamps is a
technically complex process. For your conve-
nience, we recommend that you have this work
carried out by an authorized Mercedes-Benz
Light Truck Center.
Have the headlamp adjustment checked
regularly.

466 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 135).
Open the hood (page 341).

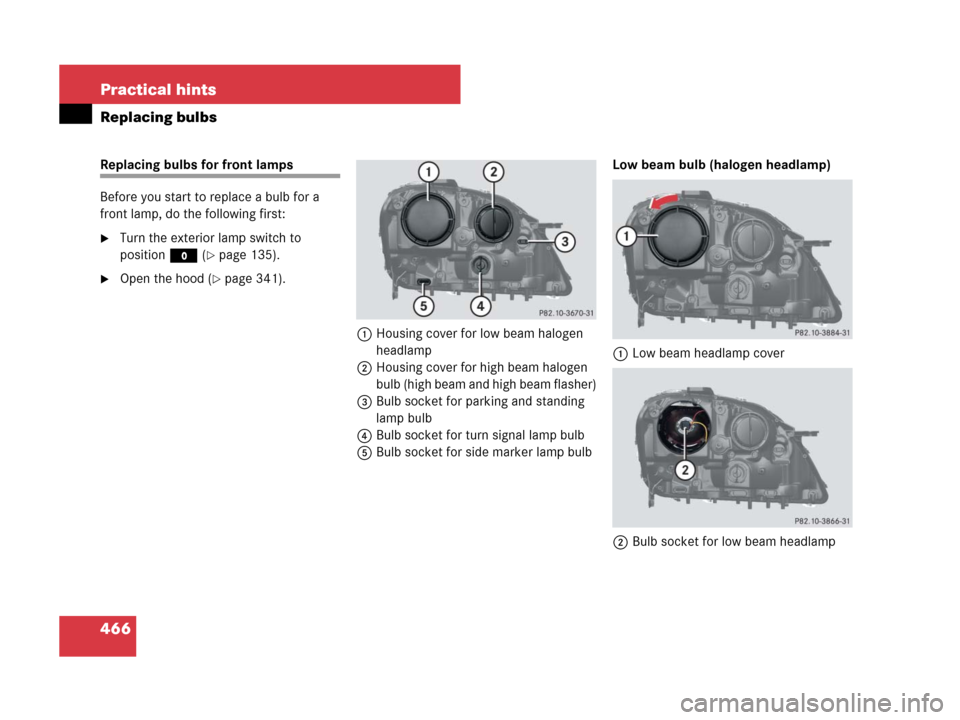

1Housing cover for low beam halogen
headlamp
2Housing cover for high beam halogen
bulb (high beam and high beam flasher)
3Bulb socket for parking and standing
lamp bulb
4Bulb socket for turn signal lamp bulb
5Bulb socket for side marker lamp bulbLow beam bulb (halogen headlamp)
1Low beam headlamp cover
2Bulb socket for low beam headlamp

467 Practical hints
Replacing bulbs
Turn cover1 counterclockwise.
Remove cover1.
Turn bulb socket2 counterclockwise.
Pull bulb socket2 out of the
headlamp housing.
Pull the low beam bulb out of bulb
socket2.
Insert the new low beam bulb into bulb
socket2.
Insert bulb socket2 into the
headlamp housing.
Turn bulb socket2 clockwise until it
engages.
Place cover1 on the opening in the
headlamp housing.
Turn cover1 clockwise until it engag-
es.Bi-Xenon* low beam/high beam

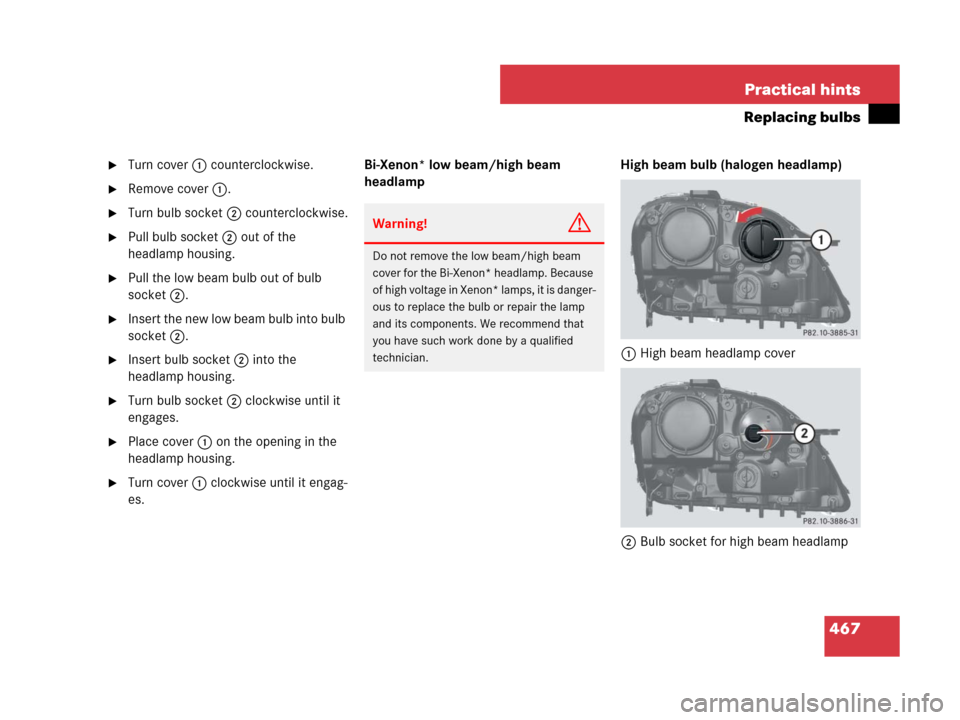

headlampHigh beam bulb (halogen headlamp)
1High beam headlamp cover
2Bulb socket for high beam headlamp
Warning!G
Do not remove the low beam/high beam
cover for the Bi-Xenon* headlamp. Because
of high voltage in Xenon* lamps, it is danger-
ous to replace the bulb or repair the lamp
and its components. We recommend that
you have such work done by a qualified
technician.

468 Practical hints
Replacing bulbs
Turn cover1 counterclockwise.
Remove cover1.
Turn bulb socket2 counterclockwise.
Pull bulb socket2 out of the
headlamp housing.
Pull the high beam bulb out of bulb
socket2.
Insert the new high beam bulb into bulb
socket2.
Insert bulb socket2 into the
headlamp housing.
Turn bulb socket2 clockwise until it
engages.
Place cover1 on the opening in the
headlamp housing.
Turn cover1 clockwise until it engag-

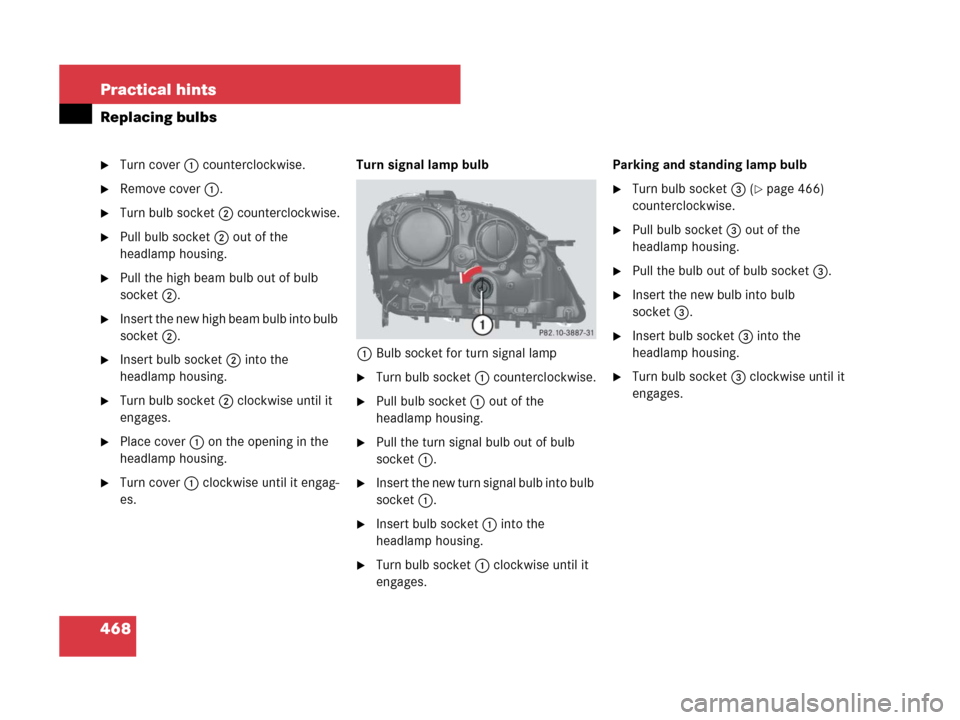

es.Turn signal lamp bulb
1Bulb socket for turn signal lamp
Turn bulb socket1 counterclockwise.
Pull bulb socket1 out of the
headlamp housing.
Pull the turn signal bulb out of bulb
socket1.
Insert the new turn signal bulb into bulb
socket1.
Insert bulb socket1 into the
headlamp housing.
Turn bulb socket1 clockwise until it
engages.Parking and standing lamp bulb
Turn bulb socket3 (page 466)
counterclockwise.
Pull bulb socket3 out of the
headlamp housing.
Pull the bulb out of bulb socket3.
Insert the new bulb into bulb
socket3.
Insert bulb socket3 into the
headlamp housing.
Turn bulb socket3 clockwise until it
engages.

469 Practical hints
Replacing bulbs
Side marker lamp bulb
Turn bulb socket5 (page 466)
counterclockwise.
Pull bulb socket5 out of the
headlamp housing.
Pull the side marker bulb out of bulb
socket5.
Insert the new side marker bulb into
bulb socket5.
Insert bulb socket5 into the
headlamp housing.
Turn bulb socket5 clockwise until it
engages.Front fog lamp bulbs

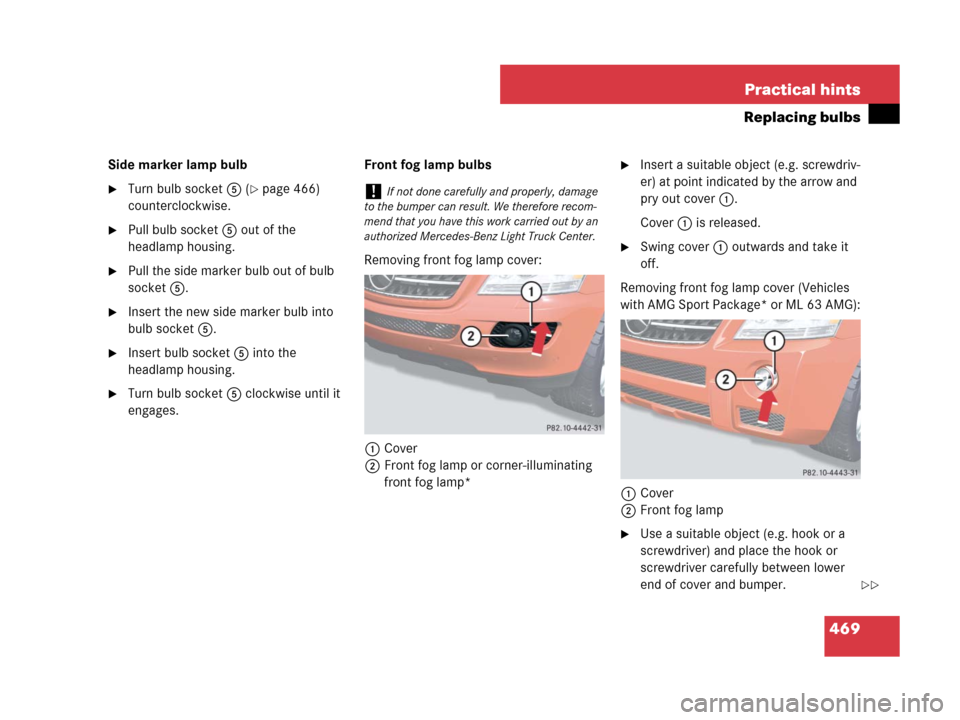

Removing front fog lamp cover:
1Cover
2Front fog lamp or corner-illuminating
front fog lamp*
Insert a suitable object (e.g. screwdriv-
er) at point indicated by the arrow and
pry out cover1.
Cover1 is released.
Swing cover1 outwards and take it
off.
Removing front fog lamp cover (Vehicles
with AMG Sport Package* or ML 63 AMG):
1Cover
2Front fog lamp
Use a suitable object (e.g. hook or a
screwdriver) and place the hook or
screwdriver carefully between lower
end of cover and bumper.
!If not done carefully and properly, damage
to the bumper can result. We therefore recom-
mend that you have this work carried out by an
authorized Mercedes-Benz Light Truck Center.
