Contents
Oxidation catalyst
(diesel engine).............................. 335
Emission control .......................... 335
Coolant temperature .................... 336
At the gas station .............................. 337
Refueling ...................................... 337
Check regularly and
before a long trip.......................... 339
Engine compartment ......................... 341
Hood ............................................ 341
Engine oil ..................................... 343
Transmission fluid level ................ 345
Coolant level ................................ 345
Windshield/rear window
washer system and
headlamp cleaning system* ........ 346
Tires and wheels ................................ 348
Important guidelines .................... 348
Tire care and maintenance........... 349
Direction of rotation ..................... 351
Loading the vehicle ...................... 351
Recommended tire
inflation pressure ......................... 357
Checking tire inflation pressure ... 359
Tire labeling.................................. 370
Load identification ....................... 374DOT, Tire Identification Number
(TIN) .............................................. 374
Maximum tire load ........................ 376
Maximum tire inflation pressure ... 376
Uniform Tire Quality Grading
Standards (U.S. vehicles) .............. 377
Tire ply material ............................ 379
Tire and loading terminology......... 379
Rotating tires ................................ 382
Winter driving ..................................... 384
Winter tires ................................... 384
Block heater (Canada only) ........... 385
Snow chains.................................. 385
Maintenance....................................... 386
Maintenance service indicator
message ....................................... 386
Calling up the maintenance
service indicator display ............... 388
Resetting the maintenance
service indicator ........................... 388
Vehicle care........................................ 389
Cleaning and care of the vehicle ... 389
Practical hints.................................. 399
What to do if … ................................... 400
Lamps in instrument cluster ......... 400
Lamp in center console ................ 411
Vehicle status messages in the
multifunction display .................... 413
Where will I find ...? ............................ 448
First aid kit.................................... 448
Vehicle tool kit.............................. 448
Minispare wheel
(except ML 63 AMG) ..................... 452
Collapsible tire
(ML 63 AMG only) ......................... 453
Unlocking/locking in an emergency .. 455
Unlocking the vehicle ................... 455
Locking the vehicle ....................... 456
Unlocking and opening
the tailgate ................................... 456
Fuel filler flap ................................ 457
Resetting activated head restraints.... 458
Vehicles without Rear seat
entertainment system*................. 458
Vehicles with Rear seat
entertainment system*................. 459
Replacing SmartKey batteries ............ 461

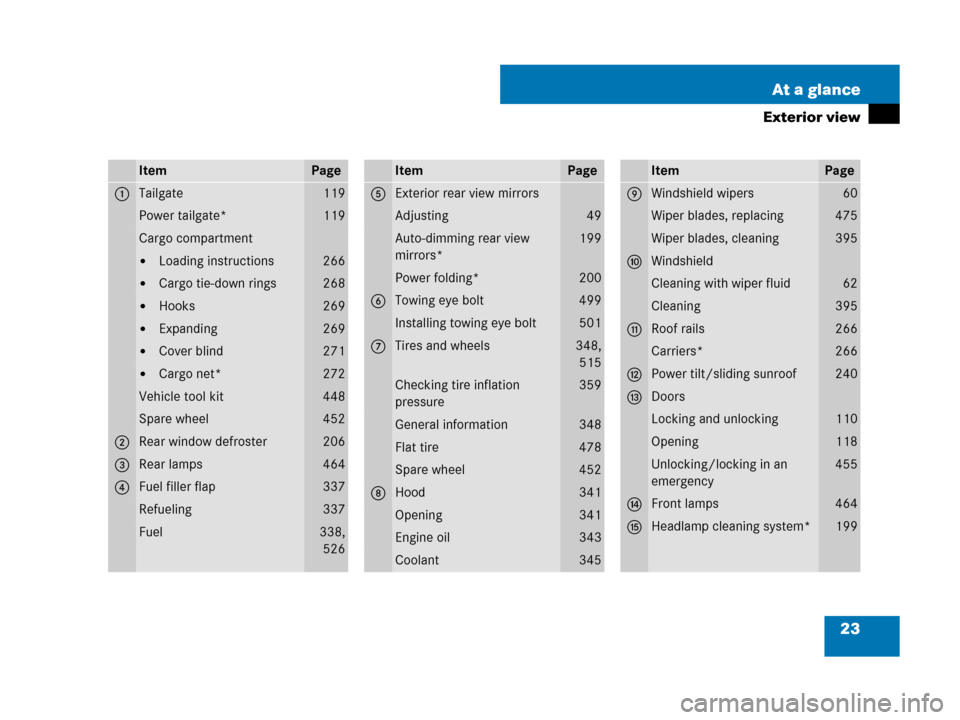

23 At a glance
Exterior view
ItemPage
1Tailgate119
Power tailgate*119
Cargo compartment

Loading instructions266

Cargo tie-down rings268

Hooks269

Expanding269

Cover blind271

Cargo net*272
Vehicle tool kit448
Spare wheel452
2Rear window defroster206
3Rear lamps464
4Fuel filler flap337
Refueling337
Fuel338,
526
ItemPage
5Exterior rear view mirrors
Adjusting49
Auto-dimming rear view
mirrors*199
Power folding*200
6Towing eye bolt499
Installing towing eye bolt501
7Tires and wheels348,
515
Checking tire inflation
pressure359
General information348
Flat tire478
Spare wheel452
8Hood341
Opening341
Engine oil343
Coolant345
ItemPage
9Windshield wipers60
Wiper blades, replacing475
Wiper blades, cleaning395
aWindshield
Cleaning with wiper fluid62
Cleaning395
bRoof rails266
Carriers*266
cPower tilt/sliding sunroof240
dDoors
Locking and unlocking110
Opening118
Unlocking/locking in an
emergency455
eFront lamps464
fHeadlamp cleaning system*199

311 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent,
depends on driving habits and operating
conditions.
To save fuel you should:

Keep tires at the recommended infla-
tion pressures.

Remove unnecessary loads.

Remove carriers* when not in use.

Allow engine to warm up under low
load use.

Avoid frequent acceleration and decel-
eration.

Have all maintenance work performed
at the intervals specified in the
Maintenance Booklet and as required
by the Maintenance System. Contact
an authorized Mercedes-Benz Light
Truck Center.
Fuel consumption is also increased by driv-
ing in cold weather, in stop-and-go traffic,
on short trips and in hilly areas.
Drinking and drivingPedals
Warning!G
Drinking and driving and/or taking drugs
and driving are a very dangerous combina-
tion. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal
accident are greatly increased when you
drink or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!G
Make sure that absolutely no objects are ob-
structing the pedal’s range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate. This could lead to accidents
and injury.

338 Operation
At the gas station
Briefly push on fuel filler flap1 at the
position indicated by the arrow.
Fuel filler flap1 opens slightly.
Open fuel filler flap1 completely.
Turn fuel filler cap2 counterclock-
wise and hold on to it until possible
pressure is released.
Take off fuel filler cap2.
Set fuel filler cap2 on fuel filler
flap1 as shown.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.
Only fill your tank until the filler nozzle
unit cuts out – do not top off or over-
fill.
Replace fuel filler cap2 by turning it
clockwise until it audibly engages.
Close fuel filler flap1.
You should hear the latch close shut.
!The fuel filler cap is tethered to the fuel filler
neck. Do not drop the cap. It could damage the
vehicle paint finish.
Warning!G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.
iMake sure to close the fuel filler flap before
locking your vehicle as the flap locking pin
prevents closing after you have locked the
vehicle.
iLeaving the engine running and the fuel cap
open can cause the yellow fuel tank reserve
warning lamp to flash and the ?malfunction
indicator lamp (USA only) or the± malfunc-
tion indicator lamp (Canada only) comes on.
For more information, see “Practical hints”
(
page 403).
iGasoline engine:
Only use premium unleaded gasoline with a min-
imum Posted Octane Rating of 91 (average of
96 RON/86 MON). Information on gasoline
quality can normally be found on the fuel pump.
Please contact gas station personnel in case
labels on the pump cannot be found.
For more information on gasoline, see “Premium
unleaded gasoline (gasoline engine)”
(
page 526), see “Fuel requirements”
(
page 526), and the Factory Approved Service
Products pamphlet (USA only) or contact an
authorized Mercedes-Benz Light Truck Center.
iDiesel engine:
Only use commercially available vehicular
ULTRA-LOW SULFUR HIGHWAY DIESEL FUEL
(15 ppm SULFUR MAXIMUM). Information on
diesel quality can normally be found on the fuel
pump. Please contact gas station personnel in
case labels on the pump cannot be found.
For more information on diesel fuels, refer to the
Factory Approved Service Products pamphlet
(USA only) or contact an authorized
Mercedes-Benz Light Truck Center.


340 Operation
At the gas station
Brake fluid
Coolant
For normal replenishing, use water (pota-
ble water quality).
For more information, see “Coolant level”
(
page 345) and see “Fuels, coolants, lu-
bricants” (
page 522).Windshield/rear window washer
system and headlamp cleaning
system*
For more information on refilling the wash-
er reservoir, see “Windshield/rear window
washer system and headlamp cleaning
system*” (
page 346).
Vehicle lighting
Check function and cleanliness. For infor-
mation on replacing light bulbs, see “Re-
placing bulbs” (
page 463).
For more information, see “Exterior lamp
switch” (
page 135).
Tire inflation pressure
For more information, see “Checking tire
inflation pressure” (
page 359).
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks immediately. Notify an
authorized Mercedes-Benz Light Truck Center
immediately. Do not add brake fluid as this will
not solve the problem. For more information, see
“Brake fluid” (
page 525).

351 Operation
Tires and wheels
Direction of rotation
Unidirectional tires offer added advantag-
es, such as better hydroplaning perfor-
mance. To benefit, however, you must
make sure the tires rotate in the direction
specified.
An arrow on the sidewall indicates the
intended direction of rotation (spinning) of
the tire.Loading the vehicle
Two labels on your vehicle show how much
weight it may properly carry.
1) The Tire and Loading Information
placard can be found on the driver’s
door B-pillar. This placard tells you im-
portant information about the number
of people that can be in the vehicle and
the total weight that can be carried in
the vehicle. It also contains information
on the proper size and recommended
tire inflation pressures for the original
equipment tires on your vehicle.2) The certification label, also found on
the driver’s door B-pillar tells you about
the gross weight capacity of your vehi-
cle, called the Gross Vehicle Weight
Rating (GVWR). The GVWR includes the
weight of the vehicle, all occupants,
fuel and cargo. The certification label
also tells you about the front and rear
axle weight capacity, called the Gross
Axle Weight Rating (GAWR). The GAWR
is the total allowable weight that can be
carried by a single axle (front or rear).
Never exceed the GVWR or GAWR for
either the front axle or rear axle.
iSpare wheels may be mounted against the
direction of rotation (spinning) even with a unidi-
rectional tire for temporary use only until the reg-
ular drive wheel has been repaired or replaced.
Always observe and follow applicable temporary
use restrictions and speed limitations indicated
on the spare wheel.

357 Operation
Tires and wheels
Recommended tire inflation pressure
Your vehicle is equipped with the Tire and
Loading Information placard located on the
driver’s door B-pillar (
page 352).
The tire inflation pressure should be
checked regularly and should only be ad-
justed on cold tires. The tires can be con-
sidered cold if the vehicle has been parked
for at least 3 hours or driven less than
1 mile (1.6 km).Follow recommended cold tire inflation
pressures listed on Tire and Loading
Information placard on the driver’s door
B-pillar.
Keeping the tires properly inflated
provides the best handling, tread life and
riding comfort.
In addition to the Tire and Loading
Information placard on the driver’s door
B-pillar, also consult the tire inflation
pressure label (if available) on the fuel filler
flap (page 337) for any additional infor-
mation pertaining to special driving situa-
tions. For more information, see
“Important notes on tire inflation pressure”
(
page 358).
Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit as indicated on the Tire
and Loading Information placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.

358 Operation
Tires and wheels
1Tire and Loading Information placard
with recommended cold tire inflation
pressures
The Tire and Loading Information placard
lists the recommended cold tire inflation
pressures for maximum loaded vehicle
weight. The tire inflation pressures listed
apply to the tires installed as original
equipment.Important notes on tire inflation
pressure
Tire temperature and tire inflation pressure
are also increased while driving, depending
on the driving speed and the tire load.
If you will be driving your vehicle at high
speeds of 100 mph (160 km/h) or higher,
where it is legal and conditions allow,
consult the tire inflation pressure label on
the inside of the fuel filler flap (if available)
on how to adjust the cold tire inflation
pressure. If you do not adjust the tire infla-
tion pressure, excessive heat can build up
and result in sudden tire failure.If your vehicle is not equipped with the tire
inflation pressure label on the inside of the
fuel filler flap, contact an authorized
Mercedes-Benz Light Truck Center for
proper tire inflation pressure.
Be sure to readjust the tire inflation
pressure for normal driving speeds. You
should wait until the tires are cold before
adjusting the tire inflation pressure.
Some vehicles may have supplemental tire
inflation pressure information for vehicle
loads less than the maximum loaded vehi-
cle condition. If such information is provid-
ed, it can be found on the tire inflation
pressure label located on the inside of the
fuel filler flap (
page 337).
iData shown on Tire and Loading Information
placard example are for illustration purposes
only. Tire data are specific to each vehicle and
may vary from data shown in the illustration
below. Refer to Tire and Loading Information
placard on vehicle for actual data specific to your
vehicle.
Warning!G
If the tire inflation pressure drops
repeatedly:

Check the tires for punctures from
foreign objects.

Check to see whether air is leaking from
the valves or from around the rim.
iDriving comfort may be reduced when the
tire inflation pressure is adjusted to the value for
speeds above 100 mph (160 km/h) as specified
on the tire inflation pressure label located on the
inside of the fuel filler flap.

359 Operation
Tires and wheels
Tire inflation pressure changes by approxi-
mately 1.5 psi (0.1 bar) per 18°F (10°C) of
air temperature change. Keep this in mind
when checking tire inflation pressure
where the temperature is different from
the outside temperature.
Checking tire inflation pressure
Regularly check your tire inflation pressure
at least once a month.
Check and adjust the tire inflation
pressure when the tires are cold. The tires
can be considered cold if the vehicle has
been parked for at least 3 hours or driven
less than 1 mile (1.6 km).
If you check the tire inflation pressure
when the tires are warm (the vehicle has
been driven for several miles or sitting less
than 3 hours), the reading will be
approximately 4 psi (0.3 bar) higher than
the cold reading. This is normal. Do not let
air out to match the specified cold tire
inflation pressure. Otherwise, the tire will
be underinflated.Checking tire inflation pressure
manually
Follow the steps below to achieve correct
tire inflation pressure:
Remove the cap from the valve on one
tire.
Firmly press a tire gauge onto the
valve.
Read tire inflation pressure on tire
gauge and check against the recom-
mended tire inflation pressure on the
Tire and Loading Information placard
on the driver’s door B-pillar
(
page 352) or, if available, the inside
of the fuel filler flap. If necessary, add
air to achieve the recommended tire in-
flation pressure.

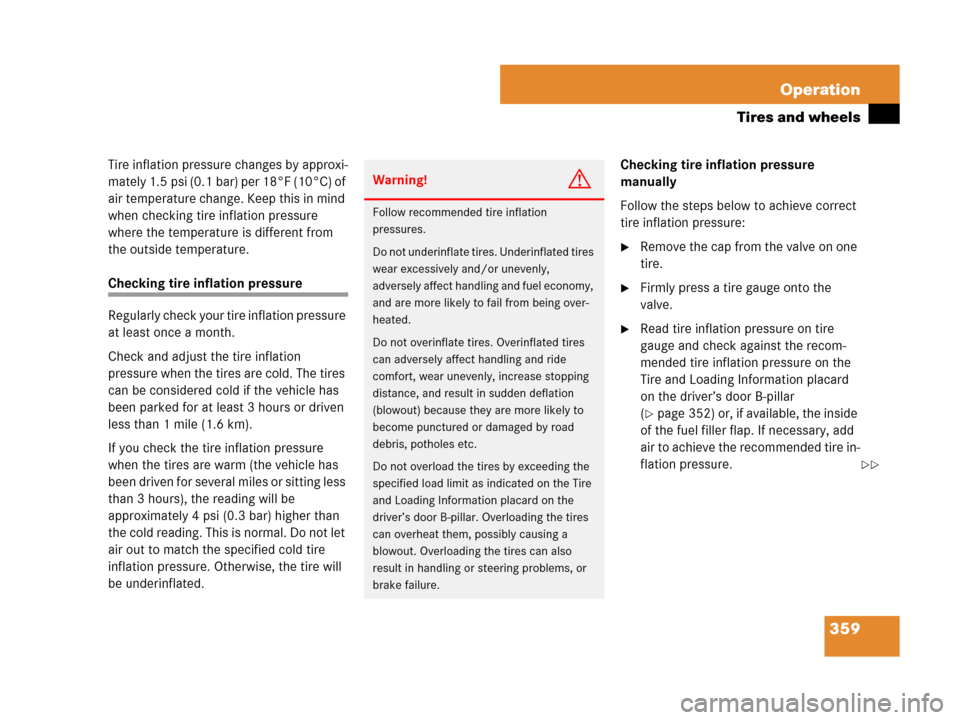

Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit as indicated on the Tire
and Loading Information placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.


360 Operation
Tires and wheels
Install the valve cap.
Repeat this procedure for each tire.Run Flat Indicator (Canada only)
While the vehicle is being driven, the Run
Flat Indicator monitors the set tire inflation
pressures by evaluating each wheel’s rota-
tional speed. This allows the system to de-
tect a significant loss of pressure in a tire.
If a wheel’s rotational speed changes due
to falling tire inflation pressure, you will
see a corresponding warning message in
the multifunction display.
The Run Flat Indicator may function in a
restricted manner or with a delay

if snow chains are mounted to the
vehicle

in presence of ice and snow

if you are driving on a loose surface
(e.g. sand or gravel)

if you are driving in a very sporty
manner (involving rapid acceleration or
high speeds in curves)
iIf you have overfilled the tire, release tire in-
flation pressure by pushing the metal stem of the
valve with e.g. a tip of a pen. Then recheck the
tire inflation pressure with the tire gauge.Warning!G

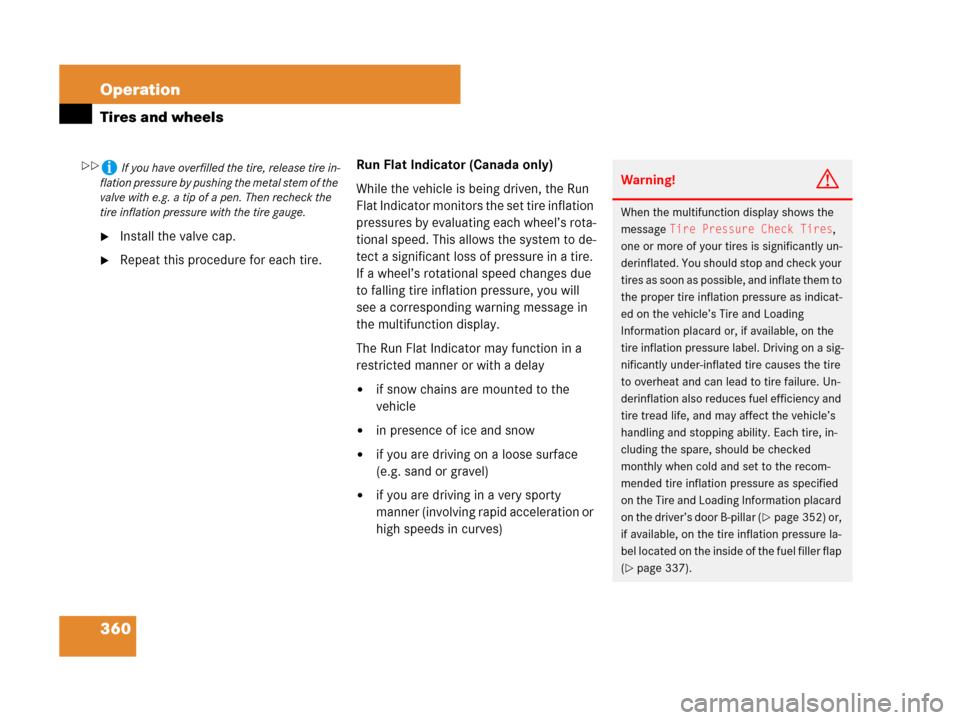

When the multifunction display shows the
message
Tire Pressure Check Tires,
one or more of your tires is significantly un-
derinflated. You should stop and check your
tires as soon as possible, and inflate them to
the proper tire inflation pressure as indicat-
ed on the vehicle’s Tire and Loading
Information placard or, if available, on the
tire inflation pressure label. Driving on a sig-
nificantly under-inflated tire causes the tire
to overheat and can lead to tire failure. Un-
derinflation also reduces fuel efficiency and
tire tread life, and may affect the vehicle’s
handling and stopping ability. Each tire, in-
cluding the spare, should be checked
monthly when cold and set to the recom-
mended tire inflation pressure as specified
on the Tire and Loading Information placard
on the driver’s door B-pillar (
page 352) or,
if available, on the tire inflation pressure la-
bel located on the inside of the fuel filler flap
(
page 337).
