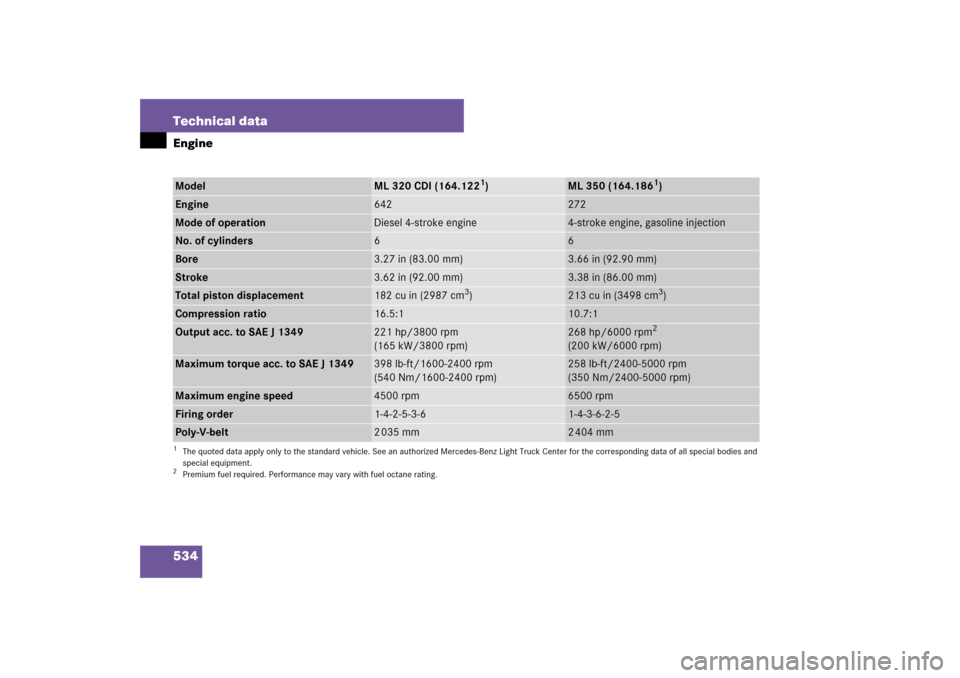

534 Technical dataEngineModel
ML 320 CDI (164.122
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Light Truck Center for the corresponding data of all special bodies and
special equipment.
ML 350 (164.186
1)
Engine
642
272
Mode of operation
Diesel 4-stroke engine
4-stroke engine, gasoline injection
No. of cylinders
6
6
Bore
3.27 in (83.00 mm)
3.66 in (92.90 mm)
Stroke
3.62 in (92.00 mm)
3.38 in (86.00 mm)
Total piston displacement
182 cu in (2987 cm
3)
213 cu in (3498 cm
3)
Compression ratio
16.5:1
10.7:1
Output acc. to SAE J 1349
221 hp/3800 rpm
(165 kW/3800 rpm)
268 hp/6000 rpm
2
(200 kW/6000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.Maximum torque acc. to SAE J 1349
398 lb-ft/1600-2400 rpm
(540 Nm/1600-2400 rpm)
258 lb-ft/2400-5000 rpm
(350 Nm/2400-5000 rpm)
Maximum engine speed
4500 rpm
6500 rpm
Firing order
1-4-2-5-3-6
1-4-3-6-2-5
Poly-V-belt
2 035 mm
2 404 mm

535 Technical data
Engine
Model
ML 500 (164.175
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Light Truck Center for the corresponding data of all special bodies and special
equipment.
ML 63 AMG (164.177
1)
Engine
113
156
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
8
Bore
3.82 in (97.00 mm)
4.02 in (102.20 mm)
Stroke
3.31 in (84.00 mm)
3.72 in (94.60 mm)
Total piston displacement
303 cu in (4966 cm
3)
378.8 cu in (6208 cm
3)
Compression ratio
10:1
11.3:1
Output acc. to SAE J 1349
302 hp/5600 rpm
2
(225 kW/5600 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
503 hp/6800 rpm
2
(375 kW/6800 rpm)
Maximum torque acc. to SAE J 1349
339 lb-ft/2700-4750 rpm
(460 Nm/2700-4750 rpm)
465 lb-ft/5200 rpm
(630 Nm/5200 rpm)
Maximum engine speed
6300 rpm
7200 rpm
Firing order
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2 370 mm
2 369 mm
