rims MERCEDES-BENZ ML320CDI 2007 W163 Comand Manual

ContentsReplacing bulbs ................................. 482
Bulbs ............................................ 482
Replacing bulbs for front lamps.... 485
Replacing bulbs for rear lamps ..... 490
Adjusting headlamp aim ............... 492
Replacing wiper blades ...................... 494
Front wiper blades ....................... 494
Rear wiper blade .......................... 495
Flat tire .............................................. 497
Preparing the vehicle.................... 497
Mounting the spare wheel ............ 498
Bleeding the fuel system
(diesel engine only) ............................ 506
Battery ............................................... 507
Disconnecting, removing,
reinstalling and
reconnecting the battery .............. 509
Charging the battery .................... 514
Jump starting ..................................... 515
Towing the vehicle ............................. 518
Installing towing eye bolt.............. 520
Stranded vehicle .......................... 521Fuses ................................................. 522
Fuse box in
engine compartment .................... 523
Fuse box in cargo compartment... 523
Fuse box in passenger
compartment ............................... 524
Emergency engine shut-down ...... 525
Technical data................................. 527
Parts service ...................................... 528
Warranty coverage............................. 529
Loss of Service and Warranty
Information Booklet ..................... 529
Identification labels ........................... 530
Layout of poly-V-belt drive ................. 532
ML 350 ........................................ 532
ML 320 CDI .................................. 532
ML 500 ........................................ 532
ML 63 AMG .................................. 533
Engine................................................ 534
Rims and tires.................................... 536
Same size tires ............................. 537
Spare wheel ................................. 538Electrical system ............................... 540
Main Dimensions ............................... 541
Weights ............................................. 542
Fuels, coolants, lubricants ................. 543
Capacities .................................... 543
Engine oils ................................... 546
Engine oil additives ...................... 546
Air conditioning refrigerant .......... 546
Brake fluid.................................... 546
Premium unleaded gasoline
(gasoline engine).......................... 547
Gasoline additives
(gasoline engine).......................... 547
Fuel requirements ........................ 548
Coolants ...................................... 549
Windshield washer and
headlamp cleaning* system......... 551
Index................................................. 553

74 Safety and SecurityOccupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.


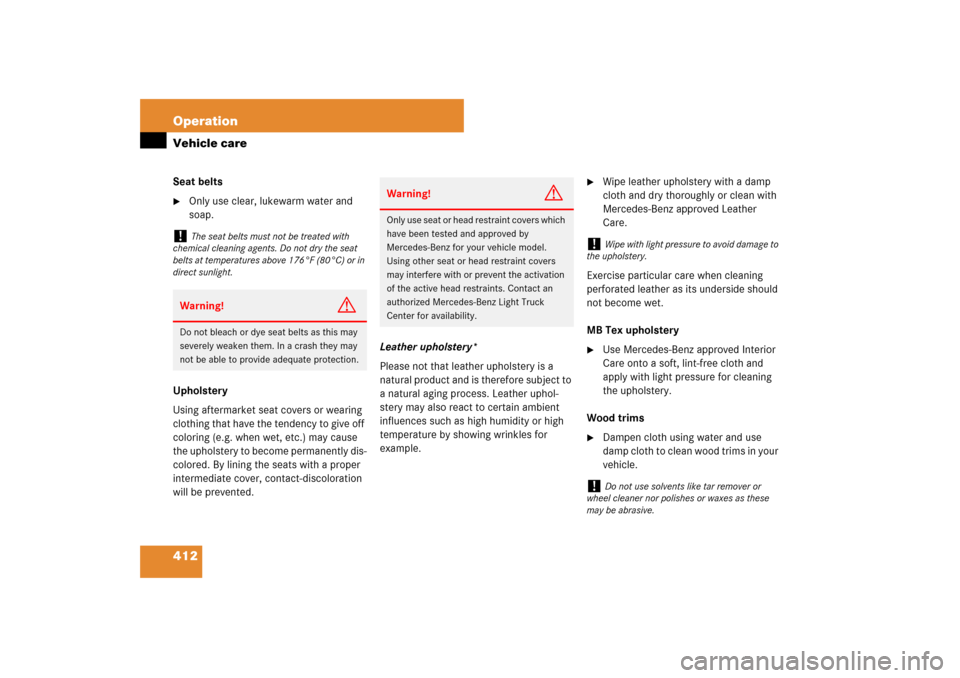

Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or
removing any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, front passenger front air bag
cover, outboard sides of the seat back-
rests, door trim panels, or door frame
trims, and installation of additional
electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).


Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when window curtain air bag is
deployed.


Air bag system components will be hot
after an air bag has inflated. Do not
touch.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Light Truck Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Light Truck Center.


Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other potentially more serious injuries
resulting from air bag deployment.
Warning!
G
Only use seat covers which have been
tested and approved by Mercedes-Benz for
your vehicle model. Using other seat covers
may interfere with or prevent the
deployment of the front side impact air bags
or the rear side impact air bags*. Contact an
authorized Mercedes-Benz Light Truck
Center for availability.


336 OperationDriving instructionsChecklist before off-road driving
Engine oil level

Check the engine oil level with the
control system (ML 500 only)
(page 358), or with the oil dipstick
(except ML 500) (
page 360).
Only with a proper oil level can the
vehicle obtain a trouble-free oil supply,
even on steep gradients.Tires


Check the tread depth and maintain
specified tire inflation pressure
(a placard with the recommended tire
inflation pressures is located on the
driver’s door B-pillar (
page 369)).


Check tires for possible damage and
remove foreign objects.


Replace missing valve caps.
Rims


Dented or bent rims can cause tire in-
flation pressure loss and damage the
tire beads. For this reason, check and,
if necessary, change rims before driv-
ing off-road.
Vehicle tool kit


Check if the vehicle jack (
page 471)
is functional.


In all cases take the vehicle tool kit, a
strong tow rope, a shovel and a small
plank (to put under the vehicle jack on
sandy soil) with you.Driving in steep terrain
Slope angle1 Overhang angle, front
2Overhang angle, rear
!
If the engine oil level warning lamp
(
page 453) comes on while driving, stop the
vehicle in a safe location or as soon at is safe to
do so. Check the engine oil level (
page 360).
The engine oil level warnings should not be
ignored. Extended driving with the symbol
displayed could result in serious engine damage
that is not covered by the Mercedes-Benz
Limited Warranty.
Vehicles with
steel suspen-
sion
1
1
1
1Vehicles with AMG Sport-Package*
2
31°
22°
29°

365 Operation
Tires and wheels
Tires and wheels
See an authorized Mercedes-Benz Light
Truck Center for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and
purchase.
Important guidelines

Only use sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Break in new tires for approximately
60 miles (100 km) at moderate
speeds.


Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss or
damage to the tire beads.


If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Light Truck Center for fur-
ther information. If incorrectly sized rims
and tires are mounted:

The wheel brakes or suspension
components can be damaged.


The operating clearance of the wheels
and the tires may no longer be correct.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on re-
treads. The operating safety of the vehicle
cannot be assured when such tires are used.

385 Operation
Tires and wheels

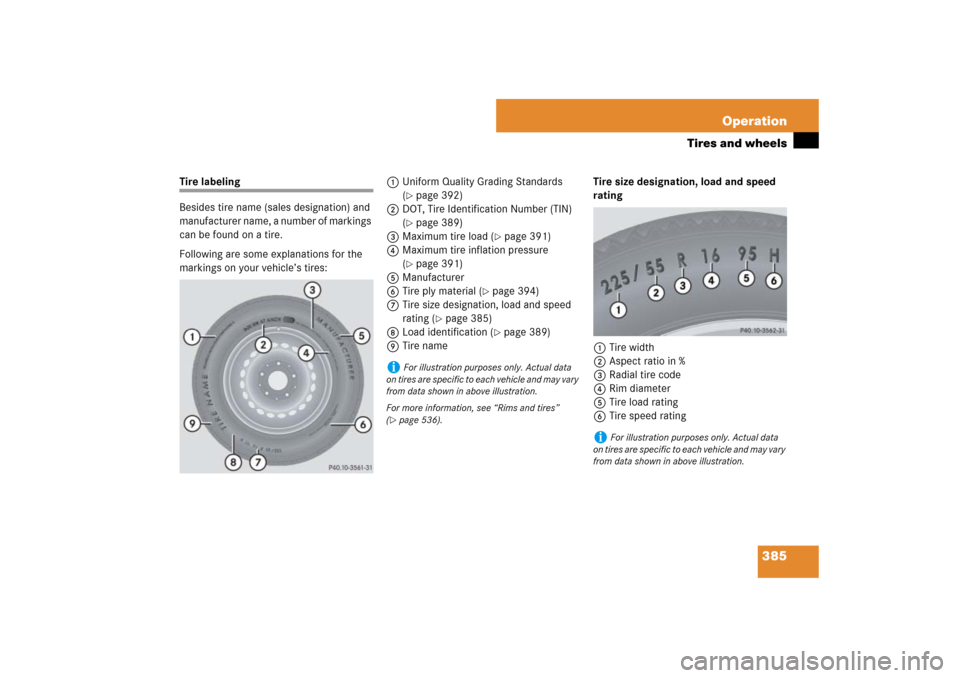

Tire labeling
Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.
Following are some explanations for the
markings on your vehicle’s tires:1Uniform Quality Grading Standards
(
page 392)
2DOT, Tire Identification Number (TIN)
(page 389)
3Maximum tire load (
page 391)
4Maximum tire inflation pressure
(
page 391)
5Manufacturer
6Tire ply material (
page 394)
7Tire size designation, load and speed
rating (
page 385)
8Load identification (
page 389)
9Tire nameTire size designation, load and speed
rating
1Tire width
2Aspect ratio in %
3Radial tire code
4Rim diameter
5Tire load rating
6Tire speed rating
i
For illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
For more information, see “Rims and tires”
(
page 536).
i
For illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.

387 Operation
Tires and wheels
For additional information on tire load
rating, see “Load identification”
(page 389).
Tire speed rating
The tire speed rating6 (
page 385)
indicates the approved maximum speed
for the tire.Summer tires
Warning!
G
The tire load rating must always be at least
half of the GAWR (
page 395) of your vehi-
cle. Otherwise, tire failure may be the result
which may cause an accident and/or seri-
ous personal injury to you or others.
Always replace rims and tires with the same
designation, manufacturer and type as
shown on the original part.
Warning!
G
Do not overload the tires by exceeding the
specified load limit as indicated on the plac-
ard located on the driver’s door B-pillar.
Overloading the tires can overheat them,
possibly causing a blowout. Overloading the
tires can also result in handling or steering
problems, or brake failure.
i
Tire load rating5 (
page 385) and Tire
speed rating6 (
page 385) are also referred
to as “service description”.
Warning!
G
Even when permitted by law, never operate
a vehicle at speeds greater than the
maximum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire
failure, causing loss of vehicle control and
possibly resulting in an accident and/or
personal injury and possible death, for you
and for others.
i
Tire load rating5 (
page 385) and Tire
speed rating6 (
page 385) are also referred
to as “service description”.
Index
Speed rating
Q
up to 100 mph (160 km/h)
R
up to 106 mph (170 km/h)
S
up to 112 mph (180 km/h)
T
up to 118 mph (190 km/h)
H
up to 130 mph (210 km/h)
V
up to 149 mph (240 km/h)
W
up to 168 mph (270 km/h)
Y
up to 186 mph (300 km/h)
(Y)
above 186 mph (300 km/h)
ZR
above 149 mph (240 km/h)

398 OperationTires and wheelsIn some cases, such as when your vehicle
is equipped with mixed-size tires (different
tire dimension front vs. rear), tire rotation
is not possible.
If applicable to your vehicle’s tire configu-
ration, tires can be rotated according to
the tire manufacturer’s recommended in-
tervals in the tire manufacturer’s warranty
pamphlet located in your vehicle literature
portfolio. If none is available, tires should
be rotated every 3 000 to 6 000 miles
(5 000 to 10 000 km), or sooner if neces-
sary, according to the degree of tire wear.
The same rotation (spinning) direction
must be maintained (
page 368).
Rotate tires before the characteristic tire
wear pattern becomes visible (shoulder
wear on front tires and tread center wear
on rear tires).
Thoroughly clean the mounting face of
wheels and brake disks, i.e. the inner side
of the wheels/tires, during each rotation.
Check for and ensure proper tire inflation
pressure.For information on wheel change, see the
“Practical hints” section (
page 469) and
(
page 497).Warning!
G
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightened with a torque of
110 lb-ft (150 Nm).
Only use genuine Mercedes-Benz wheel
bolts specified for your vehicle’s rims.

410 OperationVehicle careCleaning the windows and the wiper
blades
Fold the wiper arms forward until they
engage.

Clean the wiper blade inserts with a
clean cloth and detergent solution.

Use a soft, clean cloth and a mild win-
dow cleaning solution on all outside
and inside glass surfaces.
An automotive glass cleaner is recom-
mended.Light alloy wheels
If possible, clean wheels once a week.

Use Mercedes-Benz approved Wheel
Care, a soft bristle brush and a strong
spray of water for cleaning the light al-
loy wheels.
Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch
(vehicles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status
0) before cleaning the windshield
and/or the wiper blades. Otherwise, the
wiper motor could suddenly turn on and
cause injury.
!
Do not pull on the wiper blade inserts. They
could tear.
!
Fold the windshield wiper arms back onto
the windshield before turning the SmartKey in
the starter switch or pressing the KEYLESS-GO
start/stop button (vehicles with KEYLESS-GO*).
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
!
To clean the window interior, do not use a
dry cloth, abrasives, solvents or cleaners con-
taining solvents. Do not touch the inside of the
front, rear or side windows and the power
tilt/sliding sunroof* or rear panorama roof with
hard objects such as an ice scraper or ring.
Doing so may damage the windows.
!
Only use acid-free cleaning materials. Acid
may cause corrosion or damage the clear coat.
!
The vehicle should not be parked for an ex-
tended period of time immediately after it has
been cleaned, especially not after the wheel rims
have been cleaned with wheel rim cleaner.
Wheel rim cleaners can lead to increased
corrosion of the brake disks and brake pads.
Non-approved wheel cleaners may also damage
the wheel paint if the car is not driven after
cleaning. Therefore, the vehicle’s brake system
should always be warmed-up before it is parked
after cleaning. To do so, please drive your vehicle
for several minutes to allow the brakes to dry.
When applying Mercedes-Benz approved Tire
Care and Mercedes-Benz approved Wheel Care
products, take care not to spray them on the
brake disks.

412 OperationVehicle careSeat belts
Only use clear, lukewarm water and
soap.
Upholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.Leather upholstery*
Please not that leather upholstery is a
natural product and is therefore subject to
a natural aging process. Leather uphol-
stery may also react to certain ambient
influences such as high humidity or high
temperature by showing wrinkles for
example.

Wipe leather upholstery with a damp
cloth and dry thoroughly or clean with
Mercedes-Benz approved Leather
Care.
Exercise particular care when cleaning
perforated leather as its underside should
not become wet.
MB Tex upholstery

Use Mercedes-Benz approved Interior
Care onto a soft, lint-free cloth and
apply with light pressure for cleaning
the upholstery.
Wood trims

Dampen cloth using water and use
damp cloth to clean wood trims in your
vehicle.
!
The seat belts must not be treated with
chemical cleaning agents. Do not dry the seat
belts at temperatures above 176°F (80°C) or in
direct sunlight.
Warning!
G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Warning!
G
Only use seat or head restraint covers which
have been tested and approved by
Mercedes-Benz for your vehicle model.
Using other seat or head restraint covers
may interfere with or prevent the activation
of the active head restraints. Contact an
authorized Mercedes-Benz Light Truck
Center for availability.
!
Wipe with light pressure to avoid damage to
the upholstery.
!
Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as these
may be abrasive.

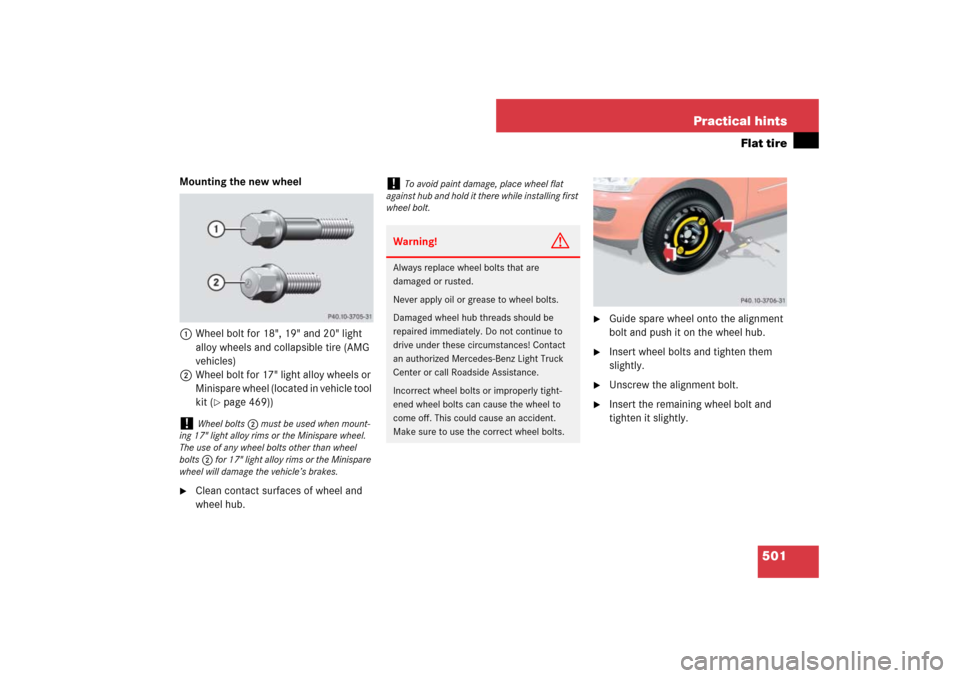

501 Practical hints
Flat tire
Mounting the new wheel
1Wheel bolt for 18", 19" and 20" light
alloy wheels and collapsible tire (AMG
vehicles)
2Wheel bolt for 17" light alloy wheels or
Minispare wheel (located in vehicle tool
kit (
page 469))

Clean contact surfaces of wheel and
wheel hub.

Guide spare wheel onto the alignment
bolt and push it on the wheel hub.

Insert wheel bolts and tighten them
slightly.

Unscrew the alignment bolt.

Insert the remaining wheel bolt and
tighten it slightly.
!
Wheel bolts2 must be used when mount-
ing 17" light alloy rims or the Minispare wheel.
The use of any wheel bolts other than wheel
bolts2 for 17" light alloy rims or the Minispare
wheel will damage the vehicle’s brakes.
!
To avoid paint damage, place wheel flat
against hub and hold it there while installing first
wheel bolt.
Warning!
G
Always replace wheel bolts that are
damaged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be
repaired immediately. Do not continue to
drive under these circumstances! Contact
an authorized Mercedes-Benz Light Truck
Center or call Roadside Assistance.
Incorrect wheel bolts or improperly tight-
ened wheel bolts can cause the wheel to
come off. This could cause an accident.
Make sure to use the correct wheel bolts.
