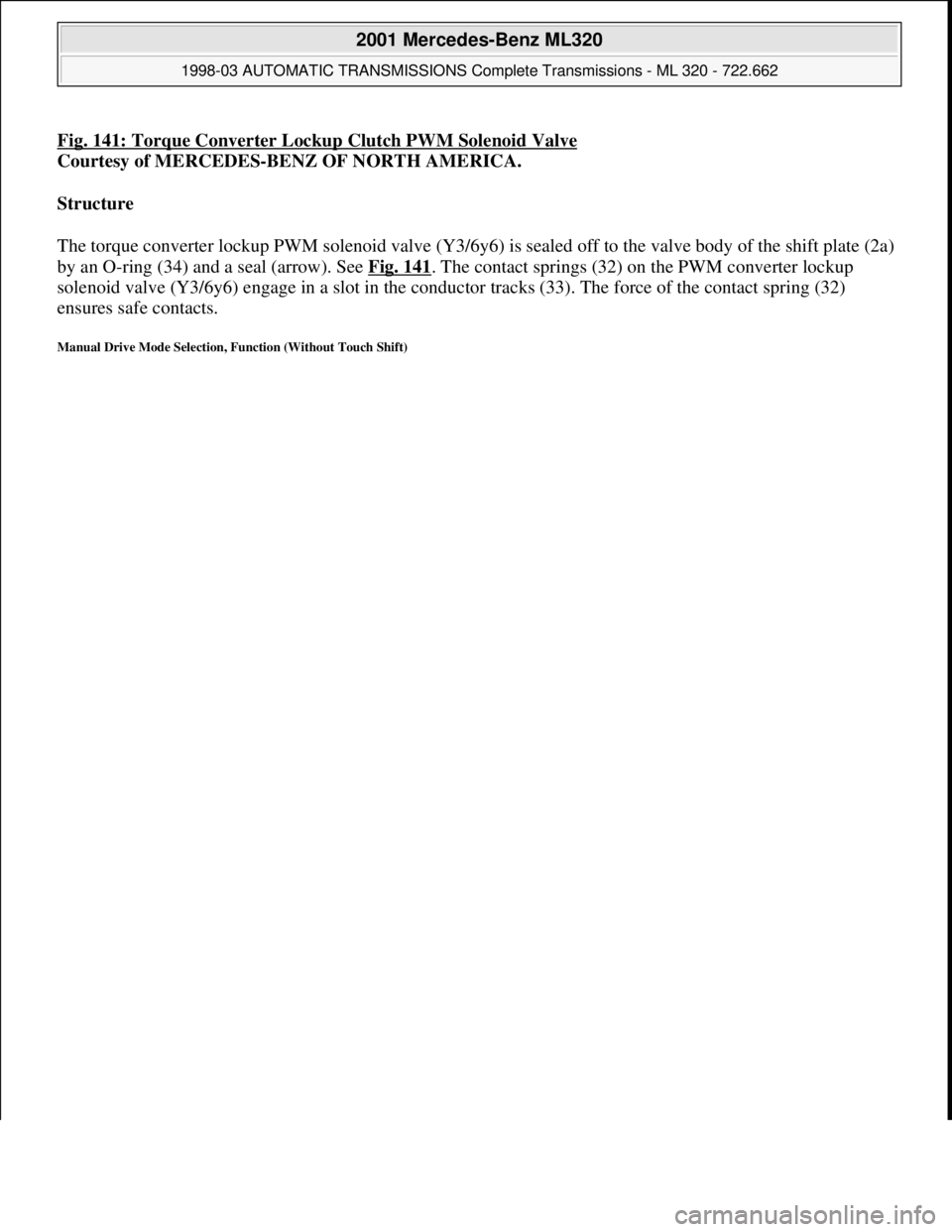

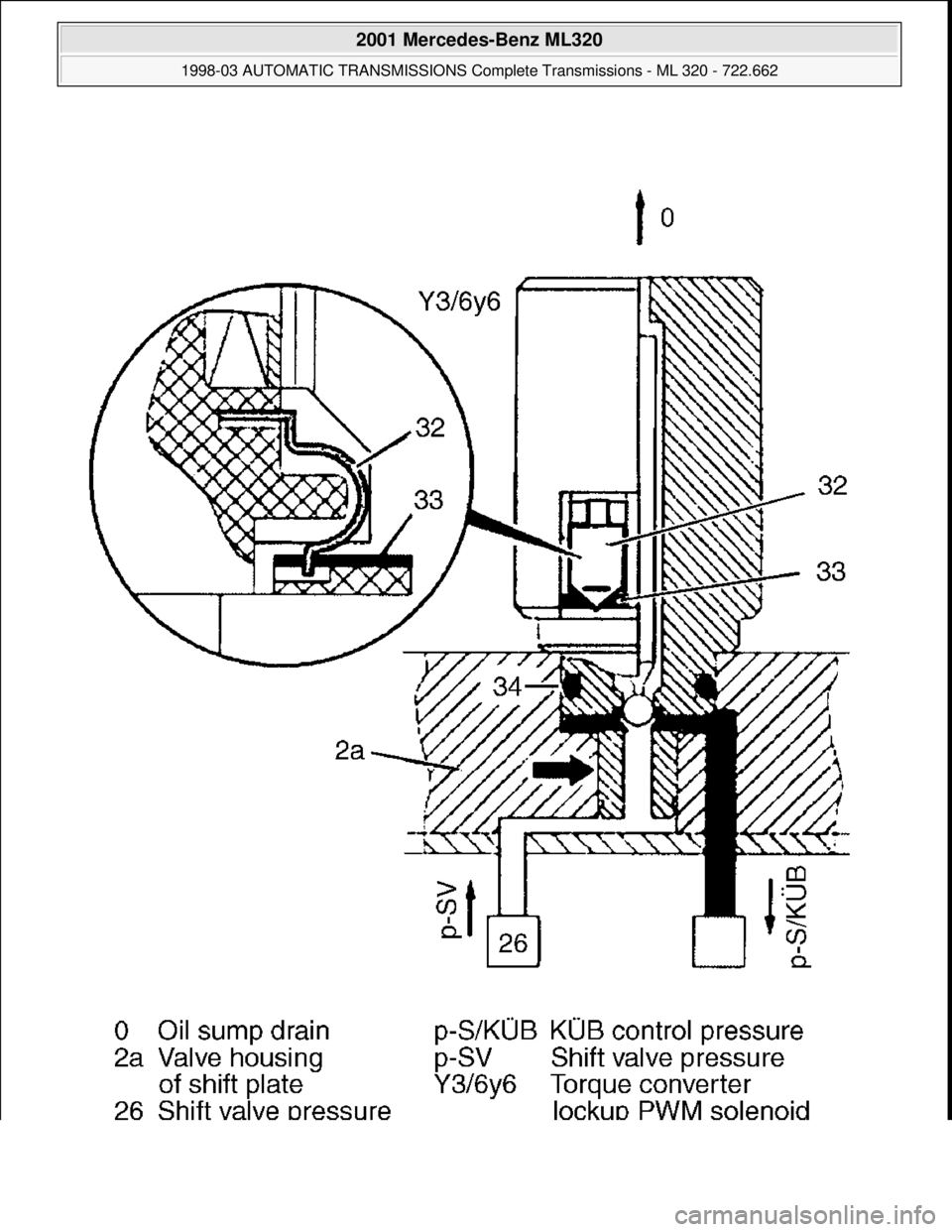

Fig. 141: Torque Converter Lockup Clutch PWM Solenoid Valve
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Structure
The torque converter lockup PWM solenoid valve (Y3/6y6) is sealed off to the valve body of the shift plate (2a)
by an O-ring (34) and a seal (arrow). See Fig. 141
. The contact springs (32) on the PWM converter lockup
solenoid valve (Y3/6y6) engage in a slot in the conductor tracks (33). The force of the contact spring (32)
ensures safe contacts.
Manual Drive Mode Selection, Function (Without Touch Shift)

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 253 © 2006 Mitchell Repair Information Company, LLC.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 254 © 2006 Mitchell Repair Information Company, LLC.

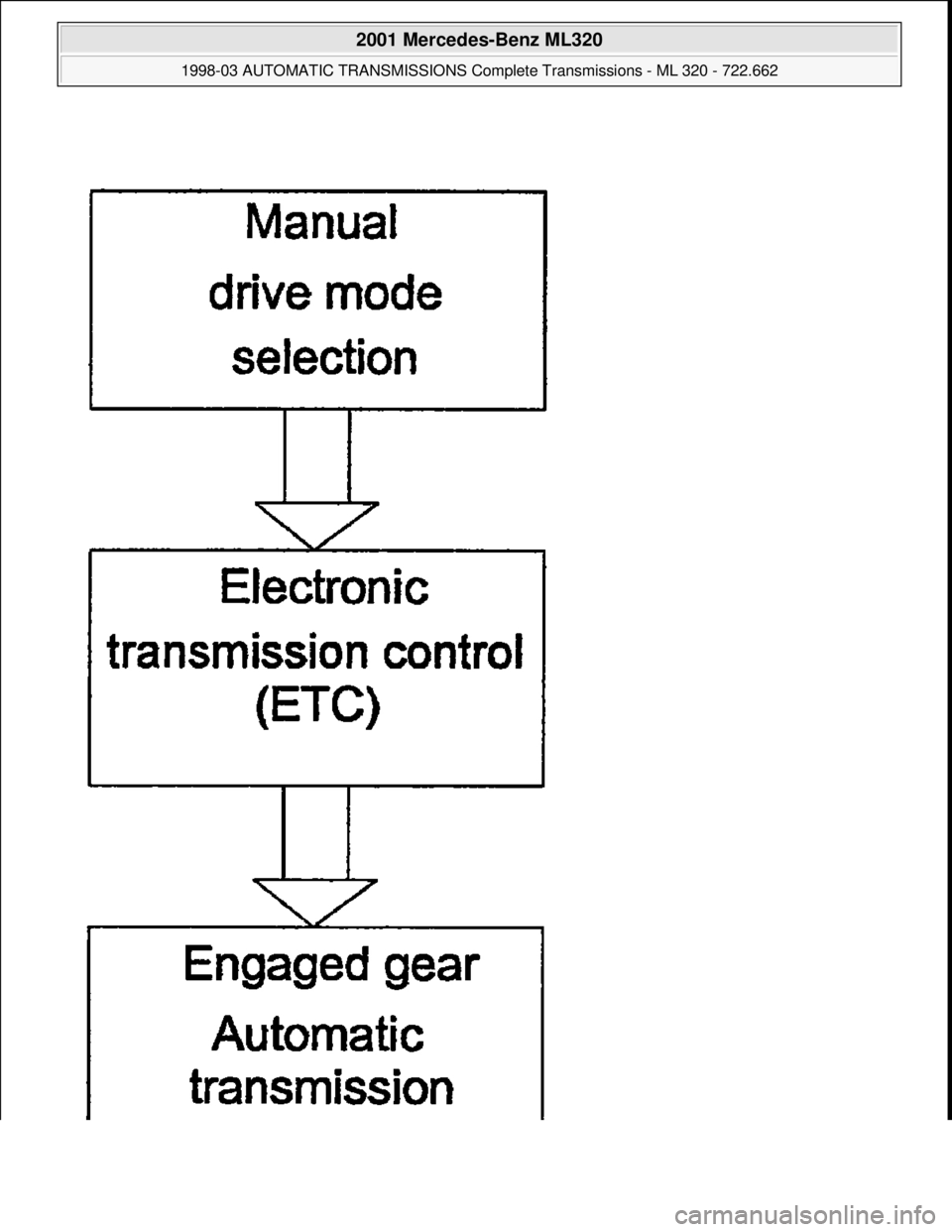

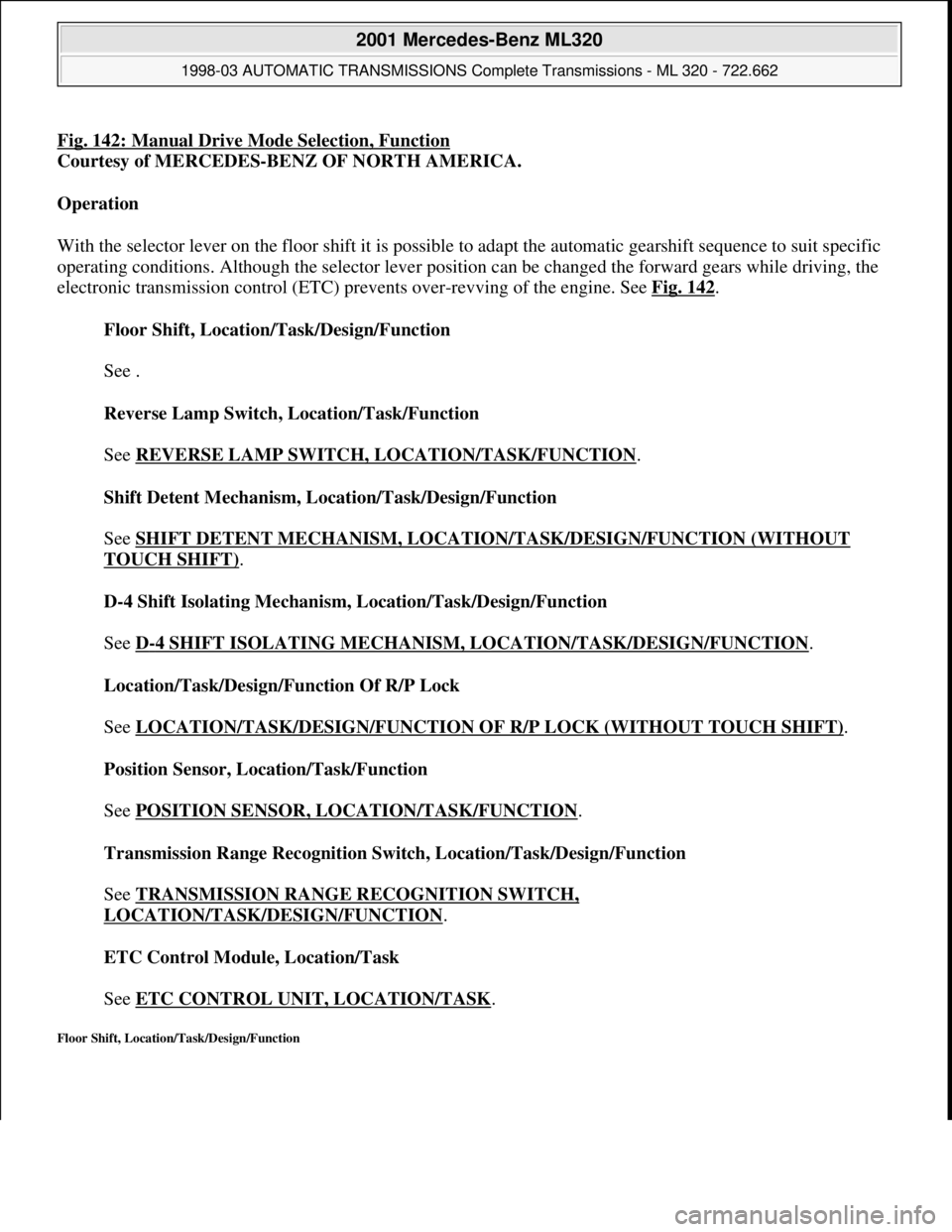

Fig. 142: Manual Drive Mode Selection, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operation
With the selector lever on the floor shift it is possible to adapt the automatic gearshift sequence to suit specific
operating conditions. Although the selector lever position can be changed the forward gears while driving, the
electronic transmission control (ETC) prevents over-revving of the engine. See Fig. 142
.
Floor Shift, Location/Task/Design/Function

See .
Reverse Lamp Switch, Location/Task/Function

See REVERSE LAMP SWITCH, LOCATION/TASK/FUNCTION
.
Shift Detent Mechanism, Location/Task/Design/Function

See SHIFT DETENT MECHANISM, LOCATION/TASK/DESIGN/FUNCTION (WITHOUT
TOUCH SHIFT).
D-4 Shift Isolating Mechanism, Location/Task/Design/Function

See D
-4 SHIFT ISOLATING MECHANISM, LOCATION/TASK/DESIGN/FUNCTION.
Location/Task/Design/Function Of R/P Lock

See LOCATION/TASK/DESIGN/FUNCTION OF R/P LOCK (WITHOUT TOUCH SHIFT)
.
Position Sensor, Location/Task/Function

See POSITION SENSOR, LOCATION/TASK/FUNCTION
.
Transmission Range Recognition Switch, Location/Task/Design/Function

See TRANSMISSION RANGE RECOGNITION SWITCH,
LOCATION/TASK/DESIGN/FUNCTION.
ETC Control Module, Location/Task

See ETC CONTROL UNIT, LOCATION/TASK
.
Floor Shift, Location/Task/Design/Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 255 © 2006 Mitchell Repair Information Company, LLC.

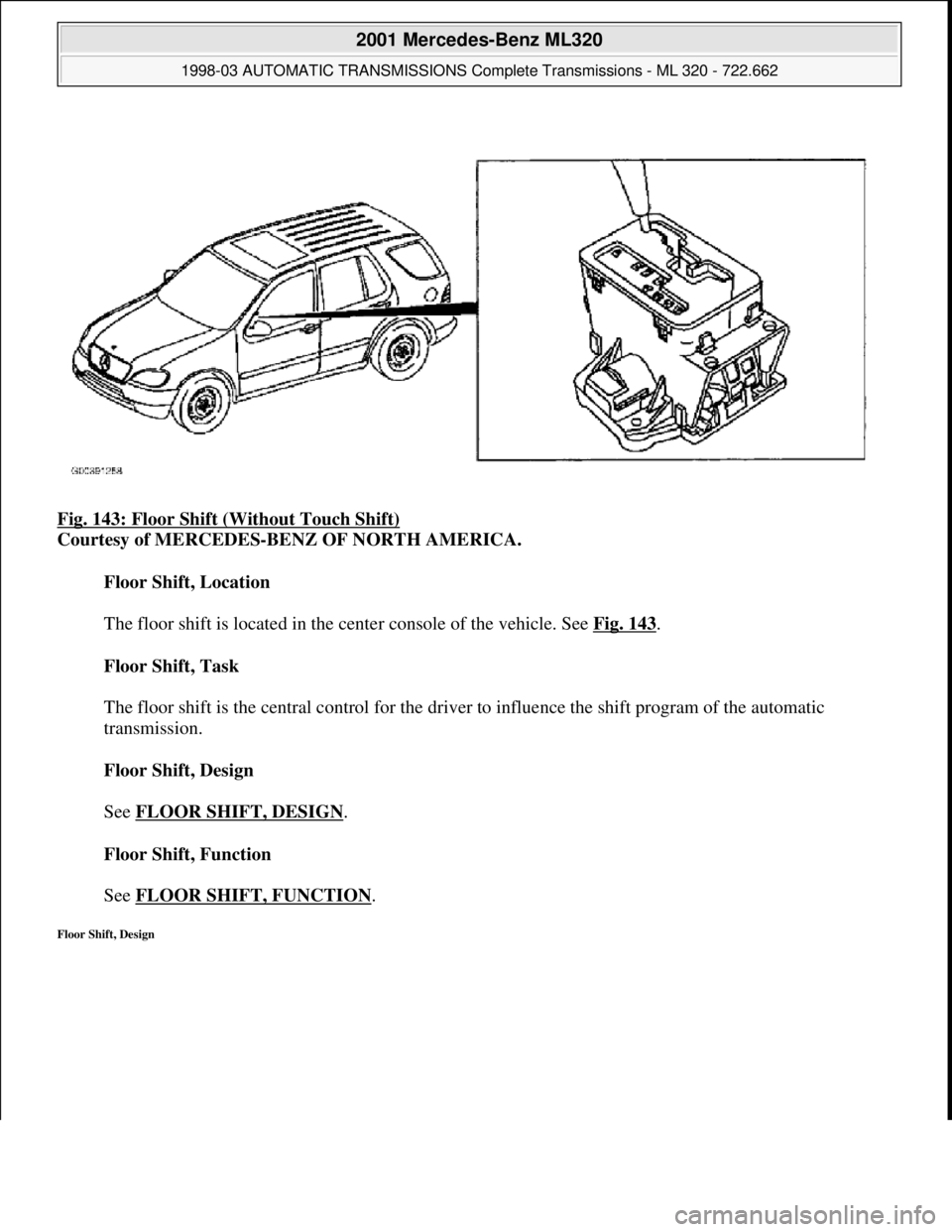

Fig. 143: Floor Shift (Without Touch Shift)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Floor Shift, Location

The floor shift is located in the center console of the vehicle. See Fig. 143
.
Floor Shift, Task

The floor shift is the central control for the driver to influence the shift program of the automatic
transmission.
Floor Shift, Design

See FLOOR SHIFT, DESIGN
.
Floor Shift, Function

See FLOOR SHIFT, FUNCTION
.
Floor Shift, Design

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 256 © 2006 Mitchell Repair Information Company, LLC.

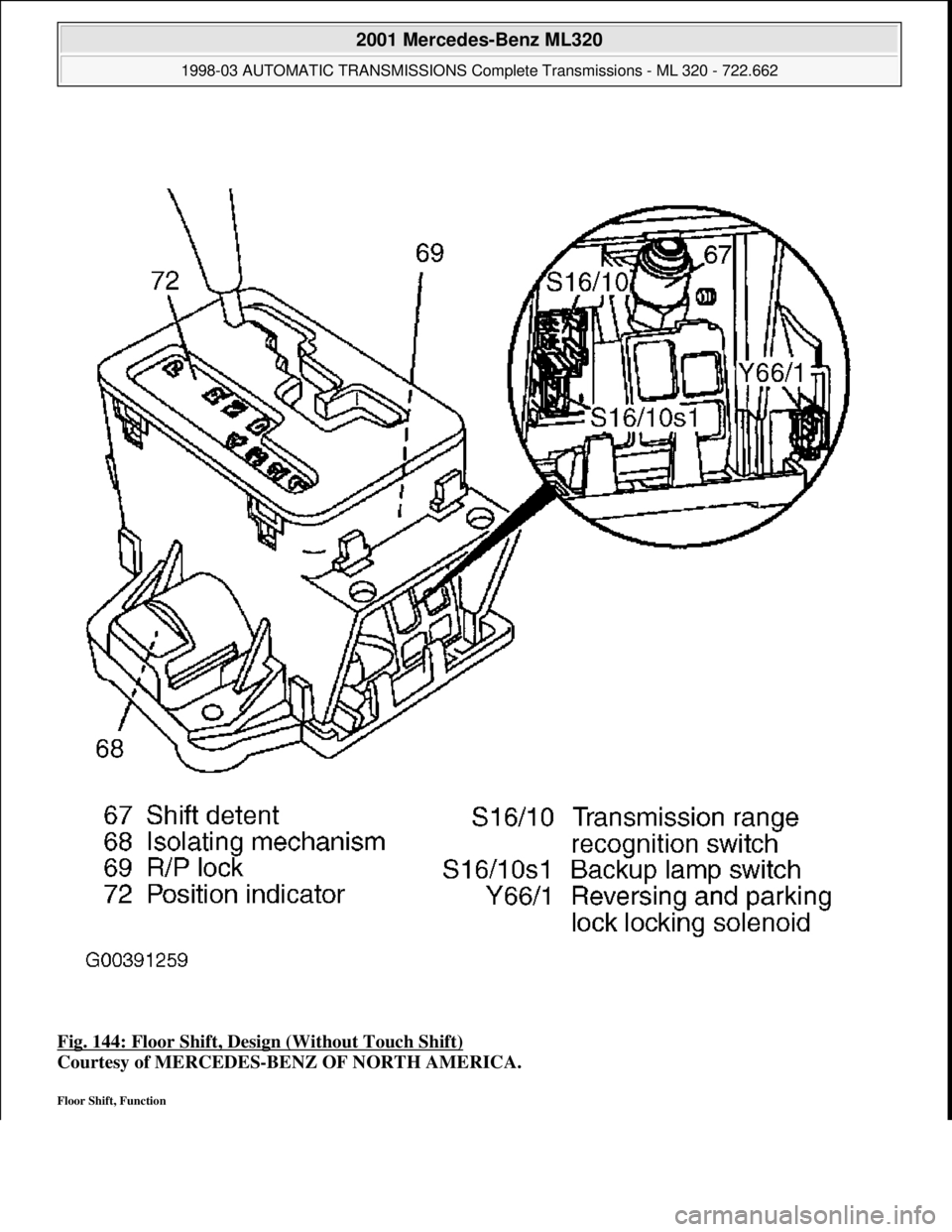

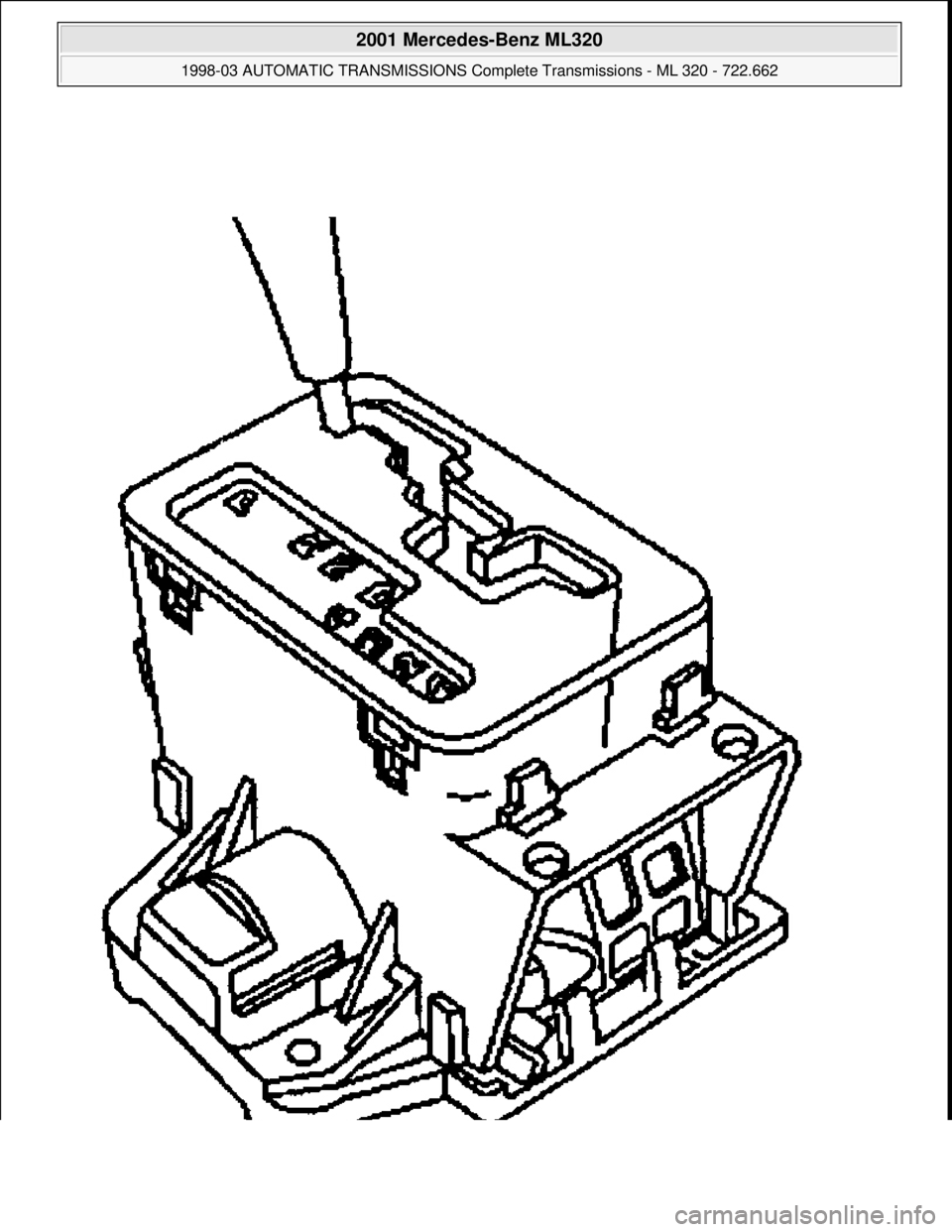

Fig. 144: Floor Shift, Desi gn (Without Touch Shift)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Floor Shift, Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 257 © 2006 Mitchell Repair Information Company, LLC.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 258 © 2006 Mitchell Repair Information Company, LLC.

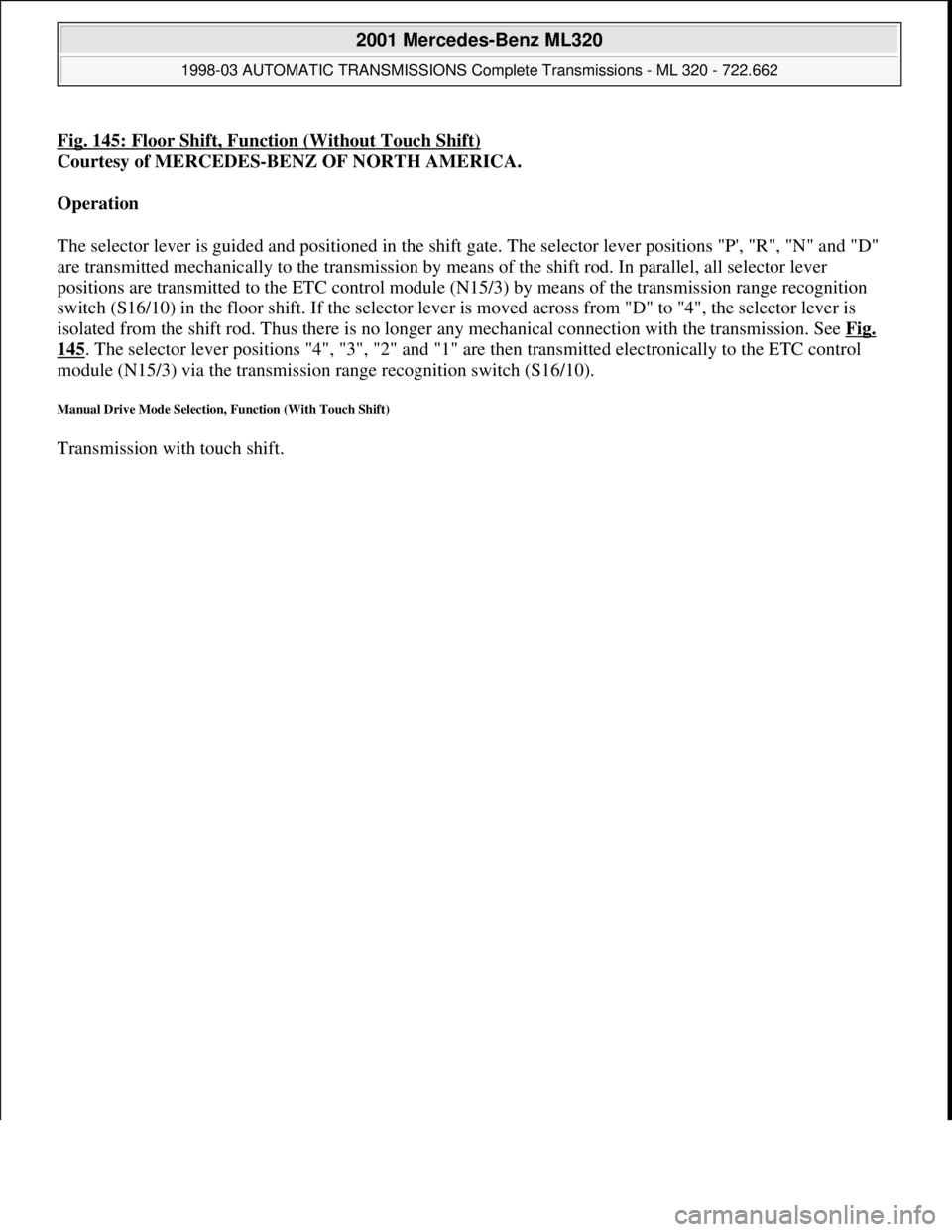

Fig. 145: Floor Shift, Function (Without Touch Shift)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operation
The selector lever is guided and positioned in the shift gate. The selector lever positions "P', "R", "N" and "D"
are transmitted mechanically to the transmission by means of the shift rod. In parallel, all selector lever
positions are transmitted to the ETC control module (N15/3) by means of the transmission range recognition
switch (S16/10) in the floor shift. If the selector lever is moved across from "D" to "4", the selector lever is
isolated from the shift rod. Thus there is no longer any mechanical connection with the transmission. See Fig.
145. The selector lever positions "4", "3", "2" and "1" are then transmitted electronically to the ETC control
module (N15/3) via the transmission range recognition switch (S16/10).
Manual Drive Mode Selection, Function (With Touch Shift)
Transmission with touch shift.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 259 © 2006 Mitchell Repair Information Company, LLC.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 260 © 2006 Mitchell Repair Information Company, LLC.

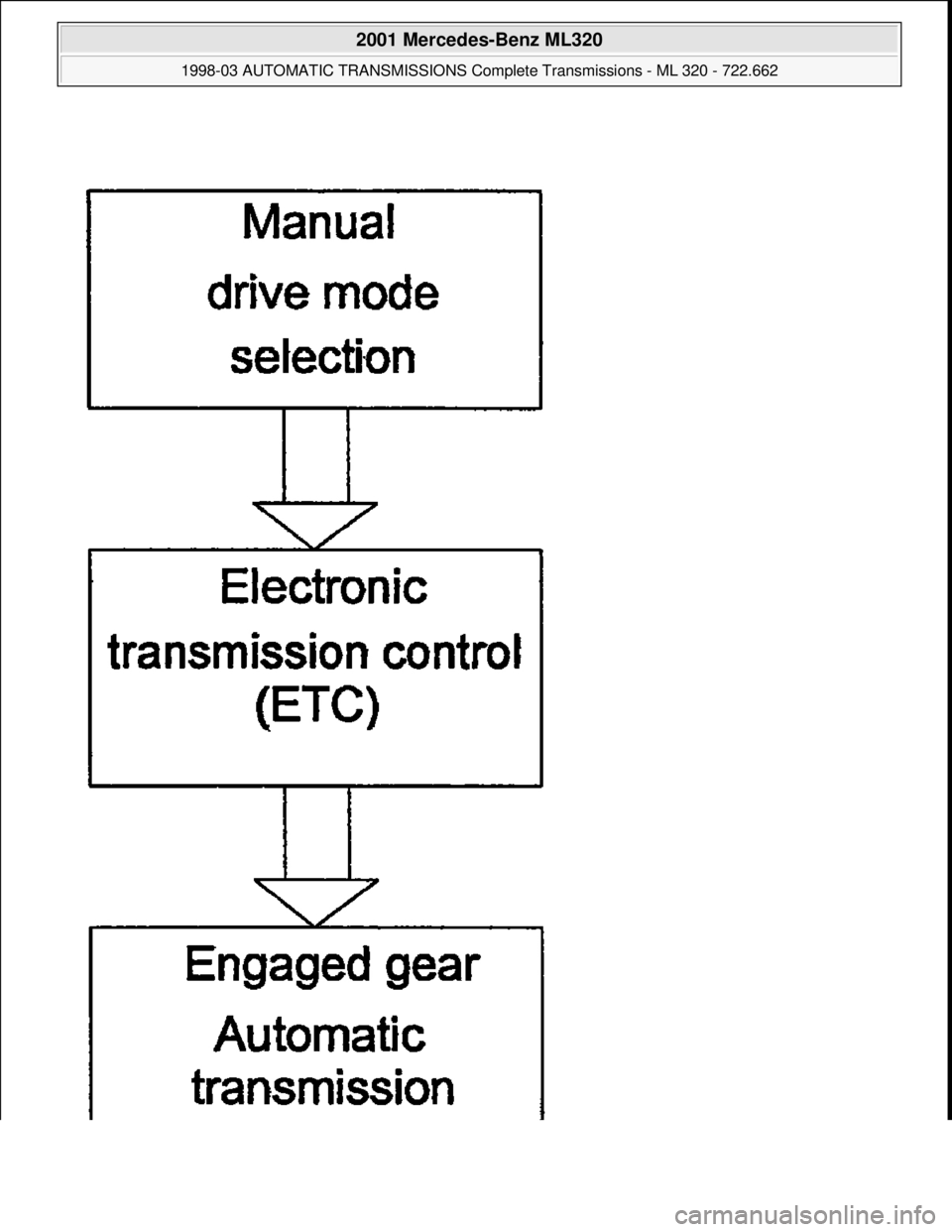

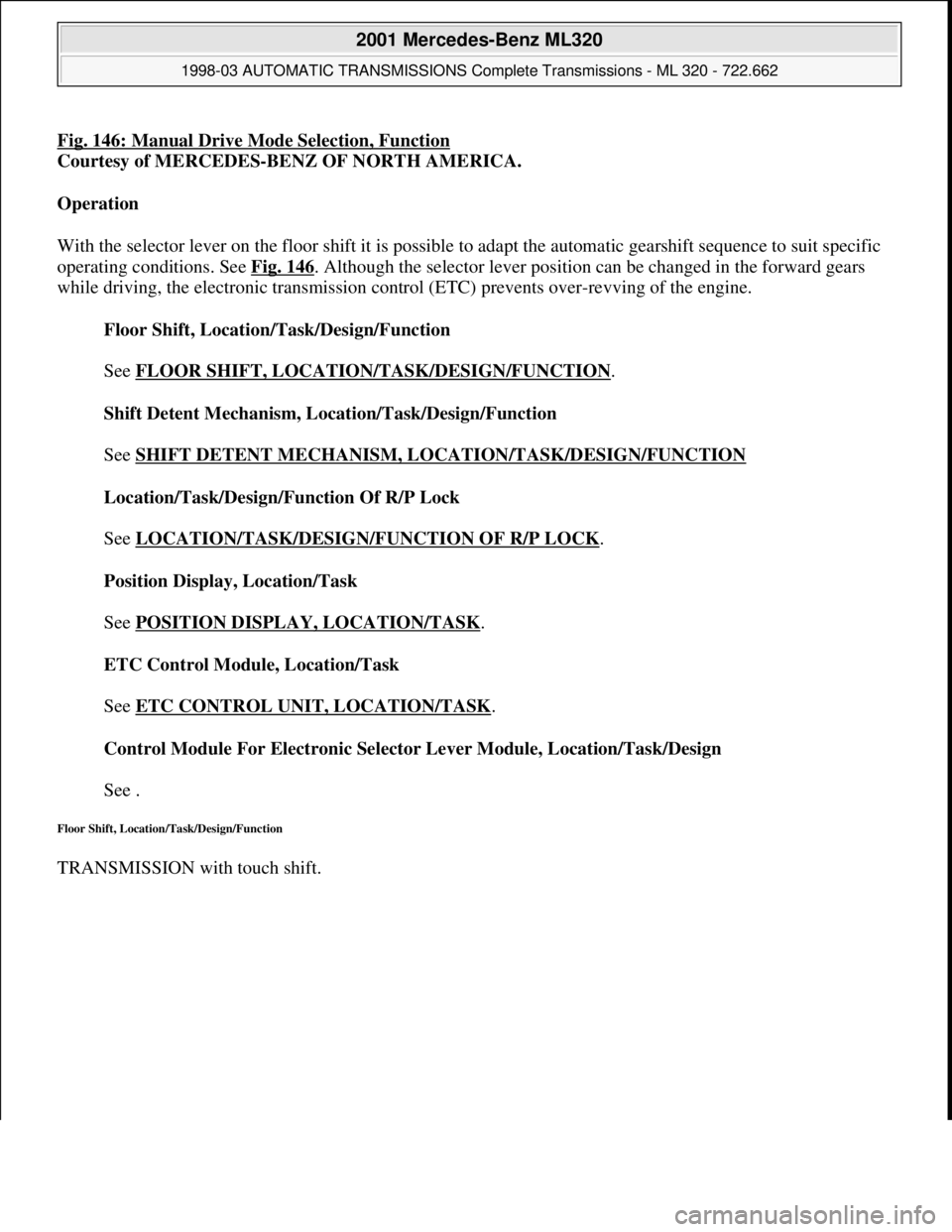

Fig. 146: Manual Drive Mode Selection, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operation
With the selector lever on the floor shift it is possible to adapt the automatic gearshift sequence to suit specific
operating conditions. See Fig. 146
. Although the selector lever position can be changed in the forward gears
while driving, the electronic transmission control (ETC) prevents over-revving of the engine.
Floor Shift, Location/Task/Design/Function

See FLOOR SHIFT, LOCATION/TASK/DESIGN/FUNCTION
.
Shift Detent Mechanism, Location/Task/Design/Function

See SHIFT DETENT MECHANISM, LOCATION/TASK/DESIGN/FUNCTION

Location/Task/Design/Function Of R/P Lock

See LOCATION/TASK/DESIGN/FUNCTION OF R/P LOCK
.
Position Display, Location/Task

See POSITION DISPLAY, LOCATION/TASK
.
ETC Control Module, Location/Task

See ETC CONTROL UNIT, LOCATION/TASK
.
Control Module For Electronic Selector Lever Module, Location/Task/Design

See .
Floor Shift, Location/Task/Design/Function
TRANSMISSION with touch shift.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
