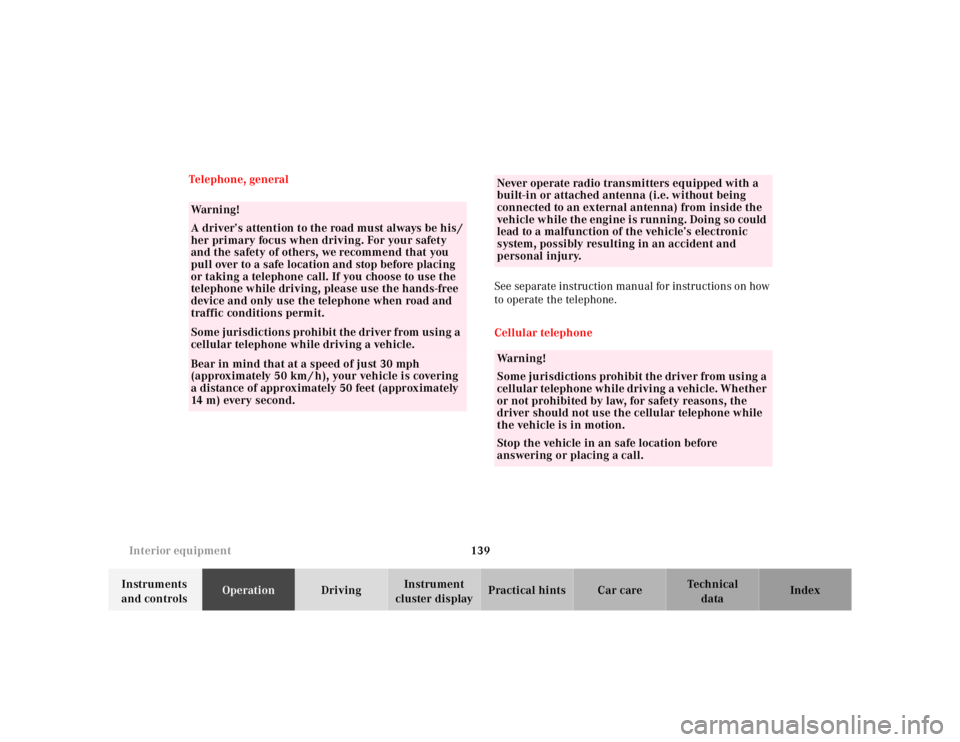

139 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Telephone, general
See separate instruction manual for instructions on how
to operate the telephone.
Cellular telephone
Wa r n i n g !
A driver’s attention to the road must always be his /
her primary focus when driving. For your safety
and the safety of others, we recommend that you
pull over to a safe location and stop before placing
or taking a telephone call. If you choose to use the
telephone while driving, please use the hands-free
device and only use the telephone when road and
traffic conditions permit.Some jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is covering
a distance of approximately 50 feet (approximately
14 m ) e v e r y s e c o n d .
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e. without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so could
lead to a malfunction of the vehicle’s electronic
system, possibly resulting in an accident and
personal injury.Wa r n i n g !
Some jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle. Whether
or not prohibited by law, for safety reasons, the
driver should not use the cellular telephone while
the vehicle is in motion.
Stop the vehicle in an safe location before
answering or placing a call.

146 Control and operation of radio transmitters
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Control and operation of radio transmitters
MCS, radio and telephone
1 Observe all legal requirements.
Telephones and two-way radio
Radio transmitters, such as a portable telephone or a
citizens band unit should only be used inside the
vehicle if they are connected to an antenna that is
installed on the outside of the vehicle.
Refer to the radio transmitter operation instructions
regarding use of an external antenna.
Wa r n i n g !
Please do not forget that your primary
responsibility is to drive the vehicle. Only operate
the MCS, radio or telephone
1 if road and traffic
conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is covering
a distance of approximately 50 feet (approximately
14 m ) e v e r y s e c o n d .
Wa r n i n g !
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e. without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so could
lead to a malfunction of the vehicle’s electronic
system, possibly resulting in an accident and
personal injury.

139
Interior equipment
Te ch n ica l
data
Instruments
and controls Operation
Driving Instrument
cluster display Practical hints Car care Index
Telephone, general
See separate instruction manual for instructions on how
to operate the telephone.
Cellular telephone
Wa r n i n g !
A driver’s attention to the road must always be his /
her primary focus when driving. For your safety
and the safety of others, we recommend that you
pull over to a safe location and stop before placing
or taking a telephone call. If you choose to use the
telephone while driving, please use the hands-free
device and only use the telephone when road and
traffic conditions permit.Some jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is covering
a distance of approximately 50 feet (approximately
14 m ) e v e r y s e c o n d .
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e. without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so could
lead to a malfunction of the vehicle’s electronic
system, possibly resulting in an accident and
personal injury.Wa r n i n g !
Some jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle. Whether
or not prohibited by law, for safety reasons, the
driver should not use the cellular telephone while
the vehicle is in motion.
Stop the vehicle in an safe location before
answering or placing a call.

146
Control and operation of radio transmitters
Te ch n ica l
data
Instruments
and controls Operation
Driving Instrument
cluster display Practical hints Car care Index
Control and operation of radio transmitters
MCS, radio and telephone
1 Observe all legal requirements.
Telephones and two-way radio
Radio transmitters, such as a portable telephone or a
citizens band unit should only be used inside the
vehicle if they are connected to an antenna that is
installed on the outside of the vehicle.
Refer to the radio transmitter operation instructions
regarding use of an external antenna.
Wa r n i n g !
Please do not forget that your primary
responsibility is to drive the vehicle. Only operate
the MCS, radio or telephone
1 if road and traffic
conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is covering
a distance of approximately 50 feet (approximately
14 m ) e v e r y s e c o n d .
Wa r n i n g !
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e. without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so could
lead to a malfunction of the vehicle’s electronic
system, possibly resulting in an accident and
personal injury.

170 Controls in detailUseful featuresElectrical outletElectrical outletOne outlet is located in the front passen-
ger footwell and another on the right-hand
side of the luggage compartment.
Flip up cover and insert electrical plug
(cigarette lighter type).
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Light Truck Center
for information on the installation of an ap-
proved external antenna. Refer to the radio
transmitter operation instructions regard-
ing use of an external antenna.
iThe outlets function even if the key is
not in the ignition.
The electrical outlet can be used to
accommodate electrical consumers
(e.g. air pump, auxiliary lamps) up to a
maximum of 180 W.
If the engine is off, the battery may be-
come discharged if used for long peri-
ods of time.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and / or serious
personal injury.

212 OperationDriving instructionsTelephones and two-way radios
Radio transmitters, such as a portable tele-
phone or a citizens band unit should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
Refer to the radio transmitter operation in-
structions regarding use of an external an-
tenna.
Catalytic converter
Your Mercedes-Benz is equipped with
monolithic-type catalytic converters, an
important element in conjunction with the
oxygen sensors to achieve substantial con-
trol of the pollutants in the exhaust emis-
sions. Keep your vehicle in proper
operating condition by following our rec-
ommended maintenance instructions as
outlined in your Service Booklet.
Emission control
Certain engine systems serve to keep the
toxic components of the exhaust gases
within permissible legal limits.
These systems, of course, will function
properly only when maintained strictly ac-
cording to factory specifications. Any ad-
justments on the engine should, therefore,
be carried out only by qualified
Mercedes-Benz Light Truck Center autho-
rized technicians. Engine adjustments
should not be altered in any way. More-
over, the specified service jobs must be
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and / or
personal injury.
!To prevent damage to the catalytic con-
verters, use only premium unleaded
gasoline in this vehicle.
Any noticeable irregularities in engine
operation should be repaired promptly.
Otherwise, excessive unburned fuel
may reach the catalytic converter,
causing it to overheat and start a fire.
Warning!
G
As with any vehicle, do not idle, park or op-
erate this vehicle in areas where combusti-
ble materials such as grass, hay or leaves
can come into contact with the hot exhaust
system, as these materials could be ignited
and cause a vehicle fire.

Notes on auto-pilot systemMODEL 129,208.4AH82.61-P-0001-01B
Notes on auto-pilot systemMODEL
202.018/02 /12/13, 208.3,
210.0AH82.61-P-0001-01C
Notes on auto-pilot systemMODEL 203 Navigations
system APS 30AH82.61-P-0001-01P
Notes on positioning GPS
antenna, TrafficStarMODEL 210 with CODE
(581a) Automatic air
conditioning MODEL 140AH82.61-P-0001-02A
Notes on dynamic guidance
for APSMODEL 129, 140, 168,
170, 202, 208, 210 bei APS
der 3. GerategenerationAH82.61-P-0001-04A
Notes on dynamic guidance
for APSMODEL 220 ...AH82.61-P-0001-04B
Notes on dynamic navigation
for APSMODEL 215,220...AH82.61-P-0001-04C
Notes on radio connector pin
assignmentMODEL 163AH82.61-P-0001-05A
Notes on TV antenna in rear
windowMODEL 210.0 as of 1.7.99AH82.62-P-0001-01A
Retrofitting voice control
systemMODEL 210.### 1#AH82.70-P-0001-01A
Notes on D2B ringMODEL 210...AH82.70-P-0001-03A
Notes on D2B ringMODEL 210...AH82.70-P-0001-03B
Notes on D2B ringMODEL 210...AH82.70-P-0001-03C
Notes on D2B ringMODEL 202 ...AH82.70-P-0001-03E
Notes on D2B ringMODEL 202 ...AH82.70-P-0001-03F
Notes on D2B ringMODEL 170...AH82.70-P-0001-03G
Notes on D2B ringMODEL 208 ...AH82.70-P-0001-03H
Notes on D2B ringMODEL 208 ...AH82.70-P-0001-03I
Notes on D2B ringMODEL 215, 220AH82.70-P-0001-
03IA
Notes on D2B ringMODEL 168...AH82.70-P-0001-03J
Notes on telephone
retrofittingMODEL 129, 168, 170,
202, 208, 210 ...AH82.70-P-0001-04A
Notes on retrofitting
telephoneMODEL 129, 168, 170,
202, 208, 210 as of 1.7.00
up to 30.6.01 except CODE
(855) TELE AIDAH82.70-P-0001-04B
Notes on retrofitting
telephoneMODEL 215, 220 as of
1.7.00 up to 30.6.01 except
CODE (855) TELE AIDAH82.70-P-0001-04C
Notes on telephone MODEL 215,220...AH82.70-P-0001-10A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 3 © 2006 Mitchell Repair Information Company, LLC.

Notes on installation of GPS antenna
The GPS antenna should be installed only in a vertical position with a maximum deviation of 10° from
horizontal.
The GPS antenna should always have a free view of the sky. Thermal insulated windows can significantly
reduce the function of the GPS antenna.
When installing the GPS antenna, always ensure that the arched surface points away from the vehicle.
Changing the installation location inside of the vehicle after the system is put into operation has no effect on the
GPS reception.
NOTES ON RADIO CONNECTOR PIN ASSIGNMENT - AH82.61-P-0001-05A
Model 163
The pin assignment in the radio connector has been changed on vehicles as of 07.99 (model year 2000)
Fig. 1: Identifying Radio Connector Pin Assignment

Check pin assignment
If the pin assignment is the same as listed in the table above, it is not necessary to install the adapter
wiring harness and CAN bus adapter when installing the Audio 30 APS navigation system.
NOTES ON TELEPHONE OPERATION WITH AUDIO 30 APS NAVIGATION SYSTEM - AH82.61-P-0001-06A
Models 129, 163, 168, 170, 202, 208, 210
Vehicles with telephone code 316 or 317 can be retrofitted with an Audio 30 APS navigation system.
Ensure that the Audio 30 APS navigation system is a unit with part number A 208 820.....Older units with part
number A 168 820 .. .. are not capable of assuming the master function in the D2B- ring.


2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 5 © 2006 Mitchell Repair Information Company, LLC.

The Audio 30 APS does not have a number pad. For this reason, it is not possible to control the telephone over
the radio (see operating instructions).
On vehicles (as of approx. 07.99) with multifunction steering wheel (telephone control with keys on steering
wheel) this function is then also possible with the Audio 30 APS navigation system.
NOTES ON TRAFFIC PRO NAVIGATION SYSTEM - AH82.61-P-0002-01A
Models 129, 140, 163, 168, 170, 202, 208, 210


Customer information, installation position for GPS antenna
There are two different installation locations for the GSP antenna:
1. Standard GPS antenna from DaimlerChrysler on roof or trunk lid. This version offers the best reception
and is therefore preferable.
2. Use of magnetic antenna in vehicle passenger compartment. This version is part of the kit from the
Becker company and installation is described in Becker installation instructions.
Notes on installation of Becker GPS antenna
The GPS antenna can only be installed horizontally with a maximum deviation of 10° from horizontal.
The GPS antenna should always have an unobstructed view of the sky. Tinted windows can reduce the function
of the GPS antenna considerably.
When installing the GPS antenna always ensure that the arched surface of the antenna points upwards.
NOTES ON FIBER OPTIC CABLE - AH82.70-P-0001-02A
Model 129, 163, 168, 170, 202, 203, 208, 209, 210, 215, 220, 230, 414,
463.243/244/245/246/247/248/249/250/254/270/271/303/309/322/323/332/333/340/341

Illustrated on Model 202 sedan

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 6 © 2006 Mitchell Repair Information Company, LLC.

Fig. 36: Identifying Radio (RD) Arrangement Of Operating Elements
RADIO MODE, FUNCTION - GF82.60-P-2001B
MODELS 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
The ultra-short wave (FM), medium wave (MW) and long wave (LW) high-frequency signals are received from
the radio antenna mounted on the vehicle. The music, voice and/or data signals are modulated upon the high-
frequency signals received. The high-frequency signals are forwarded by the radio antenna over a coaxial cable
to the radio receiver in the radio and navigation unit (A2/56). The radio receiver demodulates the high-
frequency signals, i.e. it separates the useful information from the high-frequency carrier signal. The
demodulated audio signals are amplified and converted to sound signals by the vehicle speakers. Possibilities
for radio station selection:
Direct frequency input
Manual station search
Automatic station search (the stations on a waveband are played for approx. 8 s)
Station selection from the memory (6 stations for each frequency range)
Radio Data System (RDS), function
Many radio stations, e.g. (FM) transmit in addition to the program additional information such as the station
name, type of program (e.g. pop, culture, etc.), traffic station identification and alarm messages. This
information is evaluated and shown on the radio and navigation unit (A2/56) display, provided that:
the "RDS" function is switched on
an RDS station is set and received.
When an RDS station is received with a traffic broadcast in the background the abbreviation "TP" (Traffic
