roof MERCEDES-BENZ ML350 2003 W163 Owner's Manual

Contents
Tow-away alarm,
glass breakage sensor.................... 79
Controls in detail............................... 83
Locking and unlocking ......................... 84
Remote control with folding key ..... 84
Opening the doors
from the inside ............................... 86
Opening the liftgate........................ 87
Closing the liftgate ......................... 88
Automatic central locking .............. 89
Locking and unlocking
from the inside ............................... 90
Seats.................................................... 91
Seat heater*................................... 91
Removing and installing
head restraints ............................... 92
Rear seats ...................................... 93
Third row seats* ............................. 96
Memory function*................................ 99
Storing positions in memory ........ 100
Recalling positions from memory . 100
Exterior rear view mirror parking
position (passenger side) ............. 100Lighting.............................................. 102
Combination switch ..................... 102
Fog lamps .................................... 105
Hazard warning flasher ................ 106
Interior lighting............................. 107
Instrument cluster ............................. 110
Instrument cluster illumination .... 110
Coolant temperature gauge ......... 111
Display in the speedometer ......... 111
Resetting trip odometer ............... 112
Tachometer .................................. 112
Outside temperature indicator ..... 112
Setting the clock .......................... 112
Automatic transmission ..................... 113
One-touch gearshifting................. 113
Gear ranges.................................. 114
Gear selector lever position ......... 115
Accelerator position ..................... 117
Towing a trailer ............................ 117
Emergency operation (Limp Home
Mode)........................................... 117
Transmission control –
LOW RANGE mode............................. 118
Switching on LOW RANGE mode .. 118
Switching off LOW RANGE mode . 118Good visibility .................................... 119
Rear view mirror .......................... 119
Headlamp cleaning system* ........ 121
Windshield wipers ........................ 122
Rear window wiper....................... 123
Sun visor ...................................... 123
Automatic climate control ................. 124
Automatic mode .......................... 126
Adjusting air volume and air
distribution manually ................... 127
Defrosting .................................... 128
Air recirculation mode.................. 128
Air conditioning ............................ 129
Residual heat and ventilation ....... 130
Rear window defroster ................. 131
Rear passenger compartment
ventilation and rear automatic
climate control ............................. 131
Front and rear air outlets ............. 132
Power windows.................................. 134
Opening and closing the side
windows ....................................... 134
Rear quarter windows* ................ 136
Sliding/pop-up roof* ......................... 137
Opening and closing the
sliding/pop-up roof ...................... 137

Contents
Loading.............................................. 139
Loading instructions..................... 139
Partition net* ............................... 141
Cargo area cover blind* ............... 143
Cargo floor plates ........................ 144
Roof rack*.................................... 145
Driving systems ................................. 146
Cruise control .............................. 146
Parktronic system*
(Parking assist) ............................ 149
Useful features .................................. 152
Interior storage spaces ................ 152
Cup holders.................................. 154
Armrest in rear seat bench .......... 155
Ashtrays and cigarette lighter ...... 156
Electrical outlet ............................ 158
Telephone* .................................. 158
Tele Aid* ...................................... 159
Garage door opener ..................... 168
Trip computer*............................. 172Operation......................................... 177
The first 1000 miles (1500 km) ......... 178
Driving instructions............................ 179
Drive sensibly – save fuel............. 179Drinking and driving ...................... 179
Pedals ........................................... 179
Power assistance .......................... 179
Brakes........................................... 180
Driving off ..................................... 181
Parking.......................................... 182
Tires .............................................. 182
Hydroplaning................................. 183
Tire traction .................................. 183
Tire speed rating ........................... 184
Winter driving instructions ............ 184
Standing water.............................. 185
Off-road driving ............................. 186
Trailer towing ................................ 192
Passenger compartment ............... 196
Driving abroad .............................. 197
Control and operation of radio
transmitters .................................. 197
Catalytic converter........................ 198
Emission control ........................... 198
Coolant temperature..................... 199
At the gas station ............................... 200
Check regularly and
before a long trip .......................... 201Engine compartment .......................... 202
Hood ............................................. 202
Engine oil ...................................... 203
Transmission fluid level ................ 206
Coolant ......................................... 206
Battery .......................................... 207
Windshield washer system and
headlamp cleaning system ........... 208
Tires and wheels ................................ 209
Important guidelines ..................... 209
Life of tire ..................................... 210
Direction of rotation ..................... 210
Checking tire inflation pressure .... 211
Rotating wheels ............................ 212
Winter driving ..................................... 213
Winter tires ................................... 213
Block heater (Canada only) ........... 214
Snow chains ................................. 214
Maintenance ...................................... 215
Clearing the service indicator ....... 215
Service term exceeded ................. 215
Calling up the service indicator .... 216
Resetting the service indicator ..... 216
Vehicle care ....................................... 217
Cleaning and care
of the vehicle ................................ 217

ContentsPractical hints.................................. 223
What to do if … .................................. 224
Lamps in instrument cluster ......... 224
Additional indicators in the
speedometer display .................... 235
Where will I find ...?............................ 236
First aid kit ................................... 236
Vehicle tool kit ............................. 237
Electric air pump (ML 55 AMG) .... 238
Spare wheel (space-saver tire) ..... 239
Unlocking/locking in an emergency .. 242
Unlocking the vehicle ................... 242
Locking the vehicle ...................... 243
Changing batteries ....................... 243
Fuel filler flap ............................... 244
Manually unlocking the
transmission selector lever .......... 245
Opening/closing in an emergency ..... 246
Sliding/pop-up roof* .................... 246
Replacing bulbs ................................. 247
Bulbs ............................................ 247
Replacing bulbs for front lamps.... 249
Replacing bulbs for rear lamps ..... 251
Adjusting headlamp aim ............... 253Replacing wiper blades ...................... 254
Removal ....................................... 254
Installation ................................... 254
Flat tire .............................................. 255
Mounting the spare wheel ............ 255
Battery ............................................... 261
Disconnecting the battery ............ 261
Removing the batteries ................ 262
Charging and reinstalling
batteries....................................... 262
Reconnecting the batteries .......... 262
Jump starting ..................................... 264
Towing the vehicle ............................. 267
Front towing eye .......................... 269
Rear towing eye ........................... 269
Stranded vehicle .......................... 270
Fuses ................................................. 271
Fuse box in engine
compartment ............................... 271
Auxiliary fuse box in front
passenger footwell ....................... 272
Technical data................................. 273
Spare parts service............................ 274
Warranty coverage ............................ 275
Loss of Service and Warranty
Information Booklet ..................... 275
Identification labels ........................... 276
Layout of poly-V-belt drive ................. 277
Engine ............................................... 278
Rims and tires ................................... 279
Rims and tires .............................. 279
Rims and winter tires* ................. 280
Spare wheel ................................. 280
Electrical system ............................... 281
Main Dimensions ............................... 282
Weights ............................................. 283
Fuels, coolants, lubricants etc. .......... 284
Capacities .................................... 284
Engine oils ................................... 286
Engine oil additives ...................... 286
Air conditioning refrigerant .......... 286
Brake fluid.................................... 286
Premium unleaded gasoline ......... 286
Fuel requirements ........................ 287
Gasoline additives ........................ 287
Coolants ...................................... 287

29 At a glance

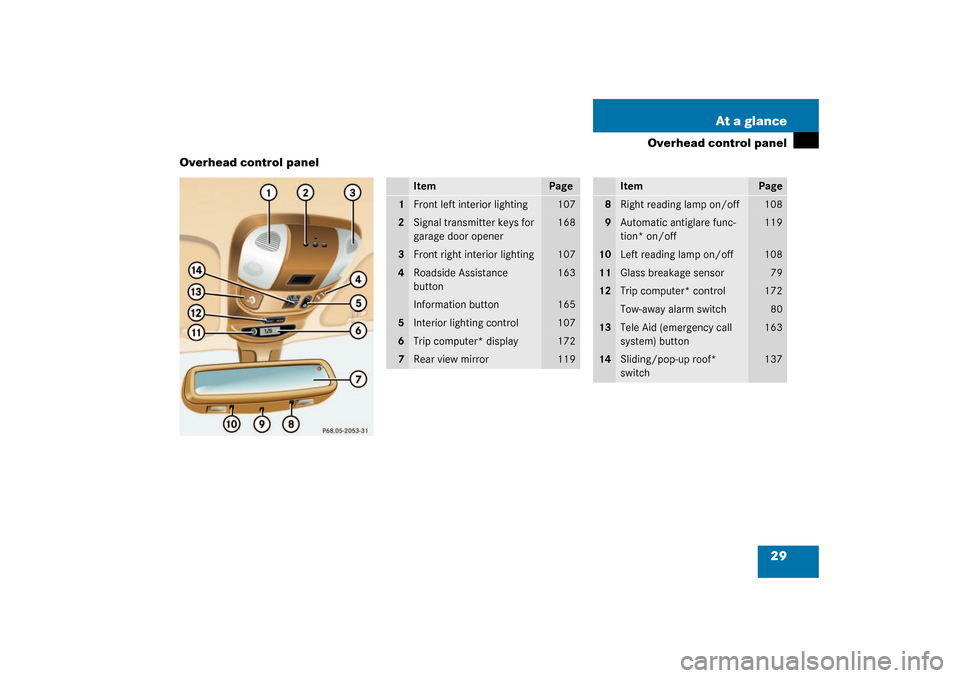

Overhead control panel
Overhead control panel
Item
Page
1
Front left interior lighting
107
2
Signal transmitter keys for
garage door opener
168
3
Front right interior lighting
107
4
Roadside Assistance
button
163
Information button
165
5
Interior lighting control
107
6
Trip computer* display
172
7
Rear view mirror
119
Item
Page
8
Right reading lamp on/off
108
9
Automatic antiglare func-
tion* on/off
119
10
Left reading lamp on/off
108
11
Glass breakage sensor
79
12
Trip computer* control
172
Tow-away alarm switch
80
13
Tele Aid (emergency call
system) button
163
14
Sliding/pop-up roof*
switch
137

83 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Automatic transmission
Transmission control – LOW RANGE mode
Good visibility
Automatic climate control
Power windows
Sliding/pop-up roof*
Loading
Driving systems
Useful features

137 Controls in detail
Sliding/pop-up roof*

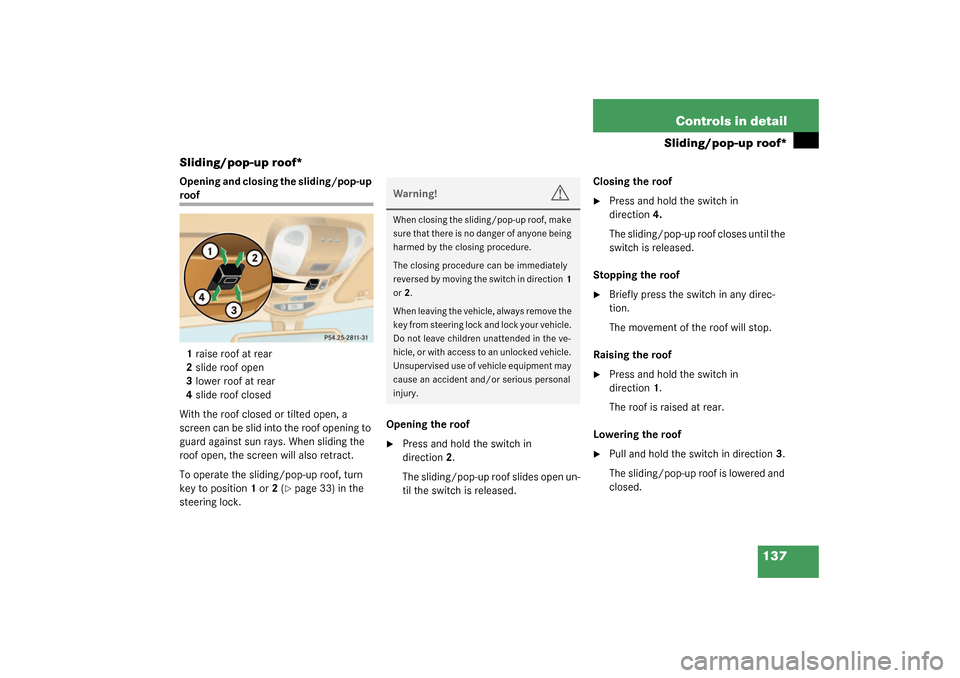

Sliding/pop-up roof*
Opening and closing the sliding/pop-up roof
1raise roof at rear
2slide roof open
3lower roof at rear
4slide roof closed
With the roof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
roof open, the screen will also retract.
To operate the sliding/pop-up roof, turn
key to position1 or 2 (
page 33) in the
steering lock. Opening the roof

Press and hold the switch in
direction2.
The sliding/pop-up roof slides open un-
til the switch is released.Closing the roof

Press and hold the switch in
direction4.
The sliding/pop-up roof closes until the
switch is released.
Stopping the roof

Briefly press the switch in any direc-
tion.
The movement of the roof will stop.
Raising the roof

Press and hold the switch in
direction1.
The roof is raised at rear.
Lowering the roof

Pull and hold the switch in direction3.
The sliding/pop-up roof is lowered and
closed.
Warning!
G
When closing the sliding/pop-up roof, make
sure that there is no danger of anyone being
harmed by the closing procedure.
The closing procedure can be immediately
reversed by moving the switch in direction1
or2.
When leaving the vehicle, always remove the
key from steering lock and lock your vehicle.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

138 Controls in detailSliding/pop-up roof*Opening the roof automatically

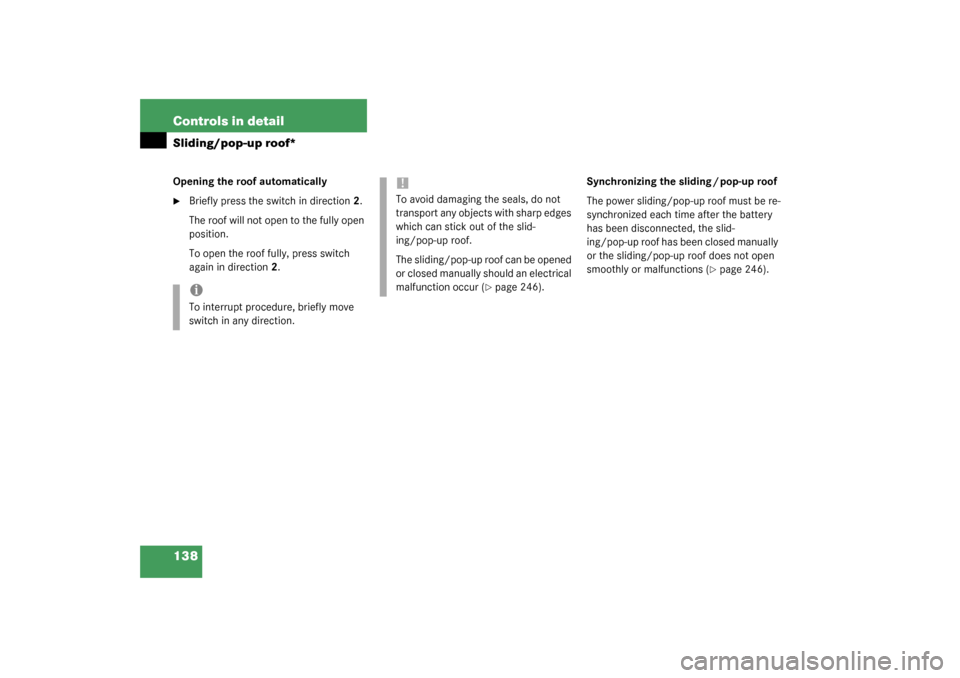

Briefly press the switch in direction2.
The roof will not open to the fully open
position.
To open the roof fully, press switch
again in direction2.Synchronizing the sliding / pop-up roof
The power sliding/pop-up roof must be re-
synchronized each time after the battery
has been disconnected, the slid-
ing/pop-up roof has been closed manually
or the sliding/pop-up roof does not open
smoothly or malfunctions (
page 246).
iTo interrupt procedure, briefly move
switch in any direction.
!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the slid-
ing/pop-up roof.
The sliding/pop-up roof can be opened
or closed manually should an electrical
malfunction occur (
page 246).

145 Controls in detail
Loading
Roof rack*Roof rails
For further information inquire at your
Mercedes-Benz Light Truck Center.
Warning!
G
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicles without the roof rack loaded.
The maximum roof load when using roof
rack systems is 220 lbs. (100 kg).
!Attach roof racks to the roof rails only.
Use only those roof racks approved by
Mercedes-Benz for your vehicle model.
Follow manufacturer’s installation in-
structions.
The vehicle could otherwise be dam-
aged.

174 Controls in detailUseful featuresSetting the compass zone

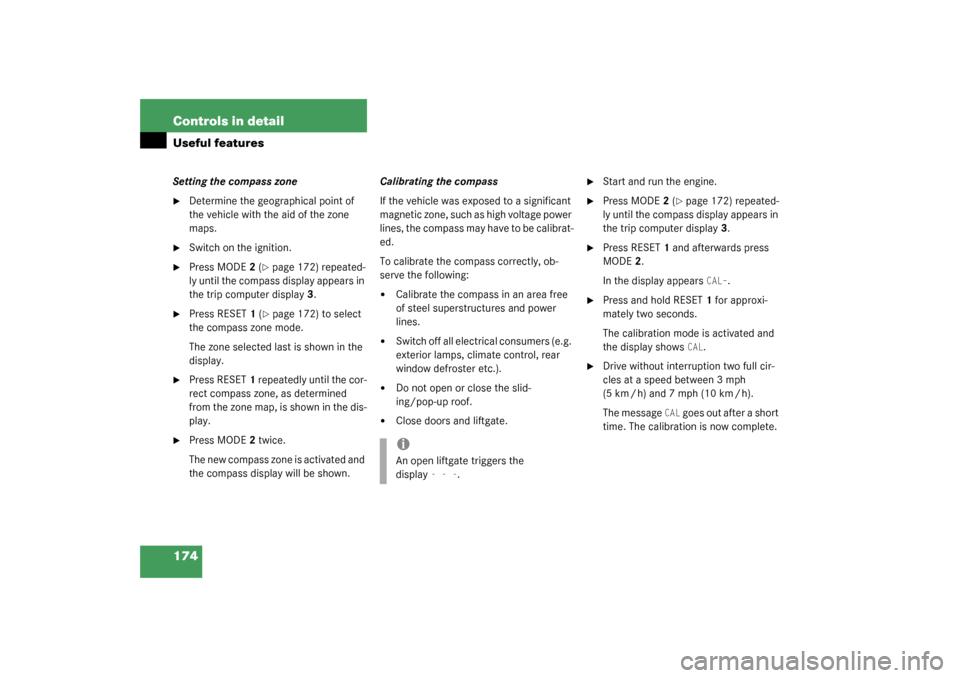

Determine the geographical point of
the vehicle with the aid of the zone
maps.

Switch on the ignition.

Press MODE2 (
page 172) repeated-
ly until the compass display appears in
the trip computer display3.

Press RESET1 (
page 172) to select
the compass zone mode.
The zone selected last is shown in the
display.

Press RESET1 repeatedly until the cor-
rect compass zone, as determined
from the zone map, is shown in the dis-
play.

Press MODE2 twice.
The new compass zone is activated and
the compass display will be shown.Calibrating the compass
If the vehicle was exposed to a significant
magnetic zone, such as high voltage power
lines, the compass may have to be calibrat-
ed.
To calibrate the compass correctly, ob-
serve the following:


Calibrate the compass in an area free
of steel superstructures and power
lines.


Switch off all electrical consumers (e.g.
exterior lamps, climate control, rear
window defroster etc.).


Do not open or close the slid-
ing/pop-up roof.


Close doors and liftgate.

Start and run the engine.

Press MODE2 (
page 172) repeated-
ly until the compass display appears in
the trip computer display3.

Press RESET1 and afterwards press
MODE2.
In the display appears
CAL–
.

Press and hold RESET1 for approxi-
mately two seconds.
The calibration mode is activated and
the display shows
CAL
.

Drive without interruption two full cir-
cles at a speed between 3 mph
(5 km / h) and 7 mph (10 km / h).
The message
CAL
goes out after a short
time. The calibration is now complete.
iAn open liftgate triggers the
display
---
.

186 OperationDriving instructionsOff-road driving

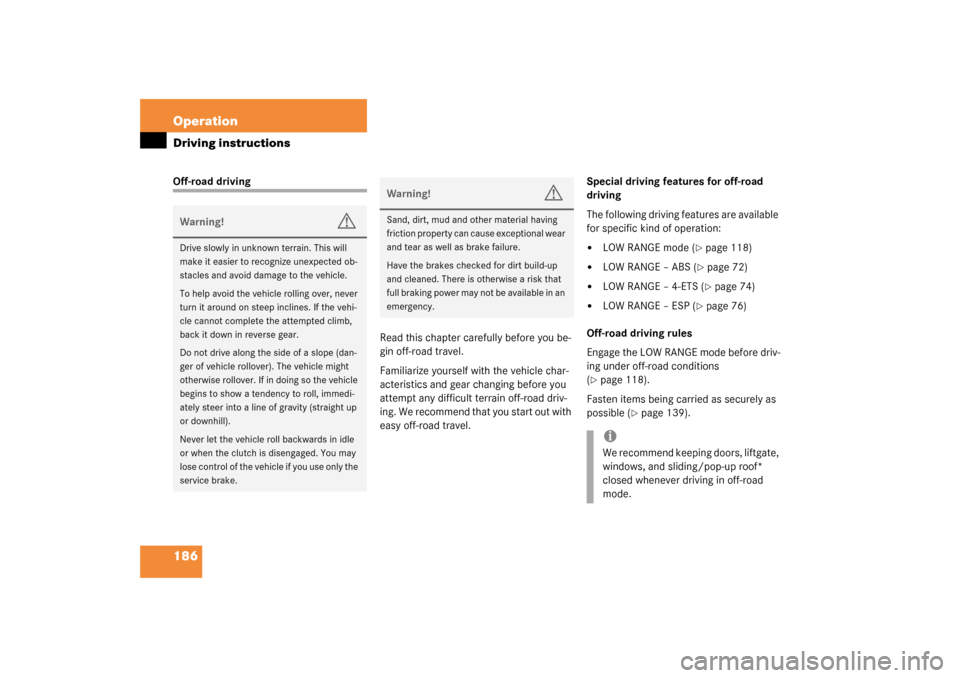

Read this chapter carefully before you be-
gin off-road travel.
Familiarize yourself with the vehicle char-
acteristics and gear changing before you
attempt any difficult terrain off-road driv-
ing. We recommend that you start out with
easy off-road travel.Special driving features for off-road
driving
The following driving features are available
for specific kind of operation:


LOW RANGE mode (
page 118)


LOW RANGE – ABS (
page 72)


LOW RANGE – 4-ETS (
page 74)


LOW RANGE – ESP (
page 76)
Off-road driving rules
Engage the LOW RANGE mode before driv-
ing under off-road conditions
(
page 118).
Fasten items being carried as securely as
possible (
page 139).
Warning!
G
Drive slowly in unknown terrain. This will
make it easier to recognize unexpected ob-
stacles and avoid damage to the vehicle.
To help avoid the vehicle rolling over, never
turn it around on steep inclines. If the vehi-
cle cannot complete the attempted climb,
back it down in reverse gear.
Do not drive along the side of a slope (dan-
ger of vehicle rollover). The vehicle might
otherwise rollover. If in doing so the vehicle
begins to show a tendency to roll, immedi-
ately steer into a line of gravity (straight up
or downhill).
Never let the vehicle roll backwards in idle
or when the clutch is disengaged. You may
lose control of the vehicle if you use only the
service brake.
Warning!
G
Sand, dirt, mud and other material having
friction property can cause exceptional wear
and tear as well as brake failure.
Have the brakes checked for dirt build-up
and cleaned. There is otherwise a risk that
full braking power may not be available in an
emergency.
iWe recommend keeping doors, liftgate,
windows, and sliding/pop-up roof*
closed whenever driving in off-road
mode.
