Interior lighting MERCEDES-BENZ ML350 2006 W163 Owner's Manual

ContentsSafety and Security........................... 65
Occupant safety................................... 66
Air bags .......................................... 67
Seat belts ....................................... 73
Preventive occupant safety*
(PRE-SAFE)
®................................... 77
Children in the vehicle .................... 78
Blocking of rear door
window operation ........................... 89
Panic alarm .......................................... 91
Activating ....................................... 92
Deactivating ................................... 92
Driving safety systems ......................... 93
ABS ................................................ 93
BAS ................................................ 95
ESP
®.............................................. 95
EBP................................................. 98
4-ETS .............................................. 98
Anti-theft systems.............................. 100
Immobilizer................................... 100
Anti-theft alarm system ................ 100
Tow-away alarm ........................... 102
Controls in detail............................. 105
Locking and unlocking ....................... 106
SmartKey ..................................... 106
SmartKey with KEYLESS-GO* ...... 110
Opening the doors
from the inside ............................. 117
Opening the tailgate ..................... 118
Closing the tailgate ...................... 120
Automatic central locking ............ 125
Locking and unlocking
from the inside ............................. 126
Seats ................................................. 128
Easy-entry/exit feature
(Vehicles with
memory function*) ....................... 128
Lumbar support............................ 130
Rear seat head restraints ............. 130
Multicontour seat* ....................... 132
Seat heating* ............................... 133Memory function* ............................. 135
Storing positions in memory ........ 136
Recalling positions
from memory ............................... 136
Storing exterior rear
view mirror parking position ........ 137
Lighting ............................................. 138
Exterior lamp switch .................... 138
Combination switch ..................... 142
Corner-illuminating
front fog lamps*........................... 143
Hazard warning flasher ................ 144
Interior lighting ............................ 145
Door entry lamps ......................... 147
Instrument cluster ............................. 148
Instrument cluster illumination .... 148
Trip odometer .............................. 149
Tachometer .................................. 149
Outside temperature indicator ..... 149

29 At a glance

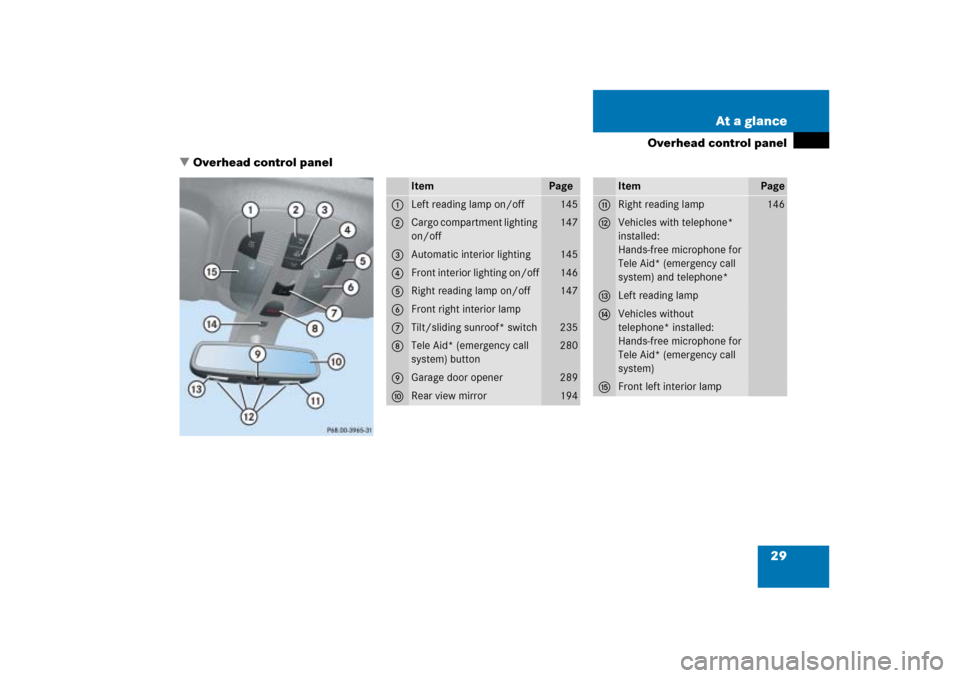

Overhead control panel
Overhead control panel
Item
Page
1
Left reading lamp on/off
145
2
Cargo compartment lighting
on/off
147
3
Automatic interior lighting
145
4
Front interior lighting on/off
146
5
Right reading lamp on/off
147
6
Front right interior lamp
7
Tilt/sliding sunroof* switch
235
8
Tele Aid* (emergency call
system) button
280
9
Garage door opener
289
a
Rear view mirror
194
Item
Page
b
Right reading lamp
146
c
Vehicles with telephone*
installed:
Hands-free microphone for
Tele Aid* (emergency call
system) and telephone*
d
Left reading lamp
e
Vehicles without
telephone* installed:
Hands-free microphone for
Tele Aid* (emergency call
system)
f
Front left interior lamp

145 Controls in detail
Lighting
Switching on hazard warning flasher
Press hazard warning flasher
switch1.
All turn signals are flashing.
Switching off hazard warning flasher

Press hazard warning flasher switch1
again.
Interior lighting
The controls are located in the overhead
control panel.1Left reading lamp on/off
2Cargo compartment lighting on/off
3Automatic control on/off
4Front interior lighting on/off
5Right reading lamp on/off
6Front right interior lamp
7Right reading lamp
8Left reading lamp
9Front left interior lamp
iWith the hazard warning flasher
activated and the combination switch
set for either left or right turn, only the
respective turn signals will operate
when the ignition is switched on.iIf the hazard warning flasher has been
activated automatically, press hazard
warning flasher switch1 once to
switch it off.
iThe interior lighting is factory-set to
automatic mode.

146 Controls in detailLightingAutomatic control
Deactivating
Press switch3.
The switch engages in the recessed
position.
The interior lighting remains switched
off, even when you

unlock the vehicle


remove the SmartKey from the
starter switch


open a door


open the tailgateActivating

Press switch3.
The switch disengages from its
recessed position back to its original
position.
The interior lighting switches on in
darkness, when you

unlock the vehicle


remove the SmartKey from the
starter switch


open a door


open the tailgate
The interior lamps are switched off follow-
ing an adjustable time delay (
page 170).Manual control
Front interior lighting

Press front interior lighting switch4.
The front interior lighting switches on.

Press front interior lighting switch4
again.
The front interior lighting switches off.
Switching left front reading lamp on and
off

Press button1.
The left reading lamp comes on.

Press button1 again.
The left reading lamp goes out.
iIf the door remains open, the interior
lighting switches off automatically after
approximately five minutes when the
SmartKey is removed or in starter
switch position0.
An interior lamp switched on manually
does not go out automatically.

147 Controls in detail
Lighting
Switching right front reading lamp on
and off
Press button5.
The right reading lamp comes on.

Press button5 again.
The right reading lamp goes out.
Switching rear interior reading lamps on
and off
The rear interior reading lamps are located
above the rear side windows next to the
grab handles.
1Rear interior reading lamp

Press reading lamp1 in direction of
arrow.
The reading lamp comes on.

Press reading lamp1 in direction of
arrow again.
The reading lamp goes out.
Cargo compartment lamp
The cargo compartment lamp switches on
if the tailgate is opened.
If you leave the tailgate open for an extend-
ed period of time, the cargo compartment
lamp will switch off automatically after ap-
proximately five minutes.Switching cargo compartment lamp on
and off manually

Press switch2 (
page 145).
The cargo compartment lamp comes
on.

Press switch2 again.
The cargo compartment lamp goes out.
Door entry lamps
For better orientation in the dark, the
corresponding door entry lamps will switch
on in the darkness when you open a door
and the automatic control is activated.
The door entry lamps will switch off when
the corresponding door is closed.
iIf you turn the SmartKey in the starter
switch to position0 and switch off the
headlamps, the door entry lamps will
remain lit for approximately five
minutes.

163 Controls in detail
Control system

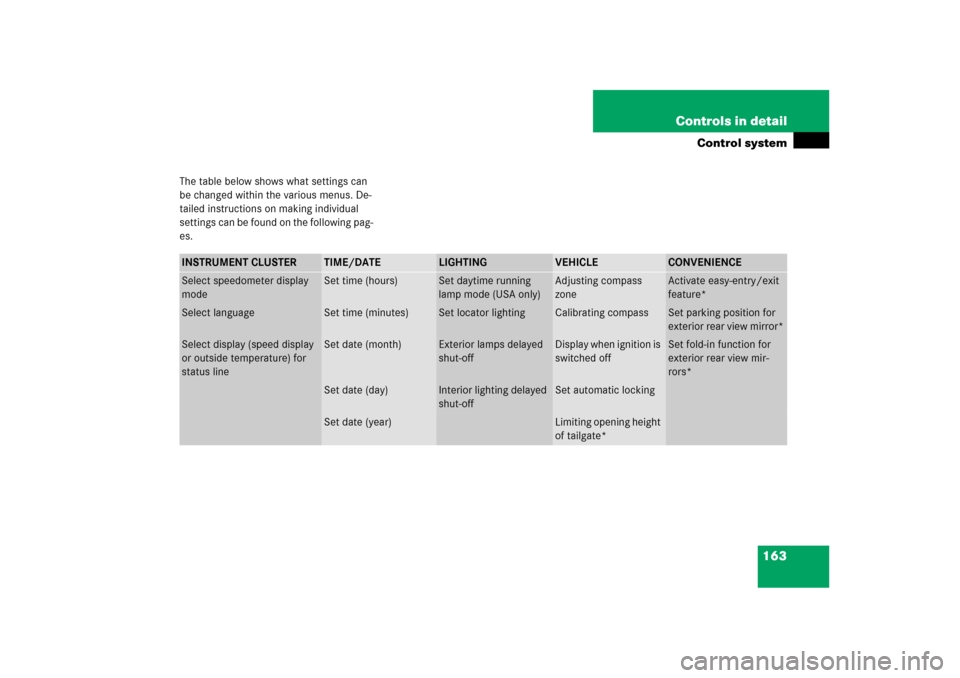

The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.INSTRUMENT CLUSTER
TIME/DATE
LIGHTING
VEHICLE
CONVENIENCE
Select speedometer display
mode
Set time (hours)
Set daytime running
lamp mode (USA only)
Adjusting compass
zone
Activate easy-entry/exit
feature*
Select language
Set time (minutes)
Set locator lighting
Calibrating compass
Set parking position for
exterior rear view mirror*
Select display (speed display
or outside temperature) for
status line
Set date (month)
Exterior lamps delayed
shut-off
Display when ignition is
switched off
Set fold-in function for
exterior rear view mir-
rors*
Set date (day)
Interior lighting delayed
shut-off
Set automatic locking
Set date (year)
Limiting opening height
of tailgate*

167 Controls in detail
Control system
Set date (year)
This function is not available if your vehicle
is equipped with the Modular COMAND
System and navigation module*.
Move the selection marker to the Time/Date
submenu using theæ or
çbutton.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Date Set year
.
The selection marker is on the year set-
ting.

Press buttonæ orç to set the
year.Lighting submenu
Access the
Lighting
submenu via the
Settings...
menu. Use the
Lighting
submenu to change the lamp and lighting
settings on your vehicle. The following
functions are available:Setting daytime running lamp mode
(USA only)

Move the selection marker to the Lighting
submenu using theæ
orç button.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Light circuit headlamp mode
.
The selection marker is on the current
setting.
Function
Page
Set daytime running lamp mode
(USA only)
167
Set locator lighting
168
Exterior lamps delayed shut-off
169
Interior lighting delayed shut-off
170
iThis function is not available in coun-
tries where daytime running lamps are
mandatory.


170 Controls in detailControl system
Press buttonæ orç to select
the desired lamp-on period.
You can select:

0 s
, the delayed shut-off feature is
deactivated.


15 s
, 30 s
, 45 s
or
60 s
, the delayed
shut-off feature is activated.

Turn the exterior lamp switch to posi-
tion U before turning the engine off.
You can temporarily deactivate the de-
layed shut-off feature:

Before leaving the vehicle, turn the
SmartKey in the starter switch to
position0.

Then turn the SmartKey in the starter
switch to position2 and back to0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.Vehicles with KEYLESS-GO*:

Press KEYLESS-GO start/stop button
in the starter switch (
page 35).
Interior lighting delayed shut-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
SmartKey is removed from the starter
switch.

Move the selection marker to the Lighting
submenu using theæ
orç button.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Int. illum. delayed shut-off
.
The selection marker is on the current
setting.

Press buttonæ orç to select
the desired lamp-on time period. You
can select:

0 s
, the delayed shut-off feature is
deactivated.


5 s
, 10 s
, 15 s
, or
20 s
, the delayed
shut-off feature is activated.


510 IndexBrake pads
Message in display 408
Brakes 300
Warning lamp 383
Break-in period 298
Bulbs, replacing 443
Additional turn signals 443
Backup lamps 444
Brake lamps 444
Fog lamps 443
Front fog lamp 449
Front lamps 443
High beam 443
License plate lamps 444, 451
Low beam 443
Parking, standing lamp 443
Rear fog lamps 450
Rear side marker lamp bulbs 450
Side marker lamp 443
Side marker lamps 444
Turn signal lamps 443, 444C
CAC (Customer Assistance Center) 501
Calibrating
Compass 171
California
Important notice 11
Call priority
Tele Aid* 287
Calling up
Range (distance to empty) 178
Service indicator 372
CAN system 501
Capacities
Fuels, coolants, lubricants, etc. 493
Cargo compartment
Fuse box in 479
Interior lighting 145
Lamp 147
Tie-down rings 260
Cargo compartment cover* 265
Closing 265
Installing 265
Opening 265
Removing 265
Cargo tie-down rings 260Carpet
Cleaning 379
Catalytic converter 320
CD player
Operating 158
Center console 27
Lower part 28
PASS AIR BAG OFF indicator
lamp 393
Upper part 27
Central locking
Automatic 125
Switch 126
Switching on/off
(control system) 172
Unlocking from inside 126
Central locking switch 126
Certification label 484
Changing
SmartKey setting 173
Charging
Vehicle battery 469
CHECK ENGINE malfunction
indicator lamp 385, 386

513 Index
Cup holder 274
Cleaning 379
In front seat armrest 274
In rear center console 274
Reinstalling 275
Removing 275
Curb weight 365
Customer Assistance Center (CAC) 501
D
Daytime running lamp mode 140
Setting 167, 168
Deactivating
Air conditioning 211
Air conditioning (cooling) 226
Air recirculation mode 210, 225
Alarm 101
Anti-theft alarm system 101
Automatic climate control*
(3-zone) 220
Central locking (control system) 172
Climate control 206
climate control system 206
Cruise control 240Defrost 209, 223
Engine 62
ESP
®
97
Hazard warning flasher 145
Headlamps 62
Immobilizer 100
Interior lighting delayed
switch-off 170
Rear passenger compartment
ventilation and climate control 228
Rear window defroster 201
Rear window wiper 58
Residual heat 212, 227
Seat heating* 134
Tow-away alarm 102
Deep water see Standing water
Defogging
Windshield 208, 222
Defrosting 208, 223
Delayed switch-off
Interior lighting 170
Department of Transportation see DOT
Dialing
A number (telephone*) 180Difficulties
While driving see Problems
while driving
Digital speedometer 156
Direction of rotation (tires) 338
Discharged battery
Jump starting 470
Disconnecting
Vehicle battery 464
Display
Selecting 165
Displays
Digital speedometer 156
Maintenance service indicator 371
Messages 329
Selecting 165
Showing messages 160
Distance to empty (range)
Calling up 177
Door control panel 30
Door entry lamps 147
Door handle 30
Door unlock
With Tele Aid* 288
